Product Type	36-inch 6-String Classic Acoustic Guitar
Brand	Pyle
Model	PGACLS82.9
Scale Length	22.83 inches (580 mm)
Total Guitar Length	36 inches
Body Length	17.32 inches (440 mm)
Neck Length (Nut to Body)	18.5 inches (470 mm)
Total Dimensions (L x W x H)	35.83 x 13.39 x 3.35 inches
Body Material	Linden Wood
Fretboard Material	Dyed Wood
Headstock Material	Birch
Number of Frets	18
String Material	Nylon
Machine Heads	Chrome 3-in-Line
Finish	High-Gloss Polished Body & Back, Rosette Linden Laminate
Included Accessories	Gig bag, guitar picks, detachable shoulder strap, digital tuner (clip-on), cleaning cloth, spare strings
Digital Tuner Specs	Clip-on, tuning range A0-C8 (27.5-4186 Hz), response time <20ms, powered by CR-2032 battery (included)
Recommended User	Beginners and children
Safety Warnings	Contains button cell battery - keep out of reach of children. California Prop 65 warning.
Care Instructions	Clean with included cloth; avoid ingestion of battery; tune and stretch new strings as described in manual.

Frequently Asked Questions - PGACLS82.9 Pyle

How do I attach the guitar strap?

Adjust the strap to the correct size. Thread the looped end of the string through the key hole on the front of the strap and tie a knot close to the hole. Then run one side of the string through the headstock and tie a knot on the other side.

How do I tune the guitar for the first time?

First, stretch the strings by holding them down with your left hand and pulling away from the body with your right. Then use a tuner: pluck the string and turn the tuning peg until the correct pitch is reached. The strings are E, A, D, G, B, E (low to high). Stretch and retune 6-8 times for new strings.

What kind of battery does the digital tuner use?

The clip-on tuner uses one CR-2032 button cell battery, which is included. Warning: Button cell batteries are a choking hazard; keep away from children.

How do I clean the guitar?

Use the included cleaning cloth to gently wipe the body and strings. Avoid abrasive cleaners. For the fretboard, a slightly damp cloth can be used; dry immediately.

Is this guitar suitable for children?

Yes, it is a 3/4 scale size with a total length of 36 inches, designed as a starter guitar perfect for beginners and children.

What materials is the guitar made of?

The body is made of linden wood, the fretboard is dyed wood, and the headstock is birch. The strings are nylon.

How many frets does the guitar have?

The guitar has 18 frets.

What is included in the box?

The box includes the guitar, a gig bag, guitar picks, a detachable shoulder strap, a digital clip-on tuner, a cleaning cloth, and spare strings.

Why does the guitar go out of tune after changing strings?

New strings stretch and settle. After tuning, gently tug each string at the middle to stretch it, then retune. Repeat this process 6-8 times until the strings hold tune.

What is the scale length of the PGACLS82.9?

The scale length is 22.83 inches (580 mm).

USER MANUAL PGACLS82.9 Pyle

Visit Our Website

SCAN ME

PyleUSA.com

36" -Inch 6-String Classic Guitar

USER GUIDE

Please take a few moments to read through this booklet.

In it you will find answers to many of your questions and other invaluable information about how to attach a guitar strap and how to tune a guitar.

Instructions

A. How to attach a guitar strap?

1. Adjust your guitar strap to the correct size.

Close-up of a black mechanical component with a circular label 'A B C' in the corner (no other text or symbols visible)

Close-up of hands folding a dark object on a light surface (no text or symbols visible)

Close-up of a black horizontal bar with a circular mark on the left, placed on a wooden surface (no text or symbols visible)

1. Take the looped end of your string and thread it through the key hole on the front of your strap, tying a knot close to the hole.

Close-up of hands holding a black cable or wire on a wooden surface (no text or symbols visible)

Close-up of hands holding a black computer mouse with a cable, on a textured surface (no text or symbols visible)

Close-up of a hand holding a black computer mouse on a wooden surface (no text or symbols visible)

1. Adjust your guitar strap to the correct size.

Close-up of a textured surface with a small circular mark and label 'A B C' (no other text or symbols)

Close-up of a hand holding a black circular object, possibly a device or tool, with no visible text or symbols.

Close-up of a black plastic buckle with a circular hole on the left side (no text or symbols visible)

1. Run one side of the string through the headstock and tie a knot on the other side.

Close-up of a hand forming a chord on a guitar fretboard (no text or symbols visible)

Close-up of hands forming a chord on an acoustic guitar fretboard (no text or symbols visible)

Close-up of a hand pressing guitar strings on the fretboard (no text or symbols visible)

1. Ready to Play now!

Person wearing a black top and holding a guitar, viewed from behind (no text or symbols visible)

Person playing acoustic guitar in a studio setting (no visible text or symbols)

Person playing a string instrument, viewed from behind (no text or symbols visible)

B. How to tune a guitar (for first time user)

1. Hold the strings down with your left hand while stretch the strings away from the body with your right. (image 1)
2. Use some pressure to wiggle strings back and forth. You don't need to be gentle but make sure you don't pull too hard once you feel the string resisting or it can break. (image 2)

Person playing acoustic guitar in a studio setting (no visible text or symbols)

Close-up of a person playing guitar with strings and fretboard (no text or symbols visible)

BASIC RUNDOWN OF TUNING A GUITAR

1. Memorize what the strings are on the guitar. (E - Low version, A, D, G, B, E - High version) (image A, B)
2. Look at the tuners of the guitar. (image C)

Person playing acoustic guitar with visible fretboard and chord (no text or symbols)

Close-up of a hand forming a guitar headstock with fretboard (no text or symbols visible)

1. Pluck the string with a pick or if not with the pick then with your finger and when you move the tuner around, you can hear the pitch get lower. You can turn it the other way and tighten it and you hear the pitch get higher.

Close-up of a hand playing acoustic guitar with fretboard (no visible text or symbols)

Close-up of a person's hand pressing guitar strings on a fretboard (no text or symbols visible)

1. You can also use clip-on tuners then put on the headstock because it reads the vibration off the guitar and tells what note it is or it's close to.

Close-up of a black analog compass with green indicator lights and a small clamp, labeled 'A' (no text or symbols on the device itself)

Close-up of a person's guitar fretboard with a finger and tuning knob (no text or symbols visible)

▲WARNING

• INGESTION HAZARD: This product contains a button cell or coin battery.
• DEATH or serious injury can occur if ingested.
- A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.
- KEEP new and used batteries OUT OF REACH of CHILDREN
- Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

1. Move the needle of the tuner to get the right tune of the string. If the needle goes too far, bring it back down and even lower than the notes needs to be and then bring it back up until the needle hits the right tune of the strings.

Person playing acoustic guitar with strings, no visible text or symbols

1. Once you've tuned all the strings, you can gently tug each string at the middle back and forth to help stretch it. When stretched the string will drop pitch and go out of tune. After stretching re-tune each string and repeat this process 6-8 times. This stretching process is only necessary for new strings and the instrument will hold better in tune after they are broken in.

Close-up of a hand forming a chord on a guitar fretboard (no text or symbols visible)

Close-up of a hand pressing guitar strings on the fretboard (no text or symbols visible)

Close-up of a hand pressing guitar strings on the fretboard (no text or symbols visible)

Close-up of a person's hand forming a GBE guitar chord on the fretboard (no text or symbols visible)

Close-up of a hand forming a guitar headstock with visible tuning pegs (no text or symbols)

Close-up of a hand forming a chord on a guitar fretboard (no text or symbols visible)

Features:

• 3/4 Scale Size Guitar
• Traditional / Classic Body Style
• Hand-Crafted Wooden Construction
- Protective Binding
• High-Gloss Polished Body & Back
• Machine Head: Chrome 3-in-Line
• Dyed Wood Design, Rosette Linden Laminate Finish
- Starter Guitar Design Perfect for Beginners & Children

What's in the Box:

• Guitar
  • Travel / Storage Guitar Gig Bag
• Guitar Picks
• Detachable Guitar Shoulder Strap
  • Digital Guitar Tuner
• Cleaning Cloth
• Spare Guitar Strings

Digital Guitar Tuner:

• Convenient Clip-on Design
  • Tuning Range: A0 - C8 (27.5 - 4186 Hz)
  • Response Time: <20ms
  • Used for Stringed Instruments: Guitars, Bass, Violins, Ukuleles
• Battery Powered Tuner: Requires (1) x Button Cell (CR-2032), Included
• Tuner Size: 2.4" x 1.0" x 2.0" -inches

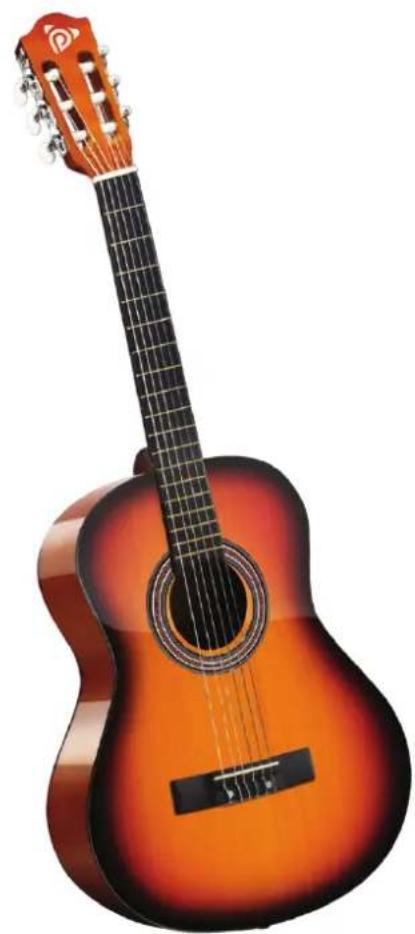

Acoustic guitar with gradient orange-red body and visible fretboard (no text or symbols)

Technical Specs:

• Total Guitar Length: 36" -inches
• Scale Length: 22.83" -inches (580mm)
• Total Body Length: 17.32" -inches (440mm)
- Total Neck Length (Nut to Body): 18.5" -inches (470mm)
• Headstock Material: Birch
- Fretboard/Fingerboard Material: Dyed wood
• Number of Frets: 18 Frets
• Guitar Body Material: Linden Wood
• Guitar String Material: Nylon String
• Total Guitar Dimensions (L x W x H): 35.83" x 13.39" x 3.35"-inches

California Prop 65 Warning

WARNING:

This product may expose you to chemicals, which is known to the state of California to cause cancer, birth defects and other reproductive harm. Do not ingest.

For more Info go to: www.P65warnings.ca.gov

Register Product

Thank you for choosing PyleUSA. By registering your product, you ensure that you receive the full benefits of our exclusive warranty and personalized customer support.

Complete the form to access expert support and to keep your PyleUSA purchase in perfect condition.

Start Here

Model Number: PGACLS82
PyleUSA.com/pages/register

Abstract orange logo design with stylized letter 'P' and arrow-like shapes on black background (no text or symbols)

Questions or Comments

We are here to help!

Phone: [phone]

PyleUSA.com/ContactUs
