Product Type	Condiment Chiller (Countertop Refrigerator)
Model	Nemco 9020 Series (9020, 9020-1, 9020-2, 9020-3, 9025)
Power Supply	120 V, grounded outlet; refer to serial plate for wattage
Cooling Performance	Cools to no more than 30°F below ambient temperature
Pre-chilling Requirement	Pre-chill food before placing into chiller for best results
Installation Clearance	1 inch clearance required from back side
Surface	Place on flat, stable, non-combustible surface
Cleaning	Daily cleaning with damp cloth; do not immerse, use abrasive cleaners, vinegar, or chlorine-based cleaners
Safety Features	Automatic shut-off not specified; requires grounded outlet, do not operate with back panel removed, keep away from water
Power Cord	3-blade plug; do not cut or break off third blade
Usage	Indoor use only; not for wet or moist locations
Warm-up Time	Allow 90 minutes to cool before use
Compatible Food Pans	1/3, 1/6, or 1/9 size pans with lids depending on sub-model
Customer Support	NEMCO Food Equipment: 1-800-782-6761
Repair Policy	Do not repair yourself; contact authorized service facility

Frequently Asked Questions - 9020 Nemco

What voltage does the Nemco 9020 condiment chiller require?

The unit requires a properly grounded 120 volt outlet. Refer to the serial plate on the back for exact voltage and wattage.

How long does it take for the chiller to cool down?

Allow the unit to cool for 90 minutes after turning on before placing food in the pans.

Can I immerse the chiller in water for cleaning?

No, do not immerse the unit in water. Clean with a damp cloth and avoid saturating the power switch, cord, or display.

What cleaners should I avoid?

Avoid scouring powders, abrasive cleaners, vinegar, corrosive cleaners, chlorine-based cleaners, steel wool, and wire brushes. Use cleaners safe for stainless steel.

What if the unit does not start?

Check that the unit is plugged in and turned on, the circuit breaker is not tripped, and the outlet has proper voltage.

Can I use an extension cord?

Avoid extension cords. If necessary, use a three-blade grounded extension cord rated for the appliance's power. Do not run cord under carpets.

How much clearance does the chiller need?

Maintain 1 inch of clearance from the back side for proper airflow.

What should I do if the power cord is damaged?

Do not repair yourself. Contact NEMCO customer service at 1-800-782-6761 or an authorized service facility.

Can I use the chiller outdoors?

No, this appliance is for indoor use only and should not be used in wet or moist locations.

Why does food freeze in the chiller?

Avoid placing containers in direct contact with the chiller walls. Pre-chill food and keep lids on when not serving to prevent freezing.

USER MANUAL 9020 Nemco

Operating and Maintenance Instructions

Model: 9020, 1/3 Condiment Chiller

9020-1, Condiment Chiller with 1/3 Size Pan and Lid 9020-2, Condiment Chiller with 1/6 Size Pans and Lids 9020-3, Condiment Chiller with 1/9 Size Pans and Lids 9025, 1/3 Condiment Chiller, controls on side

INTRODUCTION

1. Please read instructions before using this appliance.
2. When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury.
3. Clean machine thoroughly before and after all uses following cleaning instructions below.
4. Thoroughly inspect package for damage before and during unloading. If the equipment is received damaged, either visible or concealed, a claim must be file with the carrier.

ELECTRICAL REQUIREMENTS

Must use properly grounded 120 volt outlet. Refer to the product label (serial plate) on the back panel for voltage and wattage requirements.

SAFETY INSTRUCTIONS

1. Warning! All power must be disconnected at power source before any service procedure is performed.
2. Extreme caution is necessary when any appliance is used by or near children and whenever the appliance is left unattended.
3. Always unplug appliance when not in use and before cleaning, adjusting or maintaining this machine. To disconnect appliance, turn controls off and remove plug from power source.
4. DO NOT operate the chiller with the back panel or back cover removed.
5. DO NOT block filter/fan areas. This unit needs to have airflow in order to work properly.
6. Do not operate any appliance with a damaged cord or plug, after the appliance malfunctions, has been dropped, or damaged. Return appliance to an authorized service facility for examination, electrical or mechanical adjustment, or repair.
7. Do not use outdoors. This appliance is not intended for use in wet or moist locations. Never locate appliance where it may fall into water.
8. Connect to properly grounded outlets only. Avoid the use of extension cords. Do not run cord under carpeting, runners, or the like. Arrange cord away from traffic area and where it will not be tripped over.
9. This appliance is equipped with a power cord with a three-blade plug. Plug ONLY into a matching three-blade outlet. DO NOT cut or break off the third blade or attempt to use with a two-blade extension cord.
10. To prevent a possible fire, it is recommended that the unit is placed on a non-combustible surface.
11. This appliance has electrical parts. Do not use it in areas where gasoline, paint, or flammable liquids are used or stored.

PREPARATION

1. Set chiller on a flat stable surface, near the power source.
2. Clean the chiller thoroughly before use with a warm wet cloth to remove any shipping dust or oil residue from manufacturing process.
3. IMPORTANT: One inch of clearance is required from back side.
4. If unit fails to work properly when first operated call NEMCO customer service at 1-800-782-6761.

OPERATION

1. Make sure unit is turned off and unplugged from the outlet.
2. Plug 12 volt adaptor into the power connector in the back of the unit.
3. Plug CORD into grounded 120 volt electrical outlet. Electrical shock can occur if appliance is not grounded.
4. Turn on the power switch and allow unit to cool for 90 minutes. IMPORTANT: The unit cools to no more than 30^ below the ambient temperature.
5. Place CHILLED product into inset pan and then place inset pan into chiller.
6. Avoid product in container freezing by keeping container from touching chiller wall.

For Best results:

• Pre-chill food prior to placing into chiller

- Keep lids on when not serving

CLEANING

NOTE: Proper maintenance plays an important part in the life span and functioning of the unit. To maintain appearance and increase the service life, the unit should be cleaned at least daily.

Daily Cleaning

1. Unplug the power cord before cleaning or moving.
2. Lift out removable food containers. Clean thoroughly.
3. Wipe exterior with damp cloth. Do not use scouring powders or abrasive cleaners. Do not pour water or saturate power switch, power cord, or temperature display area. DO NOT IMMERSE IN WATER.

NOTE: NEVER use vinegar or corrosive cleaners. DO NOT use chlorine based cleaners. Do not clean with steel wool or wire brushes. Use cleaners SAFE for stainless steel.

TROUBLESHOOTING

If the unit fails to operate properly, check for the following:

1. Make sure the unit is plugged in and turned on.
2. Check that the circuit breaker has not been tripped.
3. Check that the plug has the proper voltage as specified on the data plate.

Repair: To avoid serious injury or damage, do not repair the unit or replace a damaged power cord yourself. Repairs must be coordinated through: NEMCO Food Equipment customer service at 1-800-782-6761.

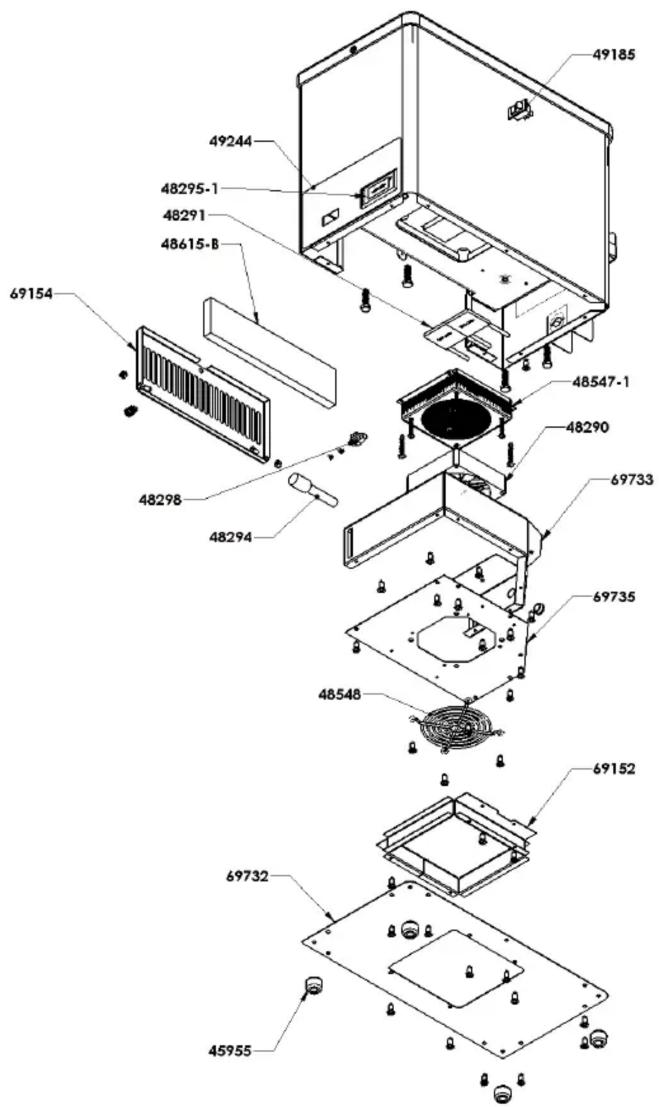

EXPLODED PARTS DIAGRAM, 9020
