| Product Type | Laser Level |
| Brand | Fluke |
| Model | 835 |
| Laser Class | Class 2 (635 nm, <1 mW) |
| Self-Leveling Range | ±5° |
| Working Range (with detector) | Up to 30 m |
| Accuracy | ±1.5 mm at 10 m |
| Power Supply | 2 AA Alkaline batteries |
| Battery Life | Up to 20 hours continuous use |
| Dimensions (H x W x D) | 120 x 60 x 100 mm |
| Weight | 0.3 kg (with batteries) |
| Material | ABS plastic |
| Ingress Protection | IP54 (dust and splash resistant) |
| Mounting Thread | 1/4"-20 (for tripod) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Included Accessories | Target plate, batteries, carrying case |
| Warranty | 1 year |
| Maintenance | Clean with soft, damp cloth; avoid solvents |
| Safety Precautions | Do not direct laser beam into eyes; avoid reflective surfaces |
Frequently Asked Questions - 835 FLUKE
How do I turn on the Fluke 835 laser level?
Press the power button located on the top of the unit. The laser will self-level and emit a beam. The green LED indicates the unit is on.
What batteries does the Fluke 835 use?
The Fluke 835 uses two AA alkaline batteries. Insert them with correct polarity as indicated inside the battery compartment.
Can I use the Fluke 835 outdoors?
Yes, but the laser beam may be less visible in bright sunlight. Use a laser detector (sold separately) to extend the working range up to 30 m.
How do I check the accuracy of my Fluke 835?
Set up the laser at a known height and mark the beam position at 10 m. Rotate the laser 180° and check if the beam deviates. The maximum deviation should be ±1.5 mm.
What does a flashing red light mean?
A flashing red light indicates that the unit is out of its self-leveling range (more than ±5° tilt). Place the laser on a more level surface.
How do I clean the laser lens?
Use a soft, lint-free cloth slightly dampened with water or a mild glass cleaner. Do not use solvents or abrasive materials.
Is the Fluke 835 waterproof?
The Fluke 835 has an IP54 rating, meaning it is protected against dust and splashes from any direction. Do not submerge in water.
What is the warranty period for the Fluke 835?
Fluke offers a one-year warranty against defects in materials and workmanship. Register your product online to extend warranty.
Can I mount the Fluke 835 on a tripod?
Yes, the base has a 1/4"-20 threaded insert for standard camera tripods or laser mounting brackets.
What is the laser class and is it safe for eyes?
The Fluke 835 is a Class 2 laser with output <1 mW at 635 nm. It is safe for momentary exposure but avoid prolonged direct eye contact.
User questions about 835 FLUKE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Laser level in PDF format for free! Find your manual 835 - FLUKE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 835 by FLUKE.
USER MANUAL 835 FLUKE
835 Laser Belt Alignment Tool
www.fluke.com
©2021 Fluke Corporation, All Rights Reserved


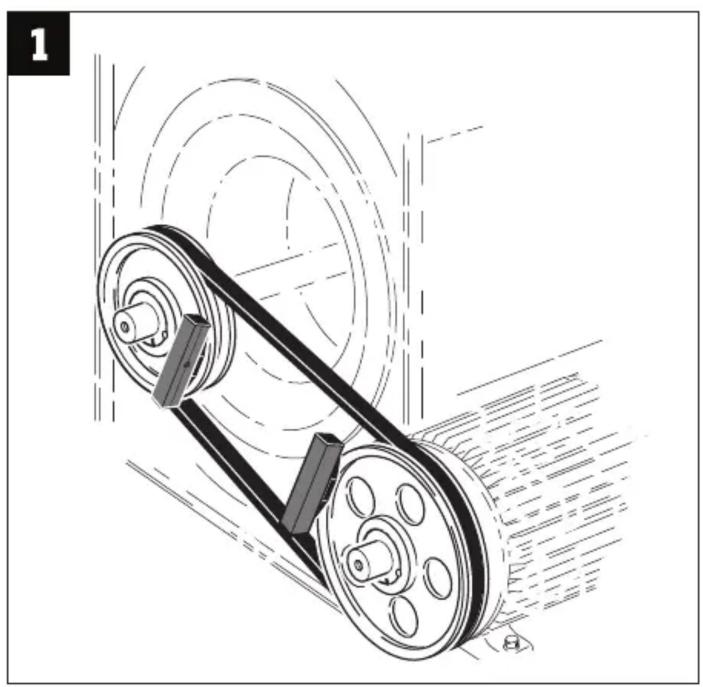

Mechanical diagram showing a pulley system with rotating wheels and a connecting rod (no text or symbols)


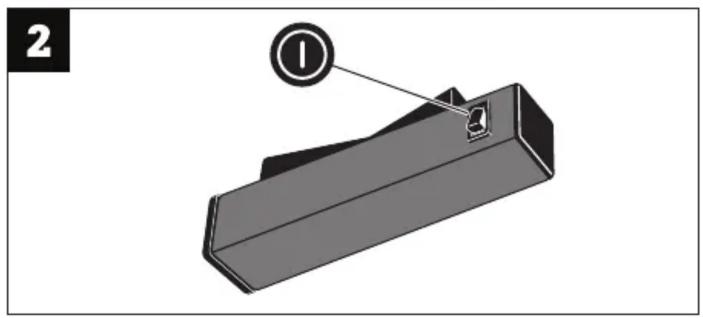

3D mechanical part diagram with labeled component (1) and numbered marker (2), no readable text or symbols beyond labels
