PLMRCT43BK - Camera Pyle - Free user manual and instructions

Product Type	Underwater Fishing Camera System
Brand	Pyle
Model	PLMRCT43BK
Monitor Screen Size	4.3 inches TFT Color LCD
Camera Resolution	1000 TVL
Night Vision	12 pieces Infrared LED
Waterproof Rating	IP68
Maximum Detection Depth	15 meters (49 feet)
Cable Length	590.6 inches (15 meters)
Image Mode	Color (switches to black & white in low light)
Viewing Distance	0-3 meters
Battery Type	12V Lithium-ion, 4500 mAh rechargeable
Battery Working Time	Up to 8 hours
Charging Time	Up to 2 hours
Power Input	AC 100-240V to DC 12.6V 1000mA
Monitor Dimensions (L x W x H)	5.19 x 3.14 x 0.86 inches
Housing Material	Monitor: Plastic; Camera: Metal
Applications	Ice fishing, ocean fishing, lake fishing, aquaculture monitoring, underwater exploration, swimming/diving/snorkeling
Included Accessories	4.3" monitor, waterproof camera, cable, sunshield cover, carrying case
Special Features	IR light on/off, menu settings, wire wheel for cable management

Frequently Asked Questions - PLMRCT43BK Pyle

How do I charge the monitor before first use?

Use the included USB power charge cable. Connect it to a standard USB power source (e.g., computer or wall adapter). Charge for up to 2 hours until the battery is full. The monitor battery lasts about 10 hours on a full charge.

Is the camera truly waterproof?

Yes, the camera has an IP68 waterproof rating, meaning it is fully protected against dust and can be submerged in water beyond 1 meter depth. The maximum detection depth is 15 meters.

How do I turn on the infrared lights for night fishing?

Press the IR LED light On/Off button on the monitor or camera control. The 12 infrared LEDs will illuminate the underwater environment, providing clear black-and-white video in low or no light conditions.

Can I use this system for ice fishing?

Absolutely. The system is designed for ice fishing, ocean fishing, and lake fishing. The monitor is portable and the camera cable is waterproof and durable. Ensure the monitor stays dry and warm during use.

What is the cable length, and can it be extended?

The camera cable is 590.6 inches (15 meters) long. It is not designed to be extended, but the length is sufficient for most fishing and underwater inspection applications. The cable is water-resistant, anti-corrosion, and pull-resistant.

How do I clean the camera and monitor?

After use, rinse the camera with fresh water to remove salt or debris. Wipe the lens gently with a soft cloth. Clean the monitor with a damp, lint-free cloth. Avoid using harsh chemicals. Dry all parts before storing.

What does the 'Menu' button do?

The Menu button opens the on-screen display settings. You can adjust brightness, contrast, color, and other display parameters to optimize the underwater view according to your preference.

Why is the image black and white underwater?

The camera automatically switches to black-and-white mode in low light conditions to enhance contrast and visibility. Under sufficient ambient light, it displays full color images.

Can I replace the battery?

The battery is built-in and not user-replaceable. If the battery no longer holds a charge, contact Pyle support for repair or replacement options. Regular charging and proper storage will extend battery life.

What should I do if the monitor does not turn on?

First, ensure the monitor is charged. If it still doesn't power on, check the Power ON/OFF button. If the problem persists, try a different charging cable or adapter. Contact Pyle support at 1-718-535-1800 or [e-mail] for further assistance.

USER MANUAL PLMRCT43BK Pyle

Exterior view of a fishing monitoring device with a coiled cable and a digital display showing underwater scenes (no text or symbols visible on main components)

☆☆☆☆☆√☆

√ √ ☆□□▽☆○★☆☆ □■▽□□ *■★★□ D ★▼★□ ◆▲★★■ *●○○□

1000TVL Camera with 12pcs Infrared Lights, Equipped with Carrying Case (Black)

USER GUIDE

PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATION

Production Introduction

1. This set of include one 4.3 inch HD monitor with battery built-in and with one HD camera with LED IR for more better picture quality, and with one special bracket to be fixed on the fishing rod, watching under water conditions in different surroundings.
2. The monitor with high capacity battery built-in, and have charging wire to power charge. The camera is HD sensor with LED IR lights, wide angle.
3. With 1.8mm diameter special cable, water proof, anti-corrosion and pull-resistant.
4. It was specially designed for underwater visual fishing, under water aquaculture monitoring, underwater view, pipeline inspection and so on.

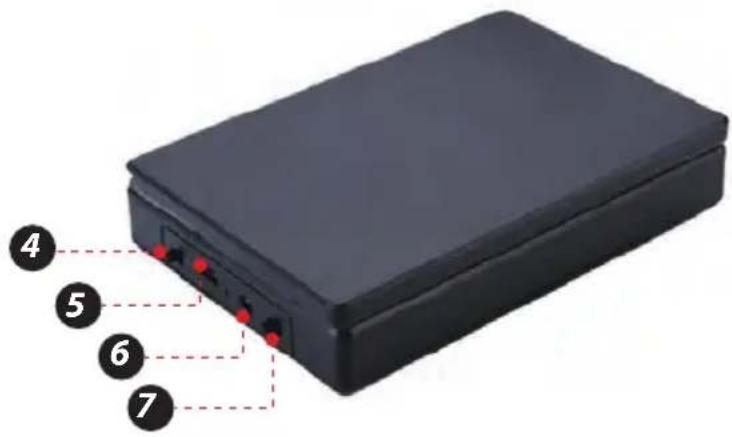

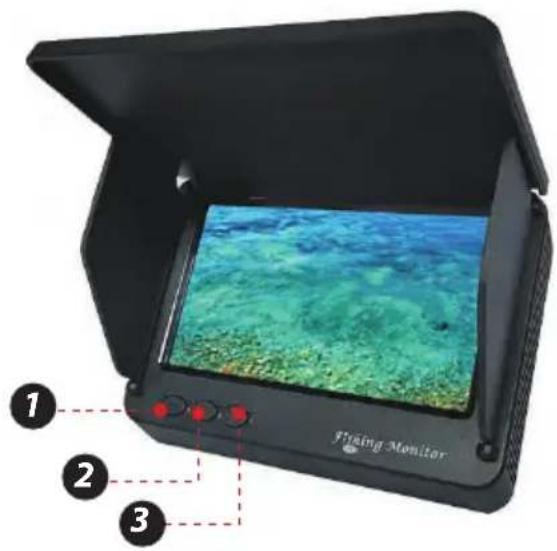

Monitor

1. Function +

2. Power Charge port

3. Menu

4. Camera Video Input

5. Function -

6. IR LED light On/Off

7. Power ON/OFF

8. Wire Wheel

9. Camera with 8 LED (Metal Housings)

10. Camera connector

Power Charge

There is one USB power charge cable in the package, please charge the unit before first use. When fully charged, the monitor can last about 10 hours and if battery power is low, please recharge it.

Features:

• IP68 Water-Resistant
• 12 Pieces Infrared LED
• Fish Finder Waterproof Underwater
• 4.3" TFT Color LCD Monitor
- With IR Lights
• Application: Ice/Ocean/Lake Fishing; Monitoring Aquaculture; Underwater Exploration; Swimming/Diving/Snorkeling

What's in the Box:

• 4.3" -Inches Monitor
• Water Proof camera
- Cable
- Sunshield Cover

Technical Specs:

• Construction Material: Monitor is Plastic housings, and camera is metal housings
  • Working Time: Up to 8 Hours
• Battery Type: 12V Lithium-ion, 4500 mAh Rechargeable Battery
• Charger Battery: AC100-240V DC12.6V 1000MA
  • Charging Time: Up to 2 Hours
• Camera Pixel: 1000TVL
• Cable Length: 590.6" -inches, Optional
  • Night Vision: 12 pcs Infrared Lights
  • Image: Color (becomes Black and White under Weak Light)
  • Viewing Distance: 0-3m
  • Camera Waterproof Level: IP68
  • Detection Depth: 15m
• Product Dimensions (L x W x H): 5.19" x 3.14" x 0.86" -inches
