SLDEHU50 - Household Fan SereneLife - Free user manual and instructions

Product Type	Dehumidifier
Brand	SereneLife
Model	SLDEHU50
Dimensions (W x H x D)	13.3 x 20.1 x 9.7 inches
Weight	Approximately 35 lbs (estimated)
Power Supply	115V / 60Hz
Rated Current	6A
Power Consumption	420 Watts
Moisture Removal (at 80°F, 60% RH)	50 pints/day (28 L/day) old DOE; 35 pints/day (20 L/day) new DOE
Room Capacity	Up to 3000 sq. ft.
Effective Dehumidifying Area	Up to 1000 sq. ft. (50 pints)
Water Tank Capacity	1 gallon (4L)
Humidity Setting Range	30% - 80% RH
Operating Temperature Range	41°F - 90°F (5°C - 32°C)
Fan Speeds	2 (High / Low)
Timer	1-24 hours auto ON/OFF
Filters	Washable PP filter + Replaceable HEPA filter
Drainage Options	Removable water tank or continuous drain hose (9mm inner diameter, included)
Auto Shutoff	Yes, when water tank full
Child Lock	Yes
Defrost Function	Automatic
Control Panel	Digital display with touch buttons
Noise Level	Approximately 48-52 dB (estimated)
Certifications	ETL listed (assumed)

Frequently Asked Questions - SLDEHU50 SereneLife

Why does the dehumidifier collect less water in winter?

In winter, the temperature is lower than in summer, which reduces the dehumidification effect. The unit still works but collects less water; this is not a malfunction.

Why doesn't the dehumidifier operate or stops suddenly?

The water tank may be full or not installed properly. Empty the tank or reinstall it. Also, the ambient temperature may be below 5°C (41°F) or above 32°C (90°F), causing the unit to stop. The optimal temperature is 16-32°C (60.8-89.6°F).

Why is hot air blown out from the air supply outlet?

The dehumidifier cools the air to condense moisture, then reheats it to reduce energy consumption and speed up dehumidification. This results in warm air being expelled, which is normal.

How often should I clean the filter?

Clean the filter and frame at least once every two weeks with cold or warm water. Do not use chemical solvents or hot water.

Can I use a continuous drainage hose?

Yes. Unscrew the drain cover at the back, pull out the water plug, and attach a 9mm inner diameter drainage hose (included). Ensure the hose end is at least 10cm below the outlet and the hose is not longer than 0.6 meters.

What does the 'CL' error code mean?

The 'CL' error indicates the unit is in internal drying mode, which is normal. The drying cycle lasts about 1 hour and can be canceled by pressing the Inside Drying key or Power key.

How do I set the timer to turn off automatically?

While the unit is running, press the Timer key repeatedly to set the time from 1 to 24 hours. Confirm by not pressing any key for 5 seconds. The unit will turn off after the set time.

Is the dehumidifier safe to leave unattended?

Yes, it has an auto shutoff when the water tank is full. However, for safety, avoid using near flammable materials and ensure the power cord is not damaged. Always unplug before cleaning.

What is the warranty period?

The manual does not specify a warranty period, but typical SereneLife products offer 1 year limited warranty. Contact support for details.

Can I use this dehumidifier in a basement?

Yes, it is effective for rooms up to 3000 sq. ft., including basements. Ensure proper spacing (50cm above, 20cm around) for optimal performance.

USER MANUAL SLDEHU50 SereneLife

White industrial water heater with digital display and 'Life' branding (no visible text or symbols on body)

*☆♣♦★*√♦♠♠*☆♣♦★*X

◇□○□✿✿✿✿◆○✿✿✿✿

Electric Dehumidifiers for Quiet & Efficient Intelligent Humidity Control on Small/Medium Rooms

User Manual

TABLE OF CONTENTS

Safety Warning 3

Frequent Enquiries 4

Installation 5

HEPA Filter Installation 5

Components 7

Control Panel 8

Operation Methods 9

Drainage 10

Maintenance 12

Troubleshooting 13

Features and Technical Specs 14

SAFETY WARNING

For your safety, please read the following contents carefully before using this dehumidifier.

Requirements:

• Install this humidifier in smooth place to reduce vibration and noise. Keep a distance of at least 50cm between appliances and surroundings.
- Do not place this dehumidifier in water or other liquids.
- In order to prevent accidents, please do not use this dehumidifier if wires or other connections are damaged.
- Users of this appliance must be at least 8 years old. Those who are weak, those with poor sensory ability, or those with low mental quality must supervise their use with an understanding of the correct use and harm.

Children are prohibited from playing. Children need to clean and maintain the appliance under supervision.

• When stop, reset or clean this dehumidifier, please cut off the power.
• Please use at the specified voltage.
• This dehumidifier can only be used indoor, please do not use for other purposes.
• Please do not place heavy objects on this dehumidifier.
• Please empty water tank to prevent overflow and spill before restarting this dehumidifier.
• Please do not incline in case that the spilled water damages this dehumidifier.
• Please do not place waste rods and hard objects into the dehumidifier in case that error and damage occur.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• In the event of an abnormality (such as a burning smell), turn off the machine and unplug the power cord.
• The appliance should be installed in accordance with the corresponding national wiring regulations and ensure reliable grounding.

Prohibition:

• Please do not place this dehumidifier close to heating devices (flame or heaters, etc.).
• Please do not turn on or turn off this dehumidifier by plugging in or pulling out the plug.
• Do not use insecticide spray or other flammable substances in the vicinity of this dehumidifier.
• Do not scratch appearance of this dehumidifier with sharp matters.
• Do not splash oil or water into this dehumidifier.
• Do not clean this dehumidifier with water, please wipe it with subhumid soft cloth.
• Do not wipe this dehumidifier with chemical solvents such as benzene, gasoline and alcohol, etc. If this dehumidifier is indeed dirty, please wipe with neutral detergent.
• Please do not incline this dehumidifier over 45^ or place this dehumidifier upside down.

FREQUENT ENQUIRIES

Q: Why does the dehumidifier seem to collect less water in winter?

- In winter, because the temperature is lower than in summer, the effect of the dehumidifier is greatly reduced. Although only a little water collects in the tank, this is not a malfunction.

Q: Why doesn't the dehumidifier operate? Why does the unit stop operating suddenly?

• This dehumidifier may be full of water or water tank is not installed properly, drain the water in water tank, or re-install water tank in correct way.
• At the moment the dehumidifier may be in “dehumidification mode”, the ambient temperature is lower or higher (dehumidification cannot be performed when the ambient temperature is <5^ or >32^ / <41^ or >89.6^ ).

The ambient temperature for operation of the dehumidifier is 5-32°C or 41°F-89.6°F, and the relative humidity is 30%-80%. The optimal temperature for use is 16-32°C or 60.8-89.6°F;

Q: Why is hot air blown out from air supply outlet?

- This dehumidifier extracts the air in the room, and the dehumidification unit cools the air, the temperature decreases below the condensation point, the air condenses into water drops, which falls into water tank finally, and the dehumidified air is heated by the temperature returning unit. This can reduce energy consumption and also accelerate dehumidification, therefore, hot air is blown out, and this not a fault.

INSTALLATION

• Drain the water tank before use.
• Refrain from opening doors/windows during operation.
• When the dehumidifier is installed, a certain space must be reserved around this dehumidifier, the minimum distance above is 50cm, and the minimum distance in front/rear and left/right is 20cm as required, as shown in figure below.
  • Theres loud noise during operation:

Place the unit on top of a mat. This reduces vibration and noise. It also prevents leaving depressions on carpets.

1. HEPA FILTER INSTALLATION

The HEPA filter screen is installed in the filter frame to purify the air.

• Remove the rear filter frame.
  • Install the equipped HEPA filter into the filter frame.
  • Install the filter frame back into the machine.

2. Hidden 88 display

The hidden status is synchronized with the top digital display.

COMPONENTS

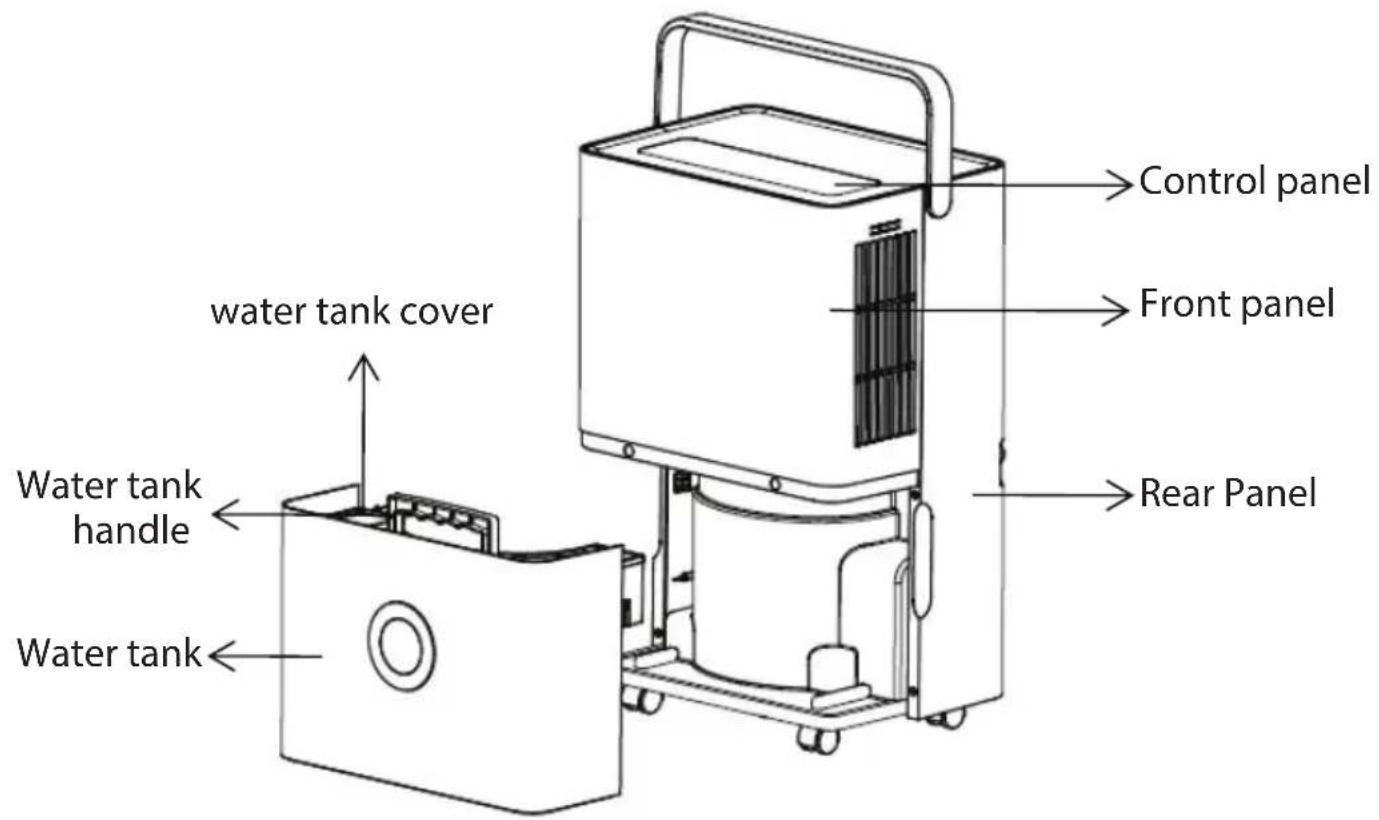

Front

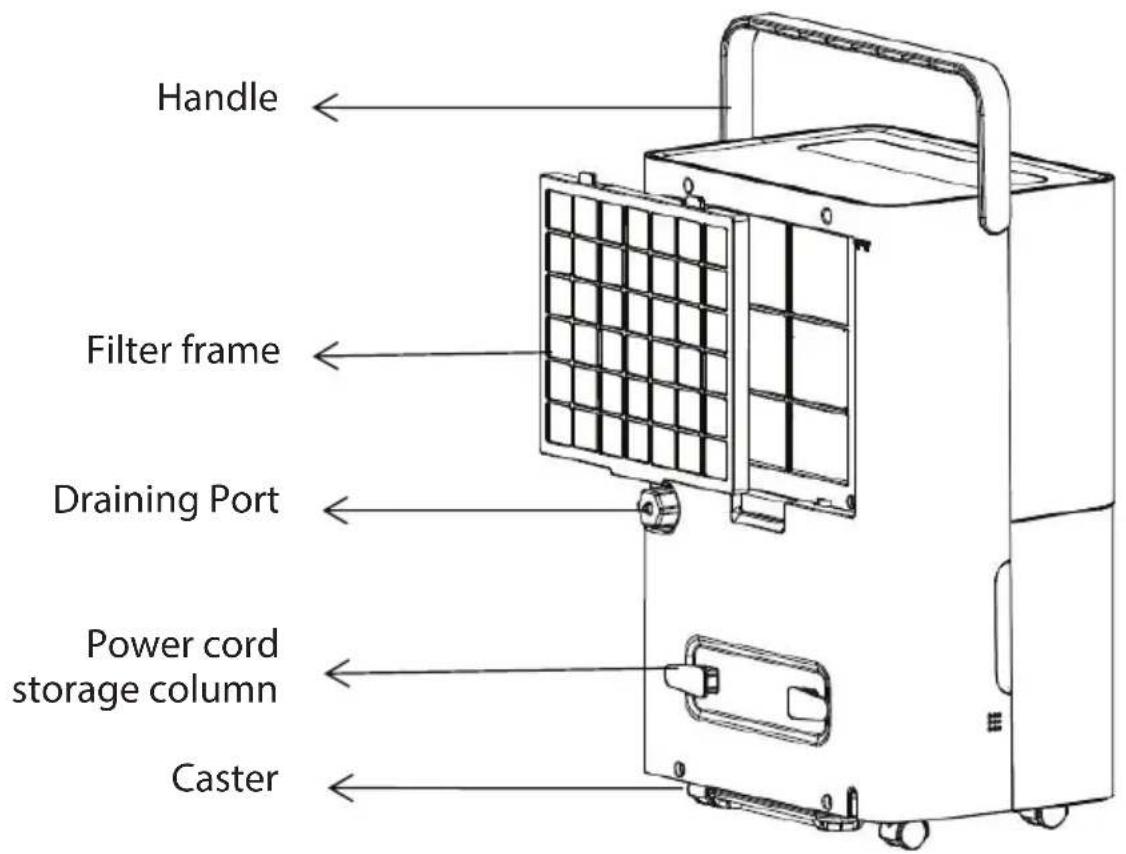

Back

CONTROL PANEL

1. Timer: 24h timer setup, press this key to set ON/OFF time of the dehumidifier, the setting range is 1-24h, every press adjusts one hour. If you want to cancel timer setup, press twice continuously after confirmation of setting time.

2. Inside Drying Key: Press this key to start drying procedure in the dehumidifier, this can prevent mold inside the dehumidifier due to damp. The whole drying procedure needs approximate 1h. Press this key again to cancel the drying function in the dehumidifier, and to recover to running state before starting drying.

3. Fan Speed: Under AUTO or CONTINUOUS mode, adjust the fan speed, HIGH and LOW can be circularly selected.

4. LCD Display: In AUTO, CONTINUOUS AND DRYING modes, etc., this indicator displays room humidity. When it is set in AUTO mode, this indicator shows the set humidity; and displays the set time in timer state, % represents percentage of humidity.

5. Humidity Setting: Once this key is pressed, the humidity is displayed circularly in the range of 30%-35%-40%-45%-50%-55%-60%-65%-70%-75%-80%, and the humidity setting is only valid in AUTO mode.

6. Mode: During startup or timer startup press this key to select AUTO, CONTINUOUS and DRYING modes, etc., and the indicator lamp corresponding to the selected mode is on. Press and hold (3 seconds) the Mode button to activate the child lock. Repeat the process to turn the child lock off.

7. On/off key: Press this key to turn on or turn off the dehumidifier.

OPERATING METHODS

Description of Functions

SETTING TIMER OFF

When the dehumidifier is running, press the [Timer key] to adjust time from 1h to 24h, press the key once to increase the setting time by 1h, after the setting time exceeds 24h, the figure returns to 1 to start cycle. The Timer key can also be pressed all the time, the time increases and changes circularly, when the set time expires, the dehumidifier turns off automatically. After the setting is completed, if the Timer key does not act at all within 5s, the set time is confirmed. In timer off state the key lamp on the [Timer key] is normally on.

SETTING TIMER ON

When the dehumidifier is in standby state, the method for adjustment of setting time by the [Timer key] is the same as timer OFF. After the setting is completed, if the Timer key does not act at all within 5s, the set time is confirmed. In timer ON state the key lamp on the [Timer key] is normally on, and the set time is displayed on control panel.

AUTO MODE

Select AUTO dehumidification, if the room humidity is high than the set humidity or is between +5% or -5% of the set humidity, the compressor will starts and the fan will run at the set speed. If the room humidity is lower than the set humidity by -5%, then the compressor will stop but the fan will run at the set speed.

The default set humidity value is 50%.

CONTINUOUS MODE

Select CONTINUOUS dehumidification, no matter how the relative humidity in the room is, the compressor starts, the fan runs at high speed in default, and the air speed can be regulated via the air speed key.

INSIDE DRYING MODE

Press the [Inside drying key] to start drying in the dehumidifier, and the whole drying procedure needs approximate 1h:

1. The dehumidifier starts at HIGH fan speed and releases air continuously for 30min;
2. The dehumidifier turns to run at LOW fan speed and lasts for 20min;

How to stop:

1. Press the key again to cancel drying in dehumidifier, and recover to the running state before start of drying.

2. Press the [Power key] to stop drying in dehumidifier and recover to the standby state.

CHILD LOCK FUNCTION

Press and hold the mode key 3S to enable or disable the child lock function. (All keys on the operation panel are disabled after the child lock function is activated)

DRAINAGE

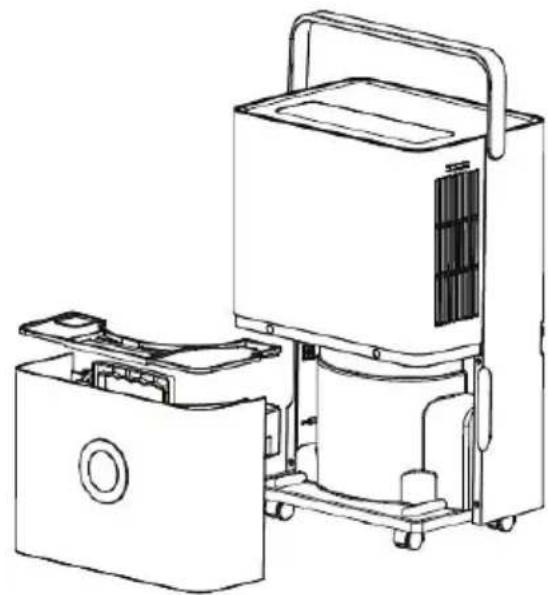

1. Use of water tank: When the water tank is full of water, the full water icon on LCD flashes (the compressor, fan and negative ion will stop running), the BUZZER sounds for 10 times to remind the user till water is drained.

- Place both hands respectively at the side of the back cover side of the depression, gently remove the water tank, turn the water tank handle upright, remove the water tank cover, and pour the water out.

Line drawing of a portable air conditioner unit with internal components and housing (no text or symbols)

- Close the tank cover, and rotating water tank handle down, then put the water tank gently and put it back in the right place to restart dehumidifier.

Line drawing of a portable air purifier with internal components and housing (no text or symbols)

Attention: When the water tank is full of water, please empty it. Before putting the water tank into the dehumidifier, please confirm whether the floater rotates flexibly or not, and then push it in position with both hands.

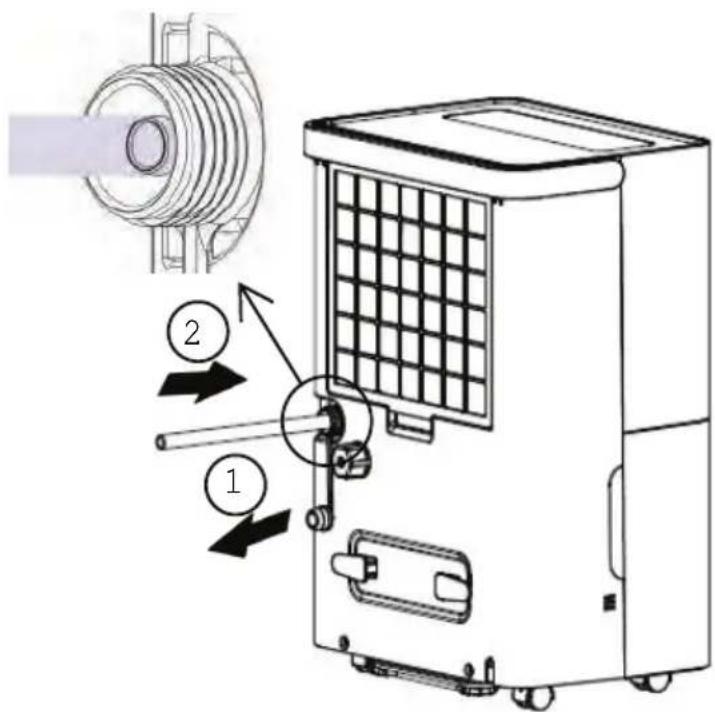

1. Continuous Drainage: if you do not want to drain water in the water tank frequently, you can connect a drainage pipe (with inner diameter 9mm) at the back of the dehumidifier to drain water.

2. Locate the drain outlet at the back, unscrew the drain cover, and pull out the water plug.

3. Connect the 9.0mm drainage pipe to the drain outlet.

Attention:

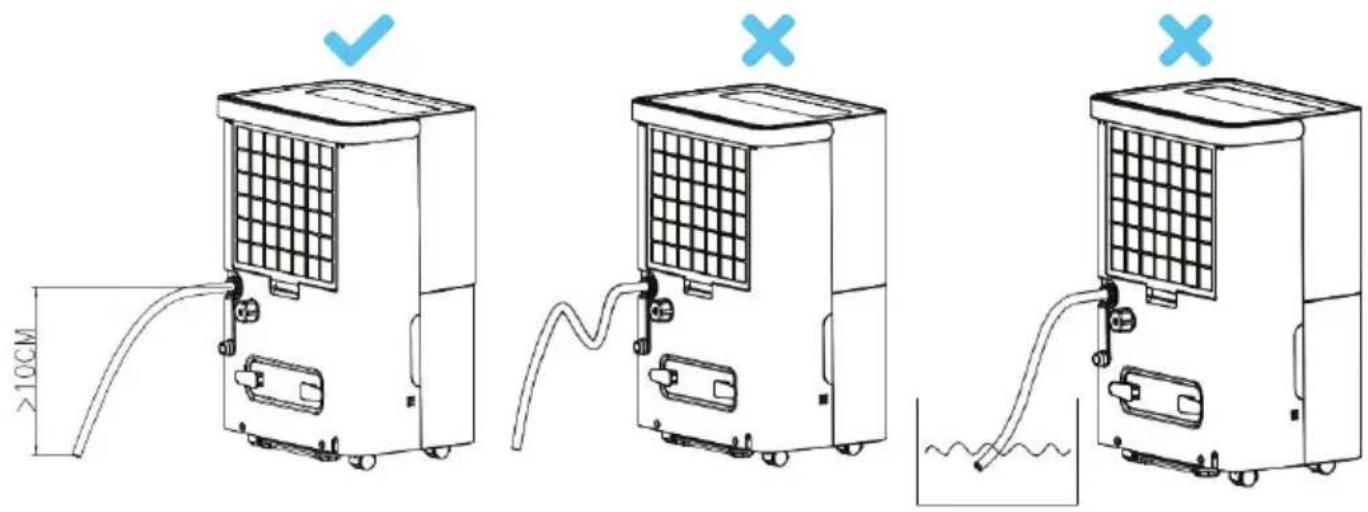

The external water pipe must not be too long (the recommended length is less than 0.6 meters). The height of the end of the water pipe must be more than 10cm lower than the height of the water outlet. The water pipe must be kept smooth, otherwise the water may not be drained normally.

MAINTENANCE

Precautions:

• Please disconnect power supply before maintenance or repair to prevent electric shock.
• If the dehumidifier will not be used for a long time, please disconnect power supply.
• Please do not clean the dehumidifier body with chemical solvents such as alcohol, gasoline and benzene, etc.

- Please clean the water tank and its cover with a soft cloth dipped in cold or warm water regularly to prevent mould inside the dehumidifier.

Line drawing of a rectangular electronic component with a circular button and mounting bracket (no text or symbols)

- Wipe the surface of the dehumidifier slightly with wet cloth, and do not use detergent or abrasive in case the plastic surface is damaged.

Technical line drawing of a portable air purifier with internal components and housing (no text or symbols)

- Clean the filter and the frame at lease once per two weeks simply with cold or warm water, do not use chemical solvents or hot water.

Empty rectangular grid with uniform square cells, no text or symbols present

TROUBLESHOOTING

If the following problems occur to the dehumidifier, the following solutions can be adopted.

Symptoms	Possible reasons Solutions
The unit does not turn ON	Power cord is unplugged	Plug the power cord properly into the power socket.
	The water tank is full.Water tank is not placed properly.	Drain water from the water tank, and then install the water tank again.
	The ambient temperature is lower than 5°C or higher than 32°C	Normal phenomenon
The dehumidifi-cation function is not effective	Is the room temperature or humidity too low?	In dry season the dehumidifi-cation ability will reduce.
	Are the air outlet & inlet blocked?	Clean up the objects blocking the air outlet and inlet.
Air is not blown out	Is the air filter net blocked?	Clean the air filter net according to the above method.
Noise is abnormal during operation	Is the dehumidifier placed improperly so that it is inclined or unstable?	Place the dehumidifier in a smooth place.
	Is the air filter net blocked?	Clean the air filter net according to the above method.
	There is “tittering” sound	The flowing sound of refrigerant, which is a normal phenomenon.
Water leaks	Connection of drainage pipe becomes loose	Fasten drainage pipe.
	Drainage system is blocked	Remove obstacles and straighten out water pipe.
Frosting occurs	The ambient temperature is low, and it is in the state waiting for defrost.	It is a normal phenomenon, and the dehumidifier has the automatic defrosting function.

Display Code Error

FL The water tank is full

E1 The coil sensor detects anomaly

E2 The room temperature sensor detects anomaly

P1 The unit is in the defrosting state, normal

CL The unit is in internal drying state, normal

LC Child lock funtcion starts

FEATURES:

• Efficient Moisture Removal
• Intelligent Humidity Control
- Unique Modern Design
• Automatic Continuous Operation
- User-friendly Operation
- With High-Efficiency Compressor and Fan
• 1-24 Hours Auto ON/OFF Timer
• Auto Shutoff when Water Tank Full
• Continuous Drain Hose Included
• 3-Prong Plug, Adjustable Fan Speed
- Recessed Handles, Adjustable Humidity
• Auto Error Detection
• 3 Min. Compressor Delay, 2 Fan Speed
- Washable PP Filter + Replaceable HEPA filter

WHAT'S IN THE BOX:

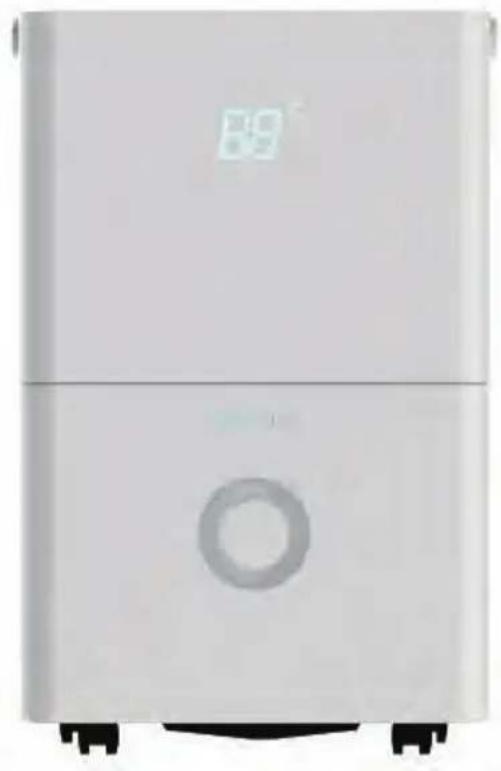

• Compact Dehumidifier
• HEPA Filter
• Draining Pipe

White industrial cleaning device with digital display and circular button (no visible text or symbols)

White industrial air conditioner unit with solar panel and cable (no visible text or symbols)

TECHNICAL SPECS:

	SLDEHU30 SLDEHU50
Rated Current	3.1A 6A
Room Capacity	Up to 1500 sq.ft. Up to 3000 sq.ft.
Effective Dehumidifying for Rooms	up to 30 Pints and 700 Sq. ft.	up to 50 Pints and 1000 Sq. ft.
High-Powered Power Output	260 Watt 420 Watt
Moisture Removal	• 30 pints/day (17L/day)• new DOE 24 pints/day (14 L/day)	• 50 pints/day (28L/day)• new DOE 35 pints/day (20 L/day)

• Power Supply: 115V/60Hz
• Humidity Setting Range: 30%-80%
• Operation Temperature: 41-90°F
• Water Tank Capacity: 135Oz
• Water Reservoir Capacity: 1 gal. (4L)
- Product Dimension: 13.3" x 20.1" x 9.7"-inches
