USER MANUAL HT7246T1 Speco Technologies

HD-TVI 2MP Intensifier® Outdoor Dome Camera QUICK INSTALLATION GUIDE

HT7246T1

◆ Special features

• Sony 1/2.9 inch 2.1MP Exmar CMOS Sensor
• 2.7 - 12mm DC IRIS Varnocal Lens
  • Supports image resolution up to 1920 x 1080P @ 30fps
• Wide Dynamic Range (15fps)
  Full USD operation through 2D & 3D gains and valuation
• 2D & 3D Noise Regulation

• SENS UH Digital Flow Fludberi
  SENS-UP (Digital Slow Shutter) Privacy tracking (16zoro)
  • Privacy masking (162016) • Dynamic Motion Detection (4799)
  • Deloc
  • Surge Protect (DC 2KV / Video 3KV)

• Tool-free 3-Axis

• IP67 Weatherproof
  • 12VDC / 24VAC Dual Input
  • Built-in Heater

DEAR CUSTOMERS!

By selecting this product, you have decided to use a professional device that guarantees highest quality and reliability. We would like to thank you very much for your confidence and kindly ask you to read the following instructions carefully before installation and operation in order to take full advantage of all quality features regarding this product.

The lighting flash with an arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of non-insulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The excitation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

INFORMATION

This equipment has been tested and found to comply with limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to cyclin communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment.
CAUTION - To prevent electric shock and risk of the fire hazards
- Do NOT use power source other than that specified
- Do NOT expose this appliance to rain or moisture.

This installation should be made by a qualified service person and should conform to all local codes.

1. Precautions

• Please read the manual carefully before the installation in order to make use the camera to be set up correctly and to have the best picture quality.
• Please keep the manual in good condition for your future reference and service
  application.
  • Installation and services should only be carried out by an authorized personnel
  according to local safety regulations.
• If any liquid or solid matter gets into the housing, immediately disconnect the camera.
  from power supply and have it checked by your authorized dealer before reusing
• Avoid installing the camera at extremely hot or cold places
  • If you are not a certified person, never try to dismantle the camera.
  To avoid electric shock, never remove the screws or covers. There are no parts inside
  that need maintenance by the user. All maintenance should be carried out by qualified
  personnel.
• Avoid installing the camera at a place of high humidity.
• Avoid installing the camera at the place exposed to gas or oil.
• Keep the top glass of the lens always clean in order to obtain the best picture quality
  all the time. Be careful not to be stained by fingerprint.
• Don't face the camera directly toward sunlight or sunlight reflecting area.
  CMOS may go defective at this condition.
• Please give a special attention to keep the unit from dangerous drop or external shock
  during the process of transportation or handling.
• Never try to touch the camera in wet head. It may cause an electric shock
• Do not expose the camera to radiogactivity. It causes a serious damage on the CMOS

2. Limitation of liability

This publication is provided "AS IS" without warranty of any kind, either express or implied, including but not limited to, the implied warranties of merchantability, fitness for any particular purpose, or non-infringement of the third party's right.

This publication could include technical inaccuracies or typographical errors.

Changes are added to the information herein, at any time, for the improvements of this publication and / or the corresponding product(s).

3. Disclaimer of warranty

In no event shall seller be liable to any party or any person, except for replacement or reasonable maintenance of the product. For the cases, including but not limited to below

(1) Any damage and loss, including without limitation, direct or indirect, special.
consequential or exemplary, arising out of or relating to the product.
(2) Personal injury or any damage caused by inappropriate use or negligent operation of the user.
(3) Unauthorized disassemble, repair or modification of the product by the user.
(4) Inconvenience or any loss arising when images are not displayed, due to any reason or cause including any failure or problem of the product.
(5) Any problem, consequential inconvenience, or loss or damage, arising out of the system combined by the devices of third party.
(6) Any claim or action for damages, brought by any person or organization being photogenic subject, due to violation of privacy with the result of that surveillance-camera's picture, including sawed data, for some reason, becomes public or is used for the purpose other than surveillance.

4. Package

Camera x 1

Manual x 1

Drilling template x 1

Tapping screws x 3

Plastic anchor x 3

L-Wrench x 1

4. Package

- Junction Box

Tapping Screws (0.4 x 1.18in) x 4

Plastic Anchor x 4

Silicone Template x 1

Junction Box x 1

Machine Screw PH (M4 x 0.47In) x 3

Chameleon Cover x 1

Cable DC Jack x 1

Cable BNC Jack x I

Deei Pak x 1

Ferrite Core x 1

5. Installation

5-1.3-Axis Adjustment

Pan 345

× Tool-free 3-Axis mounting mechanism Perfect Tri-axis ¹

- Panning axis up to 345° degree. - Tilting axis up to 85° degree.

- Rotation axis up to 180° degree.

No need to use a tool for adjustment! All adjustments are done quick and easy by hand!

5-2. How to install on the Ceiling

① Paste a Drilling Template on the ceiling or wall and drill screw points which will be dome for installation.
② Fix the Surface Mounting Base by using Topping Screws provided.
① Fix the Flush mount Base on Surface Mounting Base.
(4) Turn the camera Ass'y to the desired direction
⑤ Turn the dome and shied cover to the camera direction
⑥ Fix the Dome Cover Ass'y to the Flush mount Base by using Screw and L-Wronch.

5. Installation

Junction Box

5-3. Application of TVI output

1. Function and operation

6-1. On Screen Display (On board control and UTC)

PRESET MENU
INDOOR / OUTDOOR / LOW LIGHT / HALLWAY / LOBBY / ELEVATOR
SETUP
LENS	DG	MANUAL
EXPOSURE	BRIGHTNESS	SHUTTER	INTENSIFY	AGC	RETURN
WHITE BAL	AUTO	AWB	AWC-SET	MANUAL
BACKLIGHT	WDR	RJC	HJC	OFF
DAY&NIGHT	COLOR	RAW	AUTO
DNR	LOW	MIDDLE	HIGH		RETURN
IMAGE	SHARPNESS	GAMMA	COLOR GAIN	MIRROR	FLIP
	ACC	OFFOG	RETURN
MOTION	ON	OFF
SYSTEM	ANALOG HD	FRAME RATE	FREQ	IMAGE RANGE	COLOR SPACE
	COLOR BAR	LANGUAGE	CAM TITLE	CAM TITLE	HEATER
	RESET	RETURN
EXIT

7. Troubleshooting

If there are problems in operating, please refer to the checklist below. If the problem persists, please contact the agent where this product is purchased.

Problems	Troubleshooting
Nothing appears on the screen.	Please check that the power cord and line connection between the camera and monitor are fixed property.Please check that you have properly connected Video cable to the camera. Video output lack.
The dim image on the screen.	Is lons stained with dirt? Clean your lons with soft, clean cloth.Sot the monitor to proper condition.If the camera is exposed to too strong light, change the camera position.Please check if the power supply is within the specification & cables.(Due to the voltage drop with distance and gauges.Led will light poor)
The dark image on the screen.	Adjust the contrast feature of the monitor.If there is an intermediate device, sell the 750 / Hi Z properly.(Please check the impedance)
The camera is not working properly, and the body of the camera is hot.	Please check if the power supply is regulated and is within the standard requirement of the products.
Color is not correct.	Please check the setting of White Balance setup.
The screen is flickering.	Please check if the camera is facing directly towards sunlight or fluorescent light.

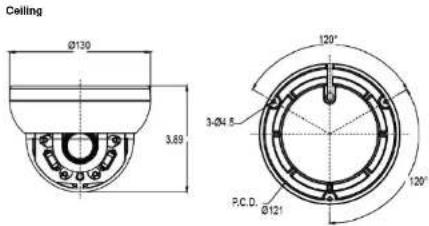

1. Dimension (in)


Ceiling Junction Box

1. Specifications

MODEL	HT7246T1
Image sensor	Sony 1/2.9 inch 2 IMP Exter CMOS Sensor
Total Pixel	2001(H) x 1121(V) 2.24M Pixels
Effective Pixels	1985(H) x 1105(V) 2.10M Pixels
Scanning system	Progressivo scan
Video output	1920 x 1080 25p / 30p
Output	TVI / CVBS
S/N ratio	More than 52dB [AOC OFF / Weight ON]
Min. illumination	0.01Lux
Privacy Mask	ON / OFF (16 zone)
Motion Detection	ON / OFF (4 zone)
NEG Image	ON / OFF
Mirror / Flip	ON / OFF
While Balance	AUTO / AWB / AWB - SET / MANUAL
Shutter Speed	AUTO / MANUAL / FLICKER
Sens-up	AUTO / OFF (Selectable Limit x2 ~ x32)
Backlight	OFF / HLC / BLC / WDR
2D / 3DNR	OFF / LOW / MIDDLE / HIGH
Gain Control	0 ~ 10 (Level adjustable)
Day & Night	AUTO / COLOR / RAW
Sharpness	0 ~ 10 (Level adjustable)
WDR	NORMAL / ROI
Lens Shading	ON / OFF
Datog	ON / OFF
Language	ENG, CHN, CHN(S), JPN, KOR
Lens	2.7 ~ 12mm DC Iris Varifocal Lens
Power Source	12VDC / 24VDC
Operating current	360mA ± 10%(12VDC) / 146mA ± 10%(24VAC)
Operating Temperature	40F ~ 140F
Storage Temperature	-40F ~ 140F
Operating Humidity	0%RH ~ 30%RH
Measurement(in)	2 130 x 3.69 / Junction Box : 0.130 x 5.7
Weight(Aprox. Ibs)	2.63lbs

× Specifications are subject to change without prior notice for better improvement.

Federal Communications Commission (FCC) Statements

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions (1). This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause underred operation.

FCC Responsible Party :

Speco Technology

200 New Highway

Arriville, NY 1170

www.specooch.com
