Product Type	Video Camera
Model	HTINT60TM
Brand	Speco Technologies
Image Sensor	1/3" Progressive Scan CMOS
Resolution	1920 x 1080 (1080p) at 30fps
Lens	2.8mm fixed, F2.0
Field of View	90° horizontal
Night Vision	Up to 100ft (30m) infrared
Video Compression	H.264 / H.265
Audio	Built-in microphone
Power Supply	12VDC ±10% or PoE (802.3af)
Power Consumption	≤ 7W
Dimensions (with bracket)	3.5 x 3.5 x 5.0 in (89 x 89 x 127 mm)
Weight	1.2 lb (0.54 kg)
Weatherproof Rating	IP66
Mount Type	Wall or ceiling mount (bracket included)
Operating Temperature	-4°F to 122°F (-20°C to 50°C)
Compliance	CE, RoHS
Warranty	2 years limited

Frequently Asked Questions - HTINT60TM Speco Technologies

What is the resolution of the HTINT60TM camera?

The HTINT60TM features a full 1080p (1920 x 1080) resolution at 30 frames per second, providing sharp and clear video.

Does the HTINT60TM support night vision?

Yes, it has built-in infrared LEDs that provide night vision up to 100 feet (30 meters) in complete darkness.

How is the camera powered?

The HTINT60TM can be powered via a 12VDC power supply or using Power over Ethernet (PoE) for easy single-cable installation.

Is the camera suitable for outdoor use?

Yes, with an IP66 weatherproof rating, it is protected against dust and water jets, making it suitable for outdoor and indoor installations.

Can I view the camera remotely on my smartphone?

Yes, the HTINT60TM is a network camera that can be accessed remotely via a web browser or compatible mobile app (e.g., Speco Technologies app) over the internet.

What is the field of view of this camera?

The fixed 2.8mm lens provides a 90° horizontal field of view, covering a wide area.

How do I reset the camera to factory settings?

Press and hold the reset button (located on the camera or inside the housing) for 10 seconds while the camera is powered on. Release and wait for the camera to reboot.

Does the HTINT60TM have audio capability?

Yes, it includes a built-in microphone for audio capture. Note that it does not have a speaker output.

What mounting accessories are included?

The camera comes with a mounting bracket, screws, and anchors for wall or ceiling installation. An optional junction box is available separately.

What is the warranty period for the HTINT60TM?

Speco Technologies offers a 2-year limited warranty covering manufacturing defects. For details, refer to the warranty statement in the user manual.

USER MANUAL HTINT60TM Speco Technologies

FEATURES

• Full HD resolution over coax (HD-TVI)
• Supports up to Full HD 1080p @ 30fps
- True WDR operation
• Superior low-light performance
- Amplify existing light with no distance limitation
- Presets: Outdoor, Low Light, Hallway, Lobby, Elevator, Indoor
• Built-in heater and anti-fog glass reduces condensation
• 3-axis for wall and ceiling mounting
• Full OSD operation through on-board control and UTC (up the coax)
• Additional 960H analog output
• Signal distance up to 1600 feet*
• Vandal / tamper resistant
• IP67 compliant, weather resistant
• 12VDC & 24VAC dual voltage operation
- 5 year warranty

SPECIFICATIONS

Image Sensor.... 1/3" Progressive Scan CMOS, 2MP

Minimum Illumination..... 0.001 lux (Sens-up X32)

Effective Pixels.... 1984 (H) x 1105 (V)

Total Pixels.... 2000 (H) x 1121 (V)

Scanning System...... Progressive

S/N Ratio...... More than 50dB

Output Resolution..... 1920x1080 @ 30fps

Video Output.... 1.0Vp-p / 75 Ohms

Electronic Shutter..... Auto / Manual (1/30 - 1/30,000 sec.)

Day / Night..... Auto / Color / BW / External

Test Monitor Output..... CVBS (BNC out in Yellow)

Communication..... UTC (up the coax)

Power.... 12VDC / 24VAC

Power Consumption..... 150mA (DC), 2W (AC)

Operating Temperature.... -4° F - 122

Unit Dimensions.... 4.58" (H) x 5.49" (Dia.)

Unit Weight.... 1.54 lbs

Certifications..... FCC, RoHS

Signal Distance..... Up to 1600 feet

(depending on coax quality)*

OSD MENU TREE

PRESET MODE

• OUTDOOR

• HALLWAY • LOBBY

• ELEVATOR

• INDOOR • LO

MAIN SETUP


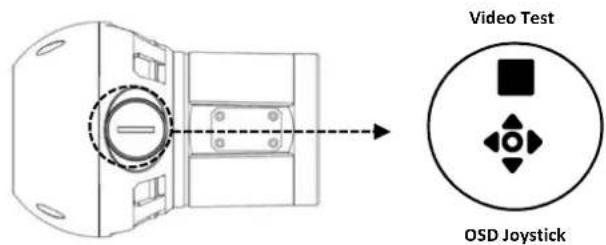

OSD ACCESS

Intensifier T® Series HD-TVI 1080p 2MP Turret Camera Wall/Ceiling Mount, UTC, 2BNC out for TVI & CVBS, Dual voltage

HTINT60TM - 2.8\~12mm motorized zoom focus lens, dark gray housing HTINT601TA - 3.6mm lens, dark gray housing

OSD MENU Details

IRIS : 'ALC' for HTINT60TM, 'ELC' for HTINT601TA as a default value

2-MOTOR : AF Mode, Scanning, OnepushAF, Sync TDN, Initial

EXPOSURE : adjusts exposure settings.

BRIGHTNESS: Adjusts image brightness. (0\~20)

SHUTTER : Outdoor / Indoor / Deblur

INTENSIFY : Sets the desired multiple of the digital exposure length.

AGC(Auto Gain Control): Adjusts the AGC level. (0\~10)

BACKLIGHT : Adjusts backlight options.

WDR : WDR illuminates darker areas of an image while retaining the same light level for brighter areas to even out the overall brightness of images with high contrast between bright and dark area - Adjusts the WDR Weight (LOW/MIDDLE/HIGH)

* CVBS out cannot adjust this function.

BLC : Produces a clearer image of an object darkened by strong backlighting.

- H-POS : Adjusts the horizontal position(0\~20)

- V-POS : Adjusts the Vertical position(0\~20)

- H-SIZE : Adjusts the horizontal block size (0\~20)

- V-SIZE : Adjusts the vertical block size (0\~20)

HLC : Uses to contain extremely bright areas such as from car headlight, the light can be masked out much of the on-screen details.

DAY / NIGHT : Adjust Day / Night options.

COLOR : Always Color mode, Default value for these cameras

B/W : Always B/W mode

- ANTI-SAT.: Adjusts the Anti Saturation level (0\~20)

EXT : please do not use this mode for these cameras

AUTO : Day / Night is switching automatically by AGC level.

- ANTI-SAT.: Adjusts the Anti Saturation level (0\~20)

- AGC THRES : Adjusts AGC THRES (0\~20)

- AGC MARGIN : Adjusts AGC margin (0\~20)

- DELAY : Adjusts the changing delay time (LOW/MIDDLE/HIGH)

COLOR : Adjusts white balancing options.

AWB : it goes to optimized color level automatically.

COLOR GAIN : Sets the desired Color Gain value (0\~20)

SPECO DNR : Uses to reduce the background noise in a low luminance environment with 2D + 3D filtering system.

IMAGE : Adjusts various image options.

SHARPNESS: Adjusts sharpness level. Increasing this value, the picture outline becomes stronger and clear. (0\~10)

GAMMA : Sets the desired Gamma value. (0.45 \~ 0.75)

MIRROR : Change the video direction horizontally.

FLIP: Change the video direction perpendicularly.

ACE (D-WDR): Uses a digital wide dynamic range to balance dark and over saturated areas within the image.

DEFOG : Activated this mode when the video or the weather is foggy.

PRIVACY : Used to hide regions of the image.

MOTION : Adjust motion detection settings.

DET WINDOW

DET TONE

MDRECT FILL

SENSITIVITY: Sets the desired of "Motion" (0\~20)

MOTION OSD

TEXT ALARM

SIGNAL OUT

SYSTEM : Adjusts various camera system options.

OUTPUT

MAIN OUTPUT ANALOG OUT0

ANALOG OUTO TVI

Y GAIN

CB GAIN

CR GAIN

FRAME RATE: 1080P 30 / 720P 60

FREQ 60Hz

COM.

IMAGE RANGE

COLOR SPACE

COLOR BAR : Manufacturer's option

LANGUAGE : Sets the desired OSD language

CAM TITLE

RESET: Press with long to reset all settings to factory defaults.

LIMITED WARRANTY - VIDEO PRODUCTS

THIS WARRANTY IS VALID ONLY ON PRODUCTS PURCHASED AND USED IN THE UNITED STATES OF AMERICA AND CANADA, THIS WARRANTY APPLIES ONLY TO THE ORIGINAL USER.

SUBJECT TO CONDITIONS AND EXCLUSIONS FOUND BELOW. THIS PRODUCT IS WARRANTED AGAINST MANUFACTURING DEFECTS IN MATERIAL AND WORKMANSHIP FOR THE FOLLOWING PERIOD FOR PARTS AND LABOR:

SPECO TECHNOLOGIES CAMERAS......5 YEARS

SPECO TECHNOLOGIES IP CAMERAS.....5 YEARS SPECO RTZ 1 YEAR

SPECO TECHNOLOGIES MONITORS......1 YEAR

IR LEDS 90 DAYS

DVRs 5 YEARS

NVRs 5 YEARS

SPECO TECHNOLOGIES LINE....1 YEAR

SPECO TECHNOLOGIES WILL REPAIR OR REPLACE (AT OUR DISCRETION) ANY PARTS FOUND TO BE DEFECTIVE FOR THE WARRANTY PERIOD SPECIFIED. WE WILL PROVIDE A REPLACEMENT FOR ANY DEFECTIVE PART

CONDITIONS

1. YOU MUST OBTAIN A RETURN AUTHORIZATION (RA) NUMBER FOR ANY MERCHANDISE BEING RETURNED TO SPECO TECHNOLOGIES, WHETHER FOR RETURN/EXCHANGE OR REPAIR, WHETHER IN OR OUT OF WARRANTY.
2. THIS WARRANTY WILL BE HONCRED ONLY UPON PRESENTATION OF THE ORIGINAL DATED BILL OF SALE OR SALES SUP
3. TRANSPORTATION OF THE PRODUCT TO OUR SERVICE DEPARTMENT IS THE RESPONSIBILITY OF THE USER, REPAIRED OR REPLACED PRODUCT WILL BE RETURNED PREPAID DURING THE WARRANTY PERIOD.
4. SPECO TECHNOLOGIES DOES NOT AUTHORIZE ANY INTERNET OR MAIL ORDER PRODUCT SALES. IF A SPECO TECHNOLOGIES PRODUCT IS PURCHASED FROM AN UNAUTHORIZED DISTRIBUTOR OR OTHER SOURCE, INCLUDING RETAILERS, MAIL ORDER SELLERS AND ONLINE SELLERS, IT WILL NOT BE HONORED OR SERVICED UNDER THE EXISTING SPECO TECHNOLOGIES WARRANTY POLICY. ANY SPECO TECHNOLOGIES PRODUCT PURCHASED FROM THESE ONLINE MERCHANTS WILL VOID THE APPLICABLE WARRANTY AND IS INELIGIBLE FOR TECHNICAL SUPPORT. IF YOU HAVE QUESTIONS ABOUT A RESELLER, PLEASE CONTACT SPECO TECHNOLOGIES AT 1-800-645-5516 FOR A LIST OF UNAUTHORIZED DEALERS. VISIT: www.specotech.com/unauthorized.

EXCLUSIONS

1. THIS WARRANTY SHALL NOT COVER ADJUSTMENT OF CUSTOMER OPERATED CONTROLS AS EXPLAINED IN THE APPROPRIATE MODEL'S INSTRUCTION MANUAL OR PRODUCTS WHICH HAVE BEEN ALTERED, ABUSED, OR HAVE MISSING OR ALTERED SERIAL NUMBERS.
2. THIS WARRANTY SHALL NOT APPLY TO UNCRATING, SETUP, INSTALLATION, OR THE REMOVAL AND REINSTALLATION OF PRODUCTS AFTER REPAIR.
3. THIS WARRANTY SHALL NOT APPLY TO REPAIRS OR REPLACEMENTS NECESSITATED BY ANY CAUSE BEYOND THE RESULT OF MANUFACTURE INCLUDING, BUT NOT LIMITED TO, ANY MALFUNCTION, DEFECTS OR FAILURE CAUSED BY OR RESULTING FROM UNAUTHORIZED SERVICE OR PARTS, IMPROPER MAINTENANCE, MODIFICATION OR REPAIR BY THE USER, ABUSE, MISE, NEGLECT, ACCIDENT, FIRE, FLOOD, OR OTHER ACTS OF NATURE, INCORRECT LINE VOLTAGE, DAMAGE OR IMAGE BURNS TO TELEVISION PICTURE TUBES CAUSED BY OR ATTRIBUTABLE TO THE USE OF ANY ACCESSORY, ELECTRONICS GAME OR DEVICE, OR DAMAGE CAUSED TO IMAGE PICKUP DEVICES BY EXCESSIVE LIGHT.

THE FOREGOING IS IN LIEU OF ALL OTHER EXPRESSED WARRANTIES AND WE DO NOT AUTHORIZE ANY PARTY TO ASSUME FOR US ANY OTHER OBLIGATION OR LIABILITY. IN NO EVENT SHALL WE BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF THIS PRODUCT. OR FOR ANY DELAY IN THE USE OF THIS PRODUCT DUE TO CAUSES BEYOND OUR CONTROL. SOME STATES DO NOT ALLOW LIMITATIONS OF HOW LONG AN IMPLIED WARRANTY LASTS AND/OR DO NOT ALLOW THE EXCLUSION OR LIMITATION OF CONSEQUENTIAL DAMAGES. THE ABOVE LIMITATIONS ON IMPLIED WARRANTY AND CONSEQUENTIAL DAMAGES MAY NOT APPLY TO YOU.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

NOTE: FOR YOUR PROTECTION IN THE EVENT OF THEFT OR LOSS OF THIS PRODUCT, PLEASE FILL IN THE INFORMATION REQUESTED BELOW AND RETAIN WITH YOUR SALES RECEIPT.

MODEL NO

SERIAL NO.:

(LOCATED ON BACK OR BOTTOM OF UNIT)

DATE OF PURCHASE:

WHERE PURCHASED:

PURCHASE PRICE:

Speco Technologies 200 New Highway Amityville, NY 11701 www.specotech.com

FOR MORE INFORMATION REGARDING SERVICE OR RETURN, CALL US TOLL FREE: 1-800-645-5516 IN METRO NY: 631-957-8700

ALWAYS USE DISCRETION WHEN INSTALLING VIDEO AND/OR AUDIO SURVEILLANCE EQUIPMENT ESPECIALLY WHEN THERE IS AN EXPECTATION OF PRIVACY. INQUIRE REGARDING FEDERAL, STATE AND/OR LOCAL REGULATIONS APPLICABLE TO THE LAWFUL INSTALLATION OF VIDEO AND/OR AUDIO RECORDING OR SURVEILLANCE EQUIPMENT. PARTY CONSENT MAY BE REQUIRED.

Speco Technologies is constantly developing product improvements. We reserve the right to modify product design and specifications without notice and without incurring any obligation. Rev. 220210
