Combo - Stroller Chipolino - Free user manual and instructions

Product Type	Stroller (Pushchair)
Brand	Chipolino
Model	Combo
Age Range	6 to 36 months
Maximum Child Weight	15 kg (33 lb)
Stroller Weight (Approximate)	8 kg (17.6 lb)
Dimensions (Unfolded, Approximate)	80 x 50 x 100 cm (31.5 x 19.7 x 39.4 in)
Safety Harness	5-point adjustable harness
Backrest Recline	Multiple positions, adjustable via button
Canopy	Adjustable, provides sun protection
Leg Rest	Two positions: horizontal and vertical
Foot Cover	Included for warmth
Carry Handle	Yes, for transport when folded
Front Wheels	Swivel or straight lockable
Parking Brake	Foot pedal, locks rear wheels
Storage Basket	Maximum load 2 kg (4.4 lb)
Fabric Composition	Outer and filling: 100% Polyester
Safety Standards	EN 1888-1:2018+A1:2022
Assembly	Adult required; partially assembled, no tools needed
Cleaning	Damp cloth with mild soap; no solvents; dry thoroughly
Maintenance	Oil moving parts regularly with silicone oil
Spare Parts	Use only manufacturer-recommended parts
Warranty and Repairs	Contact authorized dealer for service

Frequently Asked Questions - Combo Chipolino

How do I unfold the stroller?

Release the hook on the side, then pull up the handle until the stroller is fully unfolded and you hear a click. Ensure the frame locks securely before use.

How do I fold the stroller?

First engage the parking brake and empty the storage basket. Then pull the lever on the handle with your thumb while pressing the button with your other fingers. Push the handle forward to fold.

How do I adjust the backrest recline?

Press the button on the backrest and move the mechanism up to raise the backrest to a more upright position, or down to lower it to a reclining position.

Can I use this stroller for a newborn?

No. The seat is not suitable for babies younger than 6 months. Always use the safety harness and ensure the child is at least 6 months old and weighs up to 15 kg.

How do I clean the stroller?

Use a damp cotton cloth or sponge with mild soap to clean fabrics, plastic, and metal parts. Do not use aggressive detergents, solvents, bleach, or spirits. Let the stroller dry completely before storage.

What should I do if I lose the manual?

You can download a free PDF manual from notice-facile.com for the Chipolino Combo stroller. Search by brand and model.

How do I lock the front wheels for straight movement?

The front wheels have a swivel lock. When pushing on uneven surfaces, engage the lock to keep wheels straight. Refer to the manual for the exact mechanism (likely a lever near the wheel).

Is the stroller suitable for jogging?

No. The manual explicitly warns that this product is not suitable for running or skating. It is designed for walking on flat surfaces.

How do I remove the front bumper?

Press the buttons on both sides of the bumper and pull it out. To install, align the ends with the frame openings and press until you hear a click.

Where can I get spare parts?

Only use spare parts recommended or supplied by the manufacturer. Contact the dealer or an authorized repair service for assistance. Using unauthorized parts may void safety.

USER MANUAL Combo Chipolino

This stroller is manufactured according to the requirements of the Product Safety Directive 2001/95/EU of the European Parliament and The Council and with European standard EN 1888-1:2018+A1:2022 Child use and care articles. Wheeled child conveyances. Part 1: Pushchairs and prams, as well as the National Consumer Protection Law and national legislation.

IMPORTANT! WARNINGS!

WARNING! NEVER LEAVE YOUR CHILD UNATTENDED!
✿ WARNING! THE SEAT OF THIS STROLLER IS NOT SUIATBLE FOR BABIES YOUNGER THAN 6 MONTHS!
WARNING! ALWAYS USE THE SAFETY BELT!
✿ WARNING! IN ORDER TO AVOID INJURY, MAKE SURE CHILDREN ARE AT SAFE DISTANCE FROM THE STROLLER DURING ITS ADJUSTING, UNFOLDING OR FOLDING!
✿ WARNING! MAKE SURE ALL PARKING DEVICES ARE ENGAGED BEFORE USE.
✿ WARNING! DO NOT ALLOW YOUR CHILDREN TO PLAY WITH THE STROLLER!
✿ WARNING! THIS PRODUCT IS NOT SUITABLE FOR RUNNIG OR SKATING
KEEP AWAY FROM FIRE!
DO NOT LIFT THE STROLLER BY THE FRONT BAR, BECAUSE THIS CAN LEAD TO SERIOUS INJURIES!
To be used for a child with weight up to 15 kg.
◆ Adult assembly is required!
❖ Always activate the parking device when you put the children in or out of the stroller!
Make sure the safety belts are correctly fastened and adjusted before each use.
- The maximum load for the storage basket is 2 kg!
Do not overload the stroller! Every load attached to the handle, bumper, and backrest or on the side of the stroller will affect its stability!
To be used for one child only at a time. Do not place two or more children in the stroller!
Only use spare parts or other components, which are recommended or supplied by the producer! In the contrary case the producer is not responsible for the product's safety.
Do not make any changes or modifications to the stroller's construction! In case of problems contact the dealer or an authorized repair service for advice and/or repair.
Do not use this stroller if you find missing or damaged parts!
Do not allow children younger than 3 years near the stroller during its assembly!
Do not attach any strings or long cords to the stroller in order to avoid risk of suffocation!
Do not use the stroller on stairs or escalators and pay attention when overcoming a curb or a step.
- Keep the plastic packaging away from children in order to avoid risk of suffocation!

PRODUCT FEATURES

This stroller is intended for one child aged 6-36 months and weighing up to 15 kg;
◆ 5-point safety harness;
Adjustable backrest;
◆ Adjustable canopy;
◆ Adjustable leg rest;
◆ Foot cover;
Carry handle.

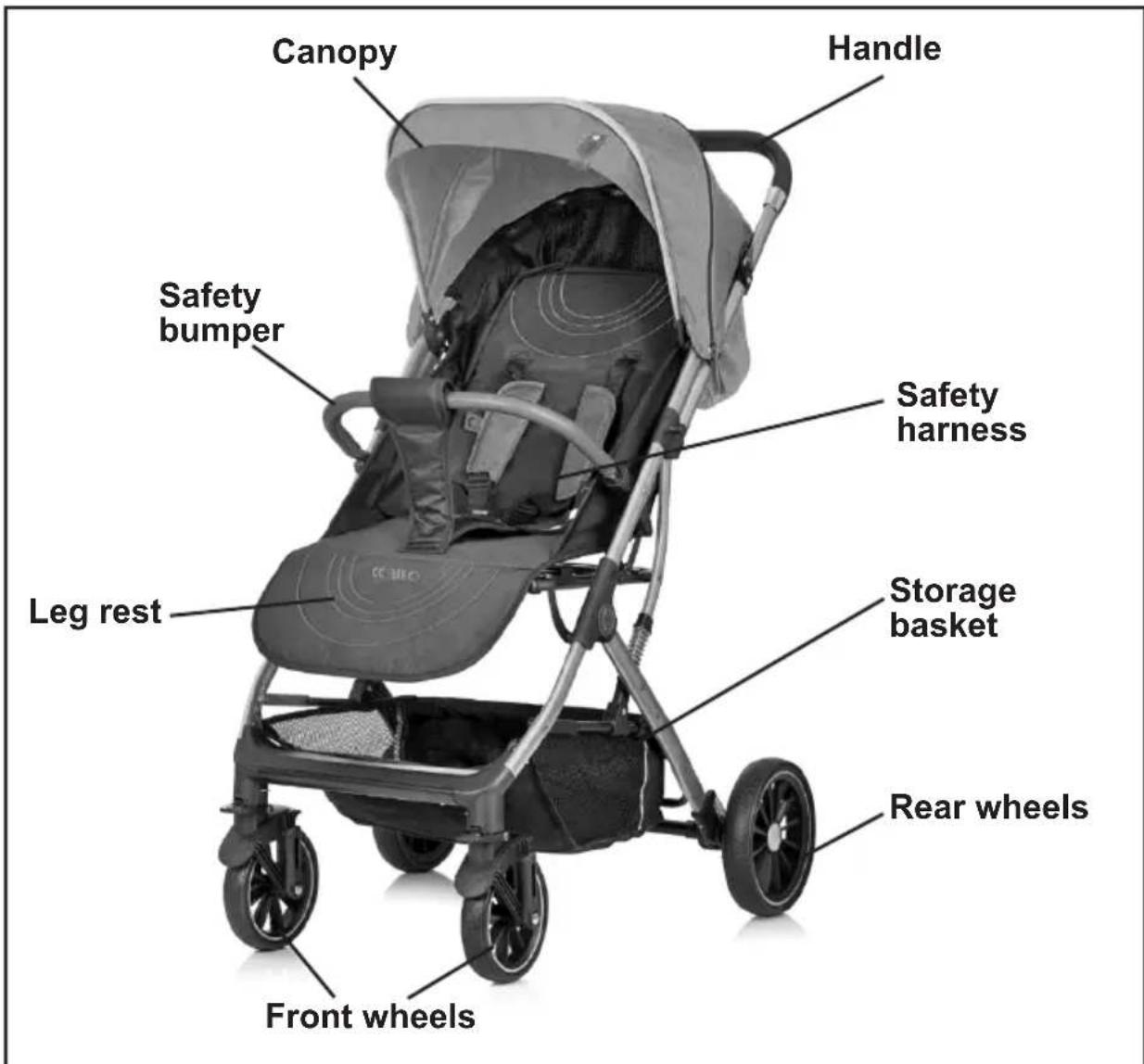

MAIN PARTS

ASSEMBLY INSTRUCTIONS AND FUNCTIONS

This stroller is supplied partially assembled. In order to complete the assembly, you don't need any tools.

IMPORTANT! Follow exactly the instructions given and check the pictures. Keep your hands from entrapment!

IMPORTANT! After each operation, make sure that you have followed the instructions correctly and the fixing is stable!

IMPORTANT! In most cases after the completion of an operation you will hear a clicking sound.

The assembly, disassembly and functions are numbered from 1 to 11. Use the operations descriptions given in this manual and their matching picture.

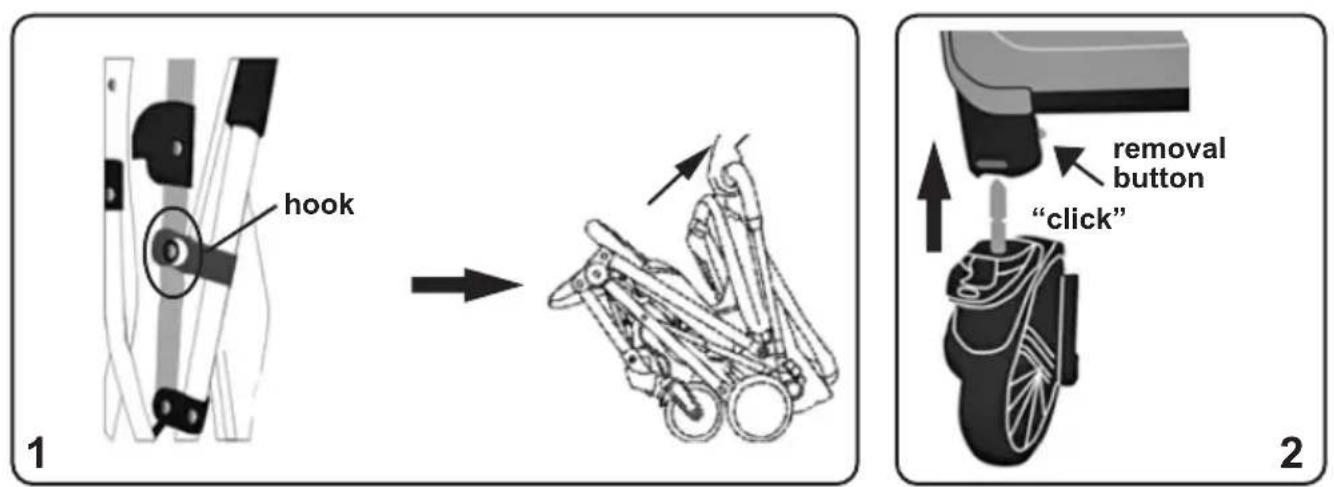

1 – UNFOLDING THE STROLLER

Release the hook. Pull up the handle until the stroller is fully unfolded and you hear a click.

2 - ASSEMBLY AND REMOVAL OF THE FRONT WHEELS

Install the front wheels to the openings in front part of the frame and when the wheels are fixed you will hear a click.

To remove the wheels press the buttons and remove the wheels.

3 - STRAIGHT AND SWIVEL MOVEMENT OF FRONT WHEELS

Note: When pushing the stroller on uneven surfaces, the front wheels must be moving straight.

4 - ASSEMBLY AND REMOVAL OF THE REAR WHEELS

Install the rear wheels to the openings in rear part of the frame.

ATTENTION! After assembly make sure the wheel can roll and is securely fixed by trying to pull it out of the frame!

To remove the wheels pull the levers and take out the wheels.

5 - ASSEMBLY OF FRONT BUMPER

Assembly: Place the two ends of the front bumper to the openings in the frame (1) and press until you hear a click.

Removal: Press the buttons on both sides and pull out the bumper.

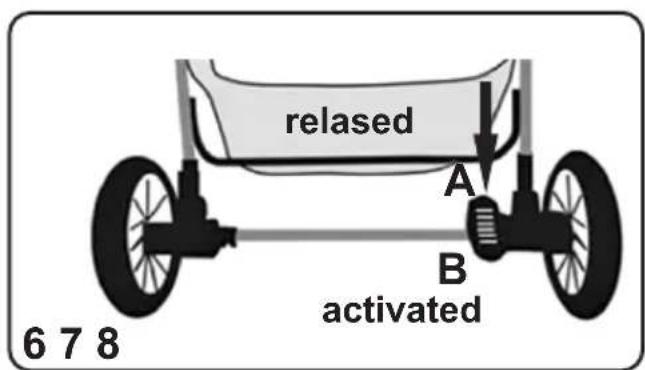

6 – PARKING DEVICE

Press the pedal in position B, in order to activate the parking device. Stroller does not move.

Press the pedal in position A, in order to release the parking device. The stroller can move again.

IMPORTANT! Always activate the parking device while stroller is not in motion in order to avoid sudden sliding and injuries!

7 - CANOPY

Push the canopy with your hand in order to position it in certain position.

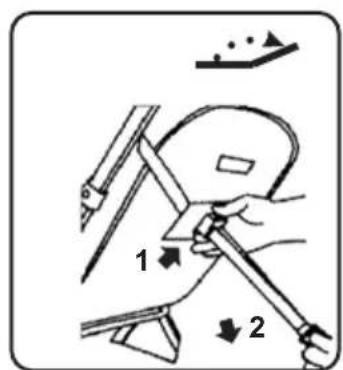

8 - BACKREST RECLINE ADJUSTMENT

8 (1) – Press the button on backrest to adjust the recline position;

8 (2) - Move the mechanism:

• Up - to adjust the backrest from lower to sitting position;
• Down - to adjust the backrest from sitting to lower position.

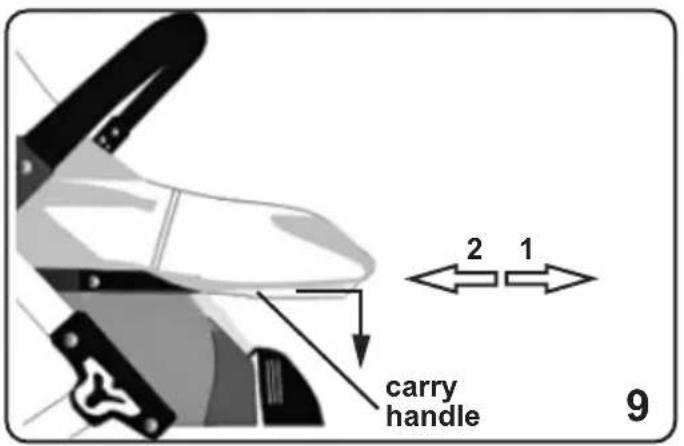

9 – LEG REST

The leg rest may be adjusted in two positions - horizontal and vertical.

For horizontal position pull out the handle under the leg rest.

For vertical position fold the handle and lower the leg rest.

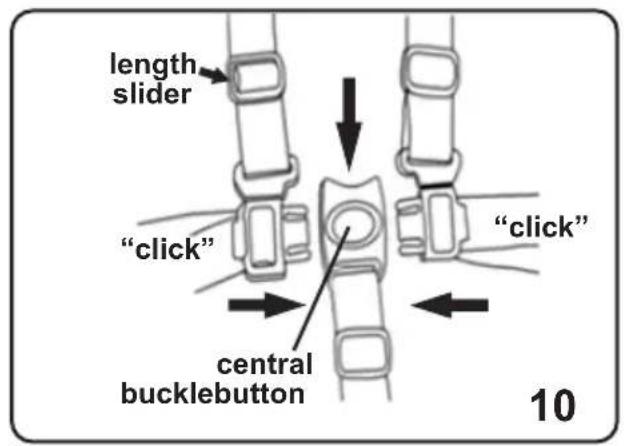

10 - RESTRAINT SYSTEM (safety belt)

To unfasten the safety belt, press the central buckle and split the belts.

Adjust the length of the belts accordingly.

ATTENTION! Belts must be snug to child's body and must not be twisted.

WARNING! Periodically check to ensure that the seat belt is securely attached to the stroller frame as well as securely fastened. The belts should not be worn or torn, and plastic buckles and fasteners must be sturdy, free of damage and secure.

IMPORTANT! Before folding the stroller the paring device must be engaged and the storage basket should be empty.

Pull with your thumb the lever in the shown direction and simultaneously press with your other fingers the button. Press the handle forward and the stroller will fold.

CARE AND MAINTENANCE GUIDELINES

The brakes and wheels wear out faster than other parts. Replace them when necessary.
- Regularly oil the moving parts. Use silicone oil or silicone spray for oiling.
- Clean and oil all dirty metal and plastic parts regularly.
- Clean the fabrics, plastic parts and metal parts with damp cotton cloth or sponge and mild soap.
Do not use aggressive detergents, solvents, bleach or spirits to clean your stroller.
Always leave the stroller to fully dry after cleaning before you use it or store it. Mold could form if you keep your stroller moist.
Always store your stroller indoors in clean and dry place. Do not expose to direct environment influence - sun, rain, moisture and high temperature intervals.
Please, contact your authorized dealer for problems connected with the use or repair of this stroller.

Fabric Composition:

Outer: 100% Polyester

Filling: 100% Polyester
