MALS1122 - Prise murale multimédia JUNG - Free user manual and instructions

Brand	JUNG
Model	MALS1122
Type	Electronic Device
Dimensions (H x W x D)	80 x 80 x 40 mm
Weight	100 g
Power Supply	230 V AC, 50 Hz
Power Consumption	0.2 W (standby)
Functions	Basic on/off switching, status indication
Installation	Flush-mounted, 60 mm depth
Material	Thermoplastic, RAL 9010
Protection Rating	IP20
Operating Temperature	-5 °C to +40 °C
Storage Temperature	-20 °C to +70 °C
Maintenance	Wipe with a dry, soft cloth
Safety	Meets EN 60669 standards
Spare Parts	Available through authorized service centers
Repairability	Repairable by qualified electrician
Compliance	CE, RoHS
Warranty	2 years

Frequently Asked Questions - MALS1122 JUNG

What is the JUNG MALS1122?

The JUNG MALS1122 is an electronic device designed for basic switching and control applications in buildings. It is part of JUNG's product range for home automation.

Can the MALS1122 be used with LED loads?

Yes, it is compatible with LED loads up to 200 W. For specific compatibility details, refer to the technical specifications.

How do I install the MALS1122?

Installation should be performed by a qualified electrician. The device is flush-mounted in a standard 60 mm deep box. Follow the wiring diagram provided in the manual.

What is the protection rating of the MALS1122?

The MALS1122 has an IP20 rating, meaning it is protected against solid objects larger than 12 mm but not against water. It should be used indoors.

Does the MALS1122 require a neutral wire?

Yes, the device requires a neutral connection for operation. Ensure that the installation location has a neutral wire available.

Can I connect multiple MALS1122 devices in parallel?

It is not recommended to connect multiple units in parallel without proper planning. Consult a professional for multi-station setups.

What should I do if the device is not working?

First, check the power supply and connections. If the issue persists, contact JUNG customer support for troubleshooting or replacement.

Is the MALS1122 compatible with smart home systems?

The MALS1122 is a basic electronic device and may not have smart home features. For integration, consider JUNG's smart products like the IP gateway.

How do I clean the MALS1122?

Clean the surface with a dry, soft cloth. Do not use abrasive cleaners or solvents, as they may damage the plastic.

Where can I find the user manual?

The user manual can be downloaded for free from notice-facile.com or the official JUNG website in PDF format.

USER MANUAL MALS1122 JUNG

Operating Instructions Multimedia connection system

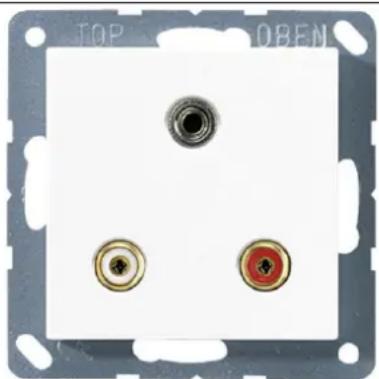

Close-up of a white electrical socket with three gold and red connectors, no visible text or symbols

1. Safety instructions

Electrical equipment must only be installed and assembled by qualified electricians.

Always follow the relevant accident prevention regulations.

Failure to comply with these instructions may result in damage to the device, fire or other hazards.

Proper signal transmission is only ensured when the appropriate accessories are used and the specified maximum cable lengths are observed, as well as the minimum permissible distance of 0.3 m from current-carrying cables and sources of interference (electronic ballasts, dimmers, ESLs, etc.) are observed.

These operating instructions are an integral component of the product, and must be retained by the end user.

2. Function

The multimedia connection system serve to connect input and output devices for transmission of audio/video signals and data.

① The available functions depend on the devices that are connected. To select the suitable socket, note the information from the manufacturer of the connected devices.

Intended use

• Only suitable for use in indoor areas
• Can be used in multiple combinations
• Flush-mounting in wall box according to DIN VDE 0606
• Connection of audio/video devices via „Plug & Play“

3. Operation

CAUTION!

The use of non-standardised connecting cables and connectors can cause device malfunctions.

The devices may be destroyed.

Use only approved connecting cables and connectors.

3.1. Connecting multimedia devices

• Insert connector of the connecting cable from the signal source, e.g. from a DVD or MP3 player, into the jack of multimedia socket.
• Insert connector of the connecting cable from a playback device, e.g. from an LCD/plasma television or stereo system, into the jack of a second multimedia socket.

① Insert connectors into the jacks straight and without using force. Twisting or tilting the connector may deform the contacts.

Application examples

Connection	Devices
Cinch	Audio systems, AV receivers, active loudspeakers
S-Video	SAT receivers, televisions, projectors, iPod docking stations, video cameras
USB	iPods, printers, storage media, digital cameras
TRS 3.5 mm	MP3 players, CD/DVD players, sound cards, audio systems
VGA	PCs/laptops, projectors, monitors
HDMI	High definition plasma/LCD televisions, SAT receivers, projectors, game consoles, DVD/Bluray players, DVD/HDD recorders, video cameras

Information for electricians

4. Assembly

4.1. Connecting and installing the multimedia connection system

The connecting cable has been laid, the wall box is installed in the wall.

① Recommendation: use Kaiser „Electronics Box“ (Art. no. 1068-02 or 9062-74) in order to maintain the permissible bending radii.

• Insert connector of the connecting cable into the corresponding jack on the rear of the multimedia connection system.
• Screw insert to the wall box in the tight orientation via the supporting ring.
• Place centre plate into the frame.
• Mount centre plate together with the frame on the insert using screwless terminals.

The multimedia connection system can be commissioned.

5. Commissioning

CAUTION!

Short-circuit if devices that are switched on are connected.

Devices may be destroyed.

Switch all devices off before connecting them.

5.1. Carrying out a functional test

Multimedia connection system is connected.

- Activate the desired functions and check the signal transmission at the signal sources and the playback device, e.g. play a DVD and check picture/sound reproduction on a television set.

The multimedia connection system is ready for operation.

6. Appendix

6.1. Technical data

Cinch Audio

Rated voltage: DC 50 V

Frequency ranges: 20 Hz ... 20 kHz

Contact resistance: ≤ 20 mΩ

Insulation resistance: ≥ 100 MΩ

Electric strength: AC 500 V\~ (50/60 Hz) for 1 min 2 mA

Insertion and removal forces: 3 ... 25 N

Insertion cycles: ≥ 1000

Gender changer: white (left), red (right)

Contact material: gold-plated

Installation depth: 14 mm

Ambient temperature: -5 ... +45 °C

TRS 3.5 mm

Rated voltage: DC 50 V

Frequency ranges: 20 Hz ... 20 kHz

Contact resistance: ≤ 20 mΩ

Insulation resistance: ≥ 100 MΩ

Electric strength: AC 500 ... 2000 V\~

DC 800 V

Insertion and removal forces: 4.9 ... 14.7 N

Insertion cycles: ≥ 2000

Gender changer: 3.5 mm Audio Stereo, 180°

Contact material: gold-plated

Ambient temperature: -5 ... +45 °C

Composite Video

Rated voltage: DC 50 V

Frequency ranges: ≤ 160 MHz

Contact resistance: ≤ 20 mΩ

Insulation resistance: ≥ 100 MΩ

Electric strength: AC 500 V\~ (50/60 Hz) for 1 min 2 mA

Insertion and removal forces: 3 ... 25 N

Insertion cycles: ≥ 1000

Gender changer: yellow

Contact material: gold-plated

Installation depth: 14 mm

Ambient temperature: -5 ... +45 °C

Multimedia connection system

Ref.-no.: MA..

S-Video

Rated voltage: DC 50 V

Frequency ranges: ≤ 160 MHz

Contact resistance: ≤ 80 mΩ

Insulation resistance: ≥ 50 MΩ

Electric strength: AC 500 V\~ (50/60 Hz)

for 1 min 2 mA

Insertion forces: ≤ 44.1 N

Removal forces: 5.88 ... 29.4 N

Insertion cycles: ≥ 1000

Gender changer: S-Video

Contact material: gold-plated

Ambient temperature: -5 ... +45 °C

VGA

Resolution: ≥ 800 x 600 pixels

≤ 1280 x 1024 pixels

S-VGA compatible

Frequency ranges: ≤ 160 MHz

Contact resistance: ≤ 30 mΩ

Insulation resistance: ≥ 1000 M

Electric strength: AC 500 V\~ (50/60 Hz)

for 1 min 2 mA

Insertion forces: 43.9 N

Removal forces: 3.92 N

Insertion cycles: ≥ 500

Gender changer: 15pole D-subminiature, 180°

Installation depth: 5 mm

Ambient temperature: -5 ... +45 °C

HDMI

Standard: HDMI 2.0a

Support for HDMI™ technology

(HDMI High Speed)

4K @ 50/60 Hz

Full HD @ 48 Hz 3D

HDR Video

Gender changer: HDMI ^™ type A, 180°

Contact material: gold-plated

Installation depth: 25 mm

Ambient temperature: -5 ... +45 °C

USB

Standard: 2.0 High Speed

Gender changer: Type A, 180°

Installation depth: 27 mm

Ambient temperature: -5 ... +45 °C

DVI

Standard: DVI-I Dual Link (analogue + digital)

Rated voltage: AC 40 V

Frequency range: ≤ 1000 MHz

Contact resistance: ≤ 20 m

Insertion/removal cycles: ≥ 1000

Terminal: 180°

Installation depth: 17 mm

Installation note: Consider bending radius and various plug types. Ensure sufficient installation space.

6.2. Troubleshooting

No signal at the playback device after the signal sources is switched on.

Cause 1: Playback device is not switched on.

- Switch on playback device.

Cause 2: Loose connector.

- Check that all connections are properly seated.

No video signal at the playback device after the signal sources is switched on.

Cause 1: Signal source is not recognised by the playback device.

- Manual selection of the signal source using remote control or channel selection buttons of the player.

Cause 2: VGA output of the signal source is not activated.

- Activate VGA output. Note information of the device manufacturer.

No audio signal at the playback device after the signal sources is switched on.

Cause 1: Volume control on the signal source or on the playback device is set too low.

- Increase volume.

Cause 2: The audio on the playback device is set to mute.

- Deactivate the mute function. Note information of the device manufacturer.

6.3. Guarantee

Our products are under guarantee within the scope of the statutory provisions.

Please return the unit postage paid to our central service department giving a brief description of the fault:

ALBRECHT JUNG GMBH & CO. KG

Service-Center

Kupferstr. 17-19

D-44532 Lünen

Service-Line: +(49) 23 55.80 65 51

Telefax: +(49) 23 55 . 80 61 65

The CSign is a free trade sign addressed exclusively to the authorities and does not include any warranty of any properties.
