SKH-M1TB-R - Light signaling PATLITE - Free user manual and instructions

Brand	PATLITE
Model	SKH-M1TB-R
Product Type	Light Signaling Device (Stack Light)
Color	Red
Number of Tiers	1
Mounting Type	Direct Mount / Pole Mount
Protection Rating	IP65 (estimated for dust and water resistance)
Voltage	24V AC/DC (typical for PATLITE models)
Power Consumption	Approx. 3W
Light Source	LED (long life, low energy)
Dimensions (Height x Diameter)	Approx. 50mm x 60mm (typical for single-tier)
Weight	Approx. 100g
Operating Temperature	-10°C to +50°C
Housing Material	Polycarbonate (impact resistant)
Connection Type	Pre-wired cable (approx. 1m)
Sound Output	None (visual only)
Certification	CE, RoHS compliant
Maintenance	No user-serviceable parts; clean with dry cloth
Application	Industrial status indication, machinery alarm

Frequently Asked Questions - SKH-M1TB-R PATLITE

How do I mount the PATLITE SKH-M1TB-R signal light?

The device can be mounted directly on a flat surface using screws or on a pole using an optional bracket. Ensure the mounting surface is stable and the cable is routed without strain.

What voltage does the SKH-M1TB-R operate on?

The standard operating voltage is 24V AC/DC. Always check the specification label on your unit to confirm. Use a regulated power supply to avoid damage.

Can I replace the LED bulb in the SKH-M1TB-R?

No, the LED is integrated and not replaceable. If the LED fails, the entire unit must be replaced. The LED has a long lifespan, typically over 50,000 hours.

Is the SKH-M1TB-R weatherproof?

Yes, it has an IP65 rating, meaning it is dust-tight and protected against water jets. It can be used indoors or outdoors, but avoid prolonged submersion.

What is the power consumption of the SKH-M1TB-R?

The typical power consumption is about 3 watts, making it energy-efficient for continuous operation.

Does this signal light produce any sound?

No, the SKH-M1TB-R is a visual-only signaling device. For audible alarms, consider PATLITE models with built-in buzzers.

How do I clean the signal light?

Clean the polycarbonate housing with a soft, dry cloth. For stubborn dirt, use a mild soap solution and avoid abrasive cleaners or solvents.

What is the operating temperature range?

The device can operate in temperatures from -10°C to +50°C. Ensure proper ventilation if used in high-temperature environments.

Can I connect multiple SKH-M1TB-R units in series?

It is not recommended to connect units in series. Each unit should be powered individually with proper wiring to ensure reliable operation.

Where can I find the manual for the SKH-M1TB-R?

The manual is available for free download on notice-facile.com in PDF format. You can also request a translated version by providing your language preference and email.

USER MANUAL SKH-M1TB-R PATLITE

INSTRUCTION MANUAL Rotating Beacons

TYPE SKS / SKH / SKP

Multi-function Beacons

TYPE SF08 / SF10

Flashing Beacons

TYPE SL08 / SL10 / SL15

Notice to Customer

Thank you very much for purchasing our Patite products.
- Request the installation and wiring be performed by a professional apparatus if construction work is involved.
- Prior to installation, read this manual thoroughly before using this
product to ensure correct use.
- In addition, please store this manual for future performing maintenance repairs or instructions
•For petitions and repair parts, please visit our website
(https://www.pallite.com).
- If there are any questions concerning this product, refer to the contact information at the end of the following contact information
Information at the end of this document and contact your nearest BATLIFE Sales Recommendation

1. 2017-12-31

Read this First (Safety Precautions)

Warning Failure to observe the following may result in

1. In usual time, the cause of death, gives the influence
2. To prevent from short-circuit of damage, observe the following:
3. Be sure the power is disconnected before replacement or repair
   replacement of the fuse.
4. Use this product in a properly maintained condition. (Replace or repair if the choice case, cts are damaged.)
5. If existing this product requires construction work, ask a specialized in order to
   seal fire in personal injury.
6. When this product is used for security purposes, it should be inspected clearly. It uses a manual group should make it recommended that you use this
   Product together with other security products.
7. After installation, do not use this product to climb up onto the equipment with.

Failure to comply with result in product damage and other rating on the machinery.

Caution Failure to comply with the following points may result in injury, physical loss or damage.

• Be sure to put a 1 use in the wiring circuit between the power source and
  equipment for protection. If a fuse is not added, it may result in product and/or
  equipment failure.
• For sure to prevent electrostatic damage due to discharge when working with
  This product for wiring, exchanging units, selling up parameters, etc. by
  oberging side: socially or your body. She

- Do not disassemble or detach during operation.

2 Model Number Configuration

SF·SI Models

K1

KT

Note Number Example SF08-M1KTB-R

- 030 - 12 - 24 VDD - 2 point hole type mounting - Terminal block

■ SK Model

Voss Hunter Lomlo

- 0100 - 12 - 24 V DC - Carbone Cable - With buzz - Red color

5--7--8-6

3 Part Names

■ Cable type J

■ Terminal block type T KT

Accessory List

	Name/Model	QTY
SF0□□□KT/SL□□□□KT	Mounting Bracket, Waterproof Sheet	1
SF08-□□J5L06-□□J5KS Model	M4 Nut, Plain Washer	3
SF 10-□□J5L10-□□J5KII Model	M5 Nut, Plain Washer	3
SL-15-□□J5KP Model	M8 Nut, Plain Washer	3

4 Installation

■ 3-Screw Mounting Type J T

(1) Insert the bolts of the beacon into

the holes of the mounting surface.

(2) Use the nuts and washer

(accessory) to secure in place

Installation Example

Maximum Board Thickness of Mounting Surface

Installation Dimensions

Refer to the "Installation Manual"

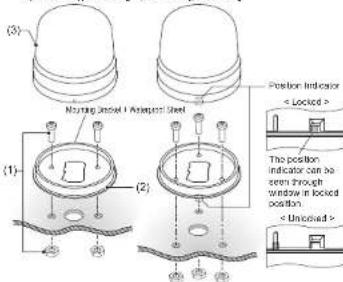

■ 2-point Hole Type Mounting (SF • SL Models)

3-point Hole Type Mounting (SL15 Model Only)

(1) Use the screws or balls, nuts, to secure the mounting bracket

(accessory) to the mounting surface. (installation screw and nuts are not included with this product

(Installation screws and nuts are not included with this product. Binding head screws or pan head screws are recommended.)

Model	Screw Hole Depth of Mounding Bracket	Nominal Diameter
SF00*SL00	4.5 mm	M4
SF10*SL10	5.7 mm	M5
SL15	4.8 mm	M8

(2) Check that the O-ring is not twisted

(3) Align the main unit of product with the positioning Indicator and turn it clockwise to lock it.

Installation Example

2-point Hole Type Mounting 3-point Hole Type Mounting

Installation Dimensions

Refer to the "Installation Manual"

Caution • Use a soft depth conditioned with water to clean ≥ globe or cube. (In not use 2 inches, 1000m, coarse or oil.)

Note The type with a buzzer, if the buzzer opening is splashed with water, the Sound Pressure Level may drop.

5 Wiring

Caution • Make sure the power is OFF before wing. A short circuit
may damage internal circuits.
• Ensure damage.
• Do not pull the wire, or stuff it inside of this case.
- Be sure the wiring is done properly. Any mistake in wiring may result in damage
- In the M2 mode, do not perform blinking control by luming the power supply. On / OFF: Any mization is making our result in demand.
- Do not apply a voltage to the common wire. (M1 type)
Do not apply a voltage to any wire other than the power supply wire. (M2 type)
Failure to comply with result in product damage (except buzzer wire of 3KH-M1)
- DO NOT impose the wing from the sides. If scratch is applied to 150 W/Fe, the wing may be dismounted at a short vertical line electric shock.
- Use either a Contact Switch or Contact Relay for External Contact that power
supply wire of SF, St., SK Model and browser wire of SK Model. Future comply

they result in free product distribution.

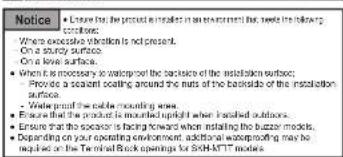

Notice • The protection rating does not include the Cavitye Cable

ends If too ends of the it are a poster with letter or arrowed to drop or

If the claims of them are to be made with a claim of which, or that of consideration, refer to the indications below to draw the wire end

The following table is provided in the image:

- Connect the ends in a location which will not expose the edges to water.

- Use Filters, such as silicon, etc., to seal the t ends.

[External contact capacity of power supply who]

	M1	M2
Current Capacity (in)	3A or more	1A or more

[External contact capacity of signal wire and buzzer wire]

GE + EI. Ncdnk

	M1	M2
Current Capacity (Vs)	10 mA or more	10 mA or more
Withland Voltage (Vs)	20 V or more	20 V or more
Leakage Current, °C	0.1 mA or less	0.1 mA or less

- When using an NPN open collector transistor

SK Model

	M1	M2
Current Capacity (k)	0.5 A or more	0.5 A or more
Voltage Voltage (V)	35 V or more	20 V or more

[Fuyn]

Firm Rating 250V1A

Wire Type / Wire Gauge

Wire Type : UL2454

Wm C- on □15 AVI022

二

M2 Power Supply Wm AWG18

Exciting Power Supply wire: A77521

Wiring Example

Refer to the "Installation Manual".

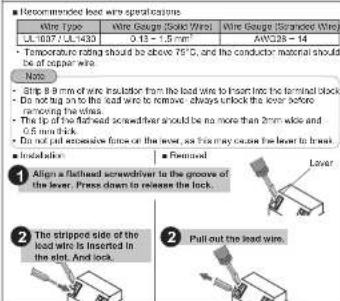

Terminal Block Wiring

6 Specifications

Model	Rated voltage
SF08-M1,SF1C-M1	12 - 24 V DC (Non-polar)
SF08-M2,SF1C-M2	100 - 240 V AC (5060 Hz)
SL08-M1,SL10-M1,SL15-M1	12 - 24 V DC (Non-polar)
SL08-M2,SL10-M2,SL15-M2	100 - 240 V AC (5060 Hz)
SKS M1/SKH M1/SKP-M1J	12 - 24 V DC (Non-polar)
SKS-M2/SKH-M2/SKP-M2J	100 - 240 V AC (5060 Hz)
SKH-M1T	12 - 24 V DC (Non-polar)
SKH-M2T	100 - 240 V AC (5060 Hz)

Conformity Standards

• EMC Directive (EN61000-9-4, EN61000-9-2)

• RoHS Directive (ENSC581

• CLHIS, CBA-C22.2 No. 14 (File No. EXTRIM) • ECG-Part 15 Schmid B Class 0

- Contemporary requirements for the CE Marketing

This product conforms to EN standards and shows the CE Marking. This product has been tested and found to comply with the limits for a Class A device, pursuant to EMC DIRECTIVE. There limits are designed to provide reasonable provision against harmful interferences when the equipment is opened in a commercial environment. This product must not be used in residential stress.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 16 of the FOC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. The equipment generates, uses, and can radiate radio frequency energy and, if not installed and uses in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in exceptional area is likely to cause harmful interference in which case the user will be required to correct the interference at its own expense.

(Note): • Dimensions set specifications may change without notice due to

continual product improvement

PATLITE AND THE PATLITE organ a transcript, of the gene transcript of the PATLITE Corporation of open and open exons.

THE ATLANTIC CORPORATION OF S&P500 AND MSCI USA

computer for EU; PATLITE Europe GmbH Am Scekremnas 8, D-85399 Halbengmacs, Germany
