Product Type	Multi-function Beacon (Rotating/Flashing)
Model	SF08-M1KTN-B
Brand	PATLITE
Power Supply Voltage	12-24 VDC
Mounting Type	2-point hole type mounting, terminal block
Buzzer	Yes (model suffix B)
Color	Red (from similar model SKH-M1JB-R)
Wiring Type	Terminal block or cavity cable (depending on variant)
Protection Rating	Not specified, but O-ring seal for moisture protection
Accessories Included	Mounting bracket, waterproof sheet, M4/M5/M8 nuts and plain washers
Compliance	EMC Directive (EN61000-6-4, EN61000-6-2), RoHS, UL/CSA, FCC Class A
Maximum Mounting Surface Thickness	Refer to installation manual (specific dimensions not given in excerpt)
Cleaning	Use a soft cloth moistened with water; do not use solvents, alcohols, or oils
Safety Precautions	Disconnect power before wiring or repair; use a fuse in power circuit; avoid electrostatic discharge
Spare Parts & Repairs	Visit https://www.patlite.com for replacement parts and repair information
External Contact Capacity	Power supply: 10 mA or more, 20 V or more withstand voltage; Signal/buzzer: 10 mA or more, 20 V or more
NPN Transistor Compatibility	SK Model: M1/M2, current capacity 0.5 A or more, withstand voltage 35 V (M1) / 20 V (M2)
Fuse Rating	250V 1A
Wire Type/Gauge	UL2454; Power supply wire: AWG18 (M2), AWG22 (M1); signal wire: AWG24

Frequently Asked Questions - SF08-M1KTN-B PATLITE

What is the power supply requirement for the SF08-M1KTN-B?

The SF08-M1KTN-B operates on 12-24 VDC power supply.

Does the SF08-M1KTN-B include a buzzer?

Yes, the model suffix 'B' indicates that the beacon includes a built-in buzzer.

What mounting options are available?

The SF08-M1KTN-B uses a 2-point hole type mounting with a terminal block. An optional mounting bracket and waterproof sheet are included.

How do I clean the beacon?

Clean the globe or casing with a soft cloth moistened with water. Do not use solvents, alcohols, or oils as they may damage the unit.

What safety precautions should I take during installation?

Always disconnect the power before wiring or repair. Use a fuse in the power circuit and ensure proper grounding. Avoid electrostatic discharge by discharging your body before handling.

Can I use an NPN open collector transistor for control?

Yes, for SK models, the external contact requires a current capacity of 0.5 A or more and withstand voltage of 35 V (M1) or 20 V (M2).

What are the compliance standards for this product?

It complies with EMC Directive (EN61000-6-4, EN61000-6-2), RoHS, UL/CSA, and FCC Class A standards. Suitable for commercial environments.

How do I obtain replacement parts or repair service?

Visit the official PATLITE website at https://www.patlite.com for parts and repair information. Contact your nearest PATLITE sales office for support.

What is the maximum board thickness for mounting?

The maximum board thickness is not specified in the manual excerpt. Refer to the Installation Manual for detailed dimensions.

Can the beacon be used in residential areas?

No, this product is intended for commercial environments only. It may cause harmful interference in residential areas, requiring the user to correct interference at their own expense.

USER MANUAL SF08-M1KTN-B PATLITE

INSTRUCTION MANUAL Rotating Beacons

TYPE SKS / SKH / SKP

Multi-function Beacons

TYPE SF08 / SF10

Flashing Beacons

TYPE SL08 / SL10 / SL15

Notice to Customer

Thank you very much for purchasing our Patite products.
- Request the installation and wiring be performed by a professional apparatus if construction work is involved.
- Prior to installation, read this manual thoroughly before using this
product to ensure correct use.
- In addition, please store this manual for future performing maintenance repairs or inspections
•For pensions and repair parts, please visit our website
(https://www.pallite.com).
- If there are any questions concerning this product, refer to the contact information at the end of the degree of contact.
Information at the end of this document and contact your nearest BATLIFE Sales Recommendation

PALENE GREEN REP

1 Read this First (Safety Precautions)

Warning Failure to observe the following may result in

Warning death or serious injury.
- To prevent from short-circuits or damage, observe the following:
- Be sure the power is disconnected before replacement or repair, including the replacement at the fuse.
- Use this product in a properly restrained condition. (Replace or repair if the
gctbe, case, cts. are damaged.)
■ If following the product, it includes construction costs, ask a special case in order to several fees, or personnel injury.
- When this product is used for security purposes, it should be inspected only.
In case a malfunction should occur, it is recommended that you use this product together with other non-ship procedures.
- After installation, do not use this product to climb up onto the equipment with.

Failure to comply will result in product damage and/or failing off the machinery.

Caution Failure to comply with the following points may

Education result in injury, physical loss of damage.

- Be sure to put a fuse in the wiring circuit between the power source and equipment for protection. If a fuse is not asked, it may result in product ordering

equipment failure.

- Be sure to prevent electrostatic damage due to discharge when working with

This product for wiring, exchanging units, setting up parameters, etc. by discharging side separately on your body.

• Do not disassemble or detach during operation.

KT a1b1SL16: No Buzzer

Note: Number Bonds SF08-M1KTB-R

- 050 - 12 - 24 VDD - 2-point hole type mounting - Terminal block

■ SK Model

Vots Number L### SKH-M1JB-R

- 0100 - 12 - 24 V DC - Cable Cable - With buzzer - Red color

5--7--8-6

3 Part Names

■ Cable type

■ Terminal block type T KT

Accessory List

	Name/Model	QTY
SF□□□□KT/SL□□□□KT	Mounting Bracket, Waterproof Sheet	1
SF08-□□J5L06-□□J5KS Model	M4 Nut, Plain Washer	3
SF 10-□□J5L10-□□J5KII Model	M5 Nut, Plain Washer	3
SL-15-□□J5KP Model	M8 Nut, Plain Washer	3

4 Installation

■ 3-Screw Mounting Type J T

(1) Insert the bolts of the beacon into

the holes of the mounting surface.

(2) Use the nuts and washer

(accessory) to secure in place

Installation Example

Maximum Board Thickness of Mounting Surface

Installation Dimensions

Refer to the "Installation Manual"

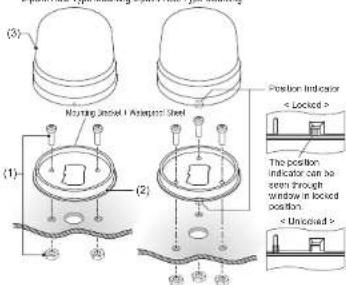

■ 2-point Hole Type Mounting (SF • SL Models)

3-point Hole Type Mounting (SL15 Model Only)

(1) Use the screws or balls, nuts, to secure the mounting bracket

(accessory) to the mounting surface. (installation screw and nuts are not included with this product

(Installation screws and nuts are not included with this product. Binding head screws or pan head screws are recommended.)

Model	Screw Hole Depth of Moundry Bracket	Nominal Diameter
SF00*SL00	4.5 mm	M4
SF10*SL10	5.7 mm	M5
SL15	4.8 mm	M8

(2) Check that the O-ring is not twisted

(3) Align the main unit of product with the positioning Indicator and turn it clockwise to lock it.

Installation Example

2-point Hole Type Mounting Special Hole Type Mounting

Installation Dimensions

Refer to the "Installation Manual"

Caution • Use a soft rithm moistened with water to clean 2 = globe or ocean. (In not use 2 inches, 100 inches, coarse or oil)

Note The type with a buzzer, if the buzzer opening is splashed with water, the Sound Pressure Level may drop.

5 Wiring

Caution • Make sure the power is OFF before wing. A short circuit
may damage Internal circuits.
• Ensure damage.
• Do not pull the wire, or stuff it inside of this case.
- Be sure the wiring is done properly. Any mistake in wiring may result in damage
- In the M2 mode, do not perform blinking control by turning the power supply ON/OFF. Any mislase in wiring may result in damage.
- Do not apply a voltage to the common wire. (M1 type)
Do not apply a voltage to any wire other than the power supply wire. (M2 type)
Failure to comply with result in product damage (except hazard use of 5KH-M1). Do not agree the wiring from the device. It is open to the edge, the
- 30% of exposure that wiring could be used, if a short or deep in the air, the wiring may be disconnected, resulting in a short circuit or an electric shock.
- Use either a Contact Switch or Contact Relay for External Contact that power
supply area of SR, SI, SK dimensions and in/200 area of SK Double. Future comply with result in few product satisfaction.

Notice • The protection rating does not include the Cabryne Cable

[External contact capacity of power supply who]

[External contact capacity of signal wire and buzzer wire]

SE + SE - Ncdnke

	M1	M2
Current Capacity (V)	10 mA or more	10 mA or more
Withstand Voltage (V)	20 V or more	20 V or more
Leakage Current (L)	0.1 mA or less	0.1 mA or less

- When using an NPN open collector transistor

SK Model

	M1	M2
Current Capacity (k)	0.5 A or more	0.5 A or more
Wired Power Voltage (V)	35 V or more	20 V or more

FUM

Fuer Rating 250V1A

Wire Type / Wire Gauge

Wire Type : UL2454

Wm Cen. 1 M1 A/W022

二

M2 Power Supply Wm A//G18 Eating Power Supply Wm A//G24

Wiring Example

Refer to the "Installation Manual".

Terminal Block Wiring

6 Specifications

Conformity Standards

• EMC Directive (EN61000-9-4, EN61000-9-2)

• RoHS Directive (ENSC581

• CLHIS, CBA-C22.2 No. 14 (File No. EXTRIM) • ECG-Part 15 Schmid B Class 0

- Contemporary requirements for the GE Marketing

This product conforms to EN standards and shows the CE Marking. This product has been tested and bound to comply with the limits for a Class A device, pursuant to EMC DIRECTIV. There limits are designed to provide reasonable provision against harmful interferences when the equipment is opened in a commercial environment. This product must not be used in residential stress.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 16 of the FOC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. The equipment generates, uses, and can radiate radio frequency energy and, if not installed and uses in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in promotional area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

(Note): • Dimensions set specifications may choose without notice due to

continual product improvement
