Product Type	Wall-mounted Fan Heater
Model	Ecostar WF2000
Brand	Braemar
Dimensions (H x W x D)	600 x 200 x 400 mm
Weight	5 kg
Power Supply	220-240 V, 50 Hz
Power Consumption	2000 W (max)
Heating Elements	Ceramic PTC
Thermostat	Adjustable with digital display
Fan Speeds	2 (Low / High)
Modes	Heat, Fan only, Eco
Timer	1-24 hours
Remote Control	Yes, included
Suitable Room Size	Up to 25 m²
Energy Class	A
Noise Level	≤ 45 dB
Safety Features	Overheat protection, tip-over switch, child lock
Installation	Wall-mounted or free-standing with included feet
Maintenance	Clean filter every 2 weeks; wipe with soft cloth
Spare Parts Availability	Replaceable filter, remote control, feet available from Braemar
Warranty	2 years (conditions apply)

Frequently Asked Questions - Ecostar WF2000 Braemar

How do I install the Braemar Ecostar WF2000?

The unit can be wall-mounted using the supplied bracket or placed on the floor with the included feet. Ensure at least 50 cm clearance from furniture and curtains. For wall mounting, drill holes, insert plugs, and screw the bracket securely.

Can I use the heater in a bathroom?

No, the Ecostar WF2000 is not IP-rated for bathroom use. It should be used in dry indoor areas only.

How do I set the timer?

Press the Timer button on the unit or remote, then use + or - to set the desired hours (1-24). The heater will automatically turn off after the set time.

Why is the heater blowing cold air?

The heater may be in Fan only mode. Press the Mode button to select Heat. Also check that the set temperature is higher than the room temperature.

How often should I clean the filter?

Clean the air filter every two weeks for optimal performance. Remove the filter cover, wash the filter with mild soap and water, dry completely, and reinstall.

What does the error code E1 mean?

Error E1 indicates overheat protection activation. Turn off the heater, unplug it, and let it cool for 30 minutes. Check for blocked air intake. If the error persists, contact support.

Does the heater come with a remote control?

Yes, a remote control is included. It allows you to turn the heater on/off, adjust temperature, set timer, and change modes from a distance.

Can I use an extension cord?

It is recommended to plug the heater directly into a wall outlet. If an extension cord is necessary, use a heavy-duty cord (minimum 12 AWG) and ensure it is fully unwound.

What is the warranty period?

Braemar offers a 2-year warranty for the Ecostar WF2000 covering manufacturing defects. Proof of purchase is required. The warranty does not cover misuse or unauthorized repairs.

How do I reset the heater after a power cut?

Simply unplug the heater, wait 10 seconds, and plug it back in. Then press the Power button to start. The previous settings may be lost.

USER MANUAL Ecostar WF2000 Braemar

It is a condition of your warranty cover that the items in the Schedule below are checked (and action taken as required) every two (2) years after the date of installation by a qualified, licenced technician, and that the Schedule is properly filled out (ie names, signature, date, and action taken). Even after the warranty period expires, please continue to have the product maintained every two years as per the items in the Schedule. This will help to prolong the life of the product and keep it running efficiently. Maintenance Schedule

Year	248610
Name of Technician and company(Print)
Signature of Technician
Date of attendance

Cabinet and components

Cabinet
Heat exchanger
Electrical connections
Combustion air inlet louvres

General installation

Rear register
Flue system, cowl
Electrical and gas connections

Electrical

Electrical wiring
Room fan motor / impellor
Thermocouple voltage
Overtemp switch

Gas, burners, ignition

Main burner and injector
Pilot gas rate
Pilot burner and injector
Pilot ignition / ignition electrode

Operation

Start up and run sequence
Control operation
Complete ignition
Gas inlet pressure	kPa	kPa	kPa	kPa	kPa
Gas test point pressure High	kPa	kPa	kPa	kPa	kPa
Gas test point pressure Low	kPa	kPa	kPa	kPa	kPa
Thermostat operation
Draught diverter (NOTE 1)

Action taken key:

√ = Inspected and working correctly no action required
A = Adjustment of part
C = Cleaning of part
R = Replaced part

NOTE 1:

Check operation of flue and draft diverter in accordance with detailed instructions included in AS/NZS 56001. To owner/user; please note that as explained in your Warranty Card, installation is not covered by the warranty (for example, electrical and gas connections to the Wall Furnace). However, we still require that you have these things checked, because they can affect the performance (and/or safety) of the heater. This is why we have included them in the Maintenance Schedule. Further, routine maintenance may be required more frequently in non-domestic applications or when operating in adverse environmental situations. It is your obligation to ensure that you comply with these requirements.

It is the policy of Seeley International to introduce continual product improvement. Accordingly, specifications are subject to change without notice. Please consult with your dealer to confirm the specifications of the model selected.

Warranty Service

Australia 1-300-650-644

seeleyinternational.com

SEELEY

INTERNATIONAL

OWNER'S MANUAL

Wall Furnace - WF30/40

Exterior view of a tall, beige industrial refrigerator with a black side panel (no visible text or symbols)

(English) (WF30/40)

IMPORTANT MAINTENANCE (AND WARRANTY) INFORMATION

As with any product that has moving parts or is subject to wear and tear, it is VERY IMPORTANT that you maintain your wall furnace and have it regularly serviced. It is a condition of warranty cover for your wall furnace that you comply with all of the maintenance and service requirements set out in this Owner's Manual. Compliance with these requirements will prolong the life of your wall furnace. Further, it is also a condition of warranty cover that each item in the Maintenance Schedule in this Owner's Manual is performed with the frequency indicated, by a qualified, licensed technician, and that the Maintenance Schedule is properly filled out (ie names, signature, date, and action taken) when the item is completed. ANY FAILURE TO CARRY OUT THE REQUIRED MAINTENANCE AND SERVICING REQUIREMENTS, AND ANY FAILURE TO PROPERLY FILL OUT THE MAINTENANCE SCHEDULE, WILL VOID YOUR WARRANTY.

Care Instructions

External surfaces should be cleaned with warm water and detergent with the heater turned off. Do not use abrasive cleaners as scratching of the surface will occur.

Warning

DO NOT: Place articles on or against this appliance. DO NOT: Use or store flammable materials near this appliance

DO NOT: Spray aerosols in the vicinity of this appliance while it is in operation.

DO NOT: Modify this appliance.

IMPORTANT
If for any reason your heater experiences, a POWER FAILURE, the "Pilot Flame" is TURNED OFF, or GOES OUT, a period of up to 5 minutes is required for the heater to reset. If the heater has not reset, the "Gas control knob" will NOT turn easily. PLEASE DO NOT FORCE Damage to the mechanism may occur.

Braemar

by SEELEY INTERNATIONAL

WF30/40

OPERATING INSTRUCTIONS

Introduction

For satisfactory performance of your Braemar gas wall furnace, please read these instructions carefully. The operation of the heater is controlled by the gas control knob and fan switch located behind the access door on the front cover.

Fan Operation

The fan will start automatically in both AUTO and BOOST positions when the unit is warm enough after the burner is turned on, and stop automatically when the unit has cooled sufficiently after the burner turns off. With AUTO selected the unit will automatically select between "low" and "normal" (and "boost" on 40MJ models) fan speeds based on the heated air temperature - no further user adjustment is necessary. When BOOST is selected the fan will run only on its boost speed. It is recommended that the manual fan switch be set to AUTO for normal operation, or BOOST for rapid heat-up.

Gas Control

To light the heater:

• Turn the gas control knob anti-clockwise from the "0" position to the ★ position
• Depress knob fully and hold down.
• Press the igniter button located next to the gas control knob 3-4 times.

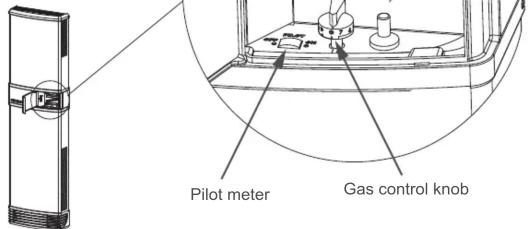

• Observe the pilot meter to indicate operation of the pilot.
• Wait 20 seconds then release the gas control knob and check the pilot meter stays on.
• Repeat the process if required.

Heat Setting

• Turn gas control knob anti-clockwise to desired heat setting between "1" and "7".
• The heater will automatically adjust the gas flow to maintain the room temperature corresponding to the selected heat setting.

To Increase Heat Setting

- Turn gas control knob anti-clockwise towards "7".

To Decrease Heat Setting

- Turn gas control knob clockwise towards "1".

To Turn Off Main Burner (Pilot-Stand by)

- Turn gas control knob clockwise to a position between the word PILOT & the symbol ★. (see "Pilot zone" Figure 1 below) It is recommended that the pilot be left in operation during the heating season.

To Turn Off Completely (end of heating season)

Turn gas control knob clockwise to the "0" position.

Figure 1: To Turn Off Main Burner (Pilot-Stand by) Heater will now only re-start when control knob is turned to a heat setting of 1 to 7.

SEELEY INTERNATIONAL – OWNER'S MANUAL 2
