Product Type	Expandable Level System
Model	MLXP712
Brand	Milwaukee
Catalog Number	MLXP712
Date Code	01012018
Includes	Standoff Replacement Kit (MLXPSTND), Soft Case (MLXPSB)
Dimensions (Approx.)	120 x 60 x 30 mm
Weight (Approx.)	0.5 kg
Power Source	2x AA batteries (not included)
Laser Class	Class 2
Accuracy	±0.5 mm/m
Operating Range	Up to 30 m (with detector)
Self-Leveling Range	±4°
Expandable Feature	Compatible with MLXPM78 for extended reach
Wiring Instruction Included	Yes, for component parts
Spare Parts Available	Standoff with Press Pins, Standoff Replacement Kit
Soft Case Accessory	MLXPSB Soft Case for storage and transport
Maintenance	Clean with dry cloth; avoid solvents
Safety	Avoid direct eye exposure; use laser safety glasses
Warranty	Limited lifetime warranty (check local regulations)

Frequently Asked Questions - MLXP712 MILWAUKEE

What is the Milwaukee MLXP712?

The Milwaukee MLXP712 is an expandable level system designed for precise alignment and leveling tasks. It can be used with the MLXPM78 for extended reach.

How do I change the batteries?

Open the battery compartment cover on the bottom of the unit and insert two AA batteries with correct polarity. Close the cover securely.

What is the laser class of the MLXP712?

It is a Class 2 laser. Avoid direct eye contact. Do not stare into the beam.

How do I install the standoff replacement kit?

Refer to the wiring instruction diagram. The standoff replacement kit (MLXPSTND) includes standoffs with press pins. Follow the part numbers in the manual.

Can I use the MLXP712 outdoors?

Yes, but the laser beam may be less visible in bright sunlight. Use a laser detector for improved range up to 30 m.

What does the date code 01012018 mean?

The date code indicates the manufacturing date: January 1, 2018. This helps identify the version for spare parts.

How do I clean the level?

Use a soft dry cloth to wipe the exterior. Avoid chemicals or abrasive materials that may damage the lens.

What is the accuracy of the MLXP712?

The typical accuracy is ±0.5 mm/m. For critical applications, calibrate before use.

Is the MLXP712 compatible with other Milwaukee accessories?

Yes, it works with the MLXPM78 expandable level and comes with the MLXPSB soft case. The standoff replacement kit is model-specific.

How do I store the level?

Store in the provided MLXPSB soft case in a dry place, away from extreme temperatures. Remove batteries if storing for long periods.

USER MANUAL MLXP712 MILWAUKEE

SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS			REVISED BULLETIN	DATE Apr. 2018
EXPANDABLE LEVELS
CATALOGNO. MLXPM78 MLXP712	DATE CODE	01012018 01012018	WIRING INSTRUCTION

EXAMPLE:

Component Parts (Small #) Are Included When Ordering The Assembly (Large #).

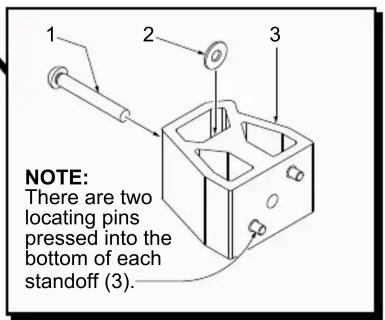

Standoff replacement kit used on model MLXP712 only

FIG. PART NO. DESCRIPTION OF PART NO. REQ.

1 M4 X 0.7 Machine Screw (2)
2 ---- Flat Washer (2)
3 Standoff with Press Pins (2)
4 MLXPSTND Standoff Replacement Kit (Set of 2), MLXP712 Only (1)
5 MLXPSB Soft Case for both models (Not Shown) (1)
