UT-DUNKEL17P - Kettle Ursus Trotter - Free user manual and instructions

Product Type	Electric Kettle
Brand	Ursus Trotter
Model	UT-DUNKEL17P
Capacity	1.7 L
Power Rating	2200 W
Voltage	220-240 V ~ 50/60 Hz
Housing Material	Stainless Steel
Heating Element	Concealed, Stainless Steel
Auto Shut-Off	Yes
Boil-Dry Protection	Yes
Cordless Operation	Yes (360° swivel base)
Lid Opening	One-touch button
Filter	Removable lime filter
Water Level Indicator	Yes (transparent window)
Handle	Ergonomic, heat-resistant
Base	360° swivel with cord storage
Dimensions (W x D x H)	22 x 18 x 24 cm
Weight	1.2 kg
Power Cord Length	70 cm
Warranty	2 years
Included Accessories	Kettle, base, instruction manual
Cleaning Instruction	Descale regularly with vinegar or citric acid
Safety Features	Auto shut-off, boil-dry protection, overheat protection
Certifications	CE, RoHS

Frequently Asked Questions - UT-DUNKEL17P Ursus Trotter

What is the capacity of the Ursus Trotter UT-DUNKEL17P kettle?

The kettle has a capacity of 1.7 liters, suitable for boiling water for multiple cups of tea or coffee.

Does the UT-DUNKEL17P have auto shut-off?

Yes, the kettle features automatic shut-off once the water reaches boiling point, ensuring safety and energy efficiency.

Can I use the kettle without the base?

No, the kettle requires the 360° swivel base for power. It is cordless for easy pouring but must be placed on the base to operate.

How do I clean the kettle?

Regularly descale the kettle using a mixture of vinegar and water or citric acid solution. Follow the instructions in the manual for best results.

What material is the kettle made of?

The kettle body is made of stainless steel, which is durable and resistant to rust and corrosion.

Is the kettle cordless?

Yes, the kettle is cordless when lifted from the base, allowing easy pouring and serving.

What is the power rating of the UT-DUNKEL17P?

The kettle operates at 2200 watts and is designed for 220-240 V electrical systems.

Does the kettle have a water level indicator?

Yes, it features a clear water level window on the side, allowing you to see the water level easily.

Can I boil milk or other liquids in the kettle?

No, this kettle is designed for boiling water only. Boiling other liquids may damage the appliance and void the warranty.

What safety features does the kettle have?

The kettle includes auto shut-off, boil-dry protection, and overheat protection to prevent accidents.

USER MANUAL UT-DUNKEL17P Ursus Trotter

German Engineering & Design

WASSERKOCHER

Hervidor eléctrico

HERVIDOR UT-DUNKEL17P

Características

• Please read these instructions carefully and retain them for reference.
• Use this appliance solely in accordance with these instructions.
• This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
• Have any repairs carried out solely by a qualified electrician. Never try to repair the appliance yourself.

Electricity and heat

• Before use please verify that the mains voltage is the same as indicated on the rating plate of the appliance.
  • Make sure that you always use an earthed wall socket to connect the appliance.
  • Always remove the plug from the mains socket before moving the appliance and when the appliance is not in use.
• Remove the plug from the wall socket by pulling the plug, not the power cord.
• Check the appliance's power cord regularly to make sure it is not damaged. Do not use the appliance if the power cord is damaged. Have a damaged power cord replaced by a qualified repair service.
• Certain parts of the appliance may get hot. Do not touch these parts to prevent burning yourself.
• The appliance needs space to allow heat to escape, thereby preventing the risk of fire. Make sure that the appliance has sufficient space around it, and does not come in contact with flammable material. The appliance must not be covered.
• Make sure that the appliance, the power cord or the plug do not make contact with hot services, such as a hot hob or naked flame.
• Make sure that the appliance, the power cord and plug do not make contact with water.

During use

• Never use the appliance outdoors.

• Place the appliance on a flat, stable surface.
  • Always remove the plug from the wall socket after use, and before cleaning the appliance.

• Never allow the power cord to hang over the edge of the draining board, worktop or table.

• Make sure that your hands are dry before touching the appliance, power cord or plug.
• Never use the appliance in a humid room.
• Never immerse the appliance, the plug or the power cord in water or other liquid.
• Do not pick up the appliance if it falls into water. Remove the plug from the wall socket immediately and do not use the appliance any more.
• Use solely the base supplied with the jug kettle. Never use the base for other purposes.
• Remove the jug from the base, and fill with water from the tap. Never fill the jug above the 'max' level.
• Do not switch on the appliance before you have filled it with water. Fill only with cold water.
• The jug's lid must remain securely closed whilst the appliance is in use.
• Never open the lid when the water is still boiling.
• Use the appliance only to boil or heat water. Never use it for other liquids!
• Fill the jug kettle with at least 0,5 litre of water.
• Allow the appliance to cool to room temperature before storage
• This appliance may not be used through an external timer or by means of a remote control.

Operation

The appliance is intended only for domestic use, not for professional use.

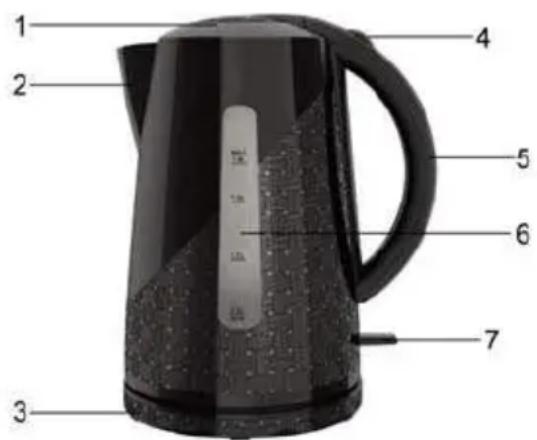

Feature

1. Top lid
2. Spout
3. Base
4. Lid release button
5. Handle
6. Water window with scales
7. On/off switch with indicator light

Before use for the first time

Before first use, remove possible manufacturing process residues by boiling 3 full kettles of water. Dispose this water.

Tip: You can use vinegar or special descaling agents for the first time.

Use

1. Turn the jug so that the spout faces away from you.
2. Press the button to open the lid (4).
3. Fill the jug with the required quantity of water (at least 0.5 liters, and a maximum of 2.0 liters). Never fill the water boiler over the "max". Otherwise the hot water can spatter out of the base.

ATTENTION

Make sure that you do not spill any water on the base.

1. Release the button to open the lid.
2. Place the jug on the base, and insert the plug in the wall socket. Push down the on/off switch. The on/off pilot light will illuminate.
3. The jug kettle is now switched on, and the water will now begin to heat. The jug kettle switches off automatically a few seconds after the water has come to the boil. The on/off pilot light will now extinguish.
4. Remove the jug from the base by the handle, and pour the water out.

ATTENTION

Be carefully you do not contact the hot water. It can cause serious burning wounds

1. When you wish to heat the water without it coming to the boil you can switch off the jug kettle at any time you require.
2. Remove the plug from the wall socket when you have finished using the jug kettle.

Overheating safeguard

The jug kettle is fitted with an overheating safeguard. This will switch off the jug kettle if it is operated without (sufficient) water. Allow the jug kettle to cool down for at least 10 minutes before using it again.

Cleaning and maintenance

• Remove the plug from the wall socket, and allow the appliance to cool.
• Clean the jug with a damp cloth. Never immerse the appliance in water. Never put the appliance in a dishwasher. Make sure that the electrical connections do not become damp.
• If the interior of the jug has become severely discolored, then the best way to clean it is with a damp cloth and a little washing soda. After cleaning, rinse the jug very thoroughly.

ATTENTION

• Never use corrosive or scouring cleaning agents or sharp objects (such as knives or hard brushes) to clean the appliance.
• Before cleaning, make sure that the appliance is not connected to the power supply and that it has cooled down.

Descaling

This appliance is equipped with an integral heating element, and consequently limescale will not be formed. Consequently you do not need to descaled the appliance. However, if you nevertheless do wish to descale the appliance:

1. Remove the plug from the wall socket, and allow the appliance to cool.
2. The jug kettle is fitted with a descaling filter. This filter must be removed for cleaning.
3. Fill the jug with a vinegar solution to the MAX level, and bring to the boil.
4. Leave the jug with the vinegar solution to stand for a couple of hours.
5. Empty the jug, fill with clean water to the MAX level, and bring to the boil. Empty the jug. Repeat this process twice.
6. Never use ammonia or other products to descale the appliance. These can be injurious to your health. Use solely a vinegar solution, or special descaling agents available from retailers.

Technical details

Model: UT-DUNKEL17P

Power consumption: 1850-2000W

Mains Voltage: 220-230V \~ 50/60Hz
