USER MANUAL Landon CF1106 Crosley

Line drawing of a simple cabinet with four legs and one door (no text or symbols)

PART LIST

A		B		C		D		E
Top Panel1 PC		Left Side Panel1 PC		Right Side Panel1 PC		Front Rail2 PCS		Dividing Panel1 PC
F		G		H		I		J
Bottom Panel1 PC		Front Leg Frame1 PC		Back Leg Frame1 PC		Right Back Panel1 PC		Left Back Panel1 PC
K		L		M		N		O
Adjustable Shelf1 PC		Door Panel1 PC		Front of Top Drawer1 PC		Left Side Panel of Top Drawer1 PC		Right Side Panel of Top Drawer1 PC
P		Q		R		S		T
Back Panel of Top Drawer1 PC		Front of Bottom Drawer2 PCS		Left Side Panel of Bottom Drawer2 PCS		Right Side Panel of Bottom Drawer2 PCS		Back Panel of Bottom Drawer2 PCS
U
Bottom Panel of Drawer3 PCS

HARDWARE LIST

#1	∅6x30	#2	∅8x30	#3		#4		#5	M4
Wood Dowel32 PCS (Extra 1)		Large Wood Dowel12 PCS (Extra 1)		Bolt4 PCS		Long Bolt4 PCS		Allen Wrench1 PC
#6		#7		#8		#9		#10
Magnet1 PC		Magnet Screw2 PCS		Panel Screw17 PCS (Extra 1)		Shelf Pin4 PCS		Knob3 PCS
#11		#12		#13
Handle1 PC		Round Head Bolt5 PCS		Safety Strap Kit1 PC

ADDITIONAL TOOLS (Not Provided)

Note: It is not recommended to use power tools during assembly.

Phillips Head Screwdriver

Please do not use tools to assemble this unit unless specifically indicated.

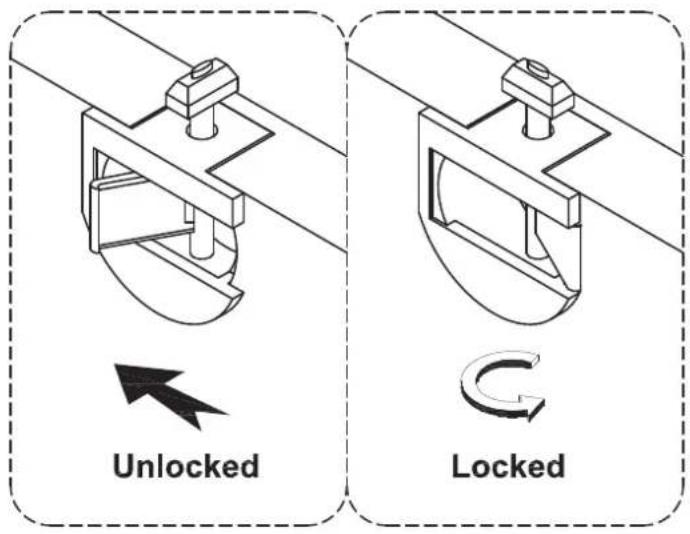

Reference the images above any time the instructions state "lock the hardware".

Note: Be sure to check all hardware is locked when completed.

Step 1. Attach magnet (part #6) to pre-drilled holes of top panel (part A) by using magnet screws (part #7) and phillips head screwdriver.

7

x 2

6

× 1

Step 2. Attach knobs (part #10) to front of top drawer (part M) and front of bottom drawers (part Q) by using round head bolts (part #12) and phillips head screwdriver.

Step 3. Attach handle (part #11) to door panel (part L) using round head bolts (part #12) and phillips head screwdriver.

11 x 1

12 × 2

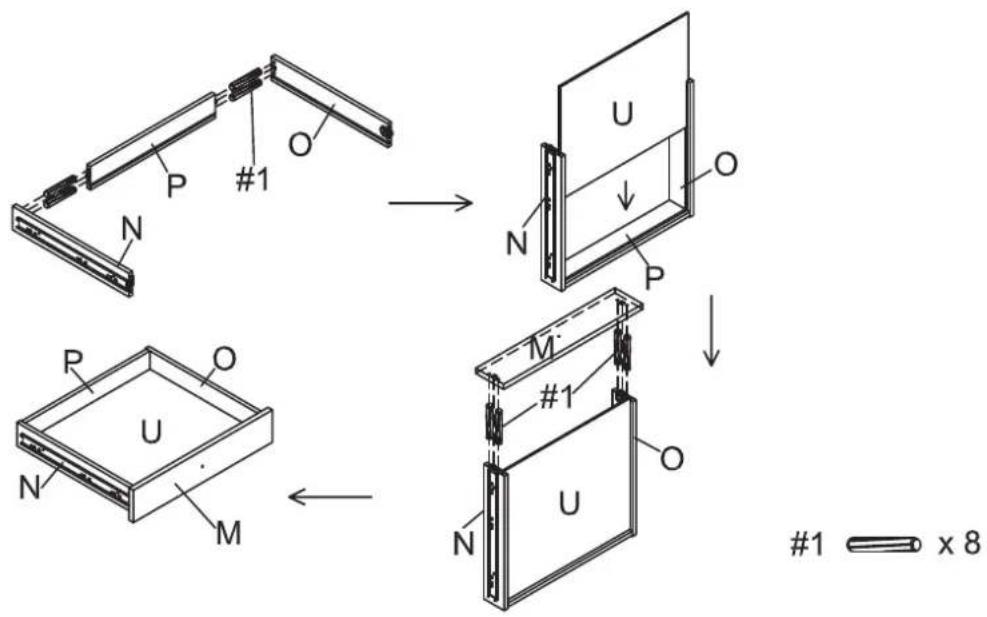

Step 4. Attach left side panel of top drawer (part N) and right side panel of top drawer (part O) to back panel of top drawer (part P) by using wood dowels (part #1) and lock the hardware. Slide bottom panel of drawer (part U) into the grooves of left side panel of top drawer (part N) and right side panel of top drawer (part O). Attach front of top drawer (part M) to left side panel of top drawer (part N) and right side panel of top drawer (part O) by using wood dowels (part #1) and lock the hardware.

Step 5. Attach left side panels of bottom drawers (part R) and right side panels of bottom drawers (part S) to back panels of bottom drawers (part T) by using wood dowels (part #1) and lock the hardware. Slide bottom panels of drawers (part U) into the grooves of left side panels of bottom drawers (part R) and right side panels of bottom drawers (part S). Attach front of bottom drawers (part Q) to left side panels of bottom drawers (part R) and right side panels of bottom drawers (part S) and lock the hardware.

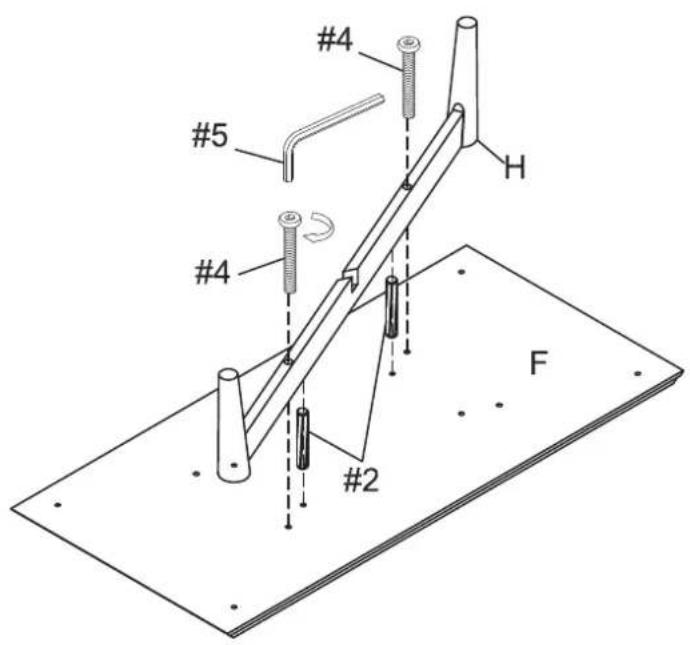

Step 6. Attach back leg frame (part H) to bottom panel (part F) by using large wood dowels (part #2), long bolts (part #4) and allen wrench (part #5).

2 x 2

4 x 2

5 x 1

Step 7. Attach front leg frame (part G) to bottom panel (part F) by using large wood dowels (part #2), long bolts (part #4) and allen wrench (part #5).

2 × 2

4 × 2

5 × 1

Step 8. Insert bolts (part #3) into bottom panel (part F) by using allen wrench (part #5).

3 ×4

5 ×1

Step 9. Attach front rails (part D) to dividing panel (part E) by using large wood dowels (part #2) and lock the hardware.

2 × 2

Step 10. Attach left side panel (part B) to front rails (part D) by using large wood dowels (part #2) and lock the hardware.

2 × 2

Step 11. Attach left side panel (part B) and dividing panel (part E) to bottom panel (part F) by using wood dowels (part #1) and large wood dowels (part #2) and lock the hardware.

1 ×2

2 x 2

Step 12. Attach right side panel (part C) to bottom panel (part F) by using wood dowels (part #1) and lock the hardware.

1 ×2

Step 13. Attach top panel (part A) to left side panel (part B), dividing panel (part E) and right side panel (part C) by using wood dowels (part #1) and large wood dowels (part #2) and lock the hardware.

1 x 4

2 × 2

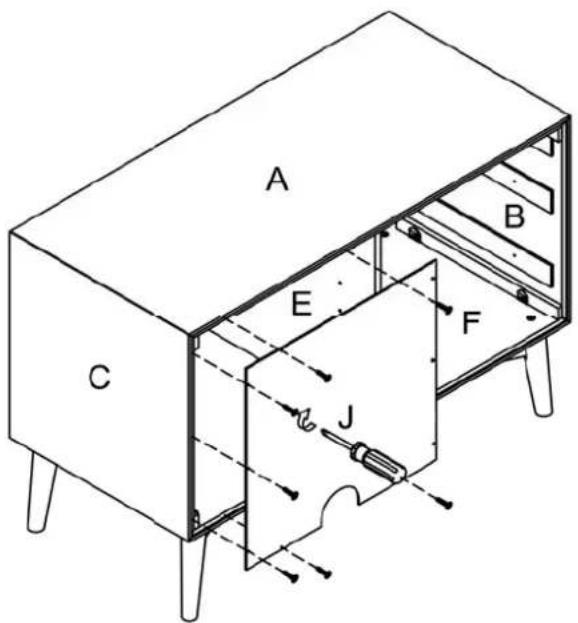

Step 14. Attach left back panel (part J) to top panel (part A), right side panel (part C), dividing panel (part E) and bottom panel (part F) by using panel screws (part #8) and phillips head screwdriver.

8 ×7

Step 15. Attach right back panel (part I) to top panel (part A), left side panel (part B), dividing panel (part E) and bottom panel (part F) by using panel screws (part #8) and phillips head screwdriver.

8 ×10

Step 16. Insert shelf pins (part #9) into desired position and slide adjustable shelf (part K) into place.

9 ×4

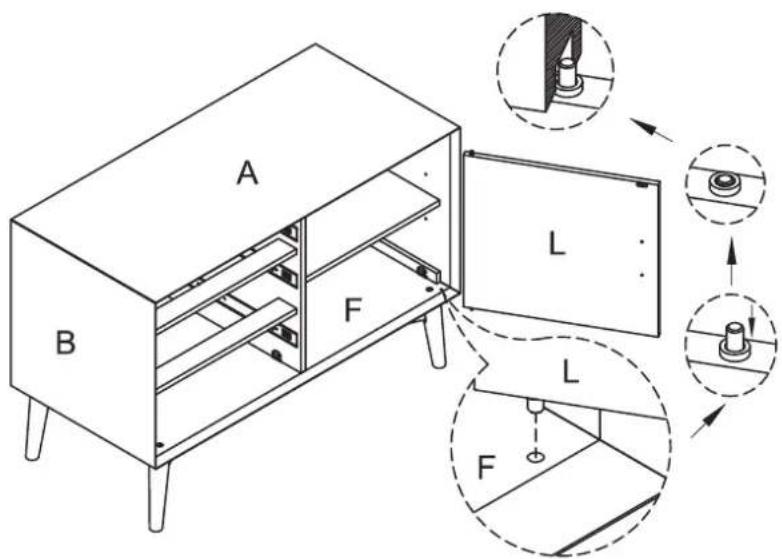

Step 17. Attach door panel (part L) to top panel (part A) and bottom panel (part F) by using hinges (pre-assembled).

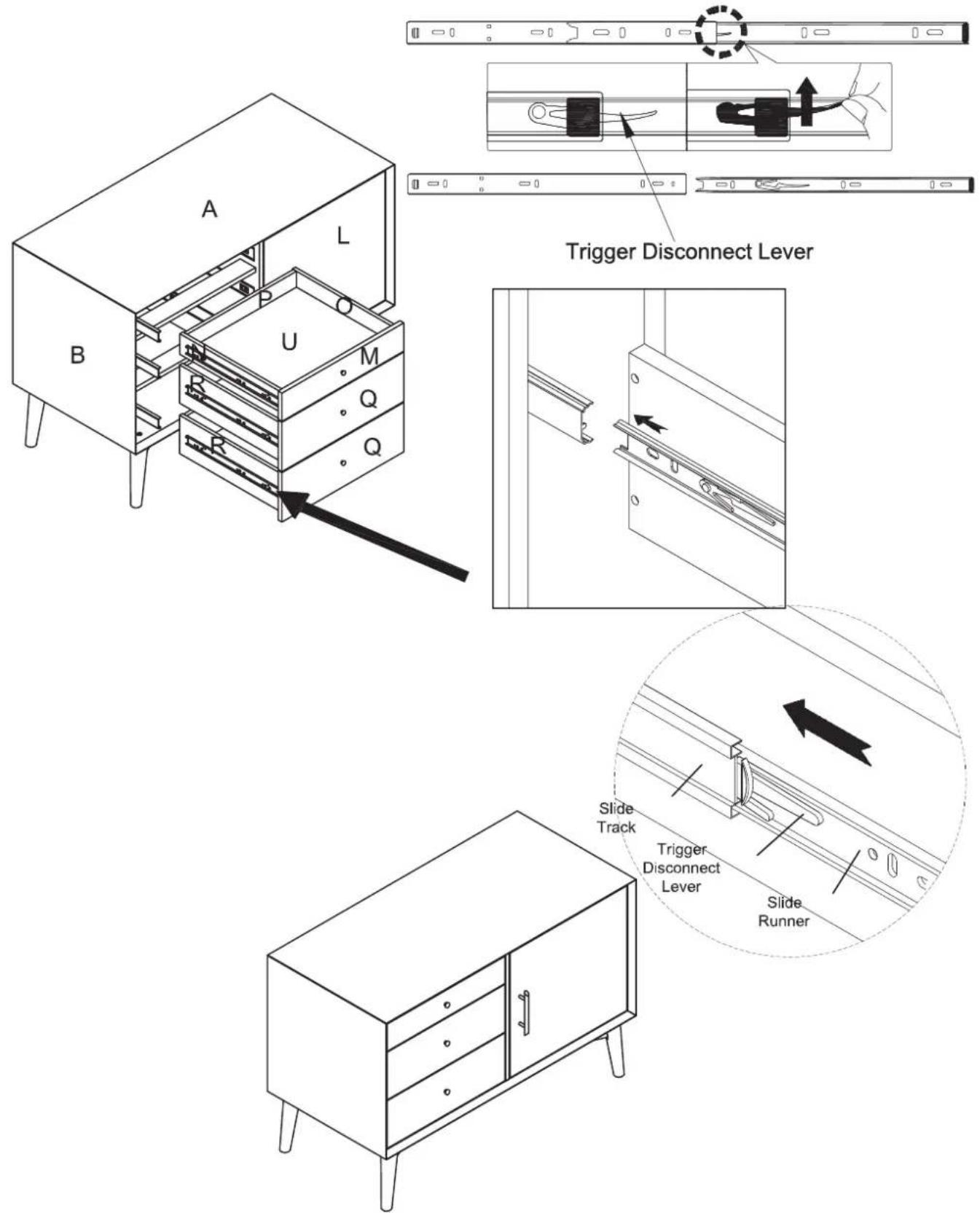

Step 18. Slide completed drawers into place.

Note: To release trigger disconnect levers push one side up and the other down.

#13	A	B	C	D	E
Safety Strap Kit 1 PC	Wall Anchor A x 1 PC	Washer B x 2 PCS	D8*3/4" Short Screw C x 1 PC	D8*1-1/2" Long Screw D x 1 PC	Safety Wall Strap E x 1 PC

SAFETY STRAP WALL ASSEMBLY INSTRUCTION

1) Insert short screw (part #C) through washer (part #B) and safety wall strap (part #E) and screw it into the top center of right back panel (part I).
2) Drill a 11/32" hole where you want to secure your unit. The hole should be at the same height as the hole in the top center of right back panel (part I). Tap wall anchor (part #A) into the hole.
3) Insert long screw (part #D) through a washer (part #B) and safety wall strap (part #E) into wall anchor (part #A).

Note: This item is not intended for clothing storage use.

Wall

Line drawing of a modern side table with four legs and one cabinet, showing internal drawers and handle (no text or symbols)

▲WARNING

Children have died from furniture tipover. To reduce the risk of furniture tipover:

ALWAYS install tipover restraint provided. For use with televisions weighing 50lbs(23kg) or less. Use with heavier televisions may result in instability causing tip-over resulting in death or serious injury.

. NEVER allow children to stand, climb or hang on drawers, doors, or shelves.

. NEVER open more than one drawer at a time. . Place heaviest items in the lowest drawers.

This is a permanent label. Do not remove!
