| Product Type | Electric Treadmill |
| Brand | Toorx |
| Model | WLX-3400 |
| Color | Black |
| Folded Dimensions (L x W x H) | Approx. 150 x 70 x 120 cm |
| Unfolded Dimensions (L x W x H) | Approx. 180 x 80 x 130 cm |
| Product Weight | Approx. 80 kg |
| Maximum User Weight | 120 kg |
| Motor Power | 2.5 HP (peak) |
| Speed Range | 0.8 - 16 km/h |
| Incline Range | 0 - 12% (manual or electric) |
| Display | LED display: time, distance, speed, calories, pulse |
| Heart Rate Monitoring | Hand grip sensors |
| Safety Features | Safety key, emergency stop |
| Folding Mechanism | Soft drop folding with hydraulic assistance |
| Transport Wheels | Yes |
| Running Surface | Approx. 120 x 45 cm |
| Shock Absorption | Multi-layer cushioning system |
| Power Supply | 220-240 V, 50/60 Hz |
| Maintenance | Regular lubrication of belt; clean after use |
| Spare Parts | Running belt, motor, control board available |
| Warranty | 2 years (motor and frame) |
| Certifications | CE, RoHS |
Frequently Asked Questions - WLX-3400 Toorx
How do I assemble the WLX-3400 treadmill?
Refer to the user manual for step-by-step assembly. Typically, you attach the upright posts, console, and side rails using the provided bolts. Use the included bolt sizes (M12 and M10) and tighten securely.
What is the maximum user weight for this treadmill?
The maximum user weight is 120 kg. Exceeding this limit may damage the treadmill and void the warranty.
How do I lubricate the running belt?
Apply silicone lubricant under the belt every 3 months or after 50 hours of use. Lift the belt and spray evenly, then run the treadmill at low speed for 2 minutes.
The treadmill won't start. What should I check?
First, ensure the safety key is inserted and the power cord is plugged in. Check the circuit breaker. If still not working, inspect the motor and control board for damage.
How do I fold and unfold the treadmill?
To fold, lift the deck until it locks. To unfold, gently release the lock and lower the deck using the hydraulic soft-drop system. Always keep children away.
Does the treadmill have heart rate monitoring?
Yes, it features hand grip pulse sensors on the handlebars. For more accurate readings, you may use a chest strap (not included).
What is the incline range and how to adjust it?
The incline ranges from 0% to 12%. It can be adjusted via the console buttons (if electric) or manually by repositioning the support bars.
My treadmill makes a squeaking noise. What can I do?
Squeaking may indicate dry belt or loose bolts. Lubricate the belt and tighten all bolts. If noise persists, contact customer support.
Where can I find spare parts like the running belt?
Spare parts are available from the manufacturer or authorized dealers. You can order online via www.toorx.it or contact info@toorx.it.
What is the warranty coverage?
The Toorx WLX-3400 comes with a 2-year warranty on the motor and frame. Other parts have a 1-year warranty. Warranty does not cover wear and tear or misuse.
User questions about WLX-3400 Toorx
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Treadmills in PDF format for free! Find your manual WLX-3400 - Toorx and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. WLX-3400 by Toorx.
USER MANUAL WLX-3400 Toorx
WLX3400

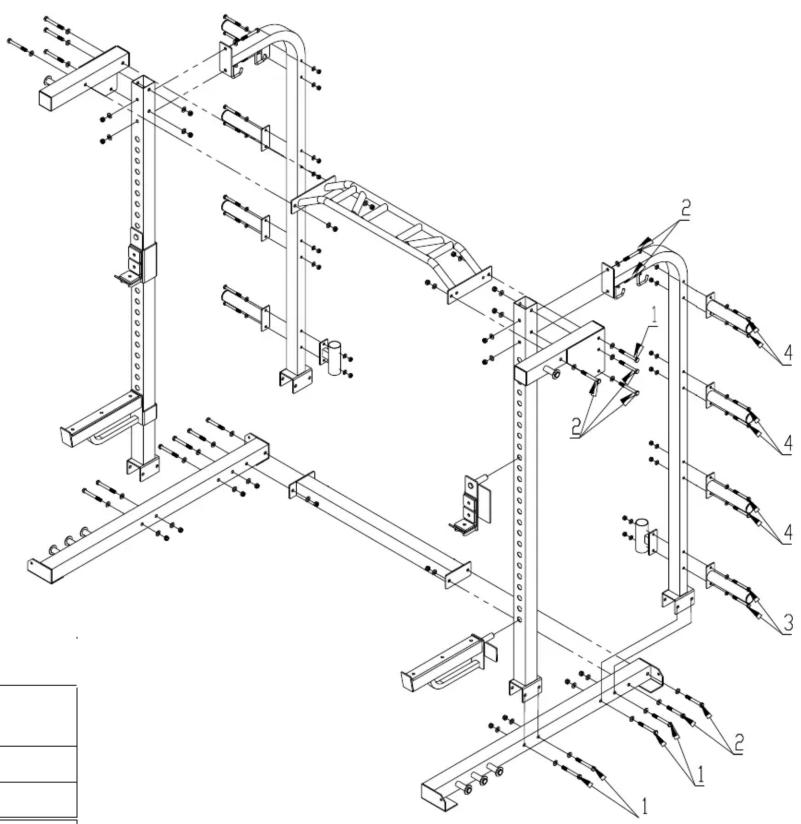

Portal frame
| PART LIST | ||
| NUMBER | DESCRIPTION QUANTITY | |
| 1 BOLT M12*105 + TWO WASHERS + NUT 10 | ||
| 2 BOLT M12*95 + TWO WASHERS + NUT | 14 | |
| 3 BOLT M10*95 + TWO WASHERS + NUT | 4 | |
| 4 BOLT M10*90 + TWO WASHERS + NUT 12 | ||
Garlando
GARLANDO SPA
Via Regione Piemonte, 32 - Zona Industriale D1
15068 - Pozzolo Formigaro (AL) - Italy
www.toorx.it - info@toorx.it
