Z51IBN0N0 - Hob NEFF - Free user manual and instructions

Product Type	Induction hob
Brand	Neff
Model	Z51IBN0N0
Installation Type	Built-in
Dimensions (Width x Depth)	780 mm x 520 mm
Number of Cooking Zones	4 (including 2 FlexInduction zones)
Power Levels	17 (including booster)
Total Power	7200 W
Voltage / Frequency	220-240 V / 50-60 Hz
Control Type	Touch control
FlexInduction	Yes - two zones can be combined
Booster Function	Yes - on all zones
Pan Recognition	Yes - automatic detection of pan size
Timer	Yes - countdown and switch-off timer
Child Lock	Yes
Residual Heat Indicator	Yes - per zone
Maintenance	Cleaning with glass ceramic cleaner; dry cloth
Safety Features	Automatic switch-off, overheat protection, child lock
Weight (net)	Approx. 12 kg

Frequently Asked Questions - Z51IBN0N0 NEFF

How do I clean the Neff Z51IBN0N0 hob?

Clean the hob after each use with a soft cloth and a special glass ceramic cleaner. Avoid abrasive sponges or harsh chemicals.

Can I use any cookware on this induction hob?

Only ferromagnetic pans (iron, stainless steel with magnetic base) work. Test with a magnet if unsure.

What is the FlexInduction feature?

FlexInduction allows two cooking zones to be combined into one large zone for large cookware like a roasting pan.

How do I activate the child lock?

Press and hold the child lock key (usually a padlock icon) for 3 seconds until the indicator lights up.

Why does the hob turn off automatically?

The hob has an automatic safety shut-off if a zone is left on without a pan for too long. This prevents overheating.

What is the booster function?

The booster function temporarily increases power to the maximum for rapid heating, e.g., boiling water. It lasts up to 10 minutes.

Can I install the hob myself?

Installation should be done by a qualified electrician due to high voltage and built-in requirements.

Why is the hob not heating?

Check if the pan is compatible (ferromagnetic), the hob is powered on, and that the child lock is deactivated.

How do I use the timer?

Select a cooking zone, then press the timer button and set the desired time using the plus/minus keys. The zone will switch off automatically.

What do I do if an error code appears?

Refer to the user manual for error codes, or contact Neff customer service. Common codes relate to overheating or sensor issues.

USER MANUAL Z51IBN0N0 NEFF

CHIMNEY EXTENSION, 187-360 MM Z51IBNONO

Metallic rectangular container or enclosure with mounting holes and a flat top section (no text or symbols visible)

√ Chimney extension 185-362 mm for integrated box hood.
√ Two-piece chimney set for an individual height adjustment.
√ Suitable for ducted and re-circulated extraction (recirculating kit required).

Features

Technical Data

Dimensions of the packed product (HxWxD): . 270 x 220 x 330 mm

Pallet dimensions: 175.0 x 80.0 x 120.0

Standard number of units per pallet: 60

Net weight: 1.7 kg

Gross weight: 2.0 kg

EAN code: 4242004244424

Features

Optional accessories

• Chimney extension 185-362 mm for integrated box hood.
• Two-piece chimney set for an individual height adjustment.
• Suitable for ducted and re-circulated extraction (recirculating kit required).

CHIMNEY EXTENSION, 187-360 MM Z51IBNONO

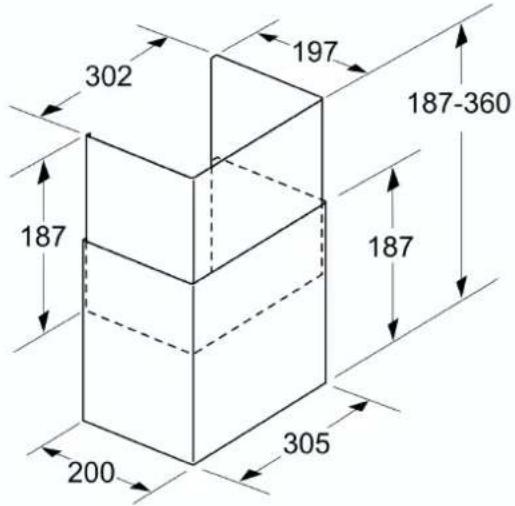

Dimensioned drawings

measurements in mm

measurements in mm

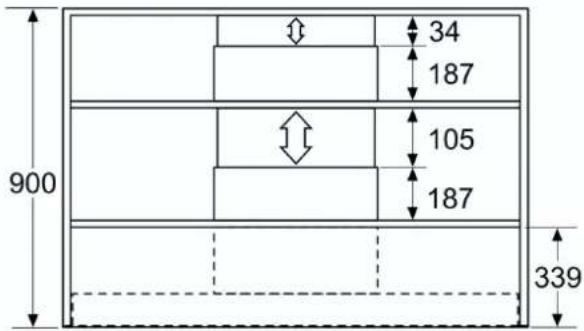

Planning drawing for 90 cm wall-hanging cupboard (wall thickness 16 mm)

Duct can only be fitted on the appliance in combination with an insert plate. In this example, two duct sets are required to cover the entire cupboard height.
