SX51BR - Home Theater Fluance - Free user manual and instructions
Find the device manual for free SX51BR Fluance in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Brand | Fluance |
| Model | SX51BR |
| Category | Home Theater |
| Type | Bookshelf Speaker |
| Enclosure Type | Bass Reflex (Rear Ported) |
| Driver Configuration | 2-Way |
| Woofer | 5.25" Butyl Rubber Surround |
| Tweeter | 1" Silk Dome Neodymium |
| Frequency Response | 50 Hz – 20 kHz |
| Impedance | 8 Ohms |
| Sensitivity | 87 dB (2.83V @ 1m) |
| Power Handling (RMS) | 100 Watts |
| Power Handling (Peak) | 150 Watts |
| Dimensions (H x W x D) | 13.4" x 7.7" x 9.8" |
| Weight (each) | 12.5 lbs |
| Finish | Black Ash Wood Grain Vinyl |
| Grille | Magnetic, Black Cloth |
| Binding Posts | 5-Way Gold Plated |
| Recommended Amplifier Power | 20 – 120 Watts per channel |
| Recommended Placement | Bookshelf, Speaker Stand, or Wall Mount (keyhole slot) |
| Magnetic Shielding | Yes |
| Spare Parts Availability | Contact Fluance customer support |
| Repair Information | Refer to authorized service center |
| Cleaning Instructions | Wipe with a soft, dry cloth. Do not use abrasive cleaners. |
| Safety Warnings | Do not expose to moisture or extreme temperatures. Keep away from children. |
Frequently Asked Questions - SX51BR Fluance
What is the recommended amplifier power for the SX51BR?
The SX51BR has an impedance of 8 ohms and sensitivity of 87 dB. A 20-120 watt per channel amplifier is recommended for optimal performance.
Can I use the SX51BR as a center channel speaker?
No, the SX51BR is a bookshelf speaker designed for left/right or surround channels. For a matching center channel, consider the Fluance SXC51BR.
What is the best placement for the SX51BR?
Place the speakers at ear level, preferably on sturdy bookshelves, speaker stands, or wall-mounted using the keyhole slot. Keep them 2-3 feet from walls to avoid bass boom.
Do the SX51BR speakers require a break-in period?
Yes, like most speakers, they benefit from a break-in period of 20-50 hours of normal listening to reach full dynamic range and smooth frequency response.
What type of speaker wire should I use?

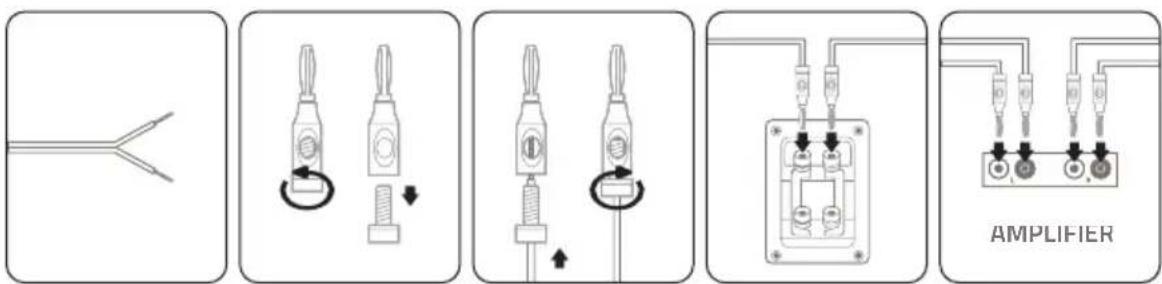

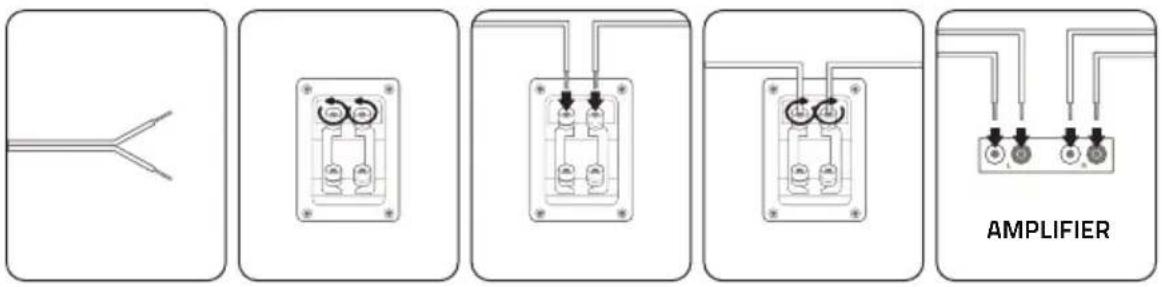

Use 16-14 AWG speaker wire with banana plugs or bare wire. The binding posts accept up to 12 AWG wire.
Are the SX51BR speakers magnetically shielded?
Yes, they are magnetically shielded, making them safe for placement near CRT televisions or other sensitive electronics.
Can I bi-wire the SX51BR speakers?
The SX51BR has single binding posts; bi-wiring is not supported. For bi-amping, use external crossovers.
What is the warranty on the SX51BR?
Fluance offers a lifetime limited warranty on the SX51BR. Details are included in the manual or on the Fluance website.
How do I clean the SX51BR speakers?
Use a soft, dry cloth to wipe the cabinet. For the grille, gently vacuum or use a lint roller. Do not use liquid cleaners.
Are replacement parts available for the SX51BR?
Yes, Fluance offers spare parts such as drivers and crossovers. Contact customer support for ordering and installation guidance.
