MRTG23V9RF - Fridge Philco - Free user manual and instructions
Find the device manual for free MRTG23V9RF Philco in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Refrigerator with Freezer |
| Brand | Philco |
| Model | MRTG23V9RF |
| Total Capacity | 23 cu ft (approx.) |
| Defrost Type | Frost Free |
| Energy Rating | ENERGY STAR Qualified |
| Voltage | 120V / 60Hz |
| Dimensions (HxWxD) | 68.5 x 32.5 x 33.5 inches |
| Weight | 185 lbs (approx.) |
| Cooling System | Multi-air flow |
| Ice Maker | Built-in (optional location) |
| Door Alarm | Yes |
| Interior Lighting | LED |
| Shelf Material | Spill-proof glass |
| Reversible Doors | Yes |
| Temperature Control | Electronic digital thermostat |
| Humidity Control | Yes (crisper drawers) |
| Annual Energy Consumption | 600 kWh (est.) |
| Sound Level | 42 dB |
| Warranty | 1 year parts and labor |
| Compressor Type | Inverter |
Frequently Asked Questions - MRTG23V9RF Philco

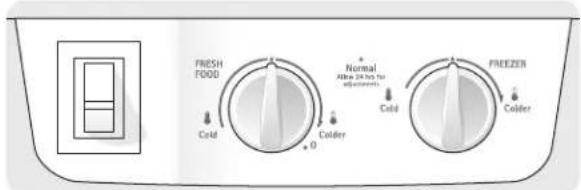

How do I adjust the temperature settings?
Use the control panel inside the refrigerator compartment to set the desired temperature. The recommended settings are 37°F (3°C) for the fridge and 0°F (-18°C) for the freezer.
Does the refrigerator have an ice maker?
Yes, the MRTG23V9RF includes a built-in ice maker. Ensure the water supply is connected and the ice maker is turned on via the control panel.
How do I clean the condenser coils?
Unplug the refrigerator and locate the coils at the back or bottom. Use a vacuum cleaner with a brush attachment to remove dust every 6 months for optimal efficiency.
Why is my refrigerator making unusual noises?
Normal sounds include a hum from the compressor, clicks from the ice maker, and occasional gurgling from the refrigerant. If you hear loud banging or scraping, check for loose parts or contact support.
How do I reverse the door swing?
The doors are reversible. Refer to the manual for step-by-step instructions. Generally, you need to remove the hinge covers, unscrew the hinges, and swap the door positions. Tools required: screwdriver and wrench.
What is the warranty coverage?
Philco offers a 1-year warranty on parts and labor. Additional coverage may be purchased. For claims, contact Philco customer service with your proof of purchase.
How can I save energy with this refrigerator?
Keep the refrigerator away from heat sources, ensure door seals are clean, set temperatures to recommended levels, and avoid overfilling. The ENERGY STAR model is designed for efficiency.
Is the refrigerator frost-free?
Yes, this model features frost-free operation, which automatically defrosts the freezer and refrigerator compartments to prevent ice buildup.
What should I do if the door alarm sounds?
The door alarm indicates one of the doors is open. Check both doors and close them fully. If the alarm persists, inspect the door seals for obstructions or damage.
Can I install the refrigerator myself?

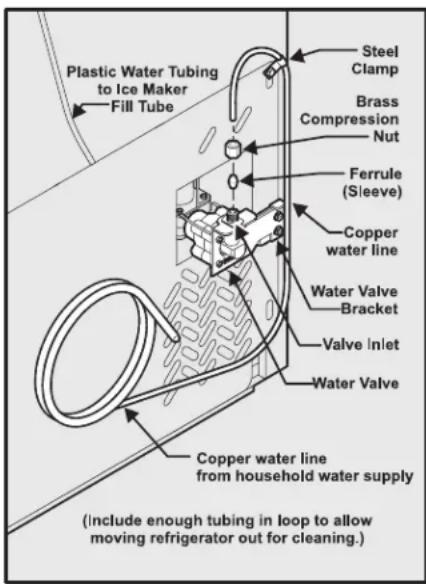

Basic installation can be done by one person. Ensure proper leveling and clearance (1 inch from back wall). For water line connection to the ice maker, consider hiring a professional.
