Product Type	High-Performance Desktop RAID Storage (Disk Array)
Model	G-SPEED eS PRO
Brand	G-Technology
Interface	mini-SAS (requires optional PCIe RAID controller for full performance)
Drive Bays	4 x hot-swappable 3.5" SATA
Included Hard Drives	4 x 7200RPM Enterprise-class SATA drives
RAID Levels Supported	RAID 0 (performance) and RAID 5 (data protection)
Performance (Single Unit)	Over 400 MB/s (supports real-time playback of 10-bit uncompressed 1080/60i)
Performance (Two Units in RAID 5)	Close to 1000 MB/s (supports two simultaneous streams of uncompressed 10-bit HD or a single 2K DPX sequence)
Operating System Compatibility	Mac OS (plug and play), easily reformatted for Windows
Cooling	Integrated hard drive cooling technology (smart fan)
Warranty	3-Year Limited Warranty
Enclosure Material	All-aluminum (solid, sleek black enclosure as seen in similar G-SPEED products)
Drive Hot-Swappable	Yes
Target Use	Professional post-production, HD/2K uncompressed video editing, high-end storage-intensive applications
Additional Features	Enterprise-class drives, cost-effective desktop RAID solution, fail-safe design

Frequently Asked Questions - SPEED eS G-TECHNOLOGY

What RAID levels does the G-SPEED eS PRO support?

The G-SPEED eS PRO supports RAID 0 for maximum performance and RAID 5 for data protection. When using two units together in RAID 5, you can achieve near 1000 MB/s transfer speeds.

How do I connect the G-SPEED eS PRO to my computer?

The drive uses a mini-SAS interface. For optimal performance, you will need an optional PCIe RAID controller installed in your computer. The manual recommends using a compatible controller available from G-Technology.

Is the G-SPEED eS PRO compatible with Mac and PC?

Yes, the drive is pre-formatted for Mac OS (plug and play) and can be easily reformatted for Windows systems.

What kind of hard drives are inside the G-SPEED eS PRO?

It ships with four 7200RPM Enterprise-class SATA hard drives designed for high reliability and performance. The drives are hot-swappable.

Can I replace a failed hard drive myself?

Yes, the drives are hot-swappable. You can remove and replace a failed drive without powering down the unit. Ensure you have a compatible Enterprise-class replacement drive.

What transfer speeds can I expect?

A single G-SPEED eS PRO unit delivers over 400 MB/s. Two units configured in RAID 5 can achieve close to 1000 MB/s, supporting multiple streams of uncompressed HD video.

Does the G-SPEED eS PRO include any software?

The manual indicates it may include a software utility for RAID management (common with G-Technology RAID products). For specific details, refer to the product documentation.

What is the warranty period?

The G-SPEED eS PRO comes with a 3-year limited warranty from G-Technology.

Is the drive quiet during operation?

Yes, the enclosure features integrated smart fan technology and a quiet cooling system designed to keep noise levels low while maintaining optimal drive temperatures.

Can I use the G-SPEED eS PRO with a laptop?

Depending on your laptop, you can connect via a mini-SAS to Thunderbolt or USB adapter (not included). However, the drive is primarily designed for desktop workstations with a PCIe slot.

USER MANUAL SPEED eS G-TECHNOLOGY

Blue circular logo with a white stylized 'G' in the center (no text or symbols)

G-Technology®

PRODUCT guide

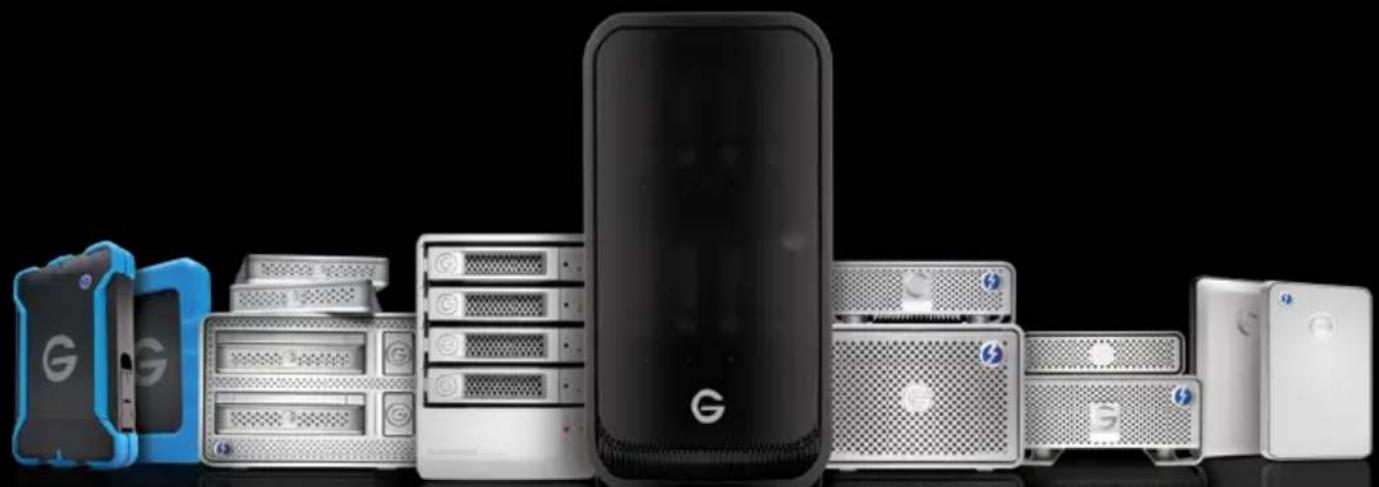

Product lineup of various electronic devices including a G8 SSD, server racks, and a tablet device (no visible text or labels)

G-Technology*

Storage solutions designed specifically for content creators

G-Technology offers premium external storage solutions for content creators. Our complete portfolio delivers unmatched performance, reliability and style designed for Mac and PC users. With our ever-expanding offerings, you choose which storage solution is best for you — whether you're capturing footage or data, transferring it, editing it, or sharing it. From general storage for photos and music to high-performance solutions for intensive video editing — we've got you covered!

ALL G-TECHNOLOGY PRODUCTS

CARRY A 3-YEAR LIMITED WARRANTY

2 g technology.com g technology.com

TOP TEN REASONS TO OWN A G-TECHNOLOGY PRODUCT!

• Designed for maximum performance and reliability
  • Integrated hard drive cooling technology
• Stylish product design
  • Several solutions built with Enterprise-class hard drives for ultimate reliability
  • Features high-performance hard disk drives
  • Proven brand with deep roots supporting content creation professionals
• Solutions specifically designed for content creation applications
• Comprehensive product offerings – storage solutions that support HDV to 4K
• Out-of-box plug and play on Mac OS ^®
• Easily reformatted for PCs

G Index

Pg Product USB FW* Thunderbolt eSATA mini SAS						RAID Enabled	(ave) series	Enterprise-class** Hard Drive
6 G SPEED Studio XL with Thunderbolt			√			√		√
7 G SPEED Studio with Thunderbolt			√			√		√
8 G RAID Studio with Thunderbolt			√			√		√
9 G DOCK ev with Thunderbolt			√			√	√
10 G DRIVE ev ATC with Thunderbolt	√		√				√
11 G-DRIVE ev ATC	√						√
12 G-DRIVE ev RaW	√						√
13 G DRIVE ev SSD	√						√
14 G-DRIVE ev	√						√
15 G-DRIVE ev 220	√						√
16 G SPEED eS PRD					√	√†		√
17 G-SPEED O	√	√		√		√		√
18 G-RAID with Thunderbolt	√		√			√		√
19 G RAID with removable drives	√	√		√		√		√

4 | g-technology.com g-technology.com

GIndex

Pg Product USB PW* Thunderbolt eSATA mini SAS						RAID Enabled	(ov) series	Enterprise class* HardDrive
20	G-RAID USB with removable drives	√					√		√
21	G-RAID	√	√		√		√
22	G-RAID mini	√	√				√
23	G-DRIVE PRO with Thunderbolt	√		√
24	G-DRIVE with Thunderbolt	√		√
25	G-DRIVE	√	√		√
26	G-DRIVE USB	√
27	G-DRIVE mini	√	√
28	G-DRIVE mobile with Thunderbolt	√		√
29	G-DRIVE mobile	√	√
30	G-DRIVE mobile USA	√
31	G-DRIVE slim	√

(ev; series = Evolution Series
* Compatible with FireWire 400
"Used in extreme enterprise" environments such as multilayer computer systems, server applications, and tiled storage arrays.
† When used with optional RAID controller. Available at g-technology.com.

G SPEED STUDIO XL

Hardware RAID 8-Bay Thunderbolt 2 Storage Solution

A hardware RAID 8-Bay Thunderbolt 2 solution offers professional content creators colossal capacity and high definition performance. This Enterprise-class storage solution with dual Thunderbolt 2 ports for daisy-chaining and ultimate speed, it is configurable in RAID 0, 1, 5, 6, 10, 50, & 60. Designed to support multi-stream compressed 4K workflows with extremely large volumes of data at transfer rates of up to 1350MB/s. The G-SPEED Studio XL features a sleek black enclosure, smart fan technology, Enterprise-class hard drives and a 3-Year limited warranty—providing the ultimate storage solution for demanding Video and Photography based workflows.

6 | g-technology.com g-technology.com

G|SPEED ^ STUDIO

Hardware RAID 4-Bay Thunderbolt 2 Storage Solution

Multistream, compressed 4K and 2K workflows require a unique combination of speed, capacity, and flexibility. That's what you get with the G-SPEED Studio hardware RAID 4-Bay Thunderbolt 2 storage solution. Configurable in RAID 0, 1, 5 and 10, the solution features the latest Thunderbolt 2 technology for ultimate speed.

The G-SPEED Studio solution provides sustained transfer rates of up to 700MB/s. It also gives you the ability to daisy-chain with dual Thunderbolt 2 ports, and it ships with Enterprise-class hard drives for ultimate reliability. Plus, G-SPEED Studio provides the advanced features that matter most to creative professionals, from the sleek black enclosure to smart fan technology and plug-and-play Mac setup.

G RAID STUDIO

with Thunderbolt™

Hardware RAID 2-Bay Thunderbolt 2 Storage Solution

A high-performance Thunderbolt 2 storage system with hardware RAID. Configurable in RAID 0, RAID 1, or JBOD, G-RAID ^e Studio features Thunderbolt 2 technology for ultimate speed. G-RAID Studio ships with two removable 7200RPM Enterprise-class hard drives for total capacities up to 12TB, complete in a solid black enclosure.

With transfer rates up to 360MB/s, G-RAID Studio easily supports 2K and compressed 4K video workflows. It is the ideal storage solution designed to save you time with demanding video & photo editing.

G DOCKev™

with Thunderbolt™

Hot-Swappable Dual-Bay Storage System

Designed with the flexibility to accommodate unique workflows, now you can seamlessly transfer and store all your digital content with one system. The G-DOCK ev with Thunderbolt is the hub of the Evolution Series, which ships with two hot-swappable G-DRIVE ev hard drives.

The portable standalone G-DRIVE ev hard drives are your go-to devices in the field, with plug-and-play USB 3.0 connectivity and transfer speeds up to 136MB/s. Back at your workstation, insert the drives into the G-DOCK ev and transfer your content with the ultra-fast, high-performance Thunderbolt interface.

G DRIVE® ev ATC

Rugged, all-terrain drive solution

G-DRIVE ^® ev ATC with Thunderbolt is as rugged as you want to be. This all-terrain drive solution with tethered Thunderbolt cable shields a high quality, lightweight ^2 , removable G-DRIVE ^® ev RaW USB hard drive. Featuring a watertight ^3 drive compartment, your data is further protected from pressure, shock and dust. The ev All-Terrain Case is compatible with the Evolution Series, also fitting the G-DRIVE ^® ev or G-DRIVE ^® ev SSD. Perfect for in the field back-up, editing, transferring and storage, this durable 7200 RPM drive leverages the speed of Thunderbolt while providing you with flexibility and the ease of use of USB. Formatted for Mac ^® , it can be easily reformatted for Windows ^® .

Exterior view of a black and blue G200G hard drive (no text or symbols visible)

代数1096592

1. 2 meter drop on a carpeted concrete floor
2. Approximately 35% lighter than the GDRIVE® cv
3. Hours in water and should it be dropped into a pool of water up to 1 ft for 30 secs, your drive is protected

10 | g-technology.com

gy.com

MACYN THUNDERBOLT USB 3.0/2.0 7200RPM

7200RPM

G DRIVE ev ATC

Rugged, all-terrain drive solution

G-DRIVE* ev ATC is as rugged ^1 as you want to be. This all-terrain drive solution with tethered USB cable shields a high quality, lightweight ^2 removable, stand-alone G-DRIVE* ev RaW USB hard drive. Featuring a watertight ^3 drive compartment, your data is further protected from pressure, shock and dust. The ev All-terrain Case is compatible with the Evolution Series, also fitting the G-DRIVE* ev or G-DRIVE* ev SSD. Perfect for in the field back-up, editing, transferring and storage, this durable 7200 RPM drive is formatted for Mac*, it can be easily reformatted for Windows*.

Exterior view of a blue and black G108 hard drive (no text or symbols visible)

Capacity: 1TB

MACV N USB 3.0/2.0 7200RPM

g-technolo

| 11

G|DRIVE ev RaW

Rugged and lightweight USB hard drive

The G-DRIVE ev RaW is designed to go with you everywhere. Fitting easily into your backpack, briefcase or purse, it's lightweight and when coupled with the bumper, can withstand a 1.5m ^* drop. As part of the Evolution Series, it can be, used as a standalone device, inside the ev All Terrain Case or with the G-DOCK ev with Thunderbolt for ultra-fast transfers and editing.

Made from a durable, lightweight compound making the G-DRIVE ev RaW shock-resistant and 35% lighter than the G-DRIVE ev. G-DRIVE ev RaW with Rugged Bumper is ideal for anyone requiring on-the-go access to their personal and/or professional files, photos, videos, music and more.

* G-DRIVE® on RAN can withstand a 1.5m drop on a carpeted concrete floor with rugged bumper: 1.2m without.

12 | g-technology.com; g-technology.com

Black and blue Gaming GDDR3 flash drive with logo (no text or symbols on body)

Capacity: 500GB | 1TB

MACV

USB3.0/2.0

7200RPM

G DRIVE ev SSD

Portable USB 3.0 Solid-State Drive or for use with the G-DOCK ev™

If you have a need for speed, take the power of the G-DRIVE ev SSD with you. With extreme solid-state performance connected as a standalone drive with USB 3.0, you'll get transfer rates up to 400MB/s. Use an Evolution Series G-DOCK ev for the ultimate flexibility and expandability that today's creative professionals demand and transfer rates up to 480MB/s.

Pros have told us they need faster, more flexible ways to capture, share and distribute their work—and from the field to the studio, G-Technology's innovative Evolution Series streamlines digital content workflow as never before. Shoot on-site, transfer to studio and distribute to your partners, all with one system.

Silver SSD device with logo and model number 512GB, no visible text or symbols on the device itself.

G|DRIVE ^® ev

USB 3.0 hard drive for use with G-DOCK ev™ or as a stand alone device

The ruggedized* G-DRIVE ev hard drive is the new go-to device for seamless plug-and-play USB 3.0 connectivity in the field. Use it alone on site, then insert the drive into the G-DOCK ev back at your workstation to transfer your content with the ultra-fast, high-performance Thunderbolt interface.

Designed to work with the Evolution Series, the G-DRIVE ev streamlines your capture, transfer, and distribution process.

*1 motor drop on a carpeted concrete floor.

14 | g-technology.com

Exterior view of a silver G108 memory drive (no text or symbols on the device body)

G DRIVE ev 220

USB 3.0 hard drive works alone or with G-DOCK ev™

To put greater speed and flexibility into your creative workflow, get G DRIVE ev 220 -

a USB 3.0 hard drive with transfer rates up to 220MB/s. Use it alone or with an Evolution Series G-DOCK ev for the latest evolution in flexibility and expandability today's creative professionals demand.

Pros have told us they need faster, more flexible ways to transfer, share and distribute their work – and from the field to the studio, G-Technology's Innovative Evolution Series streamlines digital content workflow as never before. Shoot on-site, transfer to studio and distribute to your partners, all with one system.

Silver Gagos VR headset with visible branding and control buttons (no text on device body)

g-technology.com | 15

G|SPEED eS PRO

High-Performance, Fail-Safe RAID Solutions for HD/2K Production

G-SPEED eS PRO provides professional content creators better than Fibre Channel performance for demanding post production applications. G-SPEED eS PRO features mini-SAS connectivity for very high performance operation. When used with an optional PCIe RAID controller, a single G-SPEED eS PRO enclosure with four hot-swappable 7200RPM SATA Enterprise-class hard drives supports real-time playback of 10-bit uncompressed 1080/60i with over 400MB/sec performance. Two G-SPEED eS PRO units in protected mode (RAID 5) achieve close to 1000MB/sec performance and support two simultaneous streams of uncompressed 10-bit HD or a single 2K DPX sequence. G-SPEED eS PRO is simply the most cost-effective desktop RAID storage solution designed specifically for high-end post.

16 | g-technology.com;g-technology.com

G SPEED Q

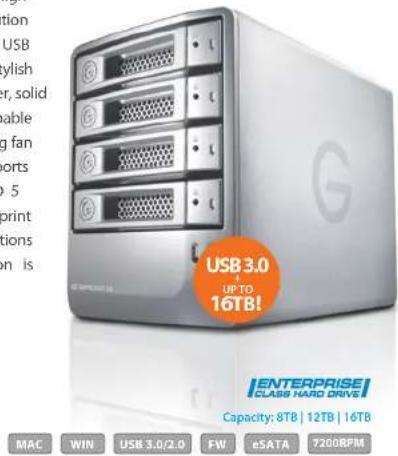

Highly Versatile Multi-Interface 4-Bay RAID Storage
