Product Type	Tablet
Brand	i-onik
Model	TP1 7 light
Display Size	7 inches
Display Resolution	1024 x 600 pixels
Processor	Quad-core 1.3 GHz
RAM	1 GB
Internal Storage	8 GB
Expandable Storage	microSD up to 32 GB
Operating System	Android 10 (Go edition)
Battery Capacity	2500 mAh
Dimensions (W x H x D)	190 x 110 x 10 mm
Weight	300 g
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.2
Ports	Micro USB, 3.5 mm headphone jack
Camera (Rear)	2 MP
Camera (Front)	0.3 MP
Power Supply	5V/1A via Micro USB
Battery Life	Up to 6 hours of mixed usage
Care Instructions	Wipe with a soft, dry cloth. Avoid liquid cleaners.
Safety Precautions	Do not expose to water or excessive heat. Use only provided charger.
Spare Parts Availability	Contact i-onik support for replacement parts or repairs.
General Information	Designed for basic tasks: browsing, reading, light apps.

Frequently Asked Questions - TP1 7 light i-onik

How do I turn on the tablet for the first time?

Press and hold the power button located on the side of the device for about 3 seconds until the screen lights up. Follow the on-screen setup wizard to select language, connect to Wi-Fi, and sign in to your Google account.

Can I expand the storage on my TP1 7 light?

Yes, the tablet supports microSD cards up to 32 GB. Insert the card into the microSD slot (usually located under the back cover or on the side) to expand storage for photos, videos, and apps.

How do I charge the tablet?

Connect the included Micro USB cable to the tablet and plug the charger into a power outlet. The battery indicator will show charging status. A full charge takes approximately 3-4 hours.

Why is the tablet running slowly?

Close unused apps by tapping the recent apps button and swiping them away. Clear cached data in Settings > Storage. If the issue persists, consider uninstalling unnecessary apps or performing a factory reset (backup data first).

How do I connect to Wi-Fi?

Go to Settings > Wi-Fi, turn on Wi-Fi, select your network from the list, enter the password, and tap Connect. The tablet will remember the network for future use.

Can I use a Bluetooth keyboard or mouse?

Yes, the tablet supports Bluetooth 4.2. Go to Settings > Bluetooth, turn it on, put your keyboard/mouse in pairing mode, and select it from the list of available devices.

How do I take a screenshot?

Press and hold the Power button and Volume Down button simultaneously for about 2 seconds. The screen will flash, and the screenshot will be saved in the Gallery app.

What should I do if the tablet freezes or becomes unresponsive?

Press and hold the Power button for about 10 seconds until the device turns off. Then press the Power button again to restart. If the problem continues, perform a factory reset from Settings > System > Reset.

How do I update the software?

Go to Settings > System > System Update. Tap 'Check for updates' and follow the prompts to download and install any available updates. Ensure the battery is above 50% and connected to Wi-Fi.

Is the tablet waterproof?

No, the TP1 7 light is not waterproof. Avoid contact with water and liquids. If the device gets wet, turn it off immediately and dry it thoroughly before using again.

USER MANUAL TP1 7 light i-onik

*Kostenfrei aus allen deutschen Netzen / Free from all German telephone networks

25037

i.onik

mobile

English

Dear Customer,

Thank you for purchasing this product!

Please read the instructions carefully before using this product.

This manual is intended to introduce you to the basic characteristics of this product, so you can get the best out of your experience using the tablet. The product's features are described and detailed information is given. Furthermore you receive tips and hints to fully understand the technical capability of the tablet.

The warranty, which is included, will explain you our additional services. Please read the terms of warranty carefully, to avoid unnecessary problems.

Attention:

All the information in this manual is correct at the time of publication. However, as we continue to update and improve the product, the software may be slightly different in appearance and functionality than described in this manual.

We reserve the right to improve the product, specification and design without prior notice!

Content

Important Safety Precautions 22

Technical Specification 22

Tablet Overview 23

1. Tablet Introduction....23

2. TF Card .... 23

3. Charging .... 24

Finding your Way 24

1. Turning on the Tablet....24

2. Switching off the Tablet 25

3. Lock-screen and Power-saving Mode....26

4. Main Interface....26

5. Custom Screen....27

6. Changing your Wallpaper 28

7. Connection of USB Cable....29

System Settings 29

Internet....30

1. Network Settings 30

2. Internet 30

Software Management 31

1. Explorer 31

2. Software Installation 32

Applications 32

1. Playing Music 32

2. Browsing Pictures ....33

3. E-Mail 34

4. Camera and Video ....36

5. Apk Installer 36

We do not assume any liability for lost or destroyed data or for any other devices. Keep away from children. Danger of choking on or swallowing small parts. All data without guaranty.

Important Safety Precautions

• Do not disassemble the product; do not use alcohol, solvent or benzene to clean the surface of the product. Please contact us if you experience any problems.
  • This product should be charged for more than 12 hours when charging it the first three times.
• Do not store the product in high temperature, huTabletity or dust; do not put the product in a vehicle with closed windows especially not during summer.
• Avoid dropping or strong impact to the product, do not shake it violently, otherwise it may cause damage to the touch screen or display.
• Please select the appropriate volume; the volume should not be too high when using headphones; if you feel signs of tinnitus, please turn down the volume or stop using the product.
• Please charge the product when:
  a. The battery icon shows low power.
  b. The system is automatically shut down. (The system will shut down automatically when the battery is low.)
  c. There is no response when clicking buttons.
  Note: Please only use the adapter delivered with the product to charge the tablet. No other chargers can be used - risk of fire!
• Please do not disconnect the machine when it is formatting or uploading/downloading, otherwise a program error may occur.
• When improperly being shut down, the machine will scan and repair the disk on reboot. This process may take a few minutes.
• The company is not responsible for memory loss caused by damaging or repairing the product or other reasons stated. Please follow the instructions of this manual when using the tablet.
• Do not use the product in places where the use of electronic devices is prohibited: e.g. an aircraft
• Please do not use the product when driving or walking. It may cause an accident.
• Please do not use the product when driving or walking. It may cause an
• USB is for data transmission only, do not use it for charging the product.
  • This machine is not water resistant.

Technical specifications

Main Body	Material Plastic
	Dimensions ca. 182 x 123 x 11 mm
	Weight ca. 300 g
Configuration	Operating System Android	4.1.1
	CPU Dual Core 1,2 GHz Infotmic X15
	Flash Memory 8 GB NAND Flash
	RAM 1 GB DDR3
	Expansion slot Micro SD/SDHC (TF) card slot, up to 32 GB
Display	Screen 7" P+G capacitive 5-point touch screen
	Resolution 1024 x 600 Pixels
Connection	Network access Wi-Fi 802.11 b/g/n
Sound	Speaker	1x 8 Ohm
Ports	USB interface	Micro USB
	Earphone	3.5 mm
	Camera	Front: 0.3 MP
Battery	Battery	Li-polymer rechargeable battery 2800 mAh, 3,7 V
System operation conditions	Voltage	DC 5 V/2 A
Entertainment	Music formats MP3, WMA, APE, FLAC, AAC, AC3, WAV
	Video formats Mpeg1, Mpeg2, Mpeg4 SP/ASP GMC, XVID, H.263, H.264, BP/MP/HP, WMV7/8, WMV9/VC1 BP/MP/AP, VP6/8, AVS, JPEG/MJPEG up to 1080P 60fps
	Picture formats	JPEG, BMP, GIF, PNG, TIF

Tablet Overview

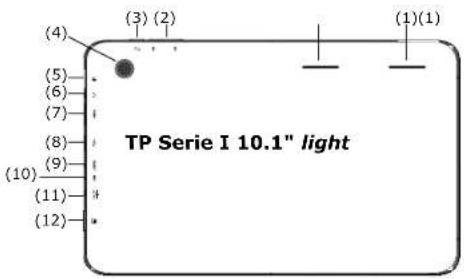

1. Tablet Introduction

This chapter describes the appearance of the Tablet, including its buttons and ports; it will guide you to understand the features and accessories.

Simple line drawing of a rectangular frame with rounded corners and a small labeled point (1) above it, no text or symbols present.

(1) Front camera
(2) TF card slot
(3) Volume -
(4) Volume
(4) Volume +
(3) Earphone jac
(6) Power on/off
(7) Power supply (5V)
(8) Micro USB port
(9) HDMI port
(10) Microphonics
(10) Microphone
(11) Back camera
(12) Speaker

1) Clicking and dragging are performed using the LCD touch screen. Please do not use pens, pencils or other sharp objects to click on the screen to avoid scratching.

2) Please keep the speakers clean to avoid them being blocked by dirt and affecting the sound quality.

3) The antenna and the type label are located at the back of the Tablet. Please do not cover the back with metal objects to avoid poor signal strength.

2. TF Card

Follow the instructions of the icon displayed on the Tablet when inserting a TF card. Please pay attention to the direction in which the TF card has to be inserted.

(Press the card with your thumb and then release it to remove the card. The card will be ejected automatically.)

Front view of a black rectangular electronic device with rounded edges (no visible text or symbols)

Note:

1) Keep the card slot free of dust or other objects. (To prevent damage to the card due to dust or moisture, please put the card back into its box or package when not in use).
2) Be sure that the Tablet is switched off when removing a TF card.
3) Avoid accidental removal of the TF card when the Tablet is switched on.

3. Charging

This product uses a standard 5V/2A power supply. Please use the supplied power charger. Other chargers may cause failure and risk of fire.

Do not use the charger in a huTablet environment. If your hands and feet are wet, please do not touch the charger.

When using the charger or charging the product, please maintain good ventilation. Do not cover the machine with paper or other objects. This could result in a reduced cooling effect.

Finding your way

The Tablet can achieve a variety of operating modes:

(1) Clicking. (2) Holding. (3) Sliding. (4) Dragging. (5) Rotating.

Key action definition: (1) Short press: press less than 1.2 seconds. (2) Long press: press and hold for more than 3 seconds. All operations in this manual are performed by a short press unless stated otherwise.

360 degree rotation: Rotate the Tablet to switch between horizontal and vertical view.

1. Turning on the Tablet

1.1 Press the power switch at the side of the Tablet (long press) and the machine will be booted. The booting screen and animations will be shown on the LCD screen for a few seconds, before you will enter the lock screen as shown in the screenshots below.

Abstract gradient background with pink, orange, and white circular shapes (no text or symbols)

1.2 Press and hold the unlock button and a circle will appear around the lock. Drag to the right to unlock.

The hold and drag function prevents the accidental booting of the Tablet.

Abstract digital background with glowing bubbles and a clock icon (no readable text or symbols)

Abstract digital background with glowing shapes and a central white icon, no readable text or symbols

2. Switching off the Tablet

Press the power switch key (long press) and the system will display the shutdown screen.

Three options will be displayed: "Power off", "Airplane mode" and "Silent mode". Select "Power off" to enter the next screen.

Receiving incoming signals will be disabled when selecting "Airplane mode".

Select "Silent mode" and the Tablet is muted.

When the battery level is down to 15 %, the system will prompt to connect the charger. When the battery is running low, the system will automatically shut down.

3. Lock-Screen and Power-Saving Mode

If the screen is inactive for a certain time, or when pressing the power switch, the Tablet will enter the screen-off/lock screen status to save power. Programs are still running, but the screen is blank. Pressing the power switch again will open the unlock screen. Hold and drag the unlock button to the right and the Tablet will resume working status.

Abstract digital background with glowing shapes and a date stamp (14:16), no readable text or symbols.

1. Main Interface


Voice search Icon	When connected to a network, click to enter the voice search menu. Speak a keyword directly into the MIC.
APPS Icon Click to enter the applications menu.
Shortcut Icon Shortcut icon add/delete (will be covered later)
Widgets Widgets add/delete (will be covered later)
Back Key Press in pop-up menu to cancel an operation.In other menus, press to return to parent menu.
Home Key Press in any menu to return to main interface.
Apps having been opened	Click to display all APPS that have been opened. Click each of the applications to enter the relevant menu.
Notice/Fast Setting Column	Click to display more information: USB, Wi-Fi, Date etc. Click on any item to enter its settings menu.
Text search Icon When connected to a network, click to enter the Text search menu. Type in a key word and search.

The main interface features 5 different menu pages. Switch between pages by sliding the screen left and right. You can add/delete icons in each of the pages of the main menu.

5. Custom Screen

Add Shortcut

Click the button in the main interface to open the Application Program menu. Pressing and holding the icon will open the add shortcut interface. Move the icon to the place where you want to place the shortcut and it will be added to the main interface.

Abstract digital interface with pink gradient background and floating circular shapes (no text or symbols)

Add Widgets

Click the button in the main interface to open the Application Program menu. Press the "WIDGETS" option. This will open the widget interface. Pressing and holding the icon will open the add widget interface. Move the icon to the place where you want to place the widget and it will add to the main interface.

Computer desktop wallpaper with abstract pink and white design, no visible text or symbols

Delete Shortcut/Widgets

Press and hold a shortcut icon or widget icon in the main interface until on the top of the screen appears the icon. Then drag the shortcut/widget to the icon. The icon will turn red. The shortcut or widget will be deleted after releasing the button.

Desktop interface with abstract background and floating icons (no readable text or symbols)

Abstract digital interface with colorful gradient background and floating icons (no readable text or symbols)

Click and drag any shortcut or widget icon to customize your main interface.

Abstract digital interface with pink gradient background and floating circular elements (no readable text or symbols)

6. Changing your Wallpaper

In order to personalize the main interface users can set their favorite pictures or photos as wallpaper of the main interface.

6.1 Click the touch screen in the main interface to open the "Choose wallpaper" dialog box.

6.2 Click "Wallpaper" to enter the selection menu of pictures.

6.3 Select a picture. Click "Wallpaper" for more options.

6.4 Slide the screen, browse and select the picture. Click return to the settings interface. The wallpaper is now set.

7. Connection of USB Cable

When connecting the Tablet to a computer with a USB cable, the icon will be displayed in the Notice/Fast settings column of the main interface

Click, and the following interface is displayed.

Click 📄️, it will enable the synchronized operation between the Tablet and the computer. Files on the TF card and the memory of the Tablet will be displayed on the computer; you can copy and transfer data.

System Settings

The settings interface allows a variety of custom settings and you can overview relevant information of all the installed software. Click ■ in the Application Program menu to enter the settings menu.

"APPS"

In the apps settings interface, users can see all installed applications. If you open one application, the relevant information is displayed. If you do not wish to use an application any longer, select "Delete" to remove the application.

Internet

1. Network Settings

The Tablet features a built-in WI-FI module. Click, the settings menu will be displayed on the Tablet.

1.1 Wi-Fi

1.1.1 Slide the "Wi-Fi" switch button to ON to enable Wi-Fi.

1.1.2 Click "Wi-Fi" to enter the Wi-Fi settings menu.

1.1.3 The system will automatically search for available networks and display the name of the network.

Click on a wireless network and the Tablet will open the message screen. Click space to open the keyboard, enter the password and click Connect.

If the connection is successful, the network icon ■ will be displayed in the Notice/Fast settings column of the main interface.

Please note:

The Tablet will save connected routers automatically. When searching for a network, the Tablet will automatically connect to the saved router. When the network icon is displayed in the main interface, the Tablet has connected to the Wi-Fi network successfully.

2. Internet

2.1 When successfully connected to a network, click In the main interface to enter the Google browser.

2.2 Click the input box. The keyboard will pop-up. Type in a new search and open the website.

2.3 Click the icon (red border) and a dropdown menu with more operational functions is displayed.

Software Management

The product supports third-party applications on an Android platform. Most applications can be obtained and downloaded from the Internet.

1. Explorer

Click in the Application Program Interface to enter the explorer. You can browse, copy, delete, move, edit and rename programs saved on the Tablet or a TF card.

2. Software Installation

2.1 Click the software to be installed in the explorer. The Tablet will open the installation menu.

2.2 Click „Install“. The Tablet will show the progress. After installation, it will display „Application installed successfully“.

2.3 Click "Finish" to exit. The application shortcut will be added to the "Application function key menu".

2.4 Click the icon to open the software.

Special note:

You can also download chats, like QQ, MSN, etc.

Applications

1. Playing Music

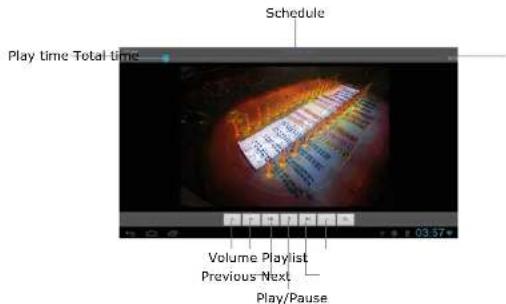

1.1 Click In the Application Program Interface to enter the playlist.

1.2 Click a music file to open and play it.

1.3 Background play
When playing music, click to open the main interface. The Tablet will play the music in the background.
1.3.1 Click in the main interface to display the music player menu.

Screenshot of a mobile app interface displaying a colorful abstract background with circular shapes and text overlays (no readable document content)

1.3.2 Select the music player to return to the player menu.

2. Browsing Pictures

2.1Click in the Application Program Interface to browse pictures. Here you find all pictures and videos saved on the Tablet or a TF card.
2.2 Select to open a picture.

2.3 Select to play a video.

3. E-mail

Click In the Application Program Interface to open the E-mail settings. Enter the email address and password to send and receive email messages.

4. Camera and Video

Click ■ in the Application Program Interface to open the camera manual.

5. Apk Installer

Click "Apk Installer", select "Install". Then click "Internal Memory" to install new software.

Click "Manage" to launch, export, uninstall or cancel.

All trademarks, registered trademarks and logos are the property of their respective owners. We do not guarantee any data with respect to their content, completeness or up-to-dateness.

*Kostenfrei aus allen deutschen Netzen / Free from all German telephone networks

Important Safety Precautions

• Do not disassemble the product; do not use alcohol, solvent or benzene to clean the surface of the product. Please contact us if you experience any problems.
  • This product should be charged for more than 12 hours when charging it the first three times.
• Do not store the product in high temperature, humidity or dust; do not put the product in a vehicle with closed windows especially not during summer.
• Avoid dropping or strong impact to the product, do not shake it violently, otherwise it may cause damage to the touch screen or display.
• Please select the appropriate volume; the volume should not be too high when using headphones; if you feel signs of tinnitus, please turn down the volume or stop using the product.

- Please charge the product when:

a. The battery icon shows low power.
b. The system is automatically shut down. (The system will shut down automatically when the battery is low.)
c. There is no response when clicking buttons.

Note: Please only use the adapter delivered with the product to charge the tablet. No other chargers can be used - risk of fire!

- Please do not disconnect the machine when it is formatting or uploading/downloading, otherwise a program error may occur.

- When improperly being shut down, the machine will scan and repair the disk on reboot. This process may take a few minutes.

- The company is not responsible for memory loss caused by damaging or repairing the product or other reasons stated. Please follow the instructions of this manual when using the tablet.

- Do not use the product in places where the use of electronic devices is prohibited; e.g. an aircraft

- Please do not use the product when driving or walking. It may cause an accident.

• This machine is not water resistant.

Technical specifications

Name TP Serie I 7" light	TP Serie I 10.1" light	TP Serie I 10.1" light
Display 7" TN 10.1" TN	7" TN	10.1" TN
Resolution 800 x 480 1024 x 6000		1024 x 600
Casing Plastic Plastic	Plastic	Plastic
Chipset Action 7021A DC	Action 7021A DC	Action 7021A DC
GPU PowerVR SGX 540 PowerVR SGX 54040		PowerVR SGX 540
RAM 512 MB DDR3 512 MB DDR3		512 MB DDR3
Operating System Android 4.4 Android 4.4		Android 4.4
Camera	Back: 2 MP (interpolated)Front: 0.3 MP	Back: 2 MP (interpolated)Front: 0.3 MP
Wi-Fi	802.11 b/g/n	802.11 b/g/n
Bluetooth -	- built in	built in
HDMI built in	built inbuilt in	built in
Battery Polymer Lithium 2800mAter Lithium 2800mAter 6000mAter Lithium 6000 mAh
Flash Memory	8 GB	8 GB

Tablet Overview

1. Tablet Introduction

This chapter describes the appearance of the tablet, including its buttons and ports; it will guide you to understand the features and accessories.

(1) Speaker
(2) Rear Camera
(3) Microphone
(4) On/Off button
(5) Earphone jack
(6) Micro USB port
(7) Power supply
(8) MicroSD card slot
(9) HDMI port
(10) Reset

(1) Speaker
(2) Volume +/-
(3) Back
(4) Rear camera
(5) Power on/off
(6) Earphone jack
(7) HDMI port
(8) Micro USB port
(9) Reset
(10) Microphone
(11) Power supply
(12) MicroSD card slot

1.1 Wi-Fi
1.1.1 Slide the "Wi-Fi" switch button to enable Wi-Fi.
1.1.2 Click "Wi-Fi" to enter the Wi-Fi settings menu.
1.1.3 The system will automatically search for available networks and display the name of the network.

Click a wireless network and the tablet opens a window. Enter the network key and click "Connect".

If the connection is successful, the network icon will be displayed in the Notice/Fast settings column of the main interface.

Please note:

The tablet will save connected routers automatically. When searching for a network, the tablet will automatically connect to the saved router.

When the network icon is displayed in the main interface, the tablet has connected to the Wi-Fi network successfully.

Operating and Software-Management

The tablet provides the Android operating system specifically for this device developed. It allows you to use third-party applications on the Android platform, with full functionality. Most APPs can be downloaded directly via the Internet.

1. File Manager (Depending on the Version also Explorer or Documents)

You can browse, copy, delete, move, edit and rename programs saved on the tablet or a micro SD card.

Note:

1) Clicking and dragging are performed using the LCD touch screen. Please do not use pens, pencils or other sharp objects to click on the screen to avoid scratching.
2) Please keep the speakers clean to avoid them being blocked by dirt and affecting the sound quality.
3) The antenna and the type label are located at the back of the tablet. Please do not cover the back with metal objects to avoid poor signal strength.

2. Charging

This product uses a standard 5 V/2 A power-supply.

Please use the supplied power charger. Other chargers may cause failure and risk of fire.

Do not use the charger in a wet environment. If your hands and feet are wet, please do not touch the charger.

When using the charger or charging the product, please maintain good ventilation. Do not cover the machine with paper or other objects. This could result in a reduced cooling effect.

System Settings

The settings interface allows a variety of custom settings and you can overview relevant information of all the installed software.

Click "Settings" in the application program menu to enter the settings menu.

APPS

In the apps settings interface, users can see all installed applications. If you open one application, the relevant information is displayed. If you do not wish to use an application any longer, select

"Delete" to remove the application.

Internet

1. Network Settings

The tablet features a built-in Wi-Fi module. Click ■, the settings menu will be displayed on the tablet.

Garantiekarte

Modell: ____

SerienNr. ____

Assigned by the service

ticket no: ____

Date of purchase: ____

Name: ____

Address:

The warranty is only valid if the card is fully completed and the original invoice or sales receipt is attached.

Please keep this card for the duration of the warranty.

Customers residing outside of Germany are asked to return the product to their dealer.

Short description of error:

In case of abusive and improper handling, force and internal tampering not made of our personnel, and the removal of the security seal will void the warranty.

2 years warranty from date of purchase.

Service

i.onik Support Center

E-Care Repair Services GmbH Im Justus 1 76829 Landau Germany

This warranty is valid in the European Union. For technical support please contact:

i.onik Support Center

E-Care Repair Services GmbH Im Justus 1 76829 Landau Germany

Tel.: [phone] – on weekdays from 9 a.m. to 12 p.m. and from 2 p.m. to 5 p.m. www.i-onik.de/service [e-mail]

Please pack the product carefully and don't forget to add the return address and the RMA No. assigned by our service. Please also give a brief description of the fault occurring.
