Product Type	Audio/Video Extender
Brand	Kramer
Model	TP-124-OD
Dimensions (W x D x H)	200 mm x 150 mm x 50 mm
Weight	0.5 kg
Power Supply	12V DC, 1A (included)
Input Interface	HDMI, VGA, Audio
Output Interface	HDMI, Audio
Max Resolution	1920x1080 @ 60Hz
Transmission Distance	Up to 100 meters
Supported Audio	Stereo analog, digital
Mounting	Desktop or wall-mountable
Operating Temperature	0°C to 40°C
Material	Aluminum chassis
Maintenance	Clean with dry soft cloth; avoid liquids
Safety Precautions	Do not expose to rain or moisture; use only provided power adapter
Spare Parts & Repairability	Contact Kramer support; no user-serviceable parts inside
General Information	Professional extender for AV signals in commercial installations

Frequently Asked Questions - TP-124-OD Kramer

What is the maximum resolution supported by the TP-124-OD?

The TP-124-OD supports resolutions up to 1920x1080 @ 60Hz.

Does it support audio transmission?

Yes, it supports both stereo analog and digital audio.

What is the maximum transmission distance?

The extender can transmit signals up to 100 meters.

Is the TP-124-OD wall-mountable?

Yes, it can be mounted on a wall using the provided brackets.

What type of power adapter is needed?

It requires a 12V DC, 1A power adapter (included).

Can I connect VGA sources?

Yes, the device has a VGA input for legacy devices.

How do I clean the device?

Use a dry soft cloth to wipe the exterior. Do not use liquids.

What should I do if the device gets wet?

Unplug immediately and let it dry completely before using. Contact Kramer support if issues persist.

Are spare parts available?

Spare parts are not sold directly; contact Kramer support for repair options.

What is the operating temperature range?

The device operates between 0°C and 40°C.

USER MANUAL TP-124-OD Kramer

Kramer Electronics, Ltd.

USER MANUAL

Models:

PT-110-od and TP-120-od XGA Line Transmitter, Receiver TP-121-od and TP-122-od XGA/Audio Line Transmitter, Receiver TP-123-od and TP-124-od XGA/Audio/Data Line Transmitter, Receiver TP-125-od and TP-126-od XGA/Audio/Data Line Transmitter, Receiver

Contents

1 Introduction 1

2 Getting Started 1

2.1 Quick Start 2

3 Overview 3

3.1 Shielded Twisted Pair (STP) / Unshielded Twisted Pair (UTP) 3

3.2 About the Power Connect™ Feature 4

3.3 Defining EDID 4

3.4 Recommendations for Achieving the Best Performance 4

4 The PT-110-od / TP-120-od Transmitter / Receiver Set 5

4.1 Your PT-110-od XGA / Line Transmitter 6

4.2 Your TP-120-od XGA Line Receiver 7

4.3 Connecting the PT-110-od / TP-120-od Transmitter / Receiver 8

4.4 Technical Specifications of the PT-110-od and the TP-120-od 10

5 The TP-121-od / TP-122-od Transmitter / Receiver Set 11

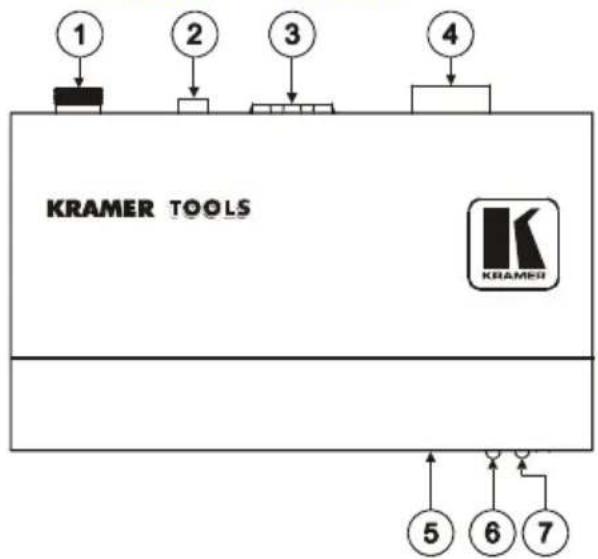

5.1 Your TP-121-od XGA / Audio Line Transmitter 12

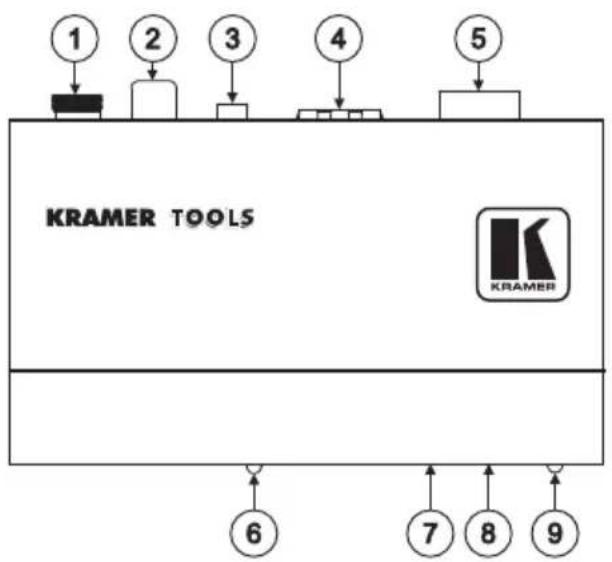

5.2 Your TP-122-od XGA / Audio Line Receiver 13

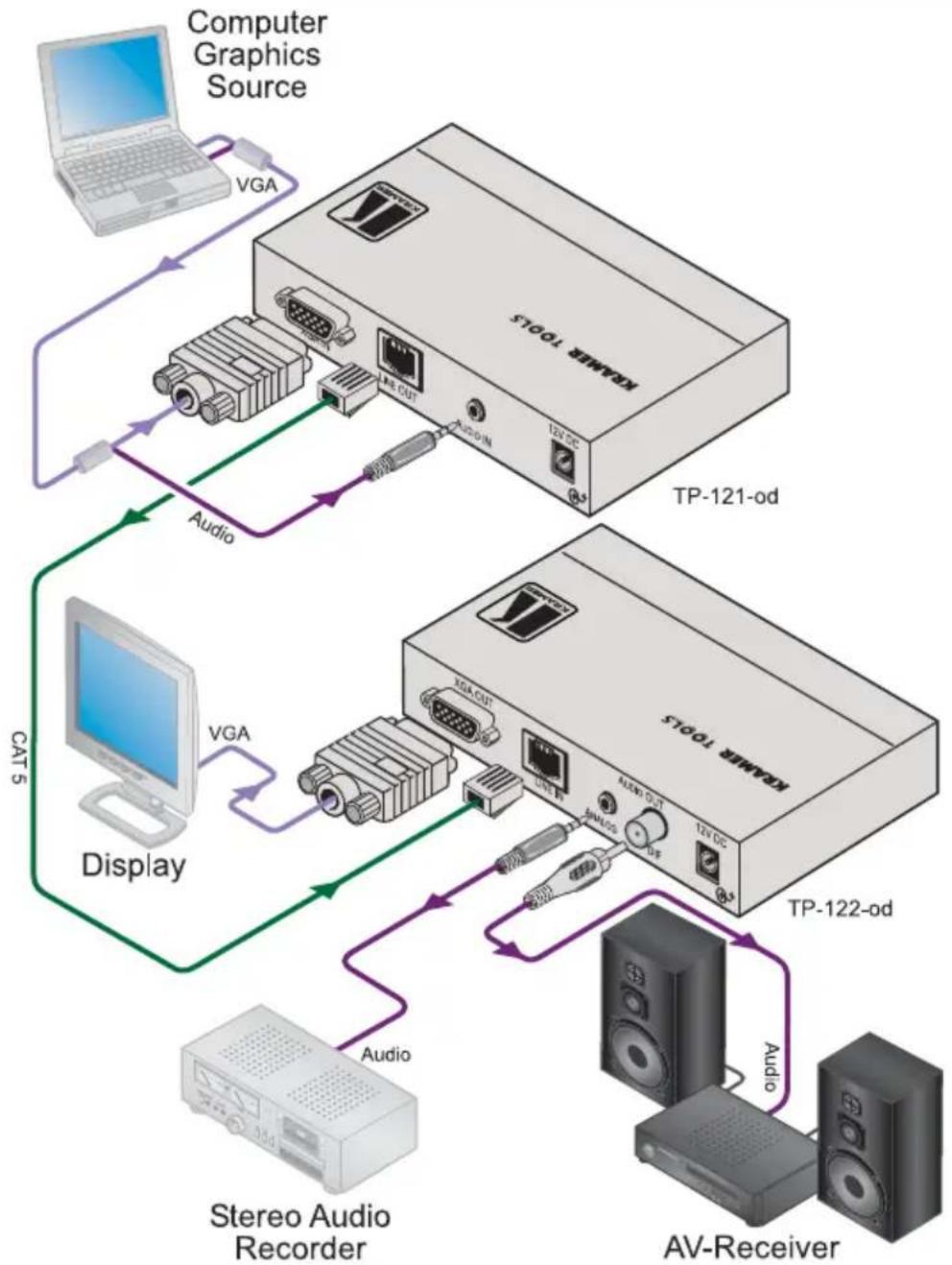

5.3 Connecting the TP-121-od / TP-122-od Transmitter / Receiver 14

5.4 Technical Specifications of the TP-121-od and the TP-122-od 16

6 The TP-123-od / TP-124-od Transmitter / Receiver Set 17

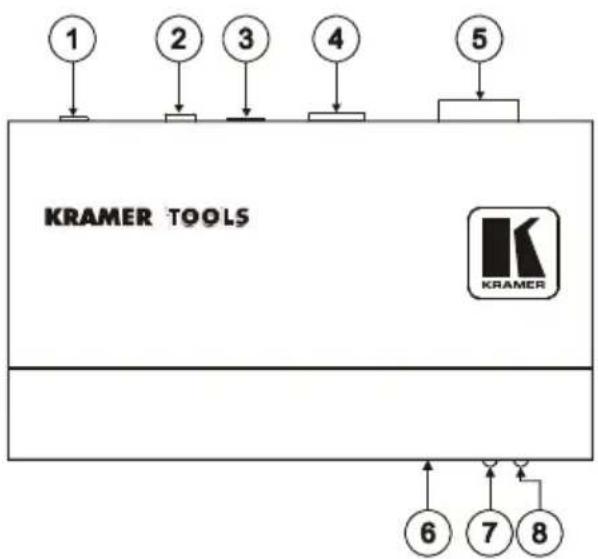

6.1 Your TP-123-od XGA / Audio / Data Line Transmitter 18

6.2 Your TP-124-od XGA / Audio Line Receiver 19

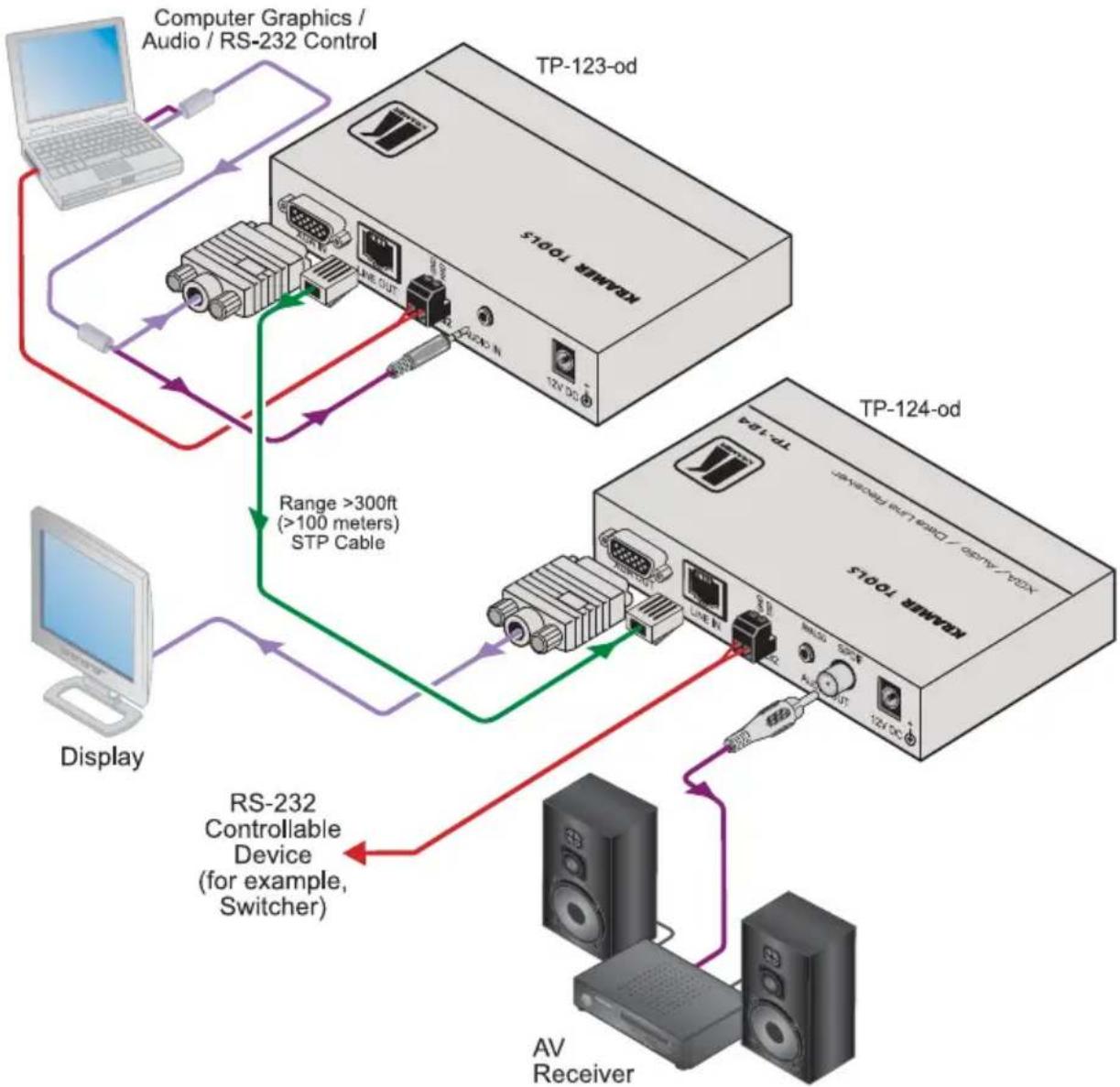

6.3 Connecting the XGA / Audio / Data Line Transmitter / Receiver 20

6.4 Controlling via RS-232 (for example, using a PC) 22

6.5 Technical Specifications of the TP-123-od and the TP-124-od 23

7 The TP-125-od / TP-126-od Transmitter / Receiver Set 24

7.1 Your TP-125-od XGA / Audio / Data Line Transmitter 25

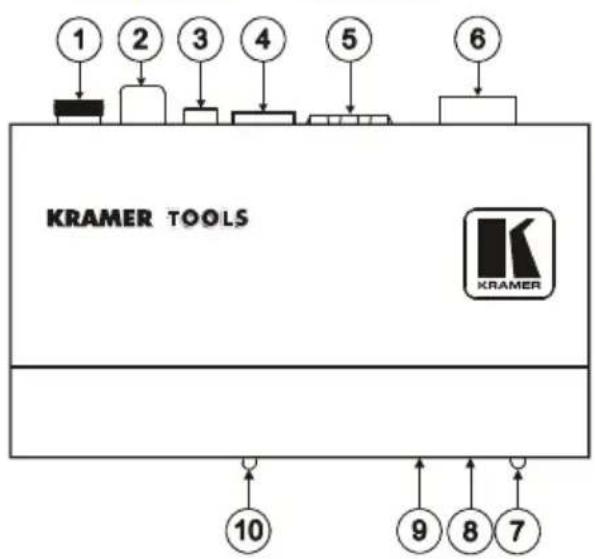

7.2 Your TP-126-od XGA / Audio / Data Line Receiver 26

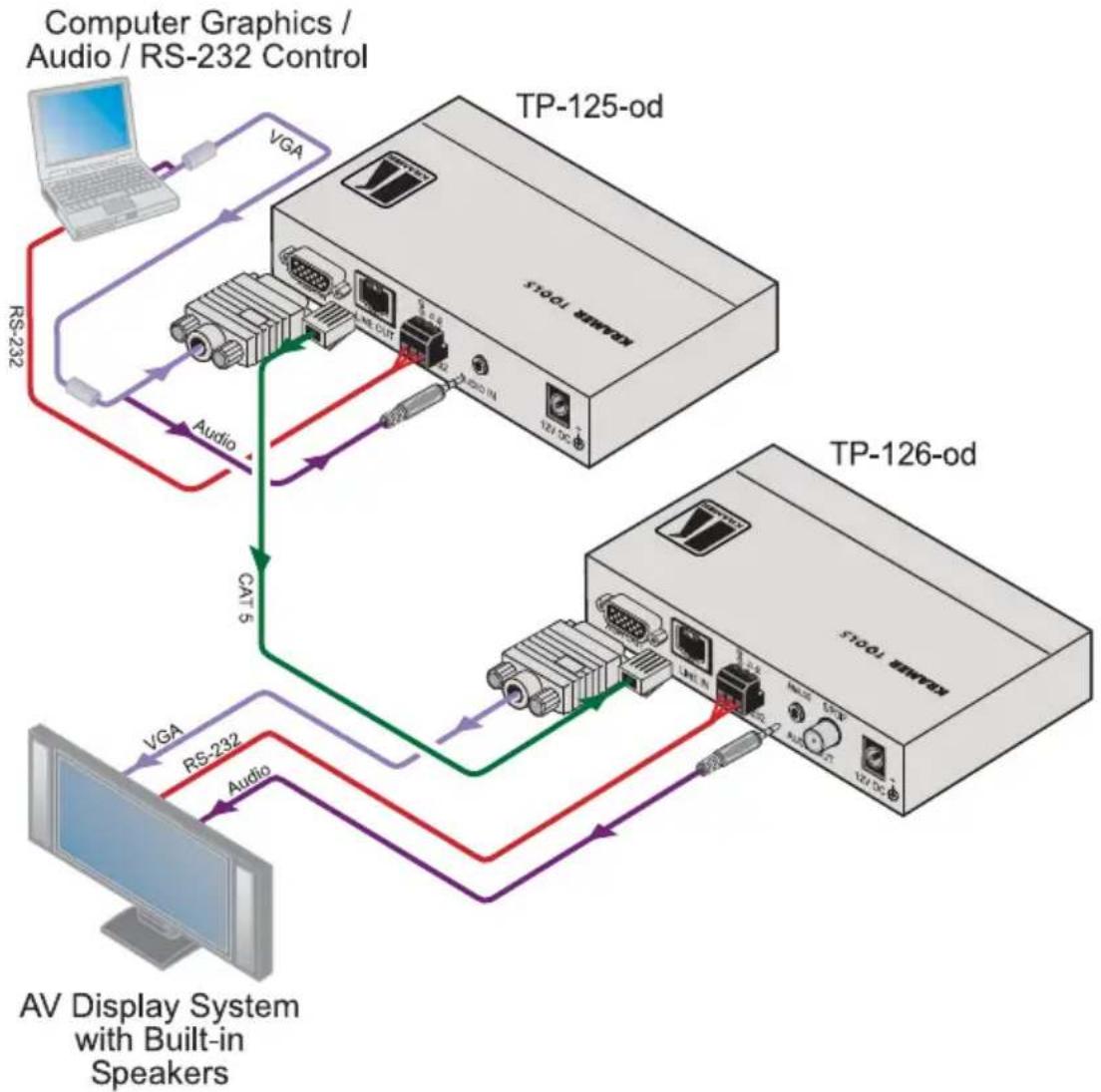

7.3 Connecting the TP-125-od and TP-126-od 27

7.4 Transmitting via RS-232 (for example, using a PC) 29

7.5 Technical Specifications 30

8 Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors 31

9 Acquiring the EDID 31

Figures

Figure 1: PT-110-od XGA Line Transmitter 6

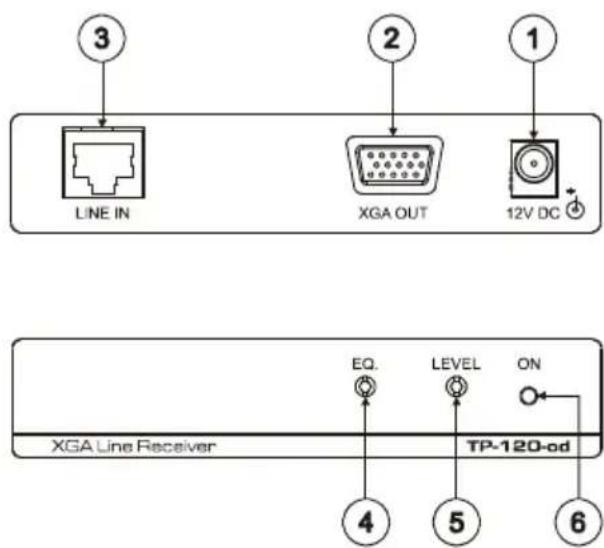

Figure 2: TP-120-od XGA Line Receiver 7

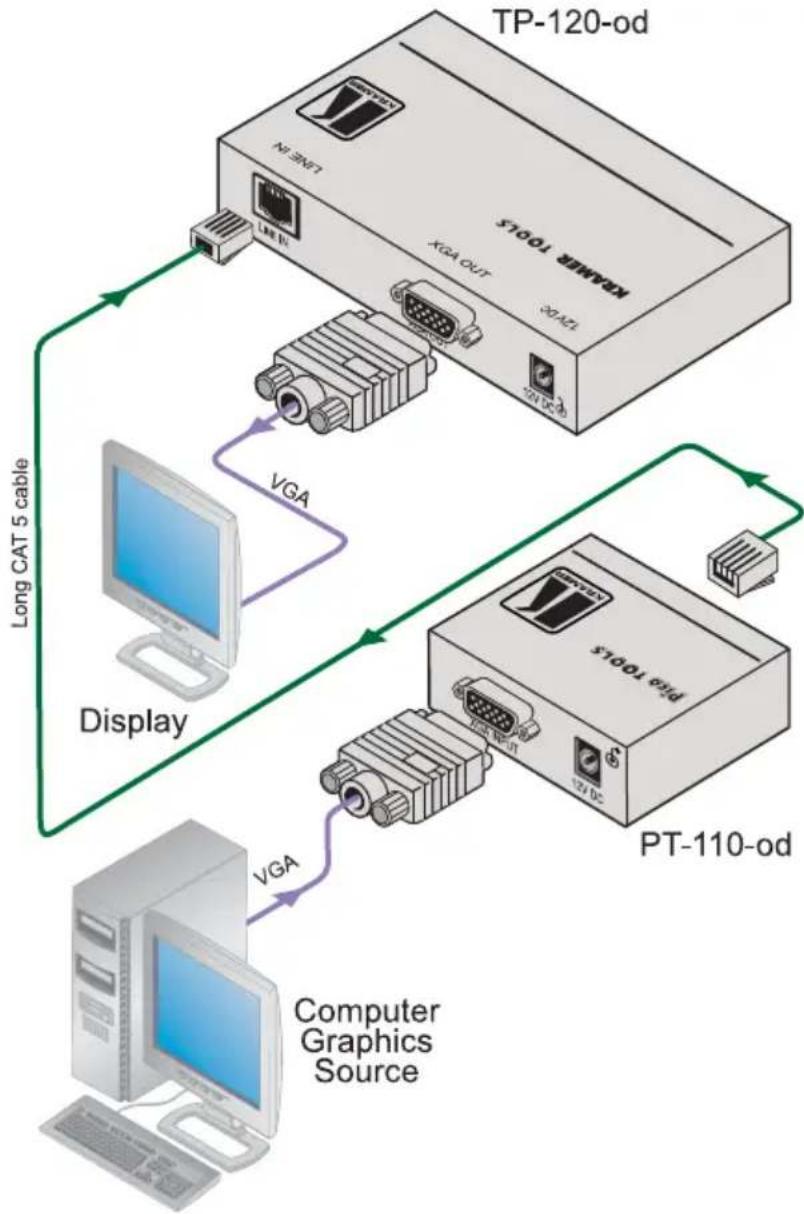

Figure 3: Connecting the PT-110-od to the TP-120-od 9

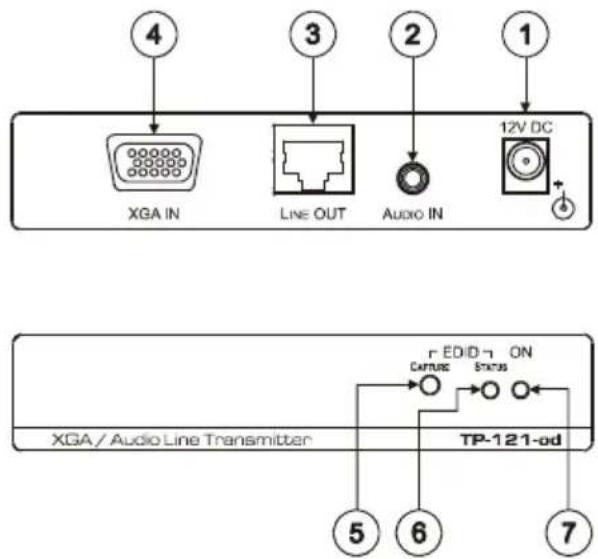

Figure 4: TP-121-od XGA / Audio Line Transmitter 12

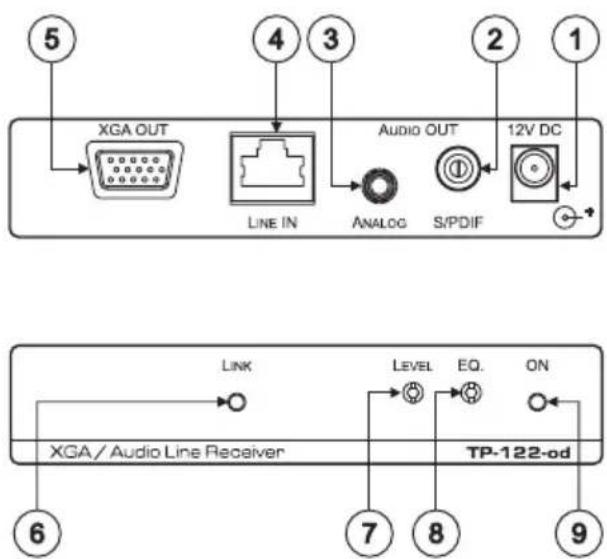

Figure 5: TP-122-od XGA / Audio Line Receiver (Topside) 13

Figure 6: Connecting the TP-121-od and the TP-122-od 15

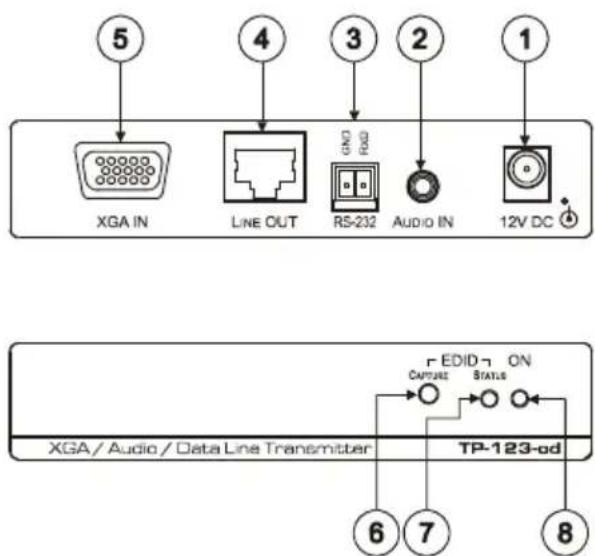

Figure 7: TP-123-od XGA / Audio / Data Line Transmitter 18

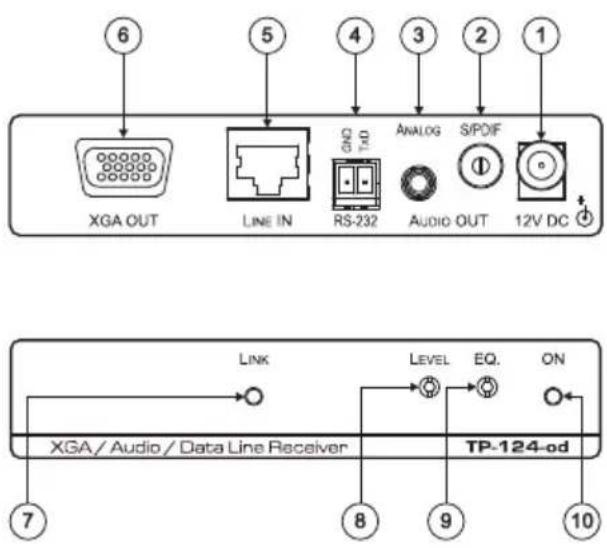

Figure 8: TP-124-od XGA / Audio / Data Line Receiver (Topside) 19

Figure 9: Connecting the TP-123-od and the TP-124-od 21

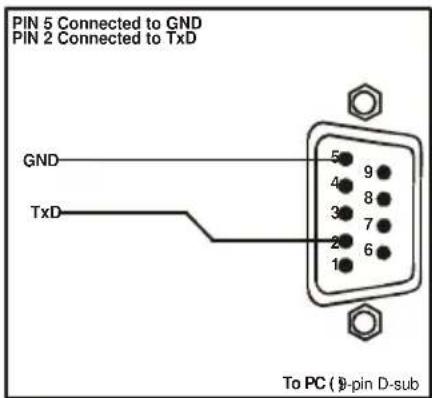

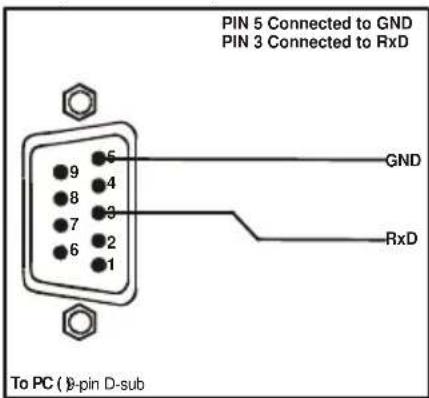

Figure 10: RS-232 PINOUT Connection 22

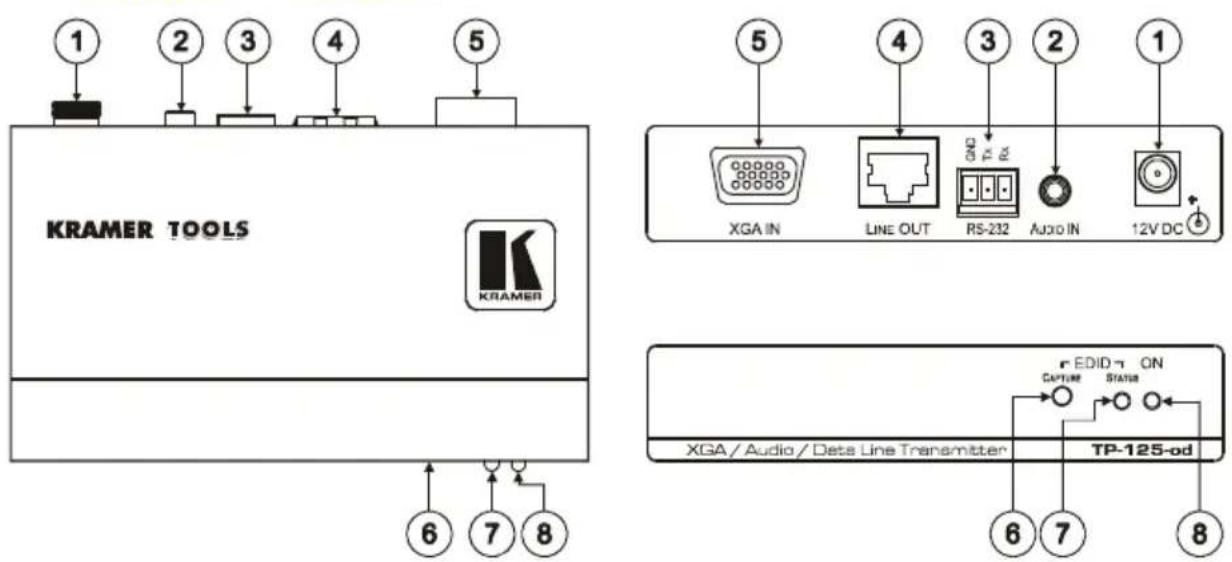

Figure 11: TP-125-od XGA / Audio / Data Line Transmitter 25

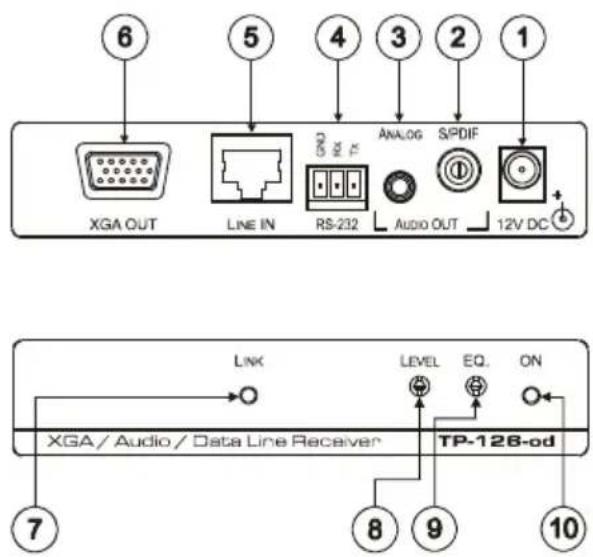

Figure 12: TP-126-od XGA / Audio / Data Line Receiver 26

Figure 13: Connecting the TP-125-od and the TP-126-od 28

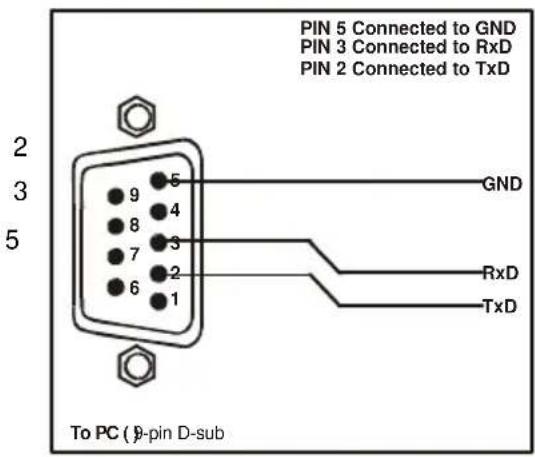

Figure 14: RS-232 PINOUT Connection 29

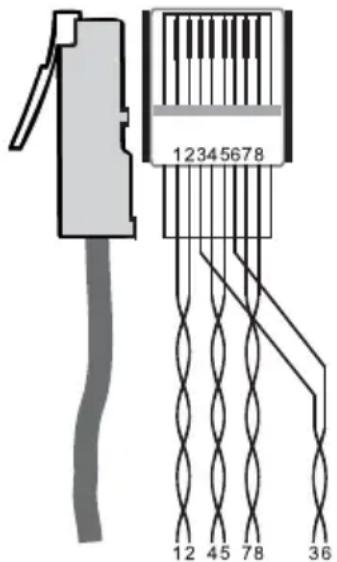

Figure 15: CAT 5 PINOUT 31

Tables

Table 1: PT-110-od XGA Line Transmitter Features 6

Table 2: TP-120-od XGA Line Receiver Features 7

Table 3: Technical Specifications of the PT-110-od and the TP-120-od 10

Table 4: TP-121-od XGA / Audio Line Transmitter Features 12

Table 5: TP-122-od XGA / Audio Line Receiver (Topside) Features 13

Table 6: Technical Specifications of the TP-121-od and the TP-122-od 16

Table 7: TP-123-od XGA / Audio / Data Line Transmitter Features 18

Table 8: TP-124-od XGA / Audio / Data Line Receiver (Topside) Features 19

Table 9: RS-232 PINOUT Connection 22

Table 10: Technical Specifications of the TP-123-od and the TP-124-od 23

Table 11: TP-125-od XGA / Audio / Data Line Transmitter Features 25

Table 12: TP-126-od XGA / Audio / Data Line Receiver Features 26

Table 13: RS-232 PINOUT Connection 29

Table 14: Technical Specifications of the TP-125-od and the TP-126-od 30

Table 15: CAT 5 PINOUT 31

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we have redesigned and upgraded most of our line, making the best even better! Our 1,000-plus different models now appear in 11 groups ^1 that are clearly defined by function.

Thank you for purchasing your Kramer transmitter and receiver set that includes special protection against EMP ^2 . The “od ^3 series” sets that are available include the:

• PT-110-od XGA Line Transmitter and TP-120-od XGA Line Receiver
- TP-121-od XGA / Audio Line Transmitter and TP-122-od XGA / Audio Line Receiver
- TP-123-od XGA / Audio / Data Line Transmitter and TP-124-od XGA / Audio / Data Line Receiver
- TP-125-od XGA / Audio / Data Line Transmitter and TP-126-od XGA / Audio / Data Line Receiver

Each “od series” set is ideal for presentation and multimedia applications. The package includes:

• One or more of the following: PT-110-od, TP-120-od, TP-121-od, TP-122-od, TP-123-od, TP-124-od, TP-125-od or TP-126-od
  • Power adapter (12V DC) and this user manual ^4

2 Getting Started

We recommend that you:

• Unpack the equipment carefully and save the original box and packaging materials for possible future shipment
• Review the contents of this user manual
  • Use Kramer high-performance high-resolution cables ^5

2.1 Quick Start

This quick start chart summarizes the basic setup and operation steps.

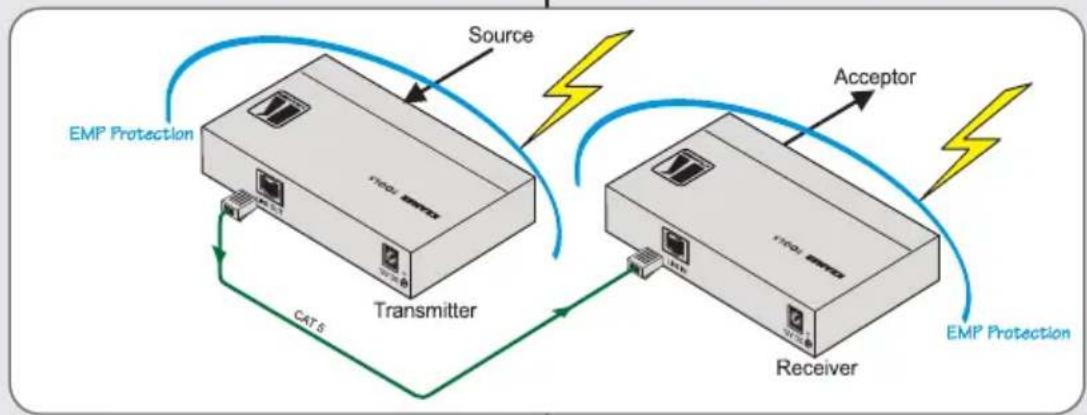

To connect your Kramer Transmitter/Receiver

1 Connect the sources to the input connectors and the outputs to the acceptors.
2 Connect the LINE OUTPUT RJ-45 connector on the transmitter to the LINE IN RJ-45 connector on the appropriate receiver.
3 Connect the power to both the transmitter and the appropriate receiver (unless the Power Connect ^™ system applies).


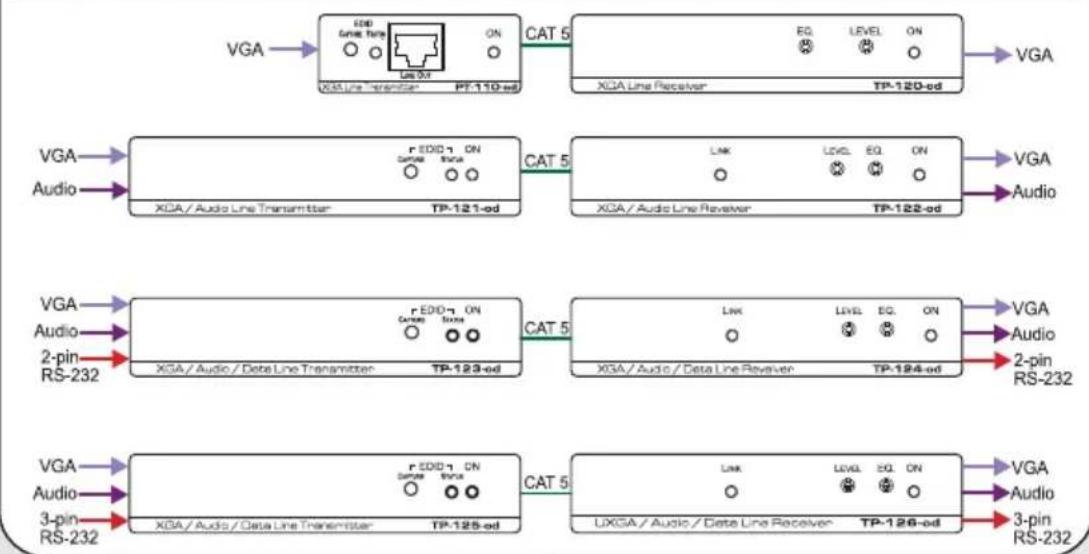

For each transmitter/receiver pair connect the following:

    H -->|TP-120-od| I
    H -->|TP-121-od| J
    H -->|TP-122-od| K
    H -->|TP-123-od| L

    I -->|TP-120-od| M
    I -->|TP-121-od| N
    I -->|TP-122-od| J
    I -->|TP-123-od| L

    N -->|TP-120-od| M
    N -->|TP-121-od| N
    N -->|TP-122-od| J
    N -->|TP-123-od| L

    style TopConcentration fill:#f9f,stroke:#333
    style MiddleConcentration fill:#ccf,stroke:#333
    style BottomConcentration fill:#cfc,stroke:#333

To acquire the EDID

1. Connect the XGA INPUT 15-pin HD connector to the input XGA connector of the display, using a short cable.
2. Connect the display power.
3. On the Transmitter, connect the 12V DC power adapter to the power socket and connect the adapter to the mains electricity.
4. Press the EDID CAPTURE button.
5. Once the EDID STATUS blinks slowly several times, the EDID is captured.
6. Disconnect the display.

3 Overview

Kramer's new “od” (Overvoltage Defense) family of twisted pair transmitters and receivers for computer graphics video now includes electromagnetic pulse (EMP) protection. The electro-magnetic pulse of nearby lightning strikes can damage sensitive electronic equipment by inducing high momentary surge voltages. Systems with outdoor runs of signal cable are very susceptible to EMP damage. Our “od” family was especially designed to protect twisted pair transmitter/receiver systems installed in areas of high electrical storm activity.

Note, that the “od” family is designed for indoor installation and should be suitably protected against direct lightning strikes. The system does not protect against direct lightning strikes and does not offer protection against damage caused by lightning to peripheral devices that are connected to an “od series” transmitter/receiver set.

This user manual describes the following lightning protected transmitter receiver sets:

• PT-110-od / TP-120-od XGA Line Transmitter / Receiver (see section 4)
- TP-121-od / TP-122-od XGA / Audio Line Transmitter / Receiver (see section 5)
- TP-123-od / TP-124-od XGA / Audio / Data Line Transmitter / Receiver (see section 6)
- TP-125-od / TP-126-od XGA / Audio / Data Line Transmitter / Receiver (see section 7)

This section describes:

• Using shielded twisted pair (STP) / unshielded twisted pair (UTP), see section 3.1
  • The power connect feature, see section 3.2
  • Defining EDID, see section 3.3
• Recommendations for achieving the best performance, see section 3.4

3.1 Shielded Twisted Pair (STP) / Unshielded Twisted Pair (UTP)

We recommend that you use Shielded Twisted Pair (STP) cable. There are different levels of STP cable available, and we advise you to use the best quality STP cable that you can afford. Our non-skew-free cable, Kramer BC-STP is intended for analog signals where skewing is not an issue. For cases where there is skewing, our UTP skew-free cable, Kramer BC-XTP, may be used. Bear in mind, though, that we advise using STP cables where possible, since the compliance to electromagnetic interference was tested using those cables.

Although Unshielded Twisted Pair (UTP) cable might be preferred for long range applications, the UTP cable should be installed far away from electric cables, motors and so on, which are prone to create electrical interference.

However, since the use of UTP cable might cause inconformity to electromagnetic standards, Kramer does not commit to meeting the standard with UTP cable.

3.2 About the Power Connect™ Feature

The Power Connect feature applies as long as the cable can carry power. This feature is available when using STP cable and the distance does not exceed 50m on standard CAT 5 cable. For longer distances, heavy gauge cable should be used ^1 . For units which are connected via RJ-45 connectors, make sure that the shield of the STP cable is connected to the metal casing of the connectors on both ends of the cable. For units which are connected via terminal block connectors, the shield of the STP cable must be connected to a ground terminal on the units at both ends (use the ground terminal of the power supply connection if necessary).

For a CAT 5 cable exceeding a distance of 50m, separate power supplies should be connected to the transmitter and to the receiver simultaneously.

3.3 Defining EDID

The PT-110-od, TP-121-od, TP-123-od, and TP-125-od include:

• EDID Capture - Copies and stores the EDID from a display device

The Extended Display Identification Data (EDID ^2 ) is a data-structure, provided by a display, to describe its capabilities to a graphics card (that is connected to the display's source). The EDID enables the graphic source to “know” what kind of monitor is connected to the output. The EDID includes the manufacturer's name, the product type, the timing data supported by the display, the display size, luminance data and (for digital displays only) the pixel mapping data.

3.4 Recommendations for Achieving the Best Performance

To achieve the best performance:

- Use only good quality connection cables ^3 to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables).

- Avoid interference from neighboring electrical appliances that may adversely influence signal quality and position your Kramer transmitters away from moisture, excessive sunlight and dust

4 The PT-110-od / TP-120-od Transmitter / Receiver Set

The Kramer Pico TOOLS PT-110-od is an XGA line transmitter that receives an XGA signal (up to UXGA), converts it to a twisted pair signal, and transmits it over a CAT 5 cable to the Kramer TOOLS TP-120-od receiver which converts it back to an XGA signal. Together the PT-110-od and TP-120-od form a computer graphics transmitter/receiver system.

The transmitter receiver system has an operating range of more than 300ft (more than 100m) using standard CAT 5 cable, has the Power Connect feature ^1 and is 12V DC fed.

The PT-110-od is pre-programmed with default EDID settings with EDID information ready for the source even before capturing the EDID from the display. When the PT-110-od is connected to a display device and the EDID CAPTURE button is pressed, the PT-110-od reads and stores the EDID (Extended Display Identification Data) from the display device. The display can be disconnected and later reconnected without rebooting the operating system.

The TP-120-od includes EQ. and LEVEL controls.

4.1 Your PT-110-od XGA / Line Transmitter

Figure 1 and Table 1 define the PT-110-od:

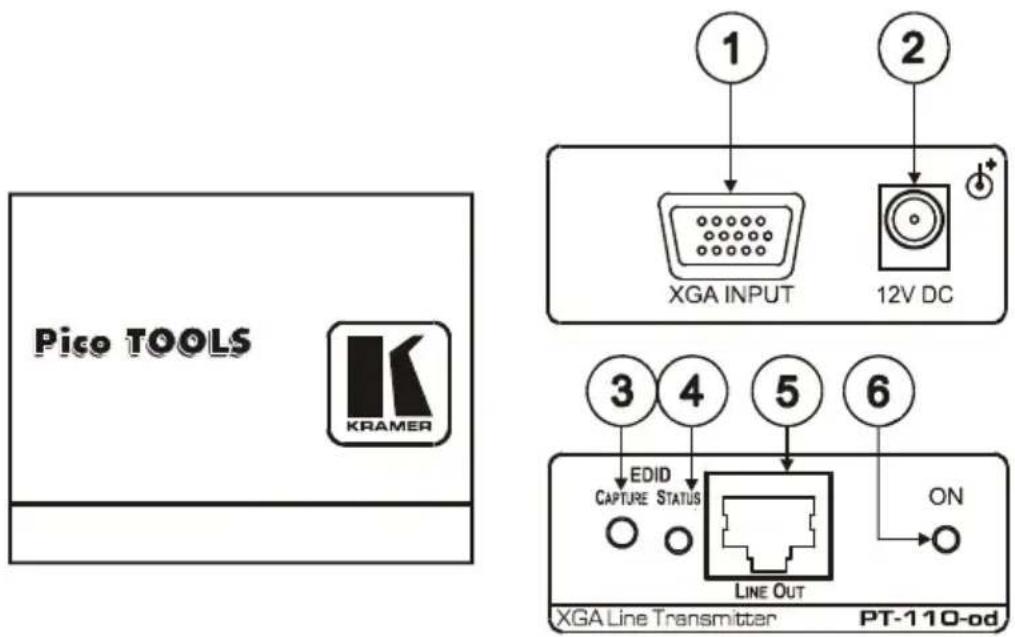

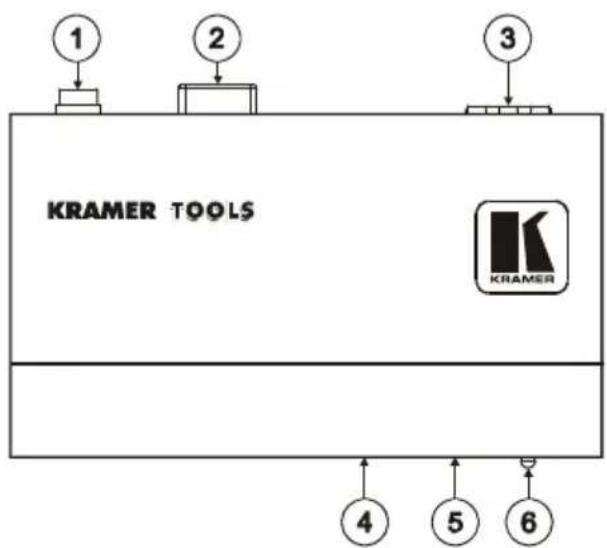

Figure 1: PT-110-od XGA Line Transmitter

Table 1: PT-110-od XGA Line Transmitter Features

#	Feature Function
1	XGA IN 15-pin HD (F) Connector		Connect to the UXGA source
2	12V DC		+12V DC connector for powering the unit
3	EDID^1	CAPTURE Button	Press to acquire the EDID information from the display
4		STATUS LED	Illuminates during normal operation; blinks when acquiring the EDID
5	LINE OUT RJ-45 Connector		Connects to the LINE IN RJ-45 connector on the TP-120-od (see section 8)
6	ON LED Illuminates when receiving		power

4.2 Your TP-120-od XGA Line Receiver

Figure 2 and Table 2 define the TP-120-od XGA Line Receiver:

Figure 2: TP-120-od XGA Line Receiver

Table 2: TP-120-od XGA Line Receiver Features

#	Feature Function
1	12V DC	+12V DC connector for powering the unit
2	XGA OUT 15-pin HD (F) Connector	Connect to the XGA acceptor
3	LINE IN RJ-45 Connector	Connects to the LINE OUT RJ-45 connector on the PT-110-od (see section 8)
4	EQ. ^1 Trimmer Adjusts	^2 the cable compensation equalization level
5	LEVEL Trimmer Adjusts	^2 the output signal level
6	ON LED Illuminates when receiving power

4.3 Connecting the PT-110-od / TP-120-od Transmitter / Receiver

You can use the PT-110-od XGA Line Transmitter together with the TP-120-od XGA Line Receiver to configure an XGA-to-Twisted Pair Transmitter and Receiver system.

Before connecting the transmitter and receiver system you can acquire the EDID (via PT-110-od) from the display or set the system to the default EDID, see section 9

To connect the PT-110-od XGA Line Transmitter with the TP-120-od XGA Line Receiver, as the example in Figure 3 illustrates, do the following:

1. On the PT-110-od, connect the XGA source (for example, the 15-pin HD output from a computer's graphics card) to the XGA INPUT 15-pin HD (F) connector.
2. On the TP-120-od, connect the XGA OUT 15-pin HD (F) connector to the XGA acceptor (for example, a display).
3. Connect the LINE OUTPUT RJ-45 connector on the PT-110-od to the LINE IN RJ-45 connector on the TP-120-od, via CAT 5 cabling (with a range of more than 300ft (>100m)), see section 8.
4. On both the PT-110-od and the TP-120-od, connect the 12V DC power adapter to the power socket and connect the adapter to the mains electricity.
   The signal from the XGA source is transmitted via CAT 5 cable, decoded and converted at the XGA OUT 15-pin HD (F) connector to the XGA acceptor.
5. If required, on the TP-120-od, adjust ^2 the output signal level and/or cable compensation equalization level.

Figure 3: Connecting the PT-110-od to the TP-120-od

4.4 Technical Specifications of the PT-110-od and the TP-120-od

Table 3 includes the technical specifications ^1 of the PT-110-od and the TP-120-od:
Table 3: Technical Specifications ^2 of the PT-110-od and the TP-120-od

PT-110-od TP-120-od
INPUTS: VIDEO: 1 VGA /	UXGA on a 15-pin HD connector	1 RJ-45 connector
OUTPUTS: 1 RJ-45 connector	VIDEO: 1 VGA / UXGA on a 15-pin HD connector
MAX. OUTPUT LEVEL: 1.7Vpp
BANDWIDTH:	150MHz
RESOLUTION:	Up to UXGA
DIFF. GAIN: 1.6%
DIFF PHASE: 0.2 Deg.
K-FACTOR:	<0.05%
S/N RATIO: 70dB @5MHz
CONTROLS: LEVEL: -9dB to +2.5dB		EQ.: 0dB to +31dB
COUPLING:	AC
POWER SOURCE: 12V DC 300mA 12V DC 240mA
DIMENSIONS:	12.1cm x 7.18cm x 2.42cm (4.76" x 2.83" x 0.95") W, D, H
WEIGHT:	0.3kg (0.67lbs) approx.
ACCESSORIES:	Power supply
OPTIONS:	RK-4PT rack adapter	RK-3T rack adapter

5 The TP-121-od / TP-122-od Transmitter / Receiver Set

The Kramer TOOLS TP-121-od is an XGA / audio stereo line transmitter. It receives an XGA signal and an unbalanced stereo analog audio signal ^1 converts them to a twisted pair signal and transmits them over CAT 5 cable to the Kramer TOOLS TP-122-od.

The TP-121-od, with the TP-122-od, provides an operation range of more than 300ft (more than 100m) over standard CAT 5 cable, has the Power Connect feature ^2 and is 12V DC fed.

The TP-121-od:

• Has a 20kHz audio bandwidth with an S/N ratio that exceeds 80dB on the same transmission range
• When connected to a display device and the EDID CAPTURE button is pressed, reads and stores the EDID (Extended Display Identification Data) from the display device. The display can be disconnected and later reconnected without rebooting the operating system

In addition, the TP-122-od:

- Includes EQ. and level controls

This section defines the TP-121-od XGA / Audio Line Transmitter (see section 5.1), and the TP-122-od XGA / Audio Line Receiver (see section 5.2).

5.1 Your TP-121-od XGA / Audio Line Transmitter

Figure 4 and Table 4 define the TP-121-od:

Figure 4: TP-121-od XGA / Audio Line Transmitter

Table 4: TP-121-od XGA / Audio Line Transmitter Features

#	Feature Function
1	12V DC		+12V DC connector for powering the unit
2	AUDIO IN 3.5mm Mini Jack		Connects to the audio source
3	LINE OUT RJ-45 Connector		Connects to the LINE IN RJ-45 connector on a receiver (see section 8)
4	XGA IN 15-pin HD (F) Connector		Connect to the XGA source
5	EDID^1	CAPTURE Button	Press to acquire the EDID information from the display
6		STATUS LED	Illuminates during normal operation; blinks when acquiring the EDID
7	ON LED Illuminates when receiving power

5.2 Your TP-122-od XGA / Audio Line Receiver

Figure 5 and Table 5 define the TP-122-od XGA / Audio Line Receiver topside:

Figure 5: TP-122-od XGA / Audio Line Receiver (Topside)

Table 5: TP-122-od XGA / Audio Line Receiver (Topside) Features

# Feature Function
1	12V DC		+12V DC connector for powering the unit
2	AUDIO OUT	S/PDIF RCA Connector	Connects to the digital audio acceptor
3 ANALOG 3.5mm Mini Jack			Connects to the analog audio acceptor
4	LINE IN RJ-45 Connector		Connects to the TP-121-od (see section 8)
5	XGA OUT 15-pin HD (F) Connector		Connects to the XGA acceptor
6	LINK LED		Illuminates when receiving the correct input signal
7 LE VEL Trimmer Adjusts			^2 the output signal level
8 EQ. ^1 Trimmer Adjusts			^2 the cable compensation equalization level
9 ON LED Illuminates when receiving power

5.3 Connecting the TP-121-od / TP-122-od Transmitter / Receiver

You can use the TP-121-od together with the TP-122-od to configure an XGA/Audio Line-to-Twisted Pair Transmitter and Receiver system.

Before connecting the transmitter and receiver system you can acquire the EDID (via TP-121-od) from the display or set the system to the default EDID, see section 9

To connect the TP-121-od XGA / Audio Line Transmitter with the TP-122-od XGA / Audio Line Receiver, as the example in Figure 6 illustrates, do the following:

1. On the TP-121-od, connect the XGA source (for example, a laptop's graphics card) to the XGA INPUT 15-pin HD (F) connector and an audio source to the AUDIO IN 3.5mm mini jack, for example, using a Kramer C-GMA/GMA cable (VGA 15-pin HD (M) +Audio jack to VGA 15-pin HD (M) +Audio jack) ^1 . Alternatively, you can connect an XGA source to the XGA INPUT 15-pin HD (F) connector, and a separate audio source to the AUDIO IN 3.5mm mini jack.
2. On the TP-122-od, connect the XGA OUT 15-pin HD (F) connector to the XGA acceptor (for example, a display), and connect the AUDIO OUT S/PDIF RCA connector to the digital audio acceptor (for example, an AV Receiver), and the ANALOG 3.5mm mini jack to the analog audio acceptor (for example, a stereo audio recorder).
3. Connect the LINE OUTPUT RJ-45 connector on the TP-121-od to the LINE IN RJ-45 connector on the TP-122-od, via CAT 5 cabling (with a range of more than 300ft (>100m)), see section 8.
4. Connect the 12V DC power adapter to the power socket and connect the adapter to the mains electricity on both ^2 the TP-121-od and the TP-122-od. The signal from the XGA source is transmitted via CAT 5 cable, decoded and converted at the XGA OUT 15-pin HD (F) connector to the XGA acceptor.
5. If required, on the TP-122-od adjust ^3 the video output signal level and/or cable compensation equalization level.

Figure 6: Connecting the TP-121-od and the TP-122-od

5.4 Technical Specifications of the TP-121-od and the TP-122-od

Table 6 includes the technical specifications ^1 of the TP-121-od and the TP-122-od.
Table 6: Technical Specifications ^2 of the TP-121-od and the TP-122-od

TP-121-od TP-122-od
INPUTS:VIDEO: 1 VGA /	UXGA on a 15-pin HD connectorAUDIO: 1 analog unbalanced stereo audio on a 3.5mm mini jack	1 RJ-45 connector
OUTPUTS: 1 RJ-45 connector	VIDEO: 1 VGA / UXGA on a 15-pin	HD connectorAUDIO:1 audio S/PDIF on an RCA connector1 analog unbalanced stereo audio on a 3.5mm mini jack
MAX. OUTPUT LEVEL:	VIDEO: 1.8V; AUDIO: 2.9Vpp
BANDWIDTH (-3dB):	AUDIO: 21kHz; VIDEO: 150MHz
RESOLUTION: Up to UXGA
DIFF. GAIN: 1.8%
DIFF. PHASE: 0.3 DEG.
K-FACTOR:	<0.05%
S/N RATIO:VIDEO: 62dB @5MHzAUDIO: 69dB @1kHz
CROSSTALK (all hostile):	VIDEO: -58dB, video into audio
CONTROLS (VIDEO):	LEVEL, -8.5dB to 3.2dB	EQ.: 0dB to 31.5dB
COUPLING:	VIDEO: ACAUDIO: AC	VIDEO: ACAUDIO: IN – AC, OUT – DC
AUDIO THD + NOISE:	0.2% @1kHz
AUDIO 2^nd HARMONIC:	0.01% @1kHz
POWER SOURCE:	12V DC 380mA	12V DC 350mA
DIMENSIONS:	12.1cm x 7.18cm x 2.42cm (4.76" x 2.83" x 0.95") W, D, H
WEIGHT:	0.3kg (0.67lbs) approx.
ACCESSORIES:	Power supply
OPTIONS:	RK-3T rack adapter

6 The TP-123-od / TP-124-od Transmitter / Receiver Set

The TP-123-od is a high-performance transmitter. It accepts a computer graphics input signal, an unbalanced stereo analog audio signal ^1 , unidirectional (RxD) RS-232 control commands and 12V DC power, over CAT 5 cable, and transmits to the TP-124-od. The TP-123-od can power or be powered by the TP-124-od transmitter over the same CAT 5 cable and is 12V DC fed.

The TP-124-od outputs a computer graphics signal, an unbalanced stereo analog audio signal, a converted digital audio (S/PDIF) signal and RS-232 control commands. The unidirectional (TxD) RS-232 interface makes it possible to control virtually any devices over a transmission range of more than 300ft (more than 100m) over UTP cabling.

When the TP-123-od is connected to a display device and the EDID CAPTURE button is pressed, the TP-123-od reads and stores the EDID (Extended Display Identification Data) from the display device. The display can be disconnected and later reconnected without rebooting the operating system.

In addition, the TP-124-od features:

• Level and EQ. control for the XGA signals
• 24 bit 48kHz S/PDIF digital audio that supplies the highest quality audio

6.1 Your TP-123-od XGA / Audio / Data Line Transmitter

Figure 7 and Table 7 define the TP-123-od:

Figure 7: TP-123-od XGA / Audio / Data Line Transmitter

Table 7: TP-123-od XGA / Audio / Data Line Transmitter Features

#	Feature Function
1	12V DC		+12V DC connector for powering the unit
2	AUDIO IN 3.5mm Mini Jack		Connects to the audio source
3	RS-232 Terminal Block Connector		Connects to the PC or the Remote Controller (see section6.4)
4	LINE OUT RJ-45 Connector		Connects to ^1 the LINE IN RJ-45 connector on the TP-124-od XGA / Audio Line Receiver
5	XGA IN 15-pin HD (F) Connector		Connect to the XGA source
6	EDID^2	CAPTURE Button	Press to acquire the EDID information from the display
		STATUS LED	Illuminates during normal operation; blinks when acquiring the EDID
ON	LED Illuminates when receiving power

6.2 Your TP-124-od XGA / Audio Line Receiver

Figure 8 and Table 8 define the TP-124-od XGA / Audio / Data Line Receiver:

Figure 8: TP-124-od XGA / Audio / Data Line Receiver (Topside)

Table 8: TP-124-od XGA / Audio / Data Line Receiver (Topside) Features

# Feature Function
1	12V DC		+12V DC connector for powering the unit
2	AUDIO	S/PDIF RCA Connector Connects to the digital audio acceptor
3 ANALOUT3.5		mm Mini Jack	Connects to the analog audio acceptor
4	RS-232 Terminal Block Connector		Connects to the controlled unit
5	LINE IN RJ-45 Connector		Connects to ^1 the LINE OUT RJ-45 connector on the TP-123-od
6	XGA OUT 15-pin HD (F) Connector		Connect to the XGA acceptor
7	LINK LED		Illuminates when receiving the correct input signal
8 LE	VEL Trimmer Adjusts		^2 the output signal level
9 EQ.	^2 Trimmer Adjusts		^3 the cable compensation equalization level
10 ON LED Illuminates when receiving power

6.3 Connecting the XGA / Audio / Data Line Transmitter / Receiver

You can use the TP-123-od XGA / Audio / Data Line Transmitter together with the TP-124-od XGA / Audio / Data Line Receiver to configure a twisted pair transmitter and receiver system, to transmit the video, audio and RS-232 control signals via CAT 5 cable.

Before connecting the transmitter and receiver system you can acquire the EDID (via TP-123-od) from the display or set the system to the default EDID, see section 9

To connect the TP-123-od and the TP-124-od to configure a twisted pair transmitter and receiver system, as the example in Figure 9 illustrates, do the following:

1. On the TP-123-od, connect:

2. An XGA source (for example, a laptop's graphics card) to the XGA IN 15-pin HD (F) connector and an audio source to the Audio IN 3.5mm mini jack, for example, using a Kramer C-GMA/GMA cable (VGA 15-pin HD (M) +Audio jack to VGA 15-pin HD (M) +Audio jack) ^1

3. An RS-232 cable with a 9-pin D-sub connector at one end to the laptop, and a 2-pin terminal block connector at the other end to the TP-123-od RS-232 port ^2

4. On the TP-124-od, connect:

■ The XGA OUT 15-pin HD (F) connector to a display
■ The S/PDIF Audio OUT RCA connector to a digital AV Receiver (leave the ANALOG Audio OUT 3.5mm mini jack unconnected)
- An RS-232 cable with a 2-pin terminal block connector at one end to the TP-124-od RS-232 port ^2 , and a 9-pin D-sub connector at the other end to the RS-232 port on an RS-232 controllable device (for example, a switcher)

1. Connect the Line OUT RJ-45 connector on the TP-123-od to the LINE IN RJ-45 connector on the TP-124-od, via CAT 5 cabling (with a range of more than 300ft (>100m)), see section 8.

2. Connect the 12V DC power adapter to the power socket and connect the adapter to the mains electricity on both ^1 the TP-123-od and the TP-124-od.

3. If required, on the TP-124-od ^2 adjustideo output signal level and/or cable compensation equalization level.

Figure 9: Connecting the TP-123-od and the TP-124-od

6.4 Controlling via RS-232 (for example, using a PC)

Prepare an RS-232 cable with a 9-pin D-sub connector at one end, and a 2-pin terminal block connector at the other end, as defined in Figure 10 and Table 9:

PC (Controller) to TP-123-od

TP-124-od to Controlled Unit

Figure 10: RS-232 PINOUT Connection

Table 9: RS-232 PINOUT Connection

Connect this PIN on the Terminal Block Connector:	To this PIN on the 9-pin D-sub Connector
TxD	PIN
RxD	PIN
GND	PIN

2

3

5

6.5 Technical Specifications of the TP-123-od and the TP-124-od

Table 10 includes the technical specifications ^1 of the TP-123-od and the TP-124-od:

Table 10: Technical Specifications ^2 of the TP-123-od and the TP-124-od

TP-123-od TP-124-od
INPUTS:VIDEO: 1 VGA/	UXGA on a 15-pin HD connectorAUDIO: 1 analog unbalanced stereo audio on a 3.5mm mini jack	1 RJ-45 connector
OUTPUTS: 1 RJ-45 connector	VIDEO: 1 VGA / UXGA on a 15-pin HD connectorAUDIO: 1 audio S/PDIF on an RCA connector 1 analog unbalanced stereo audio on a 3.5mm mini jack
MAX. OUTPUT LEVEL:	VIDEO: 1.8V; AUDIO: 2.9Vpp
RS-232 BAUD RATE: Up to 19200kbps
BANDWIDTH (-3dB): VIDEO: 150MHz; AUDIO: 19kHz
RESOLUTION:	Up to UXGA
DIFF. GAIN: 1.3%
DIFF. PHASE: 0.2Deg.
K-FACTOR	<0.1%
S/N RATIO VIDEO: 63dB @5MHz; AUDIO: 68dB @1kHz
CROSSTALK (all hostile):	VIDEO: -56dB@50MHz into audio
CONTROLS:	RS-232 on a 2-pin terminal block connector	RS-232 0n a 2-pin terminal block connectorLEVEL: -9.5dB to 2.4dB, EQ.: 0dB to +32dBm
COUPLING:	VIDEO: ACAUDIO: AC	VIDEO: ACAUDIO: IN - AC, OUT - DC
AUDIO THD + NOISE:	0.2% @1kHz
AUDIO 2^nd HARMONIC:	0.01% @1kHz
POWER SOURCE:	12V DC 420mA	12V DC 320mA
DIMENSIONS:	12.1cm x 7.18cm x 2.42cm (4.76" x 2.83" x 0.95") W, D, H
WEIGHT:	0.3kg (0.67lbs) approx.
ACCESSORIES:	Power supply
OPTIONS: RK-3T rack adapter

7 The TP-125-od / TP-126-od Transmitter / Receiver Set

The Kramer TOOLS TP-125-od is a high-performance transmitter that accepts a computer graphics input signal, an unbalanced stereo analog audio signal and RS-232 control commands. The stereo analog audio signal is converted to the digital audio (S/PDIF) stream before transmitting, thus preserving the quality of the audio source signals.

The TP-125-od codes the signals and transmits them over CAT 5 cable to the Kramer TOOLS TP-126-od. The TP-126-od outputs a computer graphics signal, an unbalanced stereo analog audio signal, a converted digital audio (S/PDIF) signal, and bidirectional RS-232 control commands and data, to and from the TP-125-od. The RS-232 interface makes it possible to control virtually any device over a transmission range of more than 300 feet (more than 100 meters) over UTP cabling. The commands and data can flow in both directions via the RS-232 interface, allowing status requests and control of the destination unit. The TP-125-od can power or be powered by the TP-126-od transmitter over the same CAT 5 cable and is 12V DC fed.

When the TP-125-od is connected to a display device and the EDID CAPTURE button is pressed, the TP-125-od reads and stores the EDID (Extended Display Identification Data) from the display device. The display can be disconnected and later reconnected without rebooting the operating system.

In addition, the TP-126-od features:

• Level and EQ. control for the UXGA signals
  • 24 bit 48kHz S/PDIF digital audio that supplies the highest quality audio

7.1 Your TP-125-od XGA / Audio / Data Line Transmitter

Figure 11 and Table 11 define the TP-125-od:

Figure 11: TP-125-od XGA / Audio / Data Line Transmitter

Table 11: TP-125-od XGA / Audio / Data Line Transmitter Features

# Feature Function
1	12V DC		+12V DC connector for powering the unit
2 AUDIO IN 3.5mm Mini Jack Connects to the audio source
3	RS-232 Terminal Block Connector		Connects to the PC or the Remote Controller (see section 7.4)
4	LINE OUT RJ-45 Connector		Connects to the LINE IN RJ-45 connector on the TP-126-od UXGA / Audio Line Receiver
5	UXGA IN 15-pin HD (F) Connector		Connect to the UXGA source
6	EDID^1	CAPTURE Button	Press to acquire the EDID information from the display
7		STATUS LED	Illuminates during normal operation; blinks when acquiring the EDID
8 ON LED Illuminates when receiving power

1 See section 9

7.2 Your TP-126-od XGA / Audio / Data Line Receiver

Figure 12 and Table 12 define the TP-126-od:

Figure 12: TP-126-od XGA / Audio / Data Line Receiver

Table 12: TP-126-od XGA / Audio / Data Line Receiver Features

# Feature Function
1	12V DC		+12V DC connector for powering the unit
2	AUDIO OUT	S/PDIF RCA connector Con	nects to the digital audio acceptor
3		ANALOG 3.5mm Mini Jack	Connects to the analog audio acceptor
4	RS-232 Terminal Block Connector		Connects to the controlled unit (see section 7.4)
5	LINE IN RJ-45 Connector		Connects to ^1 the LINE OUT RJ-45 connector on the TP-125-od
6	XGA OUT15-pin HD (F) Connector		Connects to the UXGA acceptor
7	LINK LED		Illuminates when receiving the correct input signal
8 LE	VEL Trimmer Adjusts the output signal level
9 EQ. ^2	Trimmer Adjusts the cable compensation equalization level
10	ON LED		Illuminates when receiving power

7.3 Connecting the TP-125-od and TP-126-od

You can use the TP-125-od XGA / Audio / Data Line Transmitter together with the TP-126-od XGA / Audio / Data Line Receiver ^1 to configure a twisted pair transmitter and receiver system, to transmit the video, audio and RS-232 control signals via CAT 5 cable.

Before connecting the transmitter and receiver system you can acquire the EDID (via TP-125-od) from the display or set the system to the default EDID, see section 9

To connect the TP-125-od and the TP-126-od to create a twisted pair transmitter and receiver system, as the example in Figure 13 illustrates, do the following:

1. On the TP-125-od, connect:

2. An UXGA source (for example, the graphics card on a laptop) to the UXGA IN 15-pin HD (F) connector and an audio source to the Audio IN 3.5mm mini jack, for example, using a Kramer C-GMA/GMA cable (VGA 15-pin HD (M) +Audio jack to VGA 15-pin HD (M) +Audio jack) ^2

3. An RS-232 cable with a 9-pin D-sub connector at one end to the laptop, and a 3-pin terminal block connector at the other end to the TP-125-od RS-232 port ^4

4. On the TP-126-od, connect:

■ The UXGA OUT 15-pin HD (F) connector to the AV display system
■ The S/PDIF Audio OUT RCA connector to a digital AV Receiver (leave the ANALOG Audio OUT 3.5mm mini jack unconnected)
- An RS-232 cable with a 3-pin terminal block connector at one end to the TP-126-od RS-232 port ^2 , and a 9-PIN D-SUB connector at the other end to the RS-232 port on the AV display system

1. Connect the Line OUT RJ-45 connector on the TP-125-od to the LINE IN RJ-45 connector on the TP-126-od, via CAT 5 cabling ^4 (with a range of more than 300ft (>100m)).

2. Connect the 12V DC power supply to the power socket and connect the adapter to the mains electricity on both the TP-125-od and the TP-126-od.

3. If required, on the TP-126-od adjust the video output signal level and/or cable compensation equalization level with a screwdriver.

Figure 13: Connecting the TP-125-od and the TP-126-od

7.4 Transmitting via RS-232 (for example, using a PC)

Prepare an RS-232 cable with a 9-pin D-sub connector at one end, and a 3-pin terminal block connector at the other end, as defined in Table 9 and Figure 10:

Table 13: RS-232 PINOUT Connection

Connect this PIN on the Terminal Block Connector:	To this PIN on the 9-pin D-sub Connector
TxD	PIN
RxD	PIN
GND	PIN

RS-232 Pinout

Figure 14: RS-232 PINOUT Connection

7.5 Technical Specifications

Table 14 includes the technical specifications ^1 of the TP-125-od and the TP-126-od.
Table 14: Technical Specifications ^2 of the TP-125-od ^3 and the TP-126-od

TP-125-od TP-126-od
INPUTS:VIDEO: 1 UXGA	on a 15-pin HD connectorAUDIO: 1 analog unbalanced stereo audio on a 3.5mm mini jack	1 RJ-45 connector
OUTPUTS: 1 RJ-45 connector	VIDEO: 1 UXGA on a 15-pin HD connectorAUDIO: 1 digital audio S/PDIF on an RCA connector1 analog unbalanced stereo audio on a 3.5mm mini jack
MAX. OUTPUT LEVEL ^4 :	VIDEO: 1.3Vpp; AUDIO: 3Vpp
RS-232 BAUD RATE: Up to 19200kbps
BANDWIDTH (-3dB): VIDEO: 150MHz; AUDIO: 22kHz
RESOLUTION:	Up to UXGA
DIFF. GAIN: 3.5%
K-FACTOR	0.1%
S/N RATIO VIDEO: 60dB; AUDIO: 69dB
CROSSTALK (all hostile):	VIDEO: -43dB @50MHz
CONTROLS: RS-232 on	a 3-pin Terminal Block Connector	RS-232 on a 3-pin Terminal Block ConnectorLEVEL: -9.5dB to 2dB,EQ.: 0dB to +31dBm
COUPLING:	VIDEO: ACAUDIO: AC	VIDEO: ACAUDIO: IN – AC, OUT - DC
AUDIO THD + NOISE:	0.2% @1kHz	0.25% @1kHz
AUDIO 2 ^nd HARMONIC:	0.01% @1kHz
POWER SOURCE: 12V	DC 140mA 12V	DC 210mA
DIMENSIONS:	12.1cm x 7.18cm x 2.42cm (4.76" x 2.83" x 0.95") W, D, H
WEIGHT:	0.3kg (0.67lbs) approx.
ACCESSORIES:	Power supply
OPTIONS: RK-3T rack adapter

8 Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors

Table 15 and Figure 15 define the UTP CAT 5 PINOUT, using a straight pin to pin cable with RJ-45 connectors:

Table 15: CAT 5 PINOUT

EIA /TIA 568A EIA /TIA 568B
PIN Wire Color PIN Wire Color
1 Green	/ White 1 Orange / White
2	Green		2 Orange
3 Orange	/ White 3 Green / White
4	Blue		Blue
5 Blue / White 5 Blue / White
6	Orange		6 Green
7 Brown	/ White		wn / White
8	Brown		8 Brown
Pair 1	4 and 5		Pair 1 4 and 5
Pair 2 3	and 6		Pair 2 1 and 2
Pair 3	1 and 2		Pair 3 3 and 6
Pair 4	7 and 8		Pair 4 7 and 8

Figure 15: CAT 5 PINOUT

9 Acquiring the EDID

The transmitter can acquire the EDID information from the display connected to the transmitter or acquire the default EDID ^1 .

To acquire the display EDID, do the following:

1. Connect the XGA INPUT 15-pin HD connector to the input XGA connector of the display, using a short cable ^2 .
2. Connect the display power.
3. On the Transmitter, connect the 12V DC power adapter to the power socket and connect the adapter to the mains electricity.
4. Press the EDID CAPTURE button.
5. Once the EDID STATUS blinks slowly several times, the EDID is captured.
6. Disconnect the display.

To acquire the default EDID ^3 :

1. On the Transmitter, connect the 12V DC power adapter to the power socket and connect the adapter to the mains electricity.
2. Press the EDID CAPTURE button.
3. Once the EDID STATUS blinks rapidly several times, the default EDID is captured.

Alternatively, you can press the EDID CAPTURE button after connecting the transmitter receiver system. When the EDID STATUS LED blinks rapidly several times, the default EDID information is acquired.

LIMITED WARRANTY

Kramer Electronics (hereafter K warrants this product free from defects in material and workmanship under the following terms.

HOW LONG IS THE WARRANTY

Labor and parts are warranted for seven years from the date of the first customer purchase.

WHO IS PROTECTED?

Only the first purchase customer may enforce this warranty.

WHAT IS COVERED AND WHAT IS NOT COVERED

Except as below, this warranty covers all defects in material or workmanship in this product. The following are not covered by the warranty:

1. Any product which is not distributed by Kramer, or which is not purchased from an authorized Kramer dealer. If you are uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the Web site www.kramerelectronics.com.
2. Any product, on which the serial number has been defaced, modified or removed, or on which the WARRANTY VOID IF TAMPERED sticked basobration interfered with.
3. Damage, deterioration or malfunction resulting from:

i) Accident, misuse, abuse, neglect, fire, water, lightning or other acts of nature
ii) Product modification, or failure to follow instructions supplied with the product
iii) Repair or attempted repair by anyone not authorized by Kramer
iv) Any shipment of the product (claims must be presented to the carrier)
v) Removal or installation of the product
vi) Any other cause, which does not relate to a product defect
vii) Cartons, equipment enclosures, cables or accessories used in conjunction with the product

WHAT WE WILL PAYFOR AND WHAT WE WILL NOT PAY FOR

We will pay labor and material expenses for covered items. We will not pay for the following:

1. Removal or installations charges.
2. Costs of initial technical adjustments (set-up), including adjustment of user controls or programming. These costs are the responsibility of the Kramer dealer from whom the product was purchased.
3. Shipping charges.

HOW YOU CAN GET WARRANTY SERVICE

1. To obtain service on you product, you must take or ship it prepaid to any authorized Kramer service center.
2. Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of warranty coverage, and should be included in any shipment of the product. Please also include in any mailing a contact name, company, address, and a description of the problem(s).
3. For the name of the nearest Kramer authorized service center, consult your authorized dealer.

LIMITATION OF IMPLIED WARRANTIES

All implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration to the length of this warranty.

EXCLUSION OF DAMAGES

The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for:

1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss; or:
2. Any other damages, whether incidental, consequential or otherwise. Some countries may not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights, which vary from place to place.

NOTE: All products returned to Kramer for service must have prior approval. This may be obtained from your dealer.

This equipment has been tested to determine compliance with the requirements of:

EN-50081: "Electromagnetic compatibility (EMC); generic emission standard.

Residential, commercial and light industry"

EN-50082: "Electromagnetic compatibility (EMC) generic immunity standard.

Part 1: Residential, commercial and light industry environment".

CFR-47: FCC* Rules and Regulations:

Part 15: "Radio frequency devices

Subpart B Unintentional radiators"

CAUTION!

Servicing the machines can only be done by an authorized Kramer technician. Any user who makes changes or modifications to the unit without the expressed approval of the manufacturer will void user authority to operate the equipment.
Use the supplied DC power supply to feed power to the machine.
☒ Please use recommended interconnection cables to connect the machine to other components.

* FCC and CE approved using STP cable (for twisted pair products)

For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found.

We welcome your questions, comments and feedback.

Caution

Safety Warning:

Disconnect the unit from the power supply before opening/servicing.

CE

PN: 2900-000637

Rev: 4
