Product Type	Medical Grade Color Monitor
Model	Nio Color 2MP LED
Brand	Barco
Resolution	1600 x 1200 (2 Megapixels)
Display Technology	LED-backlit LCD (IPS)
Screen Size	21.3 inches (diagonal)
Brightness	700 cd/m² typical
Contrast Ratio	1500:1 typical
Color Depth	14-bit LUT for precise grayscale & color calibration
Inputs	DVI-D, DisplayPort
Power Consumption	≤ 30 W (typical)
Dimensions (W x H x D)	488 x 400 x 70 mm (without stand)
Weight	8.0 kg (with stand)
VESA Mount	100 x 100 mm
Calibration	Built-in front sensor for automatic DICOM calibration
Cleaning Instructions	Use a soft, lint-free cloth slightly dampened with water or mild detergent; avoid solvents.
Safety Standards	IEC 60601-1, IEC 60601-1-2 (EMC)
Repair / Spare Parts	Authorized service only; use genuine Barco parts to maintain certification
Warranty	3 years standard (may vary by region)

Frequently Asked Questions - Nio Color 2MP LED Barco

What is the native resolution of the Barco Nio Color 2MP LED?

The native resolution is 1600 x 1200 pixels, providing a 2-megapixel display suitable for medical imaging.

How do I calibrate the monitor for DICOM compliance?

The monitor includes an integrated front sensor that automatically calibrates to DICOM Part 14 grayscale standard. Manual calibration is also available through the built-in software.

Can I use this monitor for both color and grayscale imaging?

Yes, it supports both color and grayscale modes. The 14-bit LUT ensures accurate color reproduction and smooth grayscale transitions.

What cleaning agents are safe to use on the screen?

Use a soft, lint-free cloth slightly dampened with water or a mild detergent. Do not use alcohol, ammonia, or abrasive cleaners as they may damage the anti-reflective coating.

Is the monitor compatible with standard VESA mounts?

Yes, it has a 100 x 100 mm VESA mounting pattern, allowing you to attach it to most monitor arms or wall mounts.

What video inputs does the monitor support?

It includes DVI-D and DisplayPort inputs. Some models may also have an optional HDMI input.

How often does the automatic calibration run?

The built-in front sensor performs daily automatic calibration to maintain DICOM compliance. It can also be triggered manually.

What is the typical power consumption?

Typical power consumption is ≤ 30 W, making it energy-efficient for continuous use in clinical environments.

How long should the LED backlight last?

LED backlights have a rated lifespan of 80,000 hours or more, ensuring reliable long-term operation.

Can I use this monitor for PACS or diagnostic reporting?

Yes, it is designed for diagnostic imaging including PACS, mammography, and general radiology, meeting the DICOM standard.

USER MANUAL Nio Color 2MP LED Barco

Black rectangular monitor with 'BRADO' branding on top, isolated on white background (no other text or symbols)

UserGuide

MDNC-2221

Barco nv

President Kennedypark 35, 8500 Kortrijk, Belgium

Phone: [phone]

Fax: [phone]

Support: www.barco.com/esupport

Visit us at the web: www.barco.com

TABLEOFCONTENTS

1. Welcome!......3

1.1 About the product 3
1.2 What's in the box....3

2. Parts, controls and connectors ....

2.1 Displayfrontview 5
2.2 Display rear view....6

3. Display installation....9

3.1 Unlocking the height mechanism....9
3.2 Adjusting the display position....9
3.3Removing the connector compartment cover 10
3.4 Connecting the signal cables 10
3.5 Routing the cables & Reattach the connector compartment cover 12
3.6 VESA-mount installation 12
3.7 First time starting up....14

4. Daily operation 15

4.1 Recommendations for daily operation....15
4.2 Key indicator lights....16
4.3 Standby switching....16
4.4 Bringing up the OSD menus....17
4.5 Navigating through the OSD menus 17

5. Advanced operation....19

5.1 OSD menu language 19
5.2 OSD menu automatic close function....19
5.3 Power status indicator light 19
5.4 Key indicator lights....20
5.5 Power lock function 20
5.6 DPMS mode....20
5.7 Hibernate....21

5.8 Luminance target....21

5.9 Viewing modes 22
5.10 Display functions 22
5.11 Reading rooms 23
5.12 Display orientation 24
5.13 Video input signals....24
5.14 EDID timings....24
5.15 Display info 25
5.16 Display status....25

6. Maintenance....27

6.1 Cleaning instructions 27

7. Important information .... 29

7.1 Safety information....29
7.2 Environmental information 31
7.3 Regulatory compliance information 33
7.4 EMC notice 34
7.5 Explanation of symbols....37
7.6 Legal disclaimer....39
7.7 Technical specifications ....40
7.8 Compatible display controllers....42
7.9 Open source license information 42

1.WELCOME!

1.1 About the product

Overview

ThankyouforchoosingthisNIO2MPLEDDisplay!

NIO2MPLEDDisplayisanindustry-standard2MPcolordisplaysystemwithLEDbacklightsfordepen d-ablediagnosticviewinginhigh-brightcolor.NIO2MPLEDDisplayprovidesaneffectivedisplaysolution foramultitudeofapplicationsandmodalities.

Confidentcolorreading

Equippedwithhigh-brightLEDbacklights,NIO2MPLEDDisplaydeliversexcellentbrightnessandmore shadesofgraytodetectsubtledetailsmorequickly.Theuniquefrontsensorensuresyouseeco nsistent andpreciseimagesatalltimesforconfidentdiagnoses.

On-demandimagequalitychecks

AsthefrontsensorworksseamlesslytogetherwithBarco'sonlineMediCalQAWebserviceforautomatedQualityAssuranceandcalibration,NIO2MPLEDDisplaymakessureyouareviewingperfectDICOMimages — at the click of a button — without interrupting your workflow.

Agoodinvestment

Using power-efficient LED backlights, NIO 2MP LED Display is as low in power consumption as it is high inbrightness. Because it uses less power, the display produces less heat and requires less cooling, which impacts maintenance and operational costs. Additionally, the LED backlight soffer along lifetime—even at high brightness—providing a high return on your investment.

CAUTION: Read all the important safety information before installing and operating your NIO2MPLEDDisplay.Pleaserefertothededicatedchapterinthisuserguide.

1.2 What'sinthebox

Overview

YourNIO2MPLEDDisplaycomeswith:

• thedisplay
  • asystemtiltandswivelfoot
  • this NIO 2MP LED Display user guide
• asystemCD
• aDisplayPortable
• a DVI cable
• an USB cable
• an AC power cord
• anexternalpowersupply

If you ordered a Barco display controller, it's also in the box together with its accessories. A dedicated userguideisavailableonthesystemCD.

Keepyouroriginalpackaging.Itisdesignedforthisdisplayandistheidealprotection duringtransportandstorage.

2.PARTS,CONTROLSAND CONNECTORS

2.1 Displayfrontview

Overview

Image2-1
Frontview

1 Leftkey

2 Rightkey

3 Menukey

4 Standbykey

5 PowerLEDs

6 BottomdownstreamUSB

Thekeyiconsaredisplayedabovethekeys,adaptedtothefunctionthatitisusedfor (menudependent).See"NavigatingthroughtheOSDmenus",page17.

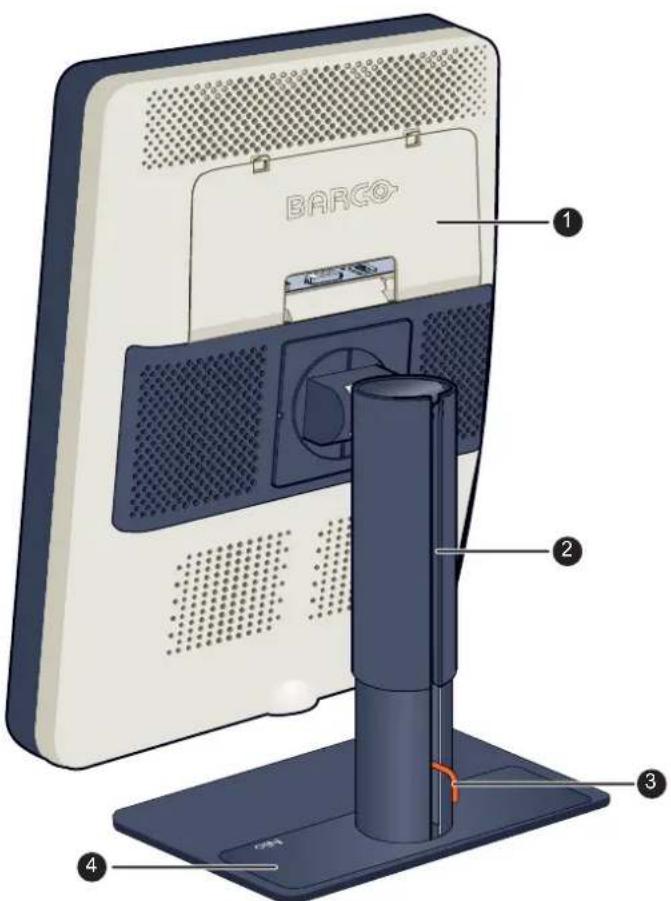

2.2 Displayrearview

Connectorcompartmentcoverclosed

Image2-2
Rearviewwithclosedconnectorcompartmentcover

Connectorcompartmentcover

Footlockclip

Cableduct

Tilt&swivelfoot

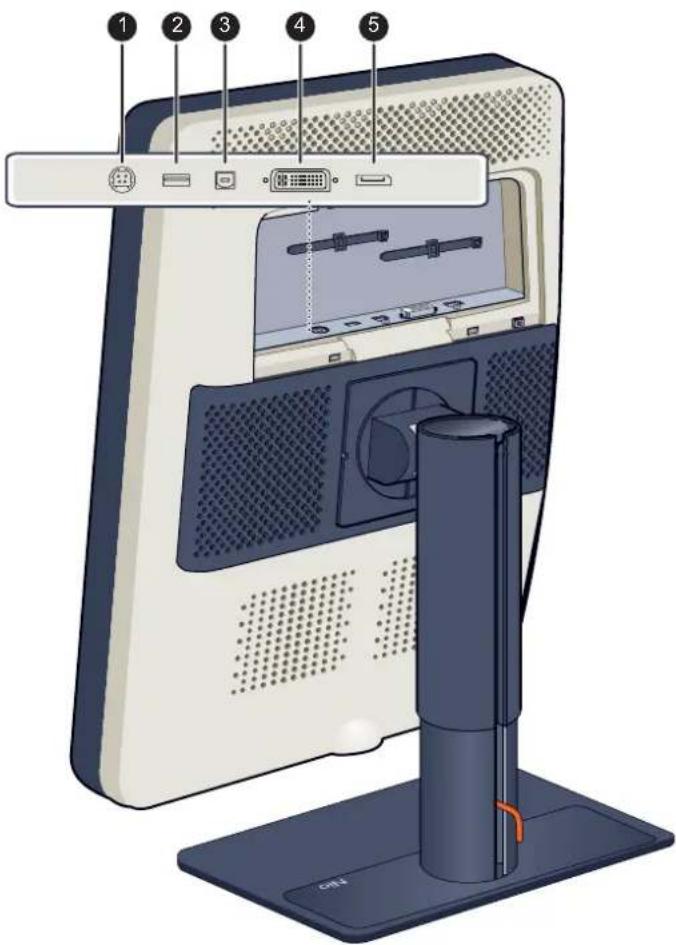

Connectorcompartmentcoveropen

Image2-3

1 +24VDCpowerinput
2 USBdownstreamconnector
3 USBupstreamconnector

4 DVIvideoinput
5 DisplayPortvideoinput

3.DISPLAYINSTALLATION

PriortoinstallingyourNIO2MPLEDDisplayandconnectingallnecessarycables,make suretohaveasuitabledisplaycontrollerphysicallyinstalledinyourcomputer.Ifyou areusingaBarcodisplaycontroller,pleaseconsulttheuserguidedeliveredwithitto dothis.

3.1 Unlockingtheheightmechanism

Toremovetheclip:

1. Positionthedisplaywithitsrearsidefacingyou.
2. Pulltheredclipoutofthefixationholeinthefoot.

Close-up of a desktop computer monitor base with a vertical stand and a red arrow indicating a location or movement (no text or symbols visible)

1. Keep the clip in the dedicated hole incasethedisplay need stob eshipped later.

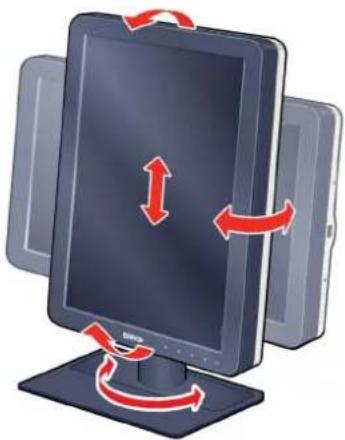

3.2Adjustingthedisplayposition

Toadjust the display position

1. Standatthefrontsideofthepanelandtakethepanelatbothsides.
2. Very important: Tilt the panel upwards before hanging the orientation.

Illustration of a computer monitor with red bidirectional arrows indicating rotation, mounted on a stand (no text or symbols)

1. Tochangefromportraittolandscape, turn the panel counterclockwise.
2. Tochangefromlandscapetoportrait, turnclockwise.

If,afterinstallingthedisplayofthesystem,youchangethepanelorientationwhilean imageisonthescreen,theresultdependsonthegraphicboardandtheresolutionof theimage.Insomecasestheimagewillberotadautomatically,inothercasesitwill notberotated(e.g.,whenpixelswouldbelostafterrotation).lfnecessary,changethe imageresolutioninthedisplaycontrolpanelandrestartthesystemafterchangingthe orientation.

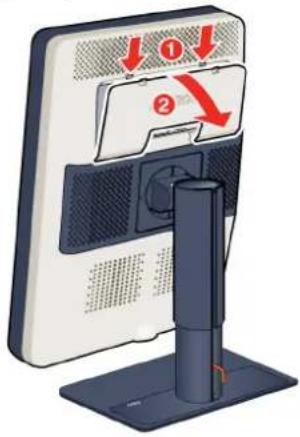

3.3Removingtheconnectorcompartmentcover

Toremovetheconnectorcompartmentcover

1. Gentlypushthetwolipsontopofthecover

2. Pullthetopofthecoverslightlyawayfromthedisplayandliftthecoverupwards.

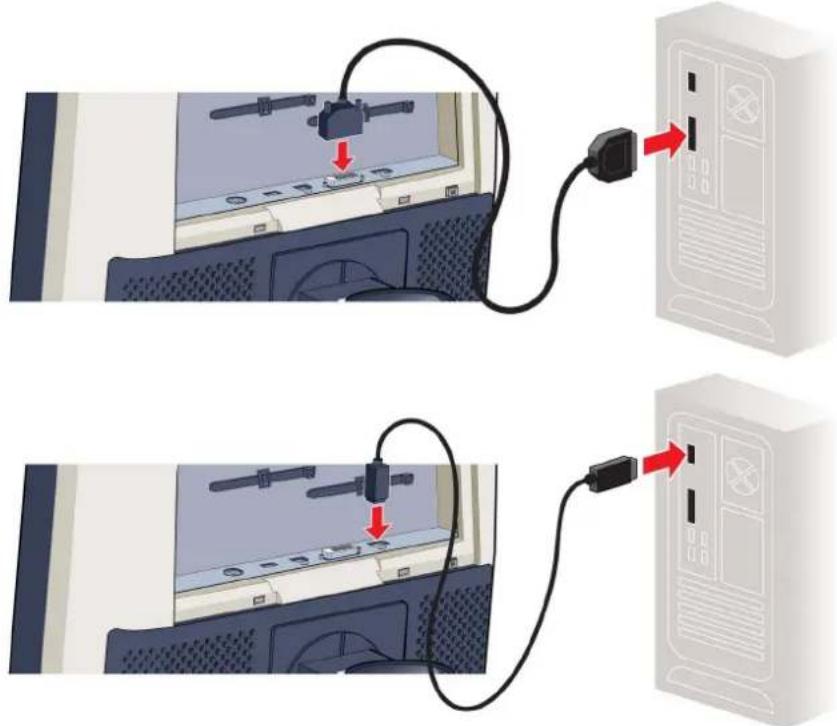

3.4 Connecting the signal cables

CAUTION: Only connect one of the two video links. Connecting both inputs simultaneously will result in driver errors.

Toconnectthesignalcablestothedisplay:

Togetaccesstothecnectors, remove the connector compartment cover. See "Removing the connector compartment cover", page 10.

YoumayconnectthedisplaytodisplaycontrollerbyusingtheDVIortheDPconnection. Theinput selectionofthedeviceisautomaticallydone.Bydefault,theDisplayPortinputhaspriorityovertheDVI input.ThiscanbechangedintheOSDmenu.

1. ConnecttheDVlorDPofthedisplaycontrollertotheDVlorDPconnectorofthedisplay.

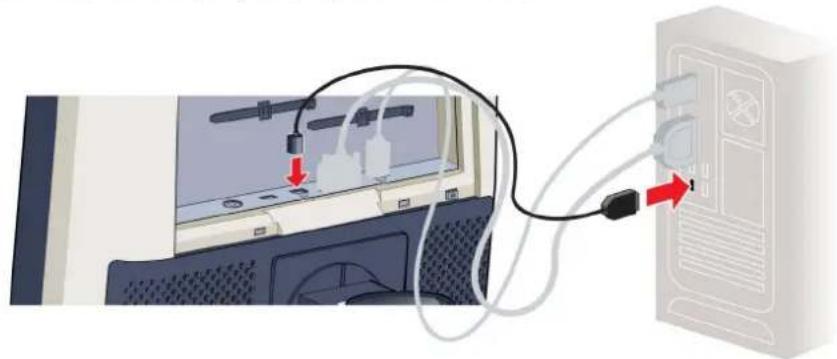

1. If you want to make use of the display's USB upstream connector, connect a PC USB downstream connector to the display's USB upstream connector.

Illustration of a computer monitor connected to a wall-mounted device via cable, with two red arrows indicating connection points (no text or symbols present)

1. If you have chosen us the display's USB downstream connector, connect a USB device to the downstream connector.

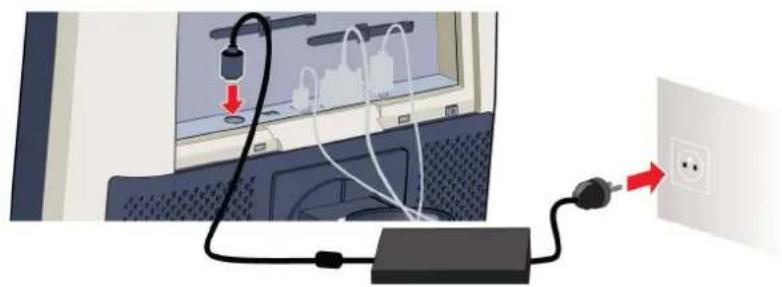

2. Connect the supplied external DC powers supply to the +24V dcpower input of the display.

3. Plug the mains connector of the external DC power supply to a grounded power outlet by means of oneofthesuppliedpowercables.

Illustration of a computer setup with cable, power plug, and socket connected to an outlet (no text or symbols)

3.5 Routing the cables & Reattach the connector compartment cover

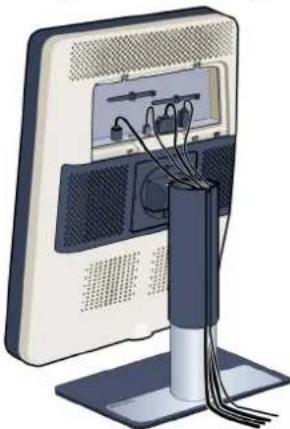

Toroutethecables

1. Routeallconnectedcablesthroughthecableroutingchannelinthestandofyourdisplay.

Illustration of a computer monitor with cable connectors and ventilation slots (no text or symbols)

Tip: The cable straps at the inside of the connector compartmental shielding of the cables.
lowyoutofixthecablesforbetter

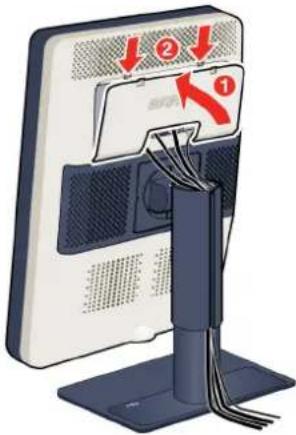

ToReattachtheconnectorcompartmentcover

1. Reattachtheconnectorcompartmentcoverbyslidingthecover'sbottominpositionandthenpushthe cover'stop.You'llheara"click"soundofthecover'sclipswhentheconnectorcompartmentcoveris inposition.

3.6VESA-mountinstallatio n

CAUTION: Use suitable mounting apparatus to avoid risk of injury.

WARNING: Never move a display attached to an arm by pulling or pushing the display itself. Instead, makes sure that the arm is equipped with a VESA approved handle and usethistomovethedisplay.

Pleaserefertotheinstructionmanualofthearmformoreinformationandinstructions.

WARNING: Use an arm that is approved by VESA (according to the VESA 100 mm standard).

Use an arm that can support the weight of the display. Refer to the technical specifications of this display for the applicable weight.

Overview

Thepanel, standard attached to the tilt & swivelfoot, is compatible with the VESA 100 mm standard. So it can be used with an arm stand according to the VESA 100 mm standard.

Therefore, the tilt & swivelfoot must be removed from the panel.

1. Putthedisplayinthelowestpositionandfastentheheightmechanism,see"Unlockingtheheight mechanism",page9.

Illustration of a desktop computer monitor with a stand and indicator lights (no text or symbols)

1. Putthedisplayfacedownonacleanandsoftsurface.Becarefulnottodamagethepanelscreen.

2. Removetheplasticcoverwithaflatheadscrewdriver.

Diagram of a device with a black button and red arrows indicating direction (no text or symbols)

4.Slidetheplasticcoverovertheneckofthefoot.

Close-up of a mechanical component with a red arrow pointing to a cylindrical part, no visible text or symbols

1. Remove the four screws fixing the foot while supporting the foot.

Close-up of a computer monitor with red arrows indicating mechanical components (no text or symbols visible)

1. Attach the arm stand firmly to the panel using 4 screws M4 x 8 mm.

3.7 Firsttimestartingup

Overview

You are now ready to start up your NIO 2MP LED Display for the first time.

1. SwitchonyourNIO2MPLEDDisplayasdescribedin"Standbyswitching", page 16.
2. Turnonthecomputerconnectedtoyourdisplay.

If you have properly installed your display and display controller, the Windows start-up messages will appear on the boot procedure is finished.

YourNIO2MPLEDDisplaywillberunninginabasicvideomodeatadefaultrefreshrate when first time starting up. If you are using a Barco display controller, please consult theuserguidedeliveredwithittoinstallthedrivers,softwareanddocumentation.When thisisdone,yourdisplaywillautomaticallydetecttheconnectedvideoinputsignal(s) andapplythecorrectvideomodeandrefreshrate.

4. DAILY OPERATION

4.1 Recommendationsfordailyoperation

Optimizethelifetimeofyourdisplay

EnablingtheDisplayPowerManagementSystem(DPMS)ofyourdisplaywilloptimizeitsdiagnosticlife-time by automatically switching off the backlight when the display is not used for a specified period of time. Bydefault,DPMSisenabledonyourdisplay,butitalsoneedstobeeactivatedonyourworkstation.Todo this,goto"PowerOptionsProperties"inthe"ControlPanel".

BarcorecommendssettingDPMSactivationafter20minutesofnon-usage.

Useascreensavertoavoidimageretention

ProlongedoperationofanLCDwiththesamecontentonthesamescreenareamayresultinaformofimageretention.

You can avoid or significantly reduce the occurrence of this phenomenon by using a screen saver. You can activate as screensaverinthe "Displayproperties" windowofyourworkstation.

Barcorecommendssettingscreensaveractivationafter5minutesofnon-usage.A goodscreensaverdisplaysmovingcontent.

In case you are working with the same image or an application with static image elements for several hours continuously (so that the screen saver is not activated), change the image content regularly to avoid image retentionofthestaticelements.

Understandpixeltechnology

LCDdisplaysusetechnologybasedonpixels.AsanormaltoleranceinthemanufacturingoftheLCD,a limitednumberofthesepixelsmayremaineitherdarkorpermanentlylit,withoutaffectingthediagnostic performance of the product. To ensure optimal product quality, Barco applies strict selection criteria for its LCDpanels.

TolearnmoreaboutLCDtechnologyandmissingpixels,consultthededicatedwhite papersavailableatw_ww.barco.com/healthcare.

Enhanceusercomfort

Every Barco multi-head display system is color matched with the highest specifications in the market.

Barcorecommendskeepingcolor-matcheddisplay together. Furthermore, it is important to use all displays of a multi-head configuration at the same rate to preserve color matching throughout the economic lifetime of the system.

Maximizequalityassurance

The 'MediCalQAWeb'systemoffersonlineserviceforhigh-gradeQualityAssurance,providingmaximum diagnosticconfidenceanduptime.

BarcorecommendstoinstallMediCalQAWebAgentandapplythedefaultQAWebpolicy atleast.Thispolicyincludescalationonregularintervals.ConnectingtoMediCalQAWebServeroffersevenmorepossibilities.

LearnmoreandsignupforthefreeMediCalQAWebEssentiallevelat www.barco.com/healthcare/qa.

4.2Keyindicatorlights

Aboutthekeyindicatorlights

Bydefault, the indicator light so the keys will be dimmed which make the keys un available at that moment. Tomakethe keysilluminate and available for further actions such one of the keys. As a result, all keys will be illuminated and are now available for further actions. However, if no further actions are taken within the following 5 seconds, the keys will dim again.

Thekeyauto-dimfunctioncanbedisabledintheOSDmenus.Pleaserefer dicatorlights",page20fordetailedinstructionsonhowtodothis.

to"Keyin-

4.3 Standbyswitching

Aboutstandbyswitching

The connected powersupply als provides as switch that can be used to turn the power completely off. To use the display, please make sure to switch on this power supply. This can be done by pushing the on/off switch on the power supply into the “|” position.

Switchingonthedisplaywhileitisinstandbymodeorviceversacanbedoneby:

1. Illuminatethekeysaspreviouslydescribed.
2. Whilethekeysareilluminated,touchthestandbykeyforapproximately2seconds.

As a result, the display will switch on or will switch to standby mode. When the display is switched on, the power LED is white. When the display is in standby mode, the power LED is orange.

The power LED can be disabled in the OSD menus. Please refer to "Power status indicatorlight", page19fordetailedinstruction sonhowtodothis.

Incaseofapoweroutagerecovery,yourdisplaywillalwaysstart-upinthepowermode itwasinbeforethepowerinterruption(i.e.standbyoron).Thisprotectsyourdisplay againstinadvertentimageretentionproblems.

4.4BringinguptheOSDmenus

HowtobringuptheOSDmenus

The OSD menu allows you to configure different settings to make your NIO 2MP LED Display fit your needswithinyourworkingenvironment.Also,youcanretrievegeneralinformationaboutyourdisplay anditscurrentconfigurationsettingsthroughtheOSDmenu.

BringinguptheOSDmenuscanbedoneby:

1. If not already doneso, switch on the display as previously described.
2. Illuminatethekeysaspreviouslydescribed.
3. While the keys are illuminated, touch themenu key.

Asaresult, the OSD mainmenu comes up in the bottom right corner of the screen. However, if no further actions are taken within the following 90 seconds, the OSD will disappear again.

The OSDmenuauto-exitfunctioncanbedisabledintheOSDmenu.Pleasereferto "OSDmenuautomaticclosefunction",page19fordetailedinstructionsonhowtodo this.

4.5 NavigatingthroughtheOSDmenus

HowtonavigatethroughtheOSDmenus

NavigatingthroughtheOSDmenuscanbedoneby:

• Usetheleft/rightkeystomovethroughthe(sub)menus,changevaluesormakeselections.
  • To go into a submenu or confirm adjustments and selections, use the menu key.
  • Usethestandbykeytocanceladjustmentsorexita(sub)menu.
• ExitallOSDmenusatoncebytouchingthestandbykeyforapproximately2seconds.

Thekeyiconsaredisplayedabovethekeys,adaptedtothefunctionthatitisusedfor (menudependent).

Overviewkeyicons

Left, Right

Menu

Enter

Cancel

Standby(IEC60417-5009)

Bydefault, whenthedisplayisswitchedon, thepowerstatusindicatorlightisdimmed. This behavior can be changed so that the power status indicator light will be green when the display is switched on.

Whenthedisplayisinstand-bymode, thepowerstatusindicatorlightwillalwaysturn orange, evenwhenthepowerstatusindicatorlightisdisabled.

Toenable/disablethepowerstatusindicatorlight:

1. BringuptheOSDmainmenu.
2. Navigate to the Configuration > User Interface > Indicator Lights menu.
   3.EnterthePowerStatussubmenu.
3. Select Enabled/Disabled as desired and confirm.

5.4Keyindicatorlights

Aboutthekeyindicatorlights

Bydefault, afterlightingup, the key indicator light will dim again if no further actions are taken within the following 5 seconds. However, this behavior can be changed so that the key indicator lights are always on oralway so off.

Toconfigurethekeyindicatorlights

1. BringuptheOSDmainmenu.
2. Navigate to the Configuration > User Interface > Indicator Lights menu.
   3.EntertheKeyssubmenu.
3. Select Automatic/Always On/Always Off as desired and confirm.

5.5 Powerlockfunction

Aboutthepowerlockfunction

Byenablingthepowerlockfunction,theNIO2MPLEDDisplayisforcedtoremainswitchedon.This meansthatitcan'tbeswitchedtostand-bymodemanuallyuntilthepowerlock functionisdisabledagain.

Toenable/disablethepowerlockfunction:

1. BringuptheOSDmainmenu.
2. Navigate to the Configuration > User Interface > Controls menu.
   3.EnterthePowerLocksubmenu.
3. Select Enabled/Disabled as desired and confirm.

5.6DPMSmode

AboutDPMSmode

EnablingtheDisplayPowerManagementSystem(DPMS)modeonyourdisplaywilloptimizeitsdiagnostic lifetime by automatically switching off the backlight when the display is not used for a specified period of time. By default, DPMS modeisenabledonyourdisplay, butitalsoneedstobeeactivatedonyour workstation. Todothis, gotothe "Poweroptionsproperties" windowofyourworkstation.

BarcorecommendssettingDPMSactivationafter20minutesofnon-usage.

WhenDPMSmodeisenabledonyourdisplay,anadditionalOSDpowersavingfunction becomesavailable:hibernate.Pleasereferto "Hibernate", page 21 for more information onhibernationandhowtoenablethisfunction.

Toenable/disableDPMSmodeonyourdisplay:

1. BringuptheOSDmainmenu.

2. Navigate to the Configuration > Power Management menu.
   3.EntertheDPMSModesubmenu.

3. Select Enabled/Disabled as desired and confirm.

5.7Hibernate

Abouthibernate

Enablinghibernationwillnotonlyswitchoffthebacklightbutwillalsoforcethedisplaytodisableother functionalities so that power consumption is further reduced to a minimum. This happens after a specific periodoftimewhichcanbemanuallyadjusted.

Hibernate can only be enabled on your display when the DPMS mode is enabled first. Therefore, pleasereferto "DPMSmode", page20todothis.

Toenable/disablehibernationonyourdisplay:

1. BringuptheOSDmainmenu.
2. Navigate to the Configuration > Power Management menu.
   3.EntertheHibernate submenu.
3. Select Enabled/Disabled as desired and confirm.

Tospecifythehibernatetimeout:

1. BringuptheOSDmainmenu.
2. Navigate to the Configuration > Power Management menu.
   3.EntertheHibernateTimeoutsubmenu.
3. Setthetimeoutvalueasdesiredandconfirm.

5.8Luminancetarget

Abouttheluminancetarget

The luminance target of your NIO 2MP LED Display is adjustable over a predefined range. When you changetheluminancetarget, the display will adjust its backlight to each the target.

Tosettheluminancetarget:

1. BringuptheOSDmainmenu.
2. Navigate to the Configuration > Calibration menu.
3. EntertheLuminanceTargetsubmenu.
4. Setaluminancetargetvalueasdesiredandconfirm.

Thedefault,factoryDICOMcalibratedluminancevalueisavailableinthetechnicalspecifications table. The guaranteed backlight lifetime is valid for this setting.

5.9Viewingmodes

Aboutviewingmodes

TheNIO2MPLEDDisplaycanbeusedintwoviewingmodes:

DiagnosticThismodeprovidesthefullcalibratedluminance	andisintendedforusingthedisplayfordiagnostic purposes.
TextInthismode,theluminanceisreducedto	approximatelyhalfoftheluminance.This isintendedforusingthedisplaywithoffice applicationssuchaswordprocessing.Pleasenotethattextmodeisnotpersistent,once poweredoff,theunitwillrestartindiagnosticmode.

ToquicklyswitchtheviewingmodewithouthavingtoentertheOSDmenu,touchthe leftandrightkey(thetwoleftmostbuttons)atthesametimeduringnormaloperation.

AstheNIO2MPLEDDisplayisintendedtobeusedinadiagnosticenvironment,the diagnosticmodeshouldalwaysbeselected.

Toselectaviewingmode:

1. BringuptheOSDmainmenu.
2. Navigate to the Configuration > Calibration menu.
3. Enterthe ViewingModesubmenu.
4. Select Diagnostic/Text as desired and confirm.

5.10 Displayfunctions

Aboutdisplayfunctions

Native, uncorrected panels will display all grayscale color levels with luminance increment that are not optimal for crucial diagnostic information. Studies have shown however, that in medical images certain grayscale/color parts contain more diagnostic information than others. To respond to these conclusions, display functions have been defined. These functions emphasize on these parts containing crucial diagnostic information by correcting thenative panel behavior.

Native	IfyouselectNative,thenativepanelbehaviorwill notbecorrected.
DynamicGamma1.8	Thesearegammafunctionsthatareshiftedtotake intoaccountthenon-zeroluminanceofanLCD panelwhendrivenwitha“black”signal. They are especiallyusefulinCTapplicationstoimprovethe perceptionoflowHounsfieldvalues.
DynamicGamma2.2
DICOMDICOM(DigitalImagingandCommunications	inMedicine)isaninternationalstandardthat wasdevelopedtoimprovethequalityand communicationofdigitalimagesinradiology. Inshort,theDICOMdisplayfunctionresultsin morevisiblegrayscalesintheimages.Barco recommendsselectingtheDICOMdisplayfunction formostmedicalviewingapplications.
User	Thisdisplayfunctionwillbeautomaticallyselected whendisplayfunctionsaredefinedbyMediCal QAWeb.
Gamma1.8	Selectoneofthesedisplayfunctionsincasethe displayistoreplaceaCRTdisplaywithagamma of1.8or2.2respectively.

Toselectadisplayfunction:

1. BringuptheOSDmainmenu.
2. Navigate to the Configuration > Calibration menu.
   3.EntertheDisplayFunctionsubmenu.
3. Selectoneoftheavailabledisplayfunctionsandconfirm.

5.11 Readingrooms

Aboutreadingrooms

Reading rooms can only be selected when the DICOM display function is selected. Therefore, pleasereferto "Displayfunctions", page22tocorrectlysetthedisplay function.

The American Association of Physicists in Medicine (AAPM) composed a list of pre-defined reading rooms. Eachofthesereadingroomsaredefinedbyfollowingparameters:

• themaximumlightallowedinthistypeofroom

TheavailablereadingroomsforyourNIO2MPLEDDisplayare:

DarkRoom	Correspondstolightconditionsofidealdark room. Thissettingdisabletheambientlight compensation.
CR/DR/MAMMO	Correspondstolightconditionsindiagnostic readingroomsforcomputedradiology,digital radiologyormammography.Thissettinghasthe lowestmaximumambientlight.
CT/MR/NM	Correspondstolightconditionsindiagnostic readingroomsforcomputedtomography,magnetic resonanceornuclearmedicinescans.
Staff Office	Corresponds to light conditions in office rooms.
ClinicalViewingRoom	Correspondstolightconditionsindiagnostic readingroomsforclinic alviewing.
EmergencyRoom	Correspondstolightconditionsinemergency rooms.
OperatingRoom	Correspondstolightconditionsinoperatingrooms. This setting has the highest maximum ambient light.

Toselectareadingroom:

1. BringuptheOSDmainmenu.
2. Navigate to the Configuration > Calibration > Reading Room menu.
3. EntertheReadingRoomsubmenu.
4. Selectoneoftheavailablereadingroomsandconfirm.

5.12Displayorientation

AboutDisplayorientation

Yourdisplayautomaticallydetectsitsphysicalorientation(portraitorlandscape)and,bydefault,automaticallyadjuststheimageorientationtothis.Thismeansthatwhenyourdisplayisphysicallyrotated,theimagewillrotatealong.

TheOSDmenuhowever,allowstooverrulethisbehaviorandforcetheimageorientationtoportraitor landscaperegardlessofthephysicalorientationofthedisplay.Thismaybeespeciallyusefulwhenoperatingyourdisplaywiththescreenfacingupwards.

TosettheDisplayorientation

1. BringuptheOSDmainmenu.
2. Navigate to the Configuration > Image Sources menu.
   3.EntertheDisplayOrientationsubmenu.
3. Select Landscape/Portrait/Automatic as desired and confirm.

5.13 Videoinputsignals

Aboutinputsignals

The available inputs signals for your display are:

DisplayPort1TheinputcorrespondingtotheDisplayPortconnector.
DVI1TheinputcorrespondingtotheDVIconnector.
AutomaticSelection	Theinputisautomaticallyselected.

Tomanuallyselectavideoinputsignal:

1. BringuptheOSDmainmenu.
2. Navigate to the Configuration > Image Source menu.
   3.EntertheInputSignalsubmenu.
3. Selectoneoftheavailableinputsignalsandconfirm.

5.14EDIDtimings

AboutEDIDtimings

FollowingEDIDtimingsareavailableforyourNI O2MPLEDDisplay:

RefreshRateAllowstomanuallyselecttherefreshrateofthe	imagesourcevideoinputsignaldependingonthe maximumrefreshrateofthedisplaycontroller connectedtoyourdisplay.
PreferredOrientationAllowstochangetheorientationoftheimage sourcevideoinputsignaltolandscape,portraitor toletthedisplayautomaticallyassignthecorrect orientation.
ColorDepth	Allowstochangethecolordepthto8orto10bit.

TomanuallysetEDIDtimings:

1. BringuptheOSDmainmenu.
2. Navigate to the Configuration > Image Source menu.
3. Enterthe Timingssubmenu.
4. Select Refresh Rate, Preferred Orientation or Color Depth.
5. Selectoneoftheavailablesettingsandconfirm.

5.15Displayinfo

Aboutdisplayinfo

Your display serial number, color type, native resolution, firmware versions, etc. are available in a dedicated submenu of the OSD menu.

Toretrieveinfoaboutyourdisplay:

1. BringuptheOSDmainmenu.
2. Navigate to the About this Display menu to make the information visible on the screen.

5.16Displaystatus

Aboutdisplaystatus

TheStatussubmenuoftheOSDmenuprovidesinfoonthecurrentstatusofyourdisplay(runtimes,temperatures,etc.),thestatusoftheconnectedimagesources(videoencodingmode,timings,etc.),the currentcalibrationstatusofyourdisplay(displayfunction,luminance,ALC,etc.)andthestatusabout activatedconnections.

Toretrievethestatusofyourdisplay:

1. BringuptheOSDmainmenu.
2. NavigatetotheStatusmenu.
3. Enter the Display, Image Sources, Calibration or Connectivity submenu as desired.

6.MAINTENANCE

Generalmaintenanceinformation

TheNIO2MPLEDDisplaydoesnotrequireanyscheduledmaintenanceorcalibrationactivities.We recommendtouseQAWebwiththeBarcodedefaulttestsandfrequenciestocalibrateandmaintainthe displayorreturnthedisplaytoaBarcoapprovedmaintenanceorganization.Inanycaseofdoubts,contact theBarcoHealthcareDivision

6.1 Cleaninginstructions

Tocleanthedisplay

Cleanthedisplayusingasponge,cleaningclothorsofttissue,lightlymoistenedwithplai n w a t e r.

Donot use followingproducts:

• Alcohol/solvents at higher concentration > 5%
• Strongalkalis lye, strong solvents
- Acid
• Detergentswith fluoride
• Detergentswith ammonia
• Detergents with abrasives
- Steel wool
- Spongewith abrasives
- Steel blades
• Cloth with steelthread

CAUTION: Take care not to damage or scratch the front glass or LCD. Be careful with ringsorotherjewelryanddonotapplyexcessivepressureonthefrontglassorLCD.

CAUTION: Do not apply or spray liquid directly to the display as excess liquid may cause damagetointernalelectronics. Instead, apply the liquid to a cleaning cloth.

7. IMPORTANT INFORMATION

7.1 Safetyinformation

General recommendations

Readthesafetyandoperatinginstructionsbeforeoperatingthedevice.

Retainsafety and operating instructions for further reference.

Adheretoallwarningsonthedeviceandintheoperatinginstructionsmanual.

Followwallinstructionsforoperationanduse.

ElectricalShockorFireHazard

To prevent electric shock or fire hazard, do not remove cover.

No serviceable parts inside. Refer servicing to qualified personnel.

Donotexposethisapparatustorainormoisture.

Modificationstotheunit:

Donotmodifythisequipmentwithoutauthorizationofthemanufacturer.

Typeofprotection(electrical):

Displaywithexternalpowersupply:Classlequipment.

Degreeofsafety(flammableanestheticmixture):

Equipment not suitable for use in the presence of a flammable anesthetic mixture with air or with oxygen or nitrous oxide.

Non-patientcareequipment

• Equipment primarily for use in a health care facility that is intended for use where contact with a patient is unlikely(noappliedpart).
  • Theequipmentmaynotbeusedwithlifesupportequipment.
• Theusershouldnottouchtheequipment,noritssignalinputpor ts(SIP)/signaloutputports(SOP) andthepatientatthesametime.

Powerconnection-Equipmentwithexternal24VDCpowersuppl y

• Power requirements: The equipment must be powered using the delivered medical approved 24 VDC (——)SELVpowersupply.
• ThemedicalapprovedDC( ——)powersupplymustbepoweredbytheACmainsvoltage.
• The power supply is specified as a part of the ME equipmentorcombinationisspecifiedasaME system.
• To avoid the risk of electric shock, this equipment must only be connected to a supply mains with protective earth.
  • Theequipmentshouldbeinstallednearaneasilyaccessibleoutlet.
  • Theequipmentisintendedforcontinuousoperation.

Transientover-voltage

If the device is not used for a long time, disconnect it from the AC inlet to avoid damage by transient over-voltage.

Tofullydisengagethepowertothedevice, pleasedisconnectthepowercordfromtheACinlet.

Powercords:

• Useapowercordthatmatchesthevoltageofthepoweroutlet,whichhasbeenapprovedandcomplies withthesafetystandardofyourparticularcountry.
• Do not overload wall outlets and extension cords as this may result in fire or electric shock.
• Mainsleadprotection(U.S.:Powercord):Powercordsshouldberoutedsothattheyarenotlikelyto bewalkeduponorpinchedbyitemsplaceduponoragainstthem,payingparticularattentiontocords atplugsandreceptacles.
• Thepowersupplycordshouldbereplacedbythedesignatedoperatoronlyataalltime.

Groundingreliability

Groundingreliabilitycanonlybeachievedwhentheequipmentisconnectedtoanequivalentreceptacle marked"HospitalOnly"or"HospitalGrade"(locatedonproductorpowersupplycord)

Accessoryequipment

Accessoryequipmentconnectedtotheanaloganddigitalinterfacesmustbeincompliancewiththere-spectivenationallyharmonizedIECstandards(i.e.IEC60950fordataprocessingequipment,IEC60065forvideoequipment,IEC61010-1forlaboratoryequipment,andIEC60601-1formedicalequipment.) Furthermore all configurations shall comply with the system standard IEC 60601-1-1. Anyone who connects additional equipment to the signal input part or signal output part is configuring a medical system, andistherefore,responsiblethatthesystemcomplieswiththerequirementsofthesystemstandardIEC 60601-1-1. The unit is for exclusive interconnection with IEC 60601-1 certified equipment in the patient environment and IEC 60XXX certified equipment outside of the patient environment. If in doubt, consult thetechnicalservicesdepartmentoryourlocalrepresentative.

Waterandmoisture

Neverexposethedisplaytorainormoisture.

Neverusethedisplaynearwater-e.g.nearabathtub,washbasin,swimmingpool,kitchensink,laundry tuborinawetbasement.

Ventilation

Donotcoverorblockanyventilationopeningsinthecove roftheset.Wheninstallingthedeviceina cupboardoranotherclosedlocation,heedthenecessaryspacebetweenthesetandthesidesofthe cupboard.

Installation

Place the device on a flat, solid and stable surface that can support the weight of at least 3 devices. If you use an unstable cartor stand, the devicemayfall, causing serious injury toachildor adult, and serious damage to the device.

Thisapparatusconformsto:

CE0120 (MDD 93/42/EEC; A1:2007/47/EC class IIb product), CE-2004/108/EC, 2014/30/EU (Directive 2004/108/ECis repealed with effect from 20 April 2016), CE - 93/42/EEC; A1:2007/47/EC class II b, IEC60601-1(ed.3), ANSI/AAMIES60601-1(2005+C1:09+A2:10), CAN/CSA-C22.2No.60601-1:08, EN 60601-1:2006, EN60601-1-2:2007, EN60601-1:2006+A11:2011, CCC-GB9254-2008+GB4943.1-2011 +GB17625.1-2012, KC, VCCI, FCCclassB, ICES-001LevelB, FDA510(k), RoHS

NationalScandinavianDeviationsforCL.1.7.2:

7.2 Environmental information

DisposalInformation

WasteElectricalandElectronicEquipment

Thissymbolontheproductindicatesthat,undertheEuropeanDirective2012/19/EUgoverning wastefromelectricalandelectronicequipment,thisproductmustnotbedisposedofwithothermunicipal waste.Pleasedisposeofyourwasteequipmentbyhandingitovertoadesignatedcollectionpointforthe recyclingofwasteelectricalandelectronicequipment.Topreventpossibleharmtotheenvir onmentor humanhealthfromuncontrolledwastedisposal,pleaseseparatetheseitemsfromothertypesofwaste andrecyclethemresponsiblytopromotethesustainablereuseofmaterialresources.

For more information about recycling of this product, please contact your local city office or your municipal wasted disposalservice.

Fordetails, please visit the Barcowebsite at: h ttp://www.barco.com/en/AboutBarco/weee

TurkeyRoHScompliance

[RepublicofTurkey:InconformitywiththeWEEERegulation]

中国大陆 RoHS

ChineseMainlandRoHS

According to the "China Administration on Control of Pollution Caused by Electronic Information Products" (Alsocalled RoHSof Chinese Mainland), the table below lists these names and content so toxic and/or hazardous substances that Barco's product may contain. The RoHSof Chinese Mainland is included in the MCV standard of the Ministry of Information Industry of China, in these section "Limit Requirements of toxic substances in Electronic Information Products".

零件项目(名称)Componentname	有毒有害物质或元素Hazardoussubstancesandelements
	铅Pb	汞Hg	镉Cd	六价铬Cr6+	多溴联苯PBB	多溴二苯醚PBDE
印制电路配件PrintedCircuitAssemblies	x	o	o	o	o	o
液晶面板LCDpanel	x	o	o	o	o	o
外接电(线)缆ExternalCables	x	o	o	o	o	o
内部线路Internalwiring	o	o	o	o	o	o
金属外壳Metalenclosure	o	o	o	o	o	o
塑胶外壳Plasticenclosure	o	o	o	o		o
散热片(器)Heatsinks	o	o	o	o		o
电源供应器PowerSupplyUnit	x	o	o	o	o	o
风扇Fan	o	o	o	o		o
文件说明书PaperManuals	o	o	o	o		o
光盘说明书CDmanual	o	o	o	o		o
O:表示该有毒有害物质在该部件所有均质材料中的含量均在SJ/T 11363-2006标准规定的限量要求以下.O:IndicatesthatthistoxicorhazardoussubstancecontainedinallofthehomogeneousmaterialsforthispartisbelowthelimitrequirementinSJ/T11363-2006.
X:表示该有毒有害物质至少在该部件的某一均质材料中的含量超出SJ/T 11363-2006标准规定的限量要求.X:IndicatesthatthistixcorhazardoussubstancecontainedinatleastoneofthehomogeneousmaterialsusedforthispartisabovethelimitrequirementinSJ/T11363-2006

AllElectronicInformationProducts(EIP)thataresoldwithinChineseMainlandmustcomplywiththe "ElectronicInformationProductsPollutionControlLabelingStandard"ofChineseMainland,markedwith theEnvironmentalFriendlyUsePeriod(EFUP)logo. ThenumberinsidetheEFUPlogothatBarcouses (pleaserefertothephoto)isbasedonthe"StandardofElectronicInformationProductsEnvironmental FriendlyUsePeriod"ofChineseMainland.

China Energy Label

按照中国<<能源效率标识管理办法>>InaccordancewithTheRegulationoftheImplementationonChinaEnergyLabel	本显示器符合以下要求Thismonitoriscompliantwiththefollowingrequirements
能源效率EnergyEfficiency(cd/W)	>0.85
关闭状态能耗EnergyConsumptioninoffmode(W)	<1.0
能源效率等级EnergyEfficiencyLevel	2
执行的能源效率国家标准编号CodeofNationalStandardapplied	GB21520-2008

7.3 Regulatory compliance information

Indicationsforuse

TheNIO2MPLEDDisplay(MDNC-2221)isintendedtobeusedindisplayingandviewingdigitalimages forreviewbytrainedmedicalpractitioners.Thesedevicesmustnotbeusedinprimaryimagediagnosisin mammography.Caution(USA):Federallawrestrictsthisdevicetosalebyorontheorderofaphysician. (Details&exemptionsareintheCodeofFederalRegulationsTitle21,801PartD).

FCCclassB

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorientorrelocatethereceivingantenna.
- Increase these separation between the device and receiver.
- Connect the device into an outlet on a circuit different from that to which the receiver is connected.
- Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Canadiannotice

ThisISMdevicecomplieswithCanadianICES-001.

CetappareilISMestconformeàlanormeNMB-001duCanada.

7.4EMCnotice

Generalinformation

No specific requirement on the use of external cables or other accessories except power supply.

With the installation of the device, use only the delivered powers supply or as spare part provided by the legal manufacturer. Using another can result in a decrease of the immunity level of the device.

Electromagneticemissions

The NIO 2MP LED Display is intended for use in the electromagnetic environment specified below. The customerortheuseroftheNIO2MPLEDDisplayshouldassurethatitisusedinsuchanenvironment.

EmissionstestComplianceElectromagneticenvironment–		Guidance
RFemissionsCISPR11	Group1TheNIO2MPLEDDisplayuses	RFenergyonlyforitsinternalfunction.Therefore,itsRFemissionsareverylowandarenotlikelytocauseanyinterferenceinnearbyelectronicequipment.
RFemissionsCISPR11	ClassB	TheNIO2MPLEDDisplayissuitableforuseinallestablishments,includingdomesticestablishmentsandthosedirectlyconnectedtothepubliclow-voltagepowersupplynetworkthatsuppliesbuildingsusedfordomesticpurposes.
HarmonicemissionsIEC61000-3-2	ClassD
Voltage fluctuations/ flicker emissionsIEC61000-3-3	Complies

This NIO 2MP LED Display complies with appropriate medical EMC standards on emissions to, and interference from surrounding equipment. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Interference can be determined by turning the equipment of fandon.

If this equipment does cause harmful interference, or suffer from harmful interference of, surrounding equipment, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorientorrelocatethereceivingantennaorequipment.
- Increase these separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consultthedealeroranexperiencedtechnicianforhelp.

Electromagneticimmunity

The NIO 2MP LED Display is intended for use in the electromagnetic environment specified below. The customer or the user of the NIO 2MP LED Display should assure that it is used in such an environment.

Immunitytest	IEC60601Testlevels	Compliancelevel	Electromagnetic environment-guidance
Electrostaticdischarge (ESD)IEC61000-4-2	±6kVcontact± 8kV air	±6kVcontact± 8kV air	Floorsshouldbewood, concreteorceramictile. Iffloorsarecoveredwith syntheticmaterial,the relativehumidityshould beatleast30%
Immunitytest	IEC60601Testlevels	Compliancelevel	Electromagnetic environment–guidance
Electricalfast transient/burstIEC61000-4-4	±2kVforpowersupply lines±1kVforinput/output lines	±2kVforpowersupply lines±1kVforinput/output lines	Mainspowerquality shouldbethatofatypical commercialorhospital environment
SurgeIEC61000-4-5	±1kVline(s)toline(s)±2kVline(s)toearth	±1kVline(s)toline(s)±2 k V line (s) to e a r	Mainspowerquality shouldbethatofatypical commercialorhospital environment
Voltagedips,short interruptionsandvoltage variationsonpower supplyinputlinesIEC61000-4-11	< 5 % U_T 1(>95%dipin U_T )for0.5cycle40% U_T (60% d i p i f) for5cycles70% U_T (30% d i p i f) for25cycles< 5 % U_T (>95%dipin U_T )for5s	< 5 % U_T (>95%dipin U_T )for0.5cycle40% U_T (60%dipin U_T ) for5cycles70% U_T (30%dipin U_T ) for25cycles< 5 % U_T (>95%dipin U_T ) for 5 s	Mainspowerquality shouldbythatofa typicalcommercialor hospitalenvironment.IftheuseroftheNIO 2MPLEDDisplay requirescontinued operationduringpower mainsinterruptions,itis recommendedthatthe NIO2MPLEDDisplay bepoweredfroman uninterruptiblepower supplyorabattery.
Powerfrequency(50/60 Hz)magneticfieldIEC61000-4-8	3A/mNotapplicable	2	Power frequency magneticfieldsshould beatlevelscharacteristic ofatypicallocationin atypicalcommercialor hospitalenvironment.
ConductedRFIEC61000-4-6RadiatedRFIEC61000-4-3	3 Vr m s150kHzto80MHz3 V/m80MHzto2.5GHz	3 V3 V/m	Portableandmobile RFcommunications equipmentshouldbe usednoclosertoany partoftheNIO2MPLED Display,includingcables, thantherecommended separationdistance calculatedfromthe equationapplicable tothe frequency ofthetransmitter.Recommended separationdistanced = 1 . 2 √Pd = 1 . 2 √P80MHzto800 MHzd = 2.3√P 800 MHz to 2.5 GhzWherePisthemaximum outputpowerrating ofthetransmitterin watts(W)according tothetransmitter

1. is the a.c. mains voltage prior to application of the test level.
2. NIO 2MP LED Display doesn't contain susceptible components to magnetic fields

Immunitytest	IEC60601Testlevels	Compliancelevel	Electromagnetic environment-guidance
			manufacturerandistherecommended separationdistancein meters(m).Fieldstrengthsfrom fixedRFtransmitters, asdeterminedbyan electromagneticsite survey, ^3 shouldbeless thanthecompliance leveleachfrequency range. ^4 Interferencemayoccurin thevicinityofequipment markedwithsymbol:

At80MHz and 800MHz, the higher frequency range applies.

These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.

Recommendedseparationdistance

The NIO2MPLEDDisplayisintendedforuseinanelectromagneticenvironmentinwhichradiatedRF disturbancesarecontrolled. The customeroftheuseroftheNIO2MPLEDDisplaycanhelpprevent electromagneticinterferencebymaintainingaminimumdistancebetweenportableandmobileRFcommunicationsequipment(transmitters)andtheNIO2MPLEDDisplayasrecommendedbelow, according tothemaximumoutputpowerofthecommunicationsequipment.

Ratedmaximumoutput poweroftransmitter 5 W	Separationdistanceaccordingtofrequencyoftransmitter
	150kHzto80MHz d=1.2√P	80MHzto800MHz d=1.2√P	800MHzto2.5GHz d=2.3√P
0.010.120.120.23
0.10.380.380.73
11.21.22.3
103.83.87.3
1	0	0	1

At80MHz and 800MHz, these separation distance for the higher frequency range applies.

Theseguidelinesmaynotapplyinallsituations.Electromagneticpropagationisaffected by absorption and reflection form structures, object and people.

7.5Explanationofsymbols

Symbolsonthedevice

On the device or power supply, you may find the following symbols (nonrestrictive list):

	IndicatescompliancewiththeDirective93/42/EECasClassldevice
	IndicatescompliancewiththeDirective93/42/EECasClassIldevice
	IndicatescompliancewithPart15oftheFCCrules(ClassAorClassB)
	IndicatesthedeviceisapprovedaccordingtotheULregulations
	Indicates the device is approved according to the UL regulations for Canada and US
	IndicatesthedeviceisapprovedaccordingtotheULDemkoregulations
	IndicatesthedeviceisapprovedaccordingtotheCCCregulations
	IndicatesthedeviceisapprovedaccordingtotheVCCIregulations
	IndicatesthedeviceisapprovedaccordingtotheKCregulations

Symbolsonthebox

On the box of the device, you may find the following symbols (nonrestrictive list):

		Indicatesamedicaldevicethatcanbebrokeordamagedifnothandledcarefullywhenbeingstored.
		Indicatesamedicaldevicethatneedstobeprotectedfrommoisturewhenbeingstored.
		Indicatethestoragedirectionofthebox.Theboxmustbetransported,handledandstoredinsuchawaythatthearrowsalwayspointupwards.
		Indicatethemaximumnumberofboxestobestackedoneachother.
		Indicatesthattheboxshouldbecarriedwithtwopersons.
		Indicatesthattheboxshouldnotbecutwithaknife,acutteroranyothersharpobject.
		Indicatesthetemperaturelimitstowhichthemedicaldevicecanbesafelyexposedwhenbeingstored.
		Indicatestherangeofhumiditytowhichthemedicaldevicecanbesafelyexposedwhenbeingstored.
		Indicatestherangeofatmosphericpressuretowhichthemedicaldevicecanbesafelyexposedwhenbeingstored.

7.6 Legaldisclaimer

Disclaimernotice

Although every attempt has been made to achieve technical accuracy in this document, we assume responsibility for error that may be found. Ourologist provide you with them most accurate and usable documentation possible; if you discover errors, please let us know.

BarcosoftwareproductsarethepropertyofBarco. TheyaredistributedundercopyrightbyBarcoN.V.or Barco, Inc., foruseonlyunderthe specific terms of a software license agreement between Barco N.V. or Barcolnc.andthelicensee. Nootheruse, duplication, ordisclosureofaBarcosoftwareproduct, inany form, isauthorized.

The specifications of Barco products are subject to change without notice.

Trademarks

Alltrademarksandregisteredtrademarksarepropertyoftheirrespectiveowners.

Copyrightnotice

Thisdocumentiscopyrighted.Allrightsarereserved.Neitherthisdocument,noranypartofit,may bereproducedorcopiedinanyformorbyanymeans-graphical,electronic,ormechanicalincluding photocopying,tapingorinformationstorageandretrievalsystems-withoutwrittenpermissionofBarco.

©2014BarcoN.V.Allrightsreserved.

Patentinformation

Thisproductiscoveredunderthefollowingintellectualpropertyrights:

USPatentRE43,707

7.7 Technical specifications

Overview

Productacronym	MDNC-2221
ScreentechnologyIPS-Pro
Activescreensize(diagonal)540mm(21.3")
Activescreensize(HxV)324,9mmx433,2mm(12.79"x17.1")
Aspectratio(H:V)	4:3
Resolution	2MP(1600x1200)
Pixelpitch0.27
Colorimaging	Yes
Grayimaging	No
Numberofgrayscales(LUT in/LUTout)	1024graylevels(10/10)
Viewingangle(H,V)88°
UniformLuminance Technology (ULT)	Yes
PerPixelUniformity(PPU)	No
AmbientLightCompensation (ALC)	No
BacklightOutputStabilization (BLOS)	Yes
FrontSensor	Yes
Maximumluminance	800cd/m2typical
DICOMcalibratedluminance (ULToff)	400cd/m2
Contrastratio(ULToff)	1400typical
Response time (Tr + Tf)	20ms
Scanningfrequency(H;V)	15-128kHz;25-98Hz
Housingcolor	Black/White
Videoinputsignals	DVI-DSingleLink/DisplayPort
Videoinouterminals	NA
USBports	1upstream,2downstream
USBstandard	2.0
Powerrequirements(nominal)	100-240V
Powerconsumption(nominal)	50W
Powersavemode	Yes
Powermanagement	DVI-DMPM
Dotclock	162MHz
OSDlanguages	English,German,French,Dutch,Spanish,Italian,Portugese,Polish,Russian,Swedish,Chinese (simplified),Japanese,Korean,Arabic
Dimensionswithstand(WxH x D)	Portrait:(wxhmaxxd)378x625x235mm(wxhminxd)378x525x 235mmLandscape:(wxhmaxxd)491x565.5x235mm(wxhminxd)491x465.5x235mm
Dimensionsw/ostand(WxH x D)	3 7 8 x 4 9 1 x 8 3 . 2 m m
Dimensionspackaged(WxH x D)	655x388x495mm
Netweightwithstand12.6kg(withglass)-11.32kg(withoutglass)
Netweightw/ostand7.6kg(withglass)-6.32kg(withoutglass)
Netweightpackagedwith stand	16.8kg(withglass)-15.52kg(withoutglass)
Netweightpackagedw/ostandN/A
Heightadjustmentrange100mm
Tilt-5°/+25°
Swivel-30°/+30°
Pivot	N/A
Mountingstandard	VESA(100mm)
Screen protection	Protective, non-reflective glass cover (option)
Recommended modalities	CT, MR, US, DR, CR, NM, Film
Certifications	CE0120 (MDD 93/42/EEC; A1:2007/47/EC class IIb product),CE-2004/108/EC,2014/30/EU(Directive2004/108/ECisrepealedwith effectfrom20April2016),CE-93/42/EEC;A1:2007/47/ECclassII b,IEC60601-1(ed.3),ANSI/AAMIES60601-1(2005+C1:09+A2:10), CAN/CSA-C22.2 No. 60601-1:08, EN 60601-1:2006, EN 60601-1-2:2007,EN60601-1:2006+A11:2011,CCC-GB9254-2008+ GB4943.1-2011+GB17625.1-2012,KC,VCCI,FCCclassB,ICES-001 LevelB,FDA510(k),RoHS
Suppliedaccessories	UserGuide
	QuickInstallationSheet
	Videocables(1xDVISingleLink+1xDisplayPort)
	Maincables(UK,European(CEBEC/KEMA),USA(UL/CSA;adaptor plugNEMA5-15P),Chinese(CCC))
	USB2.0cable
	AdapterBRIDGEPOWERJMW190KB2400F11 (I/P:100-240V, 50-60Hz,2A,O/P:24V,3.75A):asformingpartofthemedicaldevice
Optionalaccessories	None
QAsoftware	MediCalQAWeb
Unitsperpallet	NA
Palletdimensions(WxH)	NA
Warranty	5 years
Operatingtemperature	0°Cto35°C(15°Cto30°Cwithinspecs)
Storage & transport temperature	-20°Cto60°C
Operatinghumidity	8%-80%(non-condensing)
Storage&transporthumidity	5%-85%(non-condensing)
Operationaltitude	2000m
Storage&transportaltitude	7500m

7.8 Compatibledisplaycontrollers

Overview

Barco strongly recommends to use a Barco display controller with your display. All Barco display controllerscompatiblewithyourdisplaycanbefoundintheoptions-tabontheproduct-pageofyourdisplay onw_ww.barco.com.

Auserguideofthedisplaycontrollersisavailableonthecd-romdeliveredwiththeunit.

7.9 Opensourcelicenseinformation

Opensourcelicenseinformation

Opensourcelicenseusage

ThisproductcontainssoftwarecomponentsreleasedunderanOpenSourceLicense.AcopyofthesourcecodeisavailableonrequestbycontactingyourBarcocustomersupportrepresentative.

EACHSEPARATEOPENSOURCESOFTWARECOMPONENTANDANYRELATEDDOCUMENTATIONAREPROVIDED"ASIS"WITHOUTEXPRESSORIMPLIEDWARRANTYINCLUDING,BUTNOTLIMITEDTO,THEIMPLIEDWARRANTIESOFMERCHANTABILITYANDFITNESSFORAPARTICULAR PURPOSE. IN NO EVENT SHALL THE COPYRIGHTHOLDER OR ANY OTHER CONTRIBUTOR BELIABLEFORDIRECT,INCIDENTALORCONSEQUENTIALDAMAGES,EVENIFADVISEDOFTHE POSSIBILITYOFSUCHDAMAGES.MOREINFORMATION/DETAILSISTOBEFOUNDINEACHSPECIFICOPENSOURCELICENSE.

CopyrightoneachOpenSourceSoftwarecomponentbelongstotherespectiveinitialcopyrightholder, each additional contributor and/or their respective assignee(s), as may be identified in the respective documentation, source code, README file, or otherwise. You shall not remove or obscure or otherwise alter therespectivecopyrights.

YouacknowledgelivinguptotheconditionsofeachseparateOpenSourceSoftwarelicense.

AlistoftheOpenSourceSoftwarecomponentsusedisavailableintheapplicableEULA,throughthe(customersectionofthe)Barcowebsiteorthroughother(online)means.
