Product Type	Over-ear headphones
Model	MH-302
Brand	Bosch
Connectivity	Wired (3.5 mm jack)
Driver Diameter	40 mm
Frequency Response	20 Hz - 20 kHz
Impedance	32 Ohms
Sensitivity	108 dB
Cable Length	1.2 m
Weight	180 g
Dimensions (W x H x D)	160 x 180 x 70 mm
Colour	Black
Controls	Volume control on cable
Microphone	Yes, built-in
Compatibility	Smartphones, tablets, PCs
Ear Cushions	Replaceable velour pads
Headband Adjustment	Adjustable
Cleaning Instructions	Wipe with dry cloth; avoid liquids
Safety Instructions	Avoid high volume to prevent hearing damage
Spare Parts Available	Ear pads, cables
Warranty	2 years

Frequently Asked Questions - MH-302 BOSCH

How do I adjust the headband on my Bosch MH-302 headphones?

Gently pull the ear cups downward to extend the headband. The headband has a ratchet mechanism for secure adjustment.

Can I replace the ear pads on the MH-302?

Yes, the ear pads are removable and replaceable. You can purchase replacement pads from Bosch or authorized dealers.

How do I clean my Bosch MH-302 headphones?

Use a soft, dry cloth to wipe the exterior. Do not use liquids or abrasive cleaners. For ear pads, gently wipe with a slightly damp cloth and let air dry.

What is the impedance of the MH-302?

The impedance is 32 Ohms, making them suitable for use with most smartphones, tablets, and laptops.

Do the MH-302 headphones have a microphone?

Yes, they include a built-in microphone for hands-free calling and voice commands.

What type of cable does the MH-302 use?

The headphones use a single-sided 3.5 mm jack cable with inline remote and microphone. The cable is approximately 1.2 meters long.

Are the MH-302 headphones compatible with gaming consoles?

Yes, they can be used with consoles that have a 3.5 mm audio jack, such as PlayStation and Xbox controllers.

How can I troublehoot if there is no sound from one ear?

First, check the cable connection and ensure it is fully inserted. If the issue persists, try a different audio source to rule out device issues. If still faulty, contact support.

What should I do if the microphone stops working?

Ensure the cable is fully plugged in and check device settings. The microphone can be damaged by moisture; avoid exposure to liquids.

Where can I find spare parts for the MH-302?

You can order spare ear pads and cables from the Bosch website or through certified service centers.

USER MANUAL MH-302 BOSCH

Headsets and Headphones

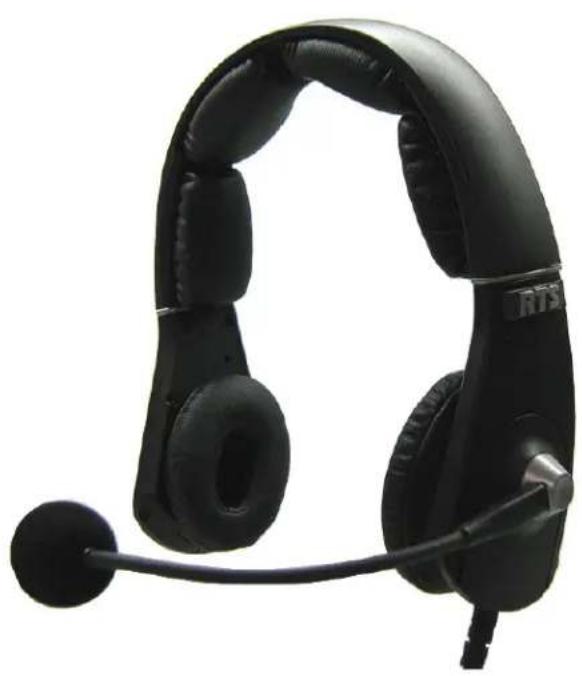

User Instructions

Black hardhead with earbuds and headset, isolated on white background (no text or symbols visible)

Black hard-band headset with earbuds and microphone, isolated on white background (no text or symbols visible)

Models Include:

MH-300

MH-300L

MH-302

MH-302L

MH-402

MH-402L

PROPRIETARY NOTICE

The product information and design disclosed herein were originated by and are the property of Bosch Security Systems, Inc. Bosch reserves all patent, proprietary design, manufacturing, reproduction, use and sales rights thereto, and to any article disclosed therein, except to the extent rights are expressly granted to others.

COPYRIGHT NOTICE

Copyright 2011 by Bosch Security Systems, Inc. All rights reserved. Reproduction, in whole or in part, without prior written permission from Bosch is prohibited.

WARRANTY AND SERVICE INFORMATION

For warranty and service information, refer to the appropriate web site below:

RTS ...... www.rtsintercoms.com/warranty

RTSTW...... www.rtstw.com/warranty

AudioCom ......www.telexaudiocom.com/warranty

RadioCom...... www.telexradiocom.com/warranty

Headsets...... www.intercomheadsets.com/warranty

REGULATORY INFORMATION

FCC

This device complies with part 15 of the FCC Rules. Operation is subject to the following two (2) conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CE

This product meets Electromagnetic Compatibility Directive 2004/108/EC

LIMIT LEVELING

The MH series headset and headphones are audio level limited and conform to the EU Council Directive 2003/10/EC. The time/weighted average of noise exposure levels for a nominal 8-hour working day is not expected to exceed 85dB SPL and a peak of 137dB SPL.

Available MH Series Accessories

Ear Cushion ......F01U149725

Dynamic Microphone Windscreen....F01U149727

Headband Pad....F01U149729

Battery F01U149731

Battery Charger North America....F01U149733

World Power Supply Adapters ......F01U149735

Aux Audio Input Module ......F01U149737

Single-Sided Passive Headset Frame Assembly F01U149739

Double-Sided Passive Headset Frame Assembly....F01U149741

Analog ANR Headset Frame Assembly....F01U149743

Dynamic Microphone Module, Quick Disconnect Connector....F01U149745

Cable, Quick Disconnect to A4M Connector....F01U149747

Cable, Quick Disconnect to A4F Connector....F01U149749

Cable, Quick Disconnect to A5M Connector....F01U149751

Cable, Quick Disconnect to A5F Connector....F01U149753

Cable, Quick Disconnect to Pigtail....F01U149755

Filler Module....F01U149757

Temple Pad F01U149759

Carrying Case ....F01U149761

Dynamic Microphone Module, A4M Connector ....F01U167564

Dynamic Microphone Module, A4F Connector....F01U167565

Dynamic Microphone Module, A5M Connector ......F01U167566

Dynamic Microphone Module, A5F Connector....F01U167567

Dynamic Microphone Module, Pigtail....F01U167568

Headpad, 3-piece ......F01U217632

Table

of

Contents

INTRODUCTION 3

Important Safety Instructions .... 3

General Description .... 3

Features 4

MH-300/MH-300L (no ANR)

Single-Sided Headset/Headphone 5

MH-302/MH-302L (no ANR) & MH-402/MH-402L (ANR capable)

Dual-Sided Headset/Headphone 6

Battery Charger 7

Battery Charger Power Supply 7

CONFIGURATION, OPERATION AND MAINTENANCE 9

Before First Use 9

Battery Charging (MH-402 Series) 9

Battery Installation (MH-402 Series) 9

Remove and Replace any Headset Module 9

Configuration 11

Access the Dip Switches ....11

Configure the Speaker Volume 12

Dip Switch Settings 12

Configure Speaker Mode 13

Dip Switch Settings 13

Configure ANR (MH-402 and MH-402L Only) 14

Configure Auxiliary Audio ....14

Operation and Maintenance 15

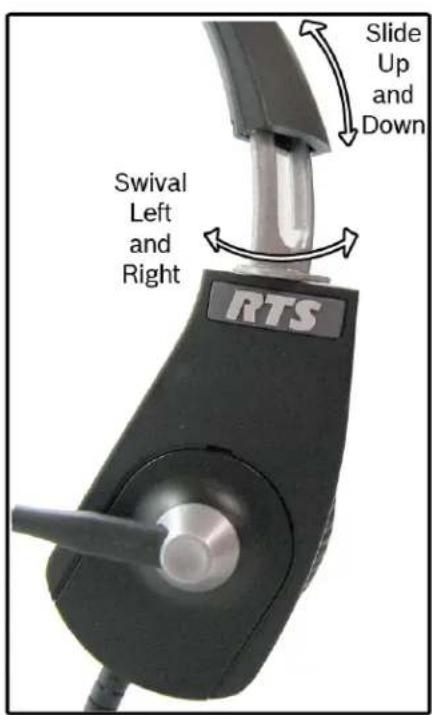

Headset Adjustment and Sizing 15

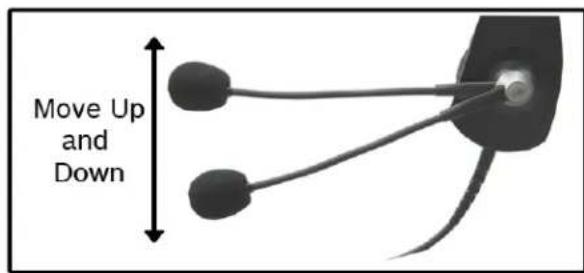

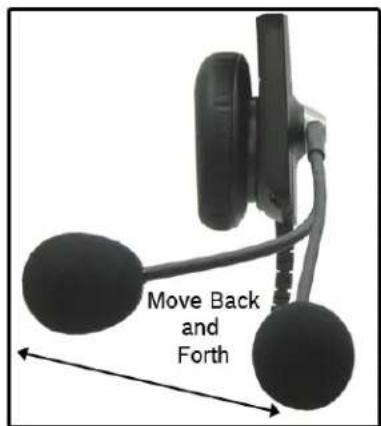

Microphone Adjustment 15

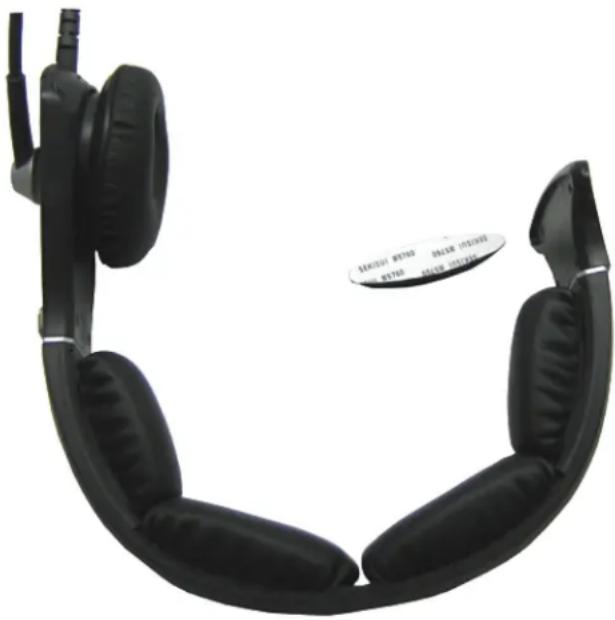

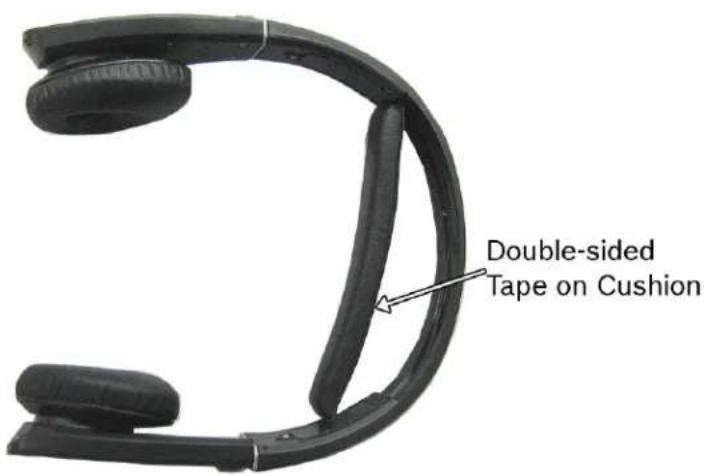

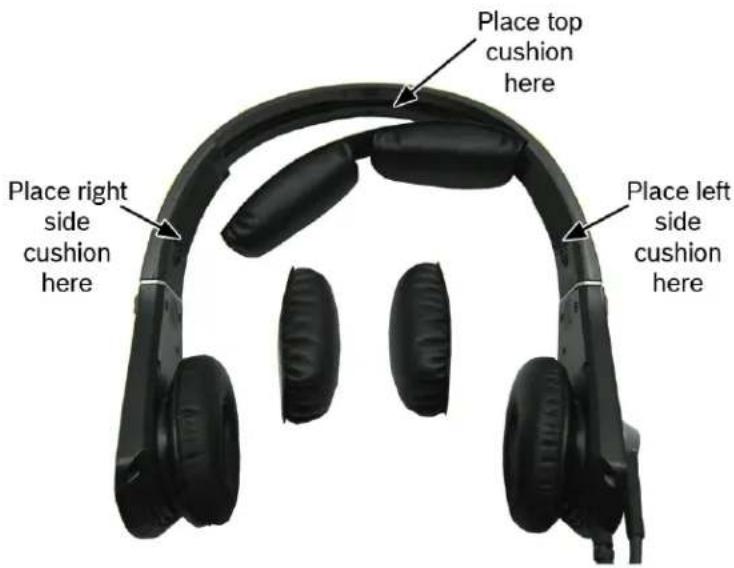

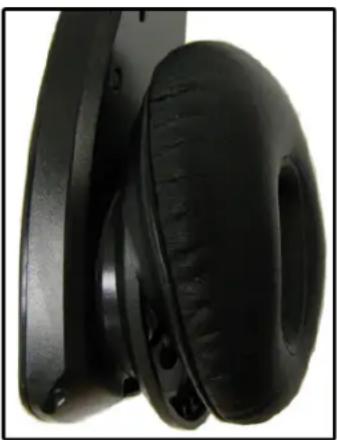

Replace the Earcup, Temple and Headband Cushion 15

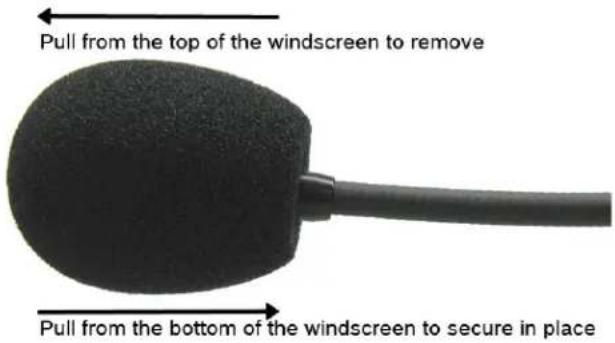

Replace the Windscreen 19

Care and Maintenance 19

Clean the Headset 19

Store/Transport the Headset (MH-402 and MH-402L Only) 19

BATTERY MODULE 21

Battery Module 21

Replace the Battery 21

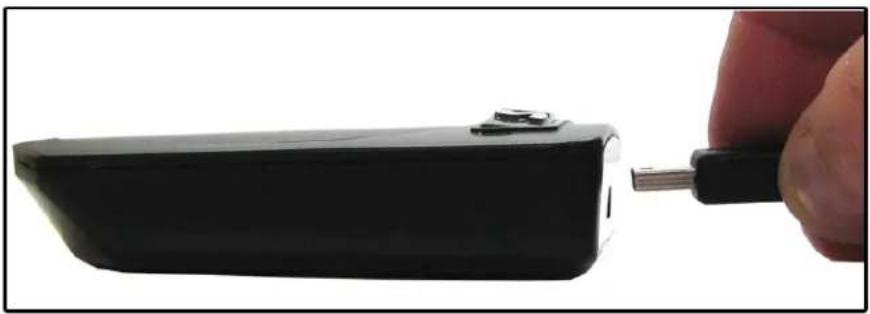

Charge the Battery 22

CONNECTORS 25

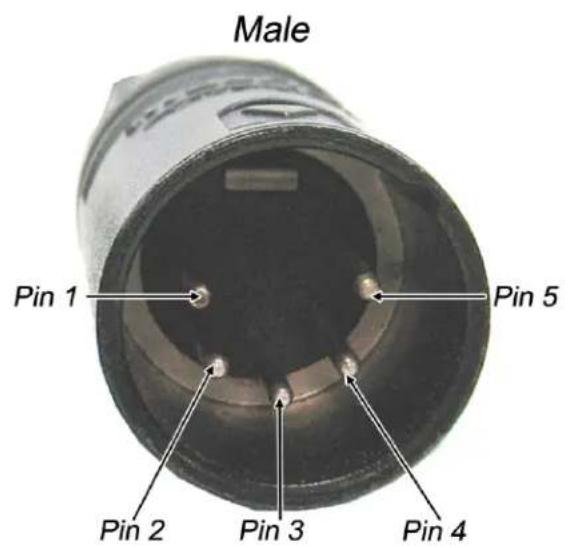

XLR Connectors 25

Pig Tail Connector 26

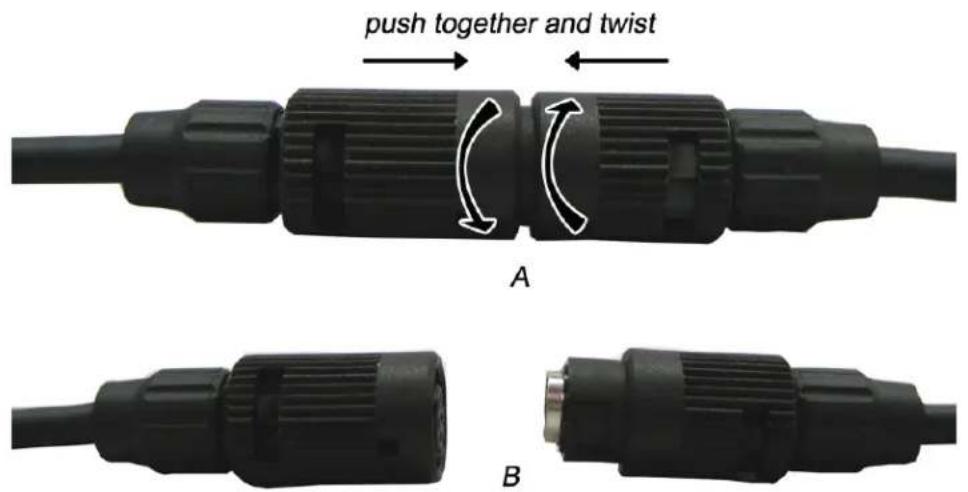

Quick Disconnect ....27

SPECIFICATIONS 29

Specifications 29

Speaker 29

Noise Reduction 29

Microphone 29

General 29

TROUBLESHOOTING AND FAQs 31

Where do I send my headset for repair? 31

My ANR (Automatic Noise Reduction) Headset is no longer working. 31

My headset does not work with my MP3 player. 31

I need parts for my headset. 32

How long will it take my headset to be repaired? 32

List

of

Figures

FIGURE 1. Models MH-300 and MH-300L 5
FIGURE 2. Models MH-302, MH-302L, MH-402, and MH-402L ......6
FIGURE 3. Battery Charger Reference Diagram ....7
FIGURE 4. Standard Power Supply and Plug Adapters ....7

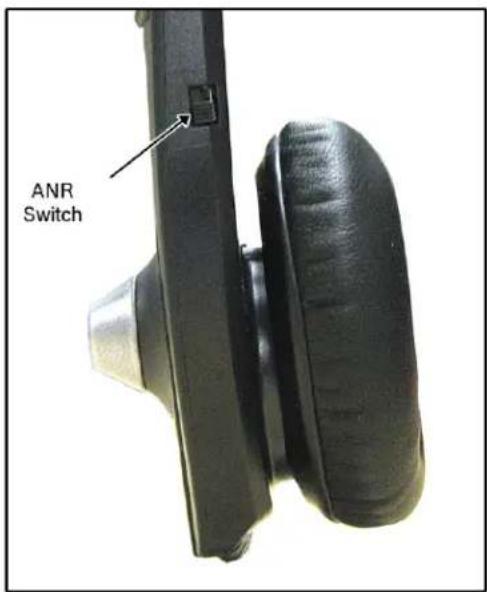

FIGURE 5. ANR Switch ....14

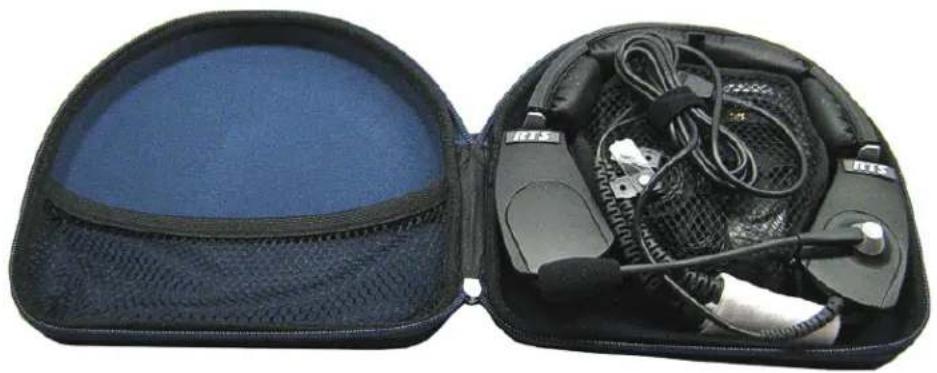

FIGURE 6. MH-402/402L in Carrying Case ....19
FIGURE 7. Battery Charger Reference Diagram .....22

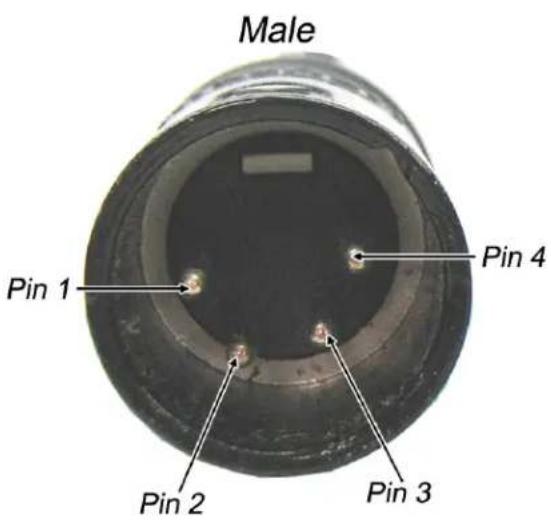

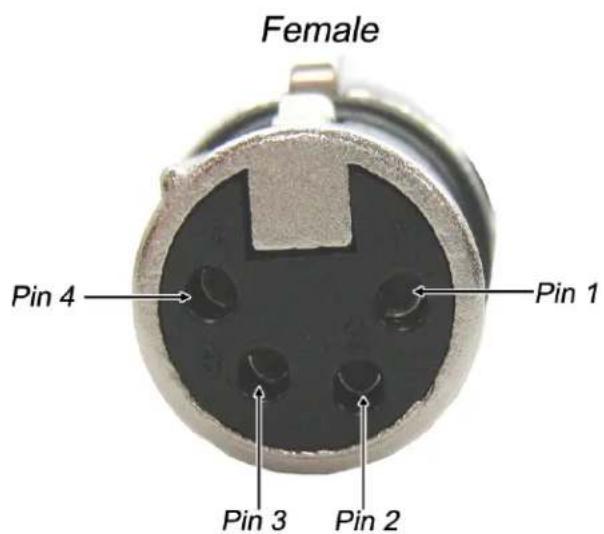

FIGURE 8. 4-Pin XLR Connector Female and Male .....25

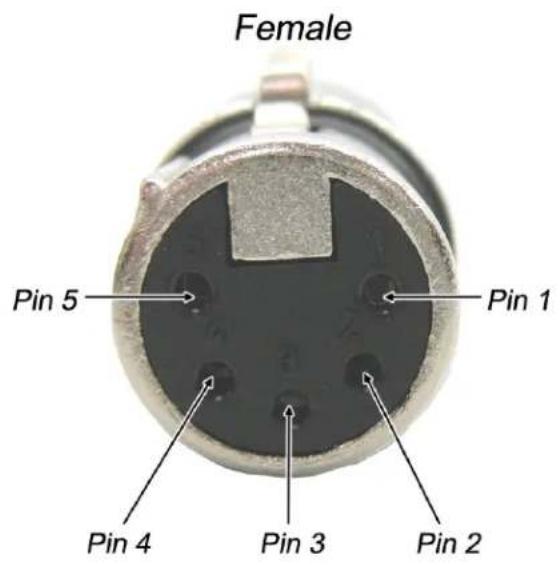

FIGURE 9. 5-Pin XLR Connector Female and Male .....26
FIGURE 10. Quick Disconnect Connector ....27

Important Safety Instructions

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. This headset is capable of producing sound pressure levels in excess of 100dB SPL.
6. Refer all servicing to qualified service personnel. Servicing is required when the headset is damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled into the headset, the headset is exposed to rain or moisture, or does not operate normally.
7. The battery used with these headsets is a Lithium based unit. This unit must only be charged with the RTS specified battery charger. Care should be used when storing the battery; ensuring the terminals are not shorted together.

General Description

The MH Series Headsets and Headphones provide the newest design in headset technology from RTS. With its rugged modular design, lightweight construction, installation options, and its multi-function use beyond the live studio or theater venue, the MH Series Headsets are designed with you, the user, in mind. The modular design allows you to interchange different modules to customize the best headset for your environment. The noise-canceling microphone, combined with the headphone transducers and ANR (Active Noise Reduction) provides clear and precise communication in noisy environments. Finally, this headset is not limited to live studio or venue communication. By installing the auxiliary audio input module, you can connect to an MP3 player, and many other audio devices.

The MH Series Headsets and Headphones provide clear communication for professional applications, including live remote or studio broadcasting, film, TV, and theater intercom communications.

TERMINOLOGY:

In this manual, a Headset refers to a device you wear on your head that allows you to both listen and speak. A headset always has a microphone. Headphones are an audio only device you wear on you head that allows you to listen only.

Features

Three (3) HeadsetFrame Options -	The MH Series gives you three (3) options when selecting the type of headset for your environment:Single-Sided Headset without ANR (model MH-300 and MH-300L)Dual-Sided Headset without ANR (model MH-302 and MH-302LDual-Sided Headset with ANR (model MH-402 and MH-402L)
Cord Termination -	The MH Series Headset and Headphone is available with multiple cord termination configurations; 4-pin XLR male and female, 5-pin XLR male and female, pigtail, quick disconnect, and 3.5mm plug (with the Auxiliary Audio Module). The quick disconnect option allows for quickly terminating your headset to 4- and 5-pin XLR connectors (male and female) and to a pigtail cord end to meet the needs of the headset or headphone application.
Modular Design -	The modular design of the MH Series allows for many options when configuring the perfect headset for use in your specific environment. All the modules are universal which means they are fully interchangeable, and giving you more flexibility in your headset needs. The versatility of the MH Dual-Sided Series is obvious when using the music/audio module. Installing the auxiliary audio module turns the broadcast headset into an every day, every where headset, allowing for MP3 player hookup, GPS connection, and many other applications.
Acoustic Performance -	Expanded frequency response ensures clear communications and enhanced audio performance. The adjustable output level allows the user to match the headset to the requirements of the surrounding environment. Acoustic design and active noise reduction, available with the MH-402/402L, combine to remove common environmental noises.
Comfortable Design -	The design of the MH Series headset with its headband location in relation to the ear cups delivers more stability when the headset is being worn. All user contact points, ear cup cushions, temple pads, headband cushions, and the windscreen are completely replaceable allowing for good hygiene.

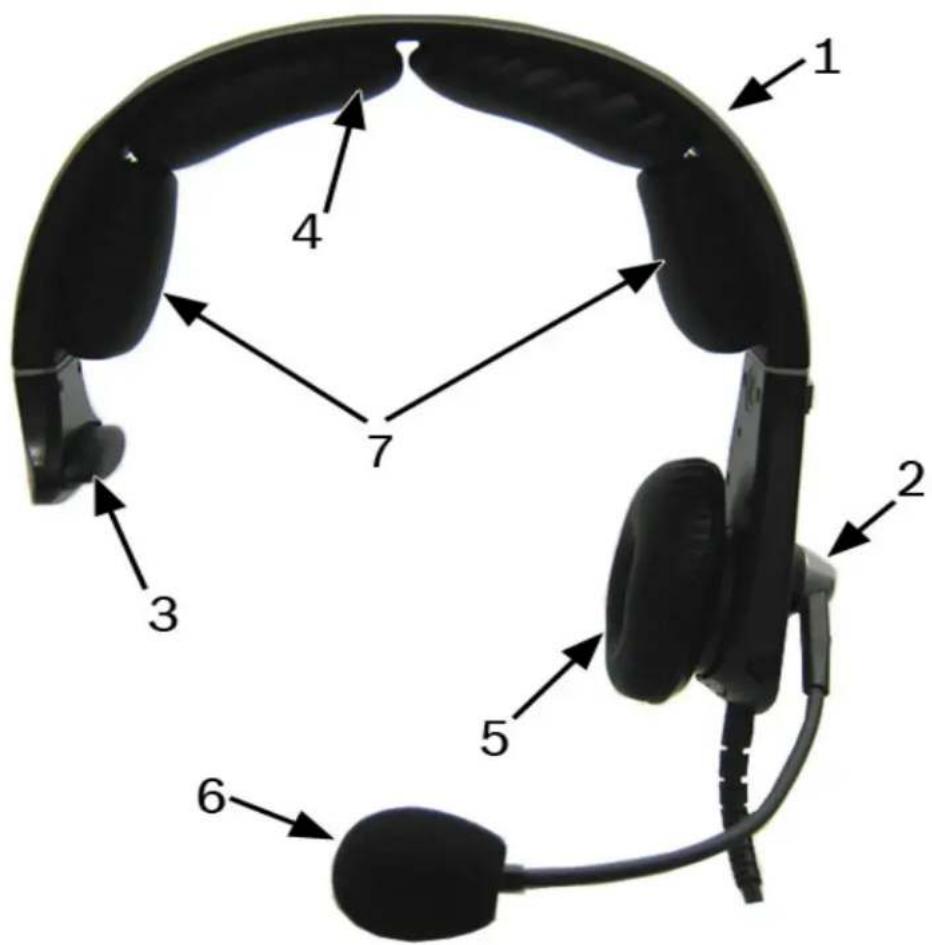

MH-300/MH-300L (no ANR) Single-Sided Headset/Headphone

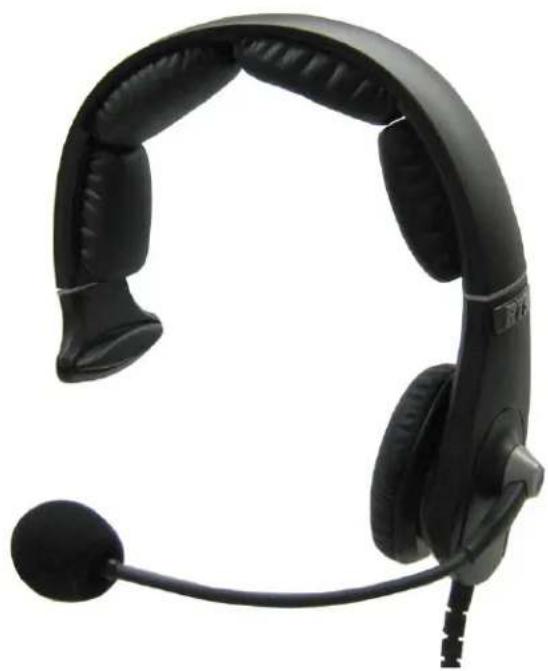

FIGURE 11. Models MH-300 and MH-300L

NOTE: The MH-300L is a listen-only headphone. It does not have a microphone.

1. Headset Frame
2. Microphone Module or Auxiliary Audio Input Module
3. Temple Pad
4. Headband Pad
5. Ear Cushion
6. Windscreen
7. Side Cushions

MH-302/MH-302L (no ANR) & MH-402/MH-402L (ANR capable)

Dual-Sided Headset/Headphone

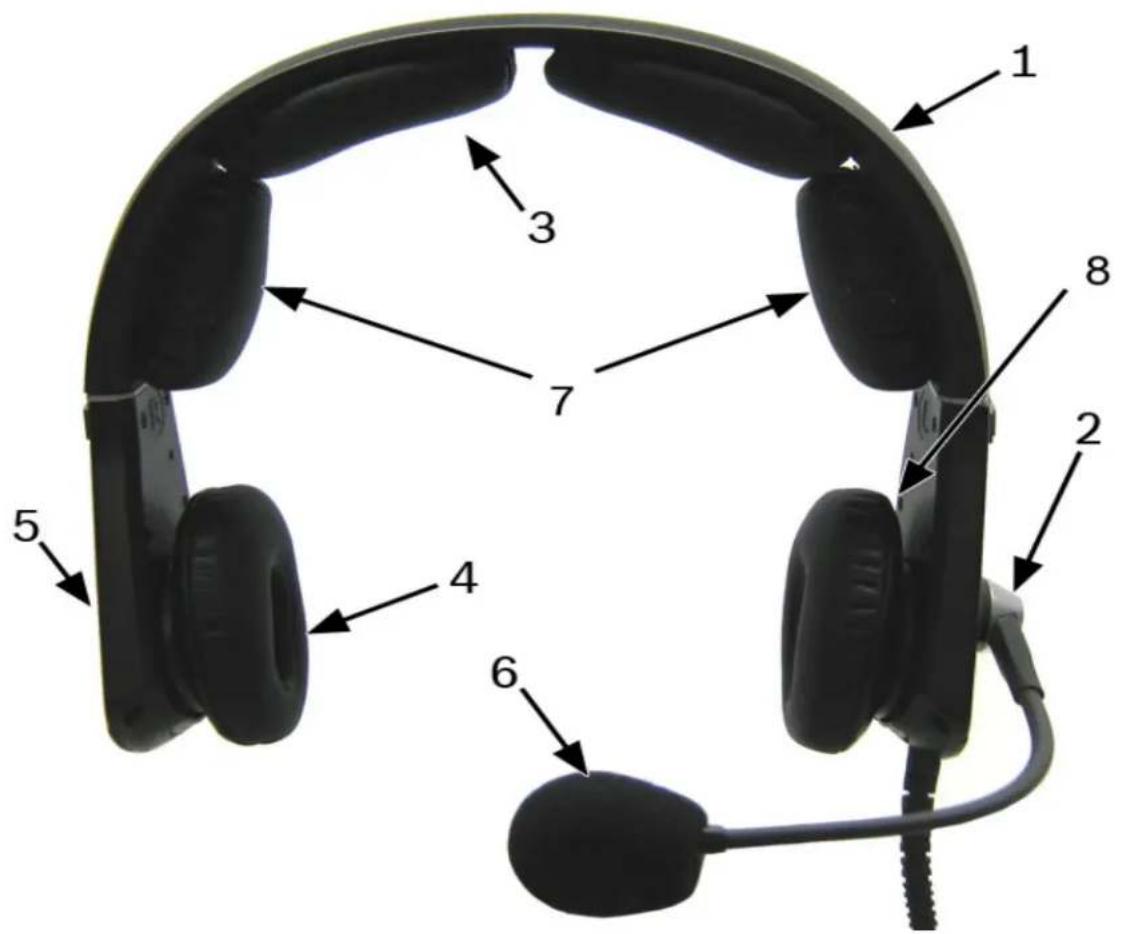

FIGURE 12. Models MH-302, MH-302L, MH-402, and MH-402L

NOTE: The MH-302L and the MH-402L are listen-only headphones. They do not have a microphone.

1. Headset Frame
2. Microphone Module or Auxiliary Audio Input Module
3. Headband Pad
4. Ear Cushion
5. Filler Module or Battery Module
6. Windscreen
7. Side Cushions
8. ANR Switch (MH-402/402L versions only)

NOTE: The switch label is used to determine the on and off position for ANR.

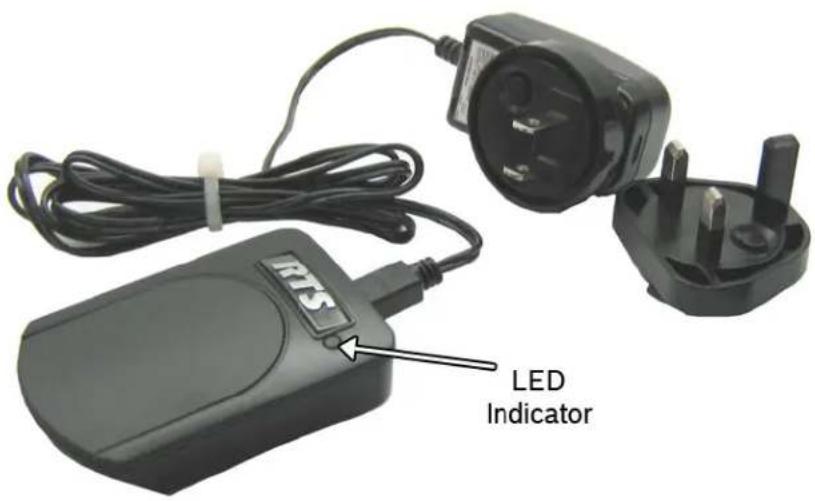

Battery Charger

NOTE: For more information, see "Battery Module" on page 21.

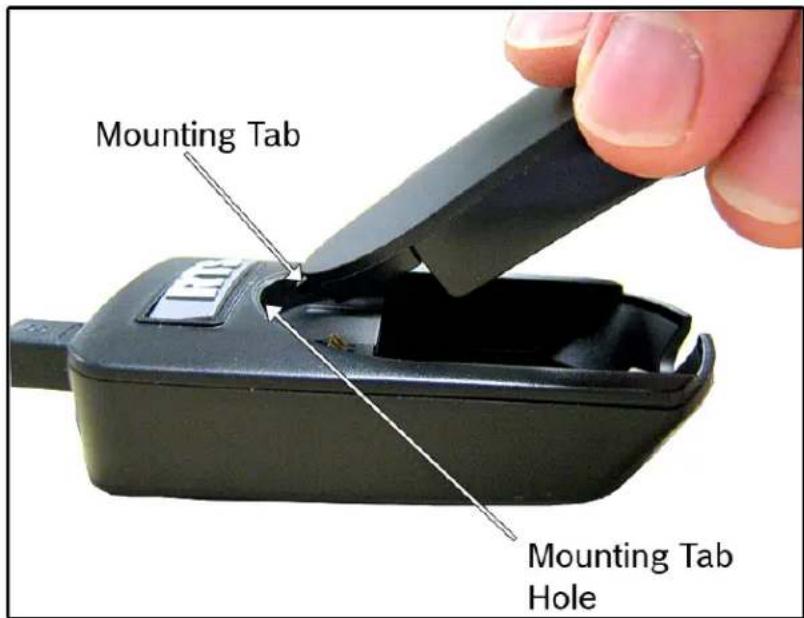

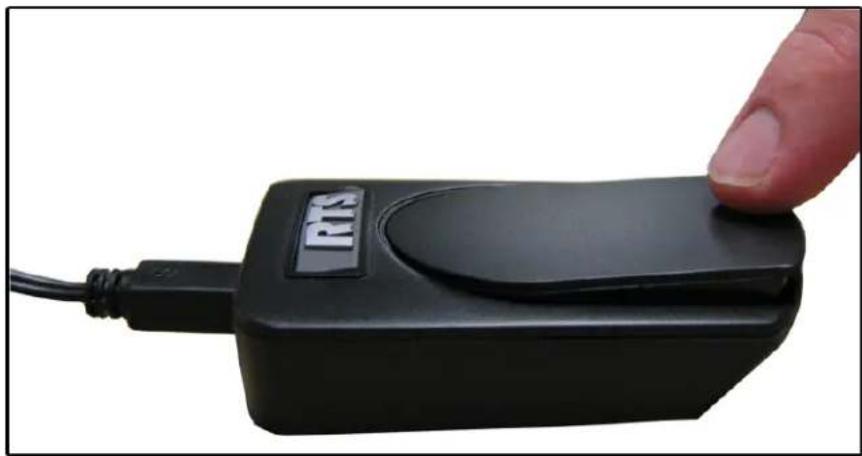

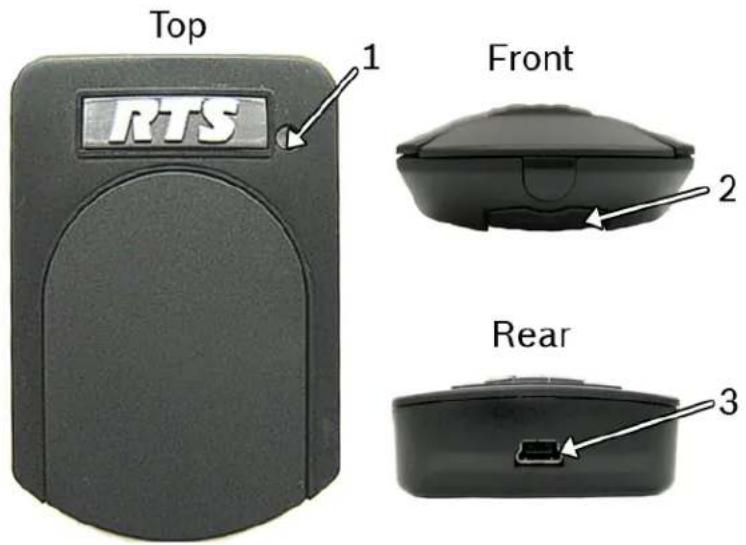

FIGURE 13. Battery Charger Reference Diagram

1. Operation LED
2. Module Release Button
3. Power Supply Connector

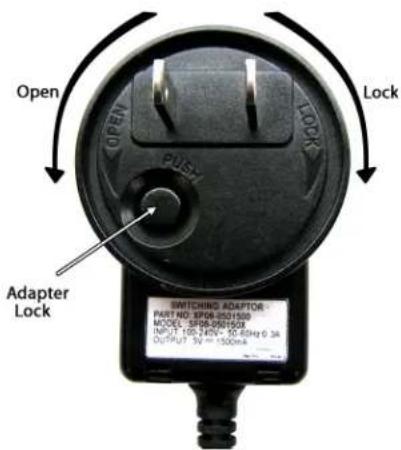

Battery Charger Power Supply

Close-up of a black electronic device with two labeled buttons and a coiled cable (no text or symbols visible)

FIGURE 14. Standard Power Supply and Plug Adapters

Standard Power Supply ^a

1. Wall Pack
2. US Plug (standard)

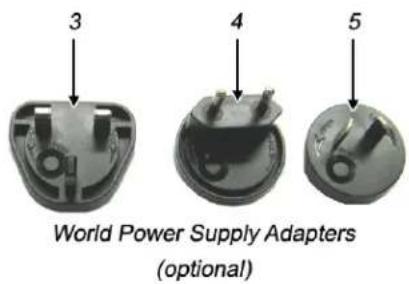

World Power Supply Adapters (Optional - P/N PRD000260005)

1. UK Plug (optional)
2. Euro Plug (optional)
3. Australian Plug (optional)

Configuration, Operation and Maintenance

The MH Series Headsets and Headphones were designed for use in multiple applications. As such, when using the headsets and headphones specific for you application, refer to the following sections to verify the proper configuration and settings.

Before First Use

Battery Charging (MH-402 Series)

For information on charging the battery, see "Charge the Battery" on page 22.

Battery Installation (MH-402 Series)

For information on installing the battery, see "Battery Module" on page 21.

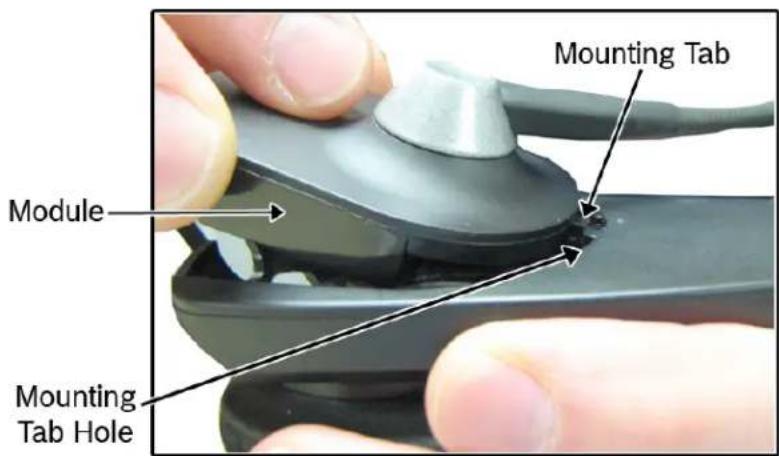

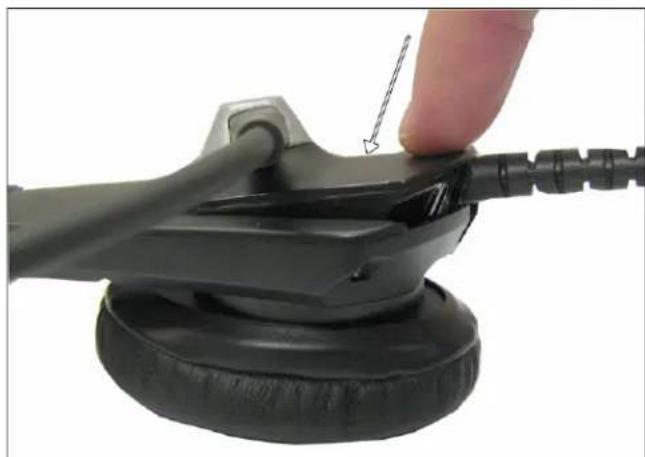

Remove and Replace any Headset Module

To remove a module, do the following:

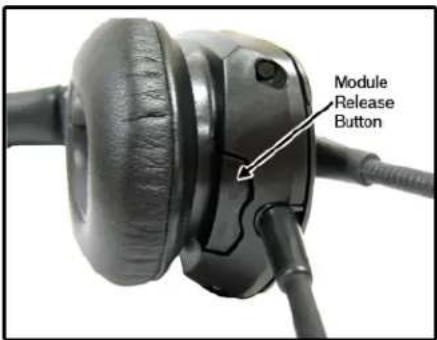

1. Press the module release button located at the bottom of the ear cup. The module pops up from the ear cup.

1. Slide the module out and up taking care to clear the mounting tab from the mounting tab hole.

To replace a module, do the following:

1. Align the mounting tab with the mounting tab hole.

1. Slide the module into place.
2. Press the module down, snapping it into the car cup.

Close-up of a hand holding a black mechanical component with a cable and adjustment arrow (no text or symbols visible)

Configuration

NOTE: The MH Series headset and headphones have been configured for use in the most common applications. We recommend the configuration not be changed unless absolutely necessary.

The following information details configuration settings for:

• Speaker Volume (see "Configure the Speaker Volume" on page 12)
• Speaker Mode (see "Configure Speaker Mode" on page 13)
  • ANR Mode (see "Configure ANR (MH-402 and MH-402L Only)" on page 14)
  • Auxiliary Audio (see "Configure Auxiliary Audio" on page 14)

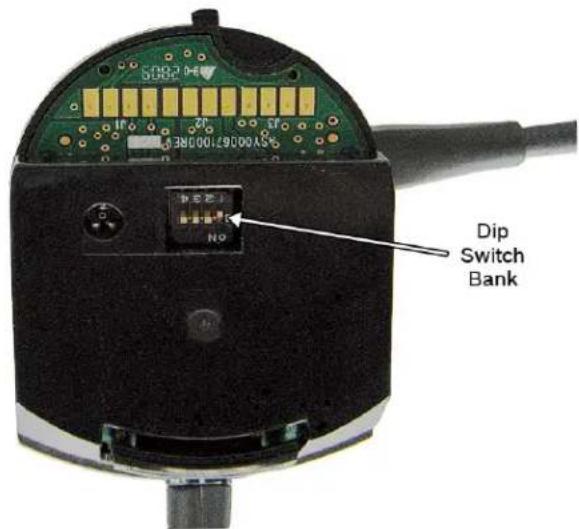

Access the Dip Switches

The speaker volume or the speaker mode of your headset is configured using a series of dip switches located on the side of the microphone module or listen-only module.

To access the dip switches, do the following:

NOTE: Dip switches are located on the microphone module and the listen-only module. This feature is not available on the audio input module.

1. Remove the microphone module or listen-only module.
2. Locate the dip switch bank on the side of either the microphone module or the listen-only module.

Configure the Speaker Volume

Speaker Volume is configured using dip switch settings located on the microphone module and the listen-only module.

To adjust the speaker volume, do the following:

Using a small flathead screwdriver (or other device), adjust the speaker volume. See Table 1.

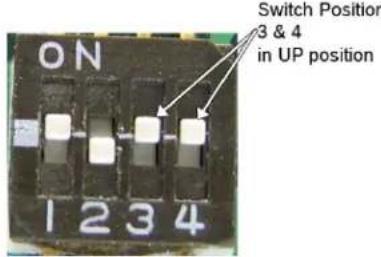

Dip Switch Settings

NOTE: Only switch positions 3 and 4 are used to configure speaker volume.

TABLE 1. Speaker Volume Dip Switch Settings

Dip Switch Description
	Reduced Volume(-10dB from Normal Volume)
	Normal Volume (Default)

Configure Speaker Mode

Audio on the headset can be configured to be heard either Mono, Left Only, or Stereo. This means it can come from both sides of the headset or from the left side only.

NOTE: The stereo option can only be used with the 5-pin XLR connector versions.

This configuration is done through setting dip switches located on the main board of the headset.

NOTE: To access the Dip Switches, see "Access the Dip Switches" on page 11.

To configure speaker mode, do the following:

Using a small flathead screwdriver (or other device), set the dip switches to the mode of operation desired. See Table 2.

Dip Switch Settings

TABLE 2. Mono, Stereo, or Left Only Dip Switch Settings

Dip Switch Description
	Switch Position 1 in UP position	Mono Mode (Default)
	Switch Position 1 in DOWN position	Left Only Mode
	Switch Position 1 is DOWN and Position 2 is UP	Stereo ModeNOTE: Any module using A5M or A5F connectors has stereo capabilities.

Configure ANR (MH-402 and MH-402L Only)

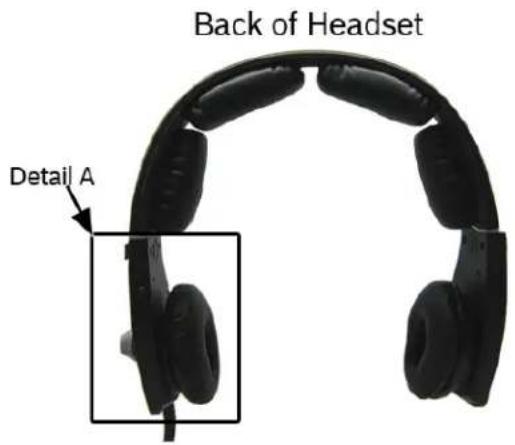

ANR is used to reduce unwanted noise in the headset from the surrounding environment. The ANR switch is located on the left car cup, as seen in Figure 15.

Detail A
FIGURE 15. ANR Switch

To turn ANR on, do the following:

On the left ear cup, move the ANR switch to the up position.

To turn ANR off, do the following:

1. On the left ear cup, move the ANR switch to the down position.
2. Remove battery, if applicable, to conserve battery power.

Configure Auxiliary Audio

The MH Series headset can also be used to listen to music, GPS information, etc.

To use the MH Series headset for audio input, do the following:

NOTE: The battery module is only needed when you want to use the ANR feature of the MH-402 or MH 402L.

Step 1 If necessary, install the battery module into the headset. See "Battery Module" on page 21.

Step 2 Install the audio input module.

Step 3 Adjust the headset for proper fit and comfort. See "Headset Adjustment and Sizing" on page 15.

Operation and Maintenance

To operate the MH Series headset, do the following:

Step 1 Adjust the headset for proper fit and comfort. See "Headset Adjustment and Sizing" on page 15.

Step 2 Adjust the microphone for proper use.

Step 3 Turn on ANR. See "Configure ANR (MH-402 and MH-402L Only)" on page 14.

Step 4 Plug the headset in.

Headset Adjustment and Sizing

The headset should fit comfortably over the head and ears without pinching or gapping. A comfortable fit is conducive to effective and pleasant use.

To adjust the headband size, do the following:

1. With the headset resting securely on the top of the head, slide the car cup up and down to center the ear cup over the ear.

2. Swivel the ear cup left or right to position the ear cup flat on the ear.

Microphone Adjustment

From the factory, the microphone is installed on the left side of the headset. However, you can interchange the microphone for right-side use, see "Remove and Replace any Headset Module" on page 9.

Replace the Earcup, Temple and Headband Cushion

There are three (3) cushion replacement points on the MH Series Headset; ear cups, temple pads, and the headband.

The MH-302/302L and the MH-402/402L have two (2) car cup cushions and a headband cushion, while the MH-300/300L has one (1) ear cup cushion, one (1) temple pad, and a headband cushion.

To replace the ear cup cushion, do the following:

1. Grasp the worn ear cushion and carefully pull it off the ear cup.
2. Starting at the top of the ear cup, place the top part of the back flap of the new ear cushion over the top lip of the ear cup.

NOTE: The ear cup cushion hole orients to the bottom of the ear cup.

Close-up of a black plastic head with a rounded, smooth wheel and mounting feet (no text or symbols visible)

1. Using your fingers, work the back flap of the ear cushion around the ear cup.
2. Pull the bottom of the ear cushion over the bottom lip of the ear cup.

To replace the headband cushion, do the following:

1. Grasp the headband cushion.
2. Pull the worn cushion off the headband.
3. Remove the protective paper from the sticky side of the new headband cushion.

NOTE: The headband is affixed to the headband with adhesive tape.

1. Align the new headband cushion to the headband frame.
2. Firmly press the new headband cushion in place.

To replace the three-cushion version headband cushion, do the following:

1. Grasp the headband cushion.
2. Pull the old cushion off the headband.

1. Align the new top cushion to the top of the headband.
2. Align the right side cushion to the right side of the headband.
3. Align the left side cushion to the left side of the headband.
4. Firmly press the new headband cushions in place.

To replace the temple pad cushion, do the following:

1. Grasp the temple pad cushion.
2. Pull the worn cushion off.
3. Remove the protective paper from the sticky side of the new temple pad cushion.

NOTE: The temple pad is affixed to the headband with adhesive tape.

Black headband ear with curved design, no visible text or symbols on the device itself

1. Align the new temple pad cushion to the headband frame.
2. Firmly press the new temple pad cushion in place.

Replace the Windscreen

To replace the wind screen, do the following:

1. Remove the worn windscreen from the microphone and discard.
2. Gently pull the new windscreen over the microphone.

Care and Maintenance

Clean the Headset

When cleaning your headset, do the following:

• use a soft, slightly damp cloth (water only).
- if necessary, a mild mix of soapy water may be used.

IMPORTANT:

Excessive water can damage the headset and cause short circuits to the electrical components of the unit. Do not use solvents or chemicals when cleaning your headset as it may cause damage or inoperability.

Store/Transport the Headset (MH-402 and MH-402L Only)

For storing or transporting your MH-402/402L headset, use the protective carrying case the headset is shipped in. Place the headset in the carrying case as shown in Figure 16.

Open black medical device with blue mesh cover and internal wiring, no visible text or symbols

FIGURE 16. MH-402/402L in Carrying Case

Battery Module

The battery module is only used with the MH-402 and MH-402L ANR headset/headphone. By using the battery and enabling the ANR, the audio quality is markedly enhanced.

NOTE: The battery charger uses a universal power pack with a mini-USB connector that is compatible with many devices that accept the connector, for example a cell phone.

Replace the Battery

CAUTION: If this is the first time using the batteries, see "Charge the Battery" on page 22.

Batteries can be installed on either ear cup (the left or right).

To replace a battery module, do the following:

1. Align the mounting tab with the mounting tab hole.
2. Slide the battery module into place.
3. Press down on the battery module, snapping it into the ear cup.

Charge the Battery

IMPORTANT:

Before installing the battery for the first time, charge the battery for at least an hour and a half to ensure a fully charged unit. A fully charged battery lasts approximately 40 hours between charges.

FIGURE 17. Battery Charger Reference Diagram

The battery charger has an LED, shown in Figure 17, that displays two(2) color states:

Green LED - The charger is on.

Red LED - The battery is being charged. Once the battery is done charging, the green LED appears.

NOTE: If the battery is damaged and not able to charge or if the battery is fully charged, the red LED does not display.

The power module for the battery charger comes with the US connection adaptor as standard. There are three (3) optional connection adapters (Euro, UK, and Australian), also known as the world adapters.

To change the connection adapter for the power module, do the following:

1. While pressing the adapter lock button, turn the adapter counter-clockwise to release the adapter.

1. Replace the current adapter with the desired power module adapter.
2. Turn the new adapter clockwise to lock it in place.

To charge a battery, do the following:

1. Plug the power supply into an electrical outlet.
2. Attach the power supply to the charger. The LED lights green.

Close-up of a hand inserting a USB into a black electronic device (no text or symbols visible)

1. Align the mounting tab with the mounting tab hole on the battery charger.

1. Slide the battery module into place.

2. Press down on the battery module, snapping it into the ear cup. The LED lights red while the battery is charging, and lights green when it is finished charging.

Hand holding a black electronic device labeled 'R15' with a cable, against a white background (no readable text beyond label)

XLR Connectors

FIGURE 18. 4-Pin XLR Connector Female and Male
TABLE 3.4-Pin XLR Pin Out

Pin Wire Color Description
1	B 1	u e
2 White MIC -
3 Black/Outer	Shield SPK -
4 Yellow/Red	R SPK and L SPK (dual)
Case Inner Shield MIC SHIELD

M I

FIGURE 19. 5-Pin XLR Connector Female and Male
TABLE 4.5-Pin XLR Pin Out

Pin Wire Color Description
1	B	l	u	e M
2 White MIC +
3 Black/Outer Shield SPK -
4	Y	c	l	l o
5 Red N/C (single) R SPK + (dual)
Case	Inner Shield		MIC SHIELD

I C - w L S P

Pig Tail Connector

Pigtail connectors give you maximum flexibility in the type of connector you want to use. Table 5 shows the wire colors and descriptions for the pigtail.

TABLE 5. Pig Tail Connector Pin Out

Description Color
Speaker Left +	Yellow
Speaker Right +	Red
Speaker -	Black/Outer Shield
Mic +	White
Mic -	Blue/Inner Shield
Power +	Green
Power -	Black/Outer Shield

Quick Disconnect

The Quick Disconnect allows you to quickly switch connector types without having to switch headsets, saving time and space when you are on the go.

FIGURE 20. Quick Disconnect Connector

To disconnect the quick disconnect connector, do the following:

1. Holding the quick disconnect in both hands, gently push each connector end toward each other (see Figure 20, A).
2. While pushing toward each connector end, twist the connector ends in opposite directions so they unlock. The connector comes apart (see Figure 20, B).

To connect the quick disconnect connector, do the following:

1. Align the opposite connector ends.
2. Gently push each connector end toward each other.
3. While pushing toward each connector end, twist the connector ends in opposite directions so they lock.

TABLE 6. Quick Disconnect Pin Assignments

Pin Color Description
1 Yellow	Speaker Left +
2 Red Speaker Right +
3 Black Speaker -
4 White Mic +
5 Blue/Inner Shield Mic -
6 Green Power +
7 Outer Shield Power -
8	N / C	N

C

Specifications

Speaker

Transducer Type...... Dynamic

Sensitivity.... 100dB SPL/mW at 1kHz (normal volume setting)

Impedance 150Ω nominal

Frequency Response....100Hz to 10kHz

Distortion....<10%

Noise Reduction

ANR Models MH-402 and MH-402L Only.... up to 12dB noise reduction between 100Hz and 2000Hz

Microphone

Type....Noise canceling dynamic

Impedance 200Ω

Sensitivity....200Hz to 5kHz

Distortion....<5%

General

Gross Weight....MH-300, 8oz (226g); MH-302, 10oz (284g); MH-402, 10oz (284g)

Cord Length 5.9ft. (1.8m)

Color....Black

PROBLEM SOLUTION
Where do I send my headset for repair?	Attn: Customer ServiceBosch Communications, Inc.8601 East Cornhusker Hwy.Lincoln, NE 68507 U.S.APlease include a copy of receipt, if available. Along with the unit, please include your name, billing, and shipping address, telephone number, and a brief description of the problem you are experiencing.Allow 7-10 working days for service, plus transportation time, once we have received the unit for repair/refurbish.For questions about repair, please call customer service at:800-553-5992
My ANR (Automatic Noise Reduction) Headset is no longer working.	Verify the ANR switch is in the on position.Verify the battery is installed properly.Verify the battery is charged.Verify the cushions are installed properly.Verify the headset is on the head properly.Verify the car cushions are seated on the ear properly.If you have verified the previous bullets, then send the unit in for repair.
My headset does not work with my MP3 player.	Verify the cord for the device is plugged in firmly.
I need parts for my headset.	• Contact customer service for the part number you are looking for.
How long will it take my headset to be repaired?	Repair duration is usually 7 to 10 working days plus shipping time back to the customer.
