USER MANUAL HD2060 PHILIPS

Register your product and get support at

www.philips.com/welcome

HD2060

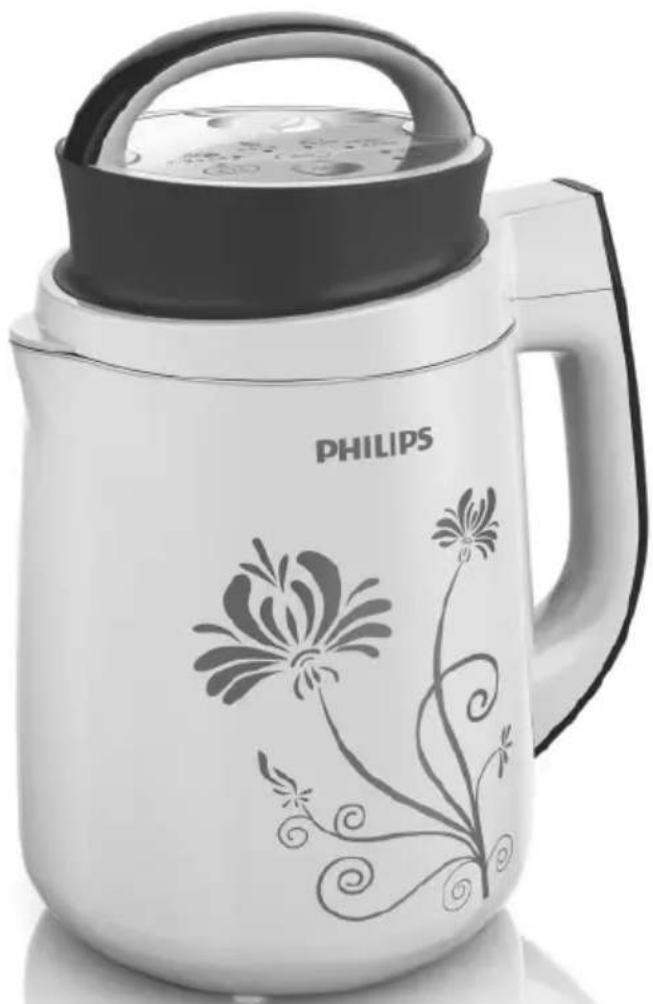

PHILIPS HD2060 - 1

natural_image White Philips thermospan with floral design and black lid (no text or symbols on body)

User manual

PHILIPS

Contents

1 Important 4
Electromagnetic Fields (EMF) 6
Conformity with national standards 6

2 Introduction 7

3 What's in the box 7

4 Overview 8

5 Cleaning before fi rst use 9

6 Use the appliance 9

Make soymilk 9

Make five-grain soymilk 11

Make rice paste 12

Make juice 14

Keep warm 15

7 Cleaning 16

Easy clean 16

8 Product information 17

9 Recycling 18

10 Guarantee and service 18

11 Troubleshooting 19

12 Recipes 22

Soymilk 22

Five grain soymilk 22

Rice paste 24

Juice 26

1 Important

Read this user manual carefully before you use the appliance, and save the user manual for future reference.

Before processing:

  • Before you insert the plug into the power outlet, make sure that the appliance is assembled correctly.
    • Make sure that your hands are dry before you insert the plug into the power outlet.
  • Before you connect the appliance to the power, make sure that the voltage indicated on the bottom of the appliance corresponds to the local power voltage.
  • This appliance can only be used with a grounded plug. Make sure that the plug is firmly inserted into the power outlet.
  • Never connect this appliance to a timer switch, to avoid a hazardous situation.
  • Make sure that you clean the appliance before use (see the “Cleaning before first use” section on Page 9).
  • Do not use this appliance to heat up soymilk or other liquid foods.

  • Never use the appliance for dry heating.

  • Never add contents (including water) above 上水位 (the maximum level indication) or below 下水位 (the minimum level indication).
  • If the power cord, the plug, or other parts are damaged, do not use the appliance.
  • If the power cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons to avoid a hazard.
  • Do not replace parts of the appliance yourself.
  • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety.
  • For their safety, do not allow children to play with the appliance.
    • Make sure that the water you add into the soymilk maker is no hotter than 70^ C.
  • This appliance is intended for household use only.

During processing:

  • Do not use this appliance on an unstable or uneven surface.
  • Keep the appliance and its power cord out of the reach of children.
  • Never let the appliance run unattended.
  • Do not touch the steam or the metal parts of the appliance, to avoid burns or scalding.
  • Do not disconnect the power cord or remove the head unit before processing is complete.
  • If you have to stop processing, disconnect the power cord before you perform other operations.
  • If there is a power outage during processing and this lasts up to three minutes, do not immediately restart the soymilk maker. Empty the contents in the soymilk maker, and then put in new contents before restarting. Otherwise, the contents will stick to the chamber or overflow, or the appliance will set off a long alarm.

After processing:

  • Disconnect the power before you continue other operations.
  • Disconnect the power and remove the power cord before cleaning or disassembling this appliance.
    • To prevent steam scalding, keep a certain distance from the soymilk maker before you lift the head unit.
    • Install, remove, and clean the perforated flow cup with care. The blade on the head unit is sharp. Be careful not to cut yourself or others.
    • To prevent a short circuit or an electric shock,

- do not use water to rinse the outside of the chamber unit or head unit (including the head unit handle, control panel, upper plug, upper plug connector, and the power cord connector) and keep them away from drip or splash;

• do not place the head unit in water; and

• do not place the base of the soymilk maker in water.

- Use a microwave to heat up cold soymilk. Do not use this appliance to heat it, as the contents will stick to the inner side of the chamber.

  • Store the power cord in a cool and dry place.
    • To prevent an electric shock, use the power cord to connect other appliances.
  • Food coloring can discolor components. This is normal and has no impact on use.

Electromagnetic Fields (EMF

This Philips soymilk maker complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.

Conformity with national standards

  • GB4706. 1-2005, “Safety of household and similar electrical appliances”, Part 1 General requirements
  • GB4706. 19-2008, “Safety of household and similar electrical appliances”, Particular requirements for appliances for heating liquids
  • GB4706. 30-2008, “Safety of household and similar electrical appliances”, Particular requirements for kitchen machines

2 Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

- Philips soymilk maker HD2060 can be used to make beverages and food such as soymilk, fi ve-grain soymilk, rice paste, and juice. It comes with keep warm and easy clean functions, and it equips with anti-overfl ow and anti-splash protective device. It is fully automated, easy to use, healthy, attractive, and durable .

3 What's in the

PHILIPS HD2060 - What's in the - 1

natural_image Technical line drawing of a mechanical component with no visible text or symbols

Head unit

PHILIPS HD2060 - What's in the - 2

natural_image Line drawing of a mug with handle and spout (no text or symbols)

Chamber unit

PHILIPS HD2060 - What's in the - 3
Perforated flow cup

PHILIPS HD2060 - What's in the - 4
Power cord

PHILIPS HD2060 - What's in the - 5
Measuring cup

PHILIPS HD2060 - What's in the - 6
Filter

PHILIPS HD2060 - What's in the - 7
User manual

PHILIPS HD2060 - What's in the - 8
Warranty card

PHILIPS HD2060 - What's in the - 9

Tip

- Do not change the fi Iter direction. The convex fi Iter is a special design from Philips, which makes fi Itering much more efficient.

4 Overview 1: Handle of the head unit

② Control panel

• Function buttons:

选择 (Select)

启动 (Start)

易清洗 (Easy clean)

- Indicators:

干/湿豆豆浆 (Soymilk)

五谷豆浆 (Five-grain soymilk)

营养米糊 (Rice paste)

果蔬冷饮 (Juice)

工作中 (Working)

保温 (Keep warm)

易清洗 (Easy clean)

Labeled diagram of a coffee maker with numbered parts for identification

③ Overflow sensor

• Monitor soymilk and prevent overflowing

④ Blade

⑤ Lower part of the head unit

⑥ Upper plug

⑦ Perforated flow cup

- Increase the flow rate and make soymilk well balanced

⑧ Chamber unit

⑨ Base

⑩ Protective cover of the power cord connector

⑪ Power cord connector

⑫ Chamber handle

⑬ Upper plug connector

5 Cleaning before 6 Use the first use appliance

Method 1:

1 Pour boiling water into the chamber, put the head unit into the chamber, and soak for 10 minutes.

PHILIPS HD2060 - Method 1: - 1

natural_image Illustration of a coffee maker pouring liquid into a cup and a steaming cup, with a hand pouring liquid from the cup to the other (no text or symbols)

2 Clean the appliance (see the "Cleaning" section on Page 16).

Method 2:

1 Make soymilk following the instructions in the “Make soymilk” section.
2 After soymilk is made, pour it away and then clean the appliance (see the "Cleaning" section on Page 16).

PHILIPS HD2060 - Method 2: - 1

Warning

- If you wish to cancel a function once it is selected, do not lift the head unit to prevent the facial scalding. You can unplug the power cord, re-plug it, and then select another function.

Make soymilk

• Measure ingredients as instructed. You can adjust the quantity a bit as per your personal taste.
- For 2-4 people.

PHILIPS HD2060 - Make soymilk - 1

Note

- Make sure that the perforated flow cup is installed correctly before use.

1 Take a cup of dry soybeans with the supplied measuring cup and wash them clean.

- To increase the life of the blade, soak the soybeans (8-9 hours in fall and spring, 6-7 hours in summer, and 9-10 hours in winter) and wash them clean before processing.

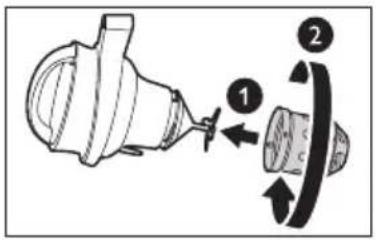

2 Install the perforated flow cup and rotate it to the correct position, as shown in the illustration.

→Make sure that it cannot be pulled off.

Diagram showing mechanical assembly with labeled parts 1 and 2, likely illustrating a turning or disassembly process.

3 Put the soybeans evenly at the bottom of the chamber to prevent them from touching the perforated flow cup.

4 Pour water into the chamber. Make sure that the water level is between 上水位 (the maximum level indication) and 下水位 (the minimum level indication).

上水位 下水位

5 Put the head unit into the chamber. Make sure that the upper plug is correctly inserted into the connector.

PHILIPS HD2060 - Note - 3

natural_image Line drawing of a mechanical component with a downward arrow indicating a force or direction (no text or symbols)

6 Open the protective cover, insert the power cord, and connect the power.

Diagram illustrating a gas station installation procedure with labeled components and a magnified view of the device's internal structure.

→The indicators flash in a circle, indicating that the power is connected.

PHILIPS HD2060 - Note - 5

7 Press 选择 (Select) to select 干/湿豆豆浆 (Soymilk).

→The 干/湿豆豆浆 (Soymilk) indicator lights up.

8 Press 启动 (Start).

→The 工作中 (Working) indicator fl ashes and 1 beep occurs, indicating that processing starts. After about 24 minutes, 6 beeps occur and the 保温 (Keep warm) indicator lights up, indicating that soymilk is ready. If no other operations are performed, the appliance starts the keep warm function. The keep warm function lasts for 1 hour, and then automatically stops (see the "Keep warm" section on Page 15).

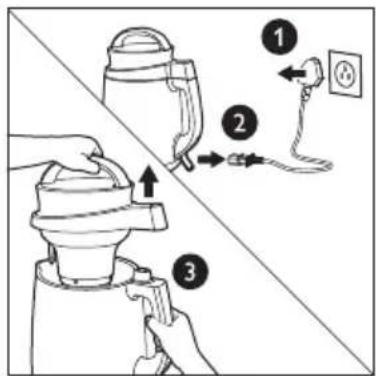

9 After processing, disconnect the power. Hold the handle of the chamber tightly with one hand and lift the head unit with the other hand.

Diagram showing three-step installation of a thermosink with labeled parts and connection arrows

10 Filtrate soymilk with the filter, and it is ready to serve. You can add some sugar before serving.

- Soymilk can also be served without being fi ltrated.

Make fi ve-grain soymilk

• Measure ingredients as instructed. You can adjust the quantity a bit as per your personal taste.
• Example recipe: rice and soy bean milk, for 2-4 people.

PHILIPS HD2060 - Make fi ve-grain soymilk - 1

Note

- Make sure that the perforated flow cup is installed correctly before use.

1 Take 30 g of soybeans (around 1/2 cup) and 50 g of rice (around 1/2 cup) with the supplied measuring cup and wash them clean.

• To increase the life of the blade, soak the soybeans (8-9 hours in fall and spring, 6-7 hours in summer, and 9-10 hours in

winter) and wash them clean before processing.

2 Install the perforated flow cup and rotate it to the correct position, as shown in the illustration.

→Make sure that it cannot be pulled off.

Diagram illustrating a mechanical or electrical component with labeled parts 1 and 2, showing directional arrows indicating movement or force.

3 Put rice and the soybeans evenly at the bottom of the chamber to prevent them from touching the perforated flow cup.

4 Pour water into the chamber. Make sure that the water level is between 上水位 (the maximum level indication) and 下水位 (the minimum level indication).

• To shorten the processing time, you can add warm water no hotter than 70^ C.

上水位 下水位

5 Put the head unit into the chamber. Make sure that the upper plug is correctly inserted into the connector.

PHILIPS HD2060 - Note - 3

natural_image Technical line drawing of a mechanical component with a downward arrow indicating a feature (no text or symbols present)

6 Open the protective cover, insert the power cord, and connect the power.

Diagram illustrating a medical procedure with labeled steps: first, second, and third, showing a cup, device, and electrical outlet.

→The indicators flash in a circle, indicating that the power is connected.

PHILIPS HD2060 - Note - 5

7 Press 选择 (Select) to select 五谷豆浆 (Five-grain soymilk).

→ The 五谷豆浆 (Five-grain soymilk) indicator lights up.

8 Press 启动 (Start).

→ The工作中 (Working) indicator fl ashes and 1 beep occurs, indicating that processing starts. After about 25 minutes, 6 beeps occur and the保温 (Keep warm) indicator lights up, indicating that soymilk is ready. If no other operations are performed, the appliance starts the keep warm function. The keep warm function lasts for 1 hour, and then automatically stops (see the “Keep warm” section on Page 15).

9 After processing, disconnect the power. Hold the handle of the chamber tightly with one hand and lift the head unit with the other hand.

Diagram illustrating three steps of a hot water heater installation, showing how to switch from a flame to a plug and then to a power outlet.

10 Pour fi ve-grain soymilk into the soymilk cup, and it is ready to serve. You can also add some sugar before serving.

Make rice paste

• Measure ingredients as instructed. You can adjust the quantity a bit as per your personal taste.
• Example recipe: lily bulb and Job's-tears rice paste, for 2-4 people.

PHILIPS HD2060 - Make rice paste - 1

Note

• Make sure that the perforated flow cup is installed correctly before use.

1 Take 35 g of Job's-tears and 35 g of rice (around 2/5 cup each) with the supplied measuring cup, take 20 g of fresh lily bulbs (around 7-8 pieces), and wash them clean.

2 Install the perforated flow cup and rotate it to the correct position, as shown in the illustration.

→Make sure that it cannot be pulled off.

Diagram showing mechanical assembly with labeled parts 1 and 2, likely illustrating a turning or disassembly process.

3 Put the lily bulbs, Job's-tears, and rice evenly at the bottom of the chamber to prevent them from touching the perforated flow cup.

4 Pour water into the chamber. Make sure that the water level is between 上水位 (the maximum level indication) and 下水位 (the minimum level indication).

• To shorten the processing time, you can add warm water no hotter than 70^ C.

上水位 下水位

5 Put the head unit into the chamber. Make sure that the upper plug is correctly inserted into the connector.

PHILIPS HD2060 - Note - 3

natural_image Line drawing of a mechanical component with a downward arrow indicating a force or direction (no text or symbols)

6 Open the protective cover, insert the power cord, and connect the power.

Diagram illustrating a medical procedure with labeled steps: cup, catheter, and electrical outlet

→The indicators flash in a circle, indicating that the power is connected.

PHILIPS HD2060 - Note - 5

7 Press 选择 (Select) to select 营养米糊 (Rice paste).

→ The 营养米糊 (Rice paste) indicator lights up.

8 Press 启动 (Start).

→The 工作中 (Working) indicator fl ashes and 1 beep occurs, indicating that processing starts. After about 25 minutes, 6 beeps occur and the 保温 (Keep warm) indicator lights up, indicating that soymilk is ready. If no other operations are performed, the appliance starts the keep warm function. The keep warm function lasts for 1 hour, and then automatically stops (see the “Keep warm” section on Page 15).

9 After processing, disconnect the power. Hold the handle of the chamber tightly with one hand and lift the head unit with the other hand.

Diagram showing three-step steps of a thermosheeler device with labeled components and connection arrows

10 Pour rice paste into the soymilk cup, and it is ready to serve. You can add some sugar before serving.

Make juice

• Measure ingredients as instructed. You can adjust the quantity a bit as per your personal taste.
• Example recipe: banana juice, for 2-4 people.

PHILIPS HD2060 - Make juice - 1

Note

• Make sure that the perforated flow cup is installed correctly before use.

1 Cut 3 bananas (about 400 g) into 1.3-mm cubes.
2 Install the perforated flow cup and rotate it to the correct position, as shown in the illustration.

→Make sure that it cannot be pulled off.

Diagram showing mechanical assembly with labeled parts 1 and 2, likely illustrating a turning or disassembly process.

3 Put the banana cubes evenly at the bottom of the chamber to prevent them from touching the perforated flow cup.

4 Pour 200 ml of milk and some water into the chamber. Make sure that the water level is between 上水位 (the maximum level indication) and 下水位 (the minimum level indication).

上水位 下水位

5 Put the head unit into the chamber. Make sure that the upper plug is correctly inserted into the connector.

PHILIPS HD2060 - Note - 3

natural_image Technical line drawing of a mechanical component with a downward arrow indicating a force or direction (no text or symbols present)

6 Open the protective cover, insert the power cord, and connect the power.

Diagram showing a device connected to an electrical outlet, with labeled parts and a magnified view of the device's internal structure.

→The indicators flash in a circle, indicating that the power is connected.

PHILIPS HD2060 - Note - 5

7 Press 选择 (Select) to select 果蔬冷饮 (Juice).

→ The 果蔬冷饮 (Juice) indicator lights up.

8 Press 启动 (Start).

→The 工作中 (Working) indicator fl ashes and 1 beep occurs, indicating that processing starts. After about 4 minutes, 6 beeps occur, indicating that juice is ready.

9 After processing, disconnect the power. Hold the handle of the chamber tightly with one hand and lift the head unit with the other hand.

Diagram illustrating three-step installation of a thermos, showing hand positioning and cable connection steps.

10 Pour banana juice into the soymilk cup, and it is ready to serve. You can add some sugar before serving.

PHILIPS HD2060 - Note - 7

Tip

• After banana juice is ready, serve at once to avoid oxidization.
- If you want to make juice multiple times, wait about 10 minutes until the appliance cools down before the next use. This makes the appliance more durable.

Keep warm

After soymilk, rice paste, puree, or corn juice is made, 6 beeps occur and the 保温 (Keep warm) indicator lights up. If no other operations are performed, the appliance starts the keep warm function. The keep warm function lasts for 1 hour, and then automatically stops.

PHILIPS HD2060 - Keep warm - 1

Tip

  • If you lift the head unit as soon as processing is complete, the appliance does not start the keep warm function.
    • The appliance does not start the keep warm function at the completion of juice making.

7 Cleaning

PHILIPS HD2060 - Cleaning - 1

Note

  • Disconnect the power and remove the power cord before cleaning or disassembling this appliance.
  • Do not put the head unit in water.
    • To prevent scalding, do not touch the head unit, perforated flow cup, or the inner side of the chamber before they cool down.

1 After disconnecting the power, lift the head unit, rinse the lower part of the head unit, overflow sensor, blade, perforated flow cup, and inner side of the chamber.

PHILIPS HD2060 - Note - 1

natural_image Illustration of welding tools including a tool and a mug, with no visible text or symbols.

2 After the head unit cools down, remove the perforated flow cup. Rotate the perforated flow cup and remove it, as shown in the illustration. Take care of the sharp blade.

Diagram illustrating a mechanical or optical setup with labeled components 1 and 2, showing directional arrows indicating motion or flow.

3 Use a cleaning pad to remove the residue from the lower part of the head unit, overflow sensor, and the blade.

PHILIPS HD2060 - Note - 3

natural_image Illustration of a mechanical device with a drum and bucket, no text or symbols present

4 Use a dry cloth to clean the head unit handle, control panel, upper plug, upper plug connector, base, and power cord connector.

PHILIPS HD2060 - Note - 4

natural_image Four technical line drawings of mechanical components or clamps, shown in different angles (no text or symbols)

5 The outside of the chamber can be cleaned with a damp cloth.

Easy clean

• After processing is complete, if you cannot promptly clean the residue on the appliance, the residue will dry up and stick on the appliance, diffi cult to remove. As this happens, you can use the easy clean function to heat and soak the inner side of the chamber and clean the appliance easier.

  • To prevent the residue from smelling, clean the appliance within 10 hours after use.
    1 Make sure that the perforated flow cup is correctly installed before use.
    2 Pour water into the chamber. Make sure that the water level is between 上水位 (the maximum level indication) and 下水位 (the minimum level indication).
    3 Put the head unit into the chamber. Make sure that the upper plug is correctly inserted into the connector.
    4 Open the protective cover, insert the power cord, and connect the power.

→The indicators flash in a circle, indicating that the power is connected.

5 Press 易清洗 (Easy clean).

→ The 易清洗 (Easy clean) indicator lights up and 1 beep occurs, indicating that the easy clean function starts. After about 8 minutes, beeps occur and the 工作中 (Working) indicator lights up, indicating that the eay clean function is complete.

6 Clean the appliance as instructed in the "Cleaning" section.

8 Product information

PHILIPS HD2060 - Product information - 1

Note

- Product information is subject to change without prior notice.

  • Rated voltage: 220 V-
    • Rated frequency: 50 Hz
  • Motor power: 180 W
    • Heating power: 900 W
  • Dimensions (L × W × H)
  • Soymilk maker: 231.5 × 180.0 × 314.2 mm
    • Packaging: 230 × 230 × 345 mm

- Weight

  • Net weight: 2.45 kg
    • Gross weight: 3.07 kg

• Capacity: 1000-1200 ml (for 2-4 people)

9 Recycling

10 Guarantee and service

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

If you have a problem, need service or need information, see www.philips.com/support or contact the Philips Consumer Care Centre in your country. The phone number is 4008 800 008.

11 Troubleshooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, contact the Philips Consumer Care Centre in your country.

Problem Possible cause Solution
The indicators do not light up.The upper plug is not plugged correctly.Make sure that the head unit is put into the chamber correctly.
Too much ingredient is added.Put proper quantity of ingredient evenly at the bottom of the chamber as instructed.
There is water in the head unit or the indicators are broken.Contact the Philips Consumer Care Centre.
The indicators light up but the appliance does not work.You do not press 启动 (Start).Press 启动 (Start).
The power is disconnected during processing.Follow the instructions in this user manual.
The appliance is broken. Contact the Philips Consumer Care Centre.
Processing will not stop.The appliance is broken. Contact the Philips Consumer Care Centre.
The buttons do not work.The appliance is broken. Contact the Philips Consumer Care Centre.
The beans or rice is not ground well.The voltage is too low. Use a household power regulator.
Too many beans are added. Put proper quantity of ingredient as instructed in the "Use the appliance" section.
Insufficient water is added. Make sure that the water level is between 上水位 (the maximum level indication) and 下水位 (the minimum level indication).
The machine is broken.Contact the Philips Consumer Care Centre.
Problem Possible causeSolution
Overfl ow. A wrong function was selected. Select a correct function.
Problem Possible cause Solution
The beeps occur before soymilk is ready.Too much ingredient is added.Make sure that the water level is between 上水位 (the maximum level indication) and 下水位 (the minimum level indication).
The appliance is broken. Contact the Philips Consumer Care Centre.
The sea level of your region is too high.This appliance can only be used in regions no more than 2000 m above mean sea level.
The appliance begins stirring once you press any button.The appliance is broken. Contact the Philips Consumer Care Centre.

12 Recipes

For more recipes, you can visit Philips MyKitchen website www.philips.com/kitchen.

Soymilk

PHILIPS HD2060 - Soymilk - 1

Tip

- For details on cooking, see the "Make Soymilk" section.

Soymilk

  • Ingredients:
    • 75 g of dry soybeans (a full cup)
  • Benefits:
  • Soybean: Nourishing. Good for digestion. Helpful to reduce phlegm and control blood pressure.

Black soyean milk

  • Ingredients:
    • 85 g black soybeans (a full cup)
  • Benefits:
  • Black soybean: Good for the kidneys, lungs, and hair. Known for their detoxing properties.

Five grain soymilk

PHILIPS HD2060 - Five grain soymilk - 1

Tip

- For details on cooking, see the "Make fi ve-grain soymilk" section.

Classic fi ve-grain soymilk

  • Ingredients:
    • 15 g of soybeans (around 1/5 cup)
    • 20 g of rice (around 1/5 cup)
    • 20 g of millet (around 1/5 cup)
    • 15 g of oats (around 1/5 cup)
  • 10 g of wheat

- Cooking: Wash the ingredients and soak for 6 hours. For details, see the “Make fi ve-grain soymilk” section.

- Benefits:

  • Millet: Rich in female hormones. Good for skin and longevity.
  • Oat: Helpful to reduce cholesterol and control blood sugar.

Black rice and soybean milk

  • Ingredients:
  • 50 g of black rice (around 1/2 cup)
    • 30 g of soybeans (around 1/2 cup)
    • some black sesame seeds
  • some sugar

- Cooking: Wash the black rice and soybeans and soak for 6 hours. For details, see the “Make fi ve-grain soymilk” section.

- Benefits:

- Black rice: Good for the blood and complexion.

- Soybean: Good for digestion. Helpful to reduce phlegm and control blood pressure.

Rice and soybean milk

- Ingredients:

• 30 g of soybeans (around 1/2 cup)
- 50 g of rice (around 1/2 cup)
- some sugar

- Cooking: Wash the red beans and millet and soak for 6 hours. For details, see the “Make fi ve-grain soymilk” section.

- Benefits:

  • Rice: Good for the spleen, stomach, and lungs.
  • Soybean: Good for digestion. Helpful to reduce phlegm and control blood pressure.

Pumpkin soybean milk

- Ingredients:

• 35 g of soybeans (around 1/2 cup)
• 35 g of pumpkin (around 1/2 cup)

- Cooking: Wash the soybeans and soak for 6 hours. Remove the pumpkin skin and cut the pumpkin into 1.3-mm cubes. For details, see the “Make fi ve-grain soymilk” section.

- Benefits:

- Soybean: Good for digestion. Helpful to reduce phlegm and control blood pressure.

- Pumpkin: Detox. Helpful to control sugar levels and quench thirst.

Sweet potato and soybean milk

- Ingredients:

  • 40 g of sweet potato (around 1/2 cup)
    • 35 g of soybeans (around 1/2 cup)

- Cooking: Wash the soybeans and soak for 6 hours. Remove the sweet potato skin and cut the sweet potato into 1.3-mm cubes. For details, see the “Make fi ve-grain soymilk” section.

- Benefits:

  • Soybean: Good for digestion. Helpful to reduce phlegm and control blood pressure.
  • Sweet potato: Rich in nutrients. Helpful to increase appetite and strengthen the kidneys.

Foxnut and walnut paste

- Ingredients:

  • 50 g of foxnut (around 1/2 cup)
  • flesh of 10-15 walnuts
  • 5-10 Chinese dates (with stones removed)
  • some sugar

- Cooking: Wash the Chinese dates and foxnuts and soak for 6 hours. Chop Chinese dates and walnut flesh into small pieces. For details, see the “Make fi ve-grain soymilk” section.

- Benefits:

- Foxnut: Good for the kidneys. Helpful to relieve the nerves.

- Walnut flesh: Good for the kidneys, brain, lungs, and other respiratory organics.

- Chinese date: Good for the spleen, stomach, and respiratory organics. Helpful to enrich blood.

Mung bean and Job's-tears paste

- Ingredients:

• 35 g of Job's-tears (around 2/5 cup)
• 35 g of mung beans (around 2/5 cup)
• 20 g of rice (around (1/5 cup)
• 10 g of oats (around 1/5 cup)
- some sugar

- Cooking: Wash and the ingredients and soak the Job's-tears, mung beans, and rice for 6 hours. For details, see the “Make fi ve-grain soymilk” section.

- Benefits:

  • Mung bean: Diuretic. Good for eyes. Helpful to control blood pressure and prevent oedema.
  • Job's-tear: Helpful to reduce vascular disease, reduce cholesterol, and improve complexion.

Walnut and cashew paste

- Ingredients:

• 35 g of rice (around 2/5 cup)
• 35 g of millet (around 2/5 cup)
- flesh of 5 cashews
- flesh of 5 walnuts
• 5-10 Chinese dates (with stones removed)
- 5-10 longans (with stones removed)
- some sugar

- Cooking: Wash rice and millet and soak for 6 hours. Chop walnut flesh, Chinese dates, and longans into small pieces. For details, see the Make fi ve-grain soymilk" section.

- Benefits

  • Walnut flesh: Good for the kidneys, brain, lungs, and other respiratory organics.
  • Cashew: Good for the blood, brain, kidney, and spleen.
  • Chinese date: Good for the spleen, stomach, and respiratory organics. Helpful to enrich blood.
  • Longan: Good for the blood, heart, brain, and spleen.

Rice paste

PHILIPS HD2060 - Rice paste - 1

Tip

- For details on cooking, see the "Make rice paste" section.

Complete nutritious rice paste

- Ingredients:

• 35 g of rice (around 1/2 cup)
• 15 g of millet (around 1/5 cup)
• 10 g of black sesame seeds
• 10 peanuts (with shells removed)
- flesh of 5 walnuts
• 5 Chinese dates (with stones removed)

- Cooking: Wash rice and millet and soak for 6 hours. Chop walnut flesh into small pieces. For details, see the “Make rice paste” section.

- Benefits

- Millet: Rich in female hormones. Good for the skin and longevity.

- Black sesame seed: Good for the kidneys, liver, lungs, and blood.

  • Peanut: Good for the spleen and stomach.
  • Walnut flesh: Good for the kidneys, brain, lungs, and other respiratory organics.
  • Chinese date: Good for the spleen, stomach, and respiratory organics. Helpful to enrich blood.

Job's-tears and lily rice paste

- Ingredients:

• 35 g of Job's-tears (around 2/5 cup)
• 35 g of rice (around 2/5 cup)
- 20 g of fresh lily bulbs
- some sugar

- Cooking: Wash the Job's-tears and rice and soak for 6 hours. Wash and chop fresh lily bulbs into small pieces. For details, see the “Make rice paste” section.

- Benefits:

  • Job's-tear: Helpful to make the skin beautiful and fair.
  • Lily bulb: Helpful to make the skin beautiful and fair.

Yam and Chinese date rice paste

- Ingredients:

  • 50 g of rice (around 1/2 cup)
  • 30 g of yam
    • 5-10 Chinese dates (with stones removed)
  • some crystal sugar

- Cooking: Wash the Chinese dates and rice and soak for 6 hours. Remove the skin of the yam and cut the yam into 1.3-cm cubes. For details, see the “Make rice paste” section.

- Benefits:

  • Yam: Good for the spleen and stomach. Helpful to end diarrhea.
  • Chinese date: Good for the spleen, stomach, respiratory system, and blood.

Sweet potato and pumpkin rice paste

- Ingredients:

  • 30 g of sweet potato (around 1/2 cup)
    • 20 g of pumpkin (around 1/3 cup)
    • 35 g of rice (around 1/3 cup)
    • 35 g of millet (around 1/3 cup)

- Cooking: Wash millet and rice and soak for 6 hours. Remove the skin of sweet potato and pumpkin and cut them into 1.3-cm cubes. For details, see the “Make rice paste” section.

- Benefits:

  • Sweet potato: Rich in nutrients. Helpful to increase positive energy, improve appetite, and strengthen the kidneys.
  • Pumpkin: Helpful to increase positive energy, relieve pain, decrease toxicity, control sugar levels, and quench thirst.
  • Millet: Rich in female hormones. Good for skin and longevity.

Almond rice paste

- Ingredients:

  • 50 g of rice (around 1/2 cup)
  • 40 g of almonds
  • some crystal sugar

- Cooking: Wash rice and soak for 6 hours. For details, see the “Make rice paste” section.

- Benefits:

- Almond: Good for skin and complexion. Helpful to eliminate blemishes, freckles, and dark spots.

Juice

PHILIPS HD2060 - Juice - 1

Tip

- For details on cooking, see the "Make juice" section.

Banana milkshake

- Ingredients:

  • 400 g of banana
  • 300 ml of milk

- Cooking: Remove the skin of the bananas and cut them into 1.3-cm cubes. For details, see the “Make juice” section.

Cucumber juice

- Ingredients:

• One cucumber (around 200 g)

- Cooking: Cut the cucumber into 1.3-cm cubes. For details, see the "Make juice" section.

PHILIPS

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : PHILIPS

Model : HD2060

Category : Milk frother
