USER MANUAL Celviano AP-6 CASIO

Please keep all information for future reference.

Before trying to use the piano, be sure to read the separate "Safety Precautions".

Line drawing of a grand piano with keys and a keyboard (no text or symbols)

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Symbolic icon of a person pushing a large stack of objects inside a circle (no text or symbols)

1. Unplug this apparatus during lightning storms or when unused for long periods of time.

2. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

The power indicator being unlit does not mean the apparatus is completely disconnected from the MAINS.

When you need to have the apparatus completely disconnected from the MAINS, you must unplug the power cord. For that purpose, locate the apparatus in a way that secures easy access to the power cord.

Declaration of Conformity

Model Number: AP-620/AP-6

Trade Name: CASIO COMPUTER CO., LTD.

Responsible party: CASIO AMERICA, INC.

Address: 570 MT. PLEASANT AVENUE, DOVER, NEW JERSEY 07801

Telephone number: 973-361-5400

This device complies with Part 15 of the FCC Rules, Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER -SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

NOTICE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC WARNING

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

• Any reproduction of the contents of this manual, either in part or its entirety, is prohibited. Except for your own, personal use, any other use of the contents of this manual without the consent of CASIO is prohibited under copyright laws.
• IN NO EVENT SHALL CASIO BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFITS, BUSINESS INTERRUPTION, LOSS OF INFORMATION) ARISING OUT OF THE USE OF OR INABILITY TO USE THIS MANUAL OR PRODUCT, EVEN IF CASIO HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
  ● The contents of this manual are subject to change without notice.
• The actual appearance of the product may be different from that shown in the illustrations in this User's Guide.
  ● Company and product names used in this manual may be registered trademarks of others.

This mark applies in EU countries only.

Manufacturer:

CASIO COMPUTER CO.,LTD.

6-2, Hon-machi 1-chome, Shibuya-ku, Tokyo 151-8543, Japan

Responsible within the European Union:

CASIO EUROPE GmbH

This mark applies to the AP-620BKV and AP-6BPV.

Please keep all information for future reference.

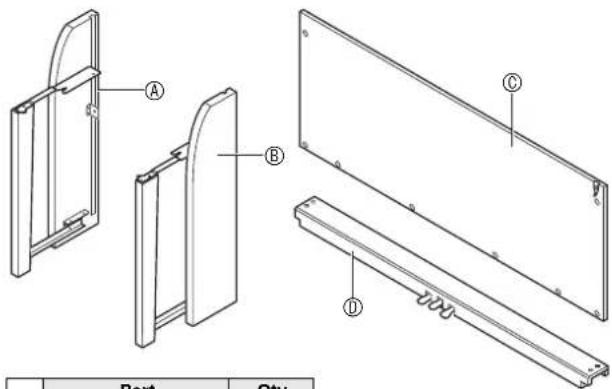

Assembling the Stand....E-56

Unpacking ....E-56

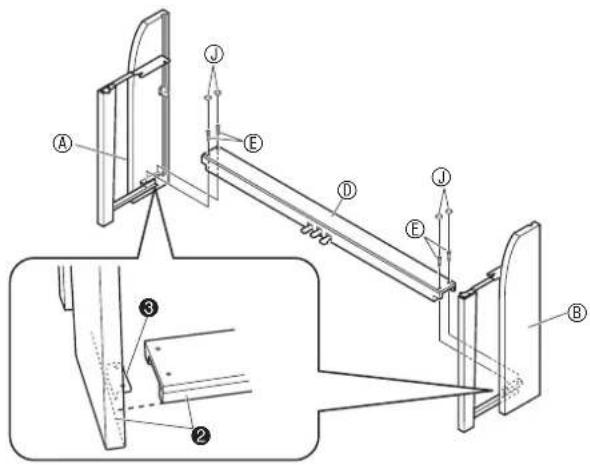

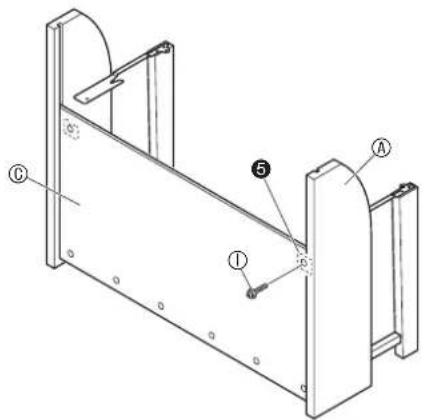

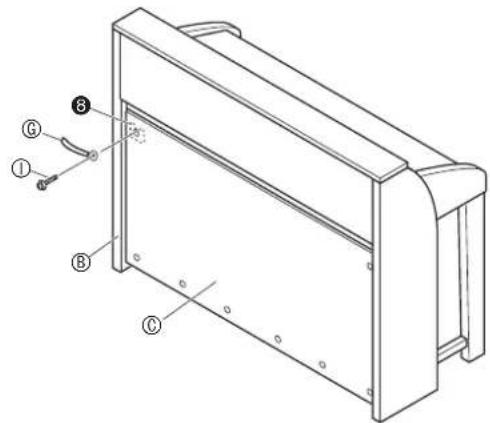

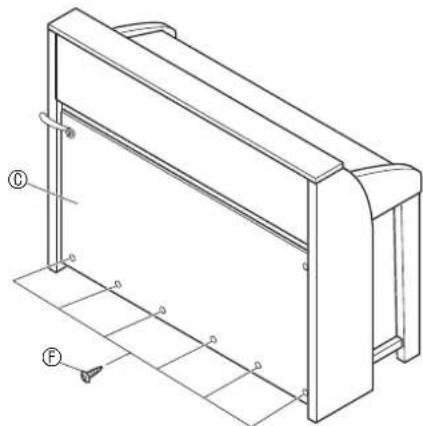

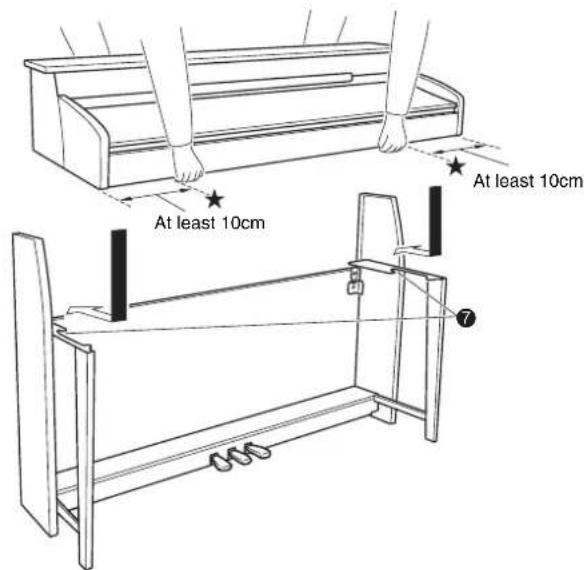

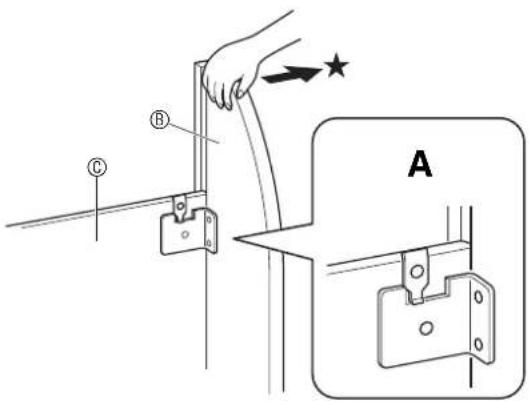

To assemble the stand.....E-56

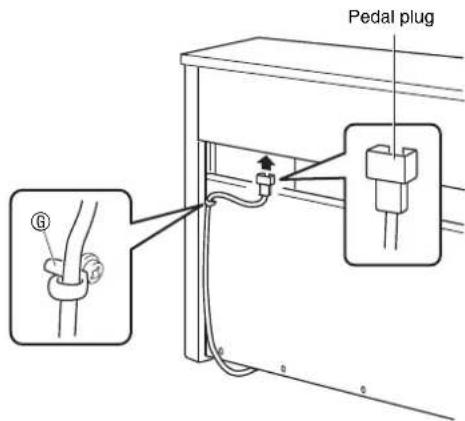

To connect cables ......E-59

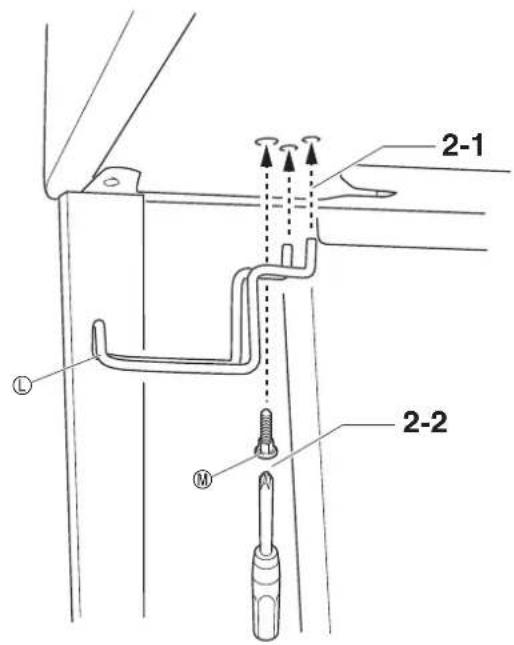

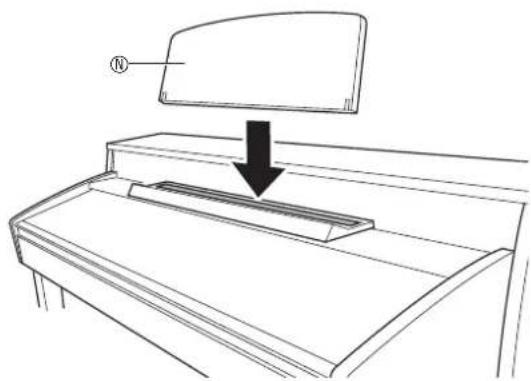

To install the music stand and headphones hook ......E-60

General Guide ......E-2

Saving Settings and Using Panel Lock E-4

Returning the Digital Piano to Its Factory Default Settings .... E-4

Power Supply.....E-5

Connections.....E-6

Connecting Headphones E-6

Connecting Audio Equipment or an Amplifier ...... E-6

Bundled and Optional Accessories E-7

Using Built-in Tones......E-8

Turning on the Digital Piano and Playing Something..... E-8

Selecting a Tone ...... E-8

Layering Two Tones E-9

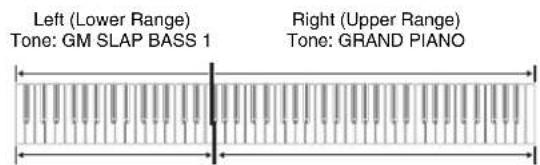

Splitting the Keyboard between Two Tones ...... E-10

Using Octave Shift E-11

Adjusting the Brilliance of a Tone ...... E-11

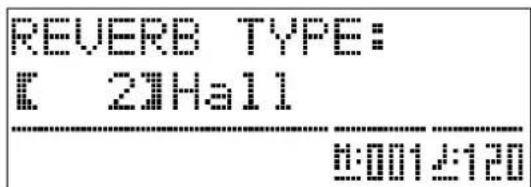

Adding Reverb to the Tone ...... E-12

Adding the Chorus Effect to the Tone.... E-12

Using the Digital Piano's Pedals ...... E-13

Using the Metronome.... E-13

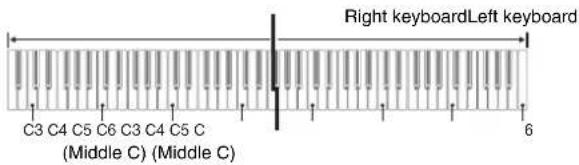

Playing a Duet.... E-14

Using Auto Accompaniment .....E-16

Playing an Auto Accompaniment ...... E-16

Using One-Touch Presets.... E-19

Using Auto Harmonize ...... E-19

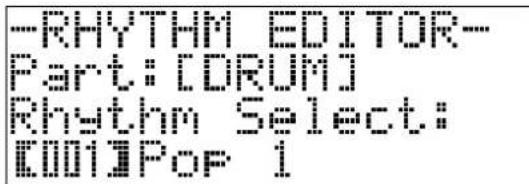

Creating Your Own Original Rhythms..... E-20

Playing Back Built-in Songs.....E-23

Playing Back All of the Built-in Songs ...... E-23

Playing Back a Specific Music Library Song.... E-24

Music Presets ......E-26

Selecting a Music Preset E-26

Creating an Original User Preset E-27

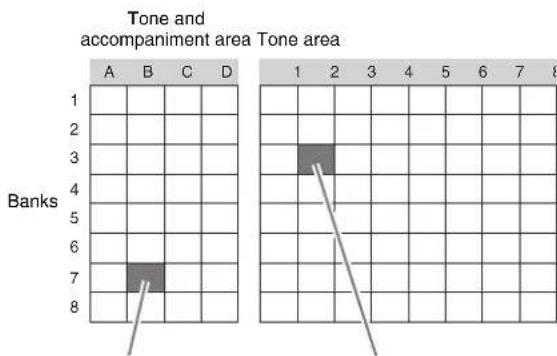

Registering Tone and

Rhythm Setups ......E-32

Saving Registration Data E-33

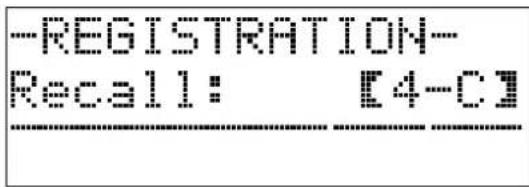

Recalling a Registration E-33

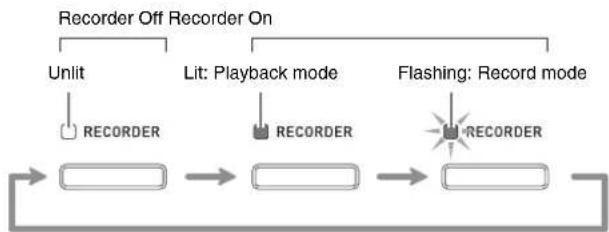

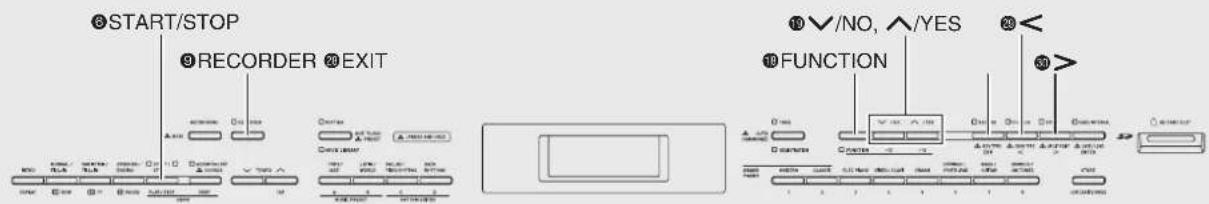

Recording Your

Keyboard Play E-34

Recording or Playing Back a Single Song ...... E-34

Recording or Playing Back Multiple Songs E-35

Recording to a Specific Track (Part) E-35

Deleting Recorder Data.... E-37

Re-recording Part of a Recorder Song

(Punch-in Recording) E-37

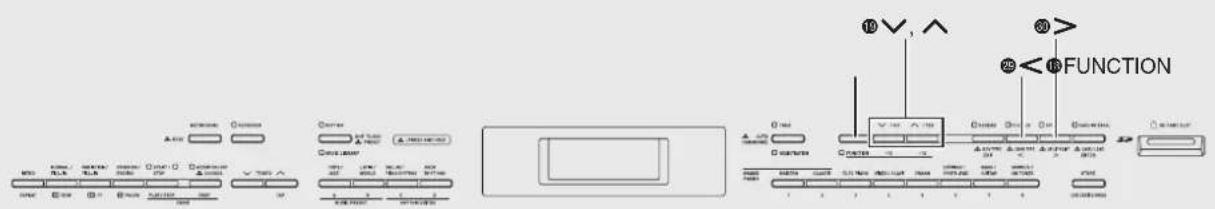

Other Settings ...... E-40

Configuring Settings..... E-40

Using a Memory Card ...... E-43

Loading and Removing a Memory Card .... E-44

Formatting a Memory Card ...... E-45

Saving Digital Piano Data to a Memory Card.... E-45

Loading Data from a Memory Card.... E-46

Deleting Memory Card Data.... E-47

Renaming a Memory Card File E-47

Playing Back a Song from a Memory Card ...... E-48

Saving Data to Digital Piano Memory (Internal Area)

Instead of a Memory Card.... E-49

Error Messages.... E-50

Connecting to a Computer...... E-51

Minimum Computer System Requirements ...... E-51

Connecting the Digital Piano to Your Computer .... E-51

Using MIDI E-52

Transferring Data between the Digital Piano

and a Computer E-52

Reference..... E-61

Troubleshooting E-61

Product Specifications.... E-62

Operating Precautions E-63

Appendix...... A-1

Tone List ...... A-1

Drum Assignment List A-3

Rhythm List A-4

Song List ...... A-6

Music Preset List.... A-7

Fingering Guide....A-9

Chord Example List.... A-10

MIDI Implementation Chart

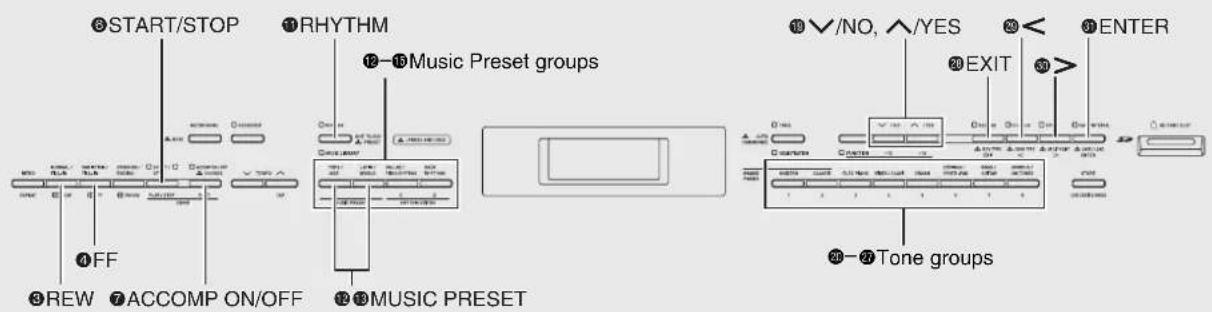

8 9 11 METR INOME RED ORDER BEAT RHO WM ONE TOUCH Preset PRESS AND HOLD MUSIC LIBRARY INTRO NORMAL / VARIATION / SYNCHRD / START / AEDMP ON / CHORDS RE CAT VIEW FF USE PLAY STOP PONT 2 3 4 5 6 12 13 14 15 7 10 TEMPD TAP POPS / LATIN / BALLAD / USER JAZZ WORLD ROLLAND RHYTHMS RUSIC PRESET RHYTHM EDITOR 16 34 17 18 29 30 31 19 AUTO HARMONIZE REGISTRATION FUNCTION -ND / YES REV RB CHUS SPI T CAR/INTERNAL REV TYPE CHOR TYPE SPLIT POINT SAVE/LOAD ENTER GRAND MODERN CLASSIC ELEC PIANO VIBES/CLAV ORGAN STRINGS/SYNTH-PAD BASS/VARIOUS/ PIANO GUITAR OM TONES STORE USB DEVICE MODE 20 21 22 23 24 25 26 27 32 33 SD CARD SLOT

Bottom 35 37 38 36 * 39 40 41 * With the AP-620BK and AP-6BP, the power cord is hard-wired to the Digital Piano.

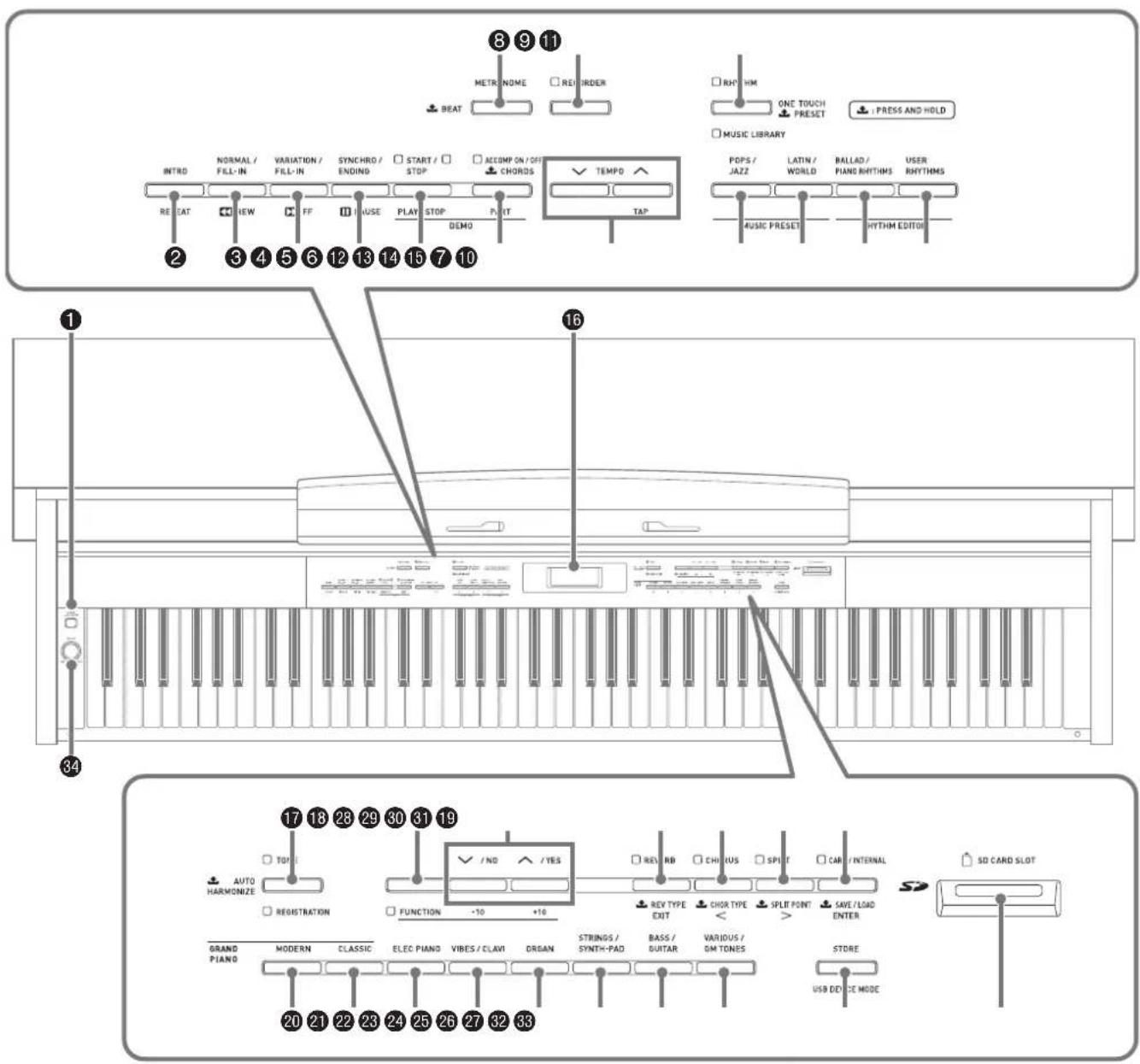

- This manual uses the numbers and names below to refer to buttons and controllers.

① POWER button

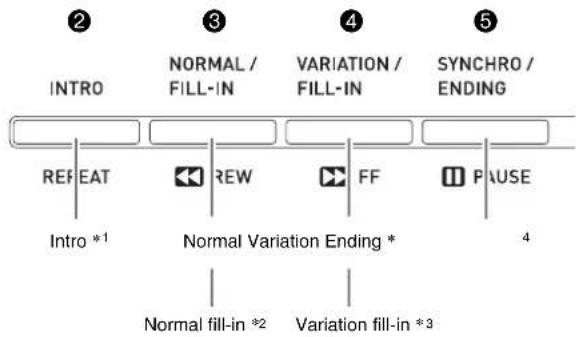

② INTRO/REPEAT button

③ NORMAL/FILL-IN, ◀REW button

④ VARIATION/FILL-IN, ▶FF button

⑤ SYNCHRO/ENDING, PAUSE button

⑥ START/STOP, PLAY/STOP button

⑦ ACCOMP ON/OFF, PART button

⑧ METRONOME button

⑨ RECORDER button

10 TEMPO buttons

③0 SPLIT, SPLIT POINT, > button

③1 CARD/INTERNAL, SAVE/LOAD, ENTER button

③2 STORE, USB DEVICE MODE button

33 SD CARD SLOT

34 VOLUME controller

35 PHONES jacks

36 AC power jack

37 USB port

38 MIDI OUT/IN terminals

39 LINE IN R, L/MONO jacks

40 LINE OUT R, L/MONO jacks

41 Pedal connector

Saving Settings and Using Panel Lock

Your Digital Piano lets you save its current settings, and lock its buttons to protect against operation errors. For details, see "Setting Backup" (page E-42) and "Panel Lock" (page E-42).

Returning the Digital Piano to Its Factory Default Settings

Perform the following procedure when you want to return the Digital Piano's stored data and settings to their initial factory defaults.

1. Turn off the Digital Piano.
2. While holding down both the ⑰ (TONE) and ⑱ (FUNCTION) buttons, press the ⑪ (POWER) button.

The Digital Piano will turn on and initialize its internal system. You will be able to use the Digital Piano in a short while.

NOTE

- See "Turning on the Digital Piano and Playing Something" (page E-8) for information about turning digital power on and off.

Power Supply

Your Digital Piano runs on standard household power.

IMPORTANT!

- Be sure to turn off power whenever you are not using the Digital Piano.

Placing the cover on the Digital Piano while power is on can cause internal circuitry to over heat and lead to the risk of fire.

1. Make sure that the POWER button is in the OFF position (raised).

POWER button POWER ON OFF ON (Power lamp on) OFF (Power lamp off) Front Power lamp

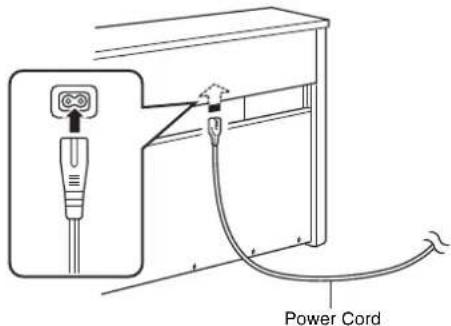

1. Connect the power cord that comes with the Digital Piano to the AC power jack on the bottom of the Digital Piano.*

* applies to the AP-620BKV and AP-6BPV

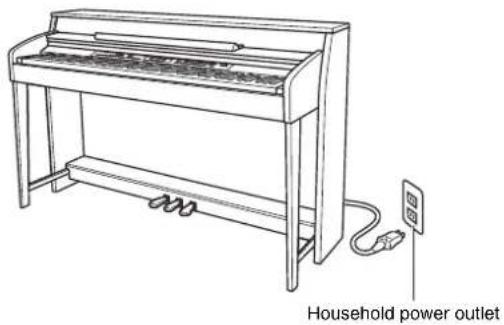

1. Plug the power cord into a household power outlet.

IMPORTANT!

- Always make sure that the POWER button is the OFF position before plugging in or unplugging the power cord.

- The shape of the power cord plug and household power outlet receptacle differ according to country and geographical area. The illustration shows just one example of the shapes that are available.

● Make sure the power lamp is completely turned off before unplugging the power cord from the power outlet. Be sure to read and observe all of the safety precautions concerning power supply.

Connecting Headphones

IMPORTANT!

• Before connecting headphones, be sure to use the Digital Piano's VOLUME controller to turn the volume down to a low level. After connecting, you can adjust the volume to the level you want.
• The Digital Piano automatically adjusts sound output to optimize for headphones (when headphones are connected) or the built-in speakers (when headphones are not connected).

Bottom

PHONES jacks Stereo standard plug

Connect commercially available headphones to the PHONES jacks. Connecting headphones to either of the PHONES jack cuts off output to the speakers, which means you can practice even late at night without bothering others. To protect your hearing, make sure that you do not set the volume level too high when using headphones.

NOTE

• Be sure to push the headphones plug into the PHONES jacks as far as it will go. If you don't, you may hear sound from only one side of the headphones.
• If the plug of the headphones you are using does not match the PHONES jacks, use the applicable commercially available adaptor plug.
• If you are using headphones that require an adaptor plug, make sure you do not leave the adaptor plugged in when you unplug the headphones. If you do, nothing will sound from the speakers when you play.

Connecting Audio Equipment or an Amplifier

You can connect audio equipment or a music amplifier to the Digital Piano and then play through external speakers for more powerful volume and better sound quality.

IMPORTANT!

• The Digital Piano automatically adjusts sound output to optimize for headphone output (when headphones are connected) or built-in speaker output (when headphones are not connected). This also will cause a change in the output quality from the Digital Piano's LINE OUT R and L/MONO jacks.
• Whenever connecting a device to the Digital Piano, first use the VOLUME controller to set the volume to a low level. After connecting, you can adjust the volume to the level you want.
• Whenever you connect any device to the Digital Piano, be sure to read the user documentation that comes with the device.

Playing Output from External Equipment through the Piano's Speakers

Use commercially available cables to connect the external audio equipment to the piano's LINE IN jacks as shown in Figure Ⅱ.

LINE IN R jack input sounds through the piano's right speaker, while LINE IN L/MONO jack input sounds through the left speaker. Connecting to the LINE IN L/MONO jack only causes the same output to be produced from both speakers. It is up to you to purchase connecting cables that are compatible with the equipment you are connecting.

Connecting to Audio Equipment ②

Use commercially available cables to connect the external audio equipment to the piano's LINE OUT jacks as shown in Figure ②. LINE OUT R jack output is right channel sound, while LINE OUT L/MONO jack output is left channel sound. It is up to you to purchase connecting cables like the ones shown in the illustration for connection of audio equipment. Normally in this configuration you must set the audio equipment's input selector to the setting that specifies the terminal (such as AUX IN) to which the piano is connected. Use the piano's VOLUME controller to adjust the volume level.

Connecting to a Musical Instrument Amplifier ③

Use commercially available cables to connect the amplifier to the piano's LINE OUT jacks as shown in Figure ③. LINE OUT R jack output is right channel sound, while LINE OUT L/MONO jack output is left channel sound. Connecting to the LINE OUT L/MONO jack only outputs a mixture of both channels. It is up to you to purchase connecting cable like the one shown in the illustration for connection of the amplifier. Use the piano's VOLUME controller to adjust the volume level.

Bundled and Optional Accessories

Use only accessories that are specified for use with this Digital Piano.

Use of unauthorized accessories creates the risk of fire, electric shock, and personal injury.

NOTE

- You can get information about accessories that are sold separately for this product from the CASIO catalog available from your retailer, and from the CASIO website at the following URL. http://world.casio.com/

Using Built-in Tones

⑧METRONOME ⑪MUSIC LIBRARY ⑦PART ⑩TEMPO ⑰TONE ⑲CHORUS, < ⑳SPLIT, >⑰FUNCTION ⑴ENTER ⑫—⑳Tone groups

Turning on the Digital Piano and Playing Something

1. Press the ① (POWER) button.

This turns on power.

- To turn off the Digital Piano, press the ① button again.

Left Side

① button

1. After a short while, the display screen should appear as shown below, which indicates that the Digital Piano is ready to be played.

GrPianoModrn Pop 1 0012:120

1. Use the ③4 (VOLUME) controller to adjust the volume level.
2. Play something on the keyboard.

Selecting a Tone

Your Digital Piano has 250 tones, divided into eight groups.

• For more information, see the "Tone List" (page A-1).

• The Digital Piano has built-in demonstration tunes that highlight the different characteristics of tones. For more information, see “Playing Back All of the Built-in Songs” (page E-23).

• Press the ⑰ (TONE) button so its upper lamp is lit.

• Each press of the button toggles between the upper and lower lamps.

IMPORTANT!

- Continuing on to the next step while the REGISTRATION lamp is lit will perform a registration recall operation (page E-32), which will change the setup of the Digital Piano. Make sure that the TONE lamp is lit before you advance to the next step.

1. Use the "Tone List" (page A-1) to look up the group and the number of the tone you want to select.

3. Use the 20 to 27 (tone groups) buttons to select the group you want.

Example: To select the ORGAN group

GRAND PIANO MODERN CLASSIC ELEC PIANO VIBES / CLAVI ORGAN STRINGS / SYNTH-PAD BASS / GUITAR VARIOUS / GM TONES 1 2 3 4 5 6 7 8 Lit

4. Use the 19 (√, ∧) buttons to select the tone you want.

Example: To select "002 Jazz Organ"

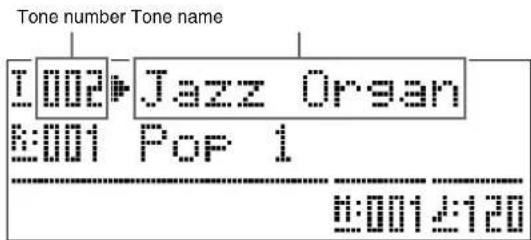

Tone number Tone name I:002 Jazz Organ E:001 Pop 1 E:001 E:120

NOTE

• Pressing ∧ and ∨ at the same time will jump to tone 001 of the currently selected group. Holding down either button changes the tone number at high speed.
  • See page E-40 for more information about scrolling.

Layering Two Tones

You can layer two different tones so they play at the same time when you press a keyboard key.

- The first tone you select is called the "main tone," while the second tone is called the "layered tone."

1. Select the main tone.

Example: To select MELLOW PIANO in the CLASSIC group, press the 21 (CLASSIC) button and then use the 19 (√, ∧) buttons to select "002 Mellow Piano".

2. Hold down the button of the group that contains the tone you want to select as the layered tone until "LAYER: ON" appears on the display as shown below for a few moments.

This will layer the tones currently selected in the two groups.

LAYER: [ON] 0:0012:120

The button you held down in step 2 will light to indicate that it is selected.

Example: When BASS/GUITAR group is selected

BRAND PIANO MODERN CLASSIC ELECT PIANO VIBES / CLAVI DRIGAN STRINGS / SYNTH-PAD BASS / GUITAR VARIOUS / 5M TONES 1 2 3 4 5 6 8 Lit

3. Use the 19 (√, ∧) buttons to select the tone you want in the group you selected in step 2.

Example: When "006 Picked Bass" is selected

Layered tone number Layered tone name 1:006 Picked Bass E:001 Pop 1 E:001 E:120

4. To unlayer the tones and return the keyboard to a single tone, press any one of the tone group buttons.

NOTE

- You can adjust the balance between the main tone and layered tone. For details, see "Layer Balance" (page E-41).

Splitting the Keyboard between Two Tones

You can split the keyboard so the left side (lower range) plays one tone and the right side (upper range) plays a different tone.

Example: To split the keyboard between the GM SLAP BASS 1 tone on the left (lower range) and the GRAND PIANO tone on the right (upper range).

Left (Lower Range) Tone: GM SLAP BASS 1 Right (Upper Range) Tone: GRAND PIANO

1. Press the 30 (SPLIT) button.

This causes the SPLIT lamp to light, indicating that the keyboard is split between two tones.

Lit REVERB CHORUS SPLIT CARD / INTERNAL REV TYPE EXIT CHOR TYPE SPLIT POINT SAVE / LOAD ENTER >< >

2. Select the tone you want to assign to the left side (lower range) of the keyboard.

Example: To select GM SLAP BASS 1 in the VARIOUS/GM TONES group, press the 27 (VARIOUS/GM TONES) button and then use the 19 (√, ∧) buttons to select "073 GM SlapBass1".

GRAND PIANO MODERN CLASSIC ELECT PIANO VIBES / CLAVE ORGAN STRINGS / SYNTH-PAD BASS / GUITAR VARIOUS / GM TONES 1 2 3 4 5 4 7 Lit Left tone number GM SlapBass1 8:001 Pop 1 8:001:120

3. To unsplit the keyboard and return it to a single tone, press the ③0 (SPLIT) button.

The SPLIT lamp will go out, indicating that the keyboard is no longer split.

NOTE

- If the keyboard is set up with layered tones (page E-9) when you perform the above split operation, the layered tones will play on the right (upper range) side of the keyboard.

Moving the Keyboard Split Point

You can use the procedure below to specify the location on the keyboard where it splits between the left side and the right side. That location is called the "split point".

Left (Lower Range) side Right (Upper Range) side Split point

1. Hold down the 30 (SPLIT) button until the split point setting screen appears on the display as shown below.

SPLIT POINT: F#3 0:000:120 Current split point key name

1. Press the keyboard key where you want to specify as the leftmost key of the right (upper range) tone.

This specifies the split point.

1. Press the ③0 (SPLIT) button.

This exits the split point screen.

Using Octave Shift

After you split the keyboard (page E-10), you may find out that the lower range notes on the left are too low or that the upper range notes on the right are too high. You can use octave shift to shift the octaves of the upper range and lower range upwards or downwards in octave units.

1. While holding down the ⑱ (FUNCTION) button, press the ⑰ (TONE) button.

This displays the octave shift screen.

-FUNCTION- OctShift:U1[ Q1] Currently selected range Shift amount

1. Use the ⑦ (PART) button to select the range whose octave you want to change.

• Each press of ⑦ (PART) cycles through the ranges below.

1. Use the 19 (√, ∧) buttons to shift the octave of the currently selected range.

- You can shift the octave within the range of -2 to 0 to 2.

1. Press the 18 (FUNCTION) button.

This exits the octave shift screen.

- Octave shift also can be performed as described for "Octave Shift" (page E-41).

Adjusting the Brilliance of a Tone

1. Press the ⑱ (FUNCTION) button.

The FUNCTION lamp will light and the function screen will appear on the display.

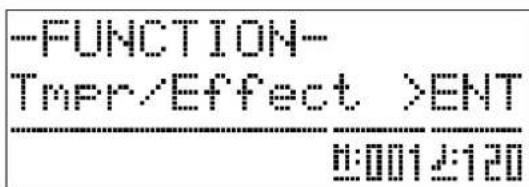

✓ /NO ↑ /YES FUNCTION -10 +10 Lit

1. Use the 30 (>) and 29 (<) buttons to select the Tmpr/Effect screen.

-FUNCTION- Tmpr/Effect >ENT 0:001±120

1. Press the ③1 (ENTER) button.

This will display a screen for selecting settings in the Tmpr/Effect group.

1. Use the 30 (>) or 29 (<) button to select the brilliance screen shown below.

=Tmpr/Effect= Brilliance:[ 0] 0:001±120

1. Use the 19 (√, ∧) buttons to adjust the brilliance of the currently selected tone. You can adjust brilliance in the range of -3 to 0 to 3.

√: Mellower and softer ^: Brighter and harder

1. Press the 18 (FUNCTION) button.

This will exit the brilliance screen and cause the FUNCTION lamp to go out.

- See "Other Settings" (page E-40) for details about using the 18 (FUNCTION) button.

Adding Reverb to the Tone

1. Press the 28 (REVERB) button to toggle reverb on and off.

Lit when on REVERB CHORUS SPLIT CARD / INTERNAL REV TYPE CHOR TYPE SPLIT POINT SAVE / LOAD EXIT < > ENTER

Selecting the Reverb Type

You can select from among the following four types of reverb.

1: Room
2: Hall
3: Large Hall
4: Stadium

1. Hold down the 28 (REVERB) button until the reverb type selection screen shown below appears on the display.

REVERB TYPE: E 23Ha11 0:001:120

1. Use the 19 (√, ∧) buttons to select the reverb type you want.
2. Press the 26 (REVERB) button to exit the reverb type screen.

Adding the Chorus Effect to the Tone

1. Press the 29 (CHORUS) button to toggle chorus (which adds depth to a tone) on and off.

Lit when on REVERB CHORUS SPLIT CARD / INTERNAL REV TYPE CHOR TYPE SPLIT POINT SAVE / LOAD EXIT < > ENTER

Selecting the Chorus Type

You can select from among the following four chorus types.

1: LightChorus
2: Chorus
3: Deep Chorus
4: Flanger

1. Hold down the 29 (CHORUS) button until the chorus type selection screen shown below appears on the display.

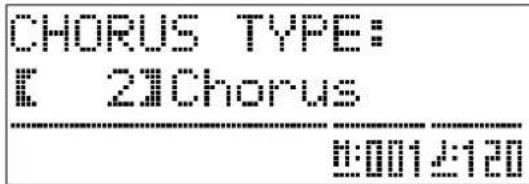

CHORUS TYPE: I: 21Chorus 0:0014:120

1. Use the 19 (√, ∧) buttons to select the chorus type you want.
2. Press the 29 (CHORUS) button to exit the chorus type screen.

Using the Digital Piano's Pedals

Your Digital Piano comes equipped with three pedals: damper, soft, and sostenuto.

Soft pedal Damper pedal Sostenuto pedal

Pedal Functions

- Damper Pedal

Pressing the damper pedal while playing will cause the notes you play to reverberate for a very long time.

- When a GRAND PIANO tone (MODERN, CLASSIC, VARIATION) is selected as the tone, pressing this pedal will cause notes to reverberate (acoustic resonance) just like the damper pedal on an acoustic grand piano. Half-pedal operation (pressing the pedal part way) is also supported.

- Soft Pedal

Pressing this pedal while playing suppresses notes played on the keyboard after the pedal was pressed, and makes them sound softer.

- Sostenuto Pedal

Only the notes of the keys that are depressed when this pedal is pressed are sustained until the pedal is released.

Using the Metronome

1. Press the ⑧ (METRONOME) button. This will start the metronome.

METRONOME BEAT START / STOP ACCOMP ON / CHORDS ³LAY / STOP PART DEMO Lights with the first beat of each measure Lights with each subsequent beat of each measure

1. Press the ⑧ (METRONOME) button again to stop the metronome.

Changing the Beats Per Measure

You can specify from two to six beats per measure for the metronome. After you do, a chime will sound at the beginning of each measure. Specifying 0 for this setting will sound a straight beat, without a chime. This setting lets you practice with a steady beat.

1. Hold down the ⑧ (METRONOME) button until the number of beats per measure screen shown below appears on the display.

METRONOME BEAT: [ 4]

1. Use the 19 (√, ∧) buttons to select the beats per measure value you want.

2. Press the ⑧ (METRONOME) button to exit the number of beats per measure screen.

Changing the Tempo Setting

There are two different methods you can use to change the tempo setting: by pressing ▲ (faster) and √ (slower) buttons or by tapping a beat with a button.

■ To adjust the tempo using ∧ and ∨ buttons

1. Use the ⑩ (TEMPO ∨, ∧) buttons to adjust the tempo setting.

Each press of a button increases or decreases the beats per minute value by one.

• Holding down either button changes the value at high speed.
• You can specify a tempo value in the range of 20 to 255.

GrPianoModrn Pop 1 0:0012120 Tempo value

■To adjust the tempo by tapping a beat

1. While holding down the ⑬ (FUNCTION) button, tap the ^ ⑩ (TEMPO) button four times in time with the beat you want to specify.

• The tempo setting will change in accordance with the timing of your tapping.
• After you use this method to specify the approximate tempo, you can then use the procedure under "To adjust the tempo using and buttons" to adjust the setting to a more exact value.

Tap four times EMPO TAP ✓ / NO ✓ / YES □ FUNCTID -10 +10

Adjusting the Metronome Volume

You can use the following procedure to adjust the volume level of the metronome, without affecting the volume of Digital Piano output.

1. While holding down the ⑬ (FUNCTION) button, press the ⑧ (METRONOME) button. This displays the metronome volume screen.

=Volume= MetroVol.: [ 36 ] 0:0012 120 Metronome volume

1. Use the 19 (√, ∧) buttons to adjust the metronome volume.

2. Press the 18 (FUNCTION) button. This will exit the metronome volume screen and cause the FUNCTION lamp to go out.

NOTE

- You also can use the procedure under "Metronome Volume" (page E-41) to adjust the metronome volume.

Playing a Duet

You can use the Duet Mode to split the Digital Piano's keyboard in the center so two people can play a duet. This makes it possible to configure the keyboard so, for example, the teacher can play on the left and the student can follow along on the right. Or one person can play the left hand part on the left, while another plays the right hand part on the right.

Right keyboardLeft keyboard C3 C4 C5 C6 C3 C4 C5 C (Middle C) (Middle C) 6

Pedal Operation when Playing a Duet

Left keyboard damper pedal Right side damper pedal (Half-pedal operation supported) Left and right side damper pedal

Configuring the Digital Piano for Duet Play

1. Press the Ⓤ (MUSIC LIBRARY) button so its lower lamp is lit.

• To practice with songs stored on a memory card, press the 31 (CARD/INTERNAL) button so its lamp is lit in place of the 11 (MUSIC LIBRARY) button.

1. While holding down the 18 (FUNCTION) button, press the 30 (SPLIT) button.

This causes the Duet Mode on/off screen to appear.

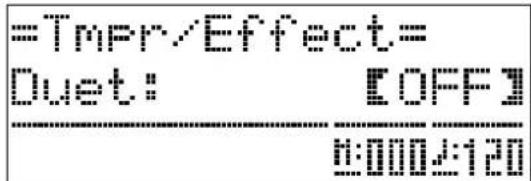

=TMPR/Effect= Duet! [OFF] ----------------------------- 0:0002:120

1. Press the 19 (∧) button to turn on the Duet Mode.

2. Press the 18 (FUNCTION) button.

This exits the Duet Mode on/off screen and configures the Digital Piano's keyboard for duet play. This will cause the ③0 (SPLIT) button lamp to flash.

1. To turn off the Duet Mode, press the 30 (SPLIT) button so the SPLIT lamp goes out.

NOTE

- You also can use the procedure under "Duet Mode" (page E-41) to turn the Duet Mode on or off.

Changing the Octave of a Duet Mode Keyboard

You can use the following procedure to change the octave of the left and right Duet Mode keyboards.

1. While holding down the ⑱ (FUNCTION) button, press the ⑲ (SPLIT) button.

This displays the Duet Mode on/off screen shown in step 2 under "Configuring the Digital Piano for Duet Play" (page E-15). If the Duet Mode is currently turned off, press the 19 (∧) button to turn it on.

1. Of the four C keys in the left keyboard, press the one that you want to have located at middle C.

- This will sound the note assigned to C4 and change the octave of the left keyboard.

Example: To change the configuration so the leftmost C key is middle C as shown below.

Leftmost C key (Pressed key)

C4 C5 C6 C7 C3 C4 C5 C6

1 octave higher than initial setting Unchanged

1. You can use the same procedure as step 2 to select one of the C keys in the right keyboard to shift its octave as well.

2. Press the 18 (FUNCTION) button.

This exits the Duet Mode on/off screen and causes the 18 (FUNCTION) button lamp to go out.

The left and right keyboards will be configured according to your settings.

NOTE

- Turning off the Duet Mode will clear your octave shift settings and return the keyboard to its initial default settings.

Using Auto Accompaniment

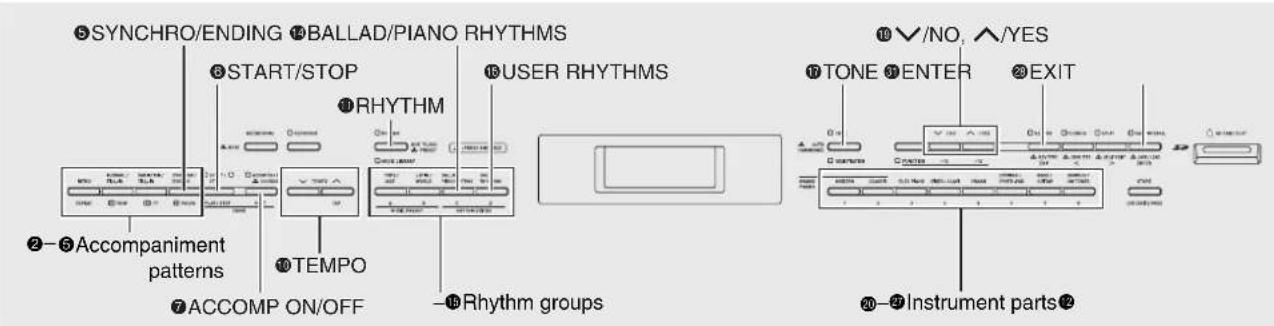

⑤SYNCHRO/ENDING ⑭BALLAD/PIANO RHYTHMS ⑧START/STOP ⑪RHYTHM ⑫ACCOMPONENT patterns ⑰TEMPO ⑦ACCOMP ON/OFF ⑯USER RHYTHMS -⑯Rhythm groups ⑰VNO, ^/YES ⑰TONE ENTER ⑳EXIT ⑳Instrument parts

With Auto Accompaniment, simply select the accompaniment rhythm you want and the matching accompaniment (drums, guitar, etc.) will play automatically when you play a chord with your left hand. It's like having your own personal backup group along with you wherever you go.

This Digital Piano has 180 built-in Auto Accompaniment patterns, which are divided into three groups. You can edit built-in rhythms to create your own original rhythms (called "user rhythms"), which you can save in a fourth group. For more information, see the "Rhythm List" (page A-4).

Playing an Auto Accompaniment

1. Press the ⑪ (RHYTHM) button so its upper lamp is lit.

This enables Auto Accompaniment.

• Each press of the button toggles between the RHYTHM and MUSIC LIBRARY lamps.

1. Use the "Rhythm List" (page A-4) to look up the group and the number of the rhythm you want to select.

2. Use the 12 to 15 (rhythm groups) buttons to select the group you want.

Example: When the LATIN/WORLD group is selected

POPS / JAZZ LATIN / WORLD BALLAD / PIANO RHYTHMS USER RHYTHMS A C D MUSIC PRESET RHYTHM EDITOR Lit

1. Use the 19 (√, ∧) buttons to select the rhythm you want.

Example: When "005 Samba 2" is selected

1:001 GrPianoModrn 5:005 Samba 2 Rhythm number Rhythm name Measure Tempo

1. Use the 10 (TEMPO ∨, ∧) buttons to adjust the tempo setting.

2. This is the same as metronome tempo adjustment (page E-14).

3. To return the rhythm to its standard tempo setting, press the 10 (TEMPO ∨, ∧) buttons at the same time.

6. Press the ⑦ (ACCOMP ON/OFF) button so its lamp is lit.

This turns ACCOMP on, so all accompaniment parts sound.

• Turning ACCOMP off so the ACCOMP lamp is unlit causes only the percussion instrument parts to sound.
  • Each press of the ⑦ (ACCOMP ON/OFF) button toggles ACCOMP on and off.

7. Press the ⑤ (SYNCHRO/ENDING) button.

This puts Auto Accompaniment into "synchro standby". Playing a chord during synchro standby will cause Auto Accompaniment to start to play automatically.

- Pressing the ② (INTRO) button while Auto Accompaniment is in synchro standby will enter intro standby. Pressing the ④ (VARIATION) button will enter variation standby. For details about intro and variation patterns, see "Modifying Auto Accompaniment Patterns" (page E-19).

INTRO NORMAL / FILL-IN VARIATION / FILL-IN SYNCHRO / ENDING FLASHING START / STOP REPEAT REW FF PAUSE PLAY / STOP

8. Play the chord you want on the chord keyboard (left keyboard keys).

Auto Accompaniment will start playing when you play the chord.

- To start percussion part play without playing a chord, press the ⑥ (START/STOP) button.

Example: To play a C chord

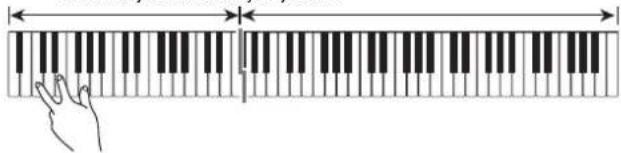

Chord keyboard Melody keyboard

Diagram showing a hand typing on a piano keyboard with measurement arrows indicating length and width.

9. Play other chords with left hand as you play the melody with your right hand.

- You can use "CASIO Chord" or other simplified chord fingering modes to play chords. For details, see "Selecting a Chord Fingering Mode" in the following section. - You can use the ③ (NORMAL) and ④ (VARIATION) buttons to modify accompaniment patterns. For details, see "Modifying Auto Accompaniment Patterns" (page E-19).

10. When you are finished, press the ⑥ (START/STOP) button again to stop Auto Accompaniment.

- Pressing the ⑤ (SYNCHRO/ENDING) button instead of the ⑥ (START/STOP) button will play an ending pattern before stopping Auto Accompaniment play. For details about ending patterns, see "Modifying Auto Accompaniment Patterns" (page E-19).

NOTE

• You can use the following procedure to adjust the volume level of the Auto Accompaniment, without affecting the volume of Digital Piano output. For details, see "Auto Accompaniment Volume" (page E-41).
• You can change the size of the chord keyboard by using the split feature to move the split point (page E-10). The keyboard keys to the left of the split point make up the chord keyboard.

Selecting a Chord Fingering Mode

You can select from among the following five chord fingering modes.

1: Fingered 1
2: Fingered 2
3: Fingered 3
4: CASIO Chord
5: Full Range

1. Hold down the ⑦ (ACCOMP ON/OFF) button until the chord type selection screen appears on the display.

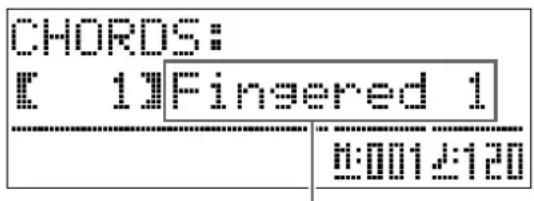

CHORDS: 11Fingered 1 0:0012:120

Chord fingering mode

1. Use the 19 (√, ∧) buttons to select the chord fingering mode you want.
2. Press the ⑦ (ACCOMP ON/OFF) button.

This exits the chord fingering screen.

■Fingered 1, 2, 3

With these three chord fingering modes, you play chords on the chord keyboard using their normal chord fingerings. Some chord forms are abbreviated, and can be fingered with one or two keys.

For information about the types of chords you can finger and their fingerings, see the "Fingering Guide" (page A-9).

Chord keyboard

Fingered 1: Play the component notes of the chord on the keyboard.

Fingered 2: Unlike Fingered 1, 6th input is not possible with this mode.
Fingered 3: Unlike Fingered 1, this mode allows input of fraction chords with the lowest keyboard note as the bass note.

■CASIO CHORD

With "CASIO Chord", you can use simplified fingerings to play the four types of chords described below.

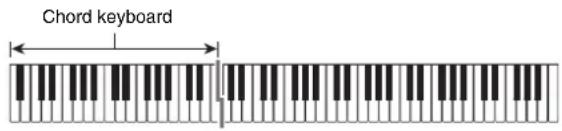

Chord keyboard

Chord Type Example
Major ChordsPress one key, whose note corresponds to the chord name.• To play C Major, press any C key in the chord keyboard. The octave of the note does not matter.	C (C Major)Note name
Minor ChordsPress the chord keyboard key that corresponds to the major chord, while also pressing one other chord keyboard key to the right.	Cm (C minor)
Seventh ChordsPress the chord keyboard key that corresponds to the major chord, while also pressing two other chord keyboard keys to the right.	C7 (C seventh)
Minor Seventh ChordsPress the chord keyboard key that corresponds to the major chord, while also pressing three other chord keyboard keys to the right.	Cm7 (C minor seventh)

When pressing more than one chord keyboard key, makes no difference whether the additional keys are white or black.

■FULL RANGE CHORD

With this chord fingering mode, you can use the full range of the keyboard to play chords and the melody. For information about the types of chords you can finger and their fingerings, see the "Fingering Guide" (page A-9).

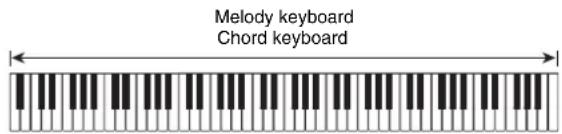

Melody keyboard Chord keyboard

Modifying Auto Accompaniment Patterns

There are six different Auto Accompaniment patterns, shown below. You can switch between patterns during accompaniment play and even modify patterns. Use buttons ② through ⑤ to select the pattern you want.

*1 Press at the beginning of a song. Accompaniment play proceeds with the normal pattern after the intro pattern is complete. Pressing the ④ (VARIATION/FILL-IN) button before pressing this button will proceed with the variation pattern after the intro pattern is complete.
*2 Press while a normal pattern is playing to insert a fill-in pattern.
*3 Press while a variation pattern is playing to insert a fill-in variation pattern.
*4 Press at the end of a song. This will play an ending pattern and then stop Auto Accompaniment.

Using One-Touch Presets

One-Touch Preset gives you one-touch access to tone and tempo settings that go well with the currently selected Auto Accompaniment rhythm pattern.

1. Hold down the ⑪ (RHYTHM) button for at least two seconds. This will configure tone, tempo, and other settings to match the currently selected rhythm pattern. At this time, Auto Accompaniment play also will go into synchro standby, which means that Auto Accompaniment will start to play automatically when you finger a chord.
2. Play a chord on the keyboard.

This will start Auto Accompaniment play.

NOTE

- One-Touch Presets are not supported for user rhythms (001 through 010 of the USER RHYTHMS group).

Using Auto Harmonize

Auto Harmonize lets you add harmony to melody notes you play with your right hand. You can select any one of 12 Auto Harmonize settings.

1. Press the ⑰ (TONE) button so its lamp is lit.

1. Hold down the ⑰ (TONE) button until the auto harmonize screen appears on the display.

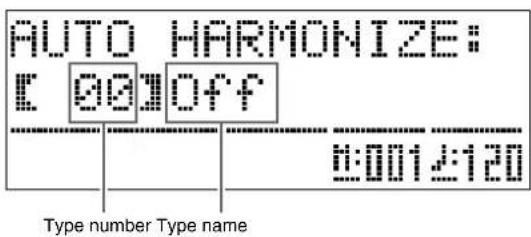

AUTO HARMONIZE: OFF 0:001±120 Type number Type name

3. Use the 19 (√, ∧) buttons to select the Auto Harmonize type you want.

Type Number	Type Name Description
00 Off	Turns off Auto Harmonize.
01 Duet 1	Adds close (separated by two to four degrees) one-note harmony below the melody note.
02 Duet 2	Adds open (separated by more than 4 to 6 degrees) 1-note harmony below the melody note.
03 Country	Addrs Addrs country style harmony.
04 Octave	Adds the note from the next lower octave.
05 5th	Adds the fifth degree note.
06 3-Way Open	Adds 2-note open harmony, for a total of three notes.
07 3-Way Close	Adds 2-note close harmony, for a total of three notes.
08 Strings	Adds harmony that is optimal for strings.
09 4-Way Open	Adds 3-note open harmony, for a total of four notes.
10 4-Way Close	Adds 3-note close harmony, for a total of four notes.
11 Block	Chord notes.
12 Big	Band Adds big band style harmony.

4. Press the ⑰ (TONE) button.

This will exit the auto harmonize screen.

5. While playing chords, play the melody on the keyboard.

Harmony will be added to your melody notes based on the chords you play.

Creating Your Own Original Rhythms

You can use rhythm editing to modify a built-in Auto Accompaniment rhythm to create an original "user rhythm" of your own. You can select a part (drum, bass, etc.) of a normal, intro, or other pattern (page E-19) and turn it on or off, adjust its volume level, and perform other operations.

1. Select the number of the Auto Accompaniment rhythm you want to edit.

2. At the same time, press the 14 (BALLAD/PIANO RHYTHMS) and 15 (USER RHYTHMS) buttons.

This displays the rhythm editor screen.

-RHYTHM EDITOR-- Part: [DRUM] Rhythm Select: [001]POP 1

3. Use the accompaniment pattern buttons (② through ⑤) to select the pattern (normal, intro, ending, etc.) you want to edit.

The button you press will light, indicating that the pattern is being edited.

• Each press of ③ (NORMAL/FILL-IN) toggles between NORMAL and FILL-IN, and each press of ④ (VARIATION/FILL-IN) toggles between VARIATION and FILL-IN. The applicable button flashes while the fill-in pattern is selected.

Example: When intro is selected

INTRO NORMAL / FILL-IN VARIATION / FILL-IN SYNCHRO / ENDING REPEAT REW FF PAUSE

4. Use the instrument part buttons (20 through 27) to select the part (drums, bass etc.) you want to edit.

The name of the part you select will appear on the display. Rhythm patterns are made up of the eight parts shown below.

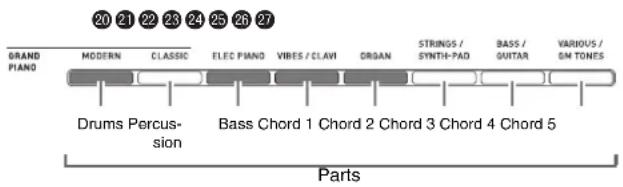

20 21 22 23 24 25 26 27 GRAND PIANO MODERN CLASSIC ELEC PIANO VIBES / CLAVI ORGAN STRINGS / SYNTH-PAD BASS / GUITAR VARIOUS / ON TONES Drums Percus- sion Bass Chord 1 Chord 2 Chord 3 Chord 4 Chord 5 Parts

- Button illumination does not change when you press the instrument part buttons (20 through 27). Button illumination indicates whether there is accompaniment data corresponding to each part.

Example: When bass is selected

-RHYTHM EDITOR-- Part: [BASS] Prt: vol: Part: [ON] [105] [ 0]

Instrument part name

5. Edit the selected part as desired.

The table below describes the parameters you can edit.

• Use the 29 (<) and 30 (>) buttons to select a parameter, and the 19 (√, ∧) buttons to change its setting. You also can use shortcut buttons (see table below) to select parameters.
• Pressing the 19 (√, ∧) buttons at the same time will return the currently selected parameter to its initial default setting.
• Pressing the ⑥ (START/STOP) button during an edit operation will sound the accompaniment pattern with the edits you have made up to that point. Pressing the ⑦ (ACCOMP ON/OFF) button will sound only the instrument part you are editing.

Procedure continues on page E-22.

Parameter	Description	Setting	Shortcut Button
Rhythm Select: Rhythm	Replaces the part (drum, bass, etc.) accompaniment data with that of the specified rhythm number. *1	001 to 190: Rhythm number *2 *3	12
Tone Select: Tone	Switches the part tone (instrument) to that of the specified tone number.	001 to 250: Tone Numbers *2 *4	13
Prt: Part on/off	Toggles each part on or off.	OFF: Mutes the part. ON: Sounds the part.	14
Vol: Volume level	Controls the volume level of each part.	000 to 127
Pan: Panning (position)	Controls whether the sound of the part can be heard from the left side or right side.	-64 to 0 to 63 *5
Reverb: Reverb	Controls the level of the reverb effect (page E-12) applied to the part notes.	000 to 127	15
Chorus: Chorus	Controls the level of the chorus effect (page E-12) applied to the part notes.	000 to 127

*1 Replacing part accompaniment data clears all edits to the currently selected accompaniment data made up to that point.
*2 Sequential numbers starting from 001, which is the first rhythm of the first group (POPS/JAZZ). See the "Tone List" (page A-1) and "Rhythm List" (page A-4) for information on the numbering system.
*3 In the case of the intro and ending, specifying a rhythm for one part (drum, bass, etc.) will cause the same rhythm to be specified automatically for all of the other parts of the pattern.
*4 Only drum set sounds (tone numbers 237 through 250) can be selected for drum parts and percussion parts. Drum set sounds cannot be selected for the bass and the chord 1 through chord 5 parts.
*5 A smaller value shifts leftward, while a larger value shifts rightward. A value of zero specifies center.

1. Repeat steps 3 through 5 to edit all of the accompaniment patterns and parts you want.

2. After editing is complete, adjust the tempo of the rhythm as desired.

- The tempo you set here becomes the initial default tempo of the rhythm.

1. Press the 28 (EXIT) button.

This causes a confirmation message to appear asking if you want to save your edits.

-RHYTHM EDITOR-- SAVE? No/Yes

1. Press the 19 (YES) button.

This displays a screen for specifying the user rhythm number and rhythm name.

- If you want to exit the editing operation without saving, press the 19 (NO) button instead of the 19 (YES) button.

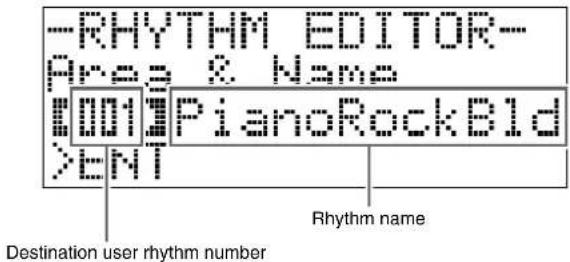

-RHYTHM EDITOR-- Area & Name #001 PianoRockBld >ENT Destination user rhythm number Rhythm name

1. Decide on the user rhythm number where you want to save the rhythm and a rhythm name.

- Use the 29 (<) and 30 (>) buttons to move the cursor to the user rhythm number and rhythm name character you want to change. Use the 19 (√, ∧) buttons to select the number or character you want.

- The rhythm name characters you can select are shown below. To input a space, press both of the 19 (√ and ∧) buttons at the same time.

!	"	#	$	%	&	'	(	)
*	+	,	-	.	/	0	1	2	3
4	5	6	7	8	9	:	;	<	=
>	?	@	A	B	C	D	E	F	G
H	I	J	K	L	M	N	O	P	Q
R	S	T	U	V	W	X	Y	Z	[
¥	]	^	_	`	a	b	c	d	e
f	g	h	i	j	k	l	m	n	o
p	q	r	s	t	u	v	w	x	y
z	{	|	}

1. Press the 31 (ENTER) button.

This saves the data.

- If the rhythm number where you are saving the data already has data saved to it, a message (Replace?) will appear on the display to confirm whether you want to replace the existing data with the new data. Press the 19 (YES) button to replace. To cancel the save operation and return to the screen in step 9, press the 19 (NO) button instead.

IMPORTANT!

- Saving user rhythm data to a user rhythm number that already has data will cause the existing data to be replaced by the new data.

NOTE

- If the size of the accompaniment pattern or instrument part data is too large to be edited, a memory full message (Memory Full) will appear on the display. If that happens, select a different accompaniment pattern or instrument part for editing.

Playing Back Built-in Songs

①MUSIC LIBRARY ②REPEAT ③PLAY/STOP ⑦PART ⑫Song groups A to D ⑬CARD/INTERNAL ⑭Tone groups

Playing Back All of the Built-in Songs

Your Digital Piano comes with a total of 68 built-in songs: eight demo songs that are arranged to highlight the characteristics of the tones in each of the tone groups, and 60 classics in the Music Library. You can configure the Digital Piano to play back these songs in sequence.

- See "Song List" (page A-6) for a list of built-in songs.

1. While holding down the ⑦ (PART) button, press the ⑥ (PLAY/STOP) button.

This will start sequential playback of the tone demo songs, starting from song 1.

START / STOP ACCOMP ON / OFF CHORDS PLAY / S DEMO PART

1:001 GrPianoModrn 2:001 Demo Tune 1 Song number Current measure Song name Song tempo

- Pressing a tone group button (buttons 20 through 27) while demo song playback is in progress will switch to the demo song that uses the tones of that group. Pressing a Music Library song group button (buttons 12 through 14, Group A through C) while demo song playback is in progress will switch to playback of the songs in that group.

- Pressing the ③1 (CARD/INTERNAL) button during demo song playback will start playback of the songs on the loaded card. For details, see "Playing Back All of the Songs in a Folder" (page E-48).

2. Press the ⑥ (PLAY/STOP) button.

This stops demo song playback. Playback of the demo songs will continue in an endless loop until you press the ⑥ (PLAY/STOP) button to stop it.

NOTE

- Only the operations described above can be performed while demo song playback is in progress.

Playing Back a Specific Music Library Song

You can use the procedure below to select a Music Library song for listening or practice.

The Music Library has a total of 60 songs, divided into three groups (A, B, C). You also can load songs from a memory card or your computer into a fourth Music Library group (Group D) for playback and practice (pages 46 and 52).

1. Press the Ⓤ (MUSIC LIBRARY) button so its lamp is lit.

• Each press of the button toggles between the upper and lower lamps.

1. In the "Song List" (page A-6), find the group and group number of the song you want.

- User songs are in Group D.

1. Use the 12 to 15 (Song group A to D) buttons to select the group you want.

- Press button 15 (Group D) if you want to select a user song.

Example: When Group B is selected

POPS / JAZZ LATIN / WORLD BALLAD / PIANO RHYTHMS USER RHYTHMS A B C D MUSIC PRESET RHYTHM EDITOR Lit

1. Use the 19 (√, ∧) buttons to select the song you want.

Example: When "008 Gavotte" is selected

GrPianoModrn Gavotte Song number Song name

1. Press the ⑥ (PLAY/STOP) button.

This starts playback of the song.

• Press the ④ (FF) button to perform a fast forward operation or the ③ (REW) button for rewind. Pressing and releasing either button moves one measure, while holding down a button scrolls at high speed.
• Pressing the ⑤ (PAUSE) button pauses playback. Press again to resume song playback.

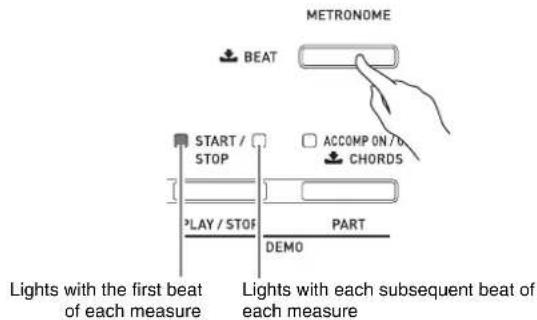

Lights with each subsequent beat of each measure Lights with the first beat of each measure INTRO NORMAL / FILL-IN VARIATION / FILL-IN SYNCHRO / ENDING START / STOP REPEAT REW FF FLUSE PLAY / STOP Rewind Pause Fast forward

1. Press the ⑥ (PLAY/STOP) button again.

This stops song playback.

- Song playback also will stop automatically when the end of the song is reached. To configure the Digital Piano to loop song playback without stopping, turn on "Song Repeat" (page E-42).

Changing the Song Tempo

You can change the song tempo using the same procedure that you use to adjust the metronome tempo. For more information, see "Changing the Tempo Setting" (page E-14).

Playing on the Keyboard Using the Same Tone as the Song

1. Hold down the ⑪ (MUSIC LIBRARY) button for at least two seconds.

This will assign the same tone as the right hand part of the current song to the keyboard.

- You can use the procedure under "Practicing Either Hand's Part (Part Off)" (page E-25) to turn off the left hand part and play along on the keyboard using the left hand part tone.

Adjusting the Song Volume

You can use the following procedure to adjust the volume level of the song's Auto Accompaniment, without affecting the volume of keyboard tone output. For details, see "Song Volume" (page E-41).

Practicing Either Hand's Part (Part Off)

You can turn off the right hand part or left hand part of a song and play that part on the Digital Piano while the song plays back.

1. Press the ⑦ (PART) button.
   This causes "L-[ON] R-[ON]" to appear on the display.
2. Use the 19 (√, ∧) buttons to turn off the part you want.
   Press (∨) to toggle the left hand part or (∧) to toggle the right hand part on and off.
3. Press the ⑦ (PART) button again.
   This exits the part on/off screen.
4. Hold down the ⑪ (MUSIC LIBRARY) button for at least two seconds.
   This will assign the same tone as the hand that is turned off to the keyboard.
5. Press the ⑥ (PLAY/STOP) button to start song playback.
   The part you turned off does not sound, so you can play it on the keyboard.

Sounding a Count at the Beginning of a Song

You can configure the Digital Piano to sound a count before playback of a song starts, which helps to get the timing right when you are playing along on the keyboard. For details, see "Pre-count" (page E-42).

Repeating Playback of a Specific Section (Repeat)

You can configure the Digital Piano to repeat the section of a song you want to practice. You could, for example, specify repeat play from measure 5 to measure 8.

Start End These measures are repeated.

1. Press the ⑥ (PLAY/STOP) button.

This starts playback of the song.

1. When playback reaches the first measure of the section you want to repeat, press the ② (REPEAT) button.

This makes the measure the "start measure".

The ② (REPEAT) button lamp flashes at this time.

1. When playback reaches the last measure of the section you want to repeat, press the ② (REPEAT) button again.

This makes the measure the "end measure".

Repeat playback of the specified section starts as soon as you select the end measure.

The ② (REPEAT) button lamp is lit (not flashing) at this time.

1. Pressing ② (REPEAT) again returns to normal play.

This will cause the ② (REPEAT) button lamp to go out.

Music Presets

⑥START/STOP ①RHYTHM ⑫Music Preset groups ⑬✓/NO, ^/YES ⑲ENTER ⑳Tone groups ④OFF ⑤REW ⑥ACCOMP ON/OFF ⑦MUSIC PRESET

Music Presets provide you with one-touch tone, rhythm, chord, and other settings that are optimized for specific musical genres and songs.

In addition to built-in presets, you can create your own original Music Presets (user presets).

There are a total of 300 built-in Music Presets, which are divided into three groups (A, B, C). A fourth group (D) is provided for user presets.

- For more information, see the "Music Preset List" (page A-7).

Selecting a Music Preset

1. Press ⑫ and ⑬ (MUSIC PRESET) at the same time.

This causes the ⑦ (ACCOMP ON/OFF) lamp to flash and the Music Preset screen to appear.

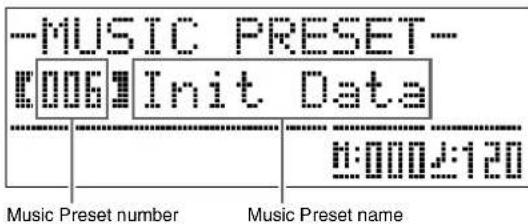

-MUSIC PRESET- 006 Init Data 0:0002:120 Music Preset number Music Preset name

1. Use buttons 12 to 15 (Music Preset group buttons) to select a group, and then use the 19 (√, ∧) buttons to select the Music Preset you want.

This will configure the Digital Piano with settings (tone, rhythm, etc.) of the selected Music Preset. The following are the settings that are included in a Music Preset.

• Tones (main, layer, lower split) (page E-8)
  • Layer balance (page E-9)
• Octave shift (page E-11)
• Reverb (page E-12)
• Chorus (page E-12)
  • Rhythm (page E-20)

• Tempo (page E-19)
  • Auto Harmonize (page E-19)

• Press the ⑥ (START/STOP) button to start Auto Accompaniment with the chord progression of the Music Preset. Play the melody on the keyboard.

• The preset chord progression repeats until you stop it by pressing the ⑥ (START/STOP) button again.

• Pressing the 7 (ACCOMP ON/OFF) button so the ACCOMP ON/OFF lamp is lit (not flashing) or unlit will turn off the chord progression of the Music Preset and play the normal Auto Accompaniment pattern.
  • Each press of the ⑦ (ACCOMP ON/OFF) button cycles in the sequence shown below.

- You can use the following steps to change the rhythm after selecting a Music Preset.

(1) Hold down the Ⓞ (RHYTHM) button until the displayed Music Preset number and name change to the rhythm number and name.
(2) Use the ⑲ (∨, ∧) buttons to select the rhythm you want.
(3) Hold down the Ⓞ (RHYTHM) button again until the rhythm number and name change back to the Music Preset number and name.
- To change the tone, use the 20 through 27 (tone group) buttons to select the tone group and then use the 19 (√, ∧) buttons to select a tone number.

1. To exit a Music Preset, press 12 and 13 (MUSIC PRESET) at the same time.

Creating an Original User Preset

A Music Preset editor is provided to allow you to create your own original Music Presets (user presets). Up to 50 user presets can be stored in Music Preset Group D.

1. Select the Music Preset you want to edit in order to create your user preset.
2. Change the tone number, rhythm number, and other settings of the Music Preset as you want.

- The settings you configure here will be saved as a user Music Preset. See step 2 under "Selecting a Music Preset" (page E-26) for the settings you can configure and save for a user Music Preset.

1. Press the 14 (BALLAD/PIANO RHYTHMS) and 15 (USER RHYTHMS) buttons at the same time.

This displays a screen for selecting the type of editing operation you want to perform.

-MUSIC PRESET-- Edit Object: ["CHORD"] >EN Editing operation type

4. Edit the Music Preset parameters.

4-1. To edit the chord progression

Press the ⑲ (√) down button to display "CHORD" and then press the ⑳ (ENTER) button to advance to the chord progression editing screen.

Next, perform the editing operation described under "To edit the chord progression" (page E-29). After you finish the editing operation, press the Ⓤ (EXIT) button to return to the screen for selecting the type of editing operation, above.

4-2. To edit Auto Accompaniment parameters

Press the 19 (∧) up button to display "Parameter" and then press the 31 (ENTER) button to advance to the Auto Accompaniment parameter editing screen. Next, perform the editing operation described under "To edit Auto Accompaniment parameters" (page E-31). After you finish the editing operation, press the 28 (EXIT) button to return to the screen for selecting the type of editing operation, above.

5. After editing everything you want, press the 28 (EXIT) button.

- This will display a message asking if you want to save the user preset.

6. Press the ⑲ (YES) button.

This displays a screen for selecting the Music Preset number and name for storing the edited data.

- If you do not want to save the edited data, press the 19 (NO) button in place of the 19 (YES) button.

-MUSIC PRESET-- Area & Name: [001] Init Data >ENT Music Preset name Music Preset number for data storage

7. Use the 19 (√, ∧) buttons to select the Music Preset number where you want to store the edited data.

8. Enter a name for the preset.

Use the 29 (<) and 30 (>) buttons to move the cursor to the character you want to change and then use the 19 (√, ∧) buttons to change the character. The following shows a table of available characters.

- To input a space, press both of the 19 (√ and ∧) buttons at the same time.

!	"	#	$	%	&	'	(	)
*	+	,	-	.	/	0	1	2	3
4	5	6	7	8	9	:	;	<	=
>	?	@	A	B	C	D	E	F	G
H	I	J	K	L	M	N	O	P	Q
R	S	T	U	V	W	X	Y	Z	[
¥	]	^	_	`	a	b	c	d	e
f	g	h	i	j	k	l	m	n	o
p	q	r	s	t	u	v	w	x	y
z	{	|	}

9. Press the ③1 (ENTER) button.

This saves the data.

- If the preset number where you are saving the data already has data saved to it, a message (Replace?) will appear on the display to confirm whether you want to replace the existing data with the new data. Press the 19 (YES) button to replace. To cancel the save operation and return to the screen in step 6, press the 19 (NO) button instead.

■To edit the chord progression

1. On the editing operation selection screen (page E-27), select "CHORD" and then press the ③① (ENTER) button to display the chord progression editing screen shown below.

=CHORD EDIT= R1 >001:1:00:C 002:1:00:Bm

(1) Step (timing and chord)
(3) Resolution(2) Cursor

(1) Step (timing and chord)

The timing of a chord progression is expressed as a series of three values separated by colons (such as 001:1:00) indicating measure ^1 (001), beat (1), and tick (00). ^2 This series of three values is referred to collectively as a “step”.

The screen shot above shows the first two steps (001, 002) of the Music Preset. Use the ③ (REW) and

④ (FF) buttons to scroll and view other steps.

*1 Up to 999 measures
*2 There are 12 ticks per beat, as shown below.

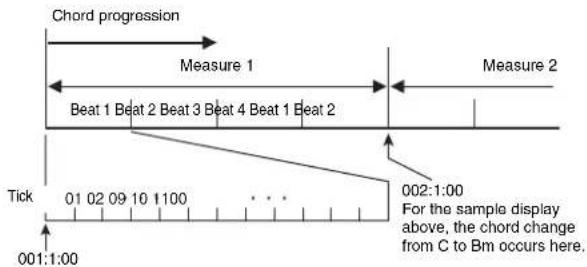

Chord progression Measure 1 Beat 1 Beat 2 Beat 3 Beat 4 Beat 1 Beat 2 Tick 01 02 09 10 1100 001:1:00 Measure 2 002:1:00 For the sample display above, the chord change from C to Bm occurs here.

(2) Cursor

Specifies the step that is currently selected for editing.

(3) Resolution

Resolution is a unit used when editing step timing. The initial resolution is R1 (one measure), but you also can select R4 (1 beat = 4 quarter notes) when you want to specify chords for each beat. Use the instrument part buttons (20 through 27) to select one of the eight resolutions shown below.

20 21 22 23 24 25 26 27 GRAND PIANO MODERN CLASSIC ELEC PIANO VIBES / CLAVI ORGAN STRINGS / SYNTH-PAD BASS / GUITAR VARIOUS / SM TONES 1 2 3 4 5 6 7 8 R1 R2 R4 R8 R8T R16 R16T R32T (1 measure) (2 beats) (1 beat) (1/2 beat) (1/3 beat) (1/4 beat) (1/6 beat) (1/12 beat)

1. Use the ③ (REW) and ④ (FF) buttons to move the cursor (2) on the chord progression editing screen to the step you want to select.

2. Change the content of the selected step as desired.

3-1. Select a chord fingering mode and use the chord keyboard (page E-18) to input chords.

Fingering a chord causes the cursor (2) to move to the next step automatically.

• If you want to advance to the next step without changing the current chord, press the ⑤ (PAUSE) button.
• If (3) Resolution is shorter than the time up to the next step, a new step (without chord) that is equal to the time of the resolution will be inserted temporarily into the Music Preset. Fingering a chord for the new step will cause the step to be registered as part of the Music Preset, and the cursor will advance to the next step.* You can use this operation to insert a new step between the current and following step.
  * Using the ③ (REW) and ④ (FF) buttons to move the cursor without inputting a chord will delete the temporarily inserted step.

3-2. Use the 19 (√, ∧) buttons to change the step timing (measure:beat:tick).

Each press of either button changing the timing in accordance with the resolution.

• The range of values you can specify for the step timing is limited by the steps before and after the current step.
• The timing of the first step (001:1:00) is fixed and cannot be changed. Also, the final step is always one measure, regardless of the resolution.

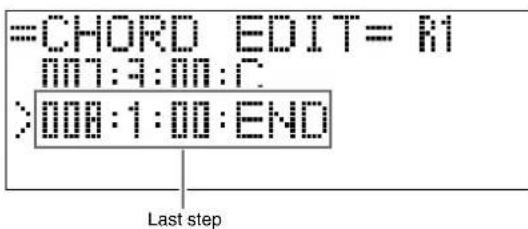

=CHORD EDIT= R1 M01:3:M0:C >000:1:00:END Last step

3-3. To delete a step, press both of the 19 (√ and ∧) buttons at the same time.

- You cannot delete the first step or the last step.

4. Repeat the above steps to edit all of the steps you want.

• You can playback the Music Preset you are currently editing by pressing the ⑥ (START/STOP) button.
• The table below describes other Music Preset editing operations you can perform. Press the 18 (FUNCTION) button, use the 29 (<) and 30 (>) buttons to select the editing operation you want, perform the required operation, and then press the 31 (ENTER) button to apply the edit and return to the chord progression editing screen.
• To exit the editing operation and discard all of your edits, press the 28 (EXIT) button.

	Editing Operation(Display)	Description Operation
1	Initialize(Initialize)	Initializes all steps. Initialization is useful when you want to create a totally new chord progression from scratch.	-
2	Change Key(Change Key)	Changes the pitch (key) of the chords in all of the steps in semitone units.	Use the 19 (√, ∧) buttons to select the amount of change you want (-5 to 6 semitones).
3	Append Music Preset(Append Chords)	Copies all of the steps of another Music Preset to the end of the current Music Preset.	Use the 19 (√, ∧) buttons to select the number*of the Music Preset you want to add.
4	Delete Measures(DELETE Measure)	Deletes a specified number of measures from the current cursor step forward.	Use the 19 (√, ∧) buttons to select the measures.
5	Insert Measure(INSERT 1Measure)	Inserts a blank measure at the currently selected step.	-

* The Music Presets in groups B, C, and D are numbered sequentially, following the numbers in group A, which start with 001. For details about sequential numbers, see the “Music Preset List” on page A-7.

5. After all editing operations are complete, press the 28 (EXIT) button to return to the editing operation selection screen (page E-27).

- A single preset can contain up to approximately 2,000 chords. If your edits cause the chord limit to be exceeded, the message “Memory Full” will appear on the display and further editing will become impossible.

■To edit Auto Accompaniment parameters

1. On the editing operation selection screen (page E-27), select "Parameter" and then press the ENTER button to display the Auto Accompaniment parameter editing screen shown below.

=PARAMETER EDIT= SYNCHRO TYPE: E OFF Setting Parameter

1. Use the ⑲ (＜) and ⑳ (＞) buttons to select a parameter, and the ⑲ (∨, ∧) buttons to change its setting.

	Parameter Description	Setting
1	SYNCHRO TYPE: Synchro type	Selects the synchro standby status and type when the Music Preset is selected.	0 Off: Off (no standby)1 Normal: From standby to normal pattern2 Variation: From standby to variation pattern3 Intro: From standby to intro pattern
2	DRUM ON/OFF: Drum on/off	Toggles the drum part (page E-21) on or off.	OFF: Mutes the part.ON: Sounds the part.
3	PERC ON/OFF: Percussion on/off	Toggles the percussion part (page E-21) on or off.	OFF: Mutes the part.ON: Sounds the part.
4	BASS ON/OFF: Bass on/off	Toggles the bass part (page E-21) on or off.	OFF: Mutes the part.ON: Sounds the part.
5 - 9	CHORD1 - 5ON/OFF:Chord 1 - 5 on/off	Toggles the Chord 1 through 5 parts (page E-21) on or off.	OFF: Mutes the parts.ON: Sounds the parts.
10	INTRO CHORD:Intro chord	Selects from among major ( × 12 keys) and minor ( × 12 keys) for the intro chords.	C - B: Major (C to B)Cm - Bm: Minor (Cm to Bm)
11	ENDING CHORD:Ending chord	Selects from among major ( × 12 keys) and minor ( × 12 keys) for the ending chords.	C - B: Major (C to B)Cm - Bm: Minor (Cm to Bm)
12	AUTO FILL-IN:Auto fill-in on/off	Specifies whether or not a fill-in should be inserted into the final measure of a chord progression.	OFF: Fill-in not insertedON: Fill-in inserted
13	TIMING SET:Chord progression variation	This parameter lets you add different variations to the timing of the chord progression being edited. You can use it to match the chord progression to the beat of a specific rhythm.A chord (step) that is outside of the rhythm's beat is cut off.	1 Normal: Edited chord progression proceeds as-is.2 Half: Halves chord timing within a measure.3 Double: Doubles chord timing within a measure.4 3/4: Multiplies chord timing within a measure by 3/4. Select this setting to match to a 6/8 time rhythm.5 6/4: Multiplies chord timing within a measure by 3/2. Select this setting to match to a 6/4 time rhythm.

1. After all editing operations are complete, press the 28 (EXIT) button to return to the editing operation selection screen (page E-27).

Registering Tone and Rhythm Setups

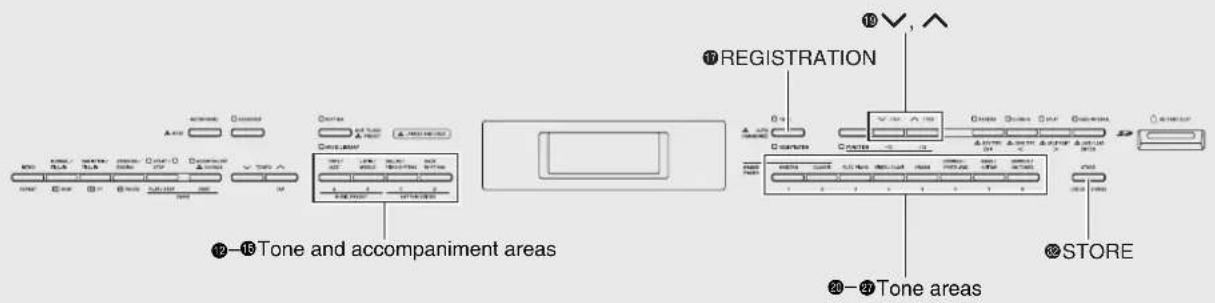

⑪-⑮ Tone and accompaniment areas ⑰-⑰-⑰ Tone areas ⑫-⑬ REGISTRATION ⑳-⑳ STORE

Registrations let you save Digital Piano setups (tone, rhythm, tempo, etc.) and for quick and easy recall when you need them.

Registrations are stored using eight banks of 12 areas each as shown in the illustration below, for a total of 96 setups. Areas A through D on the left (tone and accompaniment area) is for storing tones and Auto Accompaniment settings, while areas 1 through 8 (tone areas) are for storing tone settings only.

Bank 7, Area B data Bank 3, Area 2 data

Tone Settings Keyboard Tone: 003 Harpsichord Brightness: 2 Reverb: 1 Room Chorus: Off . . Auto Accompaniment Settings Rhythm: 005 Pop Rock Tempo: 180 Accompaniment Volume: 35 .

Tone Settings Keyboard Tone: 002 Electric Piano2 Brightness: -1 Reverb: 4 Stadium Chorus: 1 LightChorus .

■Registration Data Types

- Tone Settings

- Tone numbers (main, layer, lower split)

- Layer on/off

- Layer balance

- Split on/off

- Split point

- Octave shift

- Brightness

- Reverb

- Chorus

- Transpose

- Touch response

● Auto Accompaniment Settings (Areas A through D only)

• Rhythm number

- Accomp on/off

- Chord fingering mode

- Synchro standby

- Tempo

• Auto Accompaniment volume

- Auto harmonize

Saving Registration Data

1. Configure the Digital Piano with the tone, rhythm, and other settings you want to save.
2. While holding down the Ⓜ (STORE) button, use the Ⓟ (∨, ∧) buttons to select the bank where you want to save the registration.

Example: Bank 4

-REGISTRATION-- Bank: [4- ]

1. Next, hold down the ③2 (STORE) button again as you use the rhythm group buttons (12 through 15) or instrument part buttons (20 through 27) to select an area.

The data will be saved to the bank and area you specify.

Tone and accompaniment area 12 POPS/JAZ 13 LATIN/WORLD 14 BALLAB/FANG MATTAGE 15 USER BUTTONS A B C D MUSIC PRESS Rhythm EDITOR

Tone area 20 21 22 23 24 25 26 27 32 GRAND PIANO MODERN CLAISIE SLEE PIANO MBS/CLAW DRIAN STRIPES / SYNTHI-PAD BASIS / SURFAS MARKET / ON TONE STONE 1 2 3 4 5 4 7 8 USD SCALE

Example: Bank 4, Area C

-REGISTRATION-- Store! [4-C] Area

Recalling a Registration

1. Press the ⑰ (REGISTRATION) button so its lower lamp is lit.

This enters the registration recall mode.

-REGISTRATION- Bank: [ 13]

1. Use the 19 (√, ∧) buttons to select the bank where the registration you want to recall is located.
2. Use the rhythm group buttons (12 through 15) or instrument part buttons (20 through 27) to specify the area.

This will configure the Digital Piano with the registration data located at the bank and area you specified.

Example: When recalling the registration data in Bank 4, Area C

-REGISTRATION-- Recall: [4-C]

Recording Your Keyboard Play

⑧START/STOP ⑨RECORDER ⑩EXIT ⑩✓/NO, ^/YES ⑪FUNCTION ⑲

You can record your music as you play and store up to five songs in Digital Piano memory for later playback. You can divide a song into parts (by instrument, by left hand and right hand, etc.) and record each part separately. You can even use "punch-in recording" to edit specific parts of existing recordings.

Recording or Playing Back a Single Song

The following are the steps for recording or playing back a single recorder memory song.

1. Press the ⑨ (RECORDER) button twice so its lamp is flashing.

This turns on the recorder and enters record mode.

• Each press of the ⑨ (RECORDER) button cycles through modes as shown below.

1. Configure the tone, rhythm, and other settings you want to use.

2. The settings you configure here will be included as part of the recorded song data.

3. For details about what is included in the recorded song data, see "System Track" (page E-35).

4. Play something on the keyboard.

Recording starts as soon as you play something.

- If Auto Accompaniment is playing, it will be included in the recorded data.

1. When you are finished, press the ⑥ (START/STOP) button.

This will cause the ⑨ (RECORDER) lamp to flash and then light, indicating the playback mode.

- If you are using Auto Accompaniment, you also can end the recording session by pressing the ⑤ (ENDING) button.

1. To play back what you have recorded, press ⑥ (START/STOP) again.

• Each press of ⑥ starts and stops playback.

1. To turn off the recorder, press the ⑨ (RECORDER) button so its lamp goes out.

NOTE

• Recorder memory capacity is approximately 10,000 notes per song. When remaining capacity is 100 notes or less, the ⑨ (RECORDER) button lamp will flash at high speed. Recording will stop automatically when memory becomes full.
• Repeat, fast reverse, fast forward, pause, and tempo adjustment during playback are the same as when playing back songs. See "Playing Back a Specific Music Library Song" (page E-24) for more information.
• You can listen to the song data currently stored in recorder memory at any time by pressing the ⑨ (RECORDER) button to enter the playback mode and then pressing ⑥ (START/STOP).

IMPORTANT!

• A new recording replaces (deletes) previously recorded contents.
• If power to the Digital Piano is cut off while recording is in progress, everything you recorded up to that point will be deleted. Take care so power is not turned off accidentally during recording operations.

Recording or Playing Back Multiple Songs

You can record up to five songs (numbered 1 through 5) in memory. After that, you can select a specific song for playback.

1. Use the ⑨ (RECORDER) button to cycle through the recorder modes until the playback mode is selected.

1. While holding down the 18 (FUNCTION) button, press the 9 (RECORDER) button. This displays the song selection screen.

-PlaySetting- SonoSelect: E 13 0:001±120

1. Use the 19 (√, ∧) buttons to select the song number you want.

2. Press the 28 (EXIT) button to exit the song selection screen.

3. To record to the currently selected song, press the ⑨ (RECORDER) button. To play back the currently selected song, press the ⑥ (START/STOP) button.

4. If you are recording, continue from step 2 under "Recording or Playing Back a Single Song" (page E-34).

Recording to a Specific Track (Part)

You can record specific instruments, the left hand and right hand, or other parts of a song individually, and then combine them into a final song.

■What is a track?

A “track” is a separate recorded part of a song. The recorder of this Digital Piano supports a total of 17 tracks, which are divided between two types described below.

- System Track

In addition to notes you play on the keyboard and other performance operation data, the system track also includes a wide range of setup information for the song, including layer on/off, split on/off, tempo, Auto Accompaniment settings, reverb on/off, etc. When you record a single-track song to recorder memory, as shown under "Recording or Playing Back a Single Song" (page E-34) and "Recording or Playing Back Multiple Songs" (page E-35), everything is recorded to the system track.

● Tracks 01 through 16

These tracks are used to record keyboard notes, tone settings, and pedal operations. These tracks can be combined with the system track and each other to create the final song.

■Supported Track Data

The following describes the data that can be recorded to each type of track.

System Track, Tracks 01 through 16

Keyboard notes, keyboard tone setting (main), and pedal operations

System Track only

Layer, split, octave shift, reverb, chorus, keyboard temperament, tempo, Auto Accompaniment play, auto harmonize, one-touch preset, Music Preset; ^1 registration ^|*2

*1 Recall only

*2 The Auto Accompaniment volume level and transpose setting of the recalled data is not included in the recording.

1. Record the first part to the system track.

- Use the procedure under "Recording or Playing Back a Single Song" (page E-34) or "Recording or Playing Back Multiple Songs" (page E-35) to record to the system track.

2. Use the ⑨ (RECORDER) button to cycle through the recorder modes until the RECORDER lamp is flashing (record mode).

Flashing: Record mode

3. While holding down the 18 (FUNCTION) button, press the 9 (RECORDER) button.

This displays the track selection screen.

Use the 19 (√, ∧) button to select the track you want to record next (T01 through T16).

After selecting a track, press the 28 (EXIT) button to exit the track selection screen.

Track Name Display
System Track Sys
Tracks 01 through 16 T01 through T16

-RecSetting- TrSelect: [Sys] 0:001±120

1. Select the tone of the part you want to record to the track.

5. Press the ⑥ (START/STOP) button.

This will start playback of what you recorded to the system track and start recording to the currently selected track. Play what you want to record to the current track along with the playback from the system track.

6. To stop recording, press the ⑥ (START/STOP) button again.

This enters the playback mode. Press the ⑥ (START/STOP) button again to play back the track you just recorded. Each press of ⑥ (START/STOP) starts and stops playback.

- You can use the following procedure to turn specific tracks on (play enabled) and off (play disabled). This allows you to listen only to the track(s) you want when recording a new track.

(1) While holding down the 18 (FUNCTION) button, press the 9 (RECORDER) button. This displays the song selection screen.

(2) Press the 30 (>) button once. This displays the track on/off screen.

(3) Use the 19 (√, ∧) buttons to select the track you want, and then press the 31 (ENTER) button to toggle it on or off.

7. Repeat steps 2 through 6 as required to record all of the tracks you want.

Deleting Recorder Data

You can use the procedures below to delete an entire recorder song or to delete a specific track of a recorder song.

Deleting a Recorder Song

1. Use the ⑨ (RECORDER) button to cycle through the recorder modes until the RECORDER lamp is lit (playback mode).

1. While holding down the 18 (FUNCTION) button, press the 9 (RECORDER) button. This displays the recorder song selection screen.

2. Use the 19 (√, ∧) buttons to select the recorder song you want to delete.

3. Hold down the ⑨ (RECORDER) button until the message "Sure?" appears on the display.

4. Press the ⑲ (YES) button to delete the recorder song.

• To cancel the delete operation, press the ⑲ (NO) button.

Deleting a Recorder Song Track

1. Perform steps 1 through 3 of the procedure under "Deleting a Recorder Song" to select the recorder song that contains the track you want to delete.

2. Press the 30 (>) button. This displays the track selection screen.

3. Use the 19 (√, ∧) buttons to select the track you want to delete.

4. Hold down the ⑨ (RECORDER) button until the message "Sure?" appears on the display.

5. Press the 19 (YES) button to delete the track. • To cancel the delete operation, press the 19 (NO) button.

Re-recording Part of a Recorder Song (Punch-in Recording)

You can use punch-in recording to re-record a specific part of recorder song that you want to improve or correct.

1. Turn on the recorder, enter the record mode, and select the track that contains the section you want to re-record.

- See step 3 under "Recording to a Specific Track (Part)" (page E-35).

1. Hold down the ⑨ (RECORDER) button until the punch-in recording screen appears on the display.

-PunchIn Rec- AutoIN/OUT: [OFF] 0:0012:120

3. Press the ⑥ (START/STOP) button.

This will start playback of the selected track.

4. When playback reaches the point you want to re-record, play the notes and perform the other operations you want.

This automatically starts punch-in recording, which will continue until step 5, below.

• Any one of the following also will start punch-in recording: a pedal operation; pressing the ⑨ (RECORDER) button;*1 changing the tone setting; changing the rhythm or tempo setting*2.
  *1 Press ⑨ (RECORDER) when you want to start punch-in recording without note input or a setting change.
  *2 System track only
• You can perform ③ (REW), ④ (FF), and ⑤ (PAUSE) button operations during punch-in playback to jump more quickly to the section you want to re-record.

5. To stop punch-in recording, press the ⑥ (START/STOP) button again.

Anything in the track following the point where you pressed the ⑥ (START/STOP) button will be retained as-is.

• If you want to delete all of the data in the track following the section you re-recorded with punch-in recording, press the ⑨ (RECORDER) button in place of the ⑥ (START/STOP) button above.
• If you want to cancel punch-in recording and retain the original (unedited) track data, hold down the ⑨ (RECORDER) button until the display exits the punch-in recording screen.

Specifying the Punch-in Recording Location (Auto Punch-in Recording)

You can use the following procedure to specify a particular range for punch-in recording.

Start measure End measure Punch-in recording range

1. Turn on the recorder, enter the record mode, and display the recording setup screen.
2. While holding down the 18 (FUNCTION) button, press the 9 (RECORDER) button.
3. Use the ⑲9 (<) and ⑳0 (>) buttons to display "AutoPu.IN", and then use the ⑲9 (√, ∧) buttons to select the start measure.
4. Use the 29 (<) and 30 (>) buttons to display "AutoPu.OUT", and then use the 19 (√, ∧) buttons to select the end measure.
5. After selecting the start and end measures, press the 28 (EXIT) button to exit the recording setup screen.
6. Select the track that contains the range of measures you want to re-record.
7. See step 3 under "Recording to a Specific Track (Part)" (page E-35).
8. Hold down the ⑨ (RECORDER) button until the punch-in recording screen appears on the display.
9. Press the 19 (∧) button to turn on auto punch-in recording.
10. Press the ⑥ (START/STOP) button to start playback.
11. Punch in recording will start from the start measure and stop with the end measure automatically.
12. Play the notes and perform the other operations you want.

■Performing Punch-in Recording for Areas Smaller than One Measure

Use the procedure below to specify a punch-in recording area that includes a part of a measure.

Example: To re-record from beat 3 of measure 2 up to beat 1 of measure 4

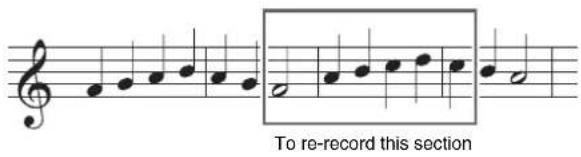

To re-record this section

1. Start playback of the song that contains the section you want to re-record.
2. When playback reaches the beginning of the section you want to re-record, press the ② (REPEAT) button.
3. When playback reaches the end of the section you want to re-record, press the ② (REPEAT) button again.
4. Press the ⑥ (START/STOP) button to stop playback.
5. Turn on the recorder and select the track that contains the section you want to re-record.

- For information about selecting a track, see step 3 under "Recording to a Specific Track (Part)" (page E-35).

1. Hold down the ⑨ (RECORDER) button until the punch-in recording screen appears on the display.
2. Press the 19 (∧) button to turn on auto punch-in recording.
3. Press the ② (REPEAT) button to turn on repeat.
4. Press the ⑥ (START/STOP) button.

This starts punch-in playback from the measure before the location (start point) you specified in step 2, above.

- Punch-in recording starts automatically when playback reaches the start point and ends automatically when it reaches the location you specified in step 3 (end point).

Other Settings

FUNCTION ⑲∨, ∧ ⑳>

You can use the settings in this section to adjust the tuning and touch of the keyboard, to configure pedal and MIDI settings, and to configure other parameters in order to tailor Digital Piano operation to your particular needs.

Configuring Settings

1. Press the ⑱ (FUNCTION) button.

The FUNCTION lamp will light and the function screen will appear on the display. (See table below.)

FUNCTION Transpose: [ 00] Parameter or group Setting

2. Use the ⑲ (＜) and ⑳ (＞) buttons to select one of the parameters (1 through 8) shown in the table below.

- Parameters 4 through 8 actually are parameter groups. After selecting a group, press the (ENTER) button, and then use buttons ( < ) and ( > ) to select the parameter you want.

- Short cut buttons also are available for accessing a parameter directly after you press the 18 (FUNCTION) button, without going through the menu. See the "Shortcut Button" column in the table below for the applicable shortcut button of each parameter.

3. Use the 19 (√, ∧) buttons to change the setting of the currently selected parameter.

- To return to the function screen, press the 28 (EXIT) or 18 (FUNCTION) button.

NOTE

- Holding down the 18 (FUNCTION) button while you press the 19 (√, ∧) buttons in step 3 will scroll the setting in steps of 10.

- You also can use the 18 (FUNCTION) button for faster scrolling while changing the tone number, rhythm number, and other scrollable settings.

- Keep the 18 (FUNCTION) button depressed while pressing a 19 (√, ∧) button for high-speed scrolling. Releasing the 18 (FUNCTION) button first can result in another unintended setting being changed.

No.	Parameter	Display Name	Description Settings		Shortcut Button*
1	Keyboard Key (Transpose) Transpose Adjusts keyboard tuning by semitone units.			-12 to 00 to 12 semitones	20
2	Keyboard Fine Tuning (Tuning)	Tune Adjusts keyboard tuning by cent (1 semitone = 100 cents) units.		-99 to 00 to 99 cents	21
3	K e y b o a r d Response)	Touch Adjusts keyboard (touch. Off: Off c h		1: Strong sound even with light pressure2: Normal3: Normal sound even with strong pressure	22
4 Volume Level Group Volume
	4-1 Layer Balance LayerBal. Adjusts the volume balance of two tones layered using the Layer function (page E-9).To lower the volume of the layered tone, set a negative value. To lower the volume of the main tone, set a positive value.			-24 to 00 to 24	-
	4-2 Auto Accompaniment Volume	AccompVol. Adjusts the volume level of Auto Accompaniment without changing the keyboard tone volume level.		00 to 42	18 - 11
	4-3 Song Volume SongVol.	Adjusts the volume level of song playback without changing the keyboard tone volume level.		00 to 42	18 - 11
	4-4 Metronome Volume	MetroVol.	See page E-14.	00 to 42	18 - 13
5	Temperament/Effect Group Tmpr/Effect
	5-1 Temperament Temper.	Changes the temperament of the keyboard and Auto Accompaniment from the standard equal temperament to another tuning more suitable for playing classics, etc.Pressing a keyboard key while the temperament screen is displayed will make the pressed key the base note of the temperament.		00: Equal / 01: Pure Major / 02: Pure Minor / 03: Pythagorean / 04: Kirnberger 3 / 05: Werckmeister / 06: Mean-Tone / 07: Rast / 08: Bayati / 09: Hijaz / 10: Saba / 11: Dashti / 12: Chahargah / 13: Segah / 14: Gurjari Todi / 15: Chandrakauns / 16: CharukeshiBase notes>C to B (12 types)	-
	5-2 Accompaniment Temperament	AccompTmpr	Turn this setting off to play Auto Accompaniment patterns using standard equal temperament (00: Equal), regardless of the temperament setting currently selected with the Temperament parameter (5-1).	Off, On	-
	5-3 Stretch Tuning Stretch Sharpens high notes and flattens low notes to achieve stretch tuning. Turn off this setting to play with normal (non-stretch) tuning.			Off, On	-
	5-4 Brilliance	Brilliance	See page E-11.	-3 to 0 to 3	-
	5-5 Acoustic Resonance	AcoResona.	Reproduces the acoustic resonance that occurs when the damper pedal is depressed on a grand piano.No acoustic resonance is applied when this setting is turned off.	Off, On	-
	5-6 Octave Shift	OctShift	See page E-11.	U1 : -2 to 0 to 2U2 : -2 to 0 to 2L1 : -2 to 0 to 2	18 - 17
	5-7 Duet Mode Duet See page E-14. Off, On				18 - 20

* 18 – 11 in this column means, "While holding down 18, press 11."

No.	Parameter		Display Name	Description	Settings	Shortcut Button*
6 Song Playback/Card Group Play/CARD
	6-1	Pre-count PreCount Turn on this setting for	an audible count before starting playback of a song.	Off, On	-
	6-2	Song Repeat SongRepeat Turn on this setting to repeat play a song. Off, On			10 - 2
	6-3	Card Folder CARD Folder See page E-53. (Folder Name)			18 - 13 to 15
	6-4	Formatting a Memory Card	CARD FORMAT	See page E-45. -		19 - 31
	6-5	Card File Delete File DELETE See page E-47. --
	6-6	Card File Rename File REN AME See page E-47. --
7 MIDI Group MIDI
	7-1	Keyboard Channel	KeyboardCh	Selects the keyboard channel, which is the channel used to send MIDI data corresponding to Digital Piano keyboard play to an external device.	01 to 16	-
	7-2	Accomp MIDI Out	AccompOut	Turn on this setting to send MIDI data corresponding to Auto Accompaniment to an external device.	Off, On	-
	7-3	MIDI In Chord Judge	ChordJudge	Select whether chord input should be performed when an Auto Accompaniment chord keyboard MIDI note on message is received.	Off, On	-
	7-4	Local Control	LocalCtl.	Turn off this setting to have keyboard notes sent to an external device without being sounded by the Digital Piano.	Off, On	-
8 Other Parameters Group General
	8-1	Display Contrast	Contrast	Adjusts the contrast of the Digital Piano's display.	00 to 16	-
	8-2	Panel Lock	PanelLock	Turn on to lock the Digital Piano's control panel to prevent unauthorized or accidental operation.This setting is disabled while the recorder is on, or while Auto Accompaniment, a song, or the metronome is playing.	Off, On	-
	8-3	Setting Backup	BackUp	Switching this setting from off to on will save various Digital Piano settings in effect at that time, and restore them the next time the Digital Piano is turned on.This operation is disabled in the Duet Mode, while the recorder is on, or while Auto Accompaniment, a song, or the metronome is playing.	Off, On	-

* 18 – 11 in this column means, "While holding down 18, press 11."

Using a Memory Card

⑥PLAY/STOP ⑦PART 12-13 Folders ⑩FUNCTION ⑪✓/NO, ^/YES ⑪CARD/INTERNAL, ENTER ⑲SD CARD SLOT

You can use the procedures in this section to transfer edited Auto Accompaniment data, recorder data, and other data from the Digital Piano to a commercially available SD memory card for storage. You also can use a memory card to transfer standard MIDI files (SMF), and accompaniment data you downloaded from the CASIO website from your computer to Digital Piano memory. Once you do, you can use them as user songs and user rhythms.

• Use a memory card with a capacity of 2GB or less. Use of a card with a capacity that is greater than 2GB or other types of memory cards is not supported.
• In this manual, mentions of a "memory card" refer to an SD memory card.

■Types of Data

Data Type	Description(File Name Extension)	Supported Operations
		Save to Memory Card	Load from Memory Card
User rhythms(page E-20)	Auto Accompaniment data edited with this Digital Piano (AC7)	○	○
User songs(page E-24)	One of the following two types of music data1. CASIO format data (CM2)2. Standard MIDI files (MID)SMF Format 0 or Format 1	- ○
User Music Presets(page E-27)	Music Preset data edited on this Digital Piano (MPS)	○	○
Recorder songs(page E-34)	Song data recorded on this Digital Piano (CSR) ○* ○
Registration(page E-32)	Tone and rhythm setup settings (CR6)	○	○

* Can be saved as a standard MIDI file (SMF format 0).

Card and Card Slot Precautions

IMPORTANT!

• Be sure to observe the precautions provided in the documentation that comes with the memory card.
• Memory cards have a write-protect switch. Use it when you want to protect the data on the card from accidental deletion.
• Avoid using a memory card under the following conditions. Such conditions can corrupt data stored on the memory card.

- Areas subjected to high temperature, high humidity, or corrosive gas

- Areas subjected to strong electrostatic charge and digital noise

• Never touch the contacts of a memory card when loading it or removing it from the Digital Piano.
• Never eject the memory card while data is being written to or loaded from it. Doing so can corrupt the data on the memory card and damage the memory card slot.
• Never insert anything besides a memory card into the card slot. Doing so creates the risk of malfunction.
• Electrostatic charge from your fingers or the memory card to the card slot can cause malfunction of the Digital Piano. If this happens, turn the Digital Piano off and then back on again.

A memory card can become quite warm after very long use in the memory card slot. This is normal and does not indicate malfunction.

Loading and Removing a Memory Card

IMPORTANT!

- A memory card must be positioned correctly when being loaded into the Digital Piano. Trying to force an improperly oriented memory card into the slot can damage the memory card and the slot.

1. With the top of the memory card facing upwards (so you can see it), carefully insert it into the Digital Piano's memory card slot (33) until stops with a click.

1. To remove the memory card first press it into the slot further.

This will cause the memory card to disengage and eject partially. Pull the memory card the rest of the way out of the slot.

Formatting a Memory Card Saving

Digital Piano Data to a Memory Card

IMPORTANT!

• Format a memory card before using it for the first time.
• Before formatting a memory card, make sure it does not have any valuable data stored on it.

• The memory card format operation performed by this Digital Piano is a “quick format”. If you want to completely delete all of the data on the memory card, format it on your computer or some other device.

• Insert the memory card you want to format into the Digital Piano's memory card slot.

Make sure the write-protect switch of the memory card is not in the write-protect position so writing is enabled.

1. While holding down the 18 (FUNCTION) button, press the 31 (CARD/INTERNAL) button.

This displays the format screen.

=Play/CARD= CARD FORMAT >ENT

1. Press the ③1 (ENTER) button.

This will display a confirmation message (SURE?).

- If you want to cancel the format operation, press the 19 (NO) or 28 (EXIT) button.

1. Press the 19 (YES) button.

- The message "Please Wait" will remain on the display while the format operation is being performed. Do not perform any Digital Piano operation while this message is on the display. "Complete" appears on the display after formatting is complete.

Use the following procedure to save Digital Piano data to a memory card.

• Recorder songs can be saved as a standard MIDI file (SMF format 0).

• User songs (downloaded songs, etc.) cannot be saved to a memory card.

• Insert a memory card into the Digital Piano's memory card slot.

• Select the data you want to save to the memory card.

To select this type of data:*1	Do this:
User rhythms Select from among user rhythms 001 through 010 (page E-20).
User Music Preset	Select from among user Music Preset 001 through 050 (page E-27).
Recorder songs	Select from among recorder songs 1 through 5 (page E-34).
Registrations*2	Press the 17 (REGISTRATION) button so its lower lamp is lit.

*1 For more information about data types, see page E-43.
*2 All registration data (8 banks × 12 areas) is saved in a single file.

1. Hold down the ③1 (CARD/INTERNAL) button until the "LOAD" screen appears for the data you selected.

- You can cancel the LOAD/SAVE operation any time by pressing the 28 (EXIT) button.

1. Press the 30 (>) button to switch to the "SAVE" screen for the data you selected.

- If you are saving a recorder song to a standard MIDI file (SMF), press the Ⓞ0 (>) button again so "SMF" is displayed on the right side of the screen.

1. Use the 19 (√, ∧) buttons to select the file number (01 to 99) you want to assign to the data when it is saved to the memory card.

- The file number is the final two characters of the file name* that appears on the display. By changing this within the range of 01 to 99 for each save, up to 99 files of the same data type can be stored on the memory card.

* The first six characters of the file name indicate the data type as shown below. These characters are fixed and cannot be changed.

Data Type	File Name(** = file number)
User rhythms USRRHY**
User Music Preset USRMPS	**
Recorder songs RECSNG**
Registrations REGIST**

1. Press the 31 (ENTER) button.

- The message "Please Wait" will remain on the display while the save operation is being performed. Do not perform any Digital Piano operation while this message is on the display. "Complete" appears on the display after data save is complete.

- If there already is a file with the same name on the memory card, a message (Replace?) will appear asking if you want to replace it with the new data. Press the 19 (YES) button to replace or the 19 (NO) button to cancel the save operation.

■Memory Card Data Storage

The above procedure stores Digital Piano data in a folder named MUSICDAT on the memory card.

• The MUSICDAT folder is created automatically when you format the memory card on the Digital Piano (page E-45).
• Note that files not in the MUSICDAT folder cannot be loaded, deleted, or renamed by this Digital Piano. You also will not be able to load or delete any file stored in any subfolder inside the MUSICDAT folder.

Loading Data from a Memory Card

You can use the procedure below to load data from a memory card into Digital Piano memory.

IMPORTANT!

- Make sure that all of the data you want to load is in the MUSICDAT folder on the memory card. Note that if you put data into a music data play-only folder on a memory card (such as the MUSIC_B folder), you will no longer be able to load that file into Digital Piano memory.

1. Insert the memory card into the Digital Piano's memory card slot.

2. Select the data you want to load.

To load this type of data*	Do this:
User rhythms Select from among user rhythms 001 through 010 (page E-20).
User songs Select from among user songs 001 through 010 (page E-24).
User Music Preset	Select from among user Music Presets 001 through 050 (page E-27).
Recorder songs	Select from among recorder songs 1 through 5 (page E-34).
Registrations Press the 17 (REGISTRATION) button so its lower lamp is lit.

* For more information about data types, see page E-43.

1. Hold down the ③1 (CARD/INTERNAL) button until the "LOAD" screen appears for the data you selected.

- You can cancel the LOAD/SAVE operation any time by pressing the 28 (EXIT) button.

1. Use the 19 (√, ∧) buttons to select the file you want.

2. Press the 31 (ENTER) button.

3. The message "Please Wait" will remain on the display while the load operation is being performed. Do not perform any Digital Piano operation while this message is on the display. "Complete" appears on the display after data loading is complete.

4. If there is already data in the destination you are loading to, a message (Replace?) will appear asking if you want to replace it with the new data. Press the 18 (YES) button to replace or the 19 (NO) button to cancel the load operation.

Deleting Memory Card Data Renaming a Memory Card File

Use the following procedure to delete memory card data (files).

1. Insert the memory card into the Digital Piano's memory card slot.

2. While holding down the 18 (FUNCTION) button, press the 31 (CARD/INTERNAL) button.
   This displays the memory card format screen (page E-45).

3. Press the ③0 (>) button.
   This displays the file delete screen.

4. Press the 31 (ENTER) button.
   This displays a screen for selecting data for deletion.

5. Use the 19 (√, ∧) buttons to select the file you want.

6. Press the ③1 (ENTER) button.

This will display a confirmation message (SURE?).

- If you want to cancel the delete operation, press the 19 (NO) or 28 (EXIT) button.

1. Press the 19 (YES) button.

- The message “Please Wait” will remain on the display while the delete operation is being performed. Do not perform any Digital Piano operation while this message is on the display. “Complete” appears on the display after deletion is complete.

Use the following procedure to change the file name of a file on a memory card.

1. Insert the memory card into the Digital Piano's memory card slot.

2. While holding down the 18 (FUNCTION) button, press the 31 (CARD/INTERNAL) button.
   This displays the memory card format screen (page E-45).

3. Press the ③0 button (>) twice so "File RENAME" is displayed.

4. Press the 31 (ENTER) button. This displays a screen for changing the file name.

5. Use the 19 (√, ∧) buttons to select the file you want.

6. Use the ③0 (>) and ②9 (<) buttons to move the flashing cursor to the character you want to change, and then use the ⑲9 (√, ∧) buttons to change the character.

- The characters you can select are shown below.

0	1	2	3	4	5	6	7	8	9
A	B	C	D	E	F	G	H	I	J
K	L	M	N	O	P	Q	R	S	T
U	V	W	X	Y	Z	$	&	_	'
(	)	-	^	{	}	@	~	`

1. After the file name is the way you want, press the Ⓞ (ENTER) button.

This will display a confirmation message (SURE?).

- If you want to cancel the renaming operation, press the 19 (NO) or 28 (EXIT) button.

1. Press the 19 (YES) button.

- The message “Please Wait” will remain on the display while the rename operation is being performed. Do not perform any Digital Piano operation while this message is on the display. “Complete” appears on the display after renaming is complete.

Playing Back a Song from a Memory Card

You can use the procedure below to play back a user song (page E-24) stored on a memory card without loading the song into Digital Piano memory.

■Memory Card Folders

Formatting a memory card on the Digital Piano will automatically create the four folders shown below. You put playback song data into any one of the folders. You can use the four folders to group your music data by family member, genre, or some other categories. Use buttons 12 through 15 (folders) to select a folder.

Folder Name Button Assignment
MUSICDAT	12 (A)
MUSIC__B	13 (B)
MUSIC__C	14 (C)
MUSIC__D	15 (D)

1. Store the music data you want to play back in one of the memory card folders.
2. Insert the memory card into the Digital Piano's memory card slot.
3. Press the ③1 (CARD/INTERNAL) button.
4. Press one of the folder selection buttons (12 through 15) to select the card folder you want. This will display the song number and song name of the first song in the folder you selected.
5. Use the 19 (√, ∧) buttons to select the song you want.
6. Press the ⑥ (PLAY/STOP) button.

This will start playback.

• Each press of ⑥ (PLAY/STOP) starts and stops playback.
- Fast forward, fast reverse, tempo changes, and other operations are the same as those during playback of a user song in Digital Piano memory. For details, see "Playing Back a Specific Music Library Song" (page E-24).

1. To quit memory card data playback, press the ③1 (CARD/INTERNAL) button.

Playing Back All of the Songs in a Folder

Use the procedure below to select one of the four folders on a memory card and play back all of the songs in the folder in succession.

1. While holding down the ⑦ (PART) button, press the ⑥ (PLAY/STOP) button.

This will start tone demo tune playback (page E-23).

1. Press the 31 (CARD/INTERNAL) button.

This will switch from tone demo tune playback to card tune playback.

• While playback is in progress, you can use the 12 through 15 buttons (folders) to switch playback to another folder.
• To stop playback, press the ⑥ (PLAY/STOP) button.

Assigning a Different Folder to a Folder Selection Button

You can use the following procedure to assign different folders to folder selection buttons 13, 14, and 15.

1. While holding down the 13 (FUNCTION) button, press the folder selection button (13, 14, or 15) whose folder assignment you want to change.
2. This displays the folder assignment screen for the button you press.
3. Use the 19 (√, ∧) buttons to select the folder you want to assign to the button.
4. You can select any folder on the memory card.
5. After selecting a folder, you can rename it if you want.
6. Perform steps 6 through 8 of the procedure under "Renaming a Memory Card File" (page E-47) to rename the folder.

Saving Data to Digital Piano Memory (Internal Area) Instead of a Memory Card

Even when you do not have a memory card loaded in the Digital Piano's memory card slot, you can save up to about 16MB of data in the Digital Piano's internal memory area. You also can load and delete internal memory area data using the same procedures that you use with a memory card.

1. Remove the memory card from the Digital Piano's memory card slot (page E-44).

- Removing the memory card from the slot enables internal memory area data operations (save, load, delete, rename, playback).

To do this Perform this operation
Save data to the internal memory area	From step 2 under “Saving Digital Piano Data to a Memory Card” on page E-45
Load data from the internal memory area	From step 2 under “Loading Data from a Memory Card” on page E-46
Delete data from the internal memory area	From step 2 under “Deleting Memory Card Data” on page E-47
Rename a file in the internal memory area	From step 2 under “Renaming a Memory Card File” on page E-47
Play back a song in the internal memory area	From step 3 under “Playing Back a Song from a Memory Card” on page E-48• The operation in step 4 of the above procedure is not possible in the case of internal memory area song playback.

Error Messages

One of the error messages below appears on the display when a problem occurs.

- All mentions of "memory card" in the following table refer to an SD memory card.

Display Message	Cause Required Action
Convert There	is not enough Digital Piano memory available to convert a recorder song (page E-34) to SMF data and store it on the memory card.	Reduce the size of the recorder song data by deleting unneeded tracks (page E-37), if there are any.
FileName You	are trying to use the procedure under “Renaming a Memory Card File” (page E-47) to change to a file name that already exists on the memory card.	Use a different file name.
Format 1. The	current memory card format is not compatible with this Digital Piano.2. The memory card capacity is greater than 2GB. 2. Use a memory card with a capacity of 2GB or less.3. There is something wrong with the memory card. 3. Use a different memory card.	1. Format the memory card on the Digital Piano (page E-45).memory card with a capacity of 2GB or less.
MediaFull 1.	There is not enough room available on the memory card.2. There is not enough room available in Digital Piano memory.	1. Delete some of the files on the memory card to make room for new data (page E-47), or use a different card.2. Delete some or all user data from Digital Piano memory to make room for new data.
Media R/W 1.	Memory card data is corrupted. 1. Use a different memory card.2. Digital Piano memory is corrupted.	2. Back-up Digital Piano memory data by copying it to your computer, and then turn the Digital Piano off and then back on again.Note that you may not be able to back-up Digital Piano data in certain cases.
No Card 1.	The memory card is not loaded correctly in the Digital Piano's memory card slot.2. The memory card was removed while some operation was in progress.	1. Correctly load the memory card into the memory card slot.2. Do not remove the memory card while any operation is in progress.
No Data You tried to save a Digital Piano user area (user rhythm, user rhythm song, etc.) that does not contain any data to the memory card.		Select a user area that contains data.
No File	1. There is no MUSICDAT folder (page E-46) on the memory card.2. There is no loadable or playable data in the MUSICDAT folder, or there is no playable data in a song playback folder (MUSIC_B, etc.)	1. Create a MUSICDAT folder on the memory card or format the memory card on the Digital Piano (page E-45).2. Move the file you want to load or play into the memory card's MUSICDAT folder. For song playback, you can place the song data into any one of the following folders: MUSIC_B, MUSIC_C, or MUSIC_D.
Not SMF01	You are attempting to play back SMF Format 2 song data.	This Digital Piano supports playback of SMF Format 0 or Format 1 only.
Protect	The memory card is write-protected.	Use the memory card's write protect switch to enable writing.
ReadOnly A read-only file with the same name you are trying to use is already stored on the memory card.		Use a different name to save the new file.Remove the read-only attribute from the existing file and overwrite it with the new file.Use a different memory card.
SizeOver	The data on the memory card is too big to play.The data you are trying to load is too large.	This Digital Piano supports playback of song data files with a maximum size of 320KB.The following is the maximum data size (per data item) when loading data into Digital Piano memory.User rhythm: Approximately 40KBUser Song: 320KBUser Music Preset: Approximately 8KB
WrongDat	The memory card data is corrupted.The memory card contains data that is not supported by this Digital Piano.	—

Connecting to a Computer

You can connect the Digital Piano to a computer and exchange MIDI data between them. You can send play data from the Digital Piano to music software running on your computer, or you can send MIDI data from your computer to the Digital Piano for playback.

Minimum Computer System Requirements

The following shows the minimum computer system requirements for sending and receiving MIDI data.

Check to make sure that your computer complies with these requirements before connecting the Digital Piano to it.

- Operating System

Windows® XP (SP2 or later)*

Windows Vista® *2

Windows® 7 *3

Mac OS ^® X (10.3.9, 10.4.11 or later, 10.5.6 or later, 10.6.2 or later)

*1 Windows XP Home Edition Windows XP Professional (32-bit)

*2 Windows Vista (32-bit)

*3 Windows 7 (32-bit, 64-bit)

- USB port

IMPORTANT!

- Never connect to a computer that does not conform to the above requirements. Doing so can cause problems with your computer.

Connecting the Digital Piano to Your Computer

IMPORTANT!

- Make sure you follow the steps of the procedure below exactly. Connecting incorrectly can make data send and receive impossible.

1. Turn off the Digital Piano and then start up your computer.

- Do not start up the music software on your computer yet!

1. After starting up your computer, use a commercially available USB cable to connect it to the Digital Piano.

1. Turn on the Digital Piano.

- If this is the first time you are connecting the Digital Piano to your computer, the driver software required to send and receive data will be installed on your computer automatically.

1. Start up your computer's music software.

2. Configure the music software settings to select one of the following as the MIDI device.

CASIO USB-MIDI : (For Windows Vista, Windows 7, Mac OS X)

USB Audio Device: (For Windows XP)

- For information about how to select the MIDI device, see the user documentation that comes with the music software you are using.

IMPORTANT!

- Be sure to turn on the Digital Piano first before starting up your computer's music software.

NOTE

• Once you are able to connect successfully, there is no problem with leaving the USB cable connected when you turn off your computer and/or Digital Piano.
  • This Digital Piano conforms to General MIDI Level 1 (GM).
• For detailed specifications and connections that apply to MIDI data send and receive by this Digital Piano, see the latest support information provided by the website at the following URL. http://world.casio.com/

Using MIDI

What is MIDI?

The letters MIDI stand for Musical Instrument Digital Interface, which is the name of a worldwide standard for digital signals and connectors that makes it possible to exchange musical data between musical instruments and computers (machines) produced by different manufacturers.

For details about the MIDI specifications of this Digital Piano, see the "MIDI Implementation" document at the website located at the URL below.

http://world.casio.com/

NOTE

• You can alter the Digital Piano's MIDI setup by changing the MIDI data send channel or other settings. For details, see "MIDI Group" (page E-42).
• Use a separately available or commercially available MIDI cable to connect the MIDI terminals of your Digital Piano and another electronic musical instrument for exchange of MIDI data.
• The MIDI terminal cannot be used to exchange data while the Digital Piano is connected to a computer via the USB port.

Transferring Data between the Digital Piano and a Computer

You can use the procedure below to transfer edited Auto Accompaniment data, recorder data, and other data from the Digital Piano to a computer for storage. You also can transfer standard MIDI files (SMF), as well as Auto Accompaniment data you downloaded from the CASIO website from your computer to Digital Piano memory.

■Data Types Supported for Data Transfer

The types of data that can be exchanged with a computer are the same as those that can be saved to an SD memory card from the Digital Piano (page E-43).*

* Recorder songs (page E-34) cannot be converted to SMF data for storage on a computer.

IMPORTANT!

- Turning off the Digital Piano while data is being saved or loaded can cause all data currently stored in Digital Piano memory (recorded songs, etc.) to be deleted. Take care so power is not turned off accidentally during data save and load operations. If data is deleted, it will take longer than normal for the Digital Piano to power up the next time you turn it on (page E-8).

1. Remove the memory card from the Digital Piano's memory card slot (page E-44).

- You will not be able to transfer data between the Digital Piano and a computer if a card is in the memory card slot.

1. Perform steps 1 through 3 under "Connecting the Digital Piano to Your Computer" to connect the piano to your computer (page E-51).

3. While holding down the 18 (FUNCTION) button, press the 32 (USB DEVICE MODE) button.

This will enter the storage mode, which enables data transfer with the connected computer. The 18 (FUNCTION) button lamp will flash and the display will appear as shown below.

USB DEVICE MODE: [Storage(INT.)] 0:001:120

- To exit the storage mode at any time, press the (FUNCTION) button. This is the only button operation that is supported while the Digital Piano is in the storage mode.

- You will not be able to enter the storage mode while any one of the following operations is in progress. Metronome, Auto Accompaniment, song playback, recorder (on), Auto Accompaniment editing, Music Preset editing, data transfer between the Digital Piano and card

4. If your computer is running Windows XP, double-click "My Computer".\*

Under "Devices with Removable Storage", you should be able to see a folder representing Digital Piano memory or the memory card loaded in the Digital Piano (see below).

* Windows Vista, Windows 7: Double-click "Computer". Mac OS: Skip step 4 and double-click "PIANO" on your Mac desktop.

Devices with Removable Storage 3½ Floppy (A:) PIANO (F:) CD Drive (E:)

PIANO drive (Digital Piano memory)

5. Double-click "PIANO".

You now should see five data folders, one for each data type.

This folder is not a data folder. You should not try to use it for normal Digital Piano operation.

6. Referring to the table below, open the folder that corresponds to the type of data you want to transfer.

To load this type of data	Open this data folder	Data File Name
User rhythms (page E-20)	RHYTHMAC	BIDRHYnn.AC7 (nn: 01 to 10)
User songs (page E-24)	MUSICLIB	BIDSNGnn.MID (nn: 01 to 10) (SMF Format 0 or Format 1) BIDSNGnn.CM2 (nn: 01 to 10) (CASIO format)
User Music Presets (page E-27)	MUSICPST	BIDMPSnn.MPS (nn: 01 to 50)
Recorder songs (page E-34)	RECORDER	BIDRECnn.CSR (nn: 01 to 05)
Registration (page E-32)	REGISTMR BID	REGAL.CR6

- Data types and contents are the same as those when saving Digital Piano data to or loading it from an SD memory card. See "Using a Memory Card" (page E-43) for more information.

1. File name extensions (.MID, .CM2, etc.) are not displayed under initial default Windows settings. Perform the procedure below to turn on display of file name extensions.

(1) Open any one of the folders shown on page E-53.
(2) Perform one of the following operations to display folder information.

- Windows XP:

On the [Tools] menu at the top of the folder window, select [Folder Options].

- Windows Vista, Windows 7:

On the left side of the folder window, click [Organize] and then select [Folder and Search Options].

(3) On the Folder Information window, click the [View] tab.
(4) Under "Advanced Settings", clear the "Hide extensions for known file types" check box and then click [OK].

1. After opening a data folder, perform either of the following operations to transfer data.

8-1. To transfer data from Digital Piano memory to a computer, perform the required operation on your computer to copy the data from the Digital Piano folder you opened in step 6 of this procedure to another location on your computer.
8-2. To load data from your computer to Digital Piano memory, first copy the data you want to load to the data folder you opened. Next, rename the file as shown in the "Data File Name" * column in the table under step 6 of this procedure.
* The value you assign for "nn" in the data file name in this case specifies the user number (user rhythm, user song, recorder song, user preset) you want the data to be assigned to.

Example: Renaming downloaded song data to BIDSNG04.CM2 to the MUSICLIB folder will make the data user song 004.

1. Press the 18 (FUNCTION) button to exit the storage mode.

- If you are using a Macintosh, drag the PIANO folder to the Trash and then press the Digital Piano's 18 (FUNCTION) button.

IMPORTANT!

- The message “ERROR, DATA EXCHANGE” will appear on the display if a problem occurs during data transfer. If this happens, check the message in the “STATELOG” folder (page E-53) on the “PIANO” drive. Next find the same message in the table on page E-50 of this manual to determine the cause of the problem and what action you need to take to avoid it.

Playing Back User Song Data by Copying It to the PIANO Drive

You can use the procedure below at any time to copy user song data to the PIANO drive (without putting it in the MUSICLIB folder) for simplified playback on the Digital Piano.

- When you copy a user song data file to the MUSICLIB folder, you need to rename it according to specified format (page E-53, step 6). You do not need to rename the file if you use the procedure below.

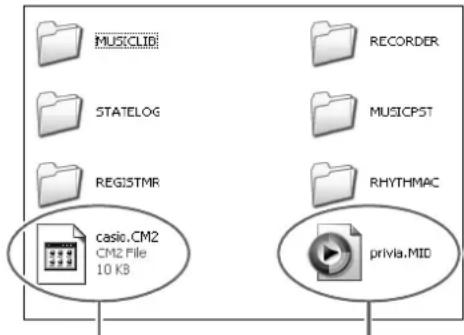

MUSICCLID STATELOG REGISTMR casio.CM2 CM2 File 10 KB RECORDER MUSICPST RHYTHMAC privia.MID

CASIO format song data MIDI file song data

1. Perform the previous procedure to copy the user song data file to the PIANO drive.
2. Press the 18 (FUNCTION) button to exit the storage mode.
3. Press the ③1 (CARD/INTERNAL) button.

This will cause the button's lamp to light and will the display the song number and song name of the first song on the PIANO drive.

1. Use the 19 (√, ∧) buttons to select the song you want to play.
2. Press the ⑥ (PLAY/STOP) button.

This starts playback of the selected song.

• Each press of the ⑥ (PLAY/STOP) button toggles between play and stop.
- Fast forward, fast reverse, tempo change, and other operations are the same as those during playback of a loaded user song and a song file on a memory card.

1. When you are finished playing back songs, press the 31 (CARD/INTERNAL) button.

Using Your Digital Piano as a Memory Card Reader

You can display the contents of the memory card currently loaded in the Digital Piano's card slot and perform copy, delete, and other card operations from your computer.

1. Insert the memory card into the Digital Piano's memory card slot.
2. Perform the procedure starting from step 2 on page E-52.

In step 4 of the procedure, "SD_MMC" will appear in place of "PIANO". You can double-click "SD_MMC" to display the contents of the card loaded in the Digital Piano card slot, and change it as you like.

■Using Auto Accompaniment (Rhythm) Data from the CASIO Website

You can download other model Auto Accompaniment data from the "Internet Data Expansion System" of the CASIO Music Site (http://music.casio.com/) and transfer it to Digital Piano memory.

- Since the accompaniment data is for other models, you may experience some abnormalities when playing it on this model.

Copyrights

The rights of creators and copyright holders of music, images, computer programs, databases, and other data are protected by copyright laws. You are allowed to reproduce such works for personal or non-commercial use only. For any other purpose, all reproduction (including data format conversion), modification, transfer of reproductions, distribution over a network, or any other use without permission of the copyright holder exposes you to claims for damages and criminal prosecution for copyright infringement and violation of the author's personal rights. Be sure to reproduce and otherwise use copyrighted works only in accordance with applicable copyright laws.

Assembling the Stand

Unpacking

PREPARATION

- This stand does not include any of the tools required for assembly. It is up to you to prepare a large Philips head (+) screwdriver for assembly.

Part Qty

	Part	Qty
E		4
F		6
G		1
H		2
I		2
J		4
K		2
L		1
M		1

Simple line drawing of a rectangular object with a labeled point marked by a circle (no text or symbols present)

IMPORTANT!

• If anything is missing or damaged, contact your local CASIO service provider.
• Do not use any screws other than those that come with the stand. Doing so risks damage to the stand and/or the Digital Piano.

CAUTION

• Assembly of the stand should be performed by at least two people working together.
• This stand should be assembled on a flat surface.
• Do not remove the tape securing the keyboard cover in place until assembly is complete. Removing the tape can cause the keyboard cover to open and close during assembly, creating the risk of personal injury to your hands and fingers.
  • Take care that you do not pinch your fingers between parts when assembling them.

To assemble the stand

1. Unfasten the band ① that bundles the pedal cable to the back of the crosspiece ⑪ and pull the pedal cord out from the crosspiece.

Pedal cable

1. Attach the side panels Ⓐ and Ⓑ to the crosspiece Ⓓ. Secure the side panels using the four screws Ⓔ.

2. When installing part ②, slide the brackets ③ into the slots in either end crosspiece ①. If the brackets ③ are not inserted into the ends of the crosspiece ④ as far as they will go, the screws ⑤ will not be able to enter into the screw holes of the brackets ③, which can strip the threads of the screws.
   • Cover the screw heads with the caps Ⓙ.

Technical diagram of a mechanical assembly with labeled components and an inset view showing a structural detail.

1. Slide the back panel Ⓐ into the grooves ④ of the side panels.

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or force.

IMPORTANT!

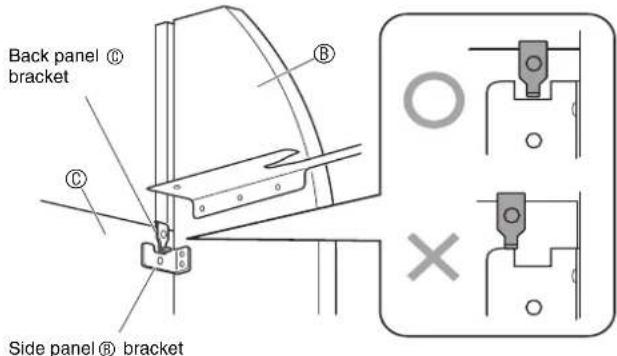

- Be sure to check that the back panel Ⓐ bracket engages correctly with the side panel Ⓑ bracket as shown in the nearby illustration marked “○”. Assembling the stand while these brackets are not engaged correctly (as shown in the illustration marked “×”) creates the risk of damage to stand components.

Back panel ® bracket C B Side panel ® bracket

1. Attach the right side of the back panel Ⓐ to the bracket ⑤ of the side panel Ⓐ.

- Secure the back panel in place with a screw ①.

Technical diagram of a mechanical assembly with labeled components A, B, C, and numbered parts 5, 6, 7

1. Pull the side panel Ⓑ slightly outwards in the direction marked with ★ in the illustration below.

- Check to make sure that the relative positions of the back panel Ⓐ bracket and the side panel Ⓑ bracket are as shown in the illustration A. This step creates a slight gap between the side panels Ⓐ and Ⓑ, which makes it easier to mount the Digital Piano onto the stand in step 6 below.

Technical diagram showing a hand holding a cable with labeled components and an inset view of a bracket assembly labeled A.

6. Place the piano onto the stand.

IMPORTANT!

- In order to ensure you do not get your fingers pinched between the piano and the stand, grasp the piano on its sides (not its ends) at the locations marked with stars ( ) in the illustration.

At least 10cm At least 10cm 7

- At this time the screws on the bottom of the piano ⑥ should hook into the cutouts in the stand brackets ⑦.

Back of piano Bracket cutout Stand side panel

1. First, use the two butterfly bolts Ⓗ to secure the back of the piano to the stand. Next, use the two screws Ⓚ to secure the front of the piano.

Technical diagram showing mechanical assembly with labeled parts K, H, and directional arrows indicating motion or force

IMPORTANT!

- The butterfly bolts Ⓗ and the screws Ⓚ keep the piano from slipping off the stand. Never use the piano without the butterfly bolts Ⓗ and the screws Ⓚ installed.

1. Attach the left side of the back panel Ⓓ to the bracket Ⓤ of the side panel Ⓔ.

- When attaching the back panel, place the clip ⑥ on the screw ① as shown in the illustration below.

Technical diagram of a mechanical device with labeled parts (①, ②, ③, ④) and numbered annotations.

1. Next, secure the bottom of the back panel Ⓓ with the six screws Ⓕ.

Technical line drawing of a mechanical device with labeled components (no text or symbols present)

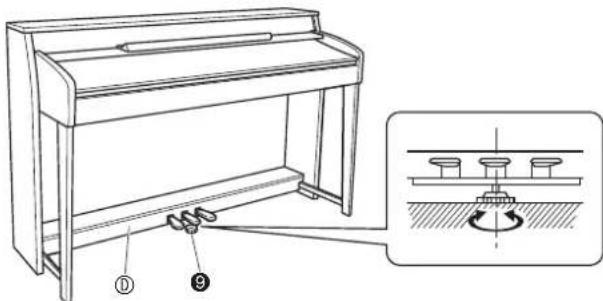

1. Adjust the height adjustment screw ⑨ to provide support so the crosspiece ⑩ does not bow downwards when the pedals are pressed.

Technical diagram of a piano with labeled parts and a close-up showing the base structure with rotating components.

IMPORTANT!

- Pressing the pedals without adjusting the height adjustment screw ⑨ can result in damage to the crosspiece ⑩. Always make sure you adjust the height adjustment screw ⑨ before operating the pedals.

To connect cables

1. Orienting the pedal plug as shown in the illustration, plug it into the pedal connector on the bottom of the piano.

- Secure the pedal cord with the clip ⑥.

Pedal plug ⑥

1. Check to make sure that the POWER button is in the OFF position (raised). If power is on, press the POWER button to turn it off.

2. Plug the power cord that comes with the Digital Piano into the AC power jack on the bottom of the Digital Piano.*

* applies to the AP-620BKV and AP-6BPV

Power Cord

IMPORTANT!

- The shape of the power cord plug and household power outlet receptacle differ according to country and geographical area. The illustration shows just one example of the shapes that are available.

- With the AP-620BK and AP-6BP, the power cord is hard-wired to the Digital Piano.

1. Plug the power cord into a household power outlet.

Household power outlet

CAUTION

• The screws of the stand can work loose due to the effects of temperature and humidity changes, vibration, etc. Because of this, you need to periodically check the screws for proper tightness. Retighten any loose screws you find.
  • To power the Digital Piano, use a power outlet that allows easy access when plugging in or unplugging the power cord.

To install the music stand and headphones hook

1. Insert music stand Ⓞ into the groove on the Digital Piano console as shown in the figure below.

Line drawing of a mechanical device with a downward arrow indicating force or motion (no text or symbols)

1. Install the headphones hook.

2-1. Insert the headphones hook Ⓐ into the two holes on the bottom of the piano.
2-2. Use the screw Ⓜ to secure the headphones hook in place.

2-1 2-2 L M

Troubleshooting

Problem Cause Action	See Page
No sound is produced when I press a keyboard key.	1. The VOLUME controller is set to “MIN”.2. Headphones or an adaptor plug is plugged into one of the PHONES jacks.	1. Rotate the VOLUME controller more towards “MAX”.2. Disconnect whatever is connected to the PHONES jack.	E-8E-6
The pitch of the Digital Piano is off.	1. The Digital Piano’s key setting is something other than “00”.2. Digital Piano tuning is incorrect. 2. Adjust Digital Piano tuning, or turn the piano off and then back on again.3. A non-standard temperament setting is being used.4. Octave shift is enabled.	1. Change the key setting to “00”, or turn Digital Piano power off and then back on again.2. Adjust Digital Piano tuning, or turn the piano off and then back on again.3. Change the temperament setting to “00:Equal”, which is the standard modern tuning.4. Change the octave shift setting to 0.	E-41E-41E-41E-11
Tones and/or effects sound strange. Turning power off and then back on again does not eliminate the problem.Example: Note intensity does not change even though I alter key pressure.	The “Setting Backup” feature is turned on.	Turn off “Setting Backup”. Next, turn power off and then back on again.	E-42
I cannot transfer data after connecting the Digital Piano to a computer.	— 1. Check to make sure that the USB cable is connected to the Digital Piano and computer, and that the correct device is selected with your computer’s music software.2. Turn off the Digital Piano and then exit the music software on your computer. Next, turn the Digital Piano back on and then restart the music software on your computer.	E-51
I cannot record chord accompaniment data on my computer.	Accomp MIDI Out is turned off.	Turn on Accomp MIDI Out.	E-42
I cannot store data to a memory card or load data from a memory card.	— See “Error Messages” on page E-50. —
Playback stops part way through while transferring song data from my computer.	Digital noise from the USB cable or power cord caused data communication your computer and Digital Piano to be interrupted.	Stop song playback, disconnect the USB cable from the Digital Piano, and then reconnect it. Next, try playing back the song again.If this does not solve the problem, quit the MIDI software you are using, disconnect the USB cable from the Digital Piano, and then reconnect it. Next, restart the MIDI software and then try playing back the song again.	E-51
A tone’s quality and volume sounds slightly different depending where it is played on the keyboard.	This is an unavoidable result of the digital sampling process,* and does not indicate malfunction.* Multiple digital samples are taken for the low range, middle range, and high range of the original musical instrument. Because of this, there may be a very slight difference in tonal quality and volume between sample ranges.
When I press a button, the note that is sounding cuts out momentarily or there is a slight change in how effects are applied.	Performing a button operation while playing with the Duet Mode, Auto Accompaniment, the recorder, or other functions can cause such phenomena when the Digital Piano switches internal tone effects. It does not indicate malfunction.
Even though I play on different ranges of the keyboard, the notes do not change octaves.	The ranges of certain tones are limited, which means that octaves change normally up to a certain low note or high note. With such a tone, the notes of the lowest octave will be repeated to the left of the lowest possible note, and the highest octave will be repeated to the right of the highest possible note. This is due to limitations in the range of the original musical instrument for each tone, and does not indicate malfunction of the Digital Piano.

Product Specifications

All of the items in these specifications apply to the AP-620BK, AP-620BKV, AP-6BP, and AP-6BPV, unless specifically noted otherwise.

Models AP-620BK/AP-620BKV/AP-6BP/AP-6BPV
Keyboard 88-key piano keyboard, with Touch Response (3 types)
Maximum Polyphony 128 notes
Tones 250 (with Layer and Split)
Effects	Reverb (4 types), Chorus (4 types), Brilliance (-3 to 0 to 3), Acoustic Resonance
Metronome • Beats per measure: 0, 2, 3, 4, 5, 6• Tempo Range: 20 to 255
Duet Adjustable tone range: 0 to 3 octaves for the left keyboard; -4 to -1 octaves for the right keyboard
Auto Accompaniment • Built-in Rhythms: 180• User Rhythms: Up to 10 (Approximately 40KB * maximum per rhythm)• One Touch Presets: 180 types• Auto Harmonize: 12 types
Demo Songs 68 (8 tone demo songs; 60 Music Library songs)
Music Library • Built-in Songs: 60	• User Songs: Up to 10 (320KB * maximum per song)
Music Presets Built-in Presets: 300	User Presets: Up to 50 (Approximately 8KB* maximum per preset)
Registration (4 rhythm areas + 8 tone areas) x 8 banks
Recorder • Functions: Real-time recording, playback• Number of Songs: 5• Number of Tracks: 17 (System Track + Tracks 01 through 16)• Capacity: Approximately 50,000 notes total (Up to approximately 10,000 notes per song)• Punch-in recording
Pedals Damper (with half-pedal operation), Soft, Sostenuto
Other Functions	• Transpose: ±1 octave (-12 to 00 to 12)• Tuning: A4 = 440.0 Hz ±99 cents• Octave Shift: ±2 octaves• Temperaments: 17 types• Stretch Tune• Panel Lock
MIDI 16 multi-timbre received, GM	Level 1 standard
SD Memory Card	• SD memory card slot• Supported SD Memory Cards: Up to 2GB• Functions: SMF playback, file storage, file recall, card format
Inputs/Outputs	• PHONES jacks: Stereo standard jacks x 2• MIDI OUT/IN terminals• LINE OUT R, L/MONO jacks: Standard jacks x 2Output impedance: 2.8KΩOutput voltage: 1.8V (RMS) MAX• LINE IN R, L/MONO jacks: Standard jacks x 2Input impedance: 9.0KΩInput voltage: 200mV• USB port: Type B• Pedal connector
Speakers	16cm x 2 + 5cm x 2 (Output 30W + 30W)
Power Requirements	AP-620BK/AP-6BP : 120VAP-620BKV/AP-6BPV : 220-240V
Power Consumption	78W
Dimensions	Digital Piano and Stand: 141.2 (W) x 49.2 (D) x 90.0 (H) cm ( 55^5/_8 × 19^3/_8 × 35^7/_16 inch)
Weight	Digital Piano and Stand: AP-620BK/AP-620BKV: Approximately 57.1 kg (125.9 lbs)AP-6BP/AP-6BPV: Approximately 58.2 kg (128.3 lbs)

* Based on 1KB = 1024bytes, 1MB = 1024 ^2 bytes
- Specifications and designs are subject to change without notice.

Operating Precautions

Be sure to read and observe the following operating precautions.

■Location

Avoid the following locations for this product.

• Areas exposed to direct sunlight and high humidity
• Areas subjected to temperature extremes
  • Near a radio, TV, video deck, or tuner
• The above devices will not cause malfunction of the product, but the product can cause interference in the audio or video of a nearby device.

■User Maintenance

• Never use benzine, alcohol, thinner, or other chemical agents to clean the product.
  • To clean the product or its keyboard, wipe with a soft cloth moistened in a weak solution of water and a mild neutral detergent. Wring all excess moisture from the cloth before wiping.

■Included and Optional Accessories

Use only accessories that are specified for use with this product. Use of unauthorized accessories creates the risk of fire, electric shock, and personal injury.

■Weld Lines

Lines may be visible on the exterior of the product. These are "weld lines" that result from the plastic molding process. They are not cracks or scratches.

■Musical Instrument Etiquette

Always be aware of others around you whenever using this product. Be especially careful when playing late at night to keep the volume at levels that do not disturb others. Other steps you can take when playing late at night are closing windows and using headphones.

Tone List/Lista de tonos

Group Name/Nombre del grupo	Group Number/Número de grupo	Sequential Number/Número secuencial	Tone Name/Nombre del tono	Program Change/Cambio de programa	Bank Select MSB/MSB de Selección de banco	Acoustic Resonance/Resonancia acústica
GRAND PIANO MODERN
	001 001 GRAND PIANO MODERN 0 48 ○
	002 002	GRAND PIANO VARIATION		0	50	○
	003 003 ROCK PIANO 1 48 ○
	004 004 LA PIANO 1 49 ○
	005 005 MODERN PIANO 1 50 ○
	006 006 DANCE PIANO 1 51 ○
GRAND PIANO CLASSIC
	001 007 GRAND PIANO CLASSIC 0 49 ○
	002 008 MELLOW PIANO 0 51 ○
	003	009 HONKY-TONK		3	48	○
	004 010 OCTAVE PIANO 3 49 ○
	005 011 STRINGS PIANO 0 52 ○
	006	012	PIANO PAD	0	53	○
ELEC PIANO
	001 013 ELEC.PIANO 1 4 48
	002 014 ELEC.PIANO 2 5 48
	003 015 60'S EPIANO 4 51
	004 016 E.GRAND 80 2 48
	005 017 DYNO ELEC.PIANO 4 49
	006 018 FM ELEC.PIANO 5 49
	007 019 MELLOW E.PIANO 4 50
	008 020 POP ELEC.PIANO 5 50
	009 021 SYNTH-STR.E.PIANO 4 52
VIBES/CLAVI
	001	022	VIBRAPHONE	11	48
	002	023	CLAVI		7	48
	003 024 HARPSICHORD 6 48
	004 025	COUPLED HARPSICHORD		6	49
	005	026	MARIMBA	12	48
	006 027 CHORUS VIBRAPHONE 11 49
ORGAN
	001	028 ROCK ORGAN 1		16	49
	002	029	JAZZ ORGAN	17	48
	003	030	DRAWBAR ORGAN	16	48
	004	031	ROTARY DRAWBAR	16	50
	005	032	ROTARY ORGAN	16	51
	006	033	PERC.ORGAN	17	49
	007	034	70'S ORGAN	17	50
	008	035	OVERDRIVE ORGAN	16	52
	009	036	TREMOLO ORGAN	16	53
	010	037	ROCK ORGAN 2	18	48
	011	038	ELEC.ORGAN	16	54
	012	039	CHURCH ORGAN	19	48
	013	040	CHAPEL ORGAN	19	49
STRINGS/SYNTH-PAD
	001	041	STRINGS	49	48
	002	042	STRING ENSEMBLE	48	48
	003	043	SYNTH-STRINGS	50	48
	004	044	70'S SYNTH-STR.	50	49
	005	045	80'S SYNTH-STR.	50	50
	006	046	VIOLIN SECTION	40	48
	007	047	CHOIR	52	48
	008	048	SYNTH-VOICE	54	48
	009	049	SYNTH-PAD	90	48
	010	050	FANTASY	88	48
	011	051	NEW AGE	88	49
	012	052	WARM PAD	89	48
	013	053	WARM VOX	89	49
	014	054	POLYSYNTH PAD	90	49
	015	055	ATMOSPHERE PAD	99	48
BASS/GUITAR
	001	056	ACOUSTIC BASS	32	48
	002	057	RIDE BASS	32	49
	003	058	FINGERED BASS 1	33	48
	004	059	FINGERED BASS 2	33	49
	005	060	FINGERED BASS 3	33	50
	006	061	PICKED BASS	34	48
	007	062	TRANCE BASS	38	48
	008	063	NYLON STR.GUITAR	24	48

Group Name/Nombre del grupo	Group Number/Número de grupo	Sequential Number/Número secuencial	Tone Name/Nombre del tono	Program Change/Cambio de programa	Bank Select MSB/MSB de Selección de banco	Acoustic Resonance/Resonancia acústica
	009	064 S	TEEL STR.GUITAR 1	25	48
	010	065	STEEL STR.GUITAR 2	25	49
	011	066 S	TEEL STR.GUITAR 3	25	50
	012	067	JAZZ GUITAR	26	48
	013	068	CLEAN GUITAR	27	49
	014	069	CHORUS CLEAN GUITAR	27	48
	015	070	CRUNCH ELEC.GUITAR 1	27	50
	016	071	CRUNCH ELEC.GUITAR 2	27	51
	017	072	OVERDRIVE GUITAR	29	48
VARIOUS/GM TONES
	001	073 B	BREATHY ALTO SAX	65	49
	002	074	BREATHY TENOR SAX	66	49
	003	075	ALTO SAX 65	48
	004	076	TENOR SAX	66	48
	005	077	CLARINET 71	48
	006	078	FLUTE	73	48
	007	079	TRUMPET	56	48
	008	080	TROMBONE	57	48
	009	081	STEREO BRASS	61	48
	010	082	BRASS SECTION	61	49
	011	083	SYNTH-BRASS	62	48
	012	084	80'S SYNTH-BRASS	62	49
	013	085	SAW LEAD	81	48
	014	086	MELLOW SAW LEAD	81	49
	015	087	SQUARE LEAD	80	48
	016	088	ER HU	110	56
	017	089 YANG QIN 1 15 56
	018	090	YANG QIN 2	15	57
	019	091	DI ZI	72	56
	020	092	ZHENG	107	56
	021	093	SHENG	109	56
	022	094	SUO NA	111	57
	023	095	XIAO	77	56
	024	096	PI PA 1	105	56
	025	097	PI PA 2	105	57
	026	098	SITAR	104	56
	027	099	TANPURA 104	57
	028	100	HARMONIUM	20	56
	029	101	SANTUR	15	58
	030	102	SAROD	105	58
	031	103	SHANAI 111	56
	032	104	SARANGI	110	57
	033	105	KANUN	15	59
	034	106	OUD	105	59
	035	107	NEY	72	57
	036	108	ARABIC ORGAN	16	56
	037	109	GM PIANO 1	0	0	○
	038	110	GM PIANO 2	1	0	○
	039	111 GM PIANO 3		2	0
	040	112	GM HONKY-TONK	3	0
	041	113 GM E.PIANO 1		4	0
	042	114	GM E.PIANO 2	5	0
	043	115	GM HARPSICHORD	6	0
	044	116	GM CLAVI	7	0
	045	117	GM CELESTA	8	0
	046	118	GM GLOCKENSPIEL	9	0
	047	119 GM MUSIC BOX		10 0
	048	120	GM VIBRAPHONE	11	0
	049	121	GM MARIMBA	12	0
	050	122	GM XYLOPHONE	13	0
	051	123 GM TUBULAR BELL		14 0
	052	124	GM DULCIMER	15	0
	053	125	GM ORGAN 1	16	0
	054	126	GM ORGAN 2	17	0
	055	127	GM ORGAN 3	18	0
	056	128	GM PIPE ORGAN	19	0
	057	129	GM REED ORGAN	20	0
	058	130	GM ACCORDION	21	0
	059	131	GM HARMONICA	22	0
	060	132	GM BANDONEON	23	0
	061	133 GM NYLON STR.GUITAR		24 0
Group Name/Nombre del grupo	Group Number/Número de grupo	Sequential Number/Número sequential	Tone Name/Nombre del tono	Program Change/Cambio de programa	Bank Select MSB/MSB de Selección de banco	Acoustic Resonance/Resonancia acústica
	062	134 GM STEEL STR.GUITAR 25 0
	063	135 GM JAZZ GUITAR			26	0
	064	136 GM CLEAN GUITAR 27 0
	065	137 GM MUTE GUITAR 28 0
	066	138 GM OVERDRIVE GT 29 0
	067	139 GM DISTORTION GT 30 0
	068	140 GM GT HARMONICS 31 0
	069	141 GM ACOUSTIC BASS 32 0
	070	142 GM FINGERED BASS 33 0
	071	143 GM PICKED BASS 34 0
	072	144 GM PRETLESS BASS 35 0
	073	145 GM SLAP BASS 1 36 0
	074	146 GM SLAP BASS 2 37 0
	075	147 GM SYNTH-BASS 1 38 0
	076	148 GM SYNTH-BASS 2 39 0
	077	149 GM VIOLIN 40 0
	078	150 GM VOLA 41 0
	079	151 GM CELLO 42 0
	080	152 GM CONTRABASS 43 0
	081	153 GM TREMOLO STRINGS 44 0
	082	154 GM PIZZICATO 45 0
	083	155 GM HARP 46 0
	084	156 GM TIMPANI 47 0
	085	157 GM STRINGS 1 48 0
	086	158 GM STRINGS 2 49 0
	087	159 GM SYNTH-STRINGS 1 50 0
	088	160 GM SYNTH-STRINGS 2 51 0
	089	161 GM CHOIR AAHS 52 0
	090	162 GM VOICE DOO 53 0
	091	163 GM SYNTH-VOICE 54 0
	092	164 GM ORCHESTRA HIT 55 0
	093	165 GM TRUMPET 56 0
	094	166 GM TROMBONE 57 0
	095	167 GM TUBA 58 0
	096	168 GM MUTE TRUMPET 59 0
	097	169 GM FRENCH HORN 60 0
	098	170 GM BRASS 61 0
	099	171 GM SYNTH-BRASS 1 62 0
	100	172 GM SYNTH-BRASS 2 63 0
	101	173 GM SOPRANO SAX 64 0
	102	174 GM ALTO SAX 65 0
	103	175 GM TENOR SAX 66 0
	104	176 GM BARITONE SAX 67 0
	105	177 GM OBOE 68 0
	106	178 GM ENGLISH HORN 69 0
	107	179 GM BASSOON 70 0
	108	180 GM CLARINET 71 0
	109	181 GM PICCOLO 72 0
	110	182 GM FLUTE 73 0
	111	183 GM RECORDER 74 0
	112	184 GM PAN FLUTE 75 0
	113	185 GM BOTTLE BLOW 76 0
	114	186 GM SHAKUHACHI 77 0
	115	187 GM WHISTLE 78 0
	116	188 GM CARINA 79 0
	117	189 GM SQUARE LEAD 80 0
	118	190 GM SAW LEAD 81 0
	119	191 GM CALLIOPE 82 0
	120	192 GM CHIFF LEAD 83 0
	121	193 GM CHARANG 84 0
	122	194 GM VOICE LEAD 85 0
	123	195 GM FIFTH LEAD 86 0
	124	196 GM BASS+LEAD 87 0
	125	197 GM FANTASY 88 0
126	198 GM WARM PAD 89 0
127	199 GM POLYSYNTH 90 0
128	200 GM SPACE CHOIR 91 0
129	201 GM BOWED GLASS 92 0
130	202 GM METAL PAD 93 0
131	203 GM HALO PAD 94 0
132	204 GM SWEEP PAD 95 0
133	205 GM RAIN DROP 96 0
134	206 GM SOUND TRACK 97 0
135	207 GM CRYSTAL 98 0
136	208 GM ATMOSPHERE 99 0
137	209 GM BRIGHTNESS 100 0
138	210 GM GOBLINS 101 0
139	211 GM ECHOES 102 0

Group Name/Nombre del grupo	Group Number/Número de grupo	Sequential Number/Número secuencial	Tone Name/Nombre del tono	Program Change/Cambio de programa	Bank Select MSB/MSB de Selección de banco	Acoustic Resonance/Resonancia acústica
	140	212	GM SF	103	0
	141	213	GM SITAR	104	0
	142	214	GM BANJO	105	0
	143	215	GM SHAMISEN	106	0
	144	216	GM KOTO	107	0
	145	217 GM T	HUMB PIANO 108	0
	146	218	GM BAGPIPE	109	0
	147	219	GM FIDDLE	110	0
	148	220	GM SHANAI	111	0
	149	221 GM T	INKLE BELL 112	0
	150	222	GM AGOGO	113	0
	151	223	GM STEEL DRUMS	114	0
	152	224	GM WOOD BLOCK	115	0
	153	225	GM TAIKO	116	0
	154	226	GM MELODIC TOM	117	0
	155	227	GM SYNTH-DRUM	118	0
	156	228	GM REVERSE CYMBAL	119	0
	157	229 GM G	GT FRET NOISE 120	0
	158	230	GM BREATH NOISE	121	0
	159	231	GM SEASHORE	122	0
	160	232	GM BIRD	123	0
	161	233	GM TELEPHONE	124	0
	162	234	GM HELICOPTER	125	0
	163	235	GM APPLAUSE	126	0
	164	236	GM GUNSHOT	127	0
	165	237 STAN	DARD SET 1 0	120
	166	238	STANDARD SET 2	1	120
	167	239 STAN	DARD SET 3 2	120
	168	240	STANDARD SET 4	3	120
	169	241	ROOM SET	8	120
	170	242	HIP-HOP SET	9	120
	171	243	POWER SET	16	120
	172	244	ELECTRONIC SET	24	120
	173	245 SYNT	H SET 1 25	120
	174	246	SYNTH SET 2	30	120
	175	247	TRANCE SET	31	120
	176	248	JAZZ SET	32	120
	177	249	BRUSH SET	40	120
	178	250	ORCHESTRA SET	48	120

NOTE

• Acoustic resonance (page E-41) is applied only to tones indicated by “ ”.
• While sequential numbered tone 065 (STEEL STR.GUITAR 2) or 066 (STEEL STR.GUITAR 3) is selected, pressing multiple keys on the far left side of the keyboard will produce a guitar strumming sound. It does not indicate malfunction.
• See the “Drum Assignment List” (page A-3) for the percussion instrument assigned to each keyboard key when a drum set (Sequential Number 237 to 250) is selected.

NOTA

Key/Note NumberNúmero de clave/nota

STANDARD SET 1

STANDARD SET 2

STANDARD SET 3

STANDARD SET 4

ROOM SET HIP-HOP SET POWER SET

ELECTRONIC SET

SYNTH SET 1

SYNTH SET 2

TRA

NCE SET JAZZ SET BRUSH SET

ORCHESTRA SET

E1 27

High Q

←

←

←

←

←

←

←

←

←

←

←

←

Closed Hi-Hat

E1 28

Slap

←

←

←

←

←

←

←

←

←

←

←

←

Pedal Hi-Hat

F1 29

Scratch Push

←

←

←

←

←

←

←

←

←

←

←

←

Open Hi-Hat

F1 30

F1 30

Scratch Pull

←

←

←

←

←

←

←

←

←

←

←

←

Ride Cymbal 1

G1 31

Sticks

←

←

←

←

←

←

←

←

←

←

←

←

←

A1 32

A1 32

Square Click

←

←

←

←

←

←

←

←

←

←

←

←

←

A1 33

Melronome Click

←

←

←

←

←

←

←

←

←

←

←

←

←

B1 34

B1 34

Melronome Bell

←

←

←

←

←

←

←

←

←

←

←

←

←

B1 35

Standard1 Kick 2

Standard2 Kick 2

Standard3 Kick 2

Standard4 Kick 2

Room Kick 2

Hip-Hop Kick 2

Power Kick 2

Elec. Kick 2

Synth1 Kick 2

Synth2 Kick 2

Trance Kick 2

Jazz Kick 2

Jazz Kick 2

Jazz Kick 1

C2 36

C2 37

Standard1 Kick 1

Standard2 Kick 1

Standard3 Kick 1

Standard4 Kick 1

Room Kick 1

Hip-Hop Kick 1

Power Kick 1

Elec. Kick 1

Synth1 Kick 1

Synth2 Kick 1

Trance Kick 1

Jazz Kick 1

Brush Kick

Concert BD

Side Stick

←

Standard3 Side Stick

←

←

Hip-Hop Side Stick

←

←

Synth1 Rim Shot

Synth1 Rim Shot

Trance Side Stick

←

Brush Side Stick

←

D2 38

D2 38

Standard1 Snare 1

Standard2 Snare 1

Standard3 Snare 1

Standard4 Snare 1

Room Snare 1

Hip-Hop Snare 1

Power Snare 1

Elec. Snare 1

Synth1 Snare 1

Synth2 Snare 1

Trance Snare 1

Jazz Snare 1

Brush Snare 1

Concert SD

Hand Clap

←

Standard3 Hand Clap

←

←

Hip-Hop Hand Clap

←

←

Synth1 Hand Clap

←

Trance Hand Clap

←

Brush Slap

Castanets

E2 40

Standard1 Snare 2

Standard2 Snare 2

Standard3 Snare 2

Standard4 Snare 2

Room Snare 2

Hip-Hop Snare 2

Power Snare 2

Elec. Snare 2

Synth1 Snare 2

Synth2 Snare 2

Trance Snare 2

Jazz Snare 2

Brush Snare 2

Concert SD

F2 41

F2 42

Low Tom 2

←

Standard3 Low Tom 2

←

Room Low Tom 2

←

Room Low Tom 2

Elec. Low Tom 2

Synth1 Low Tom 2

Synth2 Low Tom 2

←

←

←

Timpani F

Closed Hi-Hat

Standard2 Closed Hi-Hat

Standard3 Closed Hi-Hat

←

←

Hip-Hop Closed Hi-Hat

←

←

Synth1 Closed Hi-Hat 1

Synth2 Closed Hi-Hat 1

Trance Closed Hi-Hat

←

←

Timpani F ^d

G2 43

Low Tom 1

←

Standard3 Low Tom 1

←

Room Low Tom 1

←

Room Low Tom 1

Elec. Low Tom 1

Synth1 Low Tom 1

Synth2 Low Tom 1

←

←

←

Timpani G

A2 44

Pedal Hi-Hat

Standard2 Pedal Hi-Hat

Standard3 Pedal Hi-Hat

←

←

Hip-Hop Pedal Hi-Hat

←

←

Synth1 Closed Hi-Hat 2

Synth2 Closed Hi-Hat 2

Trance Open Hi-Hat 1

←

←

Timpani Gh

Mid Tom 2

←

Standard3 Mid Tom 2

←

Room Mid Tom 2

←

Room Mid Tom 2

Elec. Mid Tom 2

Synth1 Mid Tom 2

Synth2 Mid Tom 2

←

←

←

Timpani A

A2 45

Open Hi-Hat

Standard2 Open Hi-Hat

Standard3 Open Hi-Hat

←

←

Hip-Hop Open Hi-Hat

←

←

Synth1 Open Hi-Hat

Synth2 Open Hi-Hat

Trance Open Hi-Hat 2

←

←

Timpani A ^d

B2 47

Mid Tom 1

←

Standard3 Mid Tom 1

←

Room Mid Tom 1

←

Room Mid Tom 1

Elec. Mid Tom 1

Synth1 Mid Tom 1

Synth2 Mid Tom 1

←

←

←

Timpani B

C3 48

C3 49

High Tom 2

←

Standard3 High Tom 2

←

Room High Tom 2

←

Room High Tom 2

Elec. High Tom 2

Synth1 High Tom 2

Synth2 High Tom 2

←

←

←

Timpani c

Crash Cymbal 1

←

←

←

←

←

←

←

Synth1 Crash Cymbal

←

←

←

Brush Crash Cymbal 1

Timpani c ^d

D3 50

High Tom 1

←

Standard3 High Tom 1

←

Room High Tom 1

←

Room High Tom 1

Elec. High Tom 1

Synth1 High Tom 1

Synth2 High Tom 1

←

←

←

Timpani d

Ride Cymbal 1

←

←

←

←

←

←

←

Synth1 Ride Cymbal

←

←

←

Brush Ride Cymbal 1

Timpani d ^d

E3 52

Chinese Cymbal

←

←

←

←

←

←

Reverse Cymbal

←

←

←

←

←

Timpani e

F3 53

F3 54

Ride Deli

←

←

←

←

←

←

←

←

←

←

←

Brush Ride Bell

Timpani f

Tambourine

←

←

←

←

←

←

←

Synth1 Tambourine

←

Trance Tambourine

←

Brush Tambourine

←

G3 55

Splash Cymbal

←

←

←

←

←

←

←

←

←

←

←

Brush Splash Cymbal

←

A3 56

Cowbell

←

←

←

←

←

←

←

Synth1 Cowbell

Synth1 Cowbell

←

←

←

←

A3 57

Crash Cymbal 2

←

←

←

←

←

←

←

←

←

←

←

Brush Crash Cymbal 2

Concert Cymbal 2

B3 58

Vibraslap

←

←

←

←

←

←

←

←

←

←

←

←

←

B3 59

Ride Cymbal 2

←

←

←

←

←

←

←

←

←

←

←

Brush Ride Cymbal 2

Concert Cymbal 1

C4 60

C4 61

High Bongo

←

←

←

←

←

←

←

Synth1 High Bongo

←

←

←

←

←

Low Bongo

←

←

←

←

←

←

←

Synth1 Low Bongo

←

←

←

←

←

D4 62

Mute High Conga

←

←

←

←

←

←

←

Synth1 Mute Hi Conga

←

←

←

←

←

Open High Conga

←

←

←

←

←

←

←

Synth1 Open Hi Conga

←

←

←

←

←

E4 64

Open Low Conga

←

←

←

←

←

←

←

Synth1 Open Low Conga

←

←

←

←

←

High Timbale

←

←

←

←

←

←

←

←

←

←

←

←

←

F4 65

Low Timbale

←

←

←

←

←

←

←

←

←

←

←

←

←

High Agogo

←

←

←

←

←

←

←

←

←

←

←

←

←

G4 67

Low Agogo

←

←

←

←

←

←

←

←

←

←

←

←

←

Cabasa

←

←

←

←

←

←

←

←

←

←

←

←

←

Maracas

←

←

←

←

←

←

←

Synth1 Maracas

Synth1 Maracas

←

←

←

←

Short High Whistle

←

←

←

←

←

←

←

←

←

←

←

←

←

Long Low Whistle

←

←

←

←

←

←

←

←

←

←

←

←

←

Short Guiro

←

←

←

←

←

←

←

←

←

←

←

←

←

Long Guiro

←

←

←

←

←

←

←

←

←

←

←

←

←

Claves

←

←

←

←

←

←

←

Synth1 Claves

Synth1 Claves

←

←

←

←

High Wood Block

←

←

←

←

←

←

←

←

←

←

←

←

←

Low Wood Block

←

←

←

←

←

←

←

←

←

←

←

←

←

Mute Cuica

←

←

←

←

←

←

←

←

←

←

←

←

←

Open Cuica

←

←

←

←

←

←

←

←

←

←

←

←

←

Mute Triangle

←

←

←

←

←

←

←

←

←

←

←

←

←

Open Triangle

←

←

←

←

←

←

←

←

←

←

←

←

←

Shaker

←

←

←

←

←

←

←

←

←

←

←

←

←

Jingle Bell

←

←

←

←

←

←

←

←

←

←

←

←

←

Bell Tree

←

←

←

←

←

←

←

←

←

←

←

←

←

Castanets

←

←

←

←

←

←

←

←

←

←

←

←

←

Mute Surdo

←

←

←

←

←

←

←

←

←

←

←

←

←

Open Surdo

←

←

←

←

←

←

←

←

←

←

←

←

←

Applause 1

←

←

←

←

←

←

←

←

←

←

←

←

←

• “←” indicates a key is assigned the same tones as it is for STANDARD SET 1.

Rhythm List/Lista de ritmos

Group Name/Nombre del grupo	Group Number/Número de grupo	Sequential Number/Número secuencial	Rhythm name/Nombre del ritmo
POPS/JAZZ
	POPS
	001 001 POP 1
	002 002 POP 2
	003 003 FAST POP
	004 004 FUNK POP
	005 005 POP ROCK
	006 006 6/8 POP
	007 007 FAST SOUL
	008 008 SLOW SOUL
	009 009 60'S SOUL
	010 010 POP SHUFFLE
	8 BEAT/16 BEAT
	011 011 STRAIGHT 8 BEAT 1
	012 012 STRAIGHT 8 BEAT 2
	013 013 FUNK 8 BEAT
	014 014 MELLOW 8 BEAT
	015 015 GUITAR 8 BEAT
	016 016 8 BEAT
	017 017 8 BEAT POP
	018 018 OLDIES 8 BEAT
	019 019 60'S 8 BEAT
	020 020 16 BEAT
	021 021 16 BEAT SHUFFLE
	DANCE
	022 022 HIP-HOP
	023 023 DANCE POP
	024 024 DISCO POP
	025 025 TECHINO POP
	026 026 TRANCE
	027 027 MODERN R&B
	028 028 MODERN DANCE
	029 029 DISCO SOUL
	ROCK
	030 030 STRAIGHT ROCK
	031 031 SHUFFLE ROCK
	032 032 BLUES 1
	033 033 BLUES 2
	034 034 EP BLUES
	035 035 SLOW BLUES
	036 036 SOFT ROCK
	037 037 LATIN ROCK
	038 038 SLOW ROCK
	039 039 50'S ROCK
	040 040 50'S PIANO ROCK
	041 041 NEW ORLNS R&R
	042 042 60'S ROCK
	043 043 ROCK
	044 044 70'S PIANO ROCK
	045 045 ROCK WALTZ
	JAZZ
	046 046 SLOW BIG BAND
	047 047 MIDDLE BIG BAND
	048 048 FAST BIG BAND
	049 049 SWING 1
	050 050 SWING 2
	051 051 SLOW SWING
	052 052 JAZZ WALTZ
	053 053 FOX TROI
	054 054 QUICKSTEP
	055 055 JAZZ COMBO 1
	EUROPEAN
	056 056 SCHLAGER
	057 057 POLKA
	058 058 WALTZ 1

Group Name/Nombre del grupo	Group Number/Número de grupo	Sequential Number/Número secuencial	Rhythm name/Nombre del ritmo
	WORLD II
	INDIAN
	050 116 BHANGRA
	051 117 DADRA
	052 118 GARBA
	053 119 KEHARWA
	054 120 DANDIYA
	055 121 TEEN TAAL
	056 122 BHAJAN
	CHINESE
	057 123 GUANGDONG
	058 124 JIANGNAN
	059 125 BEIJING
	060 126 DONGBEIYANGGE
	061 127 JINGJU
	062 128 HUANGMEIXI
	063 129 QINQIANG
	064 130 YUJU
	065 131 YAOZU
	066 132 DATZU
	067 133 MIAOZU
	068 134 MENCCU
	069 135 XINJIANG
	070 136 ZANGZU
	SOUTHEAST ASIAN
	071 137 KRONCONG
	072 138 DANGDUT
	JAPANESE
	073 139 ENKA
BALLAD/PIANO RHYTHMS
	BALLAD
	001 140 PLANO ROCK BALLAD
	002 141 90'S BALLAD
	003 142 MODERN BALLAD
	004 143 ELECTRIC BALLAD
	005 144 SLOW BALLAD 1
	006 145 SLOW BALLAD 2
	007 146 R&B BALLAD
	008 147 16 BEAT BALLAD
	009 148 SOUL BALLAD
	010 149 POP BALLAD 1
	011 150 POP BALLAD 2
	012 151 PLANO WALTZ BALLAD
	013 152 90'S 6/8 BALLAD
	014 153 6/8 BALLAD 1
	015 154 6/8 BALLAD 2
	016 155 ROCK BALLAD
	VARIOUS
	017 156 CHRISTMAS SONG
	018 157 CHRISTMAS WALTZ
	019 158 SCREEN SWING
	020 159 SYMPHONY
	021 160 STR QUARTET
	PIANO RHYTHMS
	022 161 PLANO 8 BEAT
	023 162 PLANO BALLAD 1
	024 163 PLANO BALLAD 2
	025 164 EP BALLAD 1
	026 165 EP BALLAD 2
	027 166 BLUES BALLAD
	028 167 JAZZ COMBO 2
	029 168 JAZZ COMBO 3
	030 169 RAGTIME
	031 170 BOOGIE-WOOGIE
	032 171 PLANO ROCK & ROLL
	033 172 ARPEGGIO 1
	034 173 ARPEGGIO 2
	035 174 ARPEGGIO 3
	036 175 PLANO MARCH 1

- Sequential number rhythms 171 through 180 do not sound unless a chord is being played.

Music Library/Biblioteca musical

Group Name/Nombre del grupo	Group Number/Número de grupo	Sequential Number/Número secuencial	Song Name/Nombre de la canción
A
	001 001	Nocturne Op.9-2
	002 002	Fantaisie-Impromptu Op.66
	003 003	Etude Op.10-3 "Chanson de l'adieu"
	004 004	Etude Op.10-5 "Black Keys"
	005 005	Etude Op.10-12 "Revolutionary"
	006 006	Etude Op.25-9 "Butterflies"
	007 007	Prélude Op.28-7
	008 008	Valse Op.64-1 "Petit Chien"
	009 009	Valse Op.64-2
	010 010	Moments Musicaux 3
	011 011	Impromptu Op.90-2
	012 012	Marche Militaire 1 (Duet)
	013 013	Frühlingslied [Lieder Ohne Worte IHeft 5]
	014 014	Fröhlicher Landmann [Album fur die Jugend]
	015 015		Von fremden Ländern und Menschen [Kinderszenen]
	016 016	Träumcrei [Kinderszenen]
B
	001 017	ambourin
	002 018		Mcnuet BWV Anh.114[Clavierbüchlein der Anna Magdalena Bach]
	003 019	Inventio 1 BWV 772
	004 020	Inventio 8 BWV 779
	005 021	Inventio 13 BWV 784
	006 022		'l'raeludium 1 BWV 846[Das Wohltemperierte Klavier 1]
	007 023	Le Coucou
	008 024	Gavotte
	009 025	Sonatina Op.36-1 1st Mov.
	010 026	Sonatine Op.20-1 1st Mov.
	011 027	Sonate K.545 1st Mov.
	012 028	Sonate K.331 3rd Mov. "Turkish March"
	013 029	Rondo K.485
	014 030	Für Elise
	015 031	Marcia alla Turca
	016 032	Sonate Op.13 "Pathétique" 1st Mov.
	017 033	Sonate Op.13 "Pathétique" 2nd Mov.
	018 034	Sonate Op.13 "Pathétique" 3rd Mov.
	019 035	Sonate Op.27-2 "Moonlight" 1st Mov.
	020 036	Rhapsodie 2
	021 037	Waltz Op.39-15 (Duet)
C
	001 038	Liebesträume $
	002 039	Blumenlied
	003 040	La Prière d'une Vierge
	004 041	Csikos Post
	005 042	Humorcsque Op.101-7
	006 043	Melodie [Lyrische Stucke IHeft 2]
	007 044	Sicilienne Op.78
	008 045	Berccusc [Dolly] (Duet)
	009 046	Arabesque 1
	010 047	La Fille aux Cheveux de Lin [Préludes]
	011 048	Passepied [Suite bergamasque]
	012 049	Gymnopédie 1
	013 050	Je Te Veux
	014 051	Salut d'Amou
	015 052	The Entertainer
	016 053	Maple Leaf Rag
	017 054	L'arabesque [25 Etüden Op.100]
	018 055	La Styrienne [25 Etüden Op.100]
	019 056	Ave Maria [25 Etüden Op.100]
	020 057	Le retour [25 Etüden Op.100]
	021 058	La chevaleresque [25 Etüden Op.100]
	022 059	No.13 [Études de Mécanisme Op.849]
	023 060	No.26 [Études de Mécanisme Op.849]

Music Preset List/Lista de preajustes musicales

Group Name/Nombre del grupo	Group Number/Número de grupo	Sequential Number/Número secuencial	Preset Name/Nombre de preajuste
A
	POPS
	1 1 Soft Pop
	2 2 Winter Pop
	3 3 Oldies Pop
	4 4 Alpiré Flora
	5	5	G y p
	6 6 Rain Pop
	7 7 Movie Waltz
	8 8 Blowin' in
	9 9 Funky Rspct
	10 10 Love Pop
	11 11 Loco
	12 12 Rising Sun
	13 13 Believer
	14 14 Pop Ska
	15 15 Weep Blues
	16 16 Sugar Pop
	17 17 JoyWorldPop
	18 18 My Life
	19 19 Ribbon
	20 20 Blue Love
	21 21 Xmas Pop
	22 22 Close
	23 23 Going On
	24 24 70's Pop
	25 25 West Coast
	26 26 Bossa Pop
	27 27 Radio Pop
	28 28 Crazy Roll
	29 29 Ivory Pop
	30 30 UK Pop
	31 31 Brath You
	32 32 A Feeling
	33 33 Calling
	34 34 Take On
	35 35 The World
	36 36 PlaceOnEarth
	37 37 Mexican Pop
	38 38 Guitar Pop
	39 39 W Up
	40 40 Sign
	41 41 Wonder
	42 42 Hips D Lie
	43 43 Say Right
	44 44 MomPopRock
	ROCK
	45 45 Rock Clock
	46 46 Johnny
	47 47 Heartache
	48 48 EP R&R
	49 49 Pop R&B
	50 50 60's Rock 1
	51 51 60's Rock 2
	52 52 60's Rock 3
	53 53 60's Rock 4
	54 54 60's Rock 5
	55 55 Get Rock
	56 56 Honky Rock
	57 57 Wild Rock
	58 58 Alligator
	59 59 The Tiger
	60 60 Pop Rock
	61 61 16St Rosa
	62 62 Heat Up
63 63 Hard Rock
64 64 Grunge Rock
65 65 Latin Rock
66 66 Hanging By
67 67 R&R
68 68 Piano R&R
69 69 Blues
70 70 8 Ears Blues
71 71 Rif Rock 1
72 72 Rif Rock 2
73 73 Rif Rock 3
DANCE
74 74 Disco Freak

Group Name/Nombre del grupo	Group Number/Número de grupo	Sequential Number/Número secuencial	Preset Name/Nombre de preajuste
	30	150 Nutcracker
	31 151 Liebestraume
	32	152 Gymnopedies
	33 153 Jupiter
	34	154 Entertainer
	35 155 MapleLeafRag
	TRAD
	36 156 Michael Row
	37	157 GmdpasClock
	38 158 Troika
	39	159 Auld LangSyne
	40 160 Aloha Oe
	41 161 O Sole Mio
	42 162 Furusato
	43	163 Szla Dzlweczk
	44 164 Battle Hymn
	45	165 Condor
	46 166 ScarboroFair
	47	167 Danny Boy
	48 168 Greensleeves
	49	169 Annie Laurie
	50 170 AmazingGrace
	51	171 WeWishU Xmas
	52 172 Silent Night
	53 173 Joy To World
	54 174 YankeeDoodle
	55	175 Clarnt Polka
	56 176 TaRaRaBoom
	57	177 Double Eagle
	58 178 Blauen Donau
	59	179 Yellow Rose
	60 180 BeautDreamer
	LATIN
	61 181 Moon Bossa
	62	182 Your Smile
	63 183 Rio
	64	184 Bossa Blue
	65 185 One Note
	66	186 Wave Bossa
	67 187 Out Of Tune
	68	188 Quiet Star
	69 189 Insentive
	70	190 Brzl Samba
	71 191 Orpheus
	72	192 Tico-Tico
	73 193 Beguine
	74	194 Amapola
	75 195 La Paloma
	76	196 Banana Boat
	77 197 Peanut
	78	198 Coffee
	79 199 Jamaica
	80	200 More Beguine
	81 201 The No.5
	82	202 Everyday
	83 203 Mucho
	84	204 El Tango
	85 205 El Choclo
	86	206 Sheriff
	87 207 No Woman
	88	208 Can't Help
	89 209 Livin'
	90	210 Whenever
	COUNTRY
91	211 This Land
92 212 My Sunshine
93	213 Walk Line
94 214 Home Roads
95	215 A Friend
96 216 Cowboy
97	217 Still One
98 218 Breath
99	219 CountryWaltz
100 220 He Cheats
C
	BALLAD
	1	221 Love Ballad
	2 222 R&B Ballad
	3	223 Soul Ballad
	4 224 Blues Ballad
	5	225 MovieBallad1
	6 226 MovieBallad2

Group Name/Nombre del grupo	Group Number/Número de grupo	Sequential Number/Número secuencial	Preset Name/Nombre de preajuste
	7	227 Xmas	Ballad
	8 228 Love Me
	9 229 Oldies Bld 1
	10 230 Oldies Bld 2
	11 231 Oldies Bld 3
	12 232 Oldies Bld 4
	13	233 E	World
	14 234 Tears
	15	235 Moon	Waltz
	16 236 A's Theme
	17	237 Paradise
	18 238 60's Ballad1
	19	239 60's	Ballad2
	20 240 Whiter Shade
	21	241 FrenchBallad
	22 242 Everywhere
	23	243 Wonderful
	24 244 70's Ballad1
	25	245 70's	Ballad2
	26 246 My Song
	27	247 Bridge
	28 248 Img Ballad
	29	249 Without
	30 250 Not In Love
	31	251 Soft	Ballad
	32 252 We Were
	33	253 Minor	Ballad
	34 254 Pop Ballad 1
	35 255 Pop Ballad 2
	36 256 PianoBallad1
	37	257 PianoBallad2
	38 258 Musical Bld
	39	259 R	Ballad
	40 260 Always Mind
	41	261 Endless
	42 262 80's Ballad1
	43	263 80's	Ballad2
	44 264 80's Ballad3
	45	265 80's	Ballad4
	46 266 Friends For
	47	267 Rock	Ballad
	48 268 Eternal
	49	269 Everything
	50 270 Save Best
	51 271 Of The Road
	52 272 I Always
	53	273 New	World
	54 274 Vision
	55	275 I	Can Fly
	56 276 Wind Ballad
	57 277 Love To You
	58 278 My Ballad
	59	279 Beautiful
	60 280 Scrubs
	61	281 Falling
	62 282 BingTogether
	63	283 B	Day
	64 284 Rap Ballad
	65	285 Dance	Ballad
	66 286 MdrnRock Bld
	67	287 Slow	Ballad
	68 288 Kiss Rose
	JAZZ BALLAD
	69 289 Summer
70	290 New	York
71 291 B & S
72	292 L	Alone
73 293 Foggy
74	294 Moon	Swing
75 295 Foolish
76	296 Valentine
77 297 Midnight
78	298 Journey
79 299 Star
80	300 Starlight

Fingered 1, Fingered 2 Chords/Acordes Fingered 1, Fingered 2

C
Cm
Cdim
Caug *3
Csus4 *3
Csus2 *3
C7
Cm7 *3
CM7
Cm7*5 *3
C7*5 *3
C7sus4
Cadd9
Cmadd9
CmM7
Cdim7 *3
C69 *3
C6 *1 *3
Cm6 *2 *3

*1 With Fingered 2, interpreted as Am7.

*2 With Fingered 2, interpreted as Am7b5.

*3 Inverted form not supported in some cases.

Fingered 3, Full Range Chords/Acordes Fingered 3, Full Range

In addition to the chords that can be fingered with Fingered 1 and Fingered 2, the following chords also are recognized.

• With Fingered 3, the lowest note fingered is interpreted as the base note. Inverted forms are not supported.
• With Full Range Chord, when the lowest fingered is a certain distance from the neighboring note, the chord is interpreted as a fraction chord.
• Unlike Fingered 1, 2, and 3, Full Range Chord requires pressing of at least three keys to form a chord.

NOTA

Function Transmitted		Recognized Remarks
Basic Channel	Default Changed	1 - 161 - 16	1 - 161 - 16
Mode	Default Messages Altered	Mode 3X*****	Mode 3X*****
Note Number		0 - 127 0 - 127*****	0 - 127*1True voice
Velocity	Note ON Note OFF	O 9nH v = 1 - 127X 8nH v = 64	O 9nH v = 1 - 127X 9nH v = 0, 8nH v =**	**: no relation**: sin relación
After Touch	Key's Ch's	X X	X O
Pitch Bender		X	O
Control Change	0,32156,387101161718196465666776777880818283849193100,101120121	OXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX	OOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOO	Bank selectModulationPortamento TimeData entry LSB, MSB*2VolumePanExpressionDSP Parameter0*2DSP Parameter1*2DSP Parameter2*2DSP Parameter3*2DamperPortamento SwitchSostenutoSoft pedalVibrato rateVibrato depthVibrato delayDSP Parameter4*2DSP Parameter5*2DSP Parameter6*2DSP Parameter7*2Portamento ControlReverb sendChorus sendRPN LSB, MSB*2All sound offReset all controller
Program Change		O*****	O0 - 127:True #
System Exclusive		O	O	*2
System Common	: Song Pos : Song Sel : Tune	XXXX	XXX
System Real Time	: Clock : Commands	OO	XX
Aux Messages	: Local ON/OFF : All notes OFF : Active Sense : Reset	XOXXX	XOOXX
Remarks		*1 : Depends on tone*2 : For details, see MIDI Implementation at http://world.casio.com/.*1 : depende del tono*2 : si desea más información, vea Implementación MIDI en http://world.casio.com/.

Mode 1 : OMNI ON, POLY

Mode 3 : OMNI OFF, POLY

Mode 2 : OMNI ON, MONO

Mode 4 : OMNI OFF, MONO

O: Yes

X: No

This recycle mark indicates that the packaging conforms to the environmental protection legislation in Germany.
