DE67-HA - Computer AOPEN - Free user manual and instructions

Product Type	Personal Computer (Mini PC)
CPU	Intel Socket G2; Intel 2nd Gen Core i3/i5/i7 mobile processor (TDP ≤ 35W)
Chipset	Intel QM67
Memory	Dual Channel SO-DIMM DDR3, 1066/1333 MHz, max 8GB
Graphics	Intel HD Graphics 3000
Expansion Slots	1x Full Size Mini Card, 1x Half Size Mini Card
Audio	Realtek ALC662 HD Audio CODEC, 5.1 Channel
LAN	Intel 82579LM 10/100/1000 Mbps
Front Panel I/O	Power button, HDD/Power indicator (blue), 2x USB 2.0
Rear Panel I/O	DC 20V jack, DisplayPort, DVI-I, RJ45, 2x USB 3.0, RS232 serial port, speaker out, mic in
Power Adapter	90W (20V, 4.5A) AC Adapter
Input Voltage	AC 100-240V
Operating Temperature	0°C to 45°C
Ventilation Clearance	At least 5cm on side and rear
Accessories Included	User Guide, Driver CD, 90W Adapter and Power Cord, L-type Holder with screws, DVI to HDMI cable, cable clamp, DVI to D-Sub adapter
Regulatory Compliance	FCC Class B, ICES-003, CE

Frequently Asked Questions - DE67-HA AOPEN

What type of processor does the DE67-HA support?

The DE67-HA supports Intel 2nd generation Core i3, i5, and i7 mobile processors with a TDP of 35W or less, using Socket G2.

How much memory can I install?

You can install up to 8GB of DDR3 memory using two SO-DIMM slots, supporting 1066/1333 MHz in dual-channel mode.

How do I connect an external monitor?

Use the DisplayPort or DVI-I port on the rear panel. An adapter for HDMI is included in the package.

Can I use both USB 2.0 and USB 3.0 ports?

Yes, the front panel has two USB 2.0 ports, and the rear panel has two USB 3.0 ports for high-speed devices.

How should I clean the DE67-HA?

Disconnect the power. Use a moist cloth (not wet) to wipe the exterior. Do not use liquid or spray cleaners.

What is the operating temperature range?

The ambient operating temperature is 0°C to 45°C (32°F to 113°F). Ensure proper ventilation.

Does the DE67-HA support dual monitors?

Yes, you can connect two monitors using the DisplayPort and DVI-I ports simultaneously.

Where can I find the driver software?

A Driver CD is included in the package. You can also download the latest drivers from AOpen's support website.

What should I do if the device gets wet?

Unplug the device immediately and contact qualified service personnel. Do not attempt to open or use it.

Can I mount the DE67-HA behind a monitor?

Yes, the included L-type holder allows VESA mounting. Use the provided screws and ensure adequate airflow.

USER MANUAL DE67-HA AOPEN

Personal Computer User Guide for DE67 Series

Close-up of a black electronic device rear panel showing two USB connectors and a central button (no text or symbols visible)

Disposal Instruction (US)

For better protection of our earth, please don't throw this electronic device into municipal trash bin when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle the product. For more information about the collection and recycling of Waste Electrical and Electronic Equipment (WEEE), you are invited to visit our homepage at www.aopen.com under “Green Products”

廃棄上の指示

Instruction de Disposition (French)

Copyright of this publication belongs to AOpen Inc. AOpen reserves the right to change the content of this publication without obligation to notify any party of such changes or revisions. No part of this publication may be reproduced, transcribed, transmitted, translated into any language, stored in a retrieval system in any form or by any means electronically, mechanically, optically without the prior written permission of this company.

Disclaimer

AOpen makes no warranties or representations, either expressed or implied, with respect to the content herein and specifically disclaims any warranties, merchantability of fitness for any particular purpose.

AOpen and AOpen logos used herein are registered trademarks of AOpen Inc. All other brand names and trademarks are owned by their respective owners.

Copyright © 2010 by AOpen Inc. All rights reserved.

Safety Instructions

1. Please read these safety instructions carefully.
2. Please keep this User's Manual for later reference.
3. Please disconnect this equipment from connector before cleaning. Don't use liquid or prayed detergent for cleaning. Use moisture sheet or cloth for cleaning.
4. Make sure the equipment is connected to the power source with the correct voltage, frequency, and ampere.
5. All cautions and warnings on the equipment should be noted.
6. Never pour any liquid into opening; this could cause fire or electrical shock.
7. Never open the equipment. For safety reason, the equipment should only be opened by qualified service personnel.
8. If one of the following situations arises, get the equipment checked by a service personnel :

a. Liquid has penetrated into the equipment.
b. The equipment has been exposed to moisture.
c. The equipment has not work well or you can not get it work according to user's manual.
d. The equipment has dropped and damaged.
e. If the equipment has obvious sign of breakage.

1. Caution on use of battery: Use the battery recommended by the manufacturer or the same type of battery installed by the manufacturer. If incorrect battery is used, it may cause explosion or fire hazard. Recycle or discard used batteries according to the manufacturer's instruction or your local authority.

2. Safety caution concerning laser products:

DVD-ROM/CD-RW combo drive is “Class I Laser Product” This equipment, built with DVD and/or CD disc drives using laser beam to read or write data on optical discs, is classified as “Class 1 laser product”. While the laser optical drive is reading data from or writing data to an optical disc, do not force open the disc drive door. Press the Eject button to retrieve the optical disc only after the in-use indicator goes off.

1. Ambient operation temperature: 0 \~ 45 degrees C.

2. Risk of overheating!

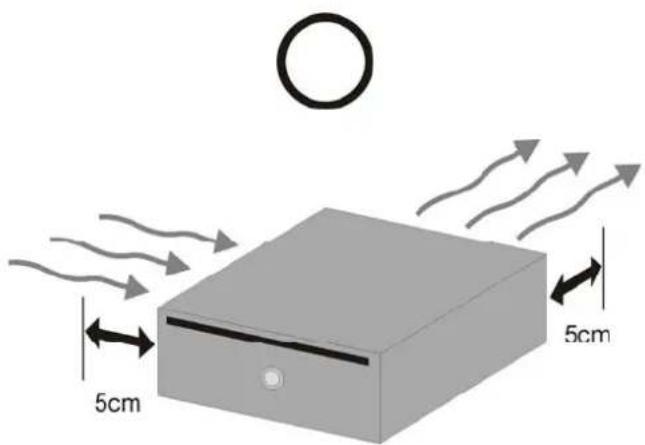

- Do not install DE67 in a closed space. Be sure the ventilation holes in the DE67 side for at least 1 to 2 inches or 2 to 5cm of space for ventilation. To ensure that other objects do not cover the ventilation holes on DE67

In right side and rear side keep space at least 5cm.

Diagram showing airflow around a rectangular chamber with arrows indicating direction (no text or symbols)

Don't put operating device inside closed space.

FCC notice

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■. Reorient or relocate the receiving antenna.
■. Increase the separation between the device and receiver.
■. Connect the device into an outlet on a circuit different from that to which the receiver is connected.
■. Consult the dealer or an experienced radio/television technician for help

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Notice: Peripheral devices

Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this computer.

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003

Index

1. Outlook ......2
2. Product Specification....4
3. Internal Connectors ....5
4. Packing List....6
5. Chassis and Holder Dimension ....7

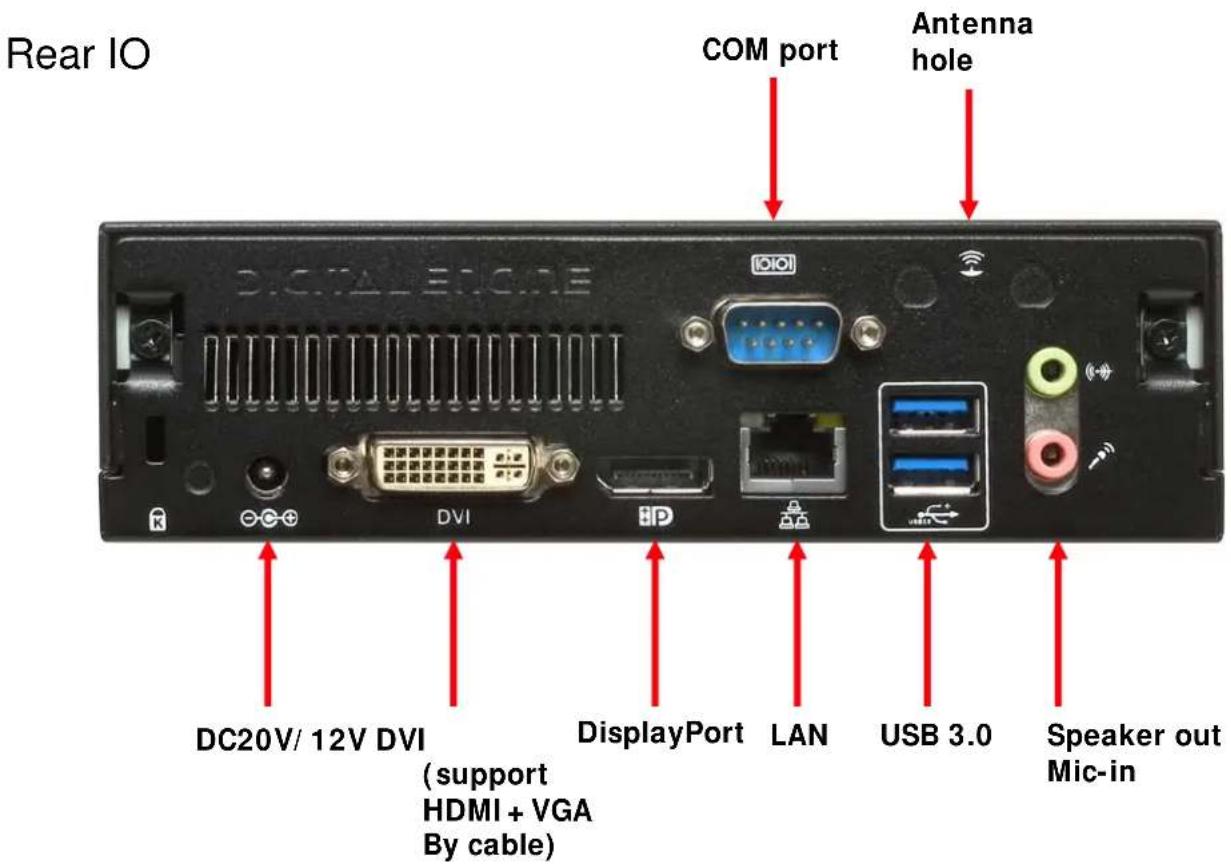

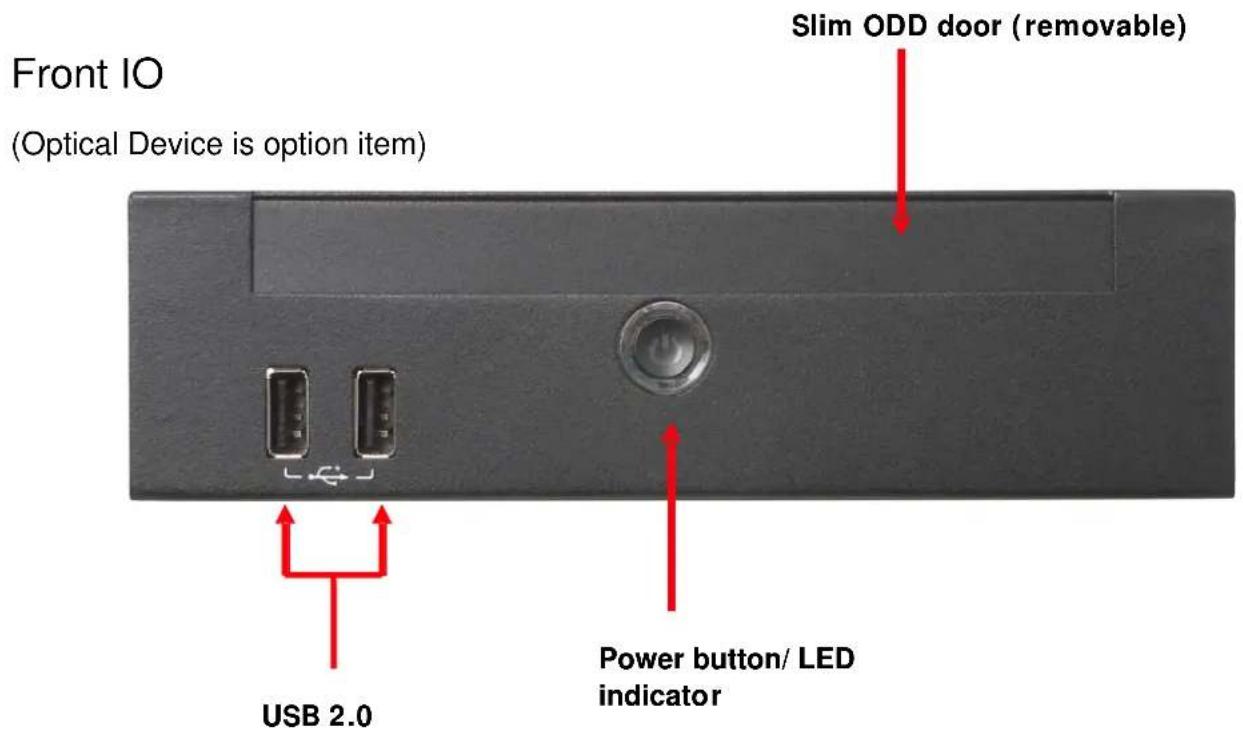

1. Outlook

2. Product Specification

CPU	Intel CPU Socket G2 / Intel 2nd generation Core i3, i5, i7 mobile processor TDP ≤ 35W
Chipset	Intel QM67 Chipset
Memory	Dual Channel Mode, SO-DIMM DDRIII x 2, 1066/1333 MHz Max memory size : 8GB
Graphics	Intel® HD Graphics 3000
Expansion Slot	Full Size mini Card x 1Half Size Mini Card x 1
Audio	Realtek ALC662 HD Audio CODEC on-Board5.1 Channel
LAN	Intel 82579LM 10/100/1000 Mbps LAN Controller
Front Panel IO	Power Button x 1, HDD/Power indicator (Blue) x 1, USB 2.0 Port x 2
Rear Panel IO	DC 20V Jack x 1, DisplayPort x 1, DVI-I Port x 1, RJ45 LAN Jack x 1, USB 3.0 Port x 2, RS232 Serial Port x 1, HD Audio ports (speaker out x 1, Mic in x 1)
Adapter	90W (20V, 4.5A) AC Power Adapter
Input Voltage	AC 100 ~ 240V

3. Internal Connectors

4. Packing List

1 x DE67 system
1 x User Guide
1 x Driver CD
1 x 90W Adapter and Power Cord
1 x L type Holder with 4 pcs of M3 screw
4 x M3 - L4 screws
4 x M2 - L2 screws
1 x DVI to HDMI cable
1 x cable clamp
1 x DVI to D-Sub adapter

5. Chassis and Holder Dimension

A. Dimension of DE67 (unit: mm[inch])

B. LH02 L type Holder (Include 2 piece holder and 4 FPH M3 screws) Dimension of L type Holder. (unit: mm)

P/N : 49.DE601.0010

S/N : 112-099-114
