Product Type	HDMI over IP Wall Plate Transmitter
Model	AT-OME-TX11-WP
Manufacturer	Atlona
Category	AV Extension
Dimensions (H x W x D)	4.5" x 2.5" x 1.5"
Weight	0.5 lbs (0.23 kg)
Power Supply	PoE (IEEE 802.3af) or DC 5V
Video Support	Up to 4K@60Hz 4:4:4
Audio Support	Embedded audio pass-through
Control	RS-232, IR, Ethernet
Maximum Distance	100 meters via Cat6/6a
Mounting	Wall plate (US 1-gang)
Input Connector	HDMI (Type A)
Output Connector	RJ45 (PoE)
HDCP	HDCP 2.2 compliant
EDID Management	Built-in EDID emulation
Maintenance	Clean with soft dry cloth. No liquids.
Safety	Keep away from moisture. Use only provided power.
Spare Parts	Power adapter (optional), mounting screws
Repairability	No user-serviceable parts. Contact Atlona support.

Frequently Asked Questions - AT-OME-TX11-WP Atlona

How do I connect the AT-OME-TX11-WP to a network?

Connect the RJ45 port to a PoE-enabled switch using a Cat6 or better cable. The unit will power up and begin transmitting HDMI signals over IP.

What video resolutions are supported?

The device supports resolutions up to 4K@60Hz 4:4:4. Lower resolutions like 1080p are also supported.

Does the AT-OME-TX11-WP support PoE?

Yes, it supports PoE (IEEE 802.3af). Alternatively, a DC 5V power supply can be used if PoE is not available.

Can I control the transmitter via RS-232?

Yes, the device has an RS-232 port for serial control. Commands can be sent to configure or manage the unit.

What is the maximum cable length for HDMI signal over IP?

Using Cat6/6a cable, the maximum distance is 100 meters (328 feet) for stable transmission.

How do I reset the AT-OME-TX11-WP to factory defaults?

Press and hold the reset button (located near the RJ45 port) for 10 seconds. The unit will reboot with factory settings.

Is the wall plate compatible with standard US electrical boxes?

Yes, it fits a standard US 1-gang electrical box. Mounting screws are included.

Can the transmitter pass IR signals for remote control?

Yes, it includes an IR input and IR output for extending IR signals from a remote control to the display or source.

What do I do if the unit does not power on?

Check that the PoE switch is active and the cable is connected properly. If using DC power, verify the adapter is plugged in. Contact support if the issue persists.

How do I update the firmware?

Firmware updates are performed via the web interface or using Atlona's OMEControl software. Download the latest firmware from the Atlona support site.

USER MANUAL AT-OME-TX11-WP Atlona

Wallplate Transmitter for HDMI with USB

AT-OME-TX11-WP

The Atlona AT-OME-TX11-WP is an HDBaseT transmitter for video up to 4K/60 4:2:0, plus embedded audio over distances up to 330 feet (100 meters). It features a US one-gang, wallplate form factor, and includes interchangeable black and white wallplates and faceplates. Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-TX11-WP is HDCP 2.2 compliant and is remotely powered over HDBaseT. This transmitter is ideal for use with Omega Series receivers as well as switchers with HDBaseT inputs.

Package Contents

1 x AT-OME-TX11-WP

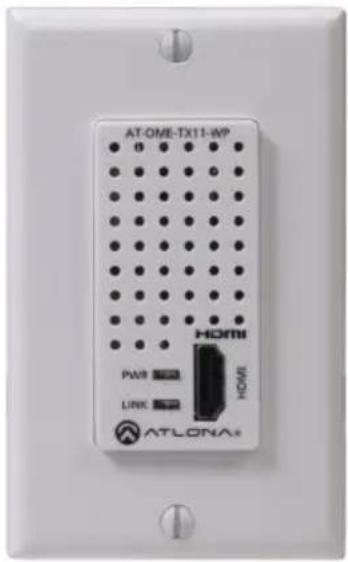

1 x White faceplate
1 x White Decora® wallplate (US 1-gang)

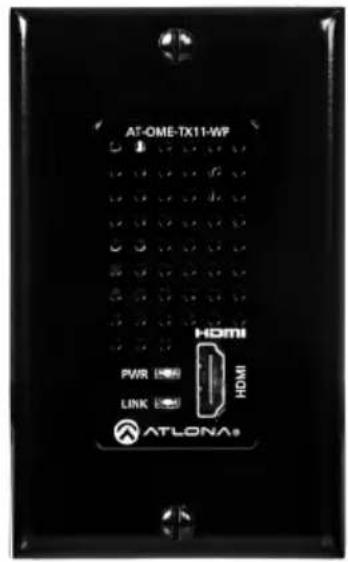

1 x Black faceplate
1 x Black Decora®wallplate (US 1-gang)
2 x Mounting screws (course thread)
2 x Mounting screws (fine thread)

IMPORTANT: Visit http://www.atlona.com/product/AT-OME-TX11-WP for the latest firmware updates and User Manual.

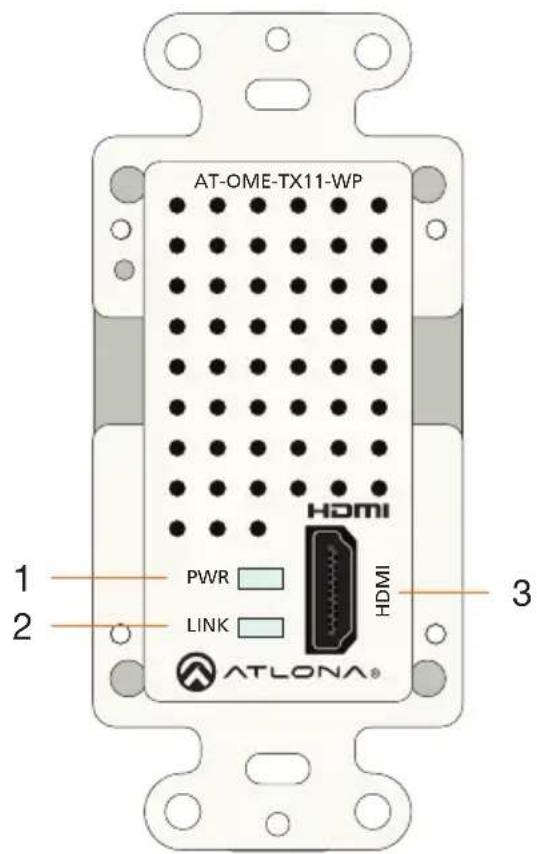

1 PWR

This LED indicator glows solid green when the unit is powered. Refer to LED Indicators (page 5) for more information.

2 LINK

This LED indicator glows solid amber to indicate that the HDBaseT signal integrity is good. Refer to LED Indicators (page 5) for more information.

3 HDMI

Connect an HDMI cable from this port to a UHD/HD source.

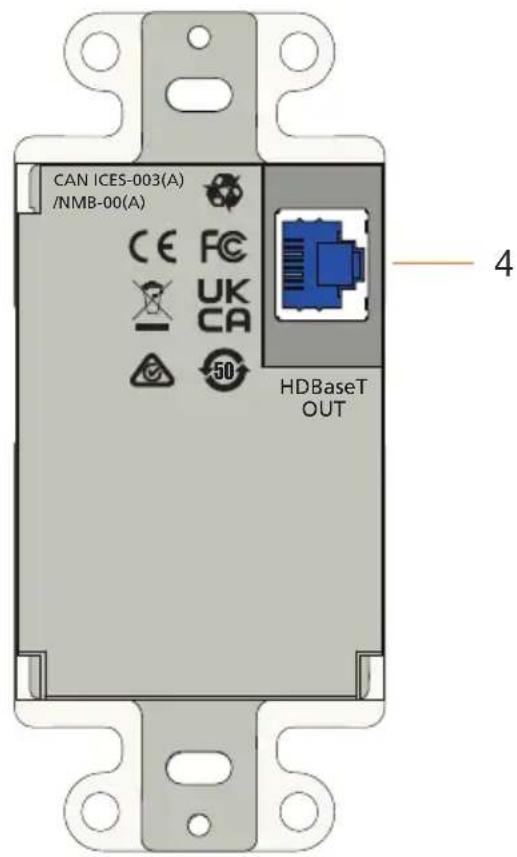

4 HDBaseT OUT

Connect a category cable from this port to the HDBaseT IN port of the AT-OME-RX11 or other PoE-compatible receiver.

Faceplate Removal and Assembly

Removal of the faceplate requires that the AT-OME-TX11-WP be disassembled from the electrical box or mud ring. A small Phillips-head screwdriver is required to remove the faceplate.

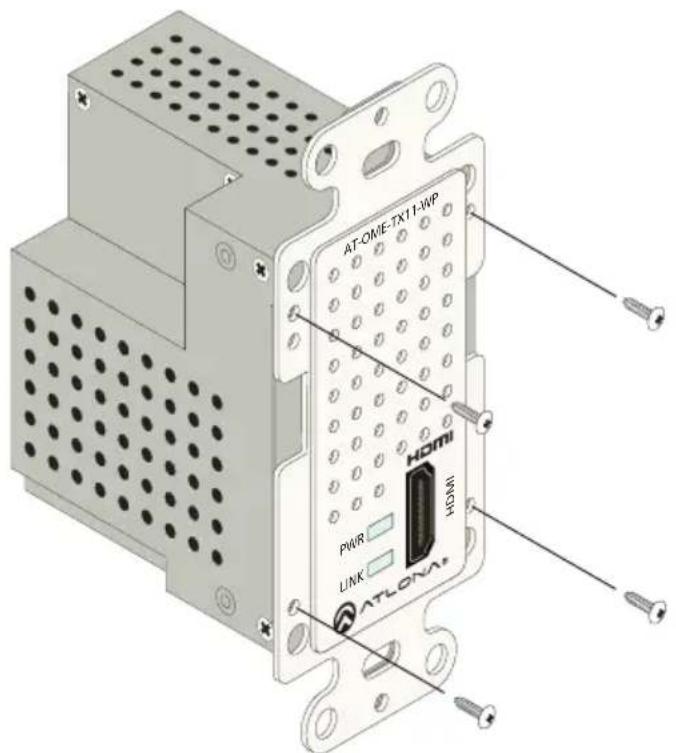

1. Unscrew the four Phillips-head screws from the sides of the faceplate, as shown:

1. Gently remove the faceplate by pulling it toward you.
2. Attach the new faceplate, then secure it using the four Phillips-head screws. Do not over-tighten or apply high-torque devices to the screws. Doing so may damage the faceplate and/or the screws.
3. Install the AT-OME-TX11-WP into the electrical box or mud ring.
4. Reattach the wallplate.

Installation

1. Connect an HDMI cable from the UHD/HD source to the HDMI port.
2. Connect a category cable, from the HDBaseT OUT port on the rear of the AT-OME-TX11-WP, to the HDBaseT IN port on the receiver.

Cable Recommendation Guidelines

Refer to the tables below for recommended cabling when using Altona products with HDBaseT. The green bars indicate the signal quality when using each type of cable. Higher-quality signals are represented by more bars.

Core Shielding CAT5e CAT6 CAT6a CAT7
Solid UTP (unshielded) N/A
STP (shielded)

IMPORTANT: Stranded or patch cables are not recommended due to performance issues.

Cable* Max. Distance @ 4K Max. Distance @ 1080p
CAT5e 295 feet (90 meters) 330 feet (100 meters)
CAT6 / CAT6a / CAT7 330 feet (100 meters) 330 feet (100 meters)

*Atlona recommends TIA/EIA 568-B termination for optimal performance.

LED Indicators

The PWR and LINK LED indicator on both the transmitter and receiver unit provides basic information on the current status of the AT-OME-TX11-WP.

PWR Description
Solid green Unit is powered.	Normal operating mode.
Blinking green	Unit is in firmware update mode. Refer to Updating the Firmware (page 6) for more information.
Off Unit is not powered.	Make sure that the category cable between the HDBaseT IN port on the transmitter and the HDBaseT OUT port on the receiver is secure.Make sure that the power supply, at the receiver, is connected to an active AC outlet.

LINK Description
Solid amber The link integrity	between the transmitter and the receiver is good.
Blinking amber Poor signal integrity between the transmitter and the receiver.	Make sure that the category cable between the HDBaseT IN port on the transmitter and the HDBaseT OUT port on the receiver is secure.The category cable may be compromised. Try using a different category cable. Make sure that the cable is solid core. Stranded or patch cables are not recommended.
Off The link integrity between the transmitter and the receiver is compromised.	Check the category cable between the HDBaseT IN port on the transmitter and the HDBaseT OUT port on the receiver.

Updating the Firmware

Requirements:

• AT-OME-TX11-WP
- Firmware file
• Computer running Windows
• USB-A to USB-C cable or USB-C to USB-C cable

NOTE: The update process can take up to five minutes to complete.

1. Disconnect power from the unit.

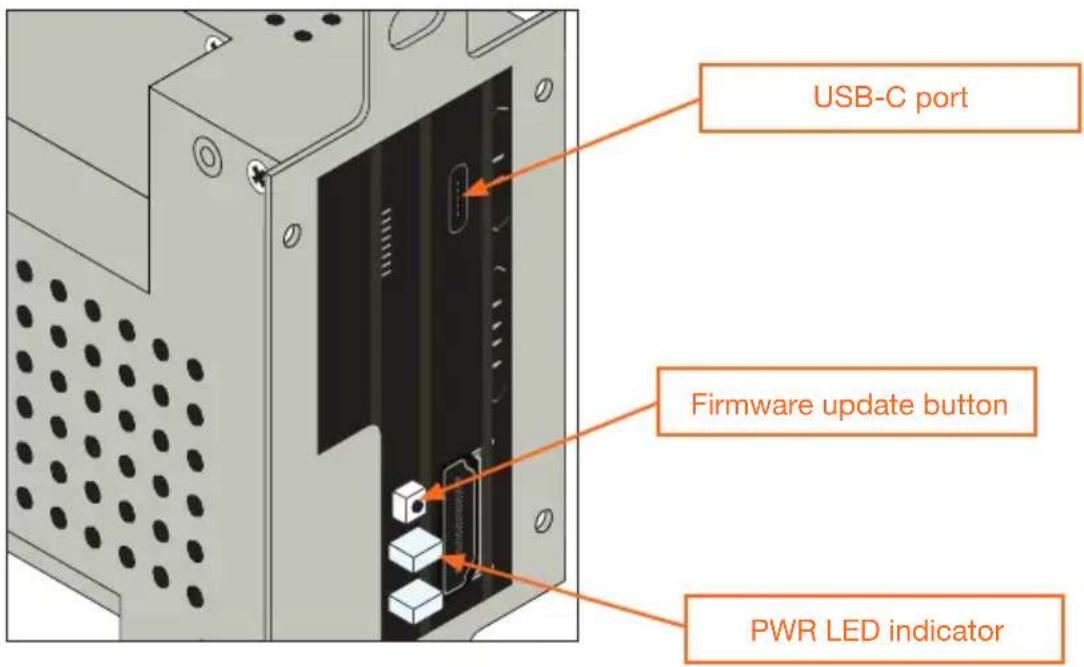

2. Remove the faceplate to access the hidden "firmware update" button, located above the PWR LED indicator. Refer to Faceplate Removal and Assembly (page 3) for more information.

1. Connect the USB cable between the PC and the USB-C port on the unit.

2. Simultaneously press and hold the firmware update button, while reconnecting the power. The PWR LED indicator will be blinking green.

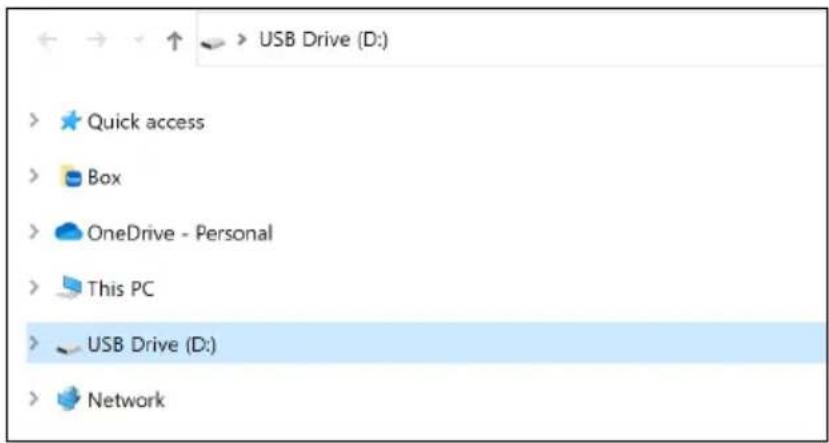

3. The USB Drive folder will be displayed. If this folder is not displayed, automatically, select the USB Drive drive from Windows Explorer.

1. Delete all files from the USB Drive, if any are present.
2. Drag-and-drop the firmware file to the drive.
3. The PWR LED indicator, on the front panel, will flash green while the unit is being updated. Do not disconnect the USB cable during the update process. When the PWR LED stops flashing and is solid green, the update process will be complete.

Warranty

To view the product warranty, use the following link or QR code: https://atlona.com/warranty/.

English Declaration of Conformity

The English version can be found under the resources tab at: https://atlona.com/product/at-ome-tx11-wp/.

Chinese Declaration of Conformity 中国RoHS合格声明

由SKU列出於:

https://atlona.com/about-us/china-rohs/.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
