USER MANUAL FOX3 R 101 Extron

FOX3 T 101 and FOX3 R 101

Fiber Optic HDMI Transmitter and Receiver

Safety Instructions

Safety Instructions • English

WARNING: This symbol, ⚠, when used on the product, is intended to alert the user of the presence of uninsulated dangerous voltage within the product's enclosure that may present a risk of electric shock.

ATTENTION: This symbol, ⚠, when used on the product, is intended to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment.

For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the Extron Safety and Regulatory Compliance Guide, part number 68-290-01, on the Extron website, www.extron.com.

All trademarks mentioned in this guide are the properties of their respective owners.

The following registered trademarks (®), registered service marks (SM), and trademarks (TM) are the property of RGB Systems, Inc. or Extron (see the current list of trademarks on the Terms of Use page at www.extron.com):

Registered Trademarks®

Extron, Cable Cubby, ControlScript, CrossPoint, DTP, eBUS, EDID Manager, EDID Minder, eLink, Flat Field, FlexOS, Glitch Free, Global Configurator, Global Scripter, GlobalViewer, Hideaway, HyperLane, IP Intercom, IP Link, Key Minder, LinkLicense, LockIt, MediaLink, MediaPort, NAV, NetPA, PlenumVault, PoleVault, PowerCage, PURE3, Quantum, ShareLink, Show Me, SoundField, SpeedMount, SpeedSwitch, StudioStation, System INTEGRATOR, TeamWork, TouchLink, V-Lock, VN-Matrix, VoiceLift, WallVault, WindoWall, XPA, XTP, XTP Systems, and ZipClip

Registered Service Mark ^(SM) : S3 Service Support Solutions

Trademarks ^(TM)

AAP, AFL (Accu-RATE Frame Lock), ADSP (Advanced Digital Sync Processing), AVEdge, CableCover, CDRS (Class D Ripple Suppression), Codec Connect, DDSP (Digital Display Sync Processing), DMI (Dynamic Motion Interpolation), Driver Configurator, DSP Configurator, DSVP (Digital Sync Validation Processing), EQIP, Everlast, FastBite, Flex55, FOX, FOXBOX, IP Intercom HelpDesk, MAAP, MicroDigital, Opti-Torque, PendantConnect, ProDSP, QS-FPC (QuickSwitch Front Panel Controller), Room Agent, Scope-Trigger, SIS, Simple Instruction Set, Skew-Free, SpeedNav, Triple-Action Switching, True4K, True8K, Vector ^TM 4K, WebShare, XTRA, and ZipCaddy

FCC Class A Notice

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause interference. This interference must be corrected at the expense of the user.

Battery Notice

This product contains a battery. Do not open the unit to replace the battery. If the battery needs replacing, return the entire unit to Extron (for the correct address, see the Extron Warranty section on the last page of this guide).

CAUTION: Risk of explosion. Do not replace the battery with an incorrect type. Dispose of used batteries according to the instructions.

Class 1 Laser Product

Any service to this product must be carried out by Extron and its qualified service personnel.

CAUTION: Using controls, making adjustments, or performing procedures in a manner other than what is specified herein may result in hazardous radiation exposure.

NOTE: For more information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the Extron Safety and Regulatory Compliance Guide on the Extron website.

Conventions Used in this Guide

Notifications

The following notifications are used in this guide:

WARNING: Potential risk of severe injury or death.

CAUTION: Risk of minor personal injury.

NOTE: A note draws attention to important information.

Software Commands

Commands are written in the fonts shown here:

^AR Merge Scene,,0p1 scene 1,1^B 51^W^C.0
[01] R000400300004000080000600 [02] 35 [17] [03]
Esc X1 *X17 *X20 *X23 *X21 CE ←

NOTE: For commands and examples of computer or device responses used in this guide, the character “θ” is the number zero and “O” is the capital letter “o.”

Computer responses and directory paths that do not have variables are written in the font shown here:

Reply from 208.132.180.48: bytes=32 times=2ms TTL=32
C:\Program Files\Extron

Variables are written in italics as shown here:

ping xxx.xxx.xxx.xxx -t
SOH R Data STX Command ETB ETX

Selectable items, such as menu names, menu options, buttons, tabs, and field names are written in the font shown here:

From the File menu, select New. Click the OK button.

Specifications Availability

Product specifications are available on the Extron website, www.extron.com.

Extron Glossary of Terms

A glossary of terms is available at http://www.extron.com/technology/glossary.aspx.

Contents

Introduction ...... 1

About this Guide....1

Product Description....1

Transmitter.... 3

Receiver 3

Both Units 3

System Compatibility .... 3

Fiber Cable Transmission Modes 3

Features 4

Transmitter....4

Receiver 5

Installation and Operation.... 6

Installation Overview....6

Rear Panel Features 6

Connector and Cable Details 8

Power Connector 8

HDMI Connectors....9

Front Panel Features....10

Operation 11

Reset....11

Configuration....12

EDID....12

HDCP....12

Audio Mute....13

Audio Output Volume....13

SIS Configuration and Control ....14

Host Control Ports....14

Establishing a Connection.... 14

Simple Instruction Set Control 15

Host-to-Unit Instructions....15

Device-Initiated Power-Up Message 15

Error Responses....15

Timeout 16

Using the Command and Response Table ..... 16

Common symbol definitions.... 17

Command and Response Table for

SIS Commands....18

Configuration Software ......21

Software/Firmware Installation 21

Connecting to PCS....23

Device Discovery Panel....23

TCP/IP Panel 24

Offline Device Preview....24

Software Overview....25

Software Menu 26

Device Menu.... 28

Internal Web Page 29

Accessing the Internal Web Page 29

Web Page Panels 30

Details Panel....30

Status Panel 30

Date and Time Panel 31

Network Panel 32

Passwords Panel 32

Firmware Panel....33

About the FOX3 T 101....34

Equipment Mounting 35

Mounting the Transmitter and Receiver......35

Tabletop Use 35

Mounting kits....35

UL Rack-Mounting Guidelines 36

Introduction

WARNING: The FOX3 T 101 and FOX3 R 101 output continuous invisible light (Class 1 rated), which may be harmful to the eyes; use with caution.

- Do not look into the rear panel fiber optic cable connectors or into the fiber optic cables themselves.

- Plug the attached dust cap into the optical transceiver when the fiber optic cable is unplugged.

This guide contains information about the Extron FOX3 T 101 and FOX3 R 101 fiber optic extenders.

Product Description

The FOX3 T 101 transmitter and FOX3 R 101 receiver are ultra-high performance fiber optic extenders for long haul transmission of the following over one fiber optic cable:

- Uncompressed HDCP-compliant 4096x2160 or 3840x2160 (UHD) @ 30 Hz HDMI video over one fiber optic cable (see figure 1 on page 2).

Or

Visually lossless HDCP-compliant 4096x2160 or 3840x2160 (UHD) @ 60 Hz HDMI video over one fiber optic cable

• 2-CH LPCM audio

The transmitter and receiver extend HDMI signals up to:

• 20 km (12.4 miles) for the singlemode cables

- 500 m (1640 feet) with 50 µm OM4 4700 MHz bandwidth laser optimized multimode cables

See Fiber Cable Transmission Modes on page 3.


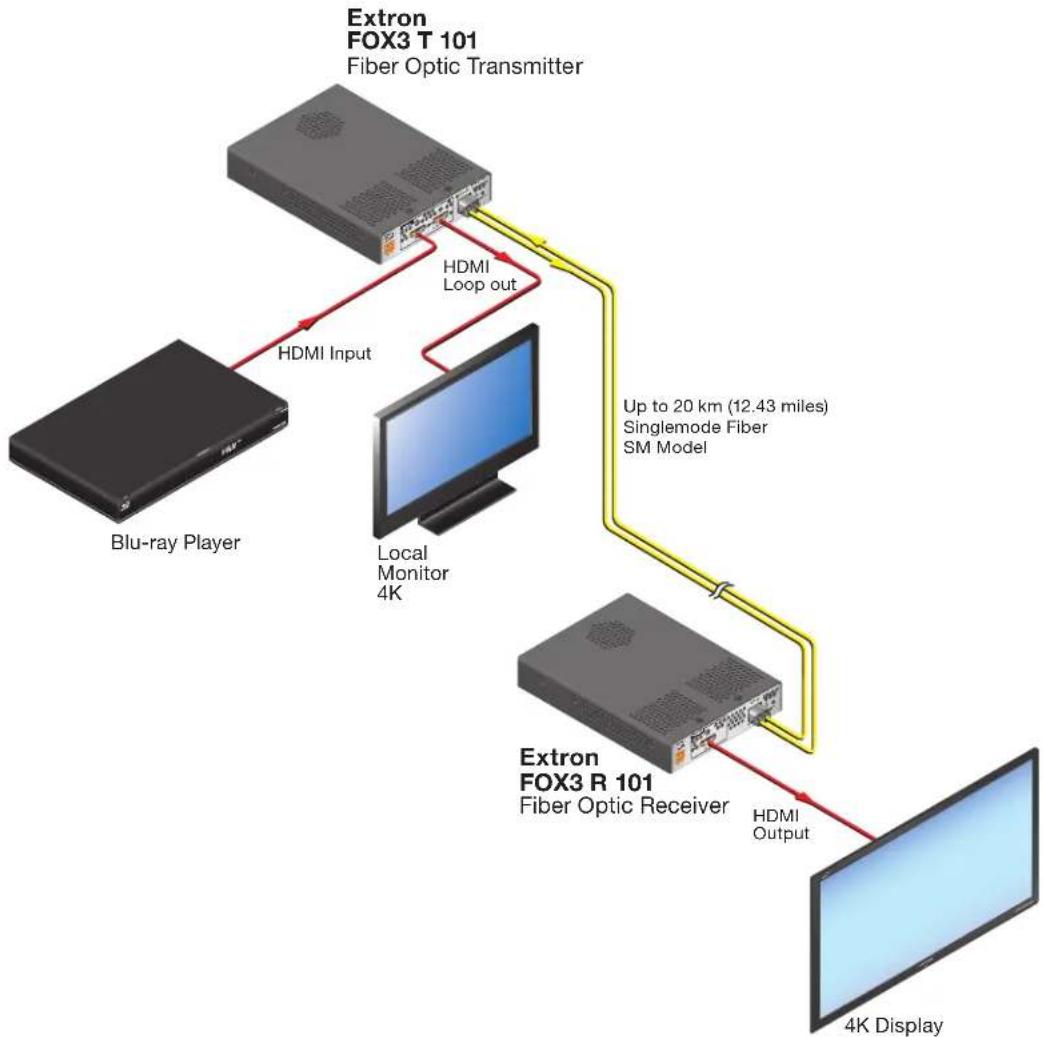

Figure 1. Typical FOX3 101 Transmitter and Receiver Application

Transmitter

The FOX3 T 101 transmitter accepts HDMI video, at a resolution of up to 4K (4096x2160 @ 60 Hz). The video input can also include embedded audio. The transmitter also loops the HDMI input through for a local monitor.

The transmitter converts the HDMI video into a proprietary data stream and outputs it as optical signals via fiber optic small form factor pluggable (SFP) modules on an LC connector to a compatible Extron FOX3 fiber optic receiver. The transmitter has a built-in color bars test pattern to assist in setting up the display equipment.

Receiver

The FOX3 R 101 receiver accepts an optical signal on one LC connector from a compatible fiber optic FOX3 transmitter. The receiver is compatible with all Extron FOX3 transmitters.

The receiver outputs HDMI video and digital audio (embedded in the HDMI output). The video output of the receiver is a lossless HDMI image up to 4K (4096x2160 @ 60 Hz), including 1080p @ 60 Hz with Deep Color.

Both Units

The transmitter and receiver can be configured and controlled via the front panel USB port using Simple Instruction Set (SIS) control and Product Configuration Software (PCS). Both units have video, fiber light status, and lost-light alarm indicators.

System Compatibility

The FOX3 T 101 transmitter and FOX3 R 101 receiver are compatible with all FOX3 endpoints, FOX3 matrix frames, and the PowerCage 411.

NOTE: The FOX3 products are not compatible with legacy FOX, FOXBOX, FOX II, PowerCage 401 FOX, or PowerCage 1600 FOX products.

Fiber Cable Transmission Modes

The transmitter and receiver are further categorized by the type of fiber optic cable, multimode or singlemode, which define the effective range of transmission:

Multimode — Long distance, up to 500 m (1640 feet) (depending on the fiber cable)

Singlemode — Very long distance, up to 20 km (12.4 miles)

NOTE: The multimode and singlemode units are physically and functionally identical, with the exception of the effective range of transmission. In this guide, any reference applies to either transmission mode unless otherwise specified.

Features

Transmitter

• Extends HDMI video and embedded audio signals over fiber optic cabling.
• Supports mathematically lossless 4K video up to 4096x2160 at 60 Hz with 4:4:4 chroma sampling over one fiber.
• Supported HDMI 2.0 specification features include data rates up to 18 Gbps, Deep Color up to 10-bit, and two-channel LPCM audio.

• HDCP 2.3 compliant

- Buffered HDMI input loop-through — Provides an output signal to drive a local monitor, eliminating the need for a separate distribution amplifier.

- User-selectable HDCP authorization — Allows the transmitter to appear HDCP compliant or non-HDCP compliant to the connected source.

- Key Minder continuously verifies HDCP compliance for quick, reliable switching — Authenticates and maintains continuous HDCP encryption between input and output devices to ensure quick and reliable switching in professional AV environments.

- EDID Minder automatically manages EDID communication between connected devices — EDID Minder ensures that all sources power up properly and reliably output content for display.

- HDCP Visual Confirmation — When HDCP encrypted content is transmitted to a non-HDCP compliant display, a full-screen green signal is sent to the display for immediate visual confirmation that protected content cannot be viewed on that display.

- Front panel USB C configuration port — Enables easy system configuration without having to access the rear panel.

- Real-time status LED indicators for troubleshooting and monitoring — Front and rear panel LEDs verify signal presence, HDCP authentication, fiber link status, and power.

- Easy setup and commissioning with Extron PCS - Product Configuration Software — Conveniently configures multiple products using a single software application.

- Internal color bars test pattern for calibration and setup — Simplifies setup and installation by providing a video signal when a source is unavailable.

- Compatible with Extron FOX3 Series matrix switchers — Creates HDCP-compliant signal distribution systems.

- Industry standard LC connectors provide reliable physical connectivity and precise fiber core alignment.

• Available as an 850 nm multimode model for moderate-range transmissions up to 500 m (1640 feet) and a 1310 nm singlemode model for extreme distances up to 20 km (12.4 miles).

- 1-inch (2.5 cm) high, quarter-rack width mountable metal enclosure.

- External Extron Everlast power supply — Provides worldwide power compatibility, with high demonstrated reliability and low power consumption for reduced operating cost.

- Extron Everlast Power Supply is covered by a 7 year parts and labor warranty.

Receiver

- Receives HDMI video and embedded audio signals over fiber optic cabling.

- Supports mathematically lossless 4K video up to 4096x2160 at 60 Hz with 4:4:4 chroma sampling over one fiber.

- Supported HDMI 2.0 specification features include data rates up to 18 Gbps, Deep Color up to 10-bit, and two-channel LPCM audio.

• HDCP 2.3 compliant

- User-selectable HDCP authorization — Allows the transmitter to appear HDCP compliant or non HDCP compliant to the connected source.

- Key Minder continuously verifies HDCP compliance for quick, reliable switching — Authenticates and maintains continuous HDCP encryption between input and output devices to ensure quick and reliable switching in professional AV environments.

- HDCP Visual Confirmation — When HDCP encrypted content is transmitted to a non-HDCP compliant display, a full-screen green signal is sent to the display for immediate visual confirmation that protected content cannot be viewed on that display.

- Front panel USB C configuration port — Enables easy system configuration without having to access the rear panel.

- Real-time status LED indicators for troubleshooting and monitoring — Front and rear panel LEDs verify signal presence, HDCP authentication, fiber link status, and power.

- Easy setup and commissioning with Extron PCS - Product Configuration Software — Conveniently configures multiple products using a single software application.

- Internal color bars test pattern for calibration and setup — Simplifies setup and installation by providing a video signal when a source is unavailable.

- Compatible with Extron FOX3 Series matrix switchers — Creates HDCP-compliant signal distribution systems.

- Industry standard LC connectors provide reliable physical connectivity and precise fiber core alignment.

• Available as an 850 nm multimode model for moderate-range transmissions up to 500 m (1640 feet) and a 1310 nm singlemode model for extreme distances up to 20 km (12.4 miles).

- 1-inch (2.5 cm) high, quarter-rack width mountable metal enclosure.

- External Extron Everlast power supply — Provides worldwide power compatibility, with high demonstrated reliability and low power consumption for reduced operating cost.

- Extron Everlast Power Supply is covered by a 7 year parts and labor warranty.

Installation and Operation

This section details the installation of the FOX3 T 101 transmitter and FOX3 R 101 receiver, including:

• Installation Overview
• Rear Panel Features
- Front Panel Features
- Connector and Cable Details
- Operation

Installation Overview

Follow these steps to install and set up an Extron FOX3 T 101 transmitter and FOX3 R 101 receiver for operation:

• Turn off all of the equipment. Ensure that the video source and the output display are all turned off and disconnected from the power source.
• Mount the transmitter and receiver (see Equipment Mounting on page 35).
• Connect the cables and configure the units (see Rear Panel Features).
• Plug in the power supplies, then turn on the display and the input.

Rear Panel Features

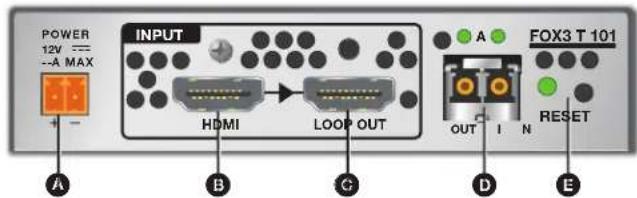

Figure 2. FOX3 T 101 Rear Panel

Figure 3. FOX3 R 101 Rear Panels

A Power inlet
B HDMI input

© HDMI Loop Out
D SFP module and LEDs

E Reset button
F HDMI Output

Power inlet — Connect the provided 12 VDC power supply to the rear panel captive screw power inlet (see Power Connector on page 8 before connecting power).
B HDMI input (transmitter) — Connect a digital video input to this HDMI port. The transmitter also accepts embedded digital audio on this port (see HDMI Connectors on page 9 to use the included Extron Lock-It Lacing Bracket).
© HDMI Loop Out (transmitter) — If desired, connect a local monitor to this HDMI port (see HDMI Connectors to use the included Extron Lock-It Lacing Bracket).

D SFP module and LEDs — (see figure 2 and figure 3 on page 6)

WARNING: The units output continuous invisible light (Class 1 rated), which may be harmful to the eyes; use with caution. Plug the attached dust cap into the optical transceiver when the fiber optic cable is unplugged.

• Ensure the proper fiber cables for the transmitter and receiver are used. Typically, singlemode fiber has a yellow jacket and multimode cable has an orange or aqua jacket.
• See figure 4 for fiber cable connections. Connect the transmitter to a receiver in one of two ways:
  • One way (transmitter to receiver) only, perform step 1.
• Two way (transmitter to receiver and return), perform steps 1 and 2.

1 Port A Out (required) — For all one-way video and digital audio from the transmitter to the receiver, connect a fiber optic cable to the transmitter Out LC port.

Connect the opposite end of this fiber optic cable to the receiver Port A In LC port or to any other compatible Extron FOX3 device.

② Port A In (optional) — For one-way return from the receiver to the transmitter, connect a fiber optic cable to the In LC port.

Connect the opposite end of this fiber optic cable to the Port A Out LC port on a receiver or to any other compatible Extron FOX3 device.

SFP Link LEDs —

Figure 4. Connection

• Transmit Optical OUT LED lights solid green when powered and lights off when there is no power on the endpoint.
• Receive Optical IN LED lights solid green when light is present and lights off when there is no power or light present.

E Reset button — Initiates two levels of resets. Use a pointed stylus, ballpoint pen, or small screwdriver to access the recessed button (see Reset on page 11 for detailed reset information).
F HDMI Output (receiver) — Connect an HDMI display to this port (see HDMI Connectors on page 9 to use the included Extron Lock-It Lacing Bracket).

Connector and Cable Details

Power Connector

CAUTION: The DC output cables must be kept separate from each other while the power supply is plugged in. Remove power before wiring

1. Cut the DC output cord to the length needed.
2. Strip the jacket to expose 3/16 inch (5 mm) of the conductor wire (see figure 5).
3. Ensure the connections have the correct polarity as shown in the figure above. The wire with ridges is the ground wire.
4. Slide the exposed ends of the wire into the captive screw connector and secure by tightening the screws.
5. Use the supplied tie wrap to strap the power cord to the extended tail of the connector.

ATTENTION:

- Do not tin the wire leads before installing into the connector. Tinned wires are not as secure in the connector and could be pulled out. They may also break after being bent several times.

HDMI signals run at a very high frequency and are especially prone to errors caused by bad video connections, too many adapters, or excessive cable length. To avoid the loss of an image or jitter, follow these guidelines:

• Limit or avoid the use of adapters.
• Use only cables specifically intended for HDMI or DVI signals.

To securely fasten an HDMI cable to a device:

1. Plug the HDMI cable into the panel connection (see figure 6, ①).

Figure 6. Installing the LockIt Lacing Bracket

1. Loosen the HDMI connection mounting screw from the panel enough to allow the LockIt lacing bracket to be placed over it (2). The screw does not have to be removed.

2. Place the LockIt lacing bracket on the screw and against the HDMI connector, then tighten the screw to secure the bracket (③).

ATTENTION:

• Do not overtighten the HDMI connector mounting screw. The shield to which it fastens is very thin and can easily be stripped.

• Ne serrez pas trop la vis de montage du connecteur HDMI. Le blindage auquel elle est attachée est très fin et peut facilement être dénudé.

• Loosely place the included tie wrap around the HDMI connector and the LockIt lacing bracket (④).

• While holding the connector securely against the lacing bracket, use pliers or similar tools to tighten the tie wrap, then remove any excess length (⑤).

Front Panel Features

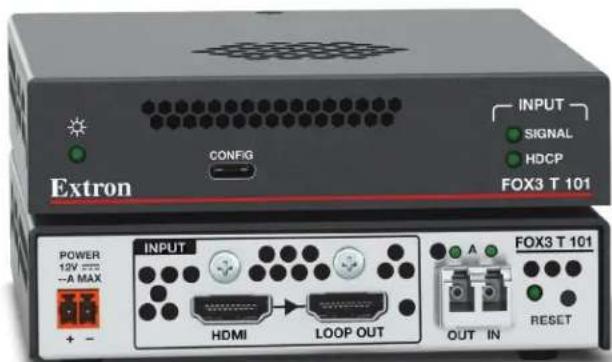

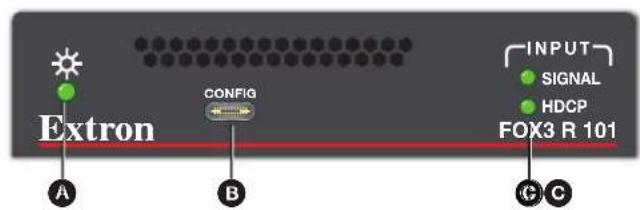

Figure 7. FOX3 T 101

Figure 8. FOX3 R 101

A Power LED — The unit is receiving power and is operational.
B Configuration port — This USB-C port is used to configure the unit and to update firmware.

NOTE: The IP address is 203.0.113.22. It cannot be changed.

© Input LEDs —

• Signal LED — Lights when the unit detects an input video signal.
- HDCP LED — Lights when the input signal is HDCP encrypted.

Operation

After the transmitter, receiver, and the connected devices are powered up, the system is fully operational. If any problems are encountered, ensure all cables are routed and connected properly.

NOTE: Ensure that the video source and display are properly connected to the FOX3 pair, and power is applied to the FOX3 pair and the display before power is applied to the video source. If the other devices are not turned on before the video source, the image may not appear.

Configuration and operation of the transmitter and receiver is accomplished via SIS Configuration and Control starting on page 14, the Configuration Software starting on page 21, and the Internal Web Page starting on page 29.

If the internal temperature of the transmitter or receiver exceeds the safety margins, the units initiate a thermal shut down. To avoid this overheat condition, be sure that the fan and vents are clear.

NOTE: If this condition occurs, the unit enters thermal protection and shuts down. When this happens, the power LED flashes. The power must be removed and reconnected to restore it to operation.

Reset

The rear panel Reset button initiates two levels of resets from the rear panel reset button. Use a pointed stylus, ballpoint pen, or small screwdriver to access the recessed button. See figure 9 on page 11 and the Reset Modes table for a summary of the resets.

ATTENTION:

Perform resets of the unit as follows (see figure 9):

    E["Press and hold for 9 seconds."] --> F["RESET"]
    F --> G["Reset LED flashes three times."]
    G --> H["Release, then immediately press and release again. Reset LED flashes, then goes off."]
    H --> I["RESET"]

Figure 9. Resets

Reset Modes
Mode	Activation Result Purpose and Notes
Run Factory Boot Code	Hold in the recessed rear panelResetbutton while applying power to the unit.	The device reverts to the factory default firmware for a single power cycle.	Revert to the factory default firmware for a single power cycle if incompatibility issues arise with user-loaded firmware. All user files and settings are maintained.
	NOTE: Do not operate with the default firmware loaded by this reset. Use it only to load the most current firmware to the device.
Full Factory Reset*	Hold in theResetbutton until the Power LED blinks three times (once at 3 seconds, again at 6 seconds, again at 9 seconds). Then, release and press theResetbutton again within 1 second*.	Performs a complete reset to factory defaults (except the firmware).Clears port configurations.Resets all IP options.Clears all user settings.Clears all passwords.Clears all files from the unit.The Reset LED on the rear panel of the unit flashes four times in succession.	Start over with default configuration and uploading, and also to replace events.Equivalent to SIS command ZQQQ (see Resets on page 19).
	NOTES:*For Full Factory Reset, nothing happens if the momentary press does not occur within 1 second.The factory configured passwords for all accounts on this device have been set to the device serial number. In the event of a complete system reset, the passwords convert to the default, which isextron (see Passwords Panelon page 32 to change a password).

Configuration

NOTE: Transmitters and receivers can be configured via PCS (see Configuration Software (see page 21) and SIS commands (see SIS Configuration and Control on page 14). Product help files are available in PCS when a device is connected or an offline device is selected.

EDID

The FOX3 T 101 uses EDID Minder, which ensures that a source device connected to the transmitter input continuously sees the EDID of a sink device, even if the sink is not physically connected. By default, the EDID is set to 1080p @ 60 Hz with 2-channel audio. There is one slot to upload custom EDID to the device.

Use PCS to upload EDID to the device (see the FOX3 T 101 and FOX3 R 101 Help File).

HDCP

Input

The HDMI input negotiates and authenticates HDCP with the source device if the source requires HDCP encryption. The authentication process is repeated whenever the stored EDID is changed or updated, which is indicated by pulling HPD low.

HDCP support can be disabled for the input using SIS commands (see HDCP authorized device on page 20) or PCS (see the FOX3 T 101 and FOX3 R 101 Help File).

Outputs

The output is pre-authenticated and encrypted, in accordance with the configured HDCP output mode using PCS (see the FOX3 T 101 and FOX3 R 101 Help File).

If an output requires encryption, but the connected sink device cannot be authenticated, that output displays a green screen.

HDCP output modes

• Follow Input (default) — Output authentication and encryption follows input status. Authentication times out after \~10 seconds.
• Always Encrypt Output — The output is always authenticated and encrypted. Authentication times out after \~10 seconds.
• Follow Input (with continuous trials) — Output authentication and encryption follows input status with no authentication timeout.
• Always Encrypt Output (with continuous trials) — The output is always authenticated and encrypted with no authentication timeout.
• Disable Authentication — The output is never authenticated or encrypted. When an HDCP encrypted input signal is detected, the display always shows a green screen.

Audio Mute

Mute audio on the Loop Out and HDMI output individually via PCS (see the FOX3 T 101 and FOX3 R 101 Help File) or SIS commands (see Audio mute on page 18).

Audio Output Volume

Adjust the overall output volume level for the embedded LPCM-2CH audio on the HDMI output via PCS (see the FOX3 T 101 and FOX3 R 101 Help File) or SIS command (see Audio output volume on page 20).

The audio level is adjusted from 100% to 0% in 1 dB steps.

SIS Configuration and Control

This section describes the remote control operation of the FOX3 T 101 transmitter and FOX3 R 101 receiver, including:

• Host Control Ports
  • Simple Instruction Set Control
  • Command and Response Table for SIS Commands

The FOX3 transmitter and receiver can be configured using SIS commands, PCS, or the embedded web page. The FOX3 devices can be controlled using SIS commands or PCS. Configure and control the FOX3 devices remotely via a host computer or other device (such as a control system) by connecting to the front panel USB port of the FOX3 device.

NOTE: SIS commands and Product Configuration Software functions are transmitter and receiver specific or may have different responses depending on the unit connected. Connect to the appropriate device for the command to work properly or to get the expected response.

Host Control Ports

The front panel USB-C Configuration port (see figure 7 and figure 8, B on page 10) can be connected to a host computer for configuration using SIS commands via an SSH client and IP address 203.0.113.22 on port 22023.

Establishing a Connection

Establish a network connection to a FOX3 device as follows:

1. Download the SSH software.
2. Open the SSH software.
3. Enter the IP address of the FOX3 device in the Host Name or IP address field.

NOTE: The IP address is 203.0.113.22. It cannot be changed.

1. Enter 22023 in the Port field.

2. The FOX3 device is password protected, so the appropriate name, admin or user, and password must be entered.

3. If the login and password are correct, the device responds with a copyright message including the copyright year, the name of the product, firmware version, part number, and the current date and time.

4. If the login and password are incorrect, the Login prompt returns. Enter the admin or user name and password again.

NOTES:

• The FOX3 device is shipped password-protected. The factory configured passwords for all accounts on this device have been set to the device serial number.
• In the event of a complete system reset, the password converts to the default, which is extron. New passwords must be configured to secure the device.
• On password-protected connections, there are two levels of protection: administrator and user. Administrators have full access to all capabilities and editing functions. Users can view all settings with the exception of passwords.

Using verbose mode

SSH connections to a FOX3 device can be used to monitor changes that occur on the device, such as SIS commands from other SSH sockets or a serial port. For an SSH session to receive change notices from the device, the SSH session must be in verbose mode 1 or mode 3 (see the SIS command Verbose mode on page 19).

Simple Instruction Set Control

Host-to-Unit Instructions

SIS commands consist of one or more characters per field. No special characters are required to begin or end a command character sequence. When a command is valid, the FOX3 101 device executes the command and sends a response to the host device. All responses from the FOX3 101 device to the host end with a carriage return and a line feed (CR/LF = ←), which signals the end of the response character string. A string is one or more characters.

Device-Initiated Power-Up Message

When the device completes start-up, it issues the following message to the host:

© Copyright 20yy, Extron Electronics FOX3 T (R) 101 MM (SM), Vx.xx, 60-nnnn-nn

• 20yy is the year of the copyright.
• Vx.xx is the firmware version number.
• 60-nnnn-nn is the part number.

Error Responses

When the FOX3 101 device receives a valid SIS command, it executes the command and sends a response to the host device. If the FOX3 101 device is unable to execute the command because the command is invalid or it contains invalid parameters, the FOX3 101 device returns an error response to the host. The error response codes are:

• E10 — Invalid command
• E11 — Invalid preset number
• E13 — Invalid parameter
• E14 — Invalid for this configuration
• E17 — Invalid command for signal type
• E18 — System or command timed out
• E21 — Invalid room number
E22 — Busy
• E24 — Privilege violation
• E25 — Device not present
• E26 — Maximum number of connections exceeded
• E28 — Bad file name or file not found

Timeout

Pauses of 10 seconds or longer between command ASCII characters result in a timeout. The command operation is aborted with no other indication.

Using the Command and Response Table

The command and response table begins below. Symbols are used throughout the table to represent variables in the command and response fields. Command and response examples are shown throughout the table. The ASCII to HEX conversion table below is for use with the command and response table.

Space →	ASCII to Hex Conversion Table								Esc 1B	CR ∅D	LF ∅A
	20	!	21	"	22	#	23	$ 24	% 25	& 26	' 27
	( 28 )	)	29	*	2A	+	2B ,	2C	- 2D	• 2E	/ 2F
	0 30	1	31	2	32	3	33	4 34	5 35	6 36	7 37
	8 38	9	39	:	3A	;	3B	< 3C	= 3D	> 3E	? 3F
	@ 40	A	41	B	42	C	43	D 44	E 45	F 46	G 47
	H 48	|	49	J	4A	K	4B	L 4C	M 4D	N 4E	O 4F
	P 50	Q	51	R	52	S	53	T 54	U 55	V 56	W 57
	X 58	Y	59	Z	5A	[	5B \ 5C]	] 5D	^ 5E	_ 5F
	` 60	a	61	b	62	c	63	d 64	e 65	f 66	g 67
	h 68	i	69	j	6A	k	6B | 6C	m 6D	n 6E	o 6F
	p 70	q	71	r	72	s	73	t 74	u 75	v 76	w 77
	x 78	y	79	z	7A	{	7B | 7C}	7D	~ 7E	DEL 7F

NOTE: For commands and examples of computer or device responses used in this guide, the character "0" is the number zero and "O" is the capital letter "o."

Common symbol definitions

← = Carriage return/line feed

• = space

← or | = Carriage return (no line feed)

Esc or W = Escape key

[X1] = Video mute θ = Unmute (default)

1 = Mute video only

2 = Mute video and sync

NOTE: The FOX3 T 101 only has two video mute options, = Unmute (default) and 1 = Mute video only. The FOX3 R 101 has all three options.

X3 = Audio mute status = Unmute (default), 1 = Mute

X4 = Input video signal status = Not detected, 1 = Detected

X5 = Display input audio status 0 = Not detected, 1 = Detected

X6 = Input HDCP status = No source detected

1 = Source with HDCP detected (default)

2 = Source with no HDCP present

7 = Output HDCP status = No active sink detected

1 = Sink detected, output encrypted

2 = Sink detected, output not encrypted

X9 = Device type TX or RX

X17 = Verbose mode θ = Clear/none (default)

1 = Verbose mode

2 = Tagged response for queries

3 = Verbose mode and tagged responses for queries

X18 = Active fiber link 1 = SFP A

X19 = Input HDCP authorization = HDCP authorized off 1 = HDCP authorized on (default)

20 = Resolution and refresh rate nnnn^Hortizontaixnnnn^Vertical@xxHz (example: 3840x2160@59.9Hz)

(0000x0000@000Hz = no input detected)

X21 = Detected audio input format 1 = Digital

X22 = Detected video input color θ = Not detected

1 = YUV 2 = RGB space format

23 = Detected pixel clock 4-digit response with padding (example: 297 = 0297MHz ) (0000 = No pixel clock detected)

24 = Audio output volume Volume adjustment range 0 % to 100 % (approximately 1 % per step 0 % to 100 % , default 100 %)

X28 = Fiber link detection = Not Detected 1 = Detected

X29 = Fiber optic mode SM or MM

X30 = Enable or disable Echo = Disabled 1 = Enabled

X34 = Enable Telnet port 23 θ = Off (default) 23 = Telnet port 23 enabled

35 = Port number Response is 5 digits with leading zeros, for example 00000 or 00023

Command and Response Table for SIS Commands

Command Function	SIS Command (Host to Unit)	Response (Unit to Host)	Additional description
Transmitter and Receiver
Video mute
NOTE: The FOX3 T 101 only has two video mute options, θ = Unmute (default) and 1 = Mute video only. The FOX3 R 101 has all three options.
Mute output video only	1B	Vmt1←
Mute output video and sync	2B	Vmt2←
Unmute video and sync	0B	Vmt0←	Default
View mute status	B	x1←
	Verbose mode 2/3	Vmtx1←
KEY: x1= Video mute	θ = Unmute (default)	1 = Mute video only	2 = Mute video and sync
Audio mute
Enable audio mute	x2*1Z Amt	x2*1←
Example	1*1Z	Amt1*1←	Digital audio (embedded on HDMI output) is muted.
Disable audio mute	x2*0Z Amt	x2*0←
Example	1*0Z	Amt1*0←
View mute status	Z	x3←
KEY: x2= Audio output 1 = Digital out (Tx Loop Out or Rx HDMI Out)x3= Audio mute status θ = Unmute (default) 1 = Mute
Information requests
View firmware version	Q/q	x.xx←
	Verbose mode 2/3	Ver 01*x.xx←
View full firmware version	*Q/q	x.xx.xxxx←
	Verbose mode 2/3	Bld x.xx.xxxx←
View part number	N/n	60-xxxx-xx←
	Verbose mode 2/3	Pno 60-xxxx-xx←
View Extron serial number	19I/i	Serial number←
	Verbose mode 2/3	Inf19*Serial number←
View updated FPGA version	35Q/q	x.xx←
	Verbose mode 2/3	Ver 35*x.xx←
View input video status	4S/s	x4←
	Verbose mode 2/3	Sts04*x4←
View input audio status	5S/s	x5←
	Verbose mode 2/3	Sts05*x5←
View input HDCP status	EscIHDCP←	x6←
	Verbose mode 2/3	Hdcp1x6←
View output HDCP status	EscOHDCP←	x7←
	Verbose mode 2/3	HdcpOx7←
KEY: x4= Input video signal status θ = Not detected 1 = Detectedx5= Input audio status θ = Not detected 1 = Detectedx6= Input HDCP status θ = No source detected 1 = Source with HDCP detected (default)x7= Output HDCP status θ = No active sink detected 1 = Sink detected, output encrypted2 = Sink detected, output not encrypted
Transmitter and Receiver (continued)
Information requests (continued)
Information request	I	SFPALnkX28•SFPBLnk0•SigIX4•HdcpIX6•HdcpO0•AudIO•X9•X29←
	Verbose mode 2/3	Inf00*SFPALnkX28•SFPBLnk0•SigIX4•HdcpIX6•HdcpO0•AudIO•X9•X29←
	Response description:
	Fiber link A•Fiber link B•Signal input•Input HDCP•Output HDCP•Input audio•Transmitter•Fiber mode←
	Example	SFPALnk1•SFPBLnk0•SigI1•HdcpI2•HdcpO0•AudIO•TX•MM←
		Signals are detected on the two fiber links, a signal is detected on the input, the input and output are HDCP devices, the digital audio input is selected, the device is a transmitter, and the fiber mode is singlemode.
KEY:	X4= Input video signal status	θ = Not detected	1 = Detected
	X6= Display input HDCP status	θ = No source detected	2 = Source with HDCP detected (default)
	3 = Source with no HDCP present
	X7= Output HDCP status	θ = No active sink detected	1 = Sink detected, output encrypted
		2 = Sink detected, output not encrypted
	X9= Device type	TX or RX
	X28= Fiber link detection	θ = Not detected	1 = Detected
	X29= Fiber optic mode	SM or MM
Telnet port
Set Telnet port map	Esc ZX34PMAP←	PmapZX35←	Set Telnet port map to X34.
View Telnet port map	Esc ZPMAP←	X35←
KEY:	X34= Enable Telnet port 23	θ = Off (default)	23 = Telnet port 23 enabled.
	X35= Port number	Response is 5 digits with leading zeros, for example 00000 or 00023.
Echo for SIS over SSH (port 22023)
Enable Echo	Esc 1ECHO←	Echo1←	Returns command entered with response.
Disable Echo	Esc ΘECHO←	Echo0←	Returns response only.
View Echo status	Esc ECHO←	X30←
KEY:	X30= Enable or disable Echo	θ = Off	1 = On (default)
Verbose mode
Set verbose mode	Esc X17CV←	VrbX17←
View verbose mode	Esc CV←	X17←
NOTE:	Verbose mode will revert back to default in the event of a power cycle, disconnect from dataviewer, or disconnect from the Ethernet.
KEY:	X17= Verbose mode	θ = Clear/none (default)	1 = Verbose mode
		2 = Tagged response for queries	3 = Verbose mode and tagged responses for queries
Resets
Absolute system reset	Esc ZQQQ←	Zpq←	Master reset, resets IP address and subnet mask to default.
Reset unit settings	Esc ZXXX←	Zpx←	Resets unit to factory default.
Reset audio gain and attenuation	Esc ZA←	Zpa←	Reset audio gain and attenuation to default levels.
Global unsolicited response
Input change		Reconfig←	Any change of the input frequency, during module install, or a power cycle.
Fiber link		Sts02*X18*X28←	Any change in fiber link status.
Input video signal presence		SigI X4←	Any change in input signal status.
Input HDCP		HdcpI X6←	Any change in input HDCP status.
Output HDCP		HdcpO X7←	Any change in output HDCP status.
KEY: X4 = Input video signal status 0 = Not detected 1 = DetectedX6 = Input HDCP status 0 = No source detected 2 = Source with HDCP detectedX7 = Output HDCP status 3 = Source with no HDCP present0 = No active sink detected 1 = Sink detected, output encrypted2 = Sink detected, output not encryptedX18 = Active fiber link 1 = SFP AX28 = Fiber Link detection (SPF A IN LED) 0 = Not detected 1 = DetectedNOTE: SFP A OUT LED is always active.
Transmitter Only
HDCP authorized device
Set HDCP authorized device on Esc E1HDCP← HdcpE1←
Set HDCP authorized device off Esc E0HDCP← HdcpE0←
View HDCP authorized device Esc EHDCP← X19← Default: HDCP authorized on.Verbose mode 2/3 HdcpE X19←
KEY: X19 = Input HDCP Authorization 0 = HDCP authorized off 1 = HDCP authorized on (default)
Input signal detection information
View detected input signal information 35I/i Res X20 • Aud I X21 • Vcs I X22 • Pixcl X23←
KEY: X19 = Input HDCP Authorization 0 = HDCP authorized off 1 = HDCP authorized on (default)X20 = Resolution and refresh rate nnnn Horizontal xnnnn Vertical @xxHz (0000x0000@000Hz = no input detected)X21 = Detected input audio format 1 = DigitalX22 = Detected video input color space 0 = Not detected 1 = YUV 2 = RGBX23 = Pixel clock (in MHz) 4-digit response with 0 padding (example: 294 = 0294MHz) (0000 = Not detected)
Receiver Only
Audio output volume
Set volume X24V Vol X24←
Increment +V Vol X24←
Decrement -V Vol X24←
View volume status V X24←
KEY: X24 = Audio output volume Volume adjustment range 0% to 100% (approximately 1% per step 0% to 100%, default 100%)

Configuration Software

The FOX3 T 101 transmitter and FOX3 R 101 receiver can be easily configured using Extron Product Configuration Software (PCS). This section describes the software installation and communication (see the FOX3 T 101 and FOX3 R 101 Help File for detailed control information). The topics covered in this section are:

• Software/Firmware Installation
• Connecting to PCS
• Software Overview

Software/Firmware Installation

Visit www.extron.com to download and install the PCS software.

NOTES:

• Also download the latest versions of software and firmware for your product.

• An Extron Insider account is required to download and use PCS. Contact an Extron support representative, to obtain an Insider Account.

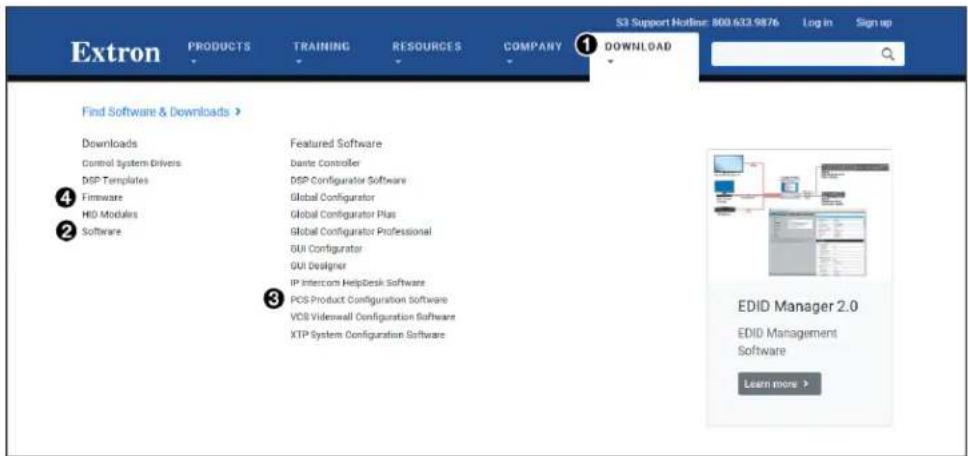

• Mouse over the Download link at the top of the page (see figure 9, ①).

Figure 10. Software Links on Download Screen

1. Click the appropriate link on the drop-down list.

For software, either click the Software link (2) or, if the software is listed, click directly on that link (see the PCS Product Configuration Software link (3)) and skip to step 5 on page 22.

For firmware, click the Firmware link (4).

1. If there is no direct link to your software, click the Software link (②).

2. Scroll down to the alphabetic navigation bar (see figure 10).

Figure 11. Alphabetic Navigation Bar
5. Click the appropriate letter to locate the software or firmware.

1. Click Download and follow the on-screen instructions (see figure 11, ① for PCS).

Version	Release Date	New in the Current Release	Size
4.3.0	Jul. 9, 2018	- Added support for HC 403 - Added language support for Spanish, Simplified Chinese, Japanese, German, and French - Ability to restore configuration to multiple devices across all IN1608 products	162.5 MB	Download Login required

Figure 12. PCS Software Download

For Firmware:

Figure 13. Firmware Page with Alphabetic Navigation Bar

a. Click the letter F from the alphabetic navigation bar (see figure 12, ①).
b. Scroll down the page to find the firmware for the FOX3 T 101 and FOX3 R 101.
c. (Optional) Click Release Notes (②) for more information about the firmware update.
d. Click Download (③). The product download screen opens.
e. Enter the required user information and click Download. An executable (.exe) file is downloaded to the PC. Run this program to place the firmware on the PC for future use. Make a note of the folder where the firmware file was saved.

1. Install the software.

a. Navigate to the folder where the software file was downloaded.
b. Double-click the executable file and follow the on-screen directions to install the software.
• To install via PCS, see Update Firmware in the Device Menu on page 28.
• To install via the internal web pages, see the Firmware Panel on page 33.

For Firmware:

NOTE: Edit the time, select Sync to PC, so the date is updated on the unit before installing the firmware (see Hardware Settings on page 28).

Connecting to PCS

The Extron Product Configuration Software window opens with the Device Discovery panel open. Connect to the device using the Device Discovery panel or the TCP/IP panel.

Device Discovery Panel

The Device Discovery panel displays accessible Extron devices connected directly to the PC or to a LAN or WAN. Devices are identified and sorted by model, IP address, device name, or connection method.

1. Open the Product Configuration Software program from the desktop shortcut. The Extron PCS window opens to the Device Discovery panel (see figure 13).

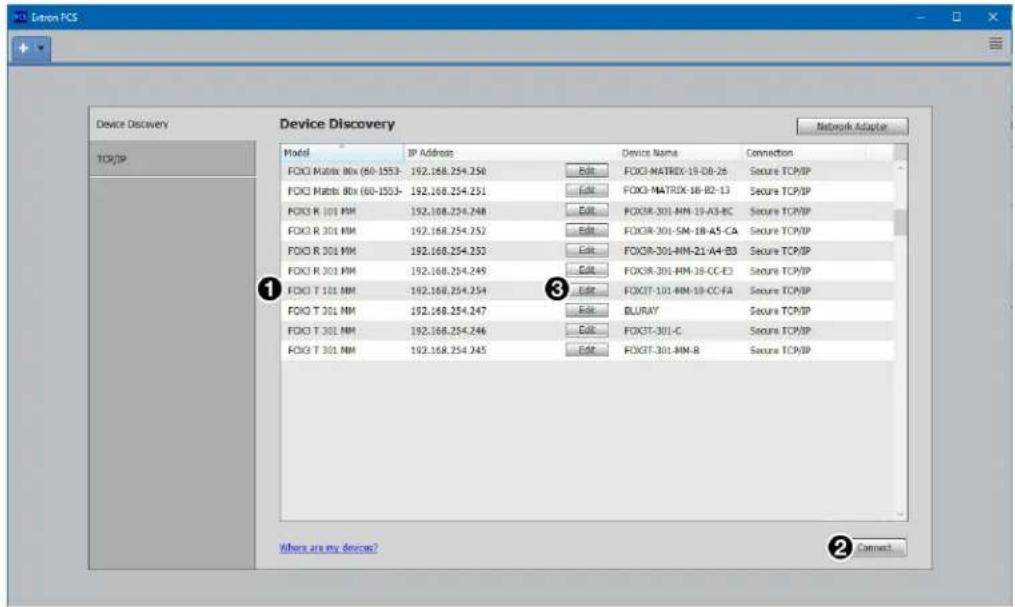

Figure 14. Device Discovery Panel

1. Select the FOX3 device by clicking on it to highlight it in the list ( ①).
2. Click Connect (②).

To edit the IP address:

1. Click on the Edit button (③). The Communication Settings box pens.
2. Click in the field to edit the address (see figure 14).
3. Click Apply to complete and close. Alternatively, click Apply and Connect to complete and connect to the device. Click Cancel to close the box without changes.

Figure 15. Communication Settings Box

TCP/IP Panel

The TCP/IP panel connects PCS to a specific device through Ethernet.

Figure 16. Comm Port Selection Windows
1. Click the TCP/IP tab (see figure 15, ①).
2. In the IP Address/Hostname field (②), enter the IP address of the desired device.

NOTE: The IP address is 203.0.113.22. It cannot be changed.

1. In the Password field (③), enter the device password.

NOTE: The factory configured passwords for all accounts on this device have been set to the device serial number. In the event of a complete system reset, the passwords convert to the default, which is extron (see Passwords Panel on page 32 to change a password).

1. Leave the Port field (④) empty. The port device searches for a port to connect.

NOTE: Select the Show Characters checkbox (⑤) to display the password characters.

1. Click the Connect button (⑥). A new device tab opens.

Offline Device Preview

Opening a new device tab for an offline device displays the interface and configuration options for the device without connecting to it. However, settings cannot be changed.

To open a scaler device tab:

1. From the Configuration File drop-down list, select New Configuration File (see figure 16).

	New Configuration File
	Open Configuration File
	Recent Files ▶
	Recent Devices ▶

Figure 17. Configuration File Drop-Down List

FOX3 T 101 Transmitter and FOX3 R 101 Receiver • Configuration Software 24

The New Configuration File dialog box opens (see figure 17).

Figure 18. New Configuration File Dialog Box

1. Select the desired device model from the Device Models list.
2. Click the Configure button. A new offline device configuration tab opens.

Software Overview

NOTE: For details about specific software features, see the FOX3 T 101 and FOX3 R 101 Help File.

Figure 19. FOX3 T 101 Main Window

Each PCS screen has a Device drop-down list, accessed via the tab (see figure 18, ①), for device configuration options. The Software menu, accessed via the icon on the right (②), contains software configuration and information options.

Software Menu

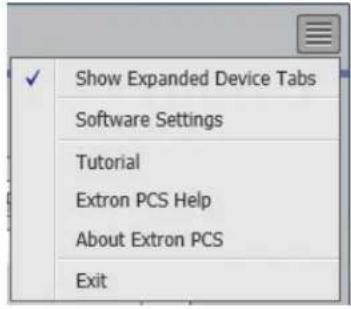

The Software menu (see figure 19) contains options pertaining to PCS settings.

Figure 20. PCS Software Menu

Show Expanded Device Tabs

Selecting Show Expanded Device Tabs from the Software menu displays the device IP address or connection method in the Device tab.

Figure 21. Expanded Device Tab

Software Settings

This option resets all disabled confirmation dialogs to the default settings.

1. From the Software menu, select Software Settings. The Software Settings dialog box opens.

Figure 22. Software Settings Dialog Box

1. Click the Re-enable Confirmation Dialogs button (see figure 21, ①). The dialog box closes and the reset is complete.

Alternatively, click the Close button (②) to close the dialog box without re-enabling the confirmation dialogs.

Tutorial

Display a general overview of where to find features in the PCS framework.

1. From the Software menu, select Tutorial. The Tutorial dialog box opens.
2. Click the I Get It! button to close the dialog box.

Extron PCS Help

Open the PCS help file for general PCS operations.

From the Software menu, select Extron PCS Help.

Application Licensing

Log into PCS with your Extron Insider account or check licensing details.

Figure 23. Application Licensing Dialog Box

About Extron PCS

Display information about the current PCS version.

1. From the Software menu, select About Extron PCS. The About - Extron PCS dialog box opens.

Figure 24. About - Extron PCS Dialog Box

1. Click the Details button (see figure 23, ①) for more information.
2. To display details about third-party software packages and associated licensing, click Licenses (2).
3. Click the OK button (③) to close the dialog box.

Exit

Disconnect connected devices and close the application.

1. From the Software menu, select Exit. If device tabs are open, the Exit dialog box opens (see figure 24).

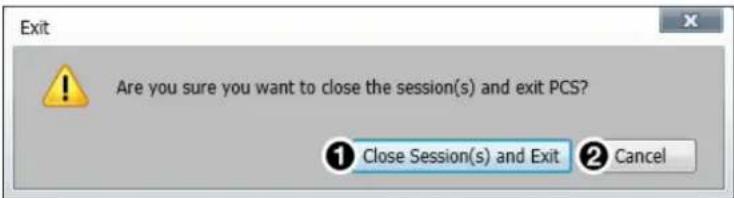

Figure 25. Exit Dialog Box

1. Click the Close Session(s) and Exit button (1) to disconnect the software from connected devices, close all offline device tabs, and close the software.

Alternatively, click the Cancel button (2) to leave the software open.

Device Menu

The Device menu contains options pertaining to device connection, configuration, and information. For details about all these options, see the FOX3 T 101 and FOX3 R 101 Help File.

• Disconnect — Disconnect the device from the PCS program and close the Device tab.
• Settings — Open a submenu with the following options:

- Hardware Settings — Display the Hardware Settings dialog box with device information and side tabs to change the device name, internal clock, and password of the connected device.

Figure 26. Device Menu

NOTE: Edit the time, select Sync to PC, so the date is updated on the unit before installing the firmware.

It also contains an Edit Communication Settings button, which provides an alternative method of accessing the Communication Settings dialog box.

- Communication Settings — Open the Communication Settings dialog box to change IP settings of the connected device.

- Reset Device — Open the Reset Device dialog box, with selectable modes for resetting the connected device, as well as the Unit Information (also displayed in the Hardware Settings dialog box).

NOTE: The factory configured passwords for all accounts on this device have been set to the device serial number. In the event of a complete system reset, the passwords convert to the default, which is extron (see Passwords Panel on page 32 to change a password).

• Backup — Export all audio, video, and communication settings of the connected device to the PC. This exported configuration can be saved as a backup file (with a .extz extension), or used to replicate settings from one device to other devices of the same model. When restoring a configuration, select specific device settings.
• Restore this Device — Upload a saved configuration for a FOX3 device to the connected device.
• Update Firmware — Open a submenu to upload firmware from the host device to the connected device or to multiple devices. Upload firmware from the host device to the connected device

NOTE: If necessary, download new firmware from the Extron website (see Software/Firmware Installation on page 21).

FOX3 T 101/FOX3 R 101 Help — Open the FOX3 T 101 and FOX3 R 101 Help File in a separate window.
- About This Module — Open the About This Module dialog box, with the module part number and firmware version of the connected device.

Internal Web Page

The FOX3 T 101 transmitter and FOX3 R 101 receiver feature an internal web server, displayed as a web page. This page allows you to monitor and adjust certain settings of the FOX3 101 devices via a IP over USB connection. Use a web browser to view the pages on a PC connected to the device USB port.

This section gives an overview of the internal web page, which is always available and cannot be erased or overwritten. Topics in this section include:

• Accessing the Internal Web Page
• Web Page Panels

Accessing the Internal Web Page

Access the FOX3 device internal web page as follows:

1. Connect the FOX3 device to a PC using the front panel USB port (see figure 7 and figure 8 on page 10).
2. Open a web browser on the PC connected to the device.
3. Enter the FOX3 transmitter IP address in the browser Address field.

NOTE: The USB IP address is 203.0.113.22. This IP address cannot be changed.

1. Press the key on the keyboard. The web page password page opens.

Figure 27. Network Password Prompt

1. The FOX3 is password protected. Enter a user name (user or admin) in the Username field and the password in the Password field when prompted (see figure 26).

NOTE: The factory configured passwords for all accounts on this device have been set to the device serial number. In the event of a complete system reset, the passwords convert to the default, which is extron.

1. Click the Sign in button, if the unit is password protected.

Web Page Panels

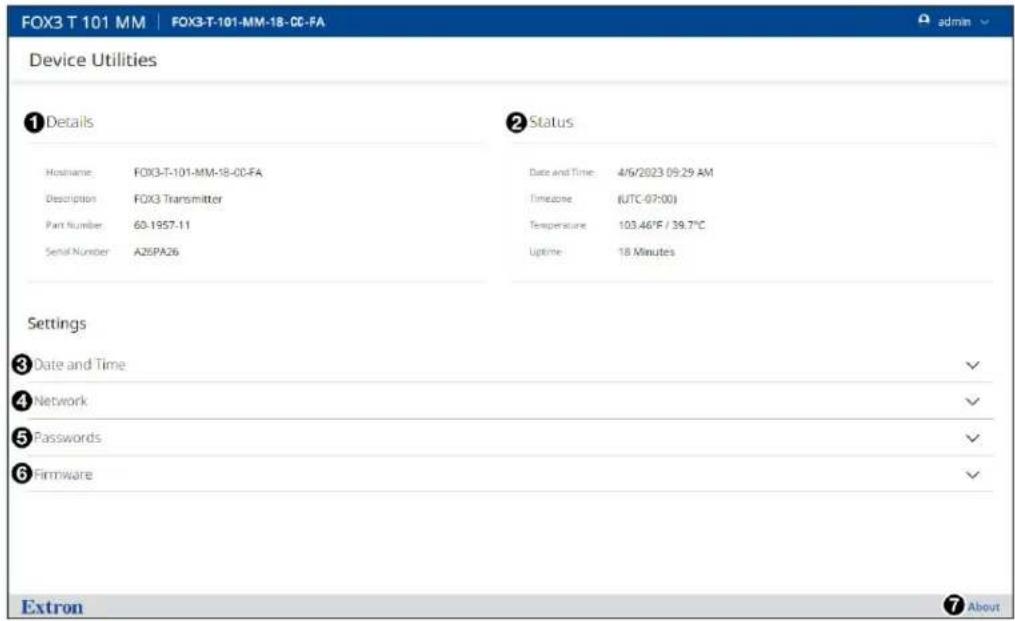

The FOX3 101 internal web page (see figure 27) provides an overall, read-only view of the status of the FOX3 device, with some editable fields for the following categories:

① Details Panel

4 Network Panel

② Status Panel

⑤ Passwords Panel

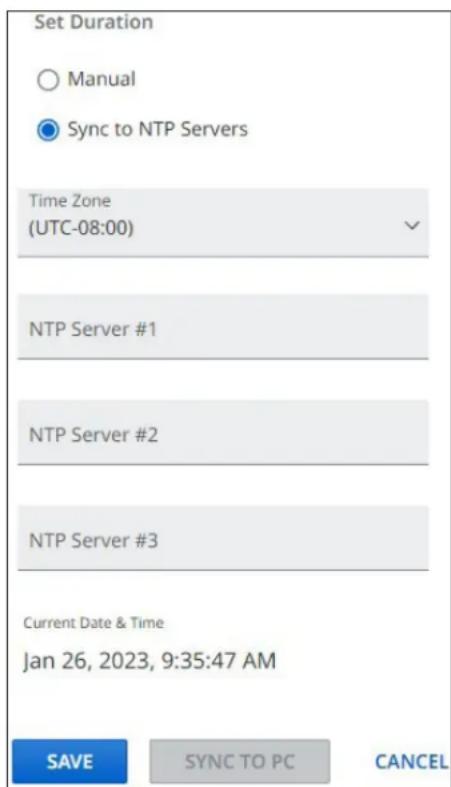

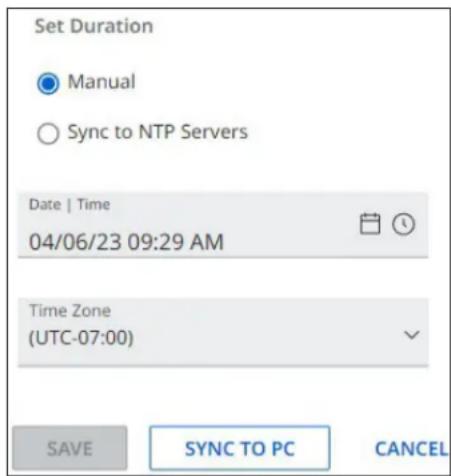

③ Date and Time Panel

6 Firmware Panel

The panels in the accordion section that can be edited have an EDIT link. Click the link to access the panel. To access each panel in the accordion, click the name or the arrow for each panel.

To view general information about the FOX3 T 101, click the ABOUT link (⑦ About the FOX3 T 101).

Figure 28. FOX3 T 101 Internal Web Page

The internal web page does not automatically update. To see an updated page, click the Refresh button on the web browser.

Details Panel

The Details panel (see figure 27, ①) displays the device name, a brief product description, the part number, and the serial number. The name can be changed in the Network Panel on page 32.

Status Panel

The Status panel (2) displays the current date, time, time zone, internal temperature in degrees Fahrenheit and Celsius, and the amount of time the device has been running (Uptime). This information can be edited in the Date and Time Panel (see page 31).

Date and Time Panel

The Date and Time panel (see figure 27, ③ on page 30) displays the mode used to set the date and time, current date, and time. There are three options to set the date and time: manual mode, sync to NTP (Network Time Protocol) servers, and sync to the connected PC.

NOTE: The factory configured passwords for all accounts on this device have been set to the device serial number. In the event of a complete system reset, the passwords convert to the default, which is extron.

To set the date and time in Manual mode:

1. Click EDIT in the Date and Time panel. The editable fields are displayed (see figure 28).
2. Select the Manual radio button.
3. Edit the Date/Time as desired by typing in the date and time or using the calendar and clock icons.
4. Edit the Timezone as desired, using the drop-down list.
5. When finished editing, click SAVE to confirm changes or CANCEL to close the window without making changes.
6. Alternatively, click SYNC TO PC to set the date and time according to your PC.

To set the date and time in sync to NTP servers mode:

1. Click EDIT in the Date and Time panel. The editable fields are displayed (see figure 29).
2. Select the Sync to NTP Servers radio button.
3. Click in an NTP Server field and enter the IP address or host name of a desired NTP Server.
4. When finished editing, click SAVE to confirm changes or CANCEL to close the window without making changes.
5. Alternatively, click SYNC TO PC to set the date and time according to your PC.

To sync the date and time with your PC:

Click SYNC TO PC to set the date and time according to your PC.

Figure 29. Manual Mode

Figure 30. Sync to NTP Servers

Network Panel

The Network panel (see figure 27, 4 on page 30) displays the device name, which can be changed.

NOTE: The USB IP address is 203.0.113.22. This IP address cannot be changed. DO NOT select DHCP or enter new network information.

To change the name:

1. Click EDIT in the Network panel. The editable fields are displayed (see figure 30).
2. Click in the Device Name/Hostname field and enter the desired device name.
3. When finished editing, click SAVE to confirm changes or CANCEL to close the window without making changes.

Figure 31. Network Panel

Passwords Panel

The Passwords panel (see figure 27, ⑤) displays whether Admin and User passwords have been set and provides an option to set administrator or user passwords. It does not display the actual passwords.

NOTE: The following rules apply to passwords:

• Length is 1-128 characters.
- All human-readable characters are permitted except |.
- The password cannot be a single space.
- Passwords are case-sensitive.
- The factory configured passwords for all accounts on this device have been set to the device serial number. In the event of a complete system reset, the passwords convert to the default, which is extron.

To assign administrator and user passwords:

1. In the Passwords panel, click EDIT. The editable fields are displayed (see figure 31).

Figure 32. Admin and User Passwords Panel

1. Click in the Admin Password field and enter the new administrator password.
2. Click in the Confirm Admin Password field and enter the password from the Admin Password field.
3. To assign a user password, repeat steps 2 and 3 in the User Password panel.
4. When finished, click SAVE to set the passwords. To close the window without saving a password, click CANCEL.

NOTE: Passwords can be changed but they cannot be removed entirely. The FOX3 must have passwords at all times. These fields cannot be blank.

Firmware Panel

The Firmware panel (see figure 27, 6 on page 30) displays the current firmware version and the date it was last updated. Update the firmware on the FOX3 101 from this panel (see Software/Firmware Installation on page 21 to download the firmware).

To update firmware:

1. In the Firmware panel, click the SELECT FILE button (see figure 32).
2. In the Open dialog box, browse to locate the new firmware file on your computer (by default the file is stored at C:\Program Files (x86)\Extron\Firmware\FOX3 T 101 after being downloaded from the Extron website).

NOTE: Firmware files for FOX3 101 devices have an .eff extension. Do not attempt to load any other file types.

1. Double-click the firmware file name. The Open window closes, and the selected firmware file name appears in the Update Firmware panel on the web page.
2. Click INSTALL to begin. To cancel the update, click the X button in the Update Firmware panel.

Current Version

1.00.0031-b004

Last Update

Thu, 06 Apr 2023 16:24 UTC

Install Firmware

On install, the device will reboot

Add .EFF File

SELECT FILE

Figure 33. Firmware Panel

During the updating process, a window appears in the middle of the screen, displaying messages of the progress of the update: Initializing, Installing the Firmware, and Rebooting Device.

When the update is completed, the message window closes and the message Firmware Upload Complete appears near the top of the screen. The new firmware filename appears beside Version in the Firmware panel.

About the FOX3 T 101

Click the ABOUT link (see figure 27, ⑦ on page 30) to open the About dialog box to view general information about the FOX3, such as the firmware version, copyright, part number, licenses, patents and web page version. Click the View the End User License Agreement link to view the user license.

Figure 34. About the FOX3 Panel

Equipment Mounting

This section provides procedures for mounting the FOX3 T 101 transmitter and FOX3 R 101 receiver.

Mounting the Transmitter and Receiver

ATTENTION:

The 1-inch high, quarter-rack width transmitter and receiver can be placed on a table, mounted in a rack, or mounted under a desk or table. The transmitter and receiver can also be mounted on a projector bracket.

Tabletop Use

Affix the included rubber feet to the bottom of the unit and place it in any convenient location.

Mounting kits

Mount the unit using any optional compatible mounting kit listed on the Extron website, in accordance with the directions included with the kit. For rack mounting, see UL Rack-Mounting Guidelines on page 36.

UL Rack-Mounting Guidelines

The following Underwriters Laboratories (UL) requirements pertain to the installation of the FOX3 101 into a rack.

CAUTION:

• Elevated operating ambient temperature — If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consider installing the equipment in an environment compatible with the maximum ambient temperature (TMA = +104°F, +40°C) specified by Extron.
• Reduced air flow — Installation of the equipment in a rack should be such that the amount of air flow required for safe operation of the equipment is not compromised.
• Mechanical loading — Mounting of the equipment in the rack should be such that a hazardous condition is not achieved due to uneven mechanical loading.
• Circuit overloading — Consideration should be given to the connection of the equipment to the supply circuit and the effect that overloading of the circuits might have on overcurrent protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.
• Reliable earthing (grounding) — Reliable earthing of rack-mounted equipment should be maintained. Particular attention should be given to supply connections other than direct connections to the branch circuit (such as use of power strips).

Extron warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to:

USA, Canada, South America, and Central America:

Extron

1230 South Lewis Street

Anaheim, CA 92805

U.S.A.

Asia:

Extron Asia Pte Ltd

135 Joo Seng Road, #04-01

PM Industrial Bldg.

Singapore 368363

Singapore

Japan:

Extron Japan

Kyodo Building, 16

Ichibancho

Chiyoda-ku, Tokyo 102-0082

Japan

Europe:

Extron Europe

Hanzeboulevard 10

3825 PH Amersfoort

The Netherlands

China:

Extron China

686 Ronghua Road

Songjiang District

Shanghai 201611

China

Africa and Middle East:

Extron Middle East

Dubai Airport Free Zone

F13, PO Box 293666

United Arab Emirates, Dubai

This Limited Warranty does not apply if the fault has been caused by misuse, improper handling care, electrical or mechanical abuse, abnormal operating conditions, or if modifications were made to the product that were not authorized by Extron.

NOTE: If a product is defective, please call Extron and ask for an Application Engineer to receive an RA (Return Authorization) number. This will begin the repair process.

USA: 714.491.1500 or 800.633.9876 Asia: 65.6383.4400

Europe: 31.33.453.4040 or 800.3987.6673

Japan: 81.3.3511.7655

Africa and Middle East: 971.4.299.1800

Units must be returned insured, with shipping charges prepaid. If not insured, you assume the risk of loss or damage during shipment. Returned units must include the serial number and a description of the problem, as well as the name of the person to contact in case there are any questions.

Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.

Please note that laws vary from state to state and country to country, and that some provisions of this warranty may not apply to you.
