USER MANUAL X-Factor Chipolino

IMPORTANT! KEEP THIS MANUAL FOR FUTURE REFERENCE!

INSTRUCTION MANUAL FOR USE OF ENHANCED CHILD RESTRAINT SYSTEM "X-FACTOR"

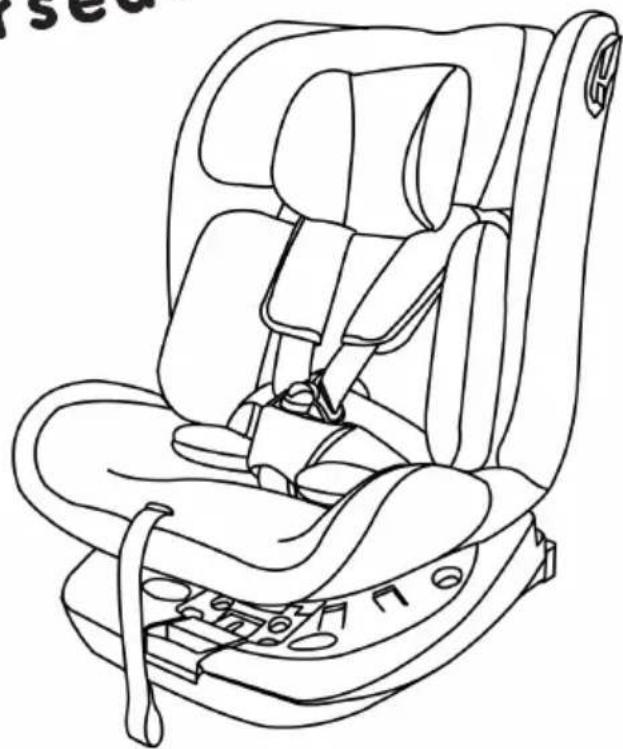

+ - FACTOR carseat

Line drawing of a car comfort seat with seats and straps (no text or symbols)

This child restraint system is manufactured in compliance with the requirements of Regulation No 129 of the Economic Commission for Europe of the United Nations (UN/ECE) — Uniform provisions concerning the approval of enhanced Child Restraint Systems used on board of motor vehicles (ECRS), the provisions of the Product safety Directive 2001/95/EU of the European Parliament and The Council as well as the Consumer Protection Law of Bulgarian Legislation.

Enhanced child restraint system model „X-FACTOR” is suitable for children with height 40-150cm and approximate age 0-12 years:

I-Size universal system ISOFIX: 40-105 cm / ≤18 kg.

I-Size booster seat: 100-150 cm

I-Size compliant

Child's height Seat position Installation		method Category
40-105 cm(0-4 years)	REARWARD	ISOFIX+ Top tether+Vehicle belts	i-Size Universal ISOFIX
76-105 cm(15 months - 4 years)	FORWARD	ISOFIX+Top tether+Vehicle belts
100-150 cm(4 - 12 years)	FORWARD	3-point vehicle belt+ISOFIX connectors	i-Size booster seat
		3-point vehicle belt

Notice for i-Size category enhanced child restraint systems : 40-105cm

This is an “i-Size” enhanced child restraint system. It is approved according to Regulation No.129, for use in, i-Size compatible vehicle seating positions as indicated by vehicle manufacturers in the vehicle users’ manual. If in doubt, consult either the enhanced child restraint system manufacturer or the retailer.

Notice for i-Size category enhanced child restraint systems: 100-150 cm

This is a i-Size booster seat enhanced child restraint system. It is approved according to Regulation No. 129, for use primarily in “i-Size seating positions” as indicated by vehicle manufacturers in the vehicle user’s manual. If in doubt, consult either the enhanced child restraint system manufacturer or the retailer.

DO NOT FORGET THAT NO RESTRAINT SYSTEM CAN PROVIDE ABSOLUTE PROTECTION IN CASE OF A CRASH OR ROAD ACCIDENT!

DRIVE WITH CARE WHEN THERE IS A CHILD IN YOUR VEHICLE!

IN ORDER TO ENSURE THE SAFETY OF YOUR CHILD, FOLLOW EXACTLY THE INSTRUCTIONS AND SAFETY RECOMMENDATIONS IN THIS MANUAL!

MISUSE OF THE CAR SEAT WILL CONTRIBUTE TO REDUCING ITS SECURITY AND SAFETY FEATURES! FAILURE OF THE GUIDELINES OF THIS INSTRUCTION INCREASES THE RISK OF SERIOUS INJURY OR DEATH!

WARNING!

1. NEVER INSTALL THE CAR SEAT IN DIRECTION OF NORMAL MOVEMENT OF THE VEHICLE AND IN "FORWARD FACING" POSITION BEFORE THE CHILD'S AGE EXCEEDS 15 MONTHS!
2. DO NOT PLACE THE RESTRAINT SYSTEM ON A VEHICLE SEAT EQUIPPED WITH ACTIVE AIR BAG! THIS MAY RESULT IN DEATH OR SERIOUS INJURY!

1. DO NOT USE IN FORWARD FACING MODE BEFORE CHILD'S HEIGHT EXCEEDS 76 cm.
2. DO NOT USE OTHER ANCHOR POINTS EXCEPT FOR THE ONES DESCRIBED IN THE USER'S MANUAL AND THE ONES MARKED ON THE CAR SEAT!

① Diagonal belt

② Lap belt

! NEVER INSTALL THE CAR SEAT IN VEHICLE WITH 2-POINT BELT! INSTALL IT ONLY IN VEHICLE WITH 3-POINT SAFETY BELT!

CAUTION! This car seat is only suitable for installation in vehicles fitted with APPROVED 3-POINT SAFETY BELTS WITH RETRACTOR, meeting the requirements of Regulation no. 16 of EC of UN!

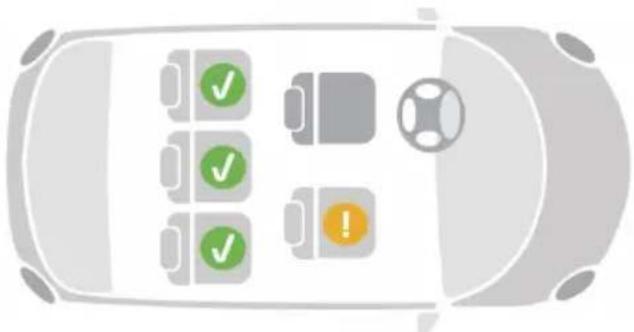

PLACES FOR INSTALATTION OF THE CAR SEAT IN THE VEHICLE

CORRECT! Suitable place for installation of the car seat.

WRONG! Unsuitable place for installation of the car seat.

The suitable places in the vehicle are usable only if they are equipped with 3-point vehicle safety belts.

CAUTION! WARNINGS!

✿ WARNING! NEVER LEAVE YOUR CHILD UNATTENDED!
✿ WARNING! DO NOT USE ANCHOR POINTS OTHER THAN THE ONES DESCRIBED IN THIS MANUAL AND MARKED ON THE RESTRAINT SYSTEM!
✿ WARNING! WHEN YOU INSTALL THE CAR SEAT IN POSITION „REARWARD FACING“, NEVER PLACE IT ON PASSENGER SEAT, EQUIPPED WITH ACTIVE AIRBAG! THIS MAY LEAD TO SERIOUS INJURY OR DEATH!
✿ WARNING! NEVER INSTALL THE CAR SEAT IN DIRECTION OF NORMAL MOVEMENT OF THE VEHICLE AND POSITION OF THE CHILD "FORWARD FACING" BEFORE THE CHILD'S AGE EXCEEDS 15 MONTHS!
✿ WARNING! THE VEHICLE SAFETY BELTS WHICH HOLD THE CAR SEAT TO THE PASSENGER SEAT MUST BE TIGHTENED AND FIXED!
WARNING! THE CAR SEAT SAFETY BELTS MUST BE PROPERLY ADJUSTED ACCORDING TO CHILD'S HEIGHT, NOT TWISTED AND SNUG WELL AGAINST CHILD'S BODY.
✿ WARNING! THE LAP BELT MUST BE PLACED LOW DOWN, SO THAT THE PELVIS IS FIRMLY ENGAGED WITHOUT PRESSING!
✿ WARNING! DO NOT MAKE CHANGES, ADDITIONS OR MODIFICATIONS ON THE CAR SEAT WITHOUT THE APPROVAL OF THE NOTIFYING AUTHORITY ! IT IS DANGEROUS NOT TO KEEP STRICTLY THE INSTRUCTIONS GIVEN BY THE MANUAFACTURER!
WARNING! KEEP AWAY FROM FIRE!
Installation in the vehicle and securing the child in the car seat to be done only by adult!
The hard parts and the parts of the child restraint made of plastic should be located and installed so that when the vehicle is in normal use, they can not be trapped by a sliding seat or in a door of the vehicle.
Do not allow the safety belts of the car seat and the vehicle to be twisted, frayed or torn, latches and locks (buckles) must be always in good order and firmly fixed.
If you find uncertainty or defect in the structure, latches, straps or locking mechanisms of the car seat or ISOFIX attachments, discontinue usage until removal of the damaged parts and replacement with new ones.
✿ After a violent impact the car seat may be damaged, therefore, it is recommended to replace the car seat with a new one.
✿ Never use a second hand child restraint. It may have suffered structural damage, which may make the child restraint extremely dangerous.
Do not use this car seat without its seat cover and do not replace it with a new one, unless supplied by the manufacturer. The fabric parts are integral parts of the restraint system and its safety features!
✿ Any luggage or other objects that could cause injury in the event of a collision must be well secured. Remove or secure at a safe distance from the seat and child any luggage that may cause injury in the event of a sudden stop or accident while driving.
Always check that the seat is firmly attached to the vehicle seat, even when you are not placing a child in it. A loose car seat, even without a child in it, can cause injury in the event of a collision.
Do not put additional pads except the ones supplied from the manufacturer!
Do not use spare parts and other components not supplied by the manufacturer. The manufacturer assumes no responsibility for safety in the event that are used spare parts other than original.
- Keep the instructions for use in the space provided in the car seat or in the vehicle in which you are going to use the car seat.

Do not expose the car seat to direct sunlight to prevent the child from burning, deforming the car seat and especially the plastic parts.
The car seat does not replace the child's cot or bed. When a child needs a sleep, you have to place him/her in a suitable baby stroller, baby crib or bed.
Do not attach objects with long cords or strings on the car seat in order to avoid danger of suffocation!
✿ Never place the car seat on beds, couches or similar soft surfaces!
Do not allow children to play with the product!
Do not remove stickers and warnings – they contain important information!
The packaging of the product must be kept out of the reach of children at the time of and after unpacking in order to avoid the risk of strangulation!

PRODUCT FEATURES

This is I-Size child restraint system, suitable for children with height 40-150 cm, approximate age 0-12 years.

The child restraint rotates 360 degrees on the base;
◆ Backrest recline;
◆ Headrest height adjustment;
◆ 5-point safety harness on the restraint;
◆ Additional soft pads.

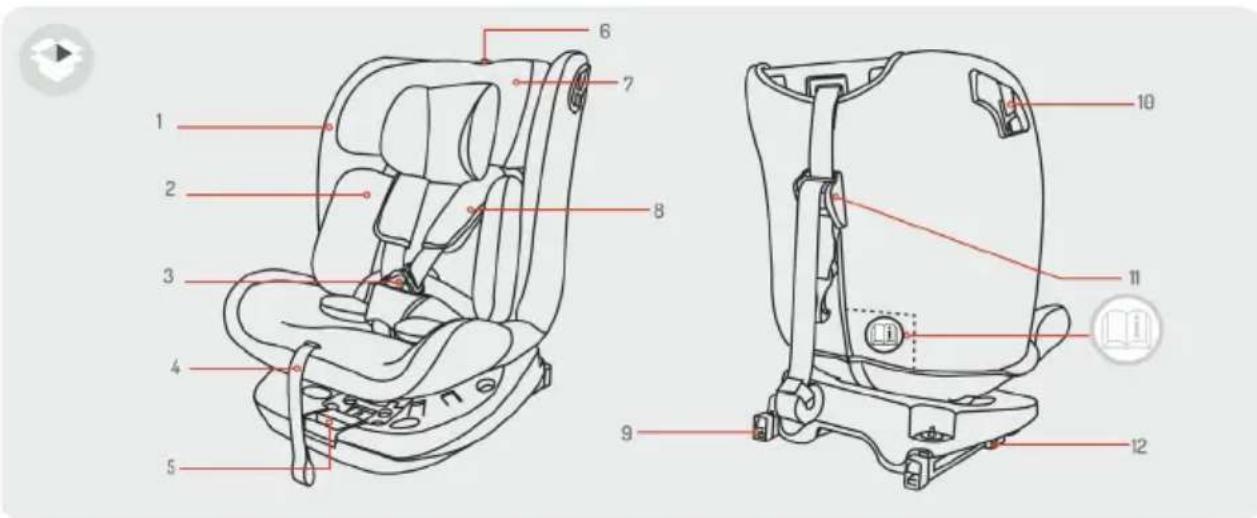

MAIN PARTS

1. Upholstery
2. Additional pillow (40-75 cm)
3. Safety harness
4. Belts length adjusting strap
5. Rotating button

6. Headrest adjusting hook

7. Headrest

8. Shoulder soft pads
   9.ISOFIX connectors
9. Top tether
10. Top tether adjusting device
11. ISOFIX connectors button

User's manual

IMPORTANT!

• Follow exactly the instructions and sequence of installation steps and use of the product described in the text and figures of this manual.
• Check the security of fixing after each operation!
  • ALWAYS CHECK THE SECURITY OF FIXING OF THE SAFETY BELTS!
  • After each installation make sure that the seat belts are not twisted and they are in the correct position.

INSTALLING THE SEAT IN A „REARWARD“ POSITION For child's height: 40-105 cm (0 - 4 years) ISOFIX + 5-point safety harness + Top tether

ISOFIX

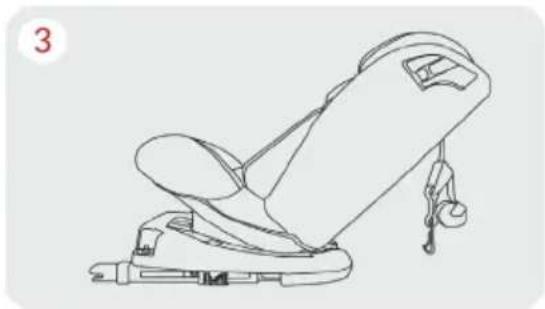

Installing the ISOFIX

Line drawing of a car seat with adjustable seat and seatbelt (no text or symbols)

Line drawing of a hand holding a car seatbelt with a green arrow indicating motion (no text or symbols)

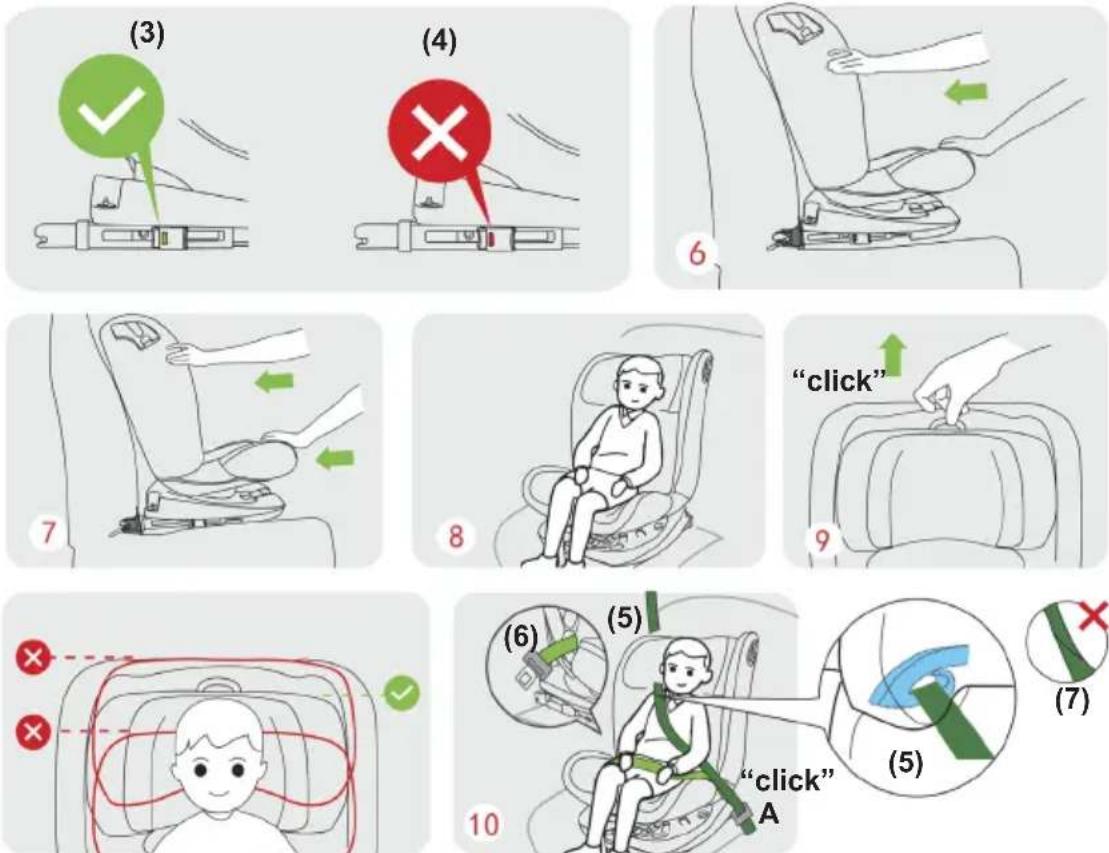

1. Insert the ISOFIX guides (2) in the ISOFIX anchor points (metal hooks) (1) located between backrest and seat of the vehicle.

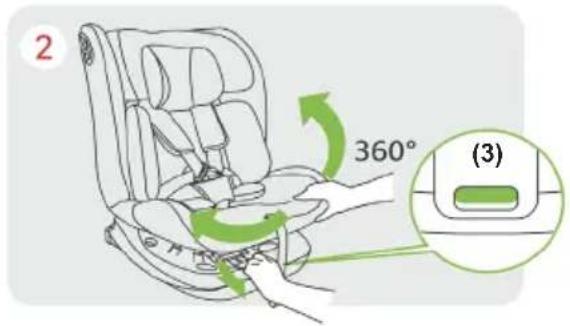

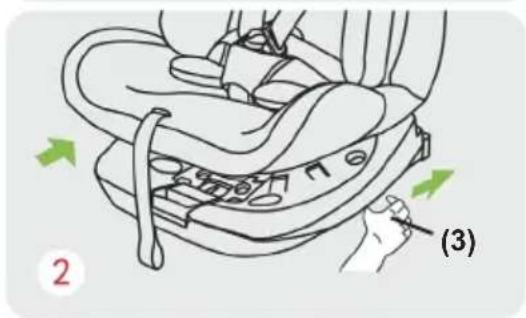

2. Pull the rotating button (3) out.
3. Twist the seat at 360^ until seat in REARWARD position.

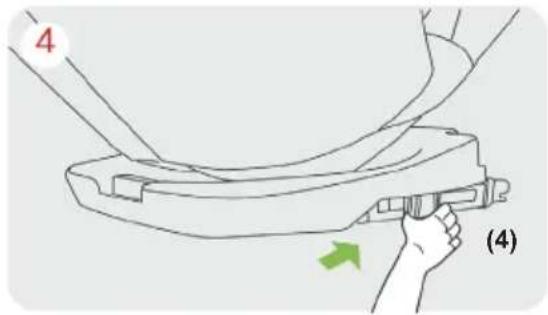

4. Grab and press the ISOFIX adjusting button, as shown in the photo and at the same time move the ISOFIX connector (4) maximum out. Repeat the same actions for the other ISOFIX connector.

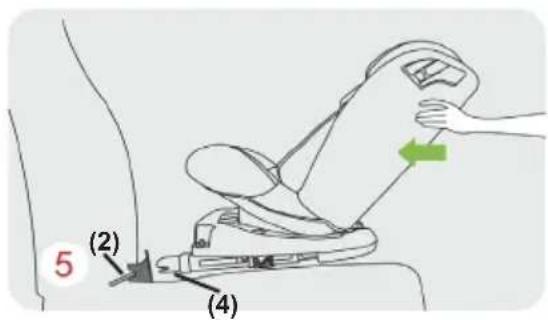

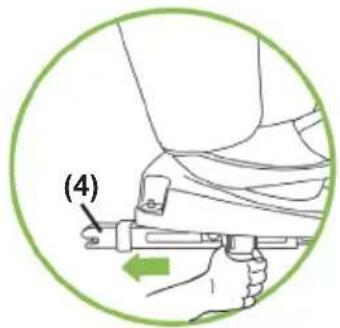

5. Insert the ISOFIX connectors (4) of the restraint system in the ISOFIX guides (2).

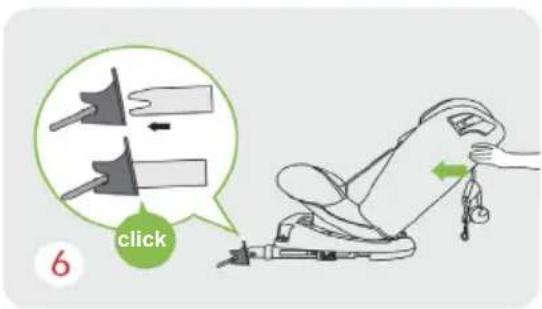

6. Press the car seat to the vehicle seat until you hear a „click“ and it is fixed.
7. ATTENTION! The ISOFIX connectors are fixed when both indicators are green.

Remark: If indicators show red, repeat the actions and installation.

Shake the installed car seat. If it is unstable or some of the ISOFIX connectors is loose, repeat the installation again.

To remove the car seat, repeat the same actions in reverse order.

Installing the top tether

Line drawing of a car seatbelt device with a green belt, no text or symbols present

Line drawing of a person's seatbelt being adjusted for a hand, with a green arrow indicating the adjustment (no text or symbols present)

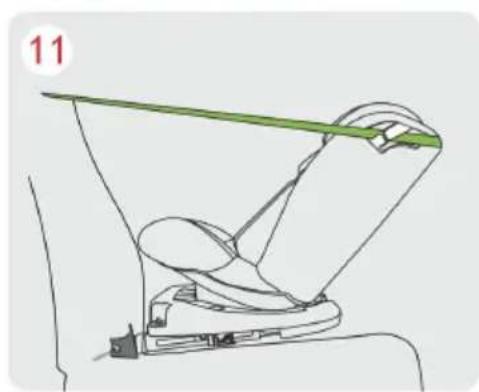

1. The hook of the top tether must be attached at the designated attachment spot in the vehicle, recommended in the vehicle user's manual. The possible attachment spots are shown in the picture (A, B, C, D).
2. Press the button for top tether length adjusting (1) and pull the top tether. Thread the top tether under the backrest headrest (if there is a headrest) or over the backrest. Attach the hook at the attachment spot (A, B, C, D).
3. Grab the other end of the top tether and pull back in order to tighten it.

IMPORTANT! The belt should not be twisted!

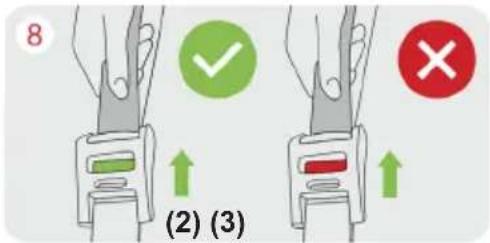

After tightening, the indicator of the top tether (2) must be green. If the indicator is red (3), repeat the installation steps.

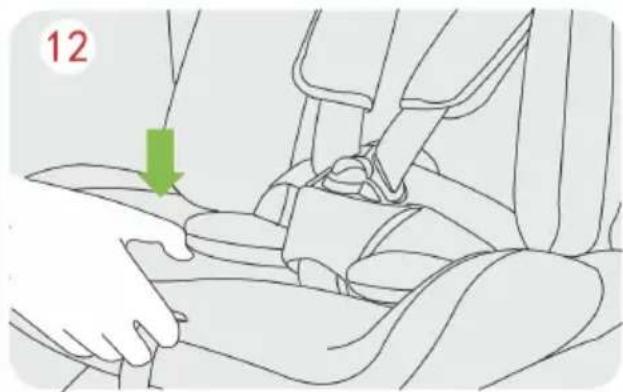

1. Thread the strap of the top tether in the car seat guide as shown in the picture.
2. Shake the installed car seat to make sure it is well fixed.

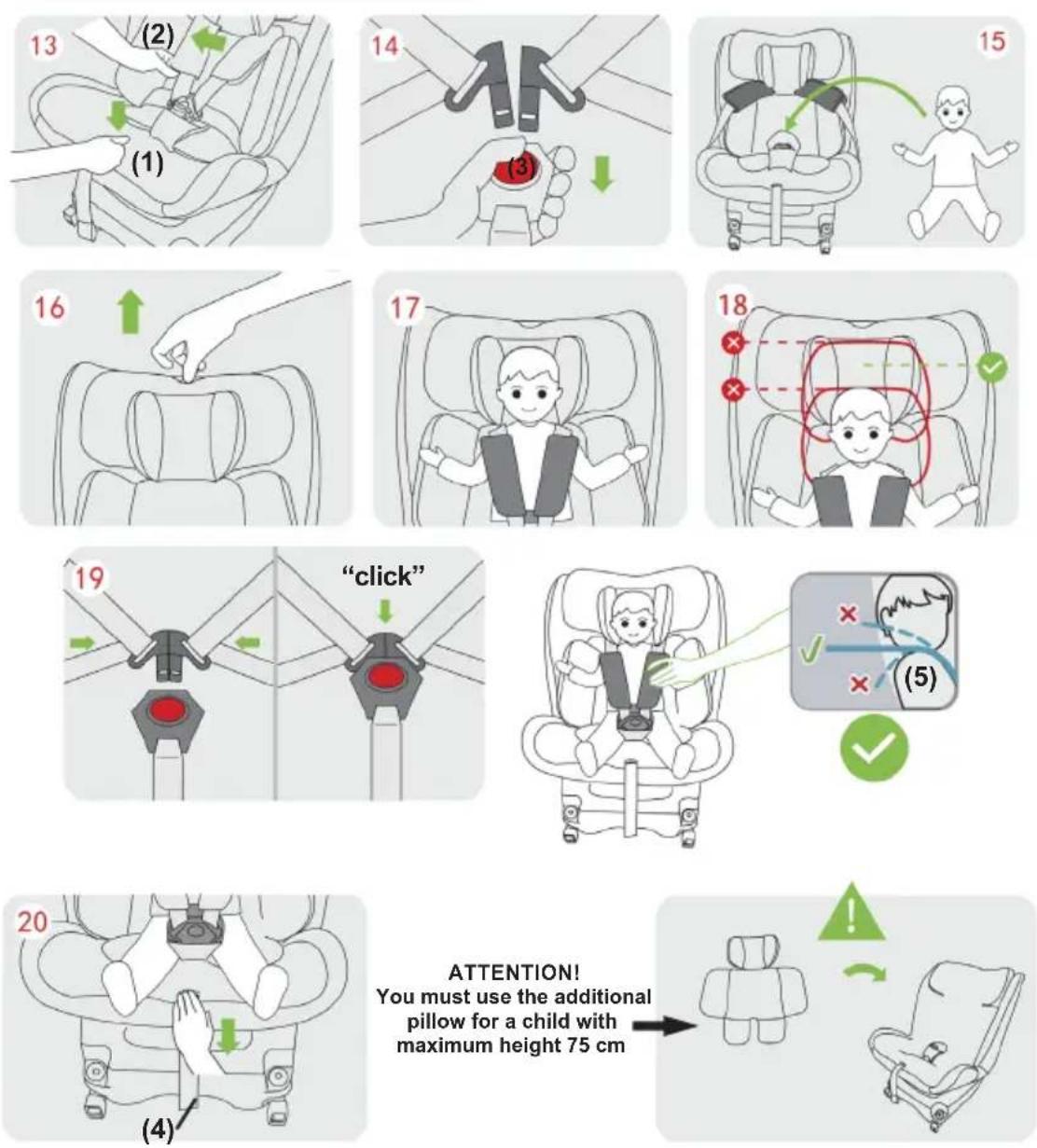

Securing the child in child restraint

1. Press the harness length adjusting button (1) and at the same time pull out the shoulder belts to loosen them (2).

IMPORTANT! Pull on the shoulder belts, not the shoulder pads.

1. Press the central buckle button (3), in order to unfasten the harness.
2. Toss the belts to the sides and put the child in the car seat.
3. Pull the headrest adjusting hook and move the headrest up or down. When the position is fixed you will hear a „click“.
4. Place the shoulder strap over child's shoulder.

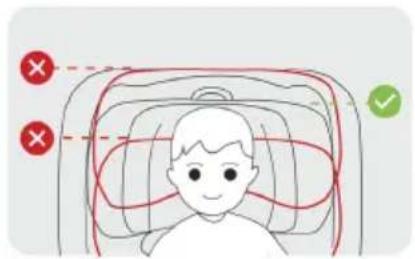

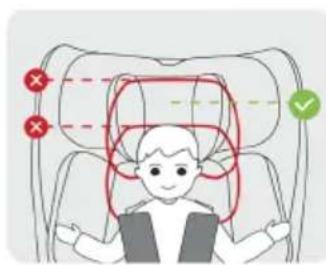

5. Correct the headrest height if necessary so that child head is positioned as shown in the picture (√).

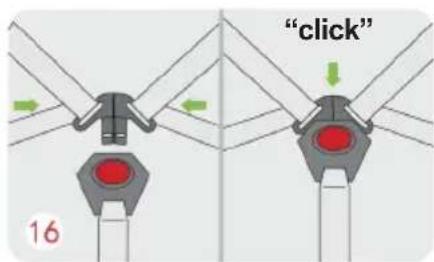

6. Join the metal ends of shoulder belts and insert them in the central buckle. When harness is fastened you will hear a „click“. Make sure the harness is fastened by trying to pull it out.

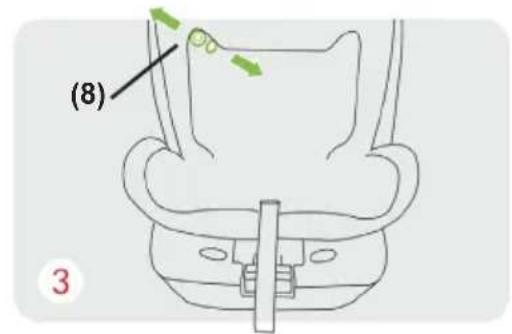

7. Pull the adjusting strap (8), in order to tighten the belts. Belts must be snug to child's body without being too tight or causing him discomfort. The recommended space between child's body and belts is 2 fingers (about 2 - 3cm ).

CAUTION! Make sure the belts are not twisted and are not too tight!

CAUTION! Make sure the shoulder belts go just over child's shoulders (5). They should not be higher or lower than child's shoulders.

IMPORTANT! If in doubt of the proper headrest height, choose the higher one.

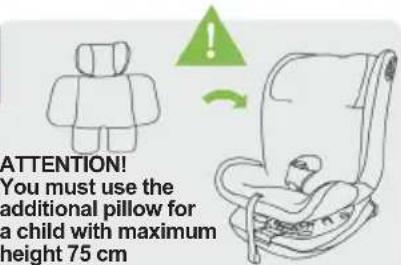

CAUTION! The additional pillow must be used for a child with height no more than 75 cm, after child exceeds this height, the pillow must be removed!

INSTALLING THE CAR SEAT IN „FORWARD FACING“ positon

Child's height: 76-105 cm, 15 months up to 4 years)

ISOFIX + 5-point safety harness +

Top tether

Installation of the ISOFIX

Illustration of a car seatbelt with hands and a green arrow indicating direction (no text or symbols)

1. Insert the ISOFIX guides (2) in the ISOFIX anchor points (1) located between the vehicle seat and backrest.
2. Grab and press the ISOFIX adjusting button (3), as shown in the picture and at the same time move the ISOFIX connector (4) out. Repeat the same actions for the other ISOFIX connector.

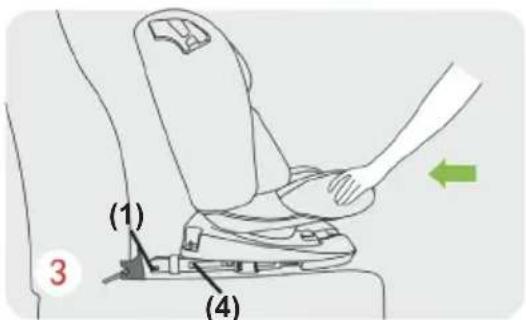

3. Insert the ISOFIX connectors (4) in the ISOFIX guides (2).
4. Press the car seat to the vehicle seat until you hear a „click“ and seat is fixed.
5. ATTENTION! The ISOFIX installation is complete when both indicators are green (5).

Note: If the indicators are red (6), repeat the installation.

1. Shake the installed seat. If it is unstable or one of the ISOFIX connector is loose, repeat the same actions.

To remove the car seat, repeat the same actions in reverse order.

7A. The hook of the top tether must be attached at the designated attachment spot in the vehicle, recommended in the vehicle user's manual. The possible attachment spots are shown in the picture (A, B, C, D).
7B. Press the button for top tether length adjusting (1) and pull the top tether. Thread the top tether under the backrest headrest (if there is a headrest) or over the backrest. Attach the hook at the attachment spot (A, B, C, D).
8. Grab the other end of the top tether and pull back in order to tighten it.

IMPORTANT! The belt should not be twisted!

After tightening, the indicator of the top tether (2) must be green. If the indicator is red (3), repeat the installation steps.

Shake the installed car seat to make sure it is well fixed.

Securing the child in child restraint

Illustration of a child wearing a life vest inside a car seat (no text or symbols)

Top-down diagram of a car seatbelt with hands operating the seat, showing a green arrow indicating movement (no text or symbols present)

Illustration of a child wearing a car seatbelt, holding a green leaf (no text or symbols)

1. Adjust the backrest in on the three recline positions (3).

10 and 11. Press the harness length adjusting button (1) and at the same time pull out the shoulder belts to loosen them (2).

IMPORTANT! Pull on the shoulder belts, not the shoulder pads.

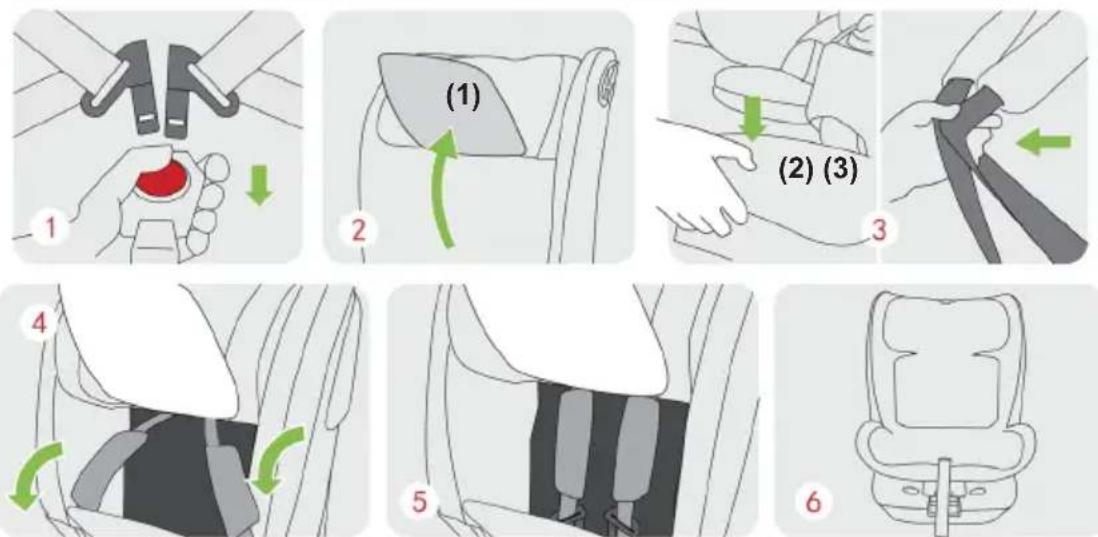

1. Press the central buckle button (3), in order to unfasten the harness.
2. Toss the belts to the sides and put the child in the car seat.
3. Pull the headrest adjusting hook and move the headrest up or down. When the position is fixed you will hear a „click“.

4. Place the shoulder strap over child's shoulder. Correct the headrest height if necessary so that child head is positioned as shown in the picture (√).

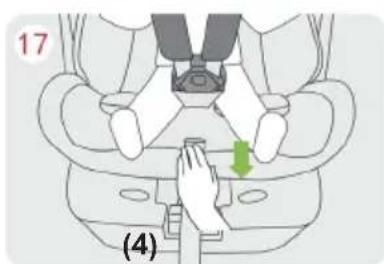

5. Join the metal ends of shoulder belts and insert them in the central buckle. When harness is fastened you will hear a „click“. Make sure the harness is fastened by trying to pull it out.

6. Pull the adjusting strap (4), in order to tighten the belts. Belts must be snug to child's body without being too tight or causing him discomfort. The recommended space between child's body and belts is 2 fingers (about 2 - 3cm ).

CAUTION! Make sure the belts are not twisted and are not too tight!

CAUTION! Make sure the shoulder belts go just over child's shoulders (5). They should not be higher or lower than child's shoulders.

IMPORTANT! If in doubt of the proper headrest height, choose the higher one.

CAUTION! The additional pillow must be used for a child with height no more than 75 cm, after child exceeds this height, the pillow must be removed!

INSTALLING THE CAR SEAT IN „FORWARD FACING“ positon

Child's height: 100-150 cm (4-12 years)

ISOFIX + 3-point vehicle belt

Preparing the car seat before installation (removing the shoulder belts)

1. Unfasten the central buckle.
2. Lift the headrest fabric (1).
3. Press the belt adjusting button (2) and pull the shoulder belts (3).
4. Collect the shoulder belts.
5. Pull down the fabric (1).
6. The belts are removed.

Installing the car seat with ISOFIX

ATTENTION! When child's height is 100-150 cm car seat must be placed in a „FORWARD FACING“position.

Line drawing of a car seat with no text or symbols

Diagram of a medical device with a green arrow indicating direction (no text or symbols present)

Illustration of a hand pressing down on a mechanical component with a green arrow indicating motion (no text or symbols)

1. Insert the ISOFIX guides (2) in the ISOFIX anchor points (1) located between the vehicle seat and backrest.
2. Place the car seat on the vehicle seat in a "FORWARD FACING" position.
3. Grab and press the ISOFIX adjusting button, as shown in the picture and at the same time move the ISOFIX connector out. Repeat the same actions for the other ISOFIX connector.
   4 and 5. Insert the ISOFIX connectors In the ISOFIX guides (2). Press the car seat to the vehicle seat until you hear a „click“ and seat is fixed.
4. ATTENTION! The ISOFIX installation is complete when both indicators are green (3).

Note: If the indicators are red (4), repeat the installation.
6. CAUTION! Make sure that the backrest is firmly pressed against vehicle backrest!
To remove the car seat, repeat the same actions in reverse order.
7. Shake the installed seat. If it is unstable or one of the ISOFIX connector is loose, repeat the same actions.
8. Place the child in the car seat.
9. Pull the headrest adjusting hook and move the headrest up or down. When the position is fixed you will hear a „click“. Correct the headrest height if necessary so that child head is positioned as shown in the picture ( √ ).

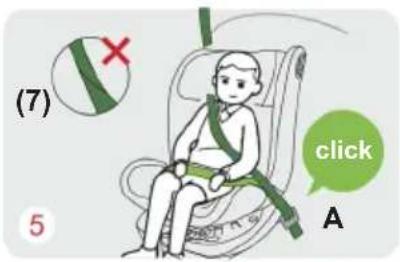

10. Thread the diagonal vehicle belt through the guide under the headrest (5), and the lap belt through the guides in down part of the car sea (6). Fasten the 3-point vehicle belt in the vehicle buckle (A), until you hear a „click“.

ATTENTION! Make sure the belt is well snug and is not twisted (7)!

INSTALLING THE CAR SEAT IN „FORWARD FACING“ positon

Child's height: 100-150 cm (4-12 years)

3-point vehicle belt

ATTENTION! Before installing the car seat on the vehicle seat, the shoulder belts must be removed as described in the section above "Preparing the car seat before installation (removing the shoulder belts)".

Illustration of a child seated in a car seat, no text or symbols present

Illustration of a hand pressing down on a mechanical component with an upward arrow (no text or symbols)

1. Place the child in the car seat.
2. Pull the headrest adjusting hook and move the headrest up or down. When the position is fixed you will hear a „click“. Correct the headrest height if necessary so that child head is positioned as shown in the picture ( √ ).
   3 and 4. Thread the diagonal belt through the guide under the headrest (5), and the lap belt through the guides in down part of the car seat (6).
3. Fasten the 3-point vehicle belt in the vehicle buckle (A), until you hear a „click“.

ATTENTION! Make sure the belt is well snug and is not twisted (7)!

REMOVAL OF THE FABRIC COVER

Line drawing of a car seat and a small figure, no text or symbols present

Diagram showing a green arrow pointing to a curved green shape inside a chair, with a gray abstract shape on the right (no text or symbols)

Line drawing of a car seat with green arrows indicating clockwise motion (no text or symbols)

Before removing the cover, you must remove the 5-point harness.

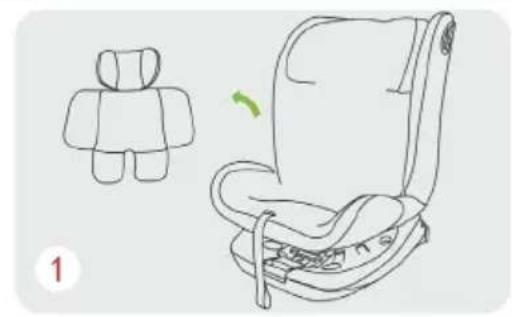

1. Remove the additional pillow.
2. Remove the headrest cover.
3. Unfasten the snap buttons (8).
4. Remove the cover as shown in the picture.

To place the fabric cover on the seat, perform the steps described in reverse order.

CAUTION! Do not use the car seat without the cover!

CARE AND MAINTENANCE

• Clean the plastic or metal parts with damp cotton cloth or sponge and mild soap.
  ❖ Upholstery and soft pads may be hand washed at 30 °C using mild detergent!
  Do not bleach! Do not tumble dry! Do not machine wash! Do not iron!
  Do not use abrasive, bleach or other aggressive detergents.
  ❖ Always after cleaning leave the car seat fully dry and after that use it or store it.
• Belts must be cleaned with damp cloth and mild soap!
  Do not wet or remove the stickers. They contain important information!
  ❖ Always store your car seat indoors – on dry and clean place. Do not expose to direct environment
  ◆ influence - sun, rain, moisture and high temperature changes!
  Please, contact your authorized dealer for problems connected with the use or repair.

Fabric:

Outer: 100% polyester

Filling: 100% polyester

Materials used: plastic, metal, textile
