IB-400FP - Blender Imarflex - Free user manual and instructions

Product Type	Blender
Brand	Imarflex
Model	IB-400FP
Power Consumption	400 W
Jar Capacity	1.5 L
Dimensions (H x W x D)	40 cm x 20 cm x 20 cm
Weight	2.5 kg
Jar Material	Plastic (BPA-free)
Blade Material	Stainless Steel
Speed Settings	2 speeds + Pulse
Functions	Blending, Mixing, Pureeing, Crushing Ice
Cord Length	1.2 m
Safety Features	Lid lock, Non-slip feet, Overload protection
Cleaning	Removable jar for easy hand washing; base wipe clean with damp cloth
Warranty	1 year limited warranty

Frequently Asked Questions - IB-400FP Imarflex

What is the capacity of the Imarflex IB-400FP blender?

The blender has a 1.5 liter jar, suitable for making smoothies, soups, and sauces.

Can the IB-400FP crush ice?

Yes, it can crush ice using the Pulse function or high speed. For best results, add a small amount of liquid.

How do I clean the blender?

The jar is removable and can be washed by hand with mild detergent. Do not immerse the motor base in water; wipe it with a damp cloth.

What safety features does it have?

It includes a lid lock to prevent operation without the lid, non-slip feet for stability, and overload protection to prevent motor damage.

How many speeds does it have?

It has 2 speed settings and a Pulse function for precise control.

What can I blend with this blender?

You can blend fruits, vegetables, soft foods, and ice. It is ideal for smoothies, purees, and sauces.

Is the jar BPA-free?

Yes, the jar is made from BPA-free plastic for safe food preparation.

What is the power consumption?

The blender has a 400 watt motor, providing sufficient power for everyday blending tasks.

Can I blend hot liquids?

It is recommended to avoid blending hot liquids to prevent pressure buildup. Allow liquids to cool slightly before blending.

Does it come with a warranty?

Yes, it typically includes a 1-year limited warranty covering manufacturing defects. Check your local dealer for details.

USER MANUAL IB-400FP Imarflex

• 1500cc Plastic Jug
• 4-speed w/ Pulse
- Safety Switch
• Overload Protection
- Safety Lock

2.5

CUPS

BOWL CAPACITY

400W

POWER

COFFEE

GRINDER ATTACHMENT

imarflex

In Every Home.

Black and white photo of a modern kitchen brushset with a dial and control knob, no visible text or symbols on the device itself.

IB-400FP

SPECIFICATION

MODEL NO. : IB-400FP

RATED VOLTAGE : 230Va.c. 60Hz

POWER CONSUMPTION : 400 Watts

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.
2. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).
3. Do not use two-way socket with other appliance.
4. Do not use any appliance with a damaged cord or plug. If the cord is damaged it must be replaced with the same type and size or bring the unit to the nearest Imarflex Authorized Service Center.
5. Do not place the unit near gas stove, electric stove or in a heated oven.
6. Put the unit on flat stable surface; keep it away from the edge of counter to avoid accident.
7. Children should be supervised to ensure that they do not play with the appliance.
8. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.
9. To protect against electric shock, do not immerse the base in water.
10. Blade is sharp, handle it carefully.
11. Do not use the blender if the plastic jug has a crack.
12. Do not use the unit for outdoor use.
13. Do not use this unit other than its intended use.
14. For household use only; not intended for any business purposes
15. Save this instruction manual for future reference.

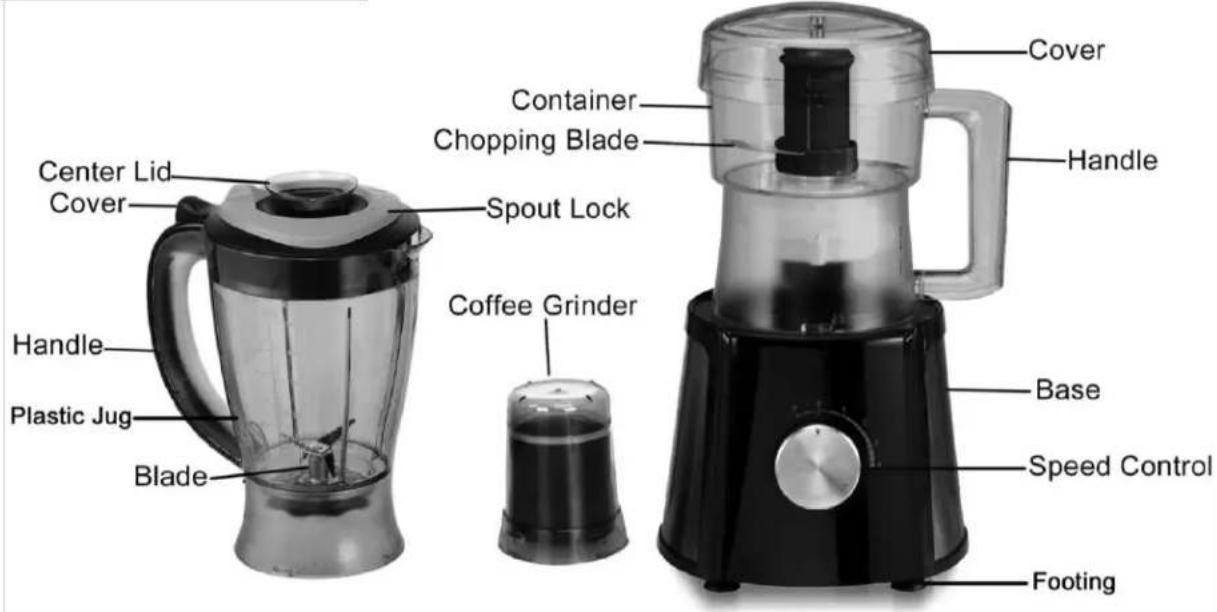

DESCRIPTION OF PARTS

HOW TO USE

BLENDER

1. For initial use, wash the Plastic Jug with Blade Assembly thoroughly. "Please refer to cleaning and maintenance".
2. Put the Plastic Jug with Blade Assembly on the motor base then turn it right to lock.
3. Plug the unit into the convenience outlet.
4. Be sure to remove the seeds of the fruits/vegetables if needed.
5. Put the desired mixture.
6. Place the Center Lid into the hole of the cover. Turn the adjustable Spout Lock "to close the spout.
7. Use PULSE first to crack the ice cube or ice tube and then set the desired speed.
8. Additional ingredients can be added by removing the Center Lid.
9. Maximum single operation should be up to 1 minute only.
10. After use switch OFF and unplug the unit from the convenience outlet.

Pouring Guide

1. Slide the Plastic Jug to the left to remove from the base.
2. Select the desired Pouring Slot, then pour.

STRAINER

CLOSE

OPEN

SPEED SETTING GUIDE:

SPEED	USE
(1 & 2) Low	for light usage with liquids
(3 & 4)High	for more solid consistency – for mixing liquids and solid foodstuffs
Pulse	for ice crushing & short, powerful impulse movements

FOOD CHOPPER

1. Plug the unit into the convenience outlet.
2. Align the Centrifugal Assembly with the Container into the Base then slide to the right to lock. Make it sure that it is properly fitted, unless it will not work properly.
3. Insert the Blade into the Chopper Container.
4. Put the food to process.
5. Align the Cover and turn it to the right to lock.
6. Switch the Knob to desired speed.
7. Turn OFF and unplug the unit after every use.

COFFEE GRINDER

1. Put the coffee beans or food in the Coffee Grinder Container (approximately 50 grams).
2. Align the Cover then slide to the right to lock.
3. Align the Coffee Container on the base and slide to the right to lock
4. Select the desired speed.
5. Transfer the grounded food into a bowl or separate container.
6. Turn OFF and unplug the unit after every use.

NOTE:

• Some electric smell may be observed on first use
  • Maximum continuous operation time is 1 minute
• THE UNIT IS EQUIPPED WITH OVERLOAD PROTECTION. IT WILL AUTOMATICALLY STOP WHEN MOTOR REACH THE TEMPERATURE LIMIT. UNPLUG THE UNIT THEN LET IT COOL

CAUTION:

- When using cube ice or tube ice, use the pulse speed first before setting to desired speed.

USEFUL TIPS

• To achieve the best results when pureeing solid ingredients, place small portion through the opening in the lid one by one.
• When mixing solid ingredients, start with a small amount of liquid. Gradually add more liquid through the opening in the lid.
• For stirring solid or very thick liquid ingredients, we recommend that you use the blender in pulse mode to prevent the blades from being stuck.

CLEANING AND MAINTENANCE

BLENDER

Motor Base

1. Unplug from the convenience outlet.
2. Wipe the Base with damp cloth.
3. Clean the Speed Selector Switch using a damp cloth or sponge to clean the groove around the switch.
4. Keep it dry.

Lid/Spout Lock

1. Slide the Spout Lock to the left to select this "icon" icon then pulls up to remove.
2. Wash in warm soapy water. Rinse under clean running water and dry.
3. Place the Spout Lock to the cover then slide to the right to lock

Plastic Jug and Blade Assembly

Method #1

1. After use, add warm water and a splash of vinegar to Plastic Jug. Turn ON for about a minute.
2. Discard.
3. Wash with soap and water, rinse well.

Method #2

1. Fill the Plastic Jug half way with warm water, add a small amount of liquid dish detergent and turn the unit ON for about 30 seconds. Repeat if needed. Rinse well.

Method #3

1. If the Plastic Jug was left with crusty food bits, fill with warm, soapy water (or vinegar water) and let it stand for about 30 to 60 minutes. Discard about half of the water with soap and blend for 30 second interval until the crusty food bits loosen.
2. Remove the Blade Assembly by turning it to the left.
3. Clean with soap and water.
4. Let it dry. Make sure to reassemble the unit properly before storing it. Note: Always make sure that the rubber is in proper place.
5. Never leave food inside the Blender Jug for a long period of time.
6. Store the Blender on a dry cool place.

FOOD CHOPPER

1. Turn OFF and unplug the unit.
2. Turn the cover to the left to unlock.
3. Carefully remove the Chopper Blade.
4. Turn the container to the left to remove.
5. Wash the container, cover and chopper blade with soap and water.
6. Dry all parts before the next use and before storing the unit.

COFFEE GRINDER

1. Turn OFF and unplug from the convenience outlet.
2. Slide the container to the left to remove.
3. Turn the coffee grinder upside down.
4. Turn the blade assembly to the left to remove.
5. Wash the Container and Blade Assembly with soap and water then wipe it dry.

TROUBLE SHOOTING

PROBLEM	CAUSE	SOLUTION
Motor not working	1. Convenience outlet is not working.2. Damage on the unit	1. Check the outlet where the unit is plug in if it is working.2. Check for any damage.3. Bring the unit to the nearest Authorized lmarflex Service Center
Motor stop during operation	1. Overload protection activated	1. Unplug and let the unit rest for at least 1 minute
Smoke and burnt smell occurred	1. Unit is use for the first time	1. Its normal for the first use
Leak on the bottom of the jar	1. Rubber packing is not properly install2. Rubber was damaged	1. Turn OFF the unit. Remove the jar and check the rubber. Reassemble the unit.2. Replace the rubber with the new one.3. Bring the unit to the nearest Authorized lmarflex Service Center.
Attachment not functioning	1. Not properly install	1. Turn off the unit and check the assembly

REMINDER: Please do not forget to fill up and send the warranty card.
