VWM148SBA - Wine cellar Vintec - Free user manual and instructions

Product Type	Wine Cellar
Brand	Vintec
Model	VWM148SBA
Capacity	148 bottles
Dimensions (H x W x D)	185 x 59.5 x 58 cm
Weight	82 kg
Power Supply	220-240 V, 50/60 Hz
Energy Consumption	120 kWh/year
Noise Level	38 dB
Temperature Range	5°C to 20°C
Temperature Control	Electronic, LED display
Interior Light	LED
Shelving Material	Wooden shelves
Door Type	Reversible, stainless steel frame
Lock	Yes
Vibration Dampening	Compressor with anti-vibration technology
Installation	Freestanding or built-in
Maintenance	Clean condenser every 6 months
Spare Parts Availability	Shelves, handles, door hinges
Safety Features	Grounded plug, thermal overload protection
Climate Class	SN-ST
Certifications	CE, GS

Frequently Asked Questions - VWM148SBA Vintec

What is the ideal temperature for storing wine?

The ideal temperature for storing wine is between 10°C and 14°C (50-57°F). Red wines are best at 12-14°C, white wines at 10-12°C. The Vintec VWM148SBA can be set from 5°C to 20°C.

How many bottles does this wine cellar hold?

The Vintec VWM148SBA has a capacity of 148 standard 0.75L bottles. Shelves are adjustable to accommodate different bottle sizes.

Is the door reversible?

Yes, the door is reversible. You can change the door swing direction from left to right or vice versa by following the instructions in the manual.

How do I clean the wine cellar?

Unplug the unit and wipe interior with a damp cloth. Use mild soap if needed. Clean the condenser (back or bottom) every 6 months with a vacuum cleaner or soft brush. Do not use abrasive cleaners.

Why is my wine cellar making noise?

Normal sounds include a compressor hum, fan whir (if equipped), and occasional clicks from temperature regulation. If noise is excessive, ensure it's level and not touching walls. Refrigerant flow may cause gurgling; this is normal.

Can I install this wine cellar under a counter?

Yes, the VWM148SBA is designed for both freestanding and built-in installation. Ensure proper ventilation: leave at least 10 cm clearance on sides and back. The door hinge must allow full opening.

How do I replace the interior light?

The interior light is a long-lasting LED. If it fails, contact Vintec service. Do not attempt to replace it yourself as it requires special tools.

What is the warranty period?

Vintec typically offers a 2-year warranty on parts and labor. Some countries may have extended warranties. Register your product online to activate warranty.

How can I save energy with my wine cellar?

Place the unit in a cool, ventilated area away from heat sources. Avoid frequent door openings. Set temperature to optimal levels (12°C for mixed storage). Clean condenser regularly.

What should I do if the temperature display shows an error code?

Refer to the user manual for error code explanations. Common codes: E1 (sensor failure), E2 (defrost sensor). Try restarting the unit. If persistent, contact Vintec support.

USER MANUAL VWM148SBA Vintec

As the appliance contains a flammable refrigerant, it is essential to ensure that the refrigerant pipes are not damaged.

The quantity and type of the refrigerant used in your appliance is indicated on the rating plate.

Standard EN378 specifies that the room in which you install your appliance must have a volume of 1 m^3 per 8 g of hydrocarbon refrigerant used in the appliances. This is to avoid the formation of flammable gas/air mixtures in the room where the appliance is located in the event of a leak in the refrigerant circuit.

WARNING:

Keep ventilation openings in the appliance's cabinet or in the built-in structure clear of obstruction.

WARNING:

Do not use other mechanical devices or other means to accelerate the defrosting process than those recommended by the manufacturer.

WARNING:

Do not damage the refrigerant system.

WARNING:

Do not use electrical appliances inside the refrigerated storage compartment, unless they are of a type recommended by the manufacturer.

WARNING:

Do not expose the appliance to rain.

WARNING:

This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for their safety how to use the appliance safely and have understood the associated hazards.

WARNING:

Children must not play with, on, or around the appliance.

WARNING:

Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.

WARNING:

Do not store explosives, such as aerosol cans with flammable propellants in the unit.

WARNING:

Danger risk of fire or explosion if flammable refrigerant are used. To be repaired only by trained personnel.

WARNING:

When positioning the appliance, ensure the power cord is not trapped or damaged.

WARNING:

Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

• Always keep the keys in a separate place and out of reach of children.
• Before servicing or cleaning the appliance, unplug the appliance from the mains or disconnect the electrical power supply.
• Relevant for Australia: Supply cord fitted with a plug complies with AS/NZS 3112.
• Frost formation on the interior evaporator wall and upper parts is a natural phenomenon. Therefore, the appliance should be defrosted during normal cleaning or maintenance.
• Please note that changes to the appliance construction will cancel all warranty and product liability.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
• Do not use extension cords.
• This appliance is intended to be used exclusively for the storage of wine

CLASS 1 LED PRODUCT

VINTEC

Contents

Warning 2

Savings in energy consumption in the use .4

Before use ....5

Get to know your wine cooler 6

Technical data 7

Installation and start-up ....7

Installation 8

Operation and function ......10

Defrosting, cleaning and maintenance .....12

Fault finding 13

Charcoal Filter Location & removal .....14

Warranty, spare parts and service .....15

Disposal 16

Safety instructions ....17

Savings in energy consumption in the use

The energy consumption reduces ..

1)..the lower the ambient temperature is.

2)..the warmer thermostat set point is.

3)..the lower the number and the shorter the length of the door openings is.

Before use

On receipt, check to ensure that the appliance has not been damaged during transport. Transport damage should be reported to the local distributor before the wine cooler is put to use.

Remove the packaging. Clean the inside of the cabinet using warm water with a mild detergent. Rinse with clean water and dry thoroughly (see cleaning instructions). Use a soft cloth.

If during transport the appliance has been laid down, or if it has been stored in cold surroundings (colder than +5°C), it must be allowed to stabilise in an upright position for at least an hour before being switched on.

Get to know your wine cooler

fig.1

User Manual

Technical data

Wiring and connections in power supply systems must be all applicable (local and national) electrical codes. Consult these codes lengths and sizes prior to cabinet installation.

This device complies with relevant EU directives including Low Voltage Directive 2014/35 LVD. and Electromagnetic Compatibility Directive 2014/30/ Electromagnetic Compatibility Directive.

The socket should be freely accessible.

Connect the appliance only to 220/240 V / 50Hz alternating current via a correctly installed earthed socket.

The socket must be fused with a 10-13 A fuse.

If the appliance is to be operated in a non-European country, check on the rating plate whether the indicated voltage and current type correspond to the values of your mains supply.

Information regarding voltage, current or power are given on the rating plate

The power cord may be replaced by a technician only.

The rating plate provides various technical information as well as type and serial number.

fig. 2

Installation and start-up

Placement

For safety and operational reasons, the appliance must not be installed outdoors.

The appliance should be placed on a level surface in a dry, well ventilated room (max. 75% relative air humidity). In hot humid climate areas and particularly on hot rainy days, humidity in the ambient air can condense on the cold external surfaces, glass door or door sealing gasket strip. Especially when appliance is set at the coldest temperature setting in a long period of time during high humid days which is a natural phenomenon. During monsoon season or high humidity days, we recommend to set temperature at warmer or at cellaring temperature mode.

Or you can simply wipe off any moisture or water droplets with soft dry cloth, condensation will disappear when humidity level drops or temperature set to a warmer setting.

Never place the appliance close to sources of heat such as cookers or radiators, and avoid placing it in direct sunlight.

Ambient temperature

The climate class is stated on the name-plate. This specifies the optimum ambient temperature. Wine coolers with winter position, however, function at ambient temperatures as low as 5°C.

Climate class Optimum room temperature

SN +10 °C to +32 °C

N +16 °C to +32 °C

ST +16 °C to +38 °C

T +16 °C to +43 °C

VINTEC

Installation

The surface on which the appliance is to be placed must be level. Do not use a frame or similar.

The appliance can be installed as a free-standing unit against a wall, built into a closet or lined up with other appliances.

It is important that the appliance be well ventilated and that air can circulate unhindered above, below and around it.

The figures below illustrate how the necessary air circulation around the appliance can be ensured (figs 3).

fig. 4

fig. 3 fig. 5

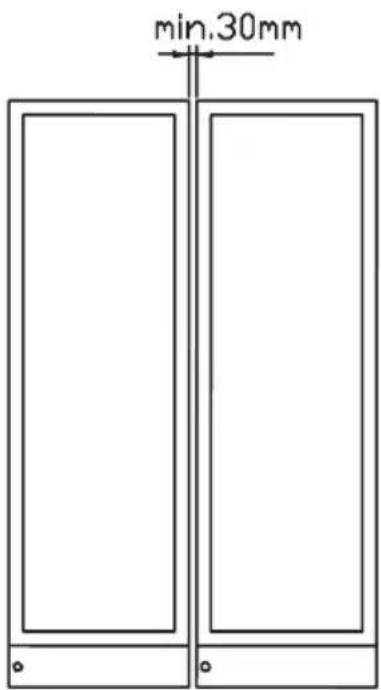

(fig 4) A "Side by Side" kit can be ordered

User Manual

The distance pieces on the rear of the appliance ensure sufficient air circulation. Fit the two caps supplied with the appliance as shown in fig. 6.

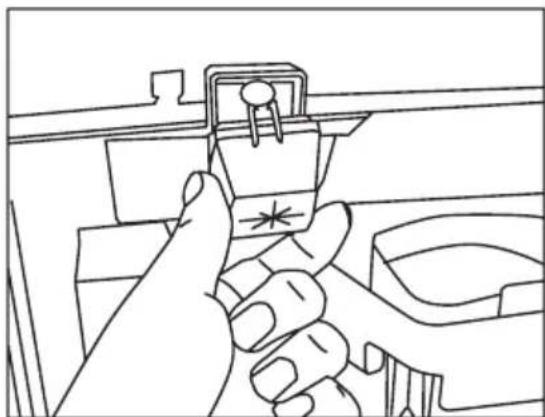

Line drawing of a hand inserting a plastic clip into a door panel (no text or symbols)

fig. 6

Possible door turn

It is recommended that you use a technician for reversing the swing of your refrigerator door.

Max. 85 kg.

fig. 8

Setting up

It is important that the appliance be absolutely level. It can be levelled by screwing the adjustable feet at the front of the appliance up or down (fig 7).

Use a spirit level to check that the appliance is absolutely level sideways.

Technical line drawing of a mechanical assembly with a screw and wrench (no text or symbols)

fig. 7

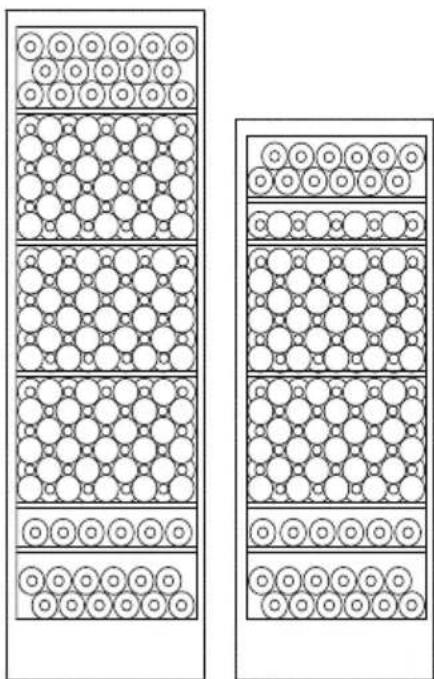

Two vertical panels showing circular arrangements of circles within rectangular frames, no text or symbols present.

fig. 9

VINTEC

Operation and function

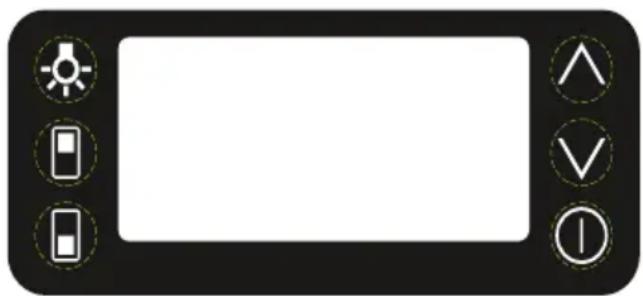

Black rectangular device with control buttons and a blank screen (no text or symbols)

fig. 10

Electronic control

The electronic control ensures that the temperatures set at the top and at the bottom of the appliance are maintained. This is achieved by means of an advanced control of the refrigeration system, the heating element, and the fan. The set temperature will be stored in the event of power failure.

The electronic control has the following functions:

• On/off switch
• Light switch*
• Temperature setting
  • Temperature indication
• Alarm for too high and too low temperatures
• Door alarm

* The light may either be turned on constantly or only when the door is open.

Temperature indication

The display shows the actual temperature. The upper digits of the display indicate the temperature at the top of the appliance, and the lower digits of the display indicate the temperature at the bottom of the appliance. The temperature indicator is equipped with a built-in filter which simulates the actual temperature in the bottles. Consequently, the indicator does not react on short-term fluctuations of the air temperature

Temperature setting

The thermostat is equipped with a child lock device. This device is activated by pushing the “up and down” buttons simultaneously. After approx. 3 seconds “Pof” flashes in the display. Then the actual temperatures are shown as usual. In addition, the set temperatures can be shown by pushing

and, respectively.

The child lock device is cancelled by pushing the “up and down” buttons simultaneously. After approx. 3 seconds “Pon” flashes in the display, and the temperature can be set.

Temperature setting at the top of the appliance

Push ☐When the temperature at the top of the appliance can be adjusted up and down by means of the “up and down” buttons. The temperature can be adjusted from 8 to 22°C, however so that the temperature cannot be set at a lower temperature than the actual set point for the bottom temperature sensor.

Temperature setting at the bot- tom of the appliance

Push when the temperature at the bottom of the appliance can be adjusted up and down by means of the "up and down" buttons. The temperature can be adjusted from 5 to 22°C, however so that the temperature cannot be set at a higher temperature than the actual set point for the upper temperature sensor.

User Manual

Alarm devices

There is a sub-alarm for the low-temperature sensor and an excess-alarm for the high-temperature sensor.

The alarm consists of a beeper and a warning on the display. (!)

Alarm for high temperature: beep sound + alternating display of "HtA" and actual temperature

Alarm for low temperature: beep sound + alternating display of “LtA” and actual temperature

The alarm temperature depends on the set points.

The beep sound can be cancelled by pushing a random thermostat button. Push the on/off button to erase the display alarm, first for cancelling the alarm, then again for restarting the compressor.

Door alarm

When the door has been open for more than 2 minutes the door alarm is activated.

Permanent lighting

For presentation purposes of your wine, you can turn on the lights permanently. Please press the light switch image twice. If the controller is placed inside the cabinet press twice, if the controller is placed in the kick plate only press once. To switch off the permanent light press on again.

The light will always be on when the door is open.

Two-zone setting for serving temperature

Typical serving temperature settings for the top and bottom sections are 16°C and 6°C respectively. With these settings, a suitable temperature gradient will be achieved in the cabinet for the storage of various types of wine distributed from top to bottom as follows:

- heavy red wines +16 to +19°C

- rosé and light red wines +12 to +16°C

- white wines +10 to +12°C

- champagne and sparkling wines +6 to +8°C

It is recommended that wine be served at a temperature which is a couple of degrees lower than the desired drinking temperature as the wine will be warmed slightly when it is poured into the glass.

Single-zone setting for long-term storage

For long-term wine storage, the top and bottom sections should both be set at 12^ C. With identical settings for the top and bottom sections, the controls will maintain an even temperature throughout the cabinet. However, the temperature in the room will gradually affect the temperature in the cabinet through its door and sides, creating a slight temperature gradient from top to bottom. The controls will maintain the set temperature at the bottom of the cabinet, and any deviation from the setting will therefore occur at the top.

The difference will vary from 0 to 3°C, depending on the ambient temperature.

Defrosting, cleaning and maintenance

Automatic defrosting

The wine cooler is defrosted automatically. Defrost water runs through a pipe and is collected in a tray above the compressor where the heat generated by the compressor causes it to evaporate. The defrost water tray should be cleaned at intervals.

Cleaning

Before cleaning the appliance, unplug it from the main supply. The cabinet is best cleaned using warm water (max. 65°C) with a little mild detergent. Never use cleaning agents that scour. Use a soft cloth. Rinse with clean water and dry thoroughly. The defrost water channel, in which condensation from the evaporator runs, is located at the bottom of the rear inside wall of the cabinet and must be kept clean. Add a few drops of disinfectant, e.g. Rodalon, to the defrost water drain a couple of times a year, and clean the drain using a pipe cleaner or similar. Never use sharp or pointed implements.

The sealing strip around the door must be cleaned regularly to prevent discolouration and prolong service life. Use clean water. After cleaning the sealing strip, check that it continues to provide a tight seal.

Dust collecting on the condenser on the rear of the cabinet, the compressor and in the compressor compartment is best removed using a vacuum cleaner.

Fault finding

Fault Possible cause	Remedy
The appliance is not working.	The appliance is switched off.Power failure; the fuse is blown; the appliance is not plugged in correctly.	Press the on/off switch.Check that power is connected.Reset the fuse.
Water collects in the bottom of the cabinet.	The defrost water pipe is blocked.	Clean the defrost water channel and the drain hole on the rear wall of the cabinet.
Vibration or bothersome noise.	The appliance is not level.The appliance is resting against other kitchen elements.Containers or bottles inside the cabinet are rattling against one another.	Level the appliance using a spirit level.Move the appliance away from the kitchen elements or appliances it is in contact with.Move containers and/or bottles apart.
Compressor runs continuously.	High room temperature. Ensure adequate ventilation.
Error code (E1) Top sensor not working.The appliance continues to run as a single zone.		Call for service agent to repair sensor
Error code (E2) The sensor not working. Call for service agent to repair sensor
Error code (E3) Bottom sensor not working. The appliance continues to run as a single zone.		Call for service agent to repair sensor
Condensation or droplets on exterior surfaces, glass door, sealing gasket strip.This is a natural phenomenon	External surfaces of appliance expose to high humidity area or environment.	Wipe off any condensation or droplets with soft dry cloth.Place appliance in a lower humidity area.Try adjusting temperature to be slightly warmer above the coldest temperature setting or wait until humidity back to at lower levels (recommended place appliance at max or lower than 75% relative air humidity area)

VINTEC

Charcoal Filter Location & removal

Removal method:

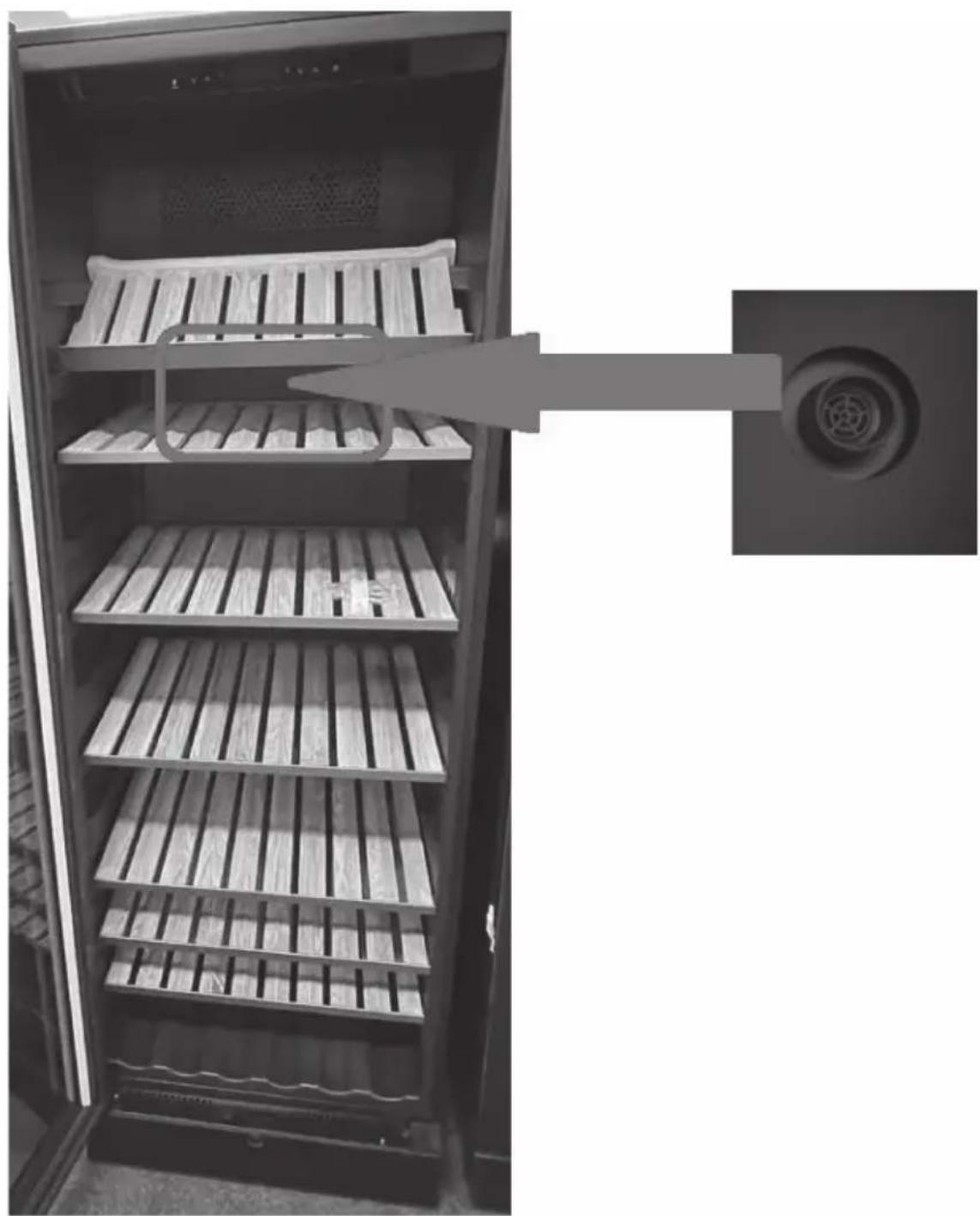

Open main door & simply pull out (towards the front of the cabinet)

Interior view of a stainless steel refrigerator with slatted shelves and a circular vent on the right side (no text or symbols visible)

User Manual

Warranty, spare parts and service

Warranty disclaimer

Faults and damage caused directly or indirectly by incorrect operation, misuse, insufficient maintenance, incorrect building, installation or mains connection. Fire, accident, lightening, voltage variation or other electrical interference, including defective fuses or faults in mains installations.

Repairs performed by others than approved service centres and any other faults and damage that the manufacturer can substantiate are caused by reasons other than manufacturing or material faults are not covered by the warranty.

Please note that changes to the construction of the appliance or changes to the component equipment of the appliance will invalidate warranty and product liability, and the appliance cannot be used lawfully. The approval stated on rating plate will also be invalidated.

Transport damage discovered by the buyer is primarily a matter to be settled between the buyer and the distributor, i.e. the distributor must ensure that such complaints are resolved to the buyer's satisfaction.

Before calling for technical assistance, please check whether you are able to rectify the fault yourself. If your request for assistance is unwarranted, e.g. if the appliance has failed as a result of a blown fuse or incorrect operation, you will be charged the costs incurred by your call for technical assistance.

Spare parts

When ordering spare parts, please state the type, serial and product numbers of your appliance. This information is given on the rating plate. The rating plate contains various technical information, including type and serial numbers.

fig. 11

VINTEC

Disposal

Information for Users on Collection and Disposal of Old Equipment and used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2012/19/EU and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union.

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

These symbols are only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol:

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Safety instructions

(See also Warning page 2).

1. There is a name plate inside the cabinet. The name plate provides various technical information and a safety notice with a yellow flame triangle label, name and chemical symbol of the refrigerant.

2. The refrigerator contains flammable refrigerant (R600a: iso-butane). Requirements to ensure gas safety and safe use of refrigerators:

- The refrigeration system behind and inside the refrigerator contains refrigerant. Do not allow any sharp objects to come into contact with the refrigeration system.

- Do not use other electric appliances inside the refrigerator.

- Children should be supervised to ensure that the refrigerator should be used properly.

- Do not use the mechanical devices or other means to accelerate the defrosting process, unless they are of the type recommended by the manufacturer.

- Do not block the openings on the circumstances of the refrigerator.

- In case of having damaged the refrigerant circuit, do not use electric items or fire equipments nearby, and open all windows to provide good ventilation. Please also contact your local maintenance agent to follow up.

- The warning labels mentioned above should be kept throughout the life of the refrigerator. The user manual should be

handed over to any person who would use or handle the refrigerator whenever the refrigerator would be transferred to another location and delivered to a recycling plant.

Service and support

In the rare event that your Vintec cabinet does not perform to your satisfaction, contact our dedicated support team:

Vintec. We are part of the Electrolux Family. To add a touch of professional inspiration to your home, visit electrolux.com

Stay in touch and share your user experience by following us:

@vintecclub
