| Product Type | Built-in Range Hood |
| Brand | Robinhood |
| Model | RLES 900 |
| Width | 900 mm |
| Depth | 500 mm |
| Height (min-max) | 600 - 1100 mm |
| Weight | 18 kg |
| Power Supply | 220-240 V, 50 Hz |
| Motor Power | 200 W |
| Maximum Airflow | 600 m³/h |
| Noise Level (max) | 65 dB(A) |
| Lighting Type | LED |
| Number of Lights | 2 |
| Number of Fan Speeds | 3 |
| Filter Type | Aluminum grease filter |
| Ducting Options | Ducted (exterior) or Recirculating (with charcoal filter) |
| Control Type | Push buttons |
| Cleaning Method | Wipe with damp cloth; grease filters dishwasher safe |
| Safety Features | Auto shut-off, overheat protection |
| Spare Parts Availability | LED bulbs, filters, motors available from Robinhood service |
| Warranty | 2 years (subject to terms) |
Frequently Asked Questions - RLES 900 Robinhood
How do I install the Robinhood RLES 900 range hood?
Installation should be performed by a qualified professional. Ensure the hood is securely mounted to a wall or cabinet at the recommended height above the cooking surface, typically 65-75 cm for electric hobs and 75-85 cm for gas hobs.
Can the RLES 900 be used in recirculation mode?
Yes, the RLES 900 can be used in recirculation mode by installing a charcoal filter (sold separately). This recirculates purified air back into the kitchen.
How often should I clean the grease filters?
Grease filters should be cleaned every 3-4 months, or more frequently if cooking heavily. They are dishwasher safe; allow them to dry completely before reinstalling.
What type of bulbs does the range hood use?
The RLES 900 uses LED bulbs. To replace, gently pry off the cover and twist the bulb out. Use only specified LED bulbs from Robinhood or compatible replacements.
Why is my range hood noisy?
Noise may increase due to blocked filters or ducts. Clean the grease filters and check for obstructions in the ductwork. If the noise persists, contact customer support for motor inspection.
How do I reset the filter indicator light?
After cleaning or replacing filters, press and hold the fan speed button for 3-5 seconds until the indicator light turns off. This resets the filter reminder.
What is the maximum airflow of the RLES 900?
The maximum airflow is 600 m³/h at highest speed. Actual performance depends on duct length and bends.
Can I install the hood on my own?
No, due to electrical and structural requirements, installation is strongly recommended to be done by a qualified technician. Incorrect installation may void warranty.
What spare parts are available for this model?
Common spare parts include LED bulbs, grease filters, charcoal filters, and motors. Contact Robinhood customer service or authorized dealers for purchases.
How do I obtain the user manual?
The user manual can be downloaded for free from notice-facile.com in PDF format. Search for 'RLES 900 Robinhood' to find it.
User questions about RLES 900 Robinhood
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Range hood in PDF format for free! Find your manual RLES 900 - Robinhood and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. RLES 900 by Robinhood.
USER MANUAL RLES 900 Robinhood
RLES6WH, RLES6SS, RLES9WH, RLES9SS
RLES61SS/WH, RLES91SS/WH
Model pictured: RLES6WH/SS RLES61SS/WH

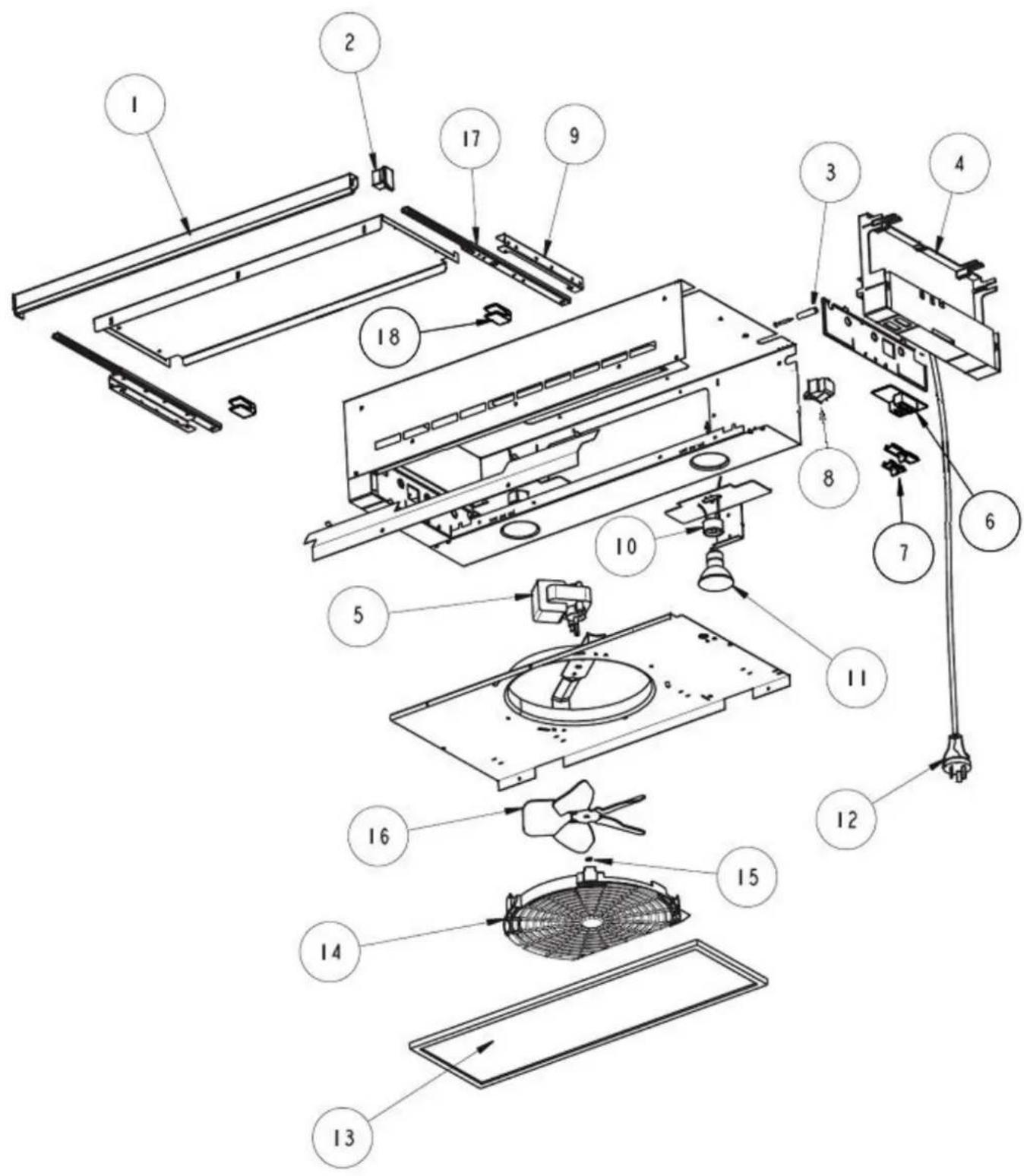

Exploded view
| Part number | |||
| Item | Description | RLES6WH RLES61WH | RLES6SS RLES61SS |
| 1 | Front Handle 32mm | 103774WH | 103775SS |
| 2 | End Cap 32mm (If manufactured post 31/7/09) | 103778WH | 103778BL |
| End Cap 32mm (If manufactured between 8/9/08 and 31/7/09) - confirm colour | 103778BL or 103778WH | ||
| End Cap 32mm (If manufactured pre 8/9/08) | 103778BL | ||
| 3 | Side Fixing Screw and Hollow Dowel Kit (4 pieces) | 111053 | |
| 4 | Side plastic kit includes both sides and inner covers (If manufactured post 31/7/09) | 111050 | 111051 |
| Side plastic kit as above (If manufactured between 8/9/08 and 31/7/09) - confirm colour | 111050 or 111051 | ||
| Side plastic kit as above (If manufactured pre 8/9/08) | 111051 | ||
| 5 | Uppco Motor - 3 Speed | 103674 | |
| 6 | PCB for 3 Speed Switch | 103593 | |
| 7 | Slider Switches (If manufactured post 31/7/09) | 102268WH | 102268BL |
| Slider Switches (If manufactured between 8/9/08 and 31/7/09) - confirm colour | 102268WH or 102268BL | ||
| Slider Switches (If manufactured pre 8/9/08) | 102268BL | ||
| 8 | Door Switch | 102686 | |
| 9 | Slider Bracket (If manufactured post 31/7/09) | 103358WH | 103358WH |
| Slider Bracket (If manufactured between 8/9/08 and 31/7/09) - confirm colour | 103358WH or 103358BL | ||
| Slider Bracket (If manufactured pre 8/9/08) | 103358BL | ||
| 10 | Halogen lamp holder (If manufactured post 21/4/08) | 111021 | |
| Halogen lamp holder (If manufactured between 24/11/08 and 18/12/08) | 111075 | ||
| Incandescent lamp holder (If manufactured pre 21/4/08) | 101104 | ||
| 11 | Halogen Lamp (If manufactured post 21/4/08) | 111020 | |
| Incandescent Lamp (If manufactured pre 21/4/08) | 102722 | ||
| NS | Incandescent lamp diffuser (If manufactured pre 21/4/08) | 103125 | |
| 12 | Power Cord | 103821 | |
| 13 | Filter Aluminium Mesh 478 x 188 | 103831 | |
| Filter Charcoal 478 x 188 (pack of 2) | 14971 | ||
| 14 | Finger Guard | 103943 | |
| 15 | E-Clip | 999084 | |
| 16 | Fan Blade | 102283 | |
| 17 | Sliding track (If manufactured post 31/7/09) | 114350 | |
| Sliding track (If manufactured pre 31/7/09) | 102245 | ||
| 18 | Filter Clip - (If manufactured pre 21/4/08) | 102224BLNZ | |
| Filter Clip - (If manufactured post 21/4/08) | 102224WHRH Right Hand & 102224WHLH Left Hand | ||
| Item | Description | RLES9WH RLES91WH | RLES9SS RLES91SS |
| 1 | Front Handle 32mm x 900mm White unscreened | 103776WH.SP | 103777SS |
| 2 | End Cap 32mm (If manufactured post 31/7/09) | 103778WH | 103778BL |
| End Cap 32mm (If manufactured between 8/9/08 and 31/7/09) - confirm colour | 103778BL or 103778WH | ||
| End Cap 32mm (If manufactured pre 8/9/08) | 103778BL | ||
| 3 | Side Fixing Screw and Hollow Dowel Kit (4 pieces) | 111053 | |
| 4 | Side plastic kit includes both sides, inner covers (If manufactured post 31/7/09) | 111050 | 111051 |
| Side plastic kit as above (If manufactured between 8/9/08 and 31/7/09) - confirm colour | 111050 or 111051 | ||
| Side plastic kit as above (If manufactured pre 8/9/08) | 111051 | ||
| 5 | Uppco Motor - 3 Speed | 103674 | |
| 6 | PCB for 3 Speed Switch | 103593 | |
| 7 | Slider Switches (If manufactured post 31/7/09) | 102268WH | 102268BL |
| Slider Switches (If manufactured between 8/9/08 and 31/7/09) - confirm colour | 102268WH or 102268BL | ||
| Slider Switches (If manufactured pre 8/9/08) | 102268BL | ||
| 8 | Door Switch | 102686 | |
| 9 | Slider Bracket (If manufactured post 31/7/098) | 103358WH | 103358WH |
| Slider Bracket (If manufactured between 8/9/08 and 31/7/09) - confirm colour | 103358WH or 103358BL | ||
| Slider Bracket (If manufactured pre 8/9/08) | 103358BL | ||
| 10 | Halogen lamp holder (If manufactured post 21/4/08) | 111021 | |
| Halogen lamp holder (If manufactured between 24/11/08 and 18/12/08) | 111075 | ||
| Incandescent lamp holder (If manufactured pre 21/4/08) | 101104 | ||
| 11 | Halogen Lamp (If manufactured post 21/4/08) | 111020 | |
| Incandescent Lamp (If manufactured pre 21/4/08) | 102722 | ||
| NS | Incandescent lamp diffuser (If manufactured pre 21/4/08) | 103125 | |
| 12 | Power Cord | 103821 | |
| 13 | Filter Aluminium Mesh 778 x 188 | 103627 | |
| Filter Charcoal 778 x 188 (pack of 2) | 14981 | ||
| 14 | Finger Guard | 103943 | |
| 15 | E-Clip | 999084 | |
| 16 | Fan Blade | 102283 | |
| 17 | Sliding track (If manufactured post 31/7/09) | 114350 | |
| Sliding track (If manufactured pre 31/7/09) | 102245 | ||
| 18 | Filter Clip - (If manufactured pre 21/4/08) | 102224BLNZ | |
| Filter Clip - (If manufactured post 21/4/08) | 102224WHRH Right Hand & 102224WHLH Left Hand | ||

