RLES 600 - Range hood Robinhood - Free user manual and instructions
Find the device manual for free RLES 600 Robinhood in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Range Hood |
| Brand | Robinhood |
| Model | RLES 600 |
| Width | 600 mm |
| Finish | White (RLES6WH) or Stainless Steel (RLES6SS) |
| Power Supply | 230-240 V, 50 Hz |
| Motor Speeds | 3 speeds (via slider switches) |
| Lighting | 2 x 50 W halogen lamps (230-240 V) |
| Filter Type | Aluminum mesh (washable) and optional charcoal filter (RLES6WH/SS uses charcoal filter pack 14971) |
| Installation Type | Sliding canopy, ducted or recirculating (with charcoal filter) |
| Controls | 3-speed slider switch |
| Weight | Approx. 15 kg |
| Dimensions (W x D x H) | 600 mm width; depth and height vary with installation |
| Material | Steel with plastic side kits |
| Spare Parts Availability | Yes, many parts listed (motor, PCB, switches, lamps, filters, etc.) |
| Replacement Filters | Aluminum mesh filter (part 103831) and charcoal filter pack (part 14971) |
| Safety Features | Door switch (cuts power when front panel opened) and Earth connection |
| Maintenance | Clean aluminum mesh filters regularly; replace charcoal filters when needed; replace halogen lamps when burnt out |
| Wiring Diagram | Available in manual for 3-speed motor with PCB and door switch |
Frequently Asked Questions - RLES 600 Robinhood
How do I clean the aluminum mesh filter?
Remove the filter and wash it with warm soapy water or in a dishwasher. Ensure it is completely dry before reinstalling. Do not use abrasive cleaners.
How often should I replace the charcoal filter?
Charcoal filters cannot be washed and should be replaced every 3 to 6 months depending on usage. For the RLES 600, use charcoal filter pack part number 14971 (pack of 2).
How do I change a halogen lamp?
Disconnect power first. Remove the lamp diffuser (if present) and replace the 50W halogen lamp (part 111020 for later models). Use a cloth to avoid touching the glass directly.
Why is my range hood not working?
Check the power supply and ensure the door switch is activated when the front panel is closed. Also check the slider switch connections. If the motor doesn't run, the PCB or motor may need replacement.
Can I install this range hood as a recirculating unit?
Yes, you can use it in recirculation mode by installing charcoal filters (part 14971). Ensure the outlet is open for recirculation.
What are the dimensions for the filter?
The aluminum mesh filter for the 600mm model measures 478 x 188 mm (part 103831). Charcoal filters are the same size.
How do I adjust the speed?
Use the slider switch on the front panel. Positions are typically off, low, medium, high.
What is the door switch for?
The door switch (part 102686) cuts power to the motor and lights when the front panel (sliding track) is opened, for safety.
Where can I find replacement parts for my RLES 600?
Refer to the exploded view in the manual. Common parts include motor (103674), PCB (103593), slider switches (102268), halogen lamps (111020), and filters. Contact Robinhood or authorized dealers.
Is it safe to wash the motor?
No. Never wash the motor. Only clean the removable filters and exterior surfaces with a damp cloth. Disconnect power before any maintenance.
User questions about RLES 600 Robinhood
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Range hood in PDF format for free! Find your manual RLES 600 - Robinhood and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. RLES 600 by Robinhood.
USER MANUAL RLES 600 Robinhood
RLES6WH, RLES6SS, RLES9WH, RLES9SS
RLES61SS/WH, RLES91SS/WH
Model pictured: RLES6WH/SS RLES61SS/WH

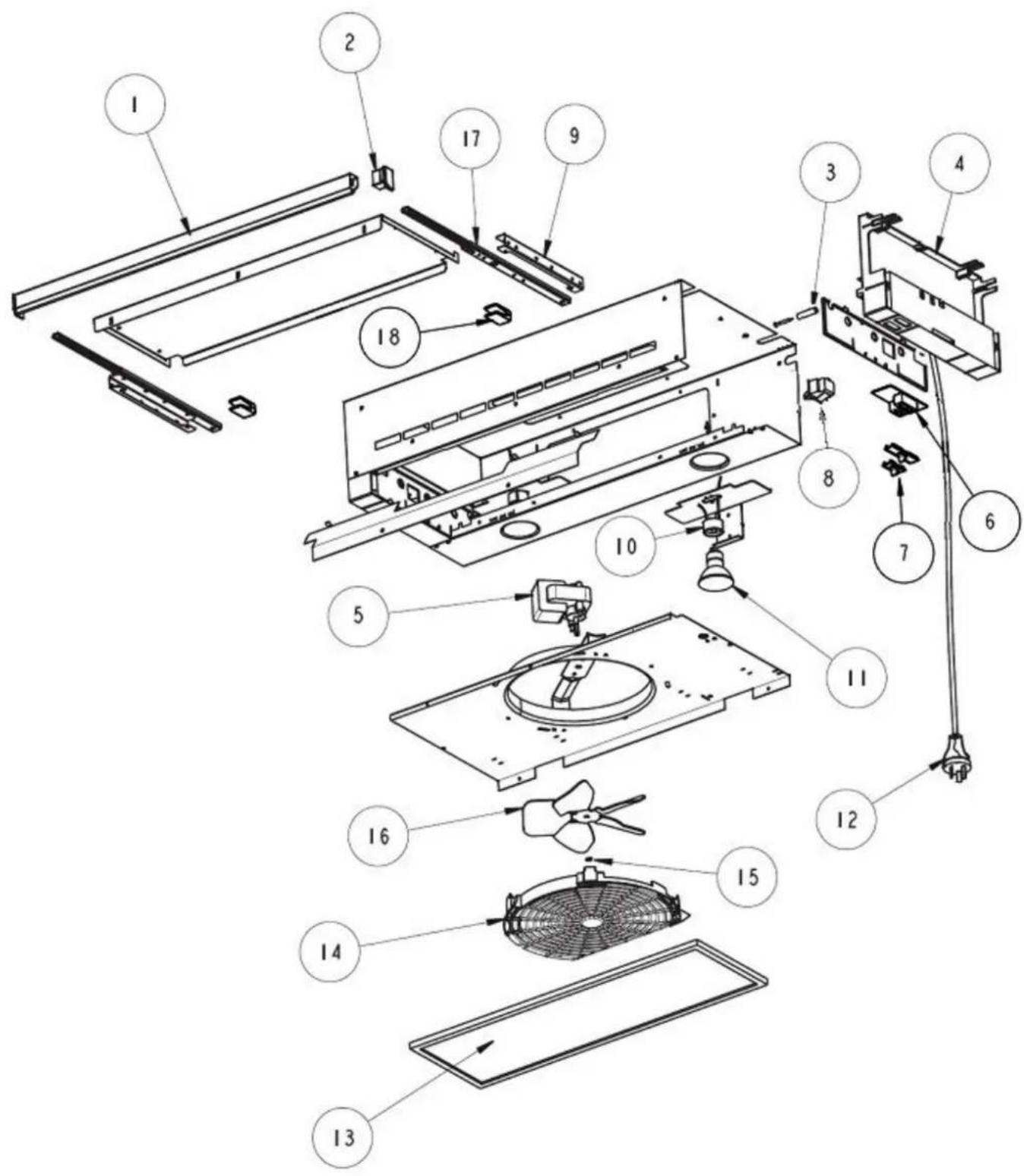

Exploded view
| Part number | |||
| Item | Description | RLES6WH RLES61WH | RLES6SS RLES61SS |
| 1 | Front Handle 32mm | 103774WH | 103775SS |
| 2 | End Cap 32mm (If manufactured post 31/7/09) | 103778WH | 103778BL |
| End Cap 32mm (If manufactured between 8/9/08 and 31/7/09) - confirm colour | 103778BL or 103778WH | ||
| End Cap 32mm (If manufactured pre 8/9/08) | 103778BL | ||
| 3 | Side Fixing Screw and Hollow Dowel Kit (4 pieces) | 111053 | |
| 4 | Side plastic kit includes both sides and inner covers (If manufactured post 31/7/09) | 111050 | 111051 |
| Side plastic kit as above (If manufactured between 8/9/08 and 31/7/09) - confirm colour | 111050 or 111051 | ||
| Side plastic kit as above (If manufactured pre 8/9/08) | 111051 | ||
| 5 | Uppco Motor - 3 Speed | 103674 | |
| 6 | PCB for 3 Speed Switch | 103593 | |
| 7 | Slider Switches (If manufactured post 31/7/09) | 102268WH | 102268BL |
| Slider Switches (If manufactured between 8/9/08 and 31/7/09) - confirm colour | 102268WH or 102268BL | ||
| Slider Switches (If manufactured pre 8/9/08) | 102268BL | ||
| 8 | Door Switch | 102686 | |
| 9 | Slider Bracket (If manufactured post 31/7/09) | 103358WH | 103358WH |
| Slider Bracket (If manufactured between 8/9/08 and 31/7/09) - confirm colour | 103358WH or 103358BL | ||
| Slider Bracket (If manufactured pre 8/9/08) | 103358BL | ||
| 10 | Halogen lamp holder (If manufactured post 21/4/08) | 111021 | |
| Halogen lamp holder (If manufactured between 24/11/08 and 18/12/08) | 111075 | ||
| Incandescent lamp holder (If manufactured pre 21/4/08) | 101104 | ||
| 11 | Halogen Lamp (If manufactured post 21/4/08) | 111020 | |
| Incandescent Lamp (If manufactured pre 21/4/08) | 102722 | ||
| NS | Incandescent lamp diffuser (If manufactured pre 21/4/08) | 103125 | |
| 12 | Power Cord | 103821 | |
| 13 | Filter Aluminium Mesh 478 x 188 | 103831 | |
| Filter Charcoal 478 x 188 (pack of 2) | 14971 | ||
| 14 | Finger Guard | 103943 | |
| 15 | E-Clip | 999084 | |
| 16 | Fan Blade | 102283 | |
| 17 | Sliding track (If manufactured post 31/7/09) | 114350 | |
| Sliding track (If manufactured pre 31/7/09) | 102245 | ||
| 18 | Filter Clip - (If manufactured pre 21/4/08) | 102224BLNZ | |
| Filter Clip - (If manufactured post 21/4/08) | 102224WHRH Right Hand & 102224WHLH Left Hand | ||
| Item | Description | RLES9WH RLES91WH | RLES9SS RLES91SS |
| 1 | Front Handle 32mm x 900mm White unscreened | 103776WH.SP | 103777SS |
| 2 | End Cap 32mm (If manufactured post 31/7/09) | 103778WH | 103778BL |
| End Cap 32mm (If manufactured between 8/9/08 and 31/7/09) - confirm colour | 103778BL or 103778WH | ||
| End Cap 32mm (If manufactured pre 8/9/08) | 103778BL | ||
| 3 | Side Fixing Screw and Hollow Dowel Kit (4 pieces) | 111053 | |
| 4 | Side plastic kit includes both sides, inner covers (If manufactured post 31/7/09) | 111050 | 111051 |
| Side plastic kit as above (If manufactured between 8/9/08 and 31/7/09) - confirm colour | 111050 or 111051 | ||
| Side plastic kit as above (If manufactured pre 8/9/08) | 111051 | ||
| 5 | Uppco Motor - 3 Speed | 103674 | |
| 6 | PCB for 3 Speed Switch | 103593 | |
| 7 | Slider Switches (If manufactured post 31/7/09) | 102268WH | 102268BL |
| Slider Switches (If manufactured between 8/9/08 and 31/7/09) - confirm colour | 102268WH or 102268BL | ||
| Slider Switches (If manufactured pre 8/9/08) | 102268BL | ||
| 8 | Door Switch | 102686 | |
| 9 | Slider Bracket (If manufactured post 31/7/098) | 103358WH | 103358WH |
| Slider Bracket (If manufactured between 8/9/08 and 31/7/09) - confirm colour | 103358WH or 103358BL | ||
| Slider Bracket (If manufactured pre 8/9/08) | 103358BL | ||
| 10 | Halogen lamp holder (If manufactured post 21/4/08) | 111021 | |
| Halogen lamp holder (If manufactured between 24/11/08 and 18/12/08) | 111075 | ||
| Incandescent lamp holder (If manufactured pre 21/4/08) | 101104 | ||
| 11 | Halogen Lamp (If manufactured post 21/4/08) | 111020 | |
| Incandescent Lamp (If manufactured pre 21/4/08) | 102722 | ||
| NS | Incandescent lamp diffuser (If manufactured pre 21/4/08) | 103125 | |
| 12 | Power Cord | 103821 | |
| 13 | Filter Aluminium Mesh 778 x 188 | 103627 | |
| Filter Charcoal 778 x 188 (pack of 2) | 14981 | ||
| 14 | Finger Guard | 103943 | |
| 15 | E-Clip | 999084 | |
| 16 | Fan Blade | 102283 | |
| 17 | Sliding track (If manufactured post 31/7/09) | 114350 | |
| Sliding track (If manufactured pre 31/7/09) | 102245 | ||
| 18 | Filter Clip - (If manufactured pre 21/4/08) | 102224BLNZ | |
| Filter Clip - (If manufactured post 21/4/08) | 102224WHRH Right Hand & 102224WHLH Left Hand | ||
