Product Type	Bi-Amp 2-Way Active Speaker
Continuous Power	Low: 90W, High: 30W
Horn Coverage	90° H x 45° V
Frequency Response (-6dB)	68Hz - 20kHz
Maximum SPL @ 1m	113 dB
Crossover Frequency	2200 Hz
Woofer	8" woofer, 1.5" voice coil
Driver	1" Neodymium driver, 1" voice coil
Construction	ABS plastic cabinet, trapezoidal/monitor shape, reinforced metal grill, rubber feet, top handle
Mounting	35mm pole-mount
Connectors	Combo XLR male & female (link)
Dimensions (H x W x D)	420 x 270 x 240 mm
Weight	5.53 kg
Power Supply	100-240 VAC, 50/60 Hz
Controls	Volume, Sensitivity (Line/Mic), Contour on/off, Ground lift, Power switch
Indicators	Power, Signal/Limit (Clip)
Signal-to-Noise Ratio	Low: >80 dBu, High: >65 dBu
Housing Material	ABS plastic
Included Accessories	Power cord, user manual

Frequently Asked Questions - Splash 8A DAP-Audio

What is the power output of the Splash 8A?

The Splash 8A is a bi-amp active speaker with low frequency continuous power of 90W and high frequency continuous power of 30W.

What type of input connectors does the Splash 8A have?

It features a combo XLR connector for line or microphone input, and a link output via XLR male.

How do I use the contour function?

The Contour switch activates a preset EQ for optimal music playback. Turn it on for a more lively sound.

Can I use the Splash 8A as a floor monitor?

Yes, the trapezoidal shape allows it to be used as a stage monitor when placed on its side. The special shape provides excellent gain before feedback.

What is the maximum SPL of the Splash 8A?

The maximum SPL at 1 meter is 113 dB, making it suitable for small to medium venues.

What are the power requirements?

The speaker operates on 100-240 VAC, 50/60 Hz. Check the voltage rating on the rear panel before connecting.

How do I connect the Splash 8A to a mixer?

Use a balanced XLR or TRS cable from the mixer output to the combo input. Set the sensitivity switch to Line for line-level signals.

What should I do if the speaker produces no sound?

Check the power indicator. If lit, verify the volume control and input connections. Ensure the ground lift switch is set correctly. If the clip indicator lights constantly, reduce the input level.

Is the Splash 8A suitable for outdoor use?

No, it is designed for indoor use only. Avoid exposure to water or moisture.

What is the warranty period for the Splash 8A?

The warranty is one year from the date of purchase. Any unauthorized modifications will void the warranty.

USER MANUAL Splash 8A DAP-Audio

Technical line drawing of a mechanical housing with a perforated panel and mounting holes (no text or symbols)

ENGLISH

Splash Series Active / Passive

Ordercode:	D3588	D3589	D3590	D3591	D3494	D3595	D3592	D3593
Productname:	Splash 8A	Splash 10A	Splash 12A	Splash 15A	Splash 8	Splash 10	Splash 12	Splash 15

Table of contents

Warning 2

Unpacking Instructions....2

Safety Instructions....2

Connection with the mains....4

Return Procedure....4

Claims....4

Features......5

Panel Description Splash 8A/10A12A/15A....6

Panel Description Splash 8/10/12/15....7

Connection Example 8A/10A/12A/15A....8

Connection Example 8/10/12/15 9

Floor monitor setup....10

Connection Cables....11

Technical Specifications....12

Splash 8A....12

Splash 10A....12

Splash 12A....13

Splash 15A....13

Splash 8....14

Splash 10....14

Splash 12....15

Splash 15....15

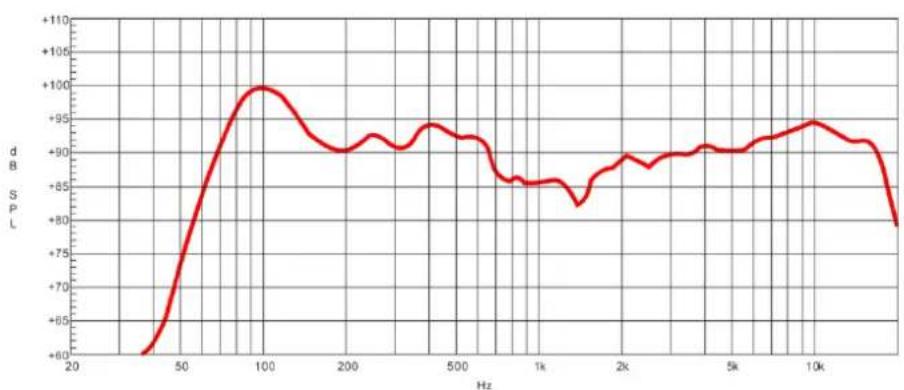

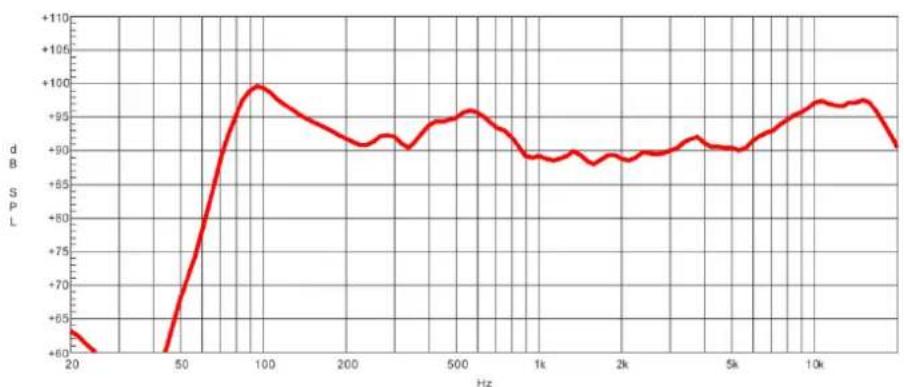

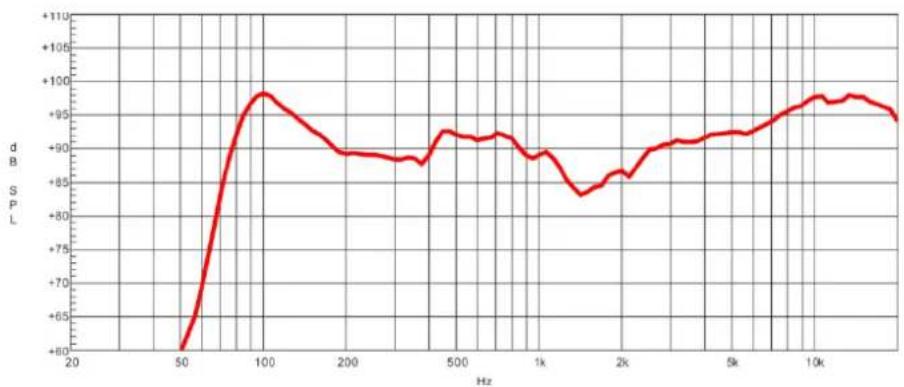

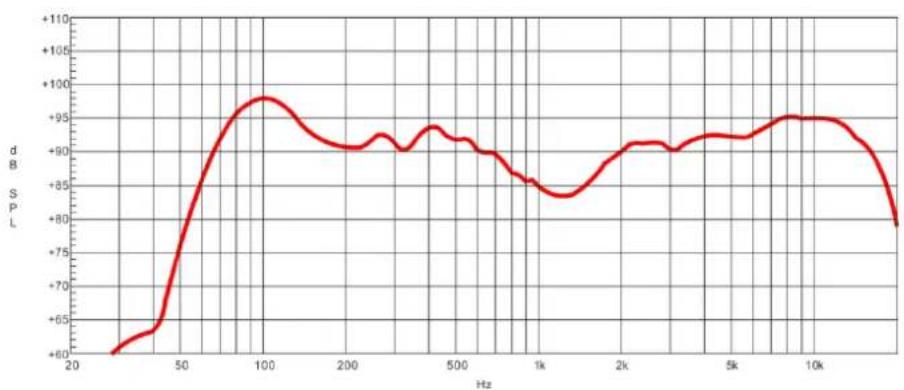

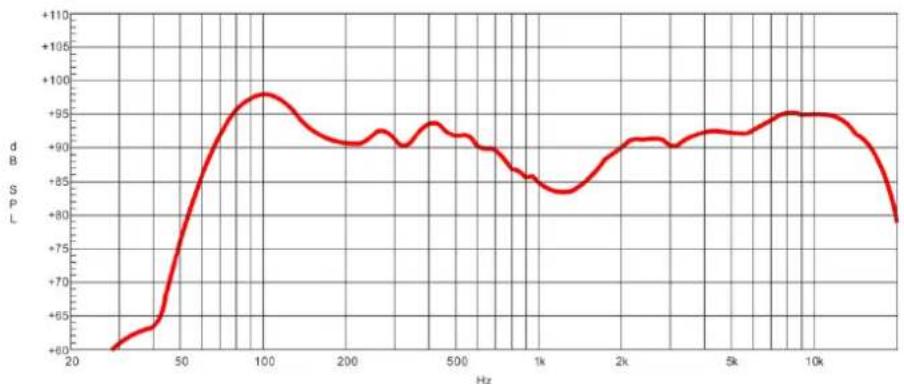

Frequency Response Diagram....16

Troubleshooting....18

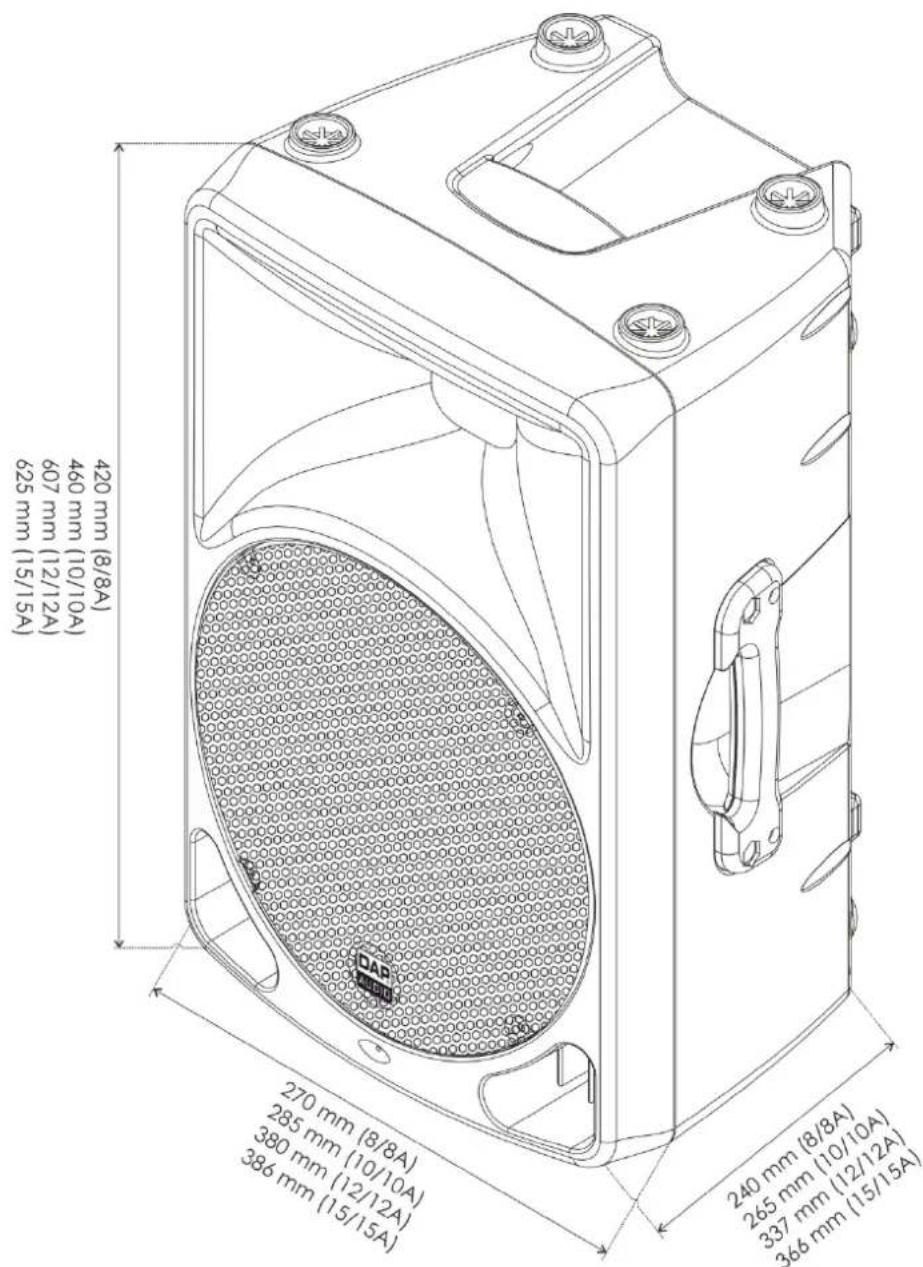

Dimensions....18

Warning

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP!

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing.

Safety Instructions

Every person involved with the installation, operation and maintenance of this device have to:

• be qualified
• follow the instructions of this manual

CAUTION! Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock when touching the wires!

Before your initial start-up, please make sure that there is no damage caused by transportation. Should there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to warranty. This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT!

The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorized modification to the system.

• Always disconnect power from the mains, when system is not used. Only handle the power-cord by the plug. Never pull out the plug by tugging the power-cord.
  • Always operate the unit with the AC ground wire connected to the electrical system ground.
• Avoid flames and do not put close to flammable liquids or gases.
• Avoid ground loops! Always be sure to connect the power amps and the mixing console to the same electrical circuit to ensure the same phase!
• Avoid installing your equipment very near radio or TV sets, mobile phones, etc., as these can cause RF (radio frequency) interference.
  • Before changing your grounds around, always turn your amplifiers down.
• Before connecting or disconnecting the power cord, make certain the ON / OFF switch is in the OFF position.
• Before switching on or off make certain the sound system's amplifiers are off or turned down: this will avoid signal peaks, which are annoying and sometimes dangerous (particularly for speaker enclosures).
• Do not connect (parallel or series) an amplifier output with any other amplifier output.
• Do not connect this device to a dimmer pack.

• Do not drive the inputs with a signal level bigger, than required to drive the equipment to full output.

• Do not insert objects into air vents.

• Do not open this device. Risk: hazardous radiation exposure.
• Do not run the output of any amplifier channel, back into another channel's input.
  • Do not switch the system on and off in short intervals, as this would reduce the system's life.
• Extreme frequency boosts in connection with a high input signal level may lead to overdriving your equipment. Should this occur, it is necessary to reduce the input signal level by using the INPUT control.
• For replacement use fuses of same type and rating only.
• If device is dropped or struck, disconnect mains power supply immediately. Have a qualified engineer inspect for safety before operating.
• If the system has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your system. Leave the system switched off until it has reached room temperature.
• In system setup, the amplifier's output power must be 50%-100% more than the loaded loudspeakers rated power.
• Keep this user's manual for future consultation. Also remember that the crossover will get a better price on the secondhand market if (as well as being in good condition) it has its original documentation and packaging.
  • Make sure that the available voltage is not higher than stated on the rear panel.
• Make sure that the power-cord is never crimped or damaged. Check the device and the power-cord from time to time.
  • Make sure that the signals into the mixer are balanced, otherwise hum could be created.
  • Make sure that there is sufficient room on all sides of the system for air circulation.
  • Make sure you don't use the wrong kind of cables or defective cables.
  • Make sure you use DI boxes to balance unbalanced signals; All incoming signals should be clear
• Never let the power-cord come into contact with other cables! Handle the power-cord and all connections with the mains with particular caution!
• Never remove warning or informative labels from the unit.
• Never use anything to cover the ground contact.
• Only use device indoor, avoid contact with water or other liquids.
• Please turn off the power switch, when changing the power cord or signal cable, or select the input mode switch.
• Prevent distortion! Make sure that all components connected to the DRX-Series have sufficient power ratings. Otherwise distortion will be generated because the components are operated at their limits.
  • Repairs, servicing and electric connection must be carried out by a qualified technician.
• Sometimes, when you want to send one signal to more than one amplifier, you should use a signal distributor.
• The best way (even if not always feasible) to avoid ground loops is to connect the electric ground of all the equipment to a single central point ("star" system). In this case, the central point can be the mixer.
• To avoid or solve hum and buzzing troubles, try different combinations of lifting grounds on units that are supplied with ground lift switches or make sure all chassis are connected to earth ground, either through the A.C. power cord ground or by the front panel rack mount screws.
• To emphasize a frequency range, you don't necessarily have to move its respective sliding control upward; try lowering surrounding frequency ranges instead. This way, you avoid causing the next piece of equipment in your sound path to overdrive. You also preserve valuable dynamic reserve ("headroom")
• WARRANTY: Till one year after date of purchase.
• When connecting the other parts of your sound system, watch out for the so-called "ground loops".

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

International	EU Cable	UK Cable	US Cable	Pin
L	BROWN	RED	YELLOW/COPPER	FASE
N	BLUE	BLACK	SILVER	NUL
	YELLOW/GREEN	GREEN	GREEN	EARTH

Make sure that the device is always connected properly to the earth!

Improper installation can cause serious damage to people and property!

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail [e-mail] and request an RMA prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the customer's responsibility. Highlite reserves the right to use its own discretion to repair or replace product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper inside the box:

1) Your name
2) Your address
3) Your phone number
4) A brief description of the symptoms

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any shortcomings and/or visible defects, or perform this check after our announcement that the goods are at their disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is damaged due to shipping. Transportation damage has to be reported to us within one day after receipt of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless otherwise agreed in writing.

Complaints against us must be made known in writing or by fax within 10 working days after receipt of the invoice. After this period complaints will not be handled anymore.

Complaints will only then be considered if the client has so far complied with all parts of the agreement, regardless of the agreement of which the obligation is resulting.

Features

The Splash series is a line of lightweight and easy to handle speakers. In this series, DAP Audio managed to combine good acoustics with state-of-the-art technology for a very affordable price. The robust housing features 3 grips for easy handling, transportation and a pole mount. The special shaped side and the excellent gain before feedback makes it also possible to use the Splash series as a stage monitor speaker. These properties make this series suitable for musicians, small bands, DJ systems, fixed installations, bars and other areas.

8A/10A/12A/15A

• Compact, lightweight and robust ABS housing,
• Switchable contour function,
  • High sound pressure,
• Universally applicable.

8/10/12/15

• Compact, lightweight and robust ABS housing,
  • Universally applicable,
  • High sound pressure.

Panel Description Splash 8A/10A12A/15A

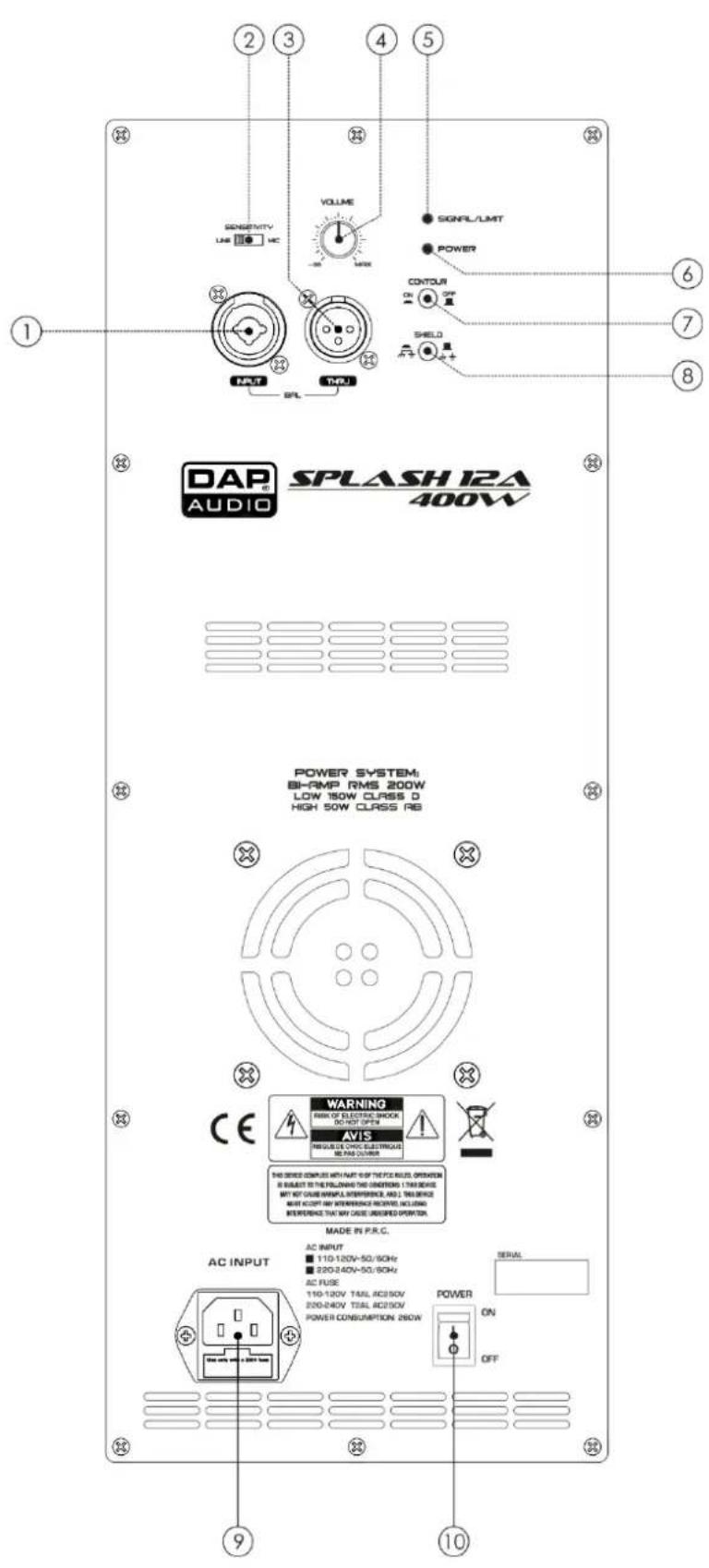

① Line/MIC input on combo connector.
② Input sensitivity – switch for Line or MIC.
③ Link out.
④ Main Volume control.
⑤ Clip indicator.
⑥ Power indicator.
⑦ Countour on/off "Contour ON" preset is to equalize the mix for optimal music play back.
⑧ Ground switch.
⑨ Input AC power socket with main fuse.
⑩ ON-OFF main power switch.

Panel Description Splash 8/10/12/15

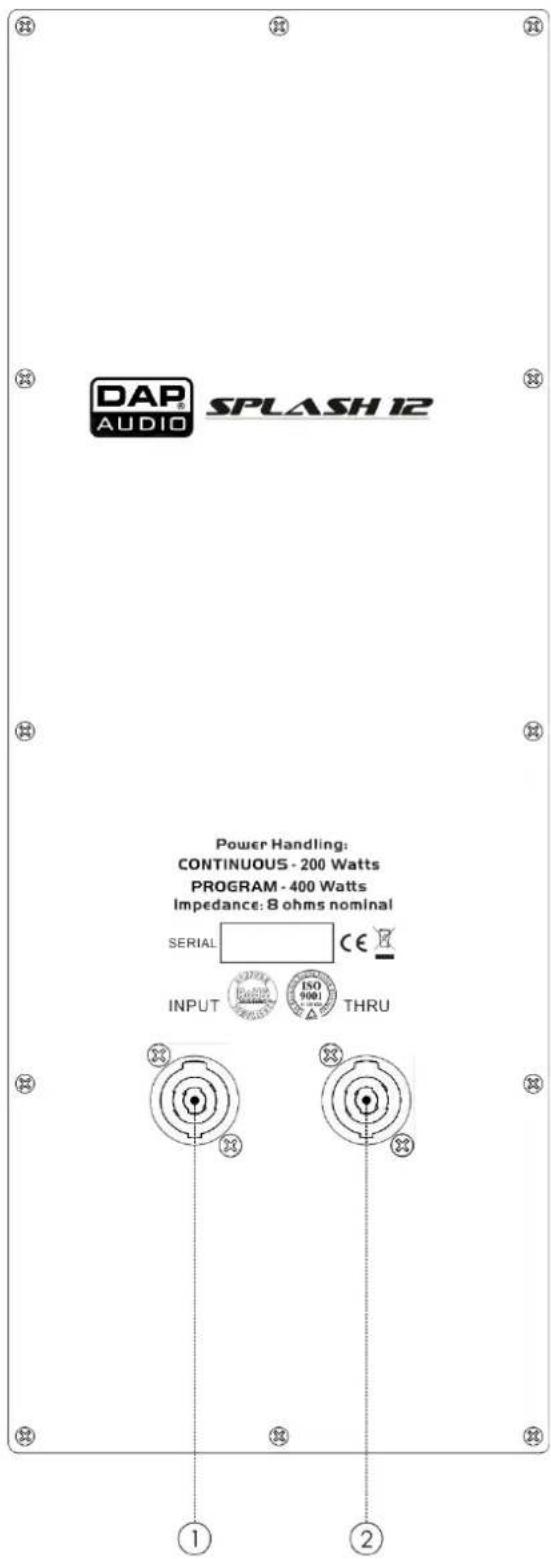

① INPUT: Receive the power coming from an external power amplifier (SPK +1/-1 connected; +2 -2 not connected)
② THRU: Direct LINK for connecting in parallel a second speaker cabinet (SPK +1/-1 connected; +2 -2 not connected).

Connection Example 8A/10A/12A/15A

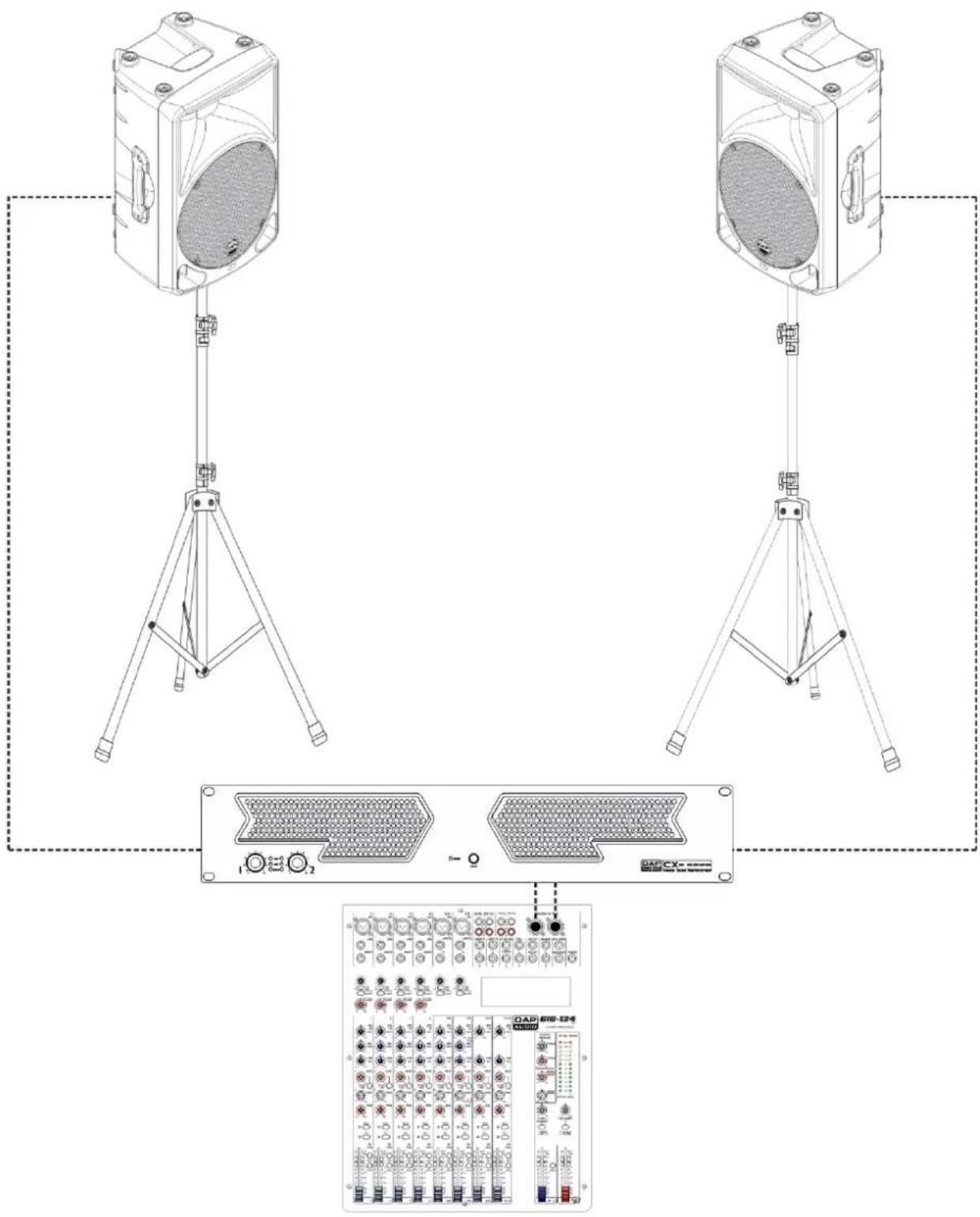

D2284 - GiG-124c

Connection Example 8/10/12/15

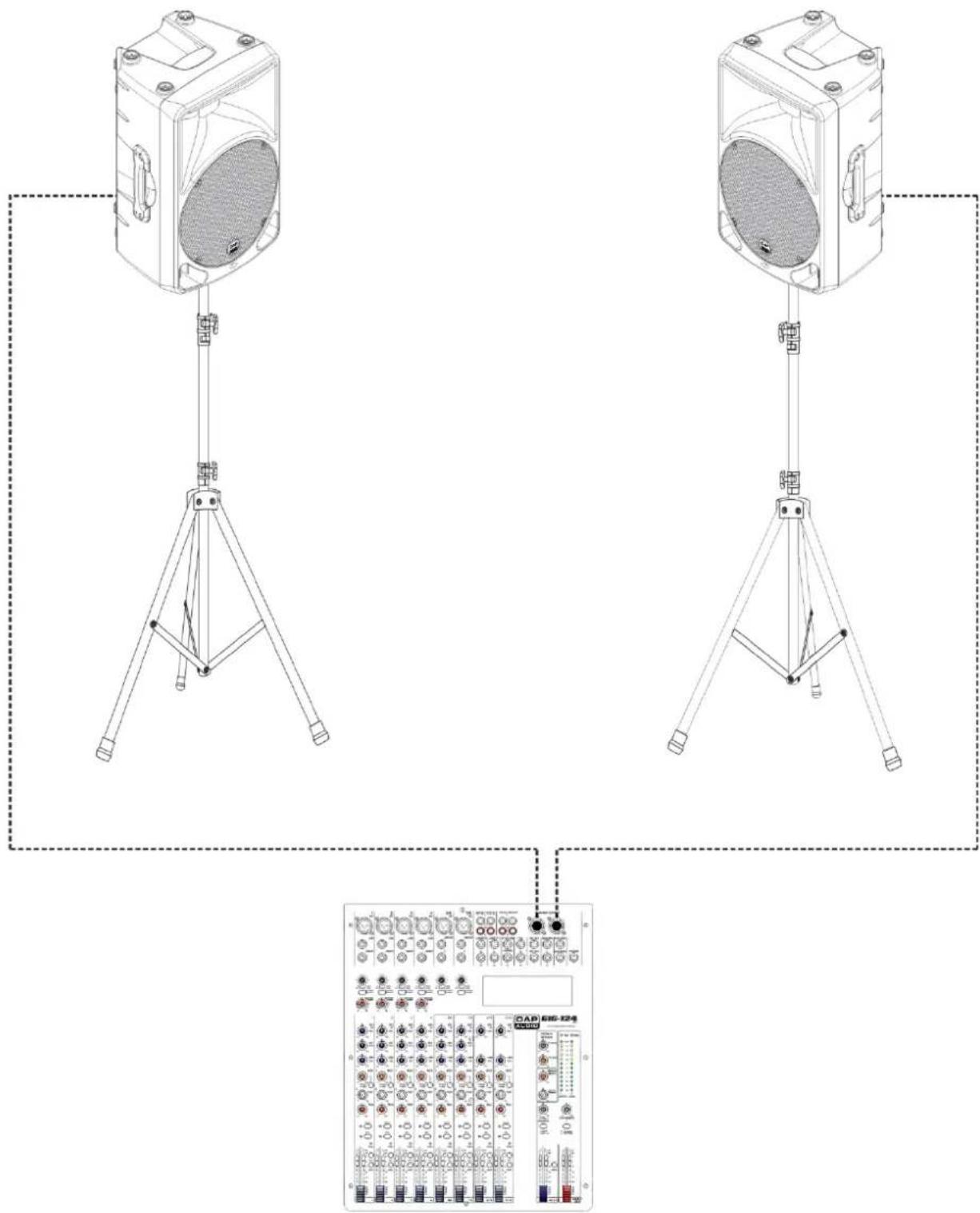

D2284 - GiG-124c

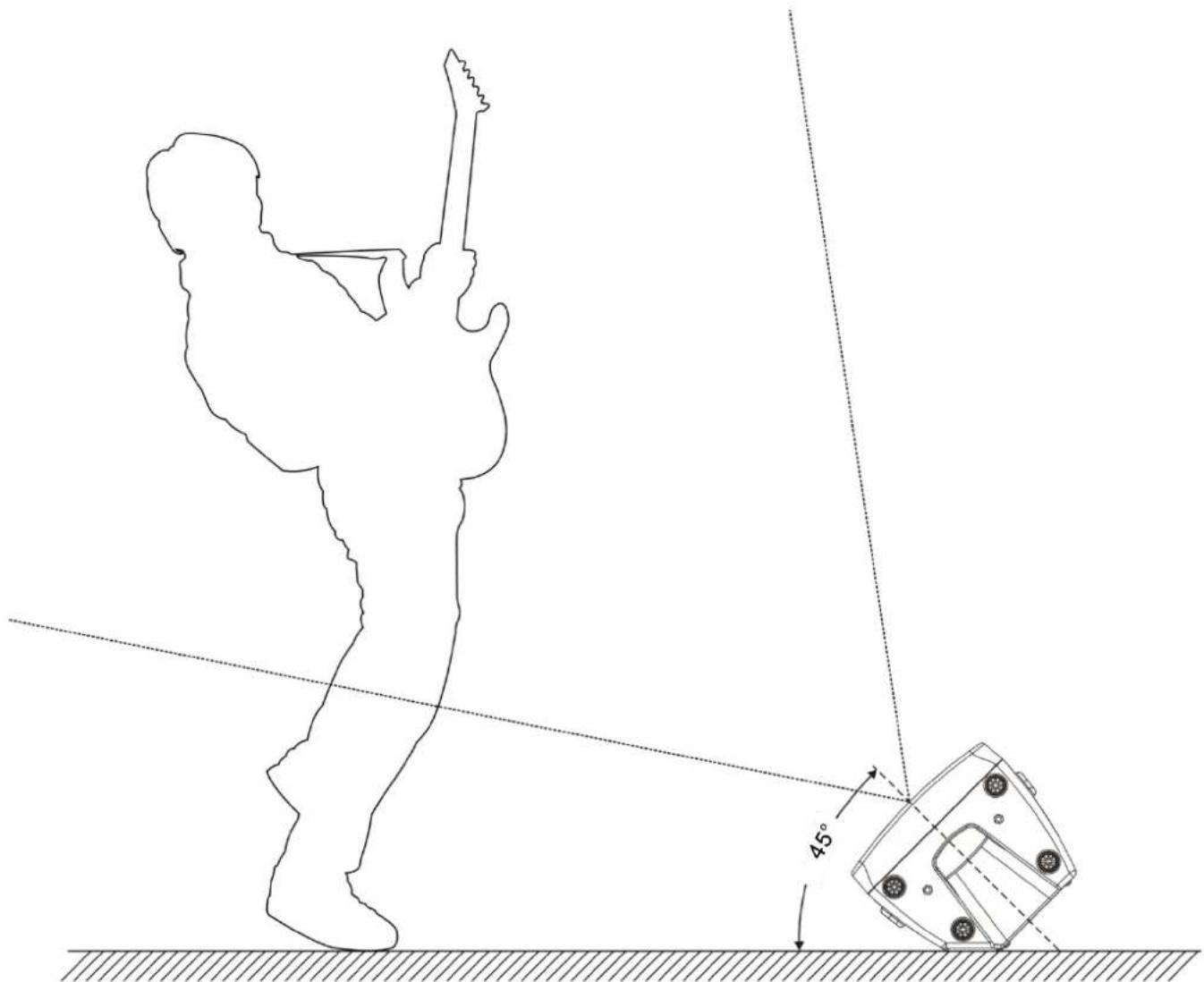

Floor monitor setup

Line drawing of a person using a tool to lift a vehicle, with a 45-degree angle marker (no text or symbols)

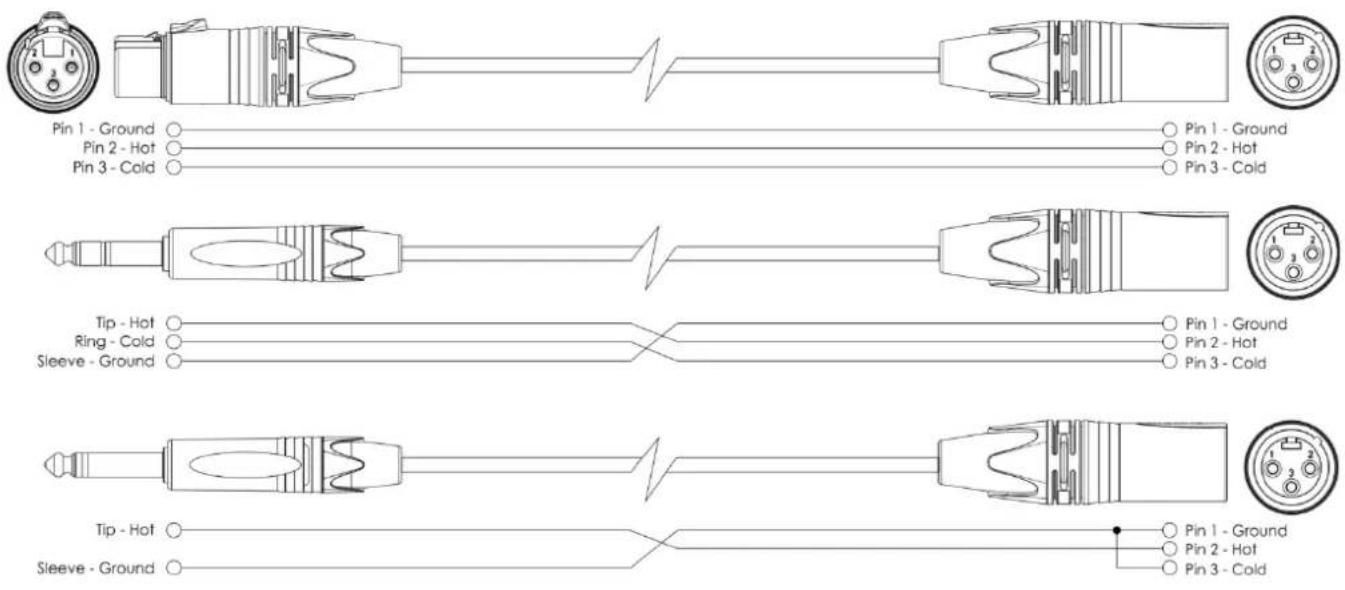

Connection Cables

Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability.

Periodically check your cables. A great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables.

Unbalanced

Balanced

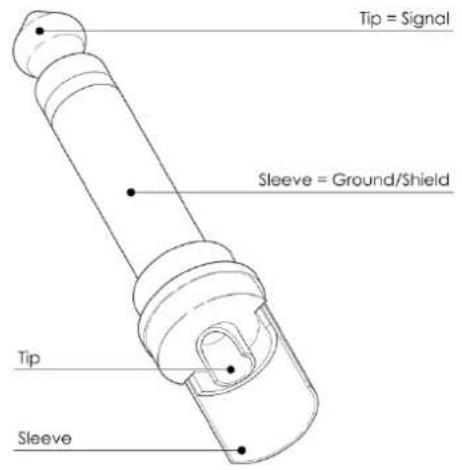

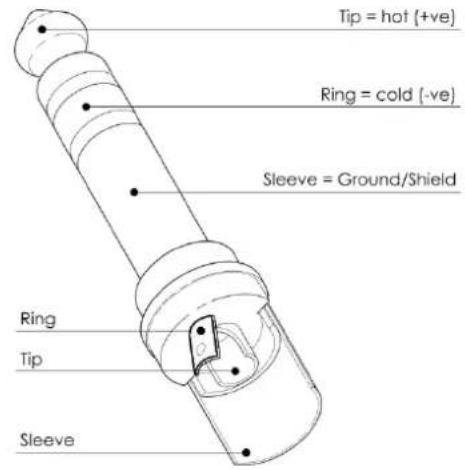

For these applications the unit provides 1/4" TRS and XLR connectors to easily interface with most professional audio devices. Follow the configuration examples below for your particular connection.

Technical Specifications

Splash 8A

System:	Bi-Amp 2-Way Active Speaker
Continuous power:	Low 90W / High 30W
Horn Coverage:	90° H x 45° V
S/N Ratio:	Low > 80dBu / Hi > 65dBu
Indicators:	Power & Signal/Limit
Power supply:	100-240VAC, 50/60Hz
External controls:	Volume / Sensitivity Switch / Contour Switch / Ground lift
SPL@1m:	113dB Max.
Frequency Response:	68Hz-20KHz (-6dB)
Crossover Frequency:	2200Hz
Woofer:	8" Woofer, 1.5"voice coil
Driver:	1" Neodymium driver, 1" Voice Coil
Construction:	Plastic Cabinet, Trapezoidal & Monitor Shape, reinforced Metal Grill, Rubber feet, 1 handle on top
Mounting:	35mm pole-mount
Connectors:	Combo XLR male & female (link)
Dimensions (H x W x D):	420 x 270 x 240 mm
Weight:	5,53Kg

Splash 10A

System:	Bi-Amp 2-Way Active Speaker
Continuous power:	Low 90W / High 30W
Horn Coverage:	90° H x 45° V
S/N Ratio:	Low >80dBu / Hi >65dBu
Indicators:	Power & Signal/Limit
Power supply:	100-240VAC, 50/60Hz
External controls:	Volume / Sensitivity Switch / Contour Switch / Ground lift
SPL@1m:	116dB Max.
Frequency Response:	65Hz-20KHz (-6dB)
Crossover Frequency:	2800Hz
Woofer:	10" Woofer, 1.5"voice coil
Driver:	1" Neodymium driver, 1" Voice Coil
Construction:	Plastic Cabinet, Trapezoidal & Monitor Shape, reinforced Metal Grill, Rubber feet, 1 handle on top
Mounting:	35mm pole-mount
Connectors:	Combo XLR male & female (link)
Dimensions (H x W x D):	460 x 285 x 265mm
Weight:	6,92Kg

Splash 12A

System:	Bi-Amp 2-Way Active Speaker
Continuous power:	Low 150W / High 50W
Horn Coverage:	90° H x 45° V
S/N Ratio:	Low >80dBu / Hi >65dBu
Indicators:	Power & Signal/Limit
Power supply:	110-120V-60Hz / 220-240V - 50/60Hz
External controls:	Volume / Sensitivity Switch / Contour Switch / Ground lift
SPL@1m:	119 dB (Max.)
Frequency Response:	55Hz - 20kHz (- 6dB)
Crossover Frequency:	3500Hz
Woofer:	12" ∅ 305mm - 2" Voice Coil
Driver:	1" Neodymium driver, 1" Voice Coil
Construction:	Plastic Cabinet, Trapezoidal & Monitor Shape, reinforced Metal Grill, Rubber feet, 3 ergonomic handles
Mounting:	35mm pole-mount
Connectors:	Combo XLR male & female (link)
Dimensions (H x W x D):	607 x 380 x 337mm
Weight:	13,75Kg

Splash 15A

System:	Bi-Amp 2-Way Active Speaker
Continuous power:	Low 150W / High 50W
Horn Coverage:	90° H x 45° V
S/N Ratio:	Low >80dBu / Hi >65dBu
Indicators:	Power & Signal/Limit
Power supply:	110-120V-60Hz / 220-240V - 50/60Hz
External controls:	Volume / Sensitivity Switch / Contour Switch / Ground lift
SPL@1m:	121 dB (Max.)
Frequency Response:	50Hz - 20kHz (- 6dB)
Crossover Frequency:	3500Hz
Woofer:	15" ∅ 381mm - 2" Voice Coil
Driver:	1" Neodymium driver, 1" Voice Coil
Construction:	Plastic Cabinet, Trapezoidal & Monitor Shape, reinforced Metal Grill, Rubber feet, 3 ergonomic handles
Mounting:	35mm pole-mount
Connectors:	Combo XLR male & female (link)
Dimensions (H x W x D):	625 x 386 x 366mm
Weight:	14,86Kg

Splash 8

System:	Passive 2-Way Full-range Speaker
Continuous power:	100W
Peak power:	400W
Horn Coverage:	90° H x 45° V
SPL@1m:	113dB Max
Frequency Response:	68Hz-20kHz (-6dB)
Impedance	8Ω
Crossover Frequency:	2200Hz
Woofer:	8"Woofer,1.5"Voice Coil
Driver:	1" Neodymium driver, 1" Voice Coil
Construction:	Plastic Cabinet, Trapezoidal & Monitor Shape, reinforced Metal Grill, Rubber feet, 1 handle
Mounting:	35mm pole-mount
Connectors:	Speakon
Dimensions (H x W x D):	420 x 270 x 240 mm
Weight:	5,81Kg

Splash 10

System:	Passive 2-Way Full-range Speaker
Continuous power:	120W
Peak power:	480W
Horn Coverage:	90° H x 45° V
SPL@1m:	116dB Max
Frequency Response:	68Hz-20kHz (-6dB)
Impedance	8Ω
Crossover Frequency:	2200Hz
Woofer:	10"Woofer,1.5"Voice Coil
Driver:	1" Neodymium driver, 1" Voice Coil
Construction:	Plastic Cabinet, Trapezoidal & Monitor Shape, reinforced Metal Grill, Rubber feet, 1 handle
Mounting:	35mm pole-mount
Connectors:	Speakon
Dimensions (H x W x D):	460 x 285 x 265mm
Weight:	6,8Kg

Splash 12

System:	Passive 2-Way Full-range Speaker
Continuous power:	200W
Peak power:	400W
Horn Coverage:	90° H x 45° V
SPL@1m:	119 dB (Max.)
Frequency Response:	55Hz - 20kHz (- 6dB)
Impedance	8Ω
Crossover Frequency:	3500Hz
Woofer:	12" ∅ 305mm - 2" Voice Coil
Driver:	1" Neodymium driver, 1" Voice Coil
Construction:	Plastic Cabinet, Trapezoidal & Monitor Shape, reinforced Metal Grill, Rubber feet, 3 ergonomic handles
Mounting:	35mm pole-mount
Connectors:	Speakon
Dimensions (H x W x D):	607 x 380 x 337mm
Weight:	11,75Kg

Splash 15

System:	Passive 2-Way Full-range Speaker
Continuous power:	200W
Peak power:	400W
Horn Coverage:	90° H x 45° V
SPL@1m:	121 dB (Max.)
Frequency Response:	50Hz - 20kHz (-6dB)
Impedance	8Ω
Crossover Frequency:	3500Hz
Woofer:	15" ∅ 381mm - 2" Voice Coil
Driver:	1" Neodymium driver, 1" Voice Coil
Construction:	Plastic Cabinet, Trapezoidal & Monitor Shape, reinforced Metal Grill, Rubber feet, 3 ergonomic handles
Mounting:	35mm pole-mount
Connectors:	Speakon
Dimensions (H x W x D):	625 x 386 x 366mm
Weight:	12,70Kg

Frequency Response Diagram

Splash 8A

Splash 10A

Splash 12A

Splash 15A

Splash 8A

Splash 10A

Splash 12A

Splash 15A

Troubleshooting

This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit operates properly, do not carry out following steps.

1. If the device does not operate properly, unplug the device.
2. Check the fuse, power from the wall, all cables, etc.
3. If all of the above appears to be O.K., plug the unit in again.
4. If you are unable to determine the cause of the problem, do not open the device, as this may damage the unit and the warranty will become void.
5. Return the device to your Dap Audio dealer.

Dimensions
