Product Type	Digital Deactivator
Brand	Dahua Technology
Model	ISC-EDA0002
Working Frequency	58 kHz ±2%
Deactivation Height	≤5 cm
Deactivation Speed	120 pcs/min
Power Input	220–240 VAC, 47–63 Hz
Power Output	18 VAC, 1660 mA
Working Temperature	-5 °C to +50 °C
Relative Humidity	0%–90% (RH, non-condensing)
Indicators	LED (red for power, green for deactivation) and buzzer
Usage Environment	Indoor only
Installation	Plug and play; connect to power supply
Safety	Use only provided power adapter; strict grounding; avoid water ingress
Maintenance	Keep ventilated, do not cover, protect from sunlight and moisture

Frequently Asked Questions - ISC-EDA0002 Dahua Technology

What is the maximum deactivation height of the ISC-EDA0002?

The maximum deactivation height is ≤5 cm above the deactivator board.

How do I install the digital deactivator?

Simply plug the power cord into a 220–240 VAC outlet. The built-in LED will turn red to indicate power is on. No further installation steps are required.

What types of labels can the deactivator deactivate?

It deactivates Acousto-Magnetic (AM) labels operating at 58 kHz.

What does the green LED and buzzer indicate?

The green LED and buzzer indicate that a label has been successfully deactivated.

Why is my deactivator not beeping when I pass a label?

Check if the label is a 58 kHz AM type and is within 5 cm of the board. Ensure the device is properly powered (red LED on) and that no metal objects are on the board.

Can the deactivator be used outdoors?

No, the device is designed for indoor use only. Keep it away from water, direct sunlight, and moisture.

What are the power requirements?

Input: 220–240 VAC, 47–63 Hz. Output: 18 VAC, 1660 mA. Use only the provided power adapter.

How should I maintain the deactivator?

Keep the device ventilated, do not cover it, and avoid exposure to sunlight, water, or moisture. Clean with a dry cloth if needed.

What if a label is not deactivated?

Ensure the label is within the 5 cm deactivation zone and that it is a 58 kHz AM label. Also verify the deactivator is powered and the board is clear of metal objects.

What safety precautions should I follow?

Use a grounded outlet, do not spill water on the device, and ensure installation is performed by a professional if needed. Avoid placing metal objects under or on the deactivator board.

USER MANUAL ISC-EDA0002 Dahua Technology

Abstract geometric composition with gray and red color blocks (no text or symbols)

ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD.

V1.0.0

Foreword

Models

DHI-ISC-EDA0002

Safety Instructions

The following signal words might appear in the manual.

Signal Words Meaning
DANGER	Indicates a high potential hazard which, if not avoided, will result in death or serious injury.
WARNING	Indicates a medium or low potential hazard which, if not avoided, could result in slight or moderate injury.
CAUTION	Indicates a potential risk which, if not avoided, could result in property damage, data loss, reductions in performance, or unpredictable results.
TIPS	Provides methods to help you solve a problem or save time.
NOTE	Provides additional information as a supplement to the text.

Revision History

Version	Revision Content	Release Time
V1.0.0	First release.	August 2021

Privacy Protection Notice

As the device user or data controller, you might collect the personal data of others such as their face, fingerprints, and car plate number. You need to be in compliance with your local privacy protection laws and regulations to protect the legitimate rights and interests of other people by implementing measures which include but are not limited: Providing clear and visible identification to inform people of the existence of the surveillance area and provide required contact information.

About the Manual

The manual is for reference only. Slight differences might be found between the manual and the product.

We are not liable for losses incurred due to operating the product in ways that are not in compliance with the manual.

The manual will be updated according to the latest laws and regulations of related jurisdictions. For detailed information, see the paper user's manual, use our CD-ROM, scan the QR code or visit our official website. The manual is for reference only. Slight differences might be found between the electronic version and the paper version.

All designs and software are subject to change without prior written notice. Product updates might result in some differences appearing between the actual product and the manual. Please contact customer service for the latest program and supplementary documentation.

There might be errors in the print or deviations in the description of the functions, operations and technical data. If there is any doubt or dispute, we reserve the right of final explanation.

Upgrade the reader software or try other mainstream reader software if the manual (in PDF format) cannot be opened.

All trademarks, registered trademarks and company names in the manual are properties of their respective owners.

Please visit our website, contact the supplier or customer service if any problems occur while using the device.

If there is any uncertainty or controversy, we reserve the right of final explanation.

Important Safeguards and Warnings

This section introduces the proper way of using the device, danger and property damage preventions. Before using the device, read this manual carefully. Follow the instructions and keep this manual properly for future reference.

Operating Requirements

• Place the products with labels as close as possible to the laser scanner or deactivator board, so as not to miss the decoding.
  • Install the deactivator at a distance of more than 1 meter from the Acousto-Magnetic antennas.
• If the deactivator encounters a crash, turn it off and restart it.
• If there is abnormal decoding, check carefully whether the wiring is correct.
• If some labels or tags that cannot be decoded, handle them according to the specific situation.
• Do not flow water into the deactivator because it contains a circuit board.
• Do not put any metal objects under the deactivator, or its decoding height will be affected.
• Only put the products that need to be decoded on the deactivator board when it is working, no other items (especially metal or tin foil) can be placed on the panel.
• The deactivator is only suitable for inactivating and degaussing of labels.

Power Requirements

• Only use the wire assembly (power cable) recommended in this area and use it within its rated specifications.
• Only use the standard power adapter of the device, or the user will be responsible for personnel injury or device damage.
• Use a power supply that meets the requirements of SELV (Safety Extra Low Voltage) and supply power in accordance with the rated voltage of (IEC60065) or (IEC60950-1 compliant with Limited Power Source). The specific power supply requirements are subject to the device label.

- Strictly grounded and powered independently.

Table of Contents

Foreword.... I

Important Safeguards and Warnings.... III

1 Overview....5

1.1 Introduction....5
1.2 Features .... 5
1.3 Appearance....5

2 Installation and Usage 6

2.1 Cautions....6
2.2 Packing list....6
2.3 Parameters....6
2.4 Installation instructions....6

Appendix 1 Cybersecurity Recommendations....7

1 Overview

1.1 Introduction

The digital deactivator is used to inactivate labels with a frequency of 58 KHz, so that commodities authorized by the cash register can pass through the Acousto-Magnetic antennas smoothly.

1.2 Features

The digital deactivator can generate a detection area within 5 CM over the deactivator board. When a label entered this area, the deactivator can detect and deactivate the label fastly with buzzer alarm and visual LED alert.

1.3 Appearance

The digital deactivator is small, very easy to install and use.

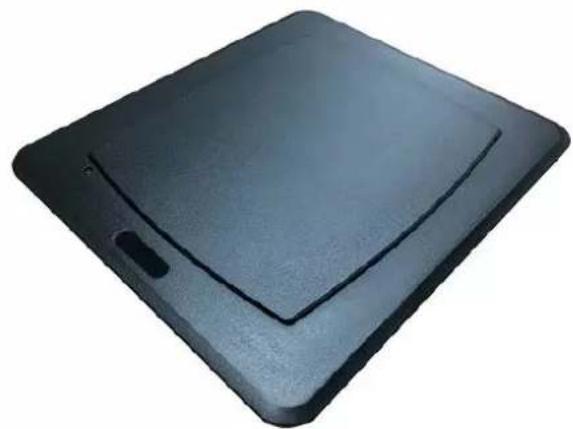

Figure 1-1 Appearance

Black rectangular electronic device with a flat top and side button (no visible text or symbols)

2 Installation and Usage

2.1 Cautions

• Indoor using only.
• Do not cover the device and keep it ventilated.
• Pay attention to sunlight protection, waterproof and moisture-proof.
  • Could only be installed by professionals and strictly enforce safety regulations.
• Strictly grounded and powered independently.

2.2 Packing list

Table 2-1 Packing list

Name	Image	Package size
Deactivator

2.3 Parameters

Table 2-2 Parameters

Parameters	Description
Frequency	58 KHz ± 2%
Deactivating height	≤ 5 CM
Deactivating speed	120 pcs/min
Power	Input	220–240 VAC, 47–63 Hz
	Output	18 VAC, 1660 mA
Working environment	Working temperature	-5 °C to +50 °C
	Relative humidity	0%–90% (RH, non-condensing)

2.4 Installation instructions

• The digital deactivator is small, very easy to install. Just need to insert the power plug into the required power supply (220–240 VAC, 47–63 Hz) to make it work normally.
• After the deactivator is powered on, the built-in light-emitting diode (LED) of the deactivator board will emit red light, indicating that the power supply of the deactivator is normal.
• When a label entered the decoding area, light-emitting diode (LED) will emit green light and the buzzer will alarm to indicate that the label has been successfully deactivated.

Appendix 1 Cybersecurity Recommendations

Cybersecurity is more than just a buzzword: it's something that pertains to every device that is connected to the internet. IP video surveillance is not immune to cyber risks, but taking basic steps toward protecting and strengthening networks and networked appliances will make them less susceptible to attacks. Below are some tips and recommendations on how to create a more secured security system.

Mandatory actions to be taken for basic device network security:

1. Use Strong Passwords

Please refer to the following suggestions to set passwords:

• The length should not be less than 8 characters;
- Include at least two types of characters; character types include upper and lower case letters, numbers and symbols;
- Do not contain the account name or the account name in reverse order;
• Do not use continuous characters, such as 123, abc, etc.;
- Do not use overlapped characters, such as 111, aaa, etc.;

2. Update Firmware and Client Software in Time

- According to the standard procedure in Tech-industry, we recommend to keep your device (such as NVR, DVR, IP camera, etc.) firmware up-to-date to ensure the system is equipped with the latest security patches and fixes. When the device is connected to the public network, it is recommended to enable the "auto-check for updates" function to obtain timely information of firmware updates released by the manufacturer.

• We suggest that you download and use the latest version of client software.

"Nice to have" recommendations to improve your device network security:

1. Physical Protection

We suggest that you perform physical protection to device, especially storage devices. For example, place the device in a special computer room and cabinet, and implement well-done access control permission and key management to prevent unauthorized personnel from carrying out physical contacts such as damaging hardware, unauthorized connection of removable device (such as USB flash disk, serial port), etc.

2. Change Passwords Regularly

We suggest that you change passwords regularly to reduce the risk of being guessed or cracked.

3. Set and Update Passwords Reset Information Timely

The device supports password reset function. Please set up related information for password reset in time, including the end user's mailbox and password protection questions. If the information changes, please modify it in time. When setting password protection questions, it is suggested not to use those that can be easily guessed.

4. Enable Account Lock

The account lock feature is enabled by default, and we recommend you to keep it on to guarantee the account security. If an attacker attempts to log in with the wrong password several times, the corresponding account and the source IP address will be locked.

5. Change Default HTTP and Other Service Ports

We suggest you to change default HTTP and other service ports into any set of numbers between 1024\~65535, reducing the risk of outsiders being able to guess which ports you are using.

6. Enable HTTPS

We suggest you to enable HTTPS, so that you visit Web service through a secure communication channel.

7. MAC Address Binding

We recommend you to bind the IP and MAC address of the gateway to the device, thus reducing the risk of ARP spoofing.

8. Assign Accounts and Privileges Reasonably

According to business and management requirements, reasonably add users and assign a minimum set of permissions to them.

9. Disable Unnecessary Services and Choose Secure Modes

If not needed, it is recommended to turn off some services such as SNMP, SMTP, UPnP, etc., to reduce risks.

If necessary, it is highly recommended that you use safe modes, including but not limited to the following services:

• SNMP: Choose SNMP v3, and set up strong encryption passwords and authentication passwords.
• SMTP: Choose TLS to access mailbox server.
• FTP: Choose SFTP, and set up strong passwords.
  ● AP hotspot: Choose WPA2-PSK encryption mode, and set up strong passwords.

10. Audio and Video Encrypted Transmission

If your audio and video data contents are very important or sensitive, we recommend that you use encrypted transmission function, to reduce the risk of audio and video data being stolen during transmission.

Reminder: encrypted transmission will cause some loss in transmission efficiency.

11. Secure Auditing

• Check online users: we suggest that you check online users regularly to see if the device is logged in without authorization.
• Check device log: By viewing the logs, you can know the IP addresses that were used to log in to your devices and their key operations.

12. Network Log

Due to the limited storage capacity of the device, the stored log is limited. If you need to save the log for a long time, it is recommended that you enable the network log function to ensure that the critical logs are synchronized to the network log server for tracing.

13. Construct a Safe Network Environment

In order to better ensure the safety of device and reduce potential cyber risks, we recommend:

• Disable the port mapping function of the router to avoid direct access to the intranet devices from external network.
• The network should be partitioned and isolated according to the actual network needs. If there are no communication requirements between two sub networks, it is suggested to use VLAN, network GAP and other technologies to partition the network, so as to achieve the network isolation effect.
• Establish the 802.1x access authentication system to reduce the risk of unauthorized access to private networks.
• Enable IP/MAC address filtering function to limit the range of hosts allowed to access the device.
