USER MANUAL WGCT1RJ6NM HAGER

Electrical equipment must only be installed and assembled by a qualified electrician in accordance with the relevant installation standards, regulations, directives and safety and accident prevention directives of the country.

Failure to comply with these installation instructions may result in damage to the device, fire or other hazards.

Function

The RJ45 outlets are used for data transmission in local area networks. The RJ11 outlets are designed for telephone and data applications. Each jack is equipped with a dust protection slider.

Correct use

• For the flush-mounted installation in standard wall boxes (recommended wall box depth ≥ 35 mm).
• Only suitable for use in indoor areas with no drip and no spray water.

Technical data

RJ45 outlets

Voltage proof (contact-to-contact): 1000 V DC or AC peak

Current rating: 0.75 A

Insulation resistance: ≥ 500 M at 100 V DC

Signal contact resistance: ≤ 20 mΩ

Type of connection: IDC terminals

Design: according to IEC 60603-7

Colour code A and B: according to TIA/EIA 568-B.2

RJ45 Cat.5e modules

Transmission bandwidth: max. 100 MHz

Conductor ∅ (solid): 0.51 ... 0.64 mm (AWG 24-22)

Cat.5e, unshielded (UTP): according to ISO/IEC 11801

RJ45 Cat.6 modules

Transmission bandwidth: max. 250 MHz

Conductor ∅ (solid): 0.51 ... 0.64 mm (AWG 24-22)

Cat.6, unshielded (UTP): according to ISO/IEC 11801, 2nd edition

RJ45 Cat.6A modules

Transmission bandwidth: max. 500 MHz

Conductor ∅ (solid): 0.41 ... 0.64 mm (AWG 26-22)

Cat.6A, unshielded (UTP): according to ISO/IEC 11801, edition 2.2

RJ11 outlet

Compliance: YD/T 577

Information for electricians

Installation and electrical connection

Preparing the device for installation

(for example "RJ11 + RJ45 outlet")

1A

Hager Muse

Hager Inspire1B

• Carefully loosen the frame on the notches with a flat-blade screwdriver. Lift up and remove the frame (1A/1B).
  Hager Inspire: Remove the cover plate also with a flat-blade screwdriver (1B).

Connecting the RJ45 data module

■ Remove the cover plate of the data module with a flat-blade screwdriver.

2A

• Strip 30 mm of cable jacket (2A).
  ■ Position and terminate first pair according to colour code A or B:

RJ45 pin assignment TIA/EIA 568B TIA/EIA 568A
	1 white/orange white/green
	2 orange green
	3 white/green white/orange
	4 blue blue
	5 white/blue white/blue
	6 green orange
	7 white/brown white/brown
	8 brown brown

As with the first pair position and terminate each subsequent pair one at a time until termination is complete.

- Fix the cover plate back to the module.

Connecting the RJ11 telephone module

3A

• Strip 10 mm of cable jacket (3A).
  ■ Position first pair according to colour code:

RJ11 pin assignment
	2 blue/white
	3 white/blue
	4 white/red
	5 red/white

- Fix the cover plate back to the module.

Checking of the installation:

A functional test of the installation should be made for each data or telephone outlet.

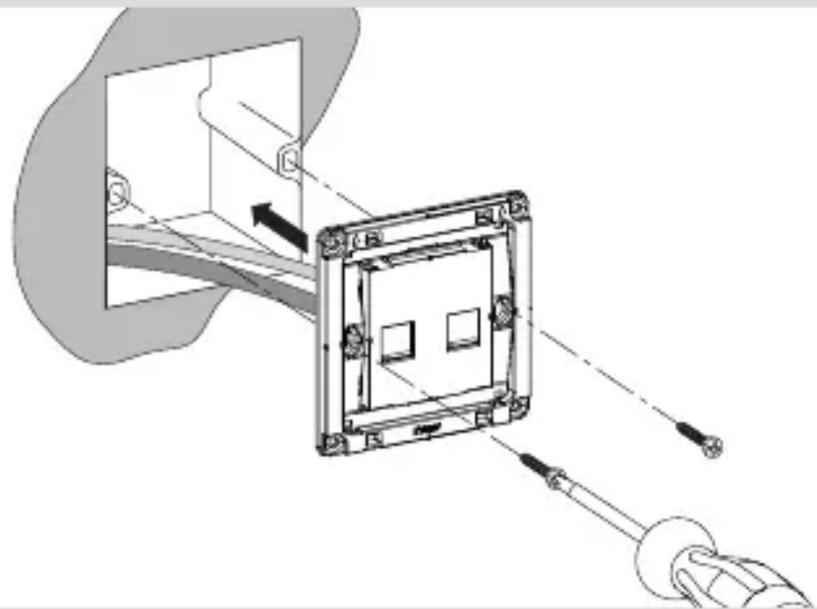

Installing the device into the wall box

(for example "RJ11 + RJ45 outlet")

4

Technical diagram of a mechanical assembly with a bracket and tool, showing no text or symbols

■ After wiring, fix the device with the two screws attached into the wall box (4).

Assembling the covers

(for example "RJ11 + RJ45 outlet")

5A

Hager Muse

5B

Hager Inspire

■ Hager Muse: Snap the frame onto the device (5A).
■ Hager Inspire: Place the cover plate in the correct position and fix with frame (5B).

2-5gang frames are available for multiple combinations.
