SkyfendHunter AFA100 - Brouilleur électronique Autel - Free user manual and instructions

Product Type	Drone / UAV
Brand	Autel
Model	SkyfendHunter AFA100
Dimensions (Folded)	210 x 120 x 80 mm
Dimensions (Unfolded)	450 x 450 x 120 mm
Weight (with battery)	1100 g
Max Takeoff Weight	1500 g
Battery Type	LiPo 4S
Battery Capacity	5000 mAh
Max Flight Time	30 minutes
Max Range	10 km
Camera Resolution	4K at 60 fps
Gimbal Stabilization	3-axis
Obstacle Avoidance	Forward & Downward sensors
GPS Module	GPS + GLONASS
Max Wind Resistance	Level 5
Remote Controller Frequency	2.4 GHz / 5.8 GHz
Video Transmission	Up to 10 km (FCC)
Internal Storage	32 GB
Maintenance	Clean with soft cloth; update firmware via app

Frequently Asked Questions - SkyfendHunter AFA100 Autel

How do I update the firmware on the SkyfendHunter AFA100?

To update firmware, download the Autel Explorer app, connect your drone to your mobile device, and follow the in-app update prompts. Ensure the battery is fully charged before updating.

What is the maximum flight range of the AFA100?

The maximum flight range is 10 km (FCC compliant). In CE mode, the range is limited to 5 km. Always maintain visual line of sight.

Can I fly the drone in rain?

No, the SkyfendHunter AFA100 is not waterproof. Avoid flying in rain, snow, or high humidity to prevent damage.

How do I calibrate the compass?

Go to the Compass Calibration menu in the app, rotate the drone horizontally and vertically as instructed. Calibrate away from metal objects.

What should I do if the drone loses GPS signal?

The drone will automatically switch to Attitude Mode. Fly carefully back to home or activate RTH (Return to Home) if within range.

How long does it take to charge the battery?

With the standard charger, the 5000 mAh battery takes approximately 90 minutes to fully charge.

Is the camera adjustable?

Yes, the camera is mounted on a 3-axis gimbal and can be tilted remotely via the app or remote controller.

What is the maximum wind speed the drone can handle?

The drone can withstand winds up to Level 5 (approx. 10 m/s). Avoid flying in strong winds.

Can I use my own SD card?

Yes, the drone supports microSD cards up to 256 GB. Format the card to FAT32 or exFAT before first use.

How do I replace the propellers?

Use the included screwdriver to remove the screws, then pull off the old propellers. Attach new ones with the correct rotation direction (A/B marked). Tighten screws securely.

USER MANUAL SkyfendHunter AFA100 Autel

Detection and Jamming in One

Exterior view of a modern silver handheld device with ventilation grilles and control buttons (no visible text or symbols)

SkyfendHunter is a compact, cost effective, all-in-one anti-drone jammer that can detect and jam the signals of all advanced small unmanned aerial vehicle (SUAV) threats. The device detects drone signals in all directions and provides users with preemptive warnings. When a drone is detected, SkyfendHunter will find the drone direction using directional antennae and automatically adapt to the correct jamming frequency to counter drones promptly. SkyfendHunter is equipped with a touch panel so that users can easily access useful information.

All-in-One Detection and Jamming

With a monitoring function, SkyfendHunter provides real-time warnings of the surrounding environment. After drones detected, SkyfendHunter can quickly obtain the type, frequency band and direction of the drone and strike it. The maximum monitoring and jamming distance is up to 3,000 metres.

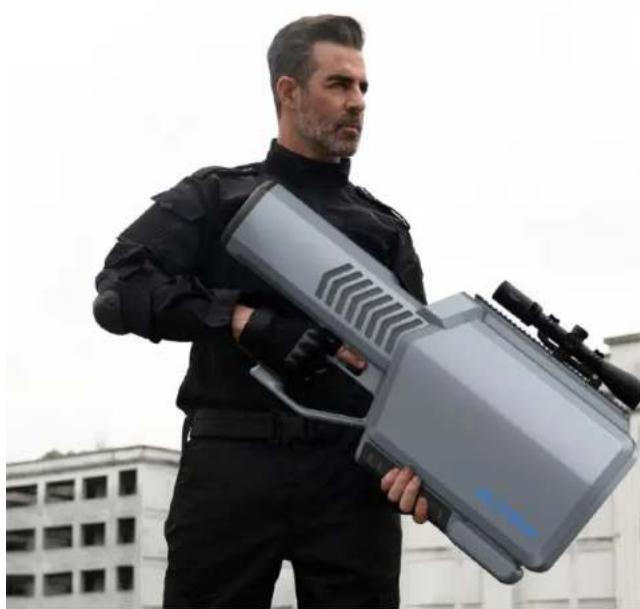

Man in black tactical gear holding a large gray device with scope, standing outdoors near a multi-story building (no visible text or symbols)

Detection Supported

Jamming Range 3,000m

Full-Band Coverage

The omnidirectional detection and directional jamming with the 400MHz\~6GHz band can cover most of the drones.

400MHz -6GHz

3D rendering of a handheld electronic device with ventilation grilles and control buttons (no visible text or symbols)

Automatic Frequency Adaptation

SkyfendHunter detects a specific frequency band of the drone and switches to that frequency band for jamming immediately and automatically. The SkyfendHunter is much more responsive than conventional countermeasures that require manual switching of the jamming band. If the drone has a frequency hopping function, SkyfendHunter can also follow the drone frequency band.

Data Visualization

The 3.5-inch touchscreen with a resolution of 1280 x 720 offers a range of directional guidance operations to assist users in quickly aligning the drone's direction. When used in conjunction with radar, it provides a more intuitive view of the status of the targeted drone and feedback on successful jamming within the C2 system. Users can utilize the touchscreen to adjust basic settings such as alarm modes, device connectivity, and software updates.

Intelligent Jamming

The devices can be networked with each other. The control system intelligently integrates feedback from all devices and analyses the threat level to give the best jamming strategy. Data is interoperable across devices, enabling truly intelligent jamming.

Illustration of a white handheld device with blue glowing circular icons containing icons (no text or symbols)

User Logs

SkyfendHunter records every jamming offline. In case of problems, users can export the event log to us and there will be analysis and feedback from professional after-sale engineers promptly.

Firmware Upgrades

The database will be updated according to the new drone models to ensure detection and jamming effectiveness. The upgrade can be completed by connecting the PC via the USB interface.

All in One Page

1 Type-C Port
2 Touch Panel
3 Battery Chamber
4 Trigger
5 Power Button
6 FUNC Button
7 Charging Port

Performance Comparison

SkyfendHunter Industry Averages

√

Touch Panel

×

√

Firmware

×

√

Firmware Upgradeable

×

Detection ≥ 8h

Jamming ≥ 1h

Battery

Jamming ≥ 30min

Detection: 2,000m

Jamming: 3,000m

Range

Jamming: 1,000\~1,500m

Continuous Covera

ge (400MHz\~6GHz)

Frequency

Discrete Distribution (1.5GHz, 2.4GHz, 5.8GHz, etc.)

Monitoring

Direction Finding

√

Jamming: Differential Jamming Strategy To Drone Model

Functionality

Monitoring: A Few Products Supported

Direction Finding: A Few Products Supported

Jamming: General Strategy

Automatic Frequency Adaptation

Operation

Manual Frequency Switching

Log Export For Remote Troubleshooting

Expandable Database

1-year Warranty

After-Sale Service

×
