Product Type	Floor-standing loudspeaker
Brand	Martin Logan
Model	Motion XT F200
Dimensions (H x W x D)	44.5 x 10.2 x 15.2 in (1130 x 260 x 386 mm)
Weight	48.5 lb (22 kg) each
Frequency Response	37 Hz – 25 kHz ±3 dB
Sensitivity	92 dB / 2.83V / 1m
Impedance	4 ohms, compatible with 4-8 ohm amplifiers
Recommended Amplifier Power	20 – 300 watts per channel
Driver Complement	1 x 1" (2.5 cm) Folded Motion XT tweeter, 2 x 6.5" (16.5 cm) aluminum cone woofers
Finish Options	Black gloss, white gloss, walnut vinyl
Binding Posts	Dual bi-wire capable, gold-plated
Enclosure Type	Bass-reflex with rear-firing port
Care Instructions	Wipe with a dry, soft cloth. Avoid abrasive cleaners.
Safety Warnings	Place on a stable surface. Keep away from moisture. Do not overload electrical circuits.
Spare Parts & Repairability	Contact authorized Martin Logan service centers for replacement drivers or crossover components.

Frequently Asked Questions - Motion XT F200 Martin Logan

What is the recommended placement for the Motion XT F200 speakers?

For best stereo imaging, place the speakers at least 2-3 feet from walls and angle them slightly toward the listening position. Keep them at ear level when seated.

Can I use the Motion XT F200 with a low-powered amplifier?

While the speakers can work with as low as 20 watts, they perform best with an amplifier delivering 50-300 watts per channel. Underpowering may cause distortion.

Does the Motion XT F200 support bi-wiring or bi-amping?

Yes, the binding posts are designed for bi-wiring. Remove the jumper straps and connect separate cables to the high-frequency and low-frequency terminals for bi-wiring or bi-amping.

How do I clean and maintain the speakers?

Use a soft, dry microfiber cloth to dust the cabinet. For stubborn marks, slightly dampen the cloth with water. Do not use chemical cleaners. The grille can be vacuumed gently.

What is the break-in period for the Motion XT F200?

Allow approximately 50-100 hours of play time at moderate volume for the drivers to reach optimal performance. During break-in, the bass will become tighter and the highs smoother.

Can I mount the Motion XT F200 on a wall?

No, this model is designed for floor placement only. It is a floor-standing speaker and does not include wall-mounting hardware.

What is the warranty on the Motion XT F200?

Martin Logan offers a 5-year limited warranty for the original purchaser covering defects in materials or workmanship. Register your product online to activate.

Are there any special requirements for the amplifier impedance?

The Motion XT F200 has a nominal impedance of 4 ohms. Ensure your amplifier is rated for 4-ohm loads to avoid overheating or protection mode.

How do I connect the speakers to my receiver?

Use quality speaker cables. Connect the positive terminal (red) of the receiver to the positive terminal of the speaker, and negative to negative. For bi-wiring, remove the jumper straps and connect two separate cables.

What should I do if the speaker produces no sound?

Check the amplifier connections, ensure the speaker is selected on your receiver, and verify that the amplifier is not in protection mode. Also inspect the speaker cables for damage.

USER MANUAL Motion XT F200 Martin Logan

• Refer servicing to a qualified technician.

• To prevent fire or shock hazard, do not expose this module to moisture.
- Turn amplifier off should any abnormal conditions occur.
- Do not drive speaker beyond its rated power.

The lightning bolt flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of potentially "dangerous voltage" within the product's enclosure that may be sufficient to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

In accordance with the European Union WEEE (Waste Electrical and Electronic Equipment) directive effective August 13, 2005, we would like to notify you that this product may contain regulated materials which upon disposal, according to the WEEE directive, require special reuse and recycling processing. For this reason Martin Logan has arranged with our distributors in European Union member nations to collect and recycle this product at no cost to you.

To find your local distributor please contact the dealer from whom you purchased this product, email [e-mail] or visit the distributor locator at www.martinlogan.com.

Please note, only this product itself falls under the WEEE directive. When disposing of packaging and other related shipping materials we encourage you to recycle these items through the normal channels.

Connection 6

Single Wire Connection

(C10/B10/MP10)....6

Single Wire Connection

(F200/F100/C100/B100/F20/F10) . . . 6

Jumper Clips

(F200/F100/C100/B100/F20/F10) . . . 6

Bi-Wire Connection

(F200/F100/C100/B100/F20/F10) . . . 6

Passive Bi-Amplification

(F200/F100/C100/B100/F20/F10) . . . 7

Active Bi-Amplification....7

Placement

(F200/F100/B100/F20/F10/B10) ..... 8

Frequently Asked Questions....9

Troubleshooting.... 10

Contacting Customer Service ..... 10

General Information.... 11

Warranty Information 11

Serial Number....11

Service 11

Specifications 12

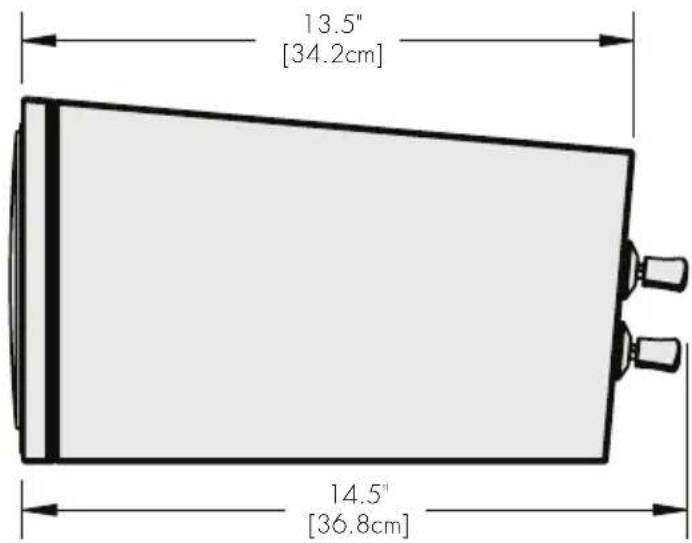

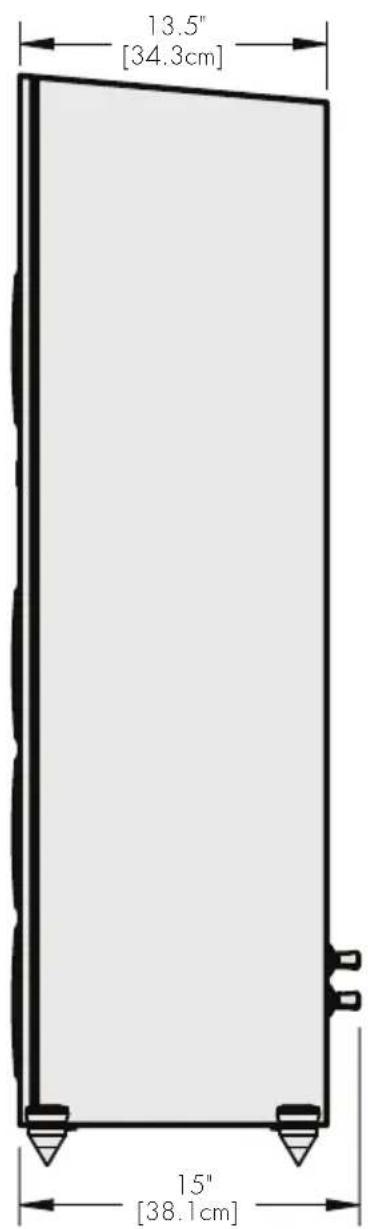

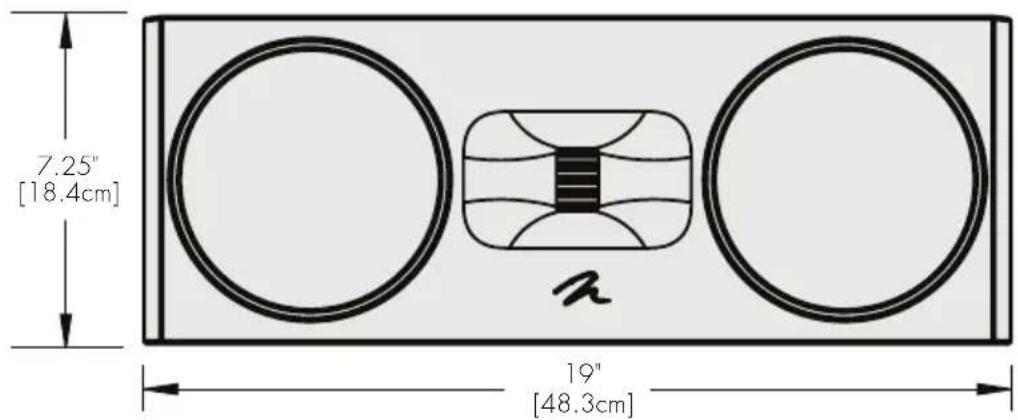

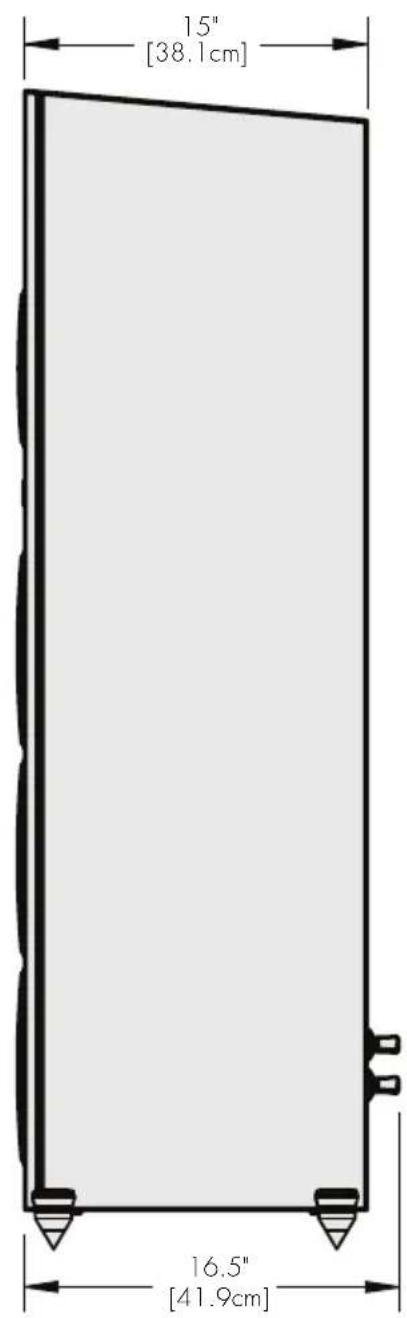

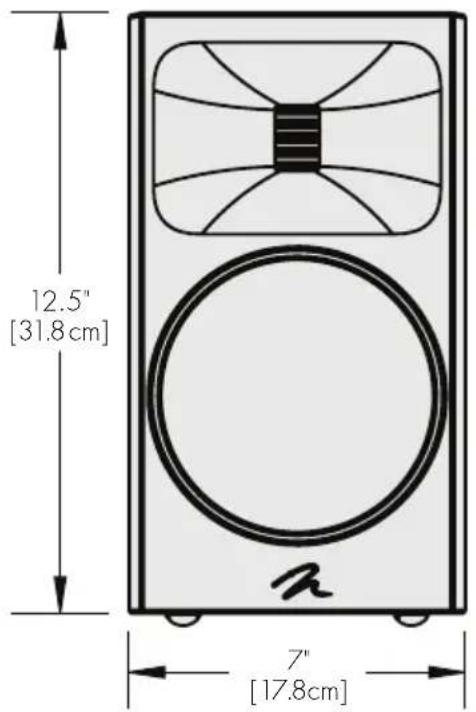

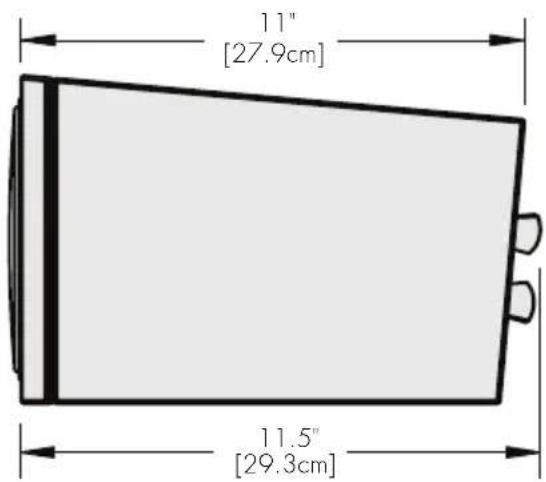

Dimensional Drawings....18

Serial Number: ____

Record your serial number here for easy reference. You will need this information when filling out your warranty registration. The serial number is located near the binding posts and on the product carton.

Motion XT F200/F100

Motion F20/F10

Motion XT B100 Motion B10

Motion XT C100 Motion C10

Motion MP10

CONNECTION

WARNING! Turn your amplifier off before making or breaking any signal connections!

SINGLE WIRE CONNECTION (C10/B10/MP10)

JUMPER CLIPS (F200/F100/C100/B100/F20/F10)

WARNING! Only after jumper clips are removed may you connect individual runs of speaker cable from your amplifiers to the high-frequency and low-frequency signal input binding posts. Damage will occur to your amplifiers if the jumper clips are not removed.

In some countries federal law prohibits MartinLogan from supplying jumper clips. If none are found installed under your speakers binding posts, please refer to 'Bi-Wire Connection' for connection instructions.

SINGLE WIRE CONNECTION (F200/F100/C100/B100/F20/F10)

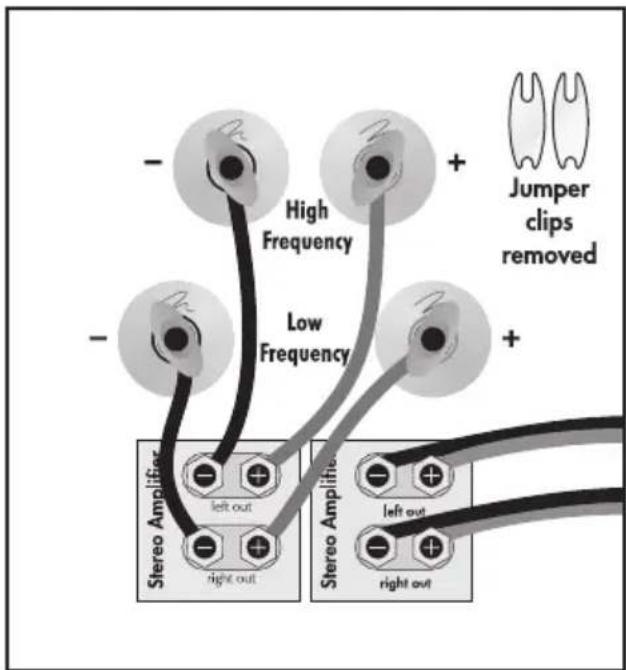

BI-WIRE CONNECTION (F200/F100/C100/B100/F20/F10)

PASSIVE BI-AMPLIFICATION (F200/F100/C100/B100/F20/F10)

Horizontal Passive Bi-Amplification

Vertical Passive Bi-Amplification

ACTIVE BI-AMPLIFICATION

We do not recommend active bi-amplification. The internal crossover can not be bypassed. This connection method seriously degrades performance.

PLACEMENT

BREAK IN

72 hrs

Allow approximately 72 hours of break-in at 90 dB (moderate listening levels) before any critical listening.

PLACEMENT

FREQUENTLY ASKED QUESTIONS

How do I clean my speakers?

Use a dust free cloth (such as a micro fiber cloth) or a soft brush to remove dust from your speakers. Do not spray any kind of cleaning agent on or in close proximity to the drivers.

Could you suggest a list of suitable electronics and cables ideal for MartinLogan speakers?

We have no favorites and use electronics and cables quite interchangeably. We would suggest listening to a number of brands—and above all else—trust your ears. Dealers are always the best source for information when purchasing additional audio equipment.

Is there likely to be any interaction between my speakers and the television in my A/V system?

Yes. These speakers are not shielded and should be kept at least 2 feet away from a CRT television.

Will exposure to sunlight affect the life or performance of my speakers?

We recommend against placing any loudspeaker in direct sunlight. Ultraviolet (UV) rays from the sun can cause deterioration of cabinet, speaker cones, etc. Small exposures to UV will not cause a problem. Filtering of UV rays through glass will greatly reduce the negative effects.

Should I use a 4, 6, or 8 Ohm rated amplifier with my speakers?

All of our Motion series speakers are compatible with 4, 6 or 8 Ohm output audio amplifiers and receivers. Many of the most popular brands of AV receivers and amplifiers with 4, 6 and 8 Ohm output ratings have been thoroughly tested with all of our Motion series products and we have found no compatibility issues except under extreme listening conditions. For the best performance and sonic purity when using our Motion series products use of an amplifier or AV receiver with either a 4 or 6 Ohm output is recommended!

TROUBLESHOOTING

No Output

• Check that all system components are turned on and source material is playing.

• Check speaker wires and connections.

• Check all interconnecting cables.

• If you are unable to resolve your problem, please contact your dealer or MartinLogan customer service (see below).

CONTACTING CUSTOMER SERVICE

Phone

[phone]

Monday - Friday

8 AM - 5 PM CT

Email

[e-mail]

Social Media

GENERAL INFORMATION

WARRANTY INFORMATION

Your speakers are provided with an automatic Limited 90 Day Warranty coverage. You have the option, at no additional charge, to receive a Limited 5 Year Warranty coverage. To obtain the Limited 5 Year Warranty coverage you need to complete and return the Certificate of Registration to MartinLogan within 30 days of purchase. For your convenience MartinLogan also offers online warranty registration at www.martinlogan.com.

MartinLogan may not honor warranty service claims unless we have a completed Warranty Registration card on file! If you did not receive a Certificate of Registration with your new speakers you cannot be assured of having received new units. If this is the case, please contact your authorized MartinLogan dealer.

SERIAL NUMBER

The serial number is located on back of the speaker, directly beneath the binding posts. The serial number may also be found on the product carton.

SERVICE

Should you use your MartinLogan product in a country other than the one in which it was originally purchased, we ask that you note the following:

1 The appointed MartinLogan distributor for any given country is responsible for warranty servicing only on units distributed by or through it in that country in accordance with its applicable warranty.

2 Should a MartinLogan product require servicing in a country other than the one in which it was originally purchased, the end user may seek to have repairs performed by the nearest MartinLogan distributor, subject to that distributor's local servicing policies, but all cost of repairs (parts, labor, transportation) must be borne by the owner of the MartinLogan product.

3 If, after owning your speaker for six months, you relocate to a country other than the one in which you purchased your speaker, your warranty may be transferable. Contact MartinLogan for details.

SPECIFICATIONS*

Application.

Frequency Response ....

Folded Motion Waveguide Enhanced Tweeter Dispersion (VxH) ....

Sensitivity (2.83 volts/meter) ....

Impedance Compatible with 4, 6, or 8 Ohm rated amplifier

Crossover Frequency.....

High Frequency Driver ....

Mid Frequency Driver ....

Low Frequency Drivers ....

Cabinet ....

Recommended Amp Power ....

Binding Post Inputs ....

Weight....

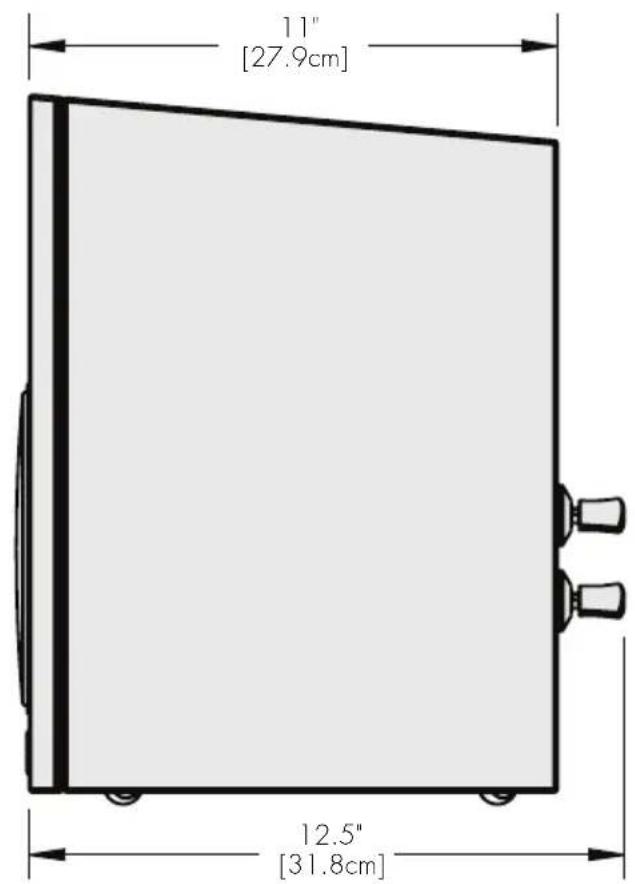

Dimensions (HxWxD) Floorstanding model dimensions include the feet. Depth for all models include the binding posts.

Finishes ....
