USER MANUAL RocketRAID 4520SSGL Highpoint

RocketRAID 4520/4522 Series User Manual

April 9th, 2020

Revision 1.5

HighPoint Technologies, Inc.

Copyright

Copyright © 2020 HighPoint Technologies, Inc. This document contains materials protected by International Copyright Laws. All rights reserved. No part of this manual may be reproduced, transmitted or transcribed in any form and for any purpose without the express written permission of HighPoint Technologies, Inc.

Trademarks

Companies and products mentioned in this manual are for identification purpose only. Product names or brand names appearing in this manual may or may not be registered trademarks or copyrights of their respective owners. Backup your important data before using HighPoint's products and use at your own risk. In no event shall HighPoint be liable for any loss of profits, or for direct, indirect, special, incidental or consequential damages arising from any defect or error in HighPoint's products or manuals. Information in this manual is subject to change without notice and does not represent a commitment on the part of HighPoint.

Notice

Reasonable effort has been made to ensure that the information in this manual is accurate. HighPoint assumes no liability for technical inaccuracies, typographical, or other errors contained herein.

FCC Part 15 Class B Radio Frequency Interference statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
  Modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment under FCC rules.
  This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

European Union Compliance Statement

This Information Technologies Equipment has been tested and found to comply with the following European directives:

• European Standard EN55022 (1998) Class B
• European Standard EN55024 (1998)

Table of Contents

Product Specifications .... 5

RocketRAID 4520/4522 Overview....6

What's in the Box....7

Getting Started 7

Step 1: Setting Up the Hardware....8

Step 2: Install/Update Drivers....9

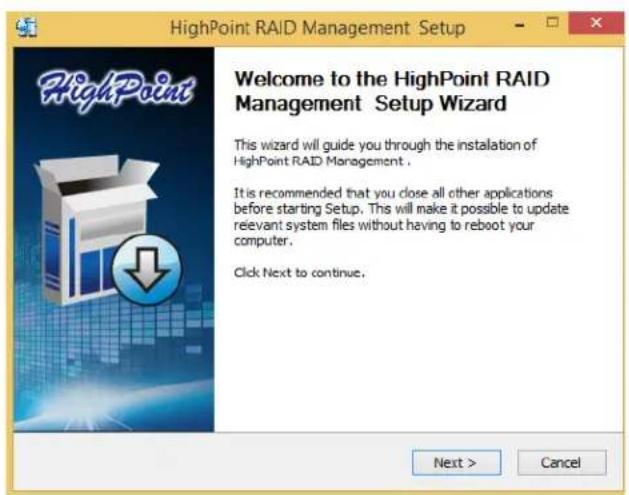

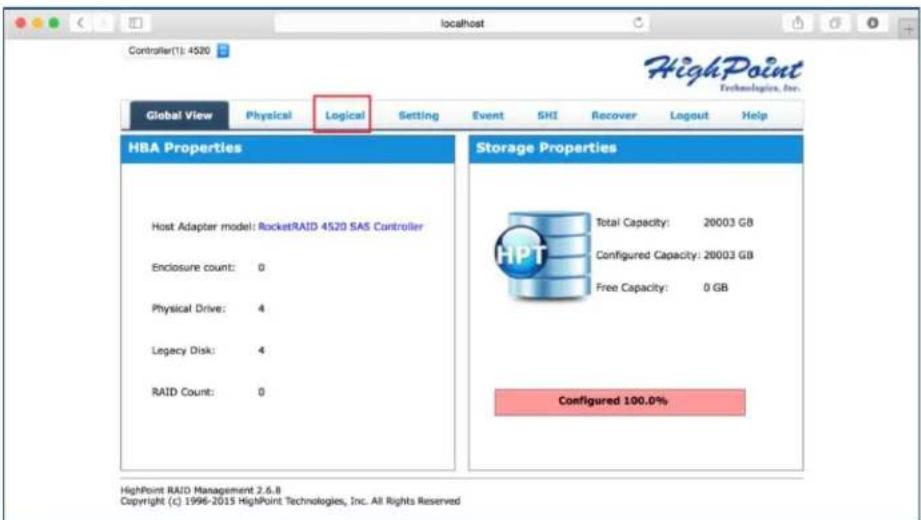

Step 3A: Install HighPoint RAID Management (WebGUI)....15

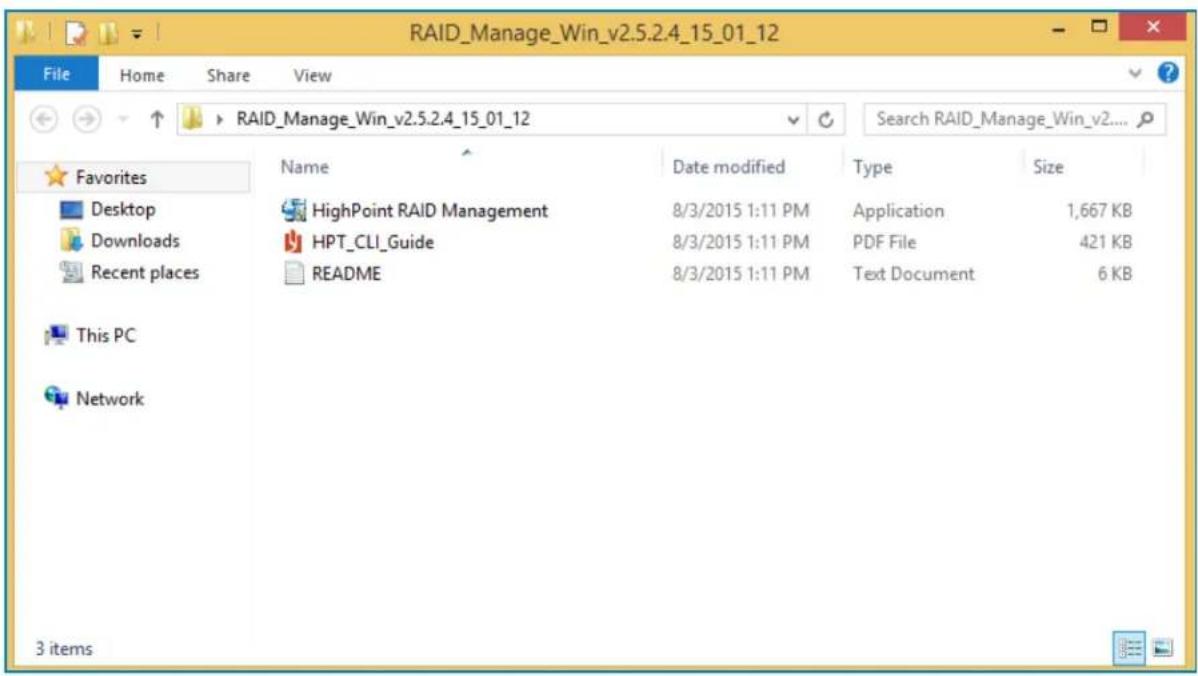

Step 3B: Installing HighPoint Command Line Interface (CLI) (Windows / Linux / FreeBSD)....19

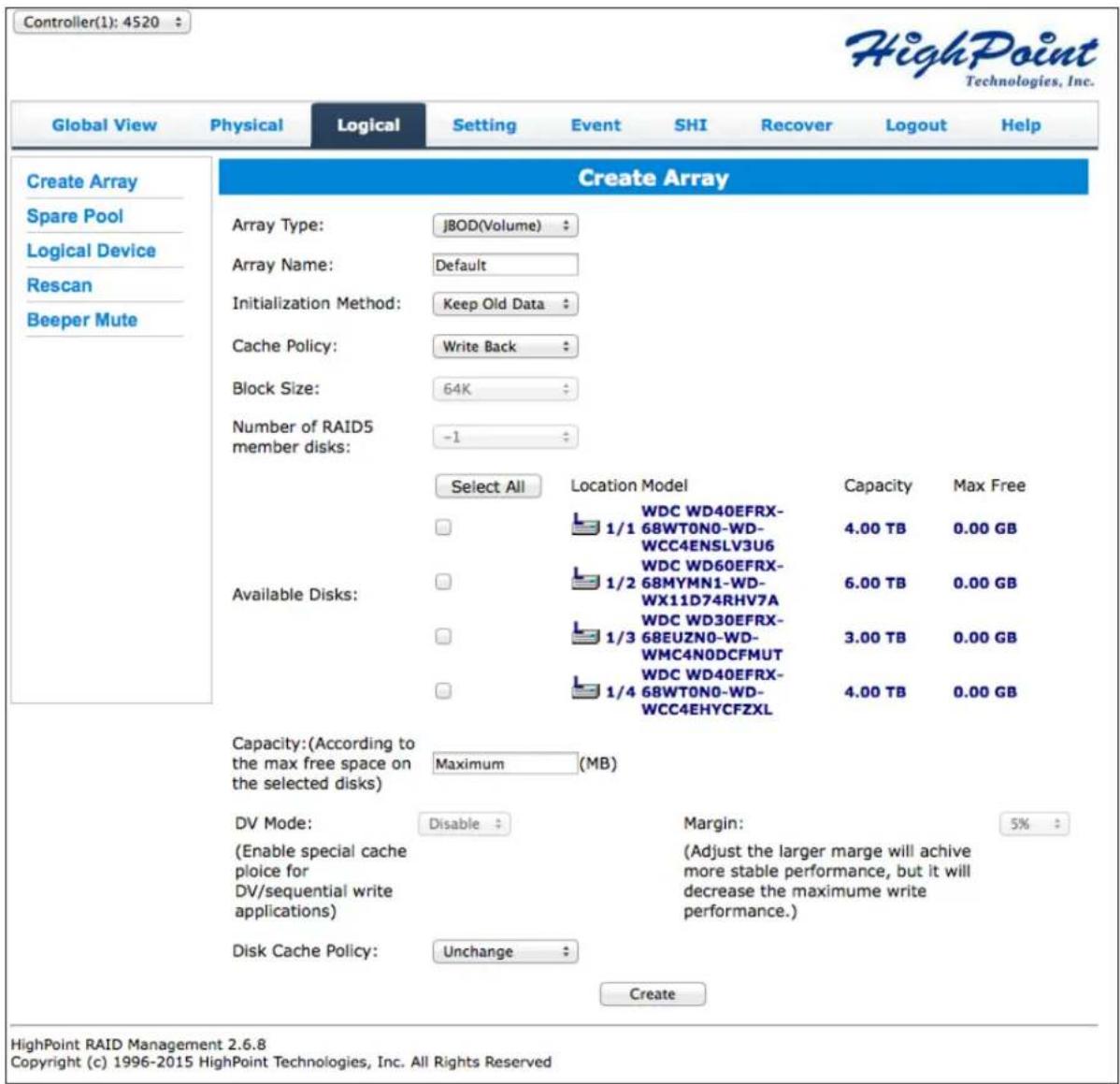

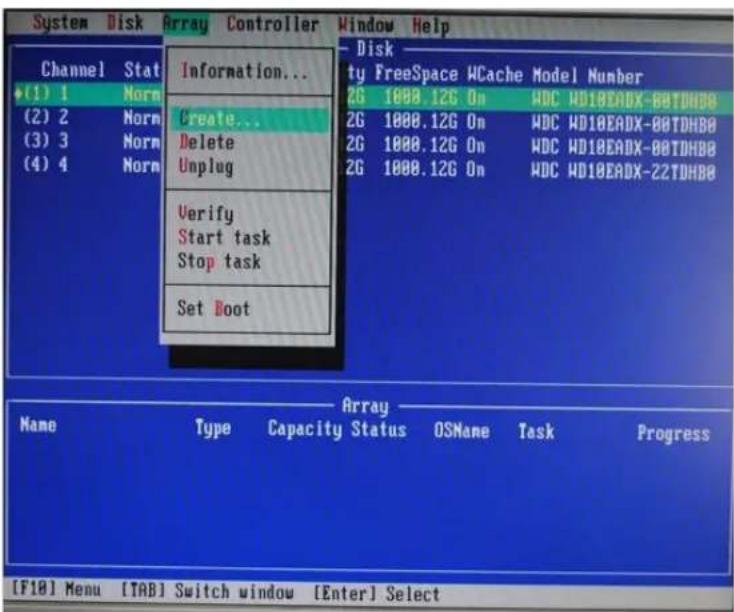

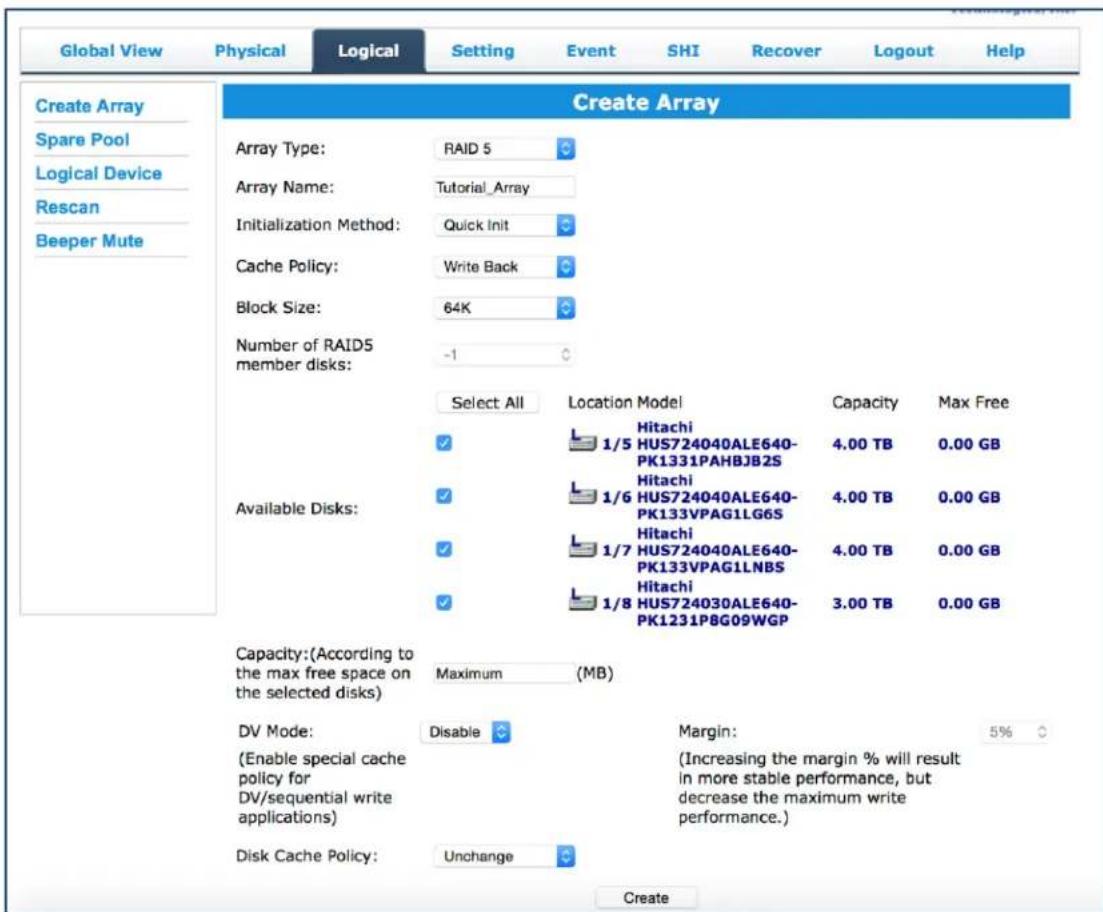

Step 4A: Create RAID Arrays using WebGUI....20

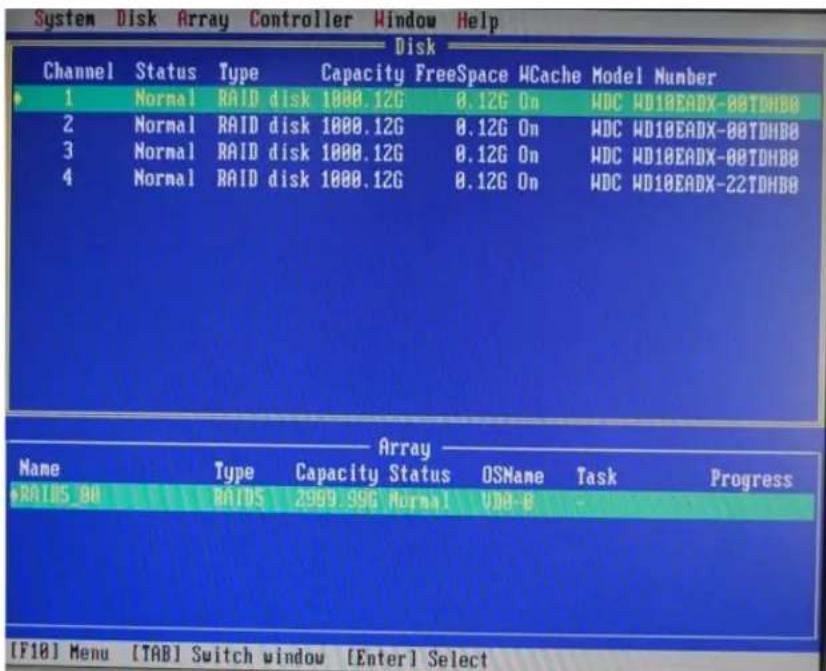

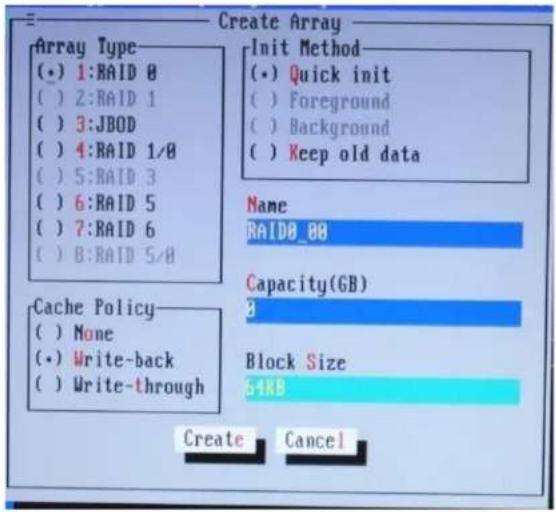

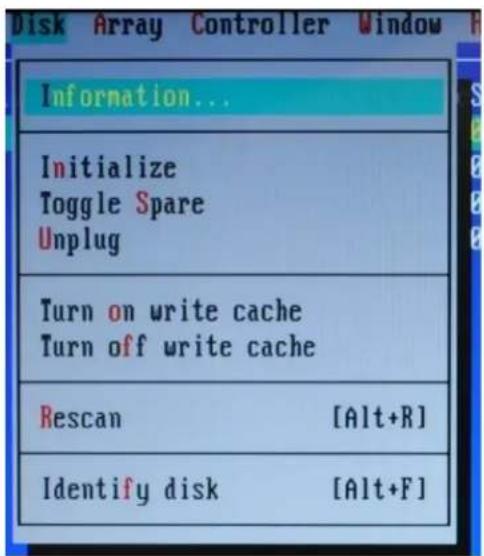

Step 4B: Create RAID Array using RocketRAID BIOS (PC only)....23

Step 4C: Create RAID Arrays using CLI (Windows / Linux / FreeBSD)...... 29

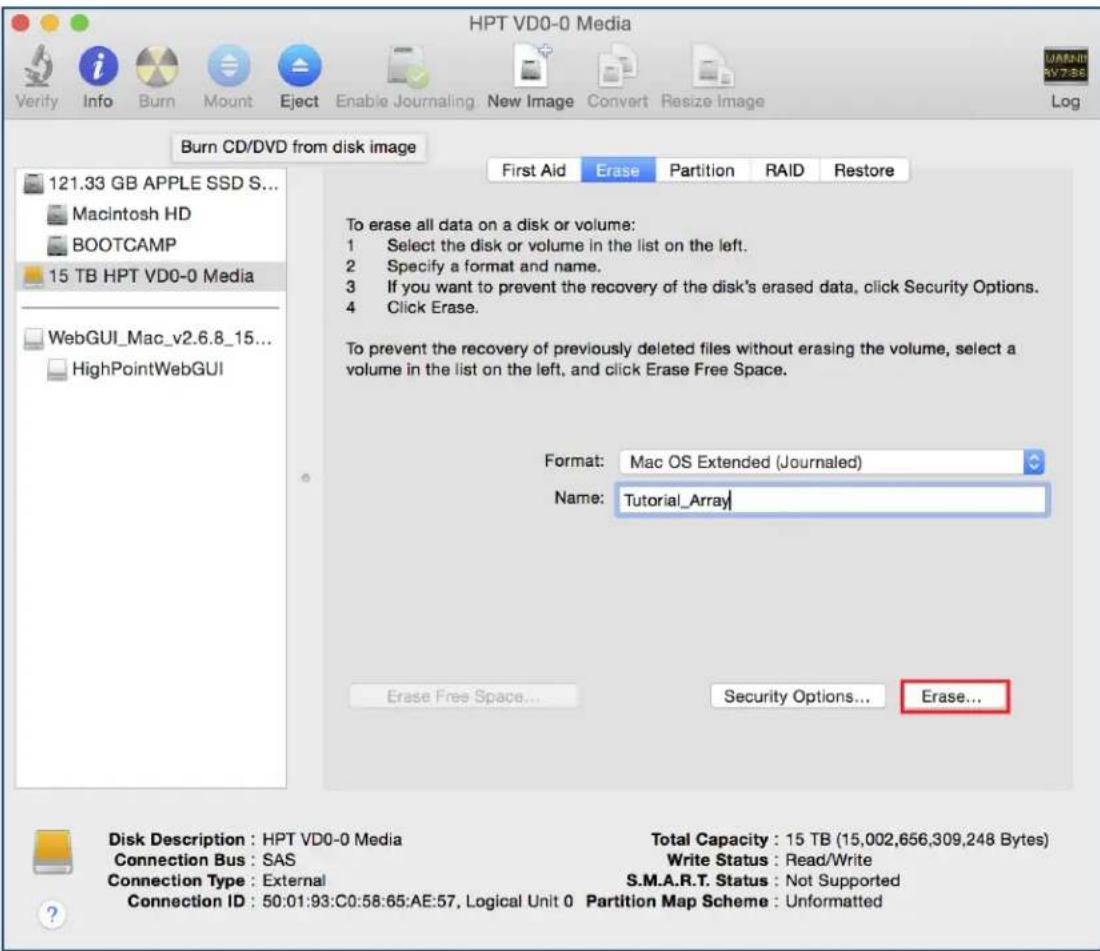

Step 5: Initialize and format the RAID Array....30

Manage your RAID array....36

RAID Spare Pool....36

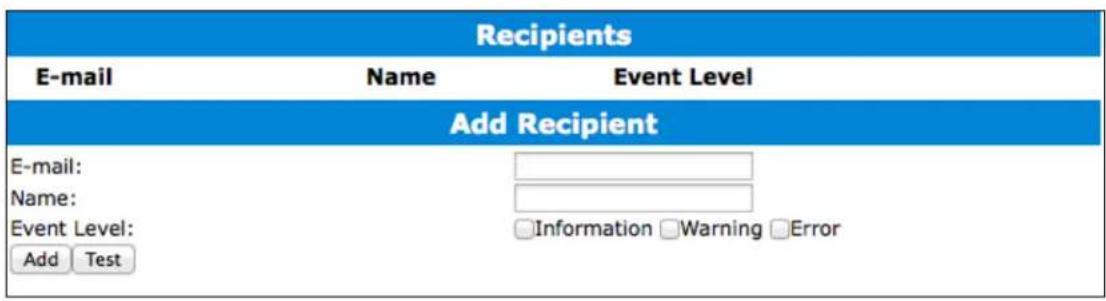

Email Notifications....37

WebGUIRemote Login....38

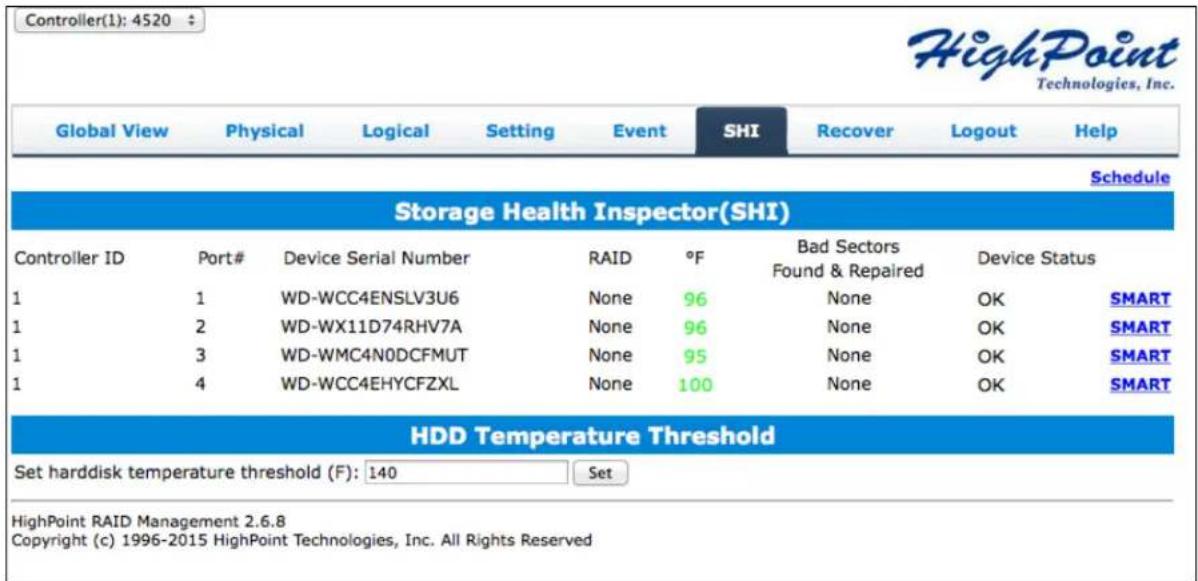

Storage Health Inspection (SHI)....40

Utilizing the Health Inspector Scheduler....41

RAID Expansion (OCE/ORLM)....42

Updating RocketRAID HBA BIOS/Firmware 44

Updating BIOS/Firmware using WebGUI....44

Updating BIOS/Firmware using a bootable USB 44

Troubleshooting - Hardware 45

PC hangs during Boot Up....45

Troubleshooting - Software 46

WebGUI - Connection cannot be established....46

Troubleshooting - RAID....47

Critical Arrays 47

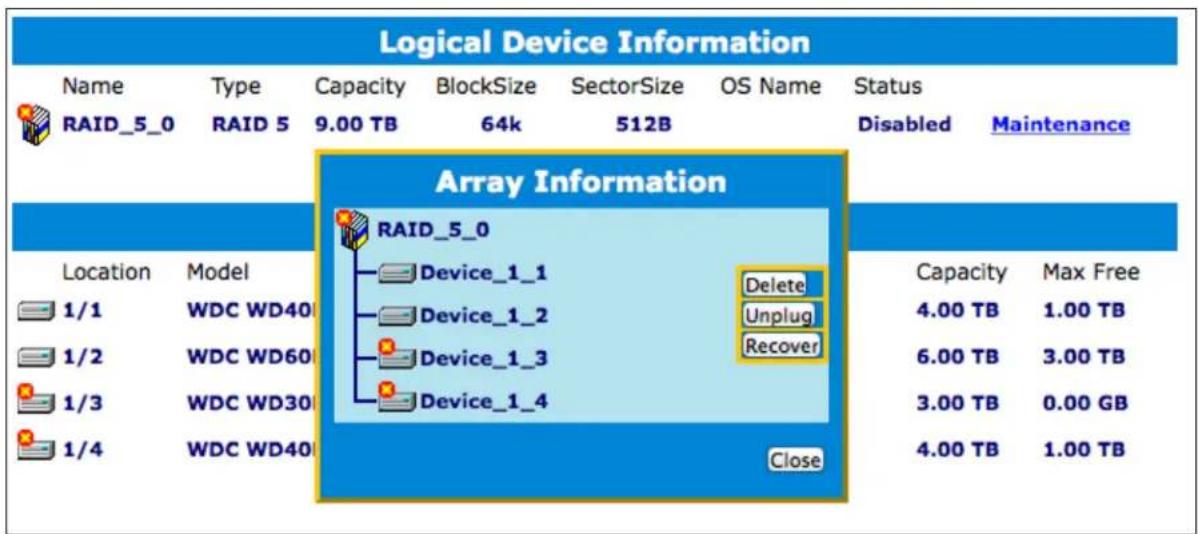

Disabled Arrays....48

Setting up a Bootable RAID 49

Battery Backup Unit (BBU, sold separately)....50

Online Array Roaming....51

Port Multiplier (PM) Compatibility 52

Appendix A: NavigatingRocketRAID 4522 BIOS Utility (PC only)....53

Appendix A-1: System Tab 55

Appendix A-2: Disk Tab 55

Appendix A-3: Array Tab....57

Appendix A-4: Controller Tab 60

Appendix A-5: Window Tab 62

Appendix B: Navigating the HighPointWebGUI....62

How to Login HighPointWebGUI 63

Appendix B-1: Global Tab....64

Appendix B-2: Physical Tab....65

Appendix B-3: Logical Tab....68

Appendix B-4: Setting Tab 77

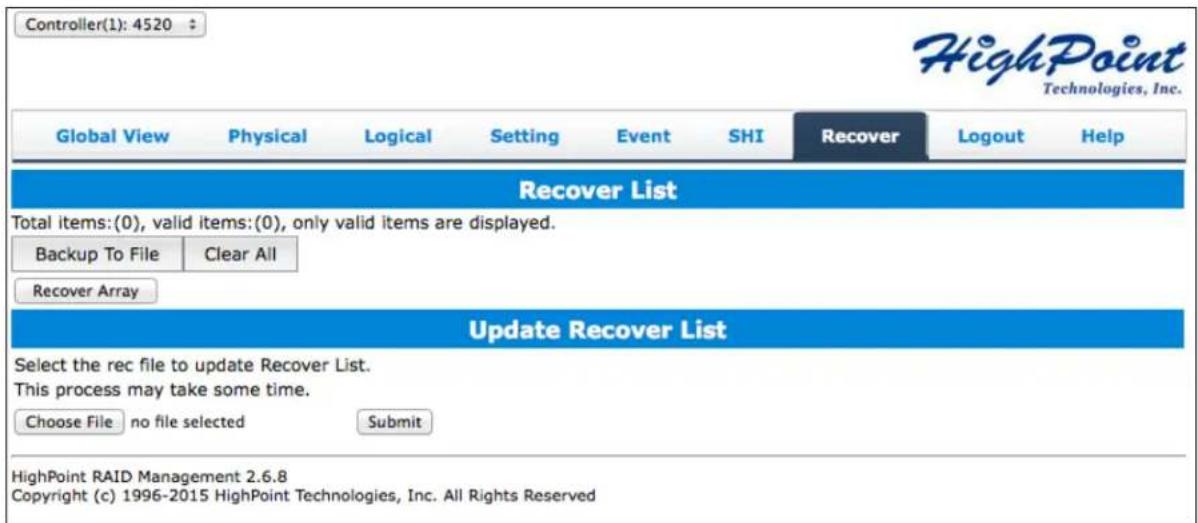

Appendix B-5: Recover Tab 79

Appendix B-6: Event Tab....80

Appendix B-7: SHI (Storage Health Inspector) 81

Appendix C:WebGUI Icon Guide 82

Appendix D: RAID Level Reference Guide....84

Help 85

HighPoint List of Recommended Hard Drives....85

Contacting Technical Support....85

Product Specifications

RocketRAID 4522 Technical Specifications

I/O Processor	6Gb/s RAID-on-Chip
Cache Memory	512MB DDR3 Cache memory with ECC protection
Battery Backup Unit	Optional Battery Backup Module (HPTBBU-05)
Data Transfer Rate	Up to 6Gb/s per port
Number of Device Ports	8 6Gb/s SAS & SATA ports
Host Bus Interface	PCI Express 2.0 x8
Device Connector Type	Dual Mini-SAS Connectors
Onboard Indicators / Monitor	Alarm Buzzer
Device Supported	8 6Gb/s SAS & SATA drives
Backward Compatibility	Backward Compatible with HighPoint RAID HBA
Physical Form Factor	Low Profile
Dimensions	6.57" L x 2.68" H x 0.06" W
RAID Feature Suite
RAID 0, 1, 5, 6, 1/0, 5/0, JBOD
Redundant RAID Configuration for Array availability
RAID Initialization Types
Background, Foreground and Quick
Native Command Queuing (NCO)
Staggered Drive Spin Up
Spin Down Idle Disk
Enhanced data protection with Write Journaling feature
NVRAM keeps tracks I/O transaction logs
S.M.A.R.T Support
Bootable RAID Array Support
Auto Rebuild on spare drive
Hot-Plug and Hot-Swap support
Larger than 3 TB drive support
Write Back or Write Through Cache support
DV Mode Performance Assurance Technology
Supports OCE / ORLM
4Kn Drive Compatible
Configuration Management Suites:		User friendly Browser-based Management Interface Easy to use BIOS configuration Tool Linux Command Line Interface (CLI) - Scriptable configuration tool
Monitoring and Management Support:		SMTP, SES2, Event Log, SGPIO*, LED Status*. (* = RR4520 only)
Operating System Support:		Windows 10 / Windows Server 2016, Major Linux Distributions (RHEL, CentOS, SLES, Fedora, Ubuntu and Linux Open Source Drivers), FreeBSD, Mac OS X 10.6.x and later
Operating Temperature:		Work Temp: +5°C ~ +55°C. Storage Temp: -20°C ~ +80°C Relative Humidity: 5% ~ 60% non condensing.
Operating Voltage:		12 V / 3.3 V, Power: 11W
MTBF (Mean Time Before Failure):		920,585 Hours

RocketRAID 4520/4522 Overview

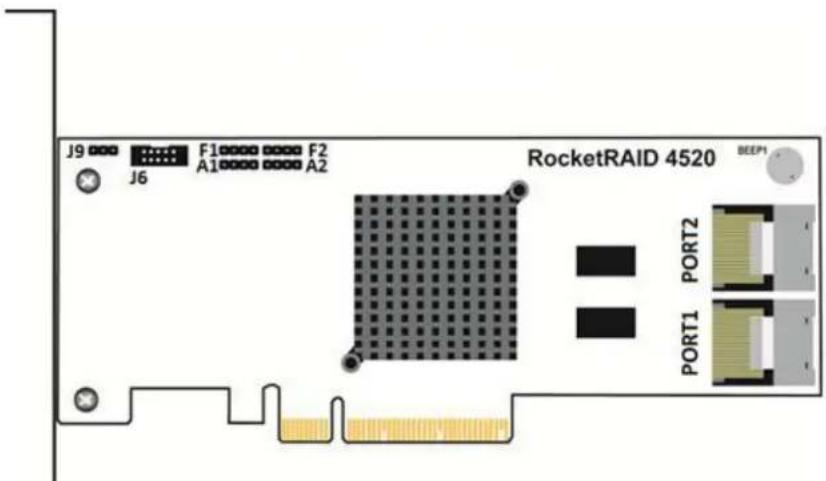

Figure 1. RocketRAID 4520

Figure 2. RocketRAID 4522

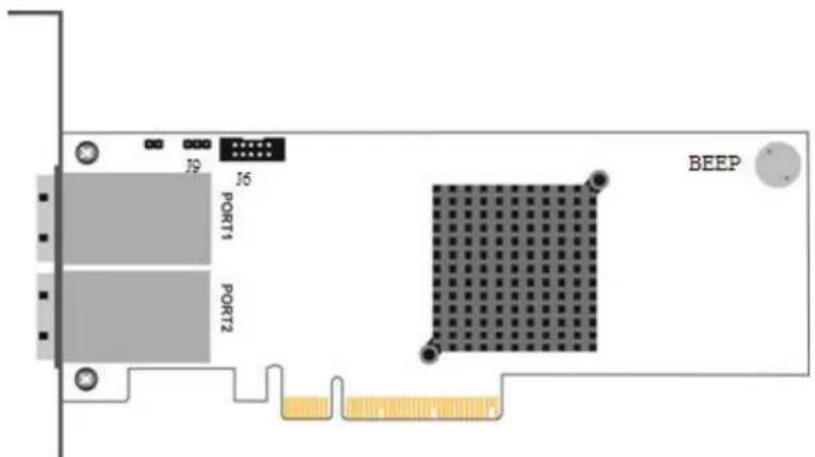

RocketRAID 4522 Key
PORT1	mini-SAS (SFF-8088) ConnectionCorresponds to channel 1-4
PORT2	mini-SAS (SFF-8088) ConnectionCorresponds to channel 5-8
BEEP	Alarm/Beeper
J9	I^2C BusPIN 1 is denoted by a square. PIN 2 and PIN 3 are to the right of PIN 1.PIN 1 SCLPIN 2 GNDPIN 3 SDA
J6	Battery Backup Unit (BBU) Connector
A1, A2 (RR4520)	Active LED pin
F1, F2 (RR4520)	Fail LED pin

What's in the Box

Make sure the following items are included in your purchase:

• RR4522 Host Bus Adapter (S/N sticker located on RocketRAID card)
• Driver CD
• Low profile bracket
• Quick Installation Guide

Note: Cables and Battery Backup Unit (BBU) are sold separately.

Getting Started

Thank you for purchasing HighPoint Technologies RocketRAID 4522. You are only a few steps away from utilizing RAID storage using the industry's most affordable hardware RAID solution.

To start using your RocketRAID 4522 take the following steps:

1. Setting up the Hardware (pg. 8)
2. Install/Update drivers (pg. 9)
3. Install HighPoint RAID Management (WebGUI) (pg. 15)
4. Create RAID Arrays (pg. 20)
5. Initialize and format RAID Volumes (pg. 30)

Step 1: Setting Up the Hardware

Ensure all items listed under Kit Contents are included in your package. For any discrepancy contact your reseller or submit a support ticket online at www.highpoint-tech.com/websupport.

Preparing the RocketRAID HBA (Host Bus Adapter)

The following instructions describe how to prepare your RocketRAID4522 HBA for use.

To install your RocketRAID4522:

Important: Before installing the RocketRAID4522 Controller, ensure that your system is powered OFF.

1. Locate a PCI Express 2.0 x8 slot (or compatible slot) on your PC or Mac Pro (old version) motherboard.

2. Note 1: Refer to your PC or Mac Pro manual for instructions on how to access your motherboard.

3. Note 2: Refer to your motherboard manual for instructions on how to locate your PCI Express slot.

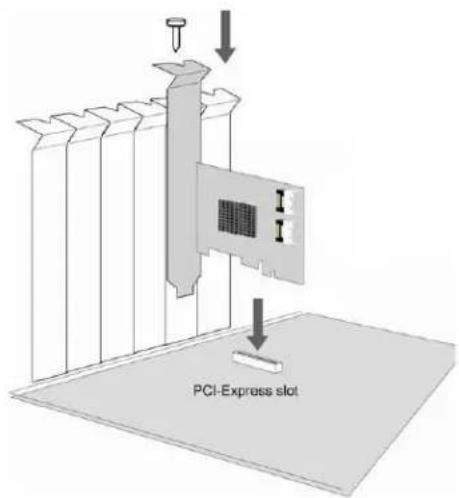

4. Align the RocketRAID4522 with the PCI Express slot and push straight down until the card is fully seated.

5. Tighten the connection by fastening the RocketRAID bracket and enclosure together with a screw.
6. Power on system and continue to Step 2: Install/Update Drivers

A PCI Express 2.0 x8 card is compatible with PCI Express 2.0 x16 and PCI Express 3.0 x16 slots. The following diagram shows how to install HBA to a PCIe slow on motherboards.

Step 2: Install/Update Drivers

Installing drivers on a Bootable RAID Array

For instructions on how to install drivers during Windows OS installation refer to pg. 50.

Installing Drivers on an Existing Operating System

Drivers provide a way for your operating system to communicate with your new hardware. Updating to the latest drivers ensures your product has the latest performance, stability, and compatibility improvements. Drivers are updated regularly at www.highpoint-tech.com.

For Windows Users:

1. Download the latest driver files from our website www.highpoint-tech.com> Support > Documents and Downloads >RocketRAID 4500 Series.

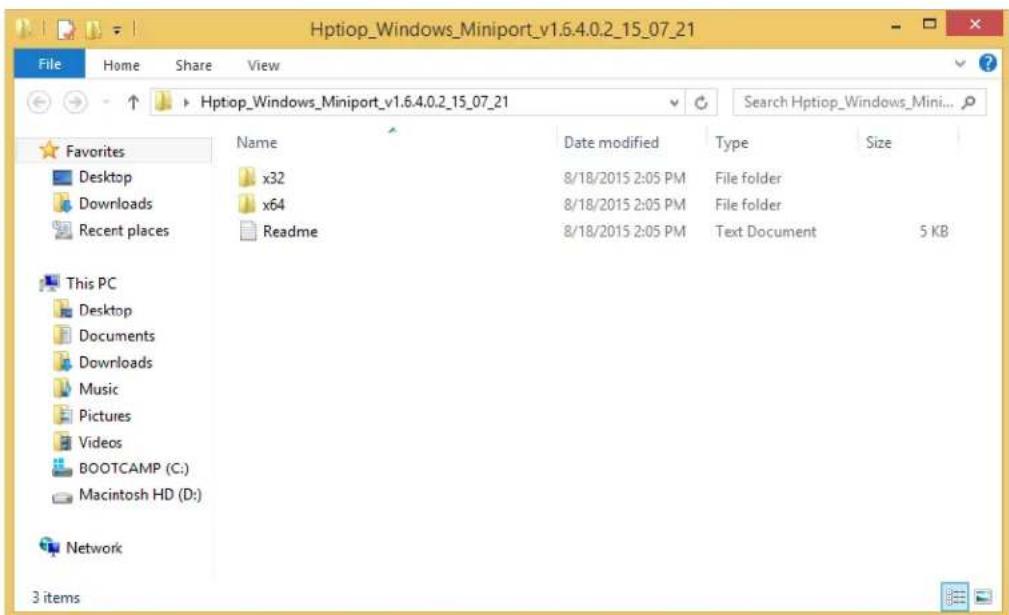

2. Extract the downloaded files onto your PC and note the location of the files.

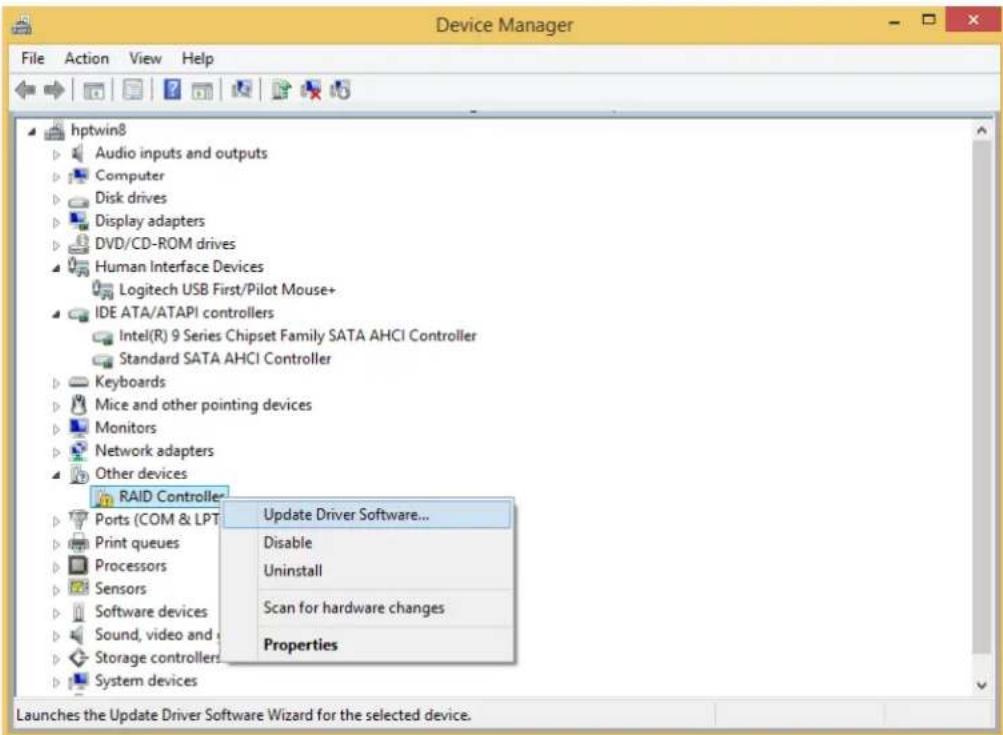

1. Open Windows Device Manager (Control Panel > Hardware and Sound > Devices and Printers > Device Manager).

2. Under Other devices, right-click RAID Controller.

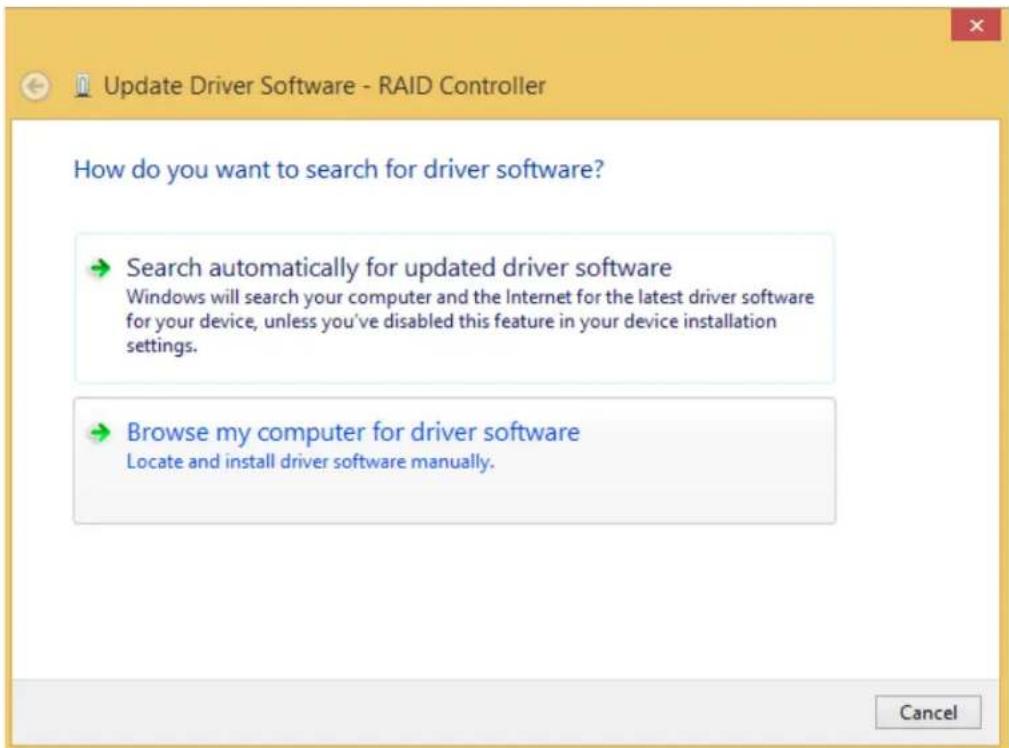

3. Click Update Driver Software.

6. Click Browse my computer for driver software.

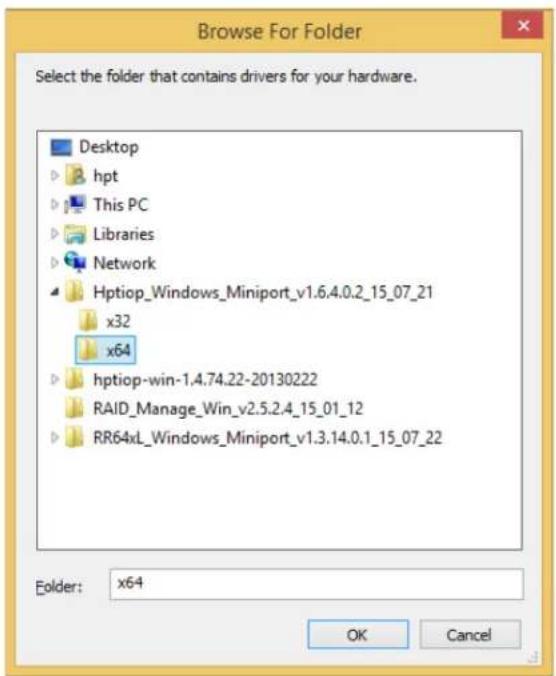

1. Navigate to where you saved the driver files.

1. Click OK.

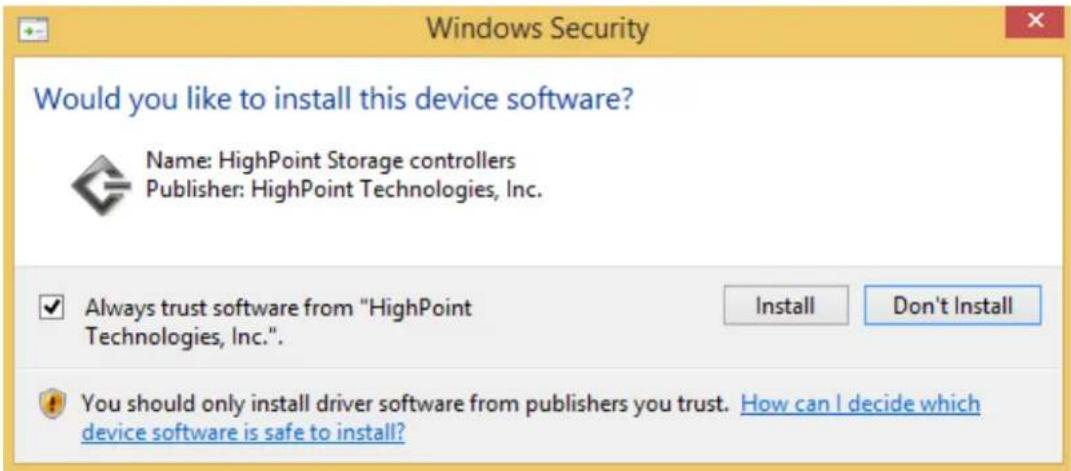

2. Click Next, Windows security will prompt to ask if you are sure you want to install HighPoint Software.

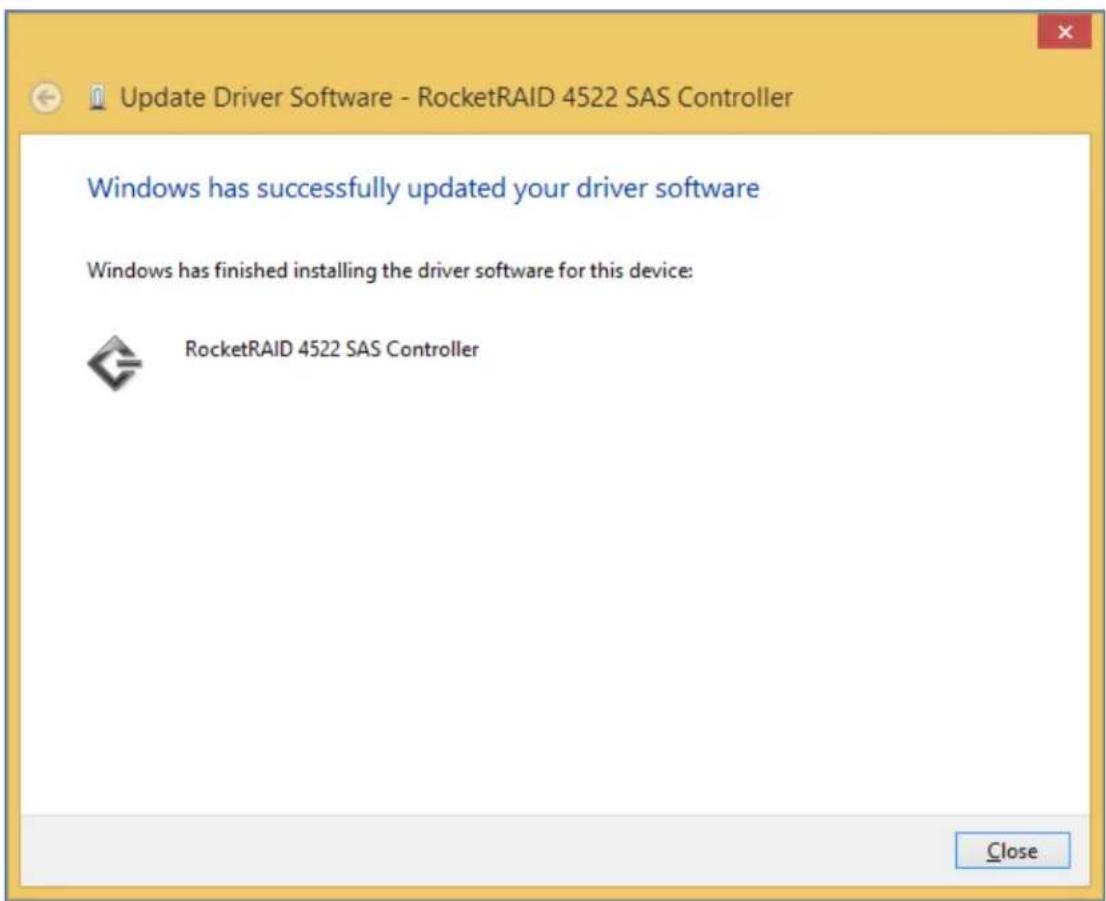

1. After clicking Install, driver will be installed.

1. Reboot for changes to take effect.

For Mac Users:

1. Obtain latest driver online at www.highpoint-tech.com
2. Click the downloaded file.

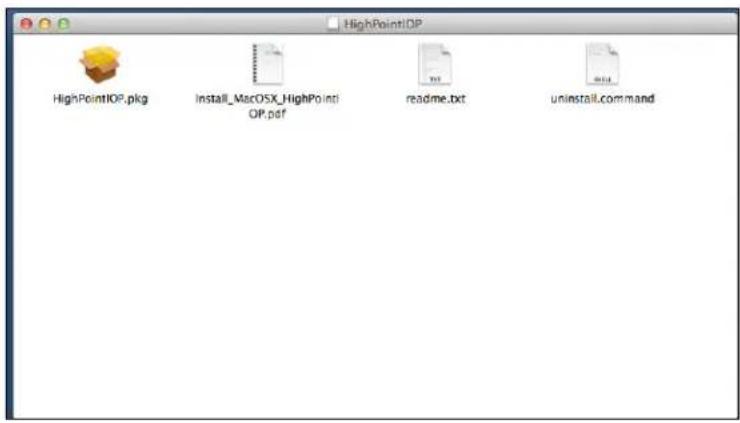

1. A mounted volume will appear on the desktop. Click the icon to open the volume.
2. Click the driver package to start installation (.pkg file)

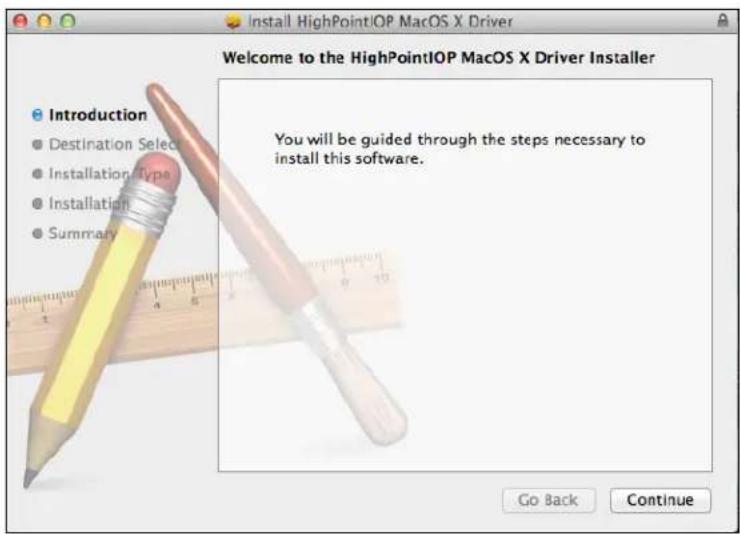

1. Follow the on-screen instructions of the installer.

1. Reboot computer for changes to take effect.

2. Make sure Driver Installed is Yes

Hardware ATA Audio Bluetooth Camera Card Reader Diagnostics Disc Burning Ethernet Cards Fibre Channel FireWire Graphics/Displays Hardware RAID Memory NVMExpress PCI	RocketRAID 4522 SAS Controller:
	Name:	RocketRAID 4522 SAS Controller
	Type:	RAID Controller
	Driver Installed:	Yes
	Tunnel Compatible:	Yes
	Pause Compatible:	Yes
	MSI:	Yes
	Bus:	PCI
	Slot:	Thunderbolt@193,0,0
	Vendor ID:	0x1103
	Device ID:	0x4522
	Subsystem Vendor ID:	0x1b4b
	Subsystem ID:	0x9580
	Revision ID:	0x00b3
	Link Width:	x4
	Link Speed:	5.0 GT/s

Click Apple Icon > About this Mac> System Report > PCI

For Linux Users:

Users with Linux Kernel 3.9.4 or later have embedded RocketRAID 4500 series drivers in system, therefore do not need to install additional drivers. For users with older Linux kernel versions or driver compatibility issues, take the following steps:

1. Visit www.highpoint-tech.com> Support > Documents and Downloads >RocketRAID 4500 Series.
2. Click Download located next to Linux opensource driver

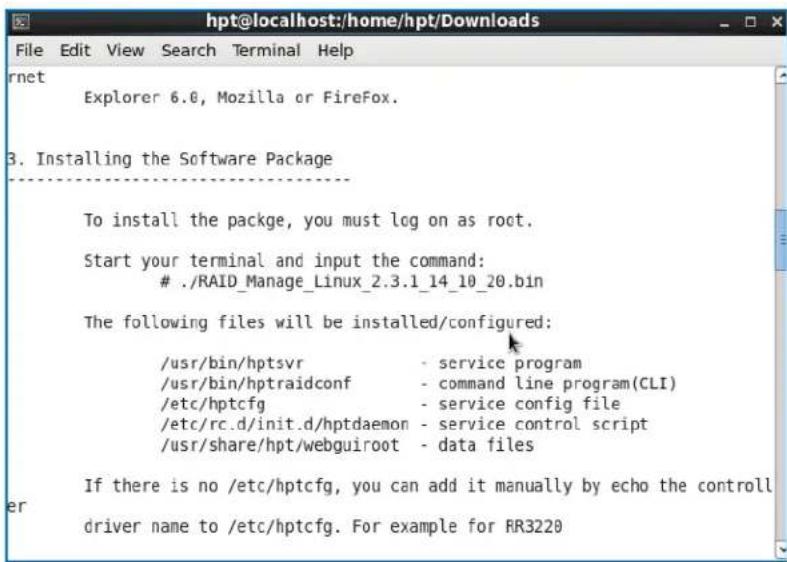

3. Start Terminal and navigate to the directory containing the drivers.
4. Extract the folder contents using the following commands, for example:

- gunzip RR3xxx_4xxx_Linux_Src_v1.10.0_15_06_04.tar.gz

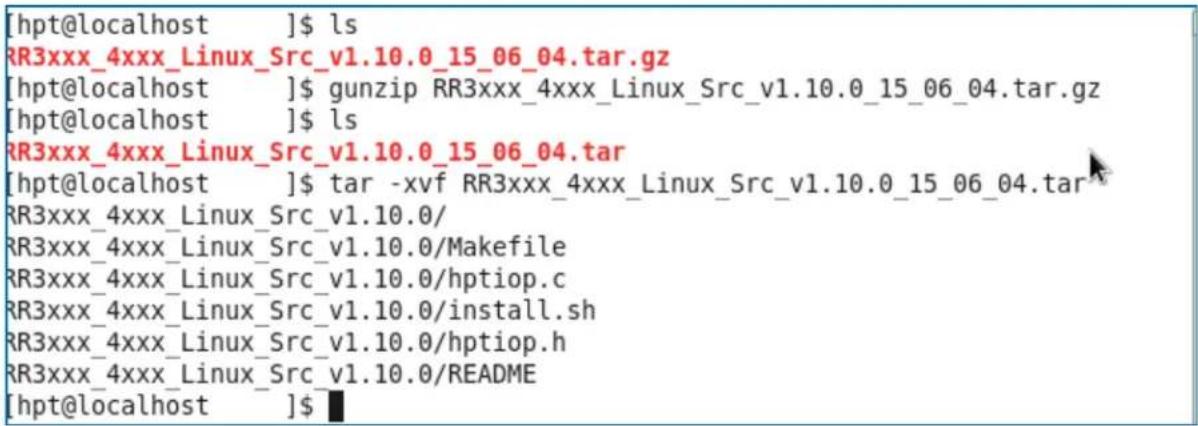

- tar -xvf RR3xxx_4xxx_Linux_Src_v1.10.0_15_06_04.tar

1. Read the README to verify the commands used to install the driver.

2. Enter super user mode. Type make to build driver, then type make install to install the driver.

3. Reboot.

For FreeBSD Users:

1. Visit www.highpoint-tech.com> Support > Documents and Downloads >RocketRAID 4500 Series.

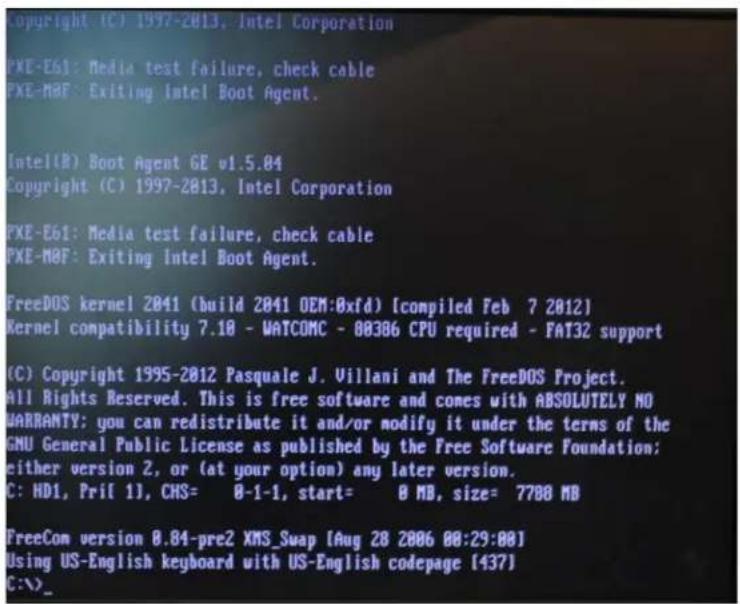

2. Download the FreeBSD drivers and copy them onto a USB thumb drive.
3. Mount the USB and extract the drivers, then copy the driver to /boot/kernel/hptiop.ko.

<h1 id="tar-zxvf-xxxtgz">tar-zxvf xxx.tgz</h1>
<h1 id="cp-hptiop-xxxko-bootkernelhptiopko">cp hptiop-xxx.ko /boot/kernel/hptiop.ko</h1>

1. To set the drivers to automatically load on startup, type the following command.

<h1 id="echo-hptiop_loadyes-bootdefaultsloaderconf">echo 'hptiop_load="YES"' >> /boot/defaults/loader.conf</h1>

For more information, refer to the FreeBSD Manual at: http://highpoint-tech.com/BIOS_Driver/rr4520/FreeBSD/rr4522/Install_FreeBSD_RR3xxx_4xxx.pdf

Step 3A: Install HighPoint RAID Management (WebGUI)

The HighPoint RAID Management (WebGUI) software is a useful tool used to create, maintain, and view your RAID arrays.

For Windows Users:

1. Download the latest WebGUI from our website at www.highpoint-tech.com> Support > Documents and Downloads >RocketRAID 4500 Series

2. Extract and open the contents of the downloaded file.

1. Double-click HighPoint RAID Management.exe.

1. Follow the on-screen instructions to complete the WebGUI installation
2. Double-click the HighPoint RAID Management desktop icon to start the WebGUI. Alternatively, type http://localhost:7402 in your browser address bar.

1. Your default web browser will open and prompt for a username and password (Default username: RAID / password: hpt). Username and password are case-sensitive.

For Mac Users:

1. Download the latest WebGUI from our website www.highpoint-tech.com> Support > Documents and Downloads >RocketRAID 4500 Series

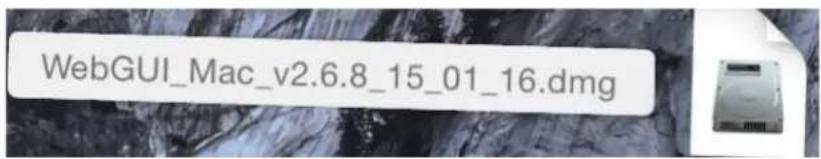

2. Double Click the downloaded Mac WebGUI file.

1. Double click the HighPointWebGUI.pkg to start the WebGUI installer.

1. Follow the installer on-screen instructions to complete the WebGUI installation.
2. Double-click the HighPoint RAID Management desktop icon to start the WebGUI.

1. Your default web browser will open and prompt for username and password (Default username: RAID / password: hpt). Username and password are case-sensitive.

For Linux Users:

1. Visit www.highpoint-tech.com> Support > Document and Downloads >RocketRAID 4500 Series.
2. Navigate to Linux WebGUI and click Download.
3. Start Terminal and navigate to the downloaded files.
4. Extract the contents by typing the following commands (filename varies):

- gunzip RAID Manage Linux v2.3.1 14 10 20.tgz

- tar -xvf RAID_Manage_Linux_v2.3.1_14_10_20.tar

[hpt@win-hpm1fhibepv ~]$ cd Downloads/
[hpt@win-hpm1fhibepv Downloads]$ ls
RAID_Manage_Linux_v2.3.1_14_10_20.tgz
RR3xxx_4xxx_Linux_Src_v1.10.0
RR3xxx_4xxx_Linux_Src_v1.10.0_15_06_04.tar
[hpt@win-hpm1fhibepv Downloads]$ gunzip RAID_Manage_Linux_v2.3.1_14_10_20.tgz

1. Read the README.txt file for specific instructions on how to install.

1. Log in as root and type ./RAID Manage Linux v2.3.1 14 10 20.bin to install.
2. Reboot.

Uninstalling HighPoint RAID Management (WebGUI)

For Windows Users:

1. Open Control Panel.

2. Click Uninstall a program.

3. Select HighPoint RAID Management to uninstall.

For Mac Users:

1. Navigate to /Applications/HPTWEBGUI/uninstall.
2. Click on the uninstall script.
3. Type in the Administrator password when prompted.

Step 3B: Installing HighPoint Command Line Interface (CLI) (Windows / Linux / FreeBSD)

The HighPoint CLI (Command Line Interface) is a command line utility that configures and manages HighPoint RAID controllers via command line. This is ideal for systems that cannot use the browser-based RAID management utility (WebGUI).

For Windows Users:

The HighPoint CLI software is bundled with the Windows platform WebGUI installation. Follow the steps outlined in step 3A to install the CLI.

To run CLI on Windows:

1. Run hptraidconf
2. Click hptraidconf to open a cmd terminal.

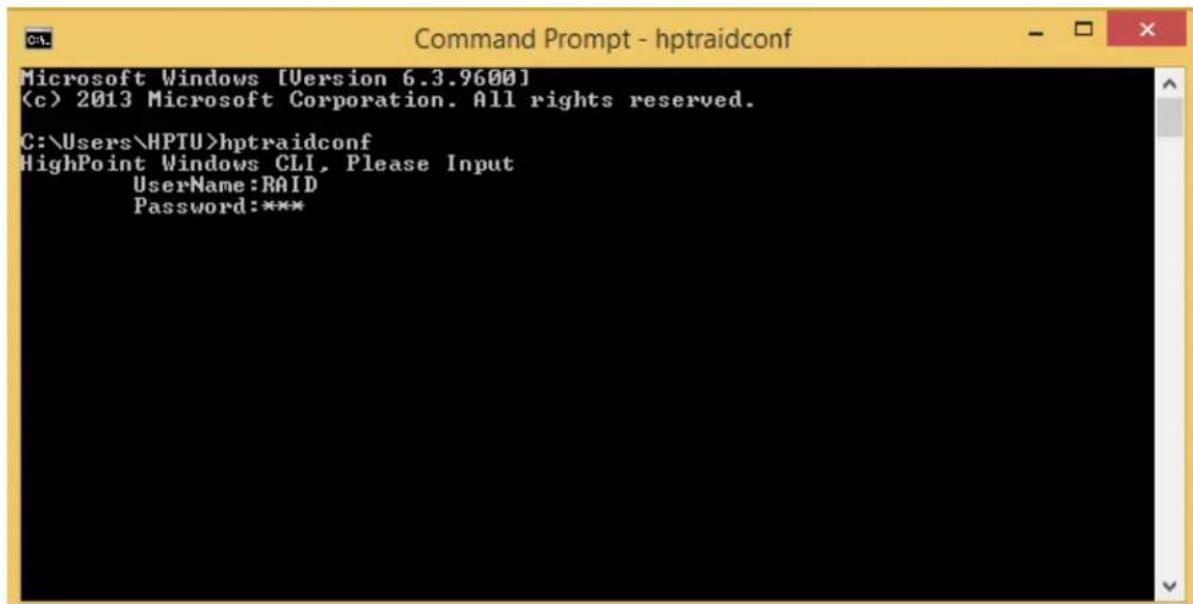

3. Input your username and password when prompted (default username: RAID / password: hpt.)

For Linux Users:

For Linux users, the CLI is an included package with WebGUI.

To run CLI on Linux:

1. Visit www.highpoint-tech.com for the latest CLI management update.
2. Download and save the file onto your computer.
3. Navigate to the file in terminal and then read the README for installation instructions.
4. Type ./RAID_Manage_Linux_2.3.1_14_10_20.bin (file name will vary) to install.
5. Once finished type hptraidconf to start CLI.
6. Input your username and password when prompted (default username: RAID / password: hpt).

Step 4A: Create RAID Arrays using WebGUI

For both Mac and Windows users:

1. Login to WebGUI (Default username: RAID / password: hpt).
2. Once logged in, click the Logical tab.

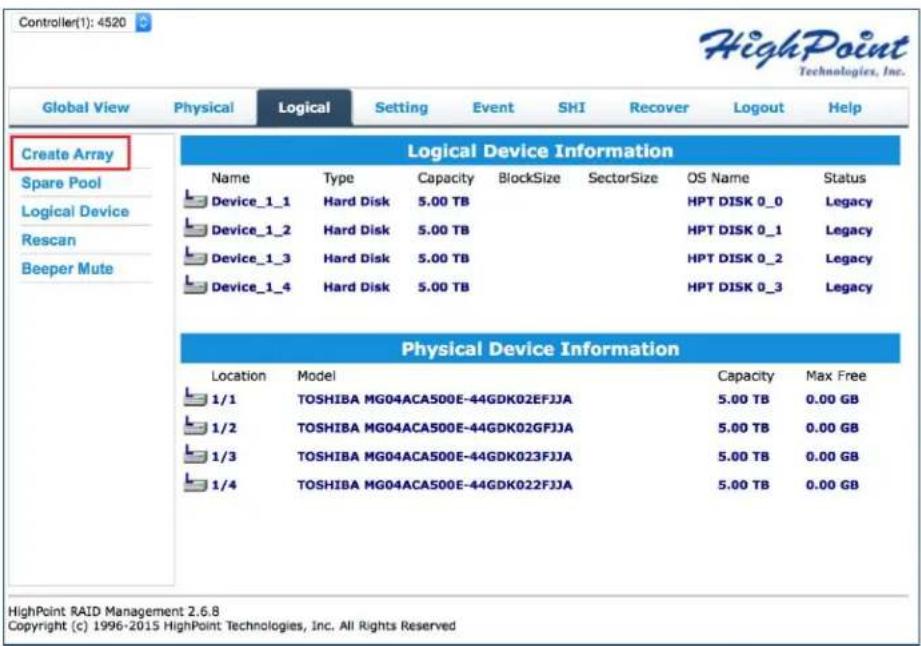

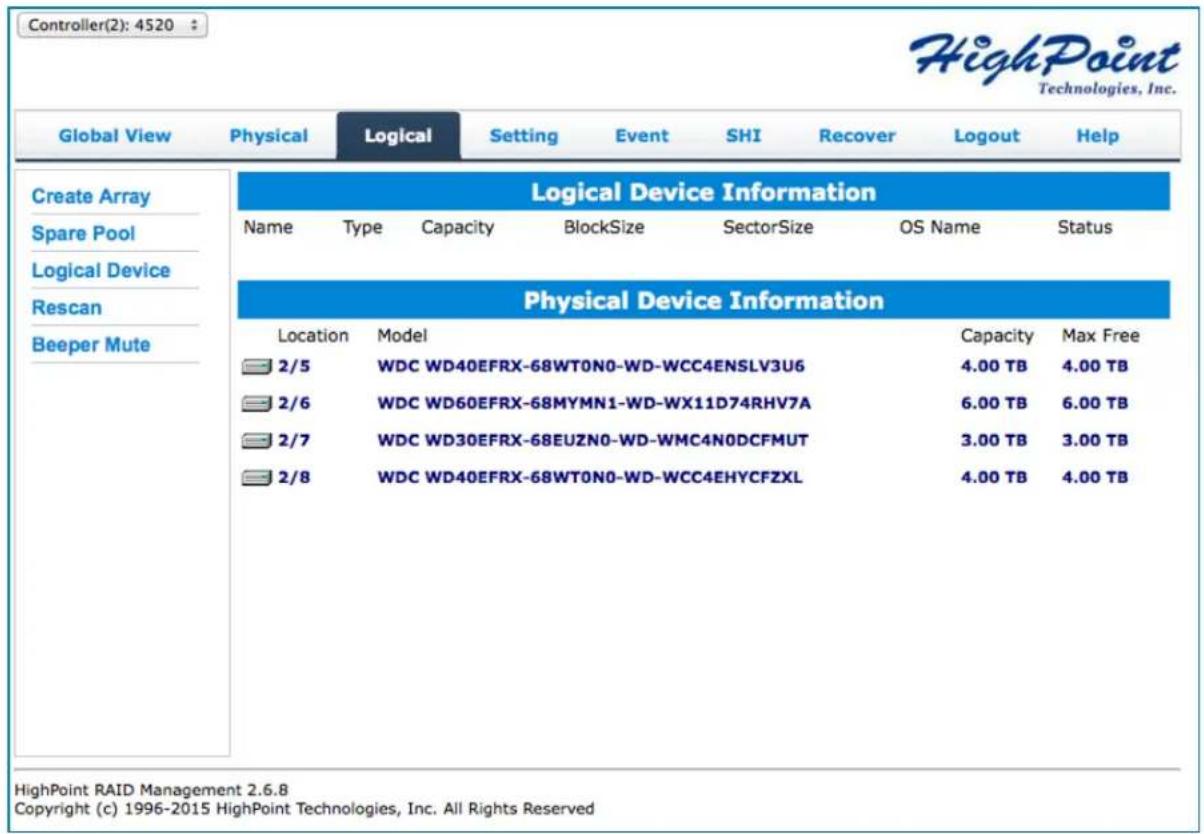

Click Logical to go to create array page.

3. Click Create Array:

1. The RAID creation page provides many features, options, and settings. Detailed descriptions are provided on pg. 57.
2. Select RAID5 for Array Type. (RAID Quick Reference on pg. 84)
3. Set array name as "Tutorial_Array".
4. Select Quick Init as the initialization method.
5. Select Write Back as the Cache Policy for better disk write performance.
6. Select 64K as the Block Size.
7. Select all 4 available disks.
8. Leave the Capacity, Sector Size, DV mode, and Disk Cache Policy settings at their default values.
9. Click Create

Create Array page.

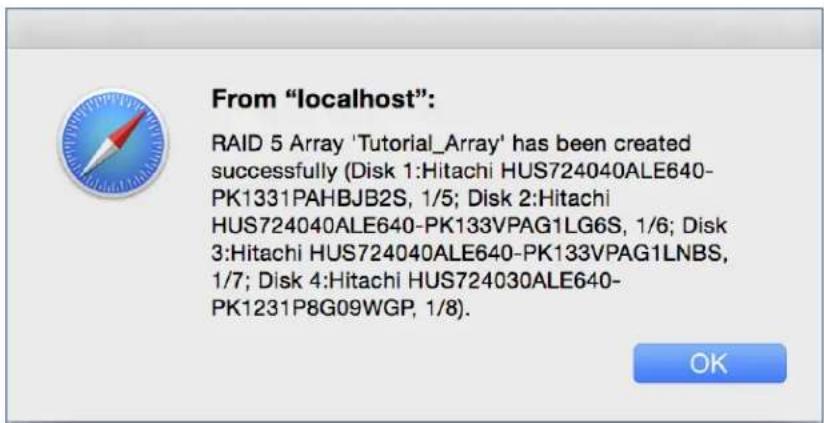

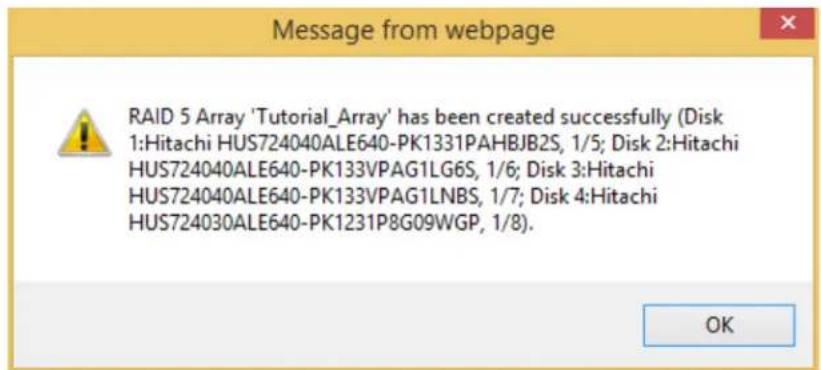

1. Once created, the WebGUI will acknowledge the array has been created and the system will prompt you to initialize the new volume.

(Mac OS X) Array successfully created.

New volume needs to be initialized before use.

(Windows) Array successfully created.

(Windows) For Windows platforms, user will be prompted to initialize disks in Disk Management.

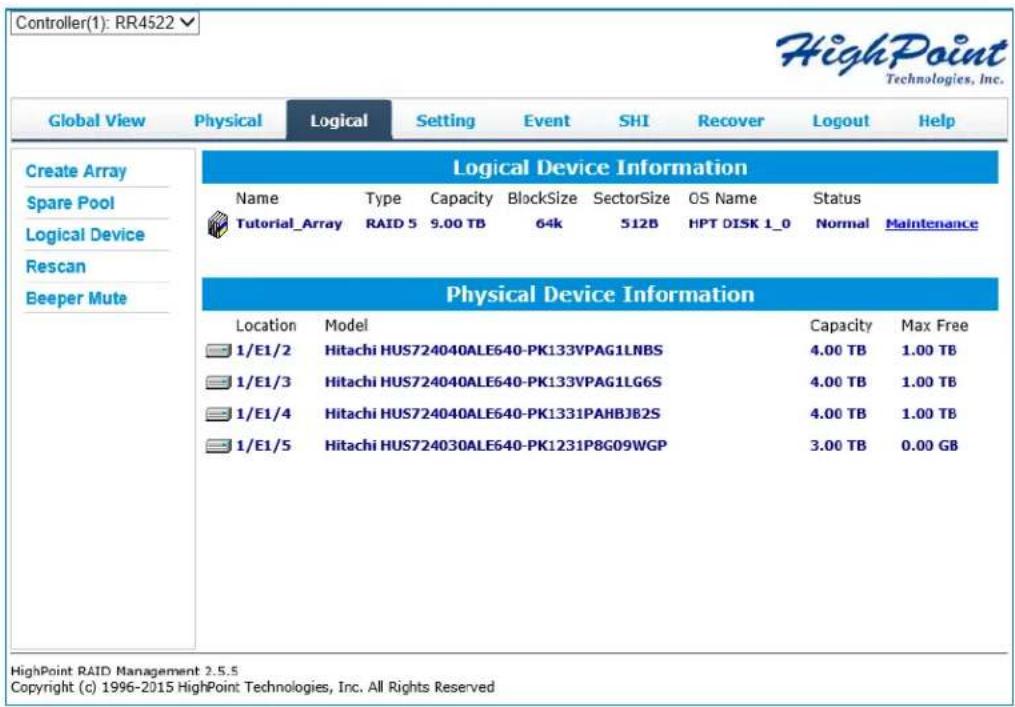

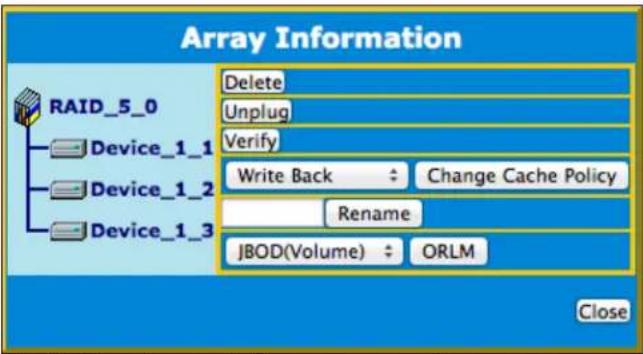

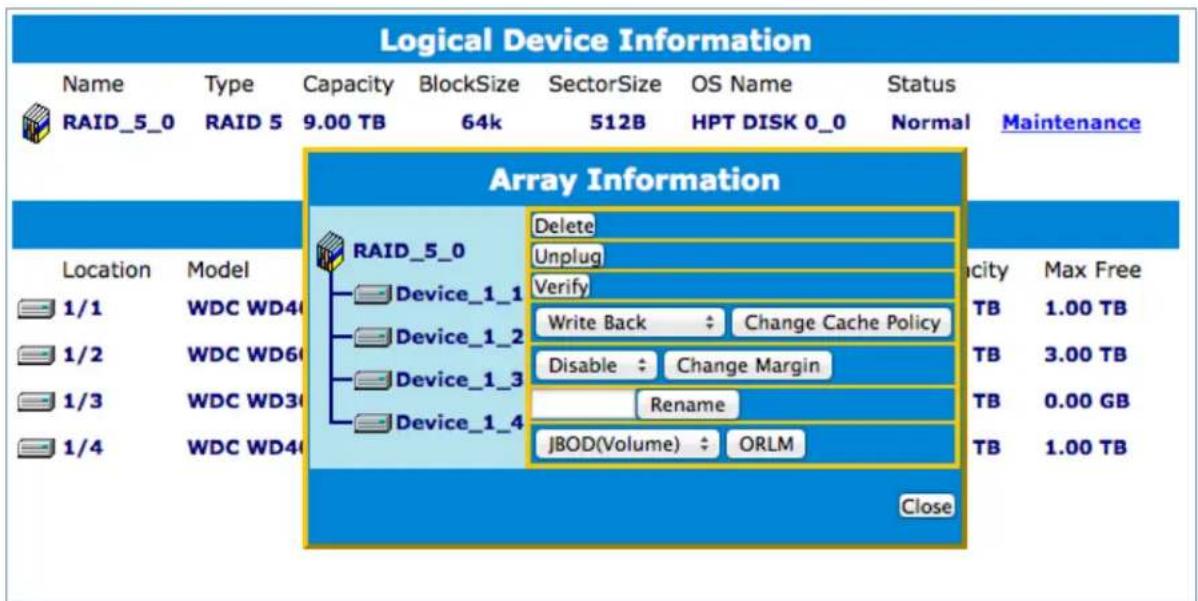

1. Tutorial_Array can now be seen under Logical Device Information. (Take note that the OS name is HPT DISK 0_0; this will help identify which volume to initialize)

Logical Device Information
Name	Type	Capacity	BlockSize	SectorSize	OS Name	Status
Tutorial_Array	RAID 5	9.00 TB	64k	512B	HPT DISK 0_0	Normal	Maintenance

Tutorial_Array is now created and can be seen in Logical tab.

Step 4B: Create RAID Array using RocketRAID BIOS (PC only)

RAID arrays can also be created using the RocketRAID BIOS. To enter the RocketRAID BIOS press CTRL + H during PC boot up.

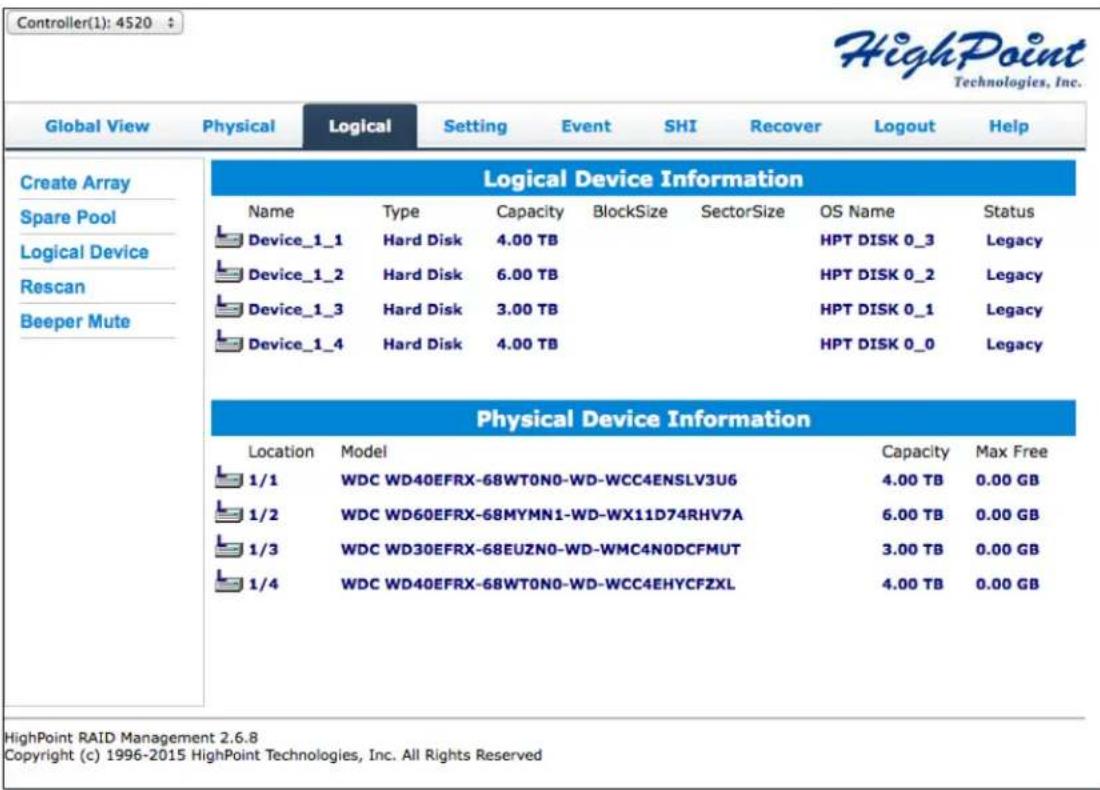

Legacy disks, or disks that contain previous partitions, have to be initialized before they can be used for RAID.

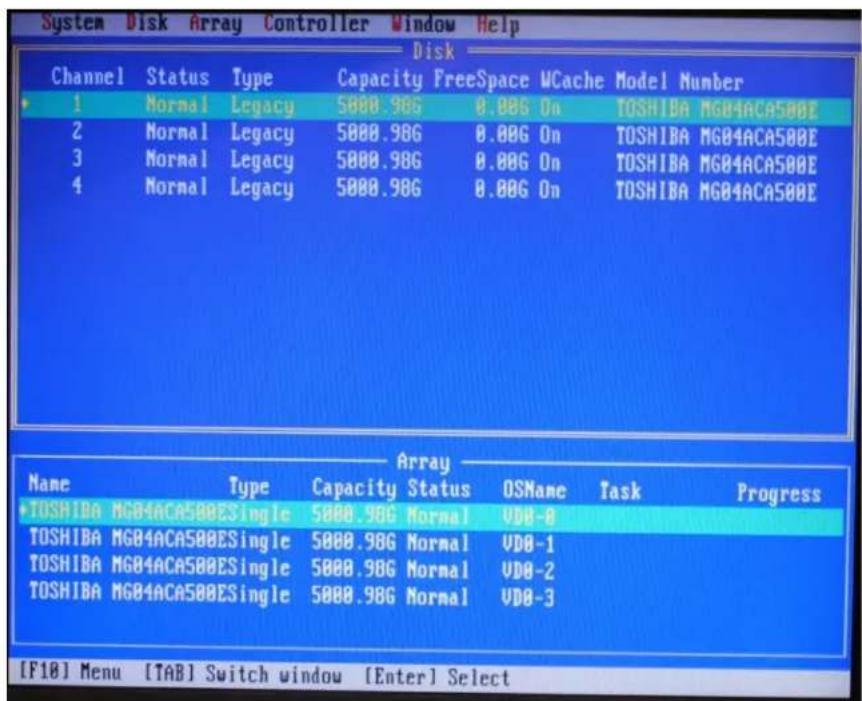

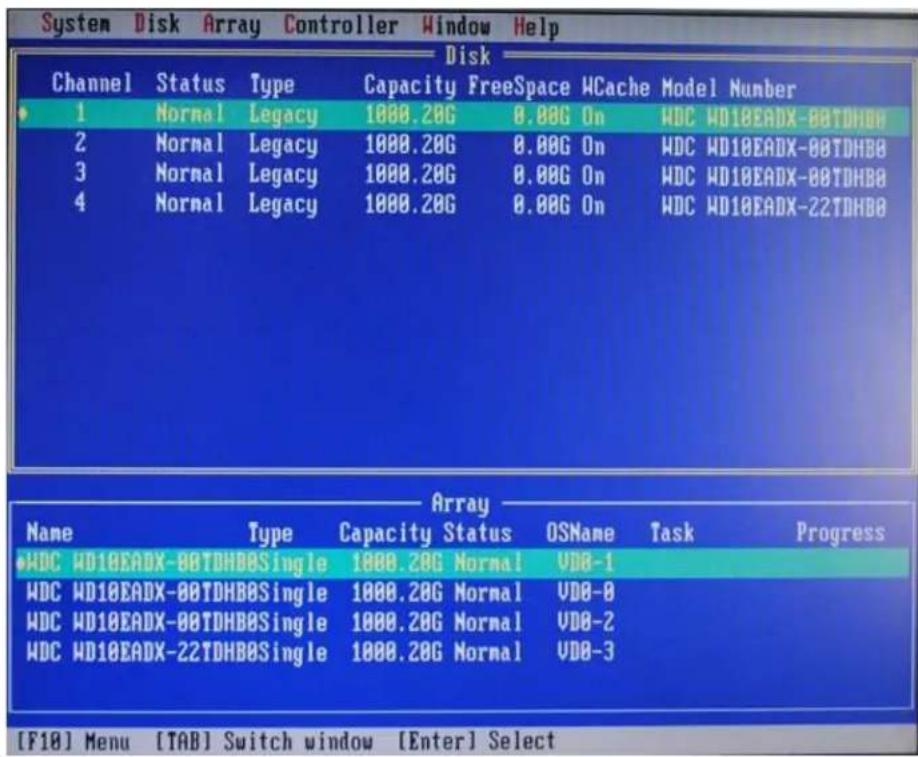

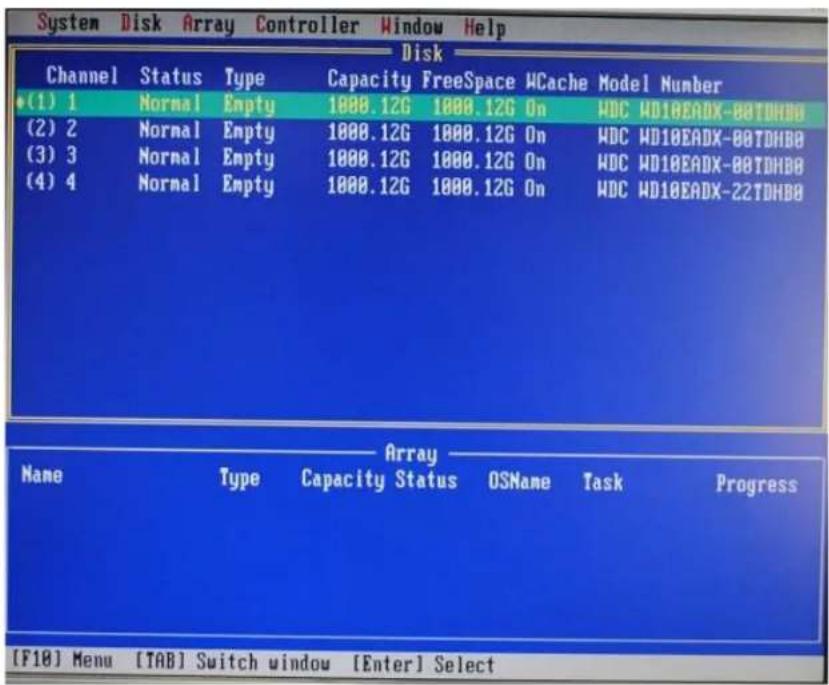

4 Legacy disks are shown here.

Initializing Disks

Before initializing, you must make sure you have the disk panel selected. The gold frame represents your current selection. By default, you start on the disk panel.

1. Press ALT + W to access Window tab.
2. Select disk(s).
3. Use keyboard arrow keys to navigate and press Enter to select desired disk(s).
4. Once disks are selected, press ALT + D to activate disk tab.

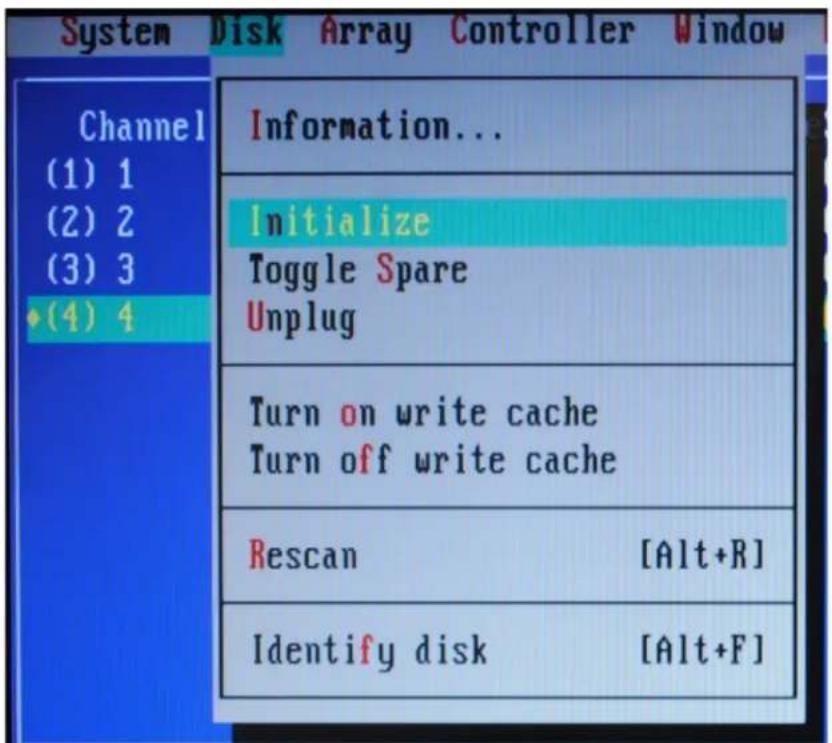

5. Select Initialize.

Four disks are selected and about to be initialized.

1. Press Enter.

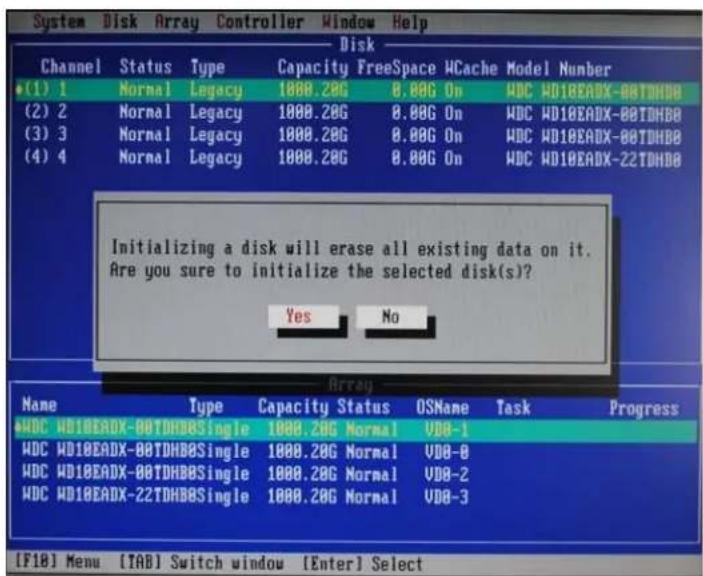

2. A prompt will warn you that data will be erased.

1. Select Yes.
2. Once initialized, you can proceed to create an array.

Create Arrays

1. Navigate to the disk panel (ALT + W, then press 1)
2. Select each disk you wish to include in your array

System Disk Array Controller Window Help
Disk
Channel	Status	Type	Capacity	FreeSpace	WCache	Model Number
(1) 1	Normal	Legacy	1000.28G	8.00G On	WDC WD18EADX-88TDHBB
(2) 2	Normal	Legacy	1000.28G	8.00G On	WDC WD18EADX-88TDHBB
(3) 3	Normal	Legacy	1000.28G	8.00G On	WDC WD18EADX-88TDHBB
(4) 4	Normal	Legacy	1000.28G	8.00G On	WDC WD18EADX-22TDHBB
Array
Name Type Capacity Status OSName Task Progress
WDC WD18EADX-88TDHBBSingle 1000.28G Normal VD8-1
WDC WD18EADX-88TDHBBSingle 1000.28G Normal VD8-8
WDC WD18EADX-88TDHBBSingle 1000.28G Normal VD8-2
WDC WD18EADX-22TDHBBSingle 1000.28G Normal VD8-3

Each selected disk has (#) symbol on the left.

1. Press ALT + A to open array panel
2. Press Create:

Press ALT+A to open menu, then select create.

1. Press Spacebar to navigate and make selections (TAB also navigates between windows)

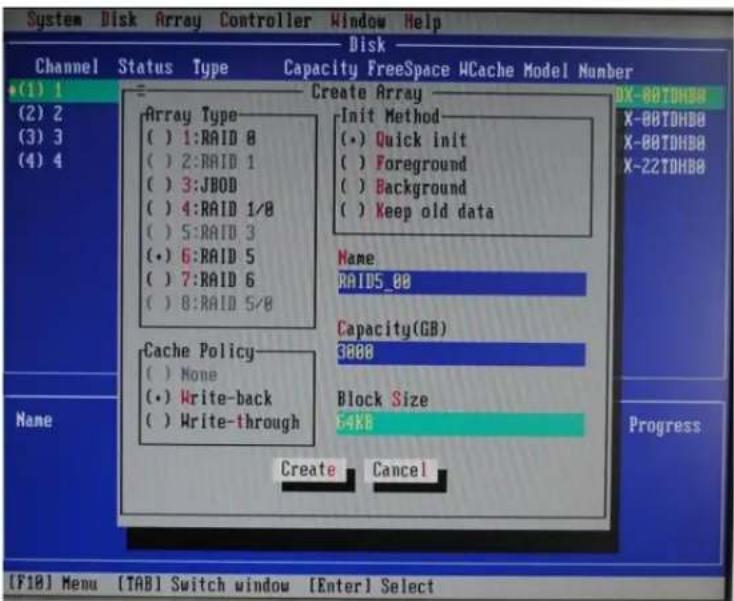

RocketRAID BIOS create array option menu.

1. Press Create (ALT + E)

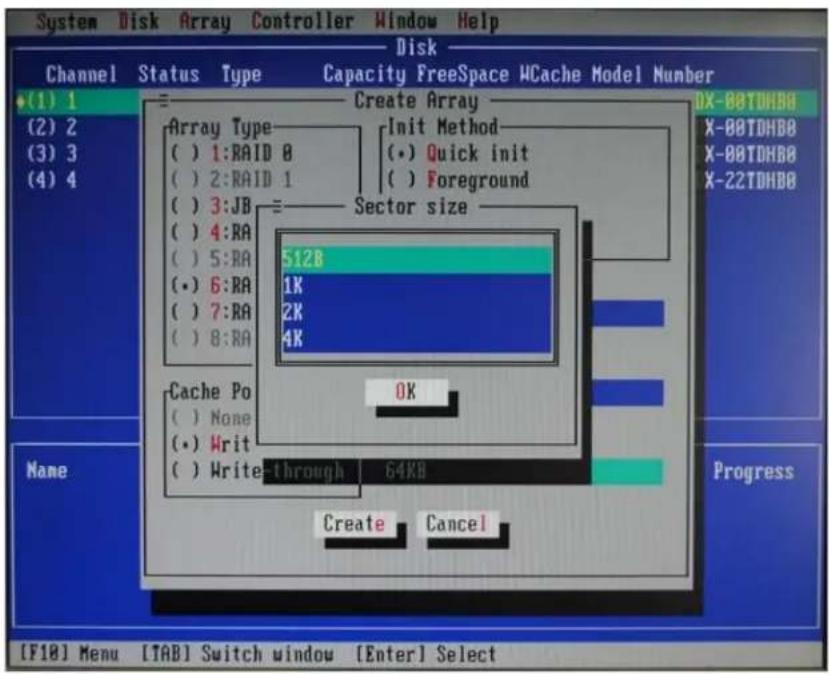

2. A prompt about sector size will pop up, select a sector size (irrelevant for Windows XP 64-bit and later.)

1. Your created array will show up in the Array Window.

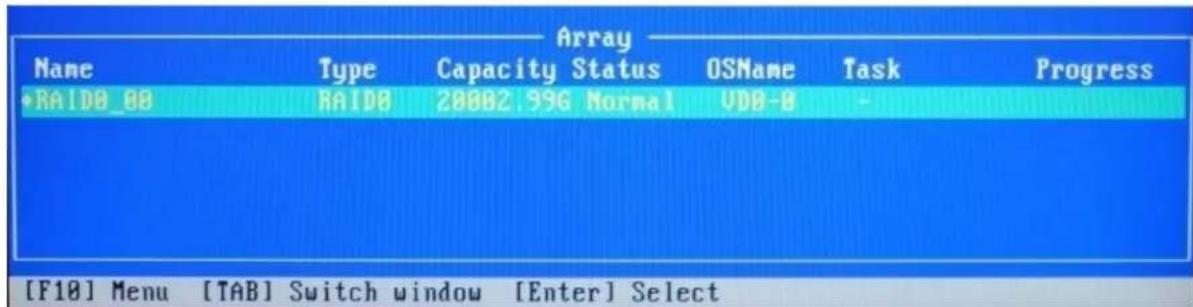

Array RAID5_00 has been created.

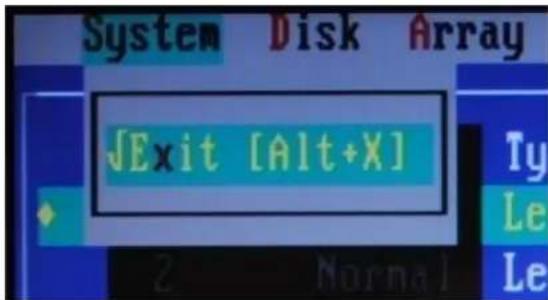

1. Exit the BIOS (ALT+X). Alternatively, ALT + S to open System Tab, then select Exit.

Step 4C: Create RAID Arrays using CLI (Windows / Linux / FreeBSD)

Start your operating systems console such as command prompt (Windows). On the command line, type hptraidconf to start HighPoint CLI. Enter your login credentials when prompted (default username: RAID / password: hpt).

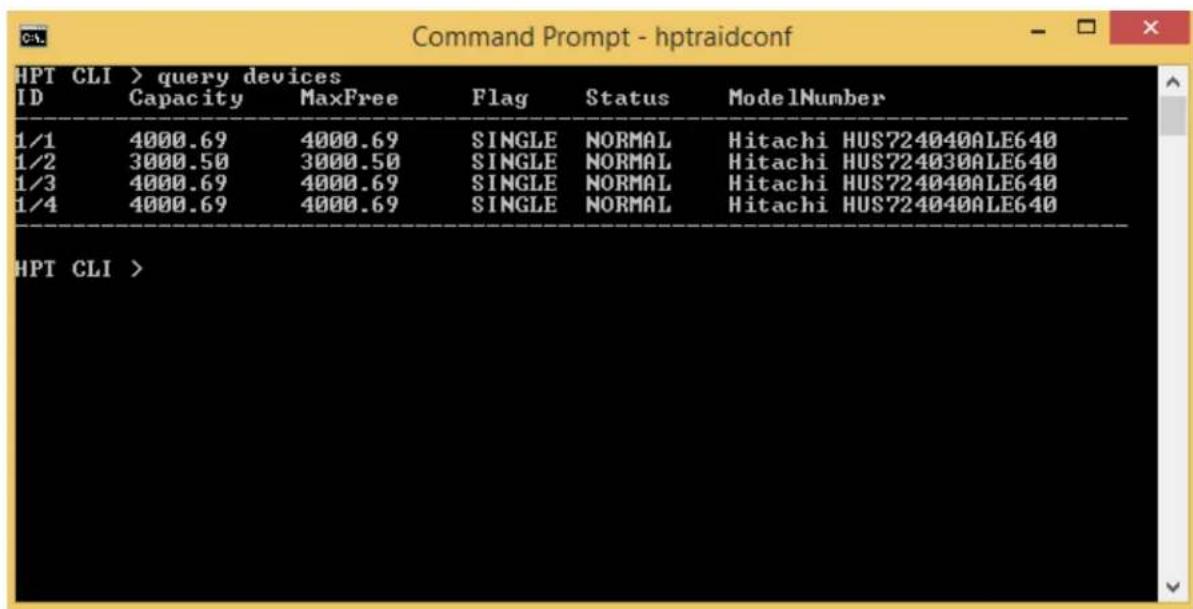

In order to see the devices connected to the controller, type query devices.

The device ID gives the position of each drive and is needed to select which drive will be included in the array.

To create a 4 disk RAID 5 array named Tutorial_Array input the following command:

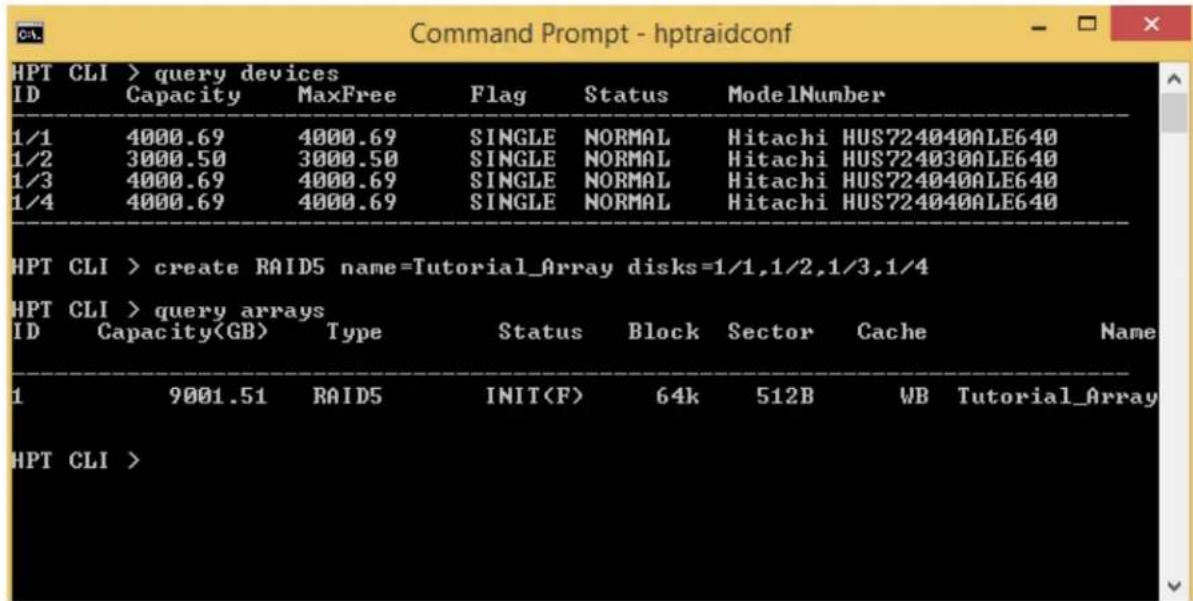

HPT CLI > create RAID5 name = Tutorial_Array disks = 1/1, 1/2, 1/3, 1/4

To view the created array, type query arrays.

For more HighPoint CLI information type help in the command line or refer to the documentation included in the software package.

Step 5: Initialize and format the RAID Array

Before using the newly created RAID array, you must initialize and format the new volume.

For Windows Users:

1. After creating the RAID array, open Windows Disk Management.
2. Disk Management will ask to initialize unknown disks either in MBR format or GPT.

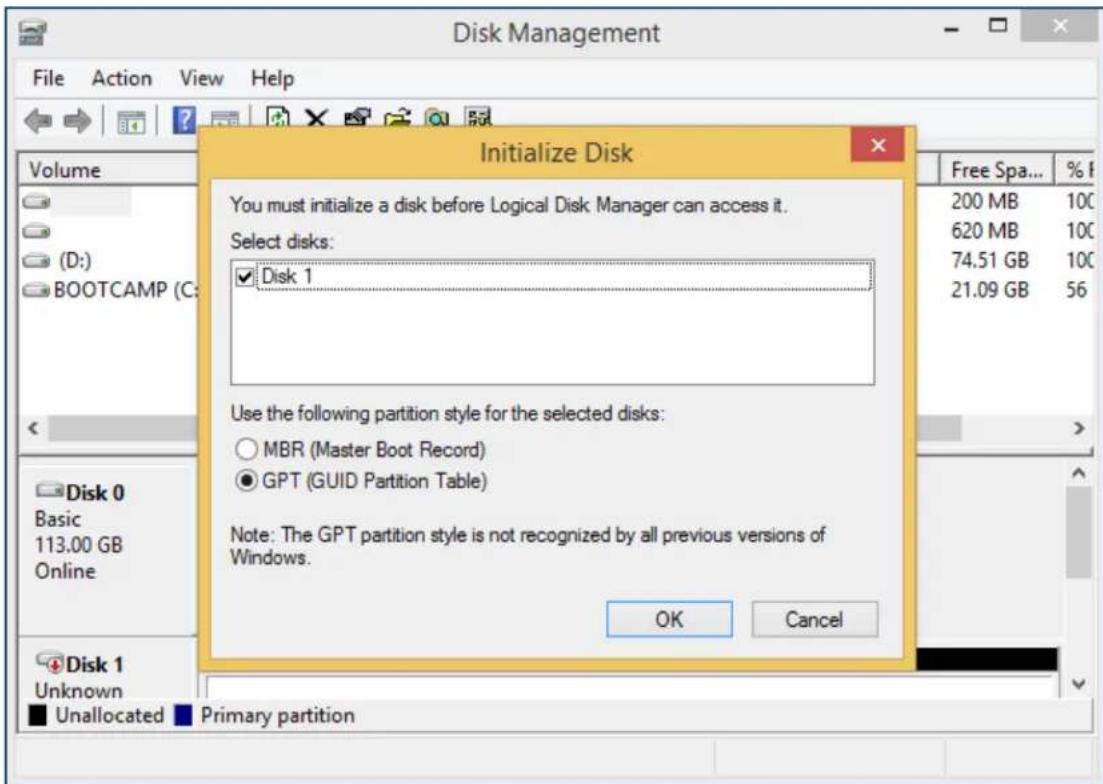

(Windows) Disk Management asks to initialize the disks before use. As a general rule, select MBR for disks less than 2TB and GPT for disks greater than 2TB.

1. Right click the new disk, and click properties.

1. In properties, check and make sure it is a HPT VD (HighPoint Virtual Disk).

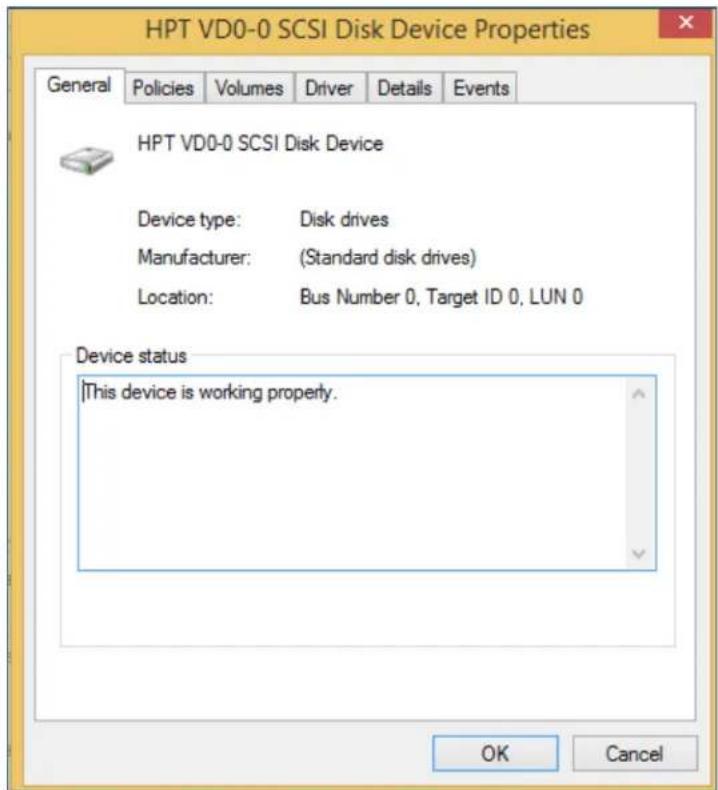

Disk properties show HPT VD 0-0.

1. Once the disk has been confirmed, right click the unallocated space and click New Simple Volume.

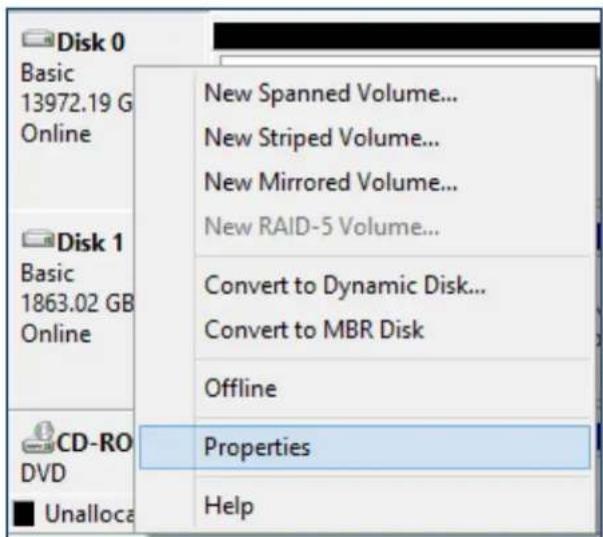

Disk 0 Basic 13972.19 GB Online	13972.19 GB Unallocated	New Simple Volume...
		New Spanned Volume...
		New Striped Volume...
		New Mirrored Volume...
		New RAID-5 Volume...
Disk 1 Basic 1863.02 GB Online	System Reserved 350 MB NTFS Healthy (System, A)	Properties
		Help

Right Click unallocated space, then click New Simple Volume.

1. Follow the on-screen instructions to configure and format the drive.
2. Once finished, the new volume will receive a drive letter and be available for use.

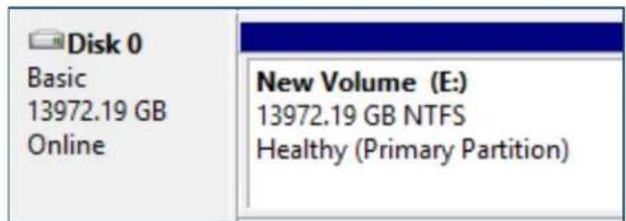

RAID array is now formatted as NTFS and drive letter E:

For Mac Users:

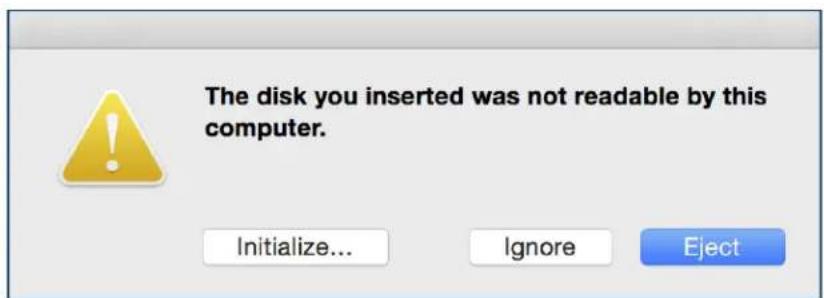

1. After creating a RAID array, click Initialize when prompted. (Note: If you ignored the prompt, simply open Disk Utility).

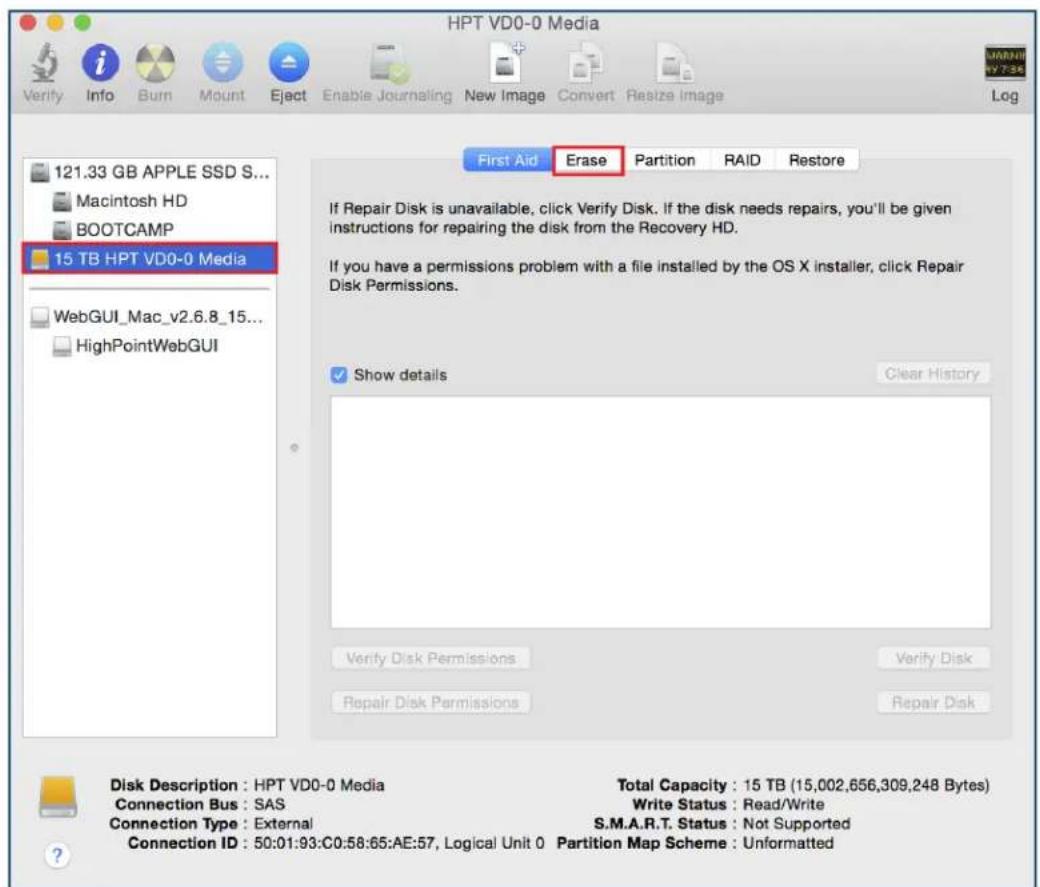

Disk Utility for Mac.

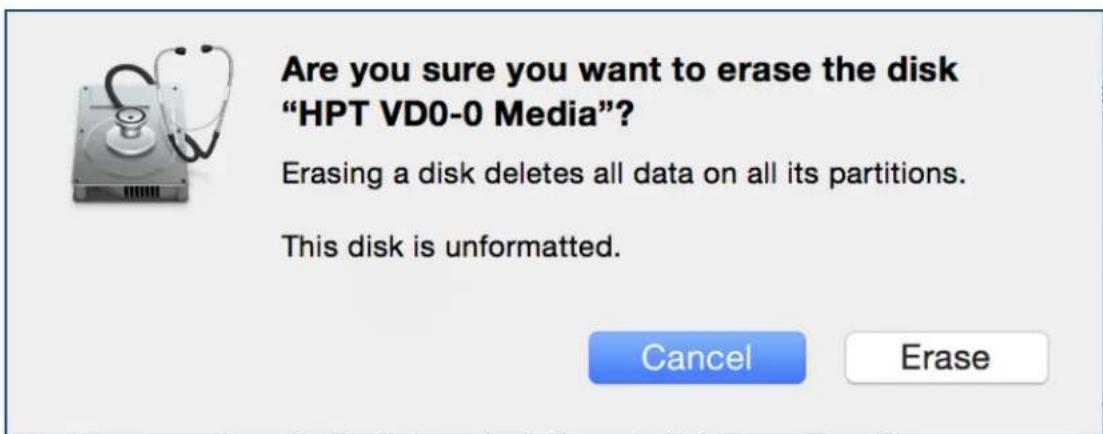

1. In Disk Utility, select the Volume you created on the right, then click the Erase tab.

1. Select the desired disk format and disk name then click Erase. (Note: All previous data on disks will be erased.)

1. When finished, your new RAID volume will be available for use.

(Mac) Tutorial_Array volume created and mounted on desktop.

For Linux Users:

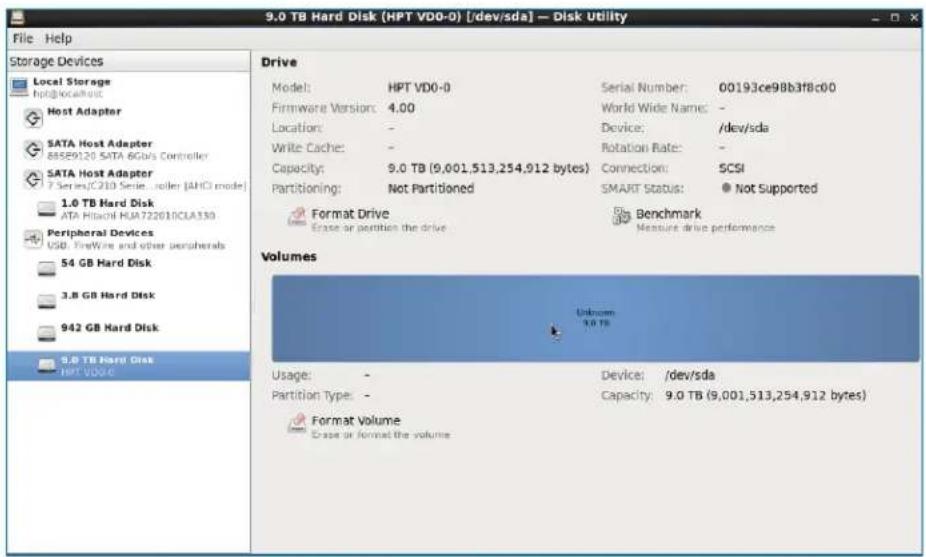

1. After creating a RAID array, open your disk utility program to view the logical volume.

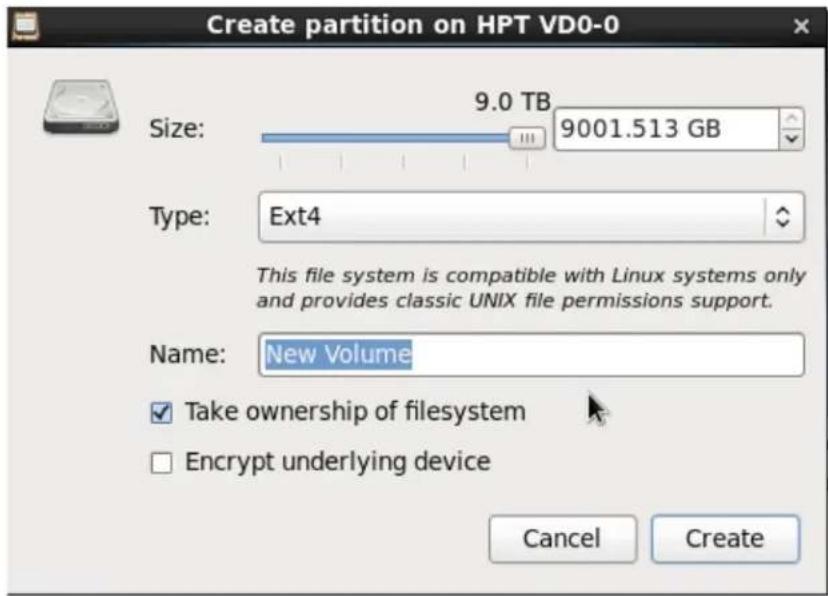

1. Click Format drive to create an MBR or GPT partition table on the drive.
2. Click Format Volume to format the drive.

1. Once formatted, the volume will be available for use.

Manage your RAID array

The following features allow you to monitor and maintain your arrays to prevent any critical failures from occurring:

• Spare Pool (pg.36)
• Email Notifications (pg.37)
  • SMART Monitoring (pg.40)

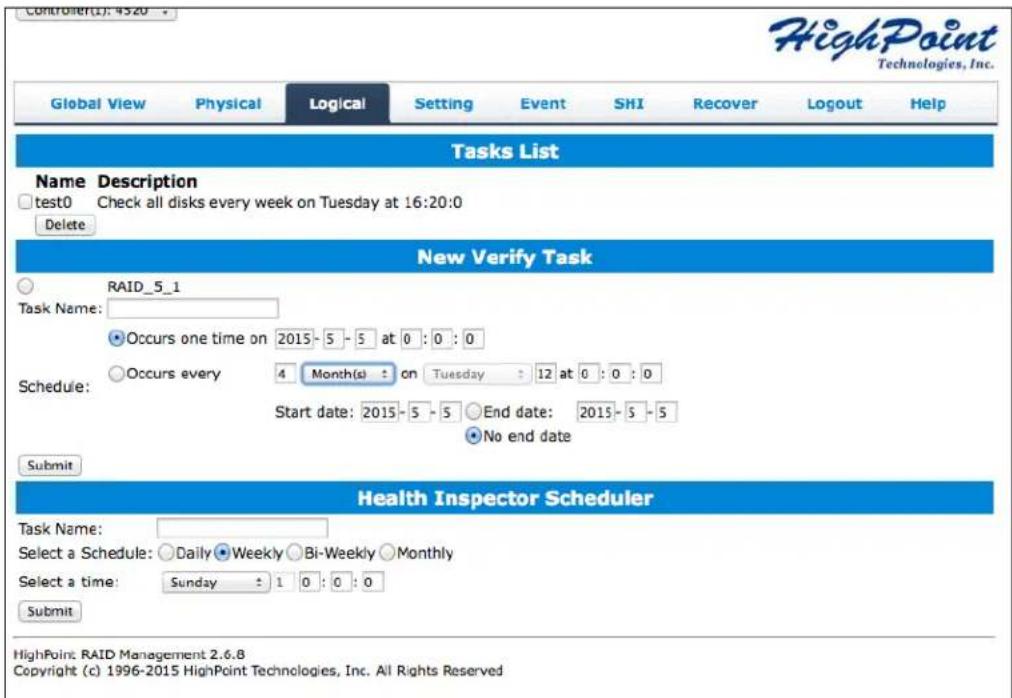

  • Health Inspector Scheduling (pg.41)

RAID Spare Pool

Physical drives marked as a spare will automatically be added to a redundant RAID array (RAID levels 1, 1/0, 5, and 6) whenever there is a disk failure. Enabling this feature minimizes the chances of data loss since it reduces the time an array is in critical status.

Add/Remove Spare

Using WebGUI:

1. Log in WebGUI.
2. Click Logical.
3. Click Spare Pool.
4. Check the box for the disk you want as a spare from Available Disks.
5. Click Add Spare.

Disks added to the spare pool will show under Spare Pool and can be removed by checking the disk checkbox from Spare Pool> Click Remove Spare.

Using RocketRAID BIOS:

1. Navigate to the disk panel (Press ALT + W, then press 1).
2. Use keyboard arrow keys to select desired disk.
3. Press enter to confirm each selection.
4. Press ALT + D to open disk tab.
5. Select Toggle Spare.

Disks added to the spare pool will show under Spare Pool and can be removed by checking the disk checkbox from Spare Pool> Click Remove Spare.

Email Notifications

When enabled, all added recipients will receive an email notification for any event log entries. (More information about events refer to pg.80)

To set up email alerts:

1. Check the Enable Event Notification box.
2. Enter the ISP server address name or SMTP name.
3. Type in the email address of the sender (email account that is going to send the alert).
4. Type in the account name and password of the sender.
5. Type in the SMTP port (default: 25).
6. Check support SSL box if SSL is supported by your ISP (port value will change to 465, refer to your ISP if you have a specific SMTP port.

Note: After you click 'Change Setting' the password box will become blank.

Adding Email Recipients

You can add multiple email addresses as receivers of a notice.

1. Type the email of the recipient in the E-mail text box.
2. Type the name of the recipient in the Name text box.
3. Check which type(s) of events will trigger an email in the respective Event Level check boxes.
4. (Optional) Click test to confirm settings are correct by sending out a test email.
5. Click add to add the recipient to recipient list.
6. The added recipient will display in under Recipients.

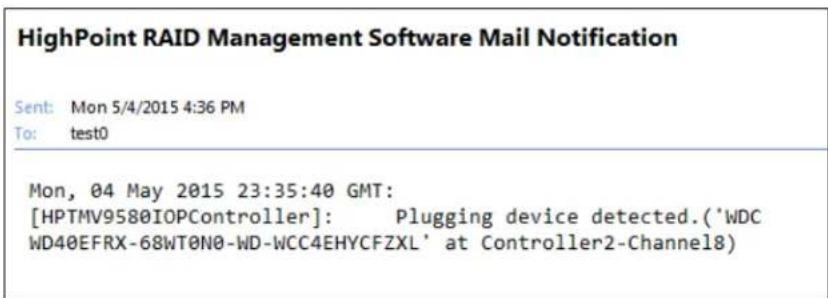

The email will send to your recipients the output recorded in the event log.

Example event log email message.

WebGUI Remote Login

A user connected to a local network can remotely access the WebGUI using the IP address of the host device.

To obtain your IP address

For Windows Users:

1. Open a command prompt window on the host computer.
2. Type ipconfig.
3. Look for the section that contains your network adapter information.
4. Note the IP address.

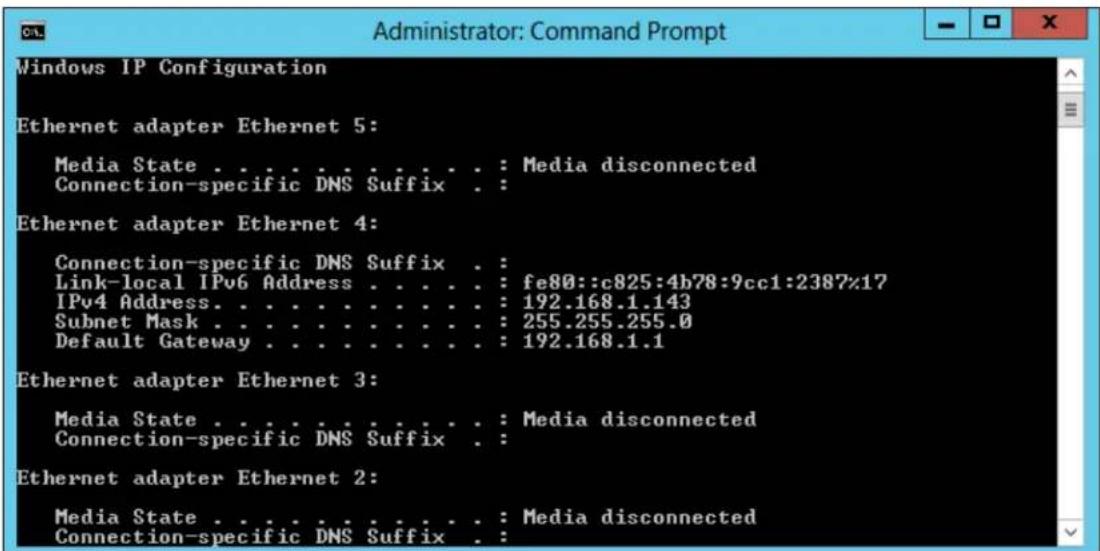

Example: The IPv4 address is under Ethernet adapter Ethernet 4 and is 192.168.1.143

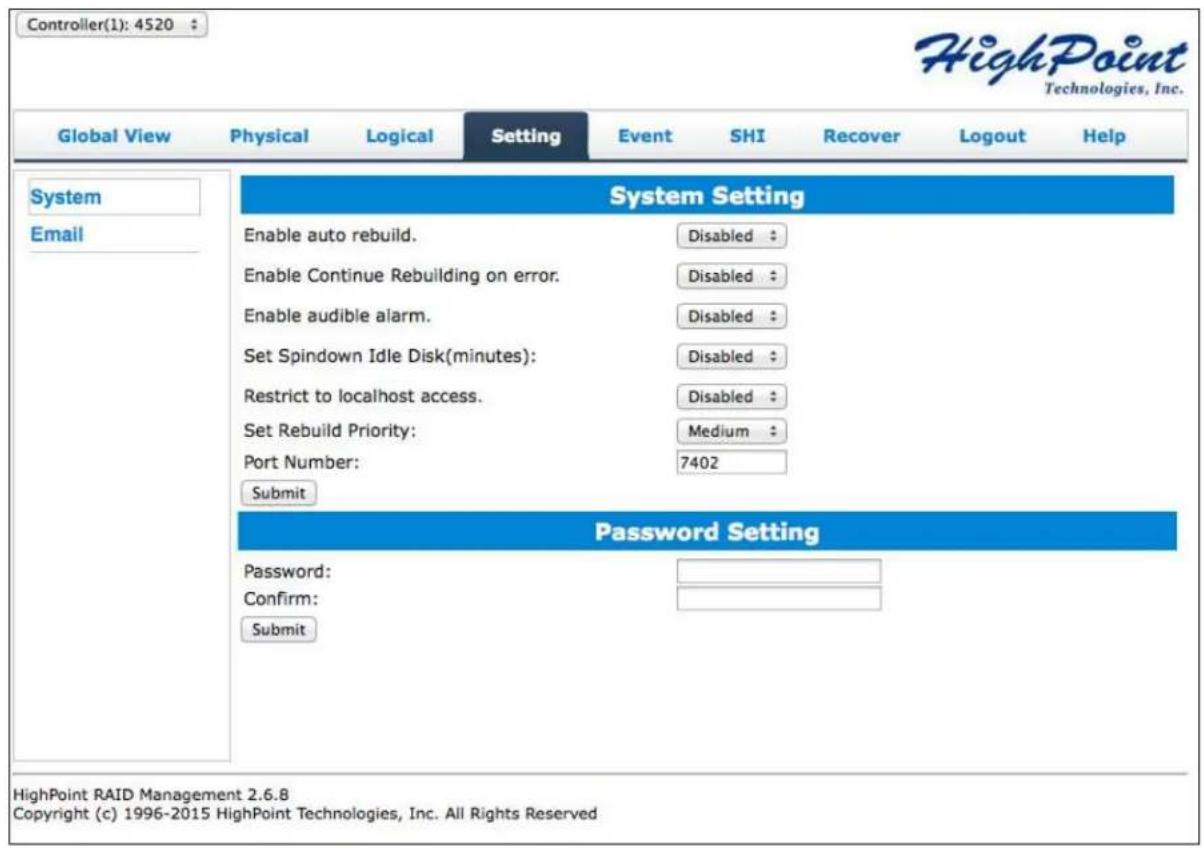

Note: Make sure Restrict to localhost access is disabled in WebGUI Setting (Refer to setting)

You can then remotely access the WebGUI using any other computer that is in your local network by opening any web browser and typing http://{IP address of host computer}:7402 (default port is 7402).

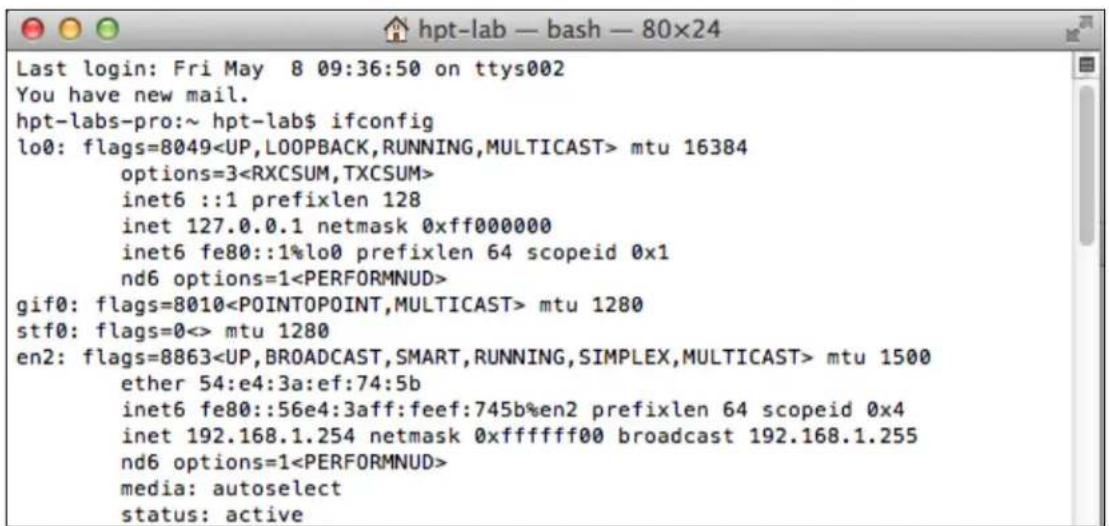

For Mac Users:

1. Open a terminal window on the host computer (computer that is connected to the RR4522.)
2. Type ifconfig.
3. Look for the connection that has status: active
4. Write the IP address located after inet:

Example: en2 has active status, the IP is 192.168.1.254

For Linux Users:

1. Open a terminal window on the host computer (computer that is connected to the RR4522.)

2. Type ifconfig | grep 'inet'

[hpt@localhost ~]$ ifconfig | grep 'inet'
    inet addr:192.168.1.92 Bcast:192.168.1.255 Mask:255.255.255.0
    inet6 addr: fe80::ca60:ff:fec2:b0be/64 Scope:Link
    inet addr:127.0.0.1 Mask:255.0.0.0
    inet6 addr: ::1/128 Scope:Host
[hpt@localhost ~]$

1. Write the IP address located after inet:

Storage Health Inspection (SHI)

The Storage Health Inspector (SHI) monitors each individual disk's health. Monitoring disk SMART attributes can prevent critical RAID failures from occurring.

This section covers the following:

• Enabling SMART Monitoring
• Disabling SMART Monitoring
- Changing HDD Temperature Threshold

Enabling SMART Monitoring

To access the SMART attributes of an individual disk:

1. Log in to WebGUI (default user: RAID password: hpt).
2. Select the proper controller using the drop down menu on the top left.
3. Click the SHI tab.
4. Click SMART on the desired disk.
5. Click Enable to enable SMART monitoring.

Disabling SMART monitoring

You have the option to disable SMART monitoring on each individual disk:

1. Select the proper controller using the drop down menu on the top left.

2. Click the SHI tab.

3. Click SMART on desired disk.

4. Click Disable.

Note: Disabling SMART will prompt the Storage Health Inspector to change the disk status to 'Failed'. The RocketRAID alarm will not alert you when this setting is disabled. Any potential warnings related to S.M.A.R.T attribute technology will not trigger.

Changing HDD Temperature Threshold

To ensure hard disk temperatures remain cool, enable SMART to monitor disk temperatures. In SHI, you can set a threshold so that the WebGUI or controller alarm (if enabled) can warn you when physical disks get too hot.

1. Log in to WebGUI.
2. Select the controller from the drop down on the top left.
3. Click SHI.
4. Type the desired hard disk temperature threshold (°F).
5. Click Set.

Utilizing the Health Inspector Scheduler

The Health Inspector Scheduler (HIS) enables you to periodically check your disk/arrays to ensure they are functioning optimally.

Creating a New Verify Task

All arrays will appear under New Verify Task

1. Log in to WebGUI.
2. Select the proper controller from the top left drop down.
3. Click SHI.
4. Click Schedule.
5. Select the array you want to schedule the verify task.

6. Type the name in Task Name entry box.

7. Choose whether you want to schedule.

• One time verify task on specific date (YYYY-MM-DD) at (HH:MM:SS, 24-hr clock).
- Or a specific schedule you can adjust based on Daily, Weekly, or Monthly options.

1. Click Submit.

2. Your entry will appear under Tasks List.

Note: New Verify Task box only appears if you have normal status arrays. If you have a critical array, New Rebuild Task will replace New Verify Task.

RAID Expansion (OCE/ORLM)

Important: It is recommended to Verify/Rebuild your array before Expanding or Migrating. Once you start an OCE/ORLM procedure, you can stop the process but it must be resumed until completion.

To add more capacity to your current configuration, follow these steps:

1. Log in WebGUI
2. Select desired controller from drop down menu on top left
3. Click Logical
4. Click Maintenance for the array you want to change
5. Select a different RAID level to Migrate
6. Select the same RAID level to Expand

1. Important: Record all the physical drives currently in array.
2. Click ORLM
3. Select the physical drives you recorded earlier and the drives you want to add
4. Click Submit

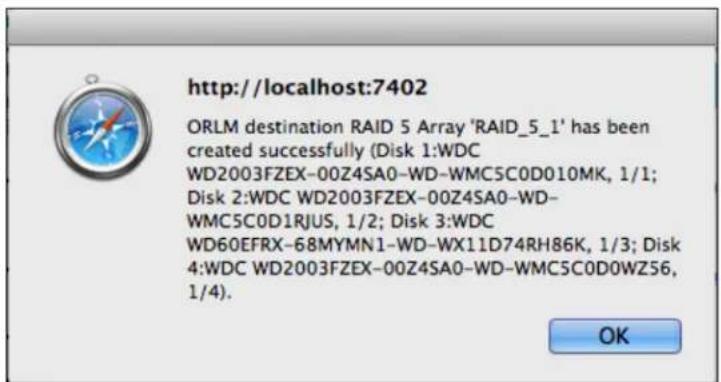

Upon submission, you will receive a prompt stating ORLM created successfully.

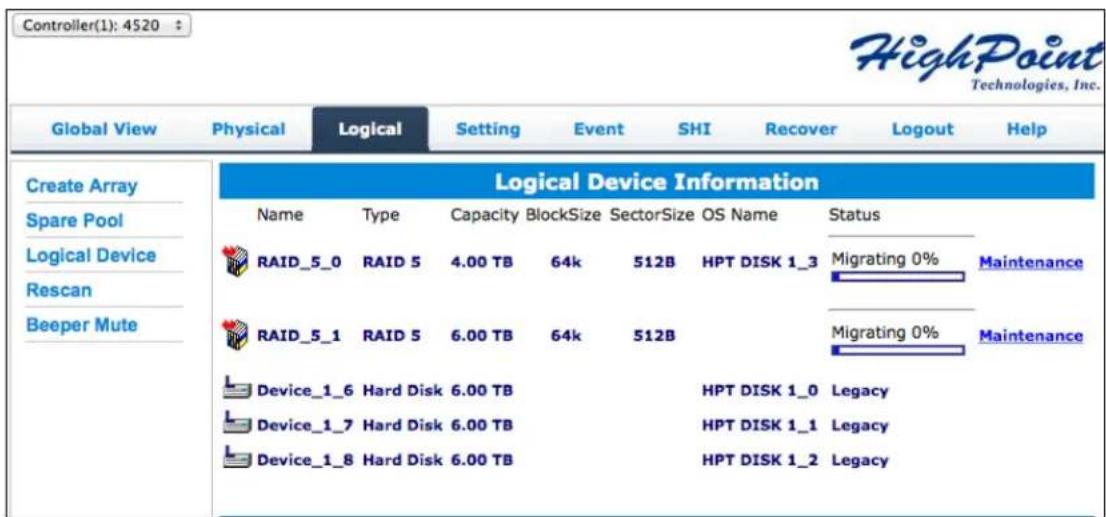

The Logical Device Information for the migrating/expanding array will change status to migrating/expanding.

Updating RocketRAID HBA BIOS/Firmware

Having the latest BIOS ensures you have the latest firmware stability and performance improvements. Updating the BIOS may fix boot up or system resource issues; make sure to read the README before making any changes.

A few reasons as to why update BIOS/Firmware:

BIOS resource issue	Inefficient BIOS code may cause your boot-up to hang during POST.
Compatibility fixes	Updating firmware may fix issues that occur when using new hardware
Bug fixes	Bugs that are discovered post release are fixed in subsequent updates.

Updating BIOS/Firmware using WebGUI

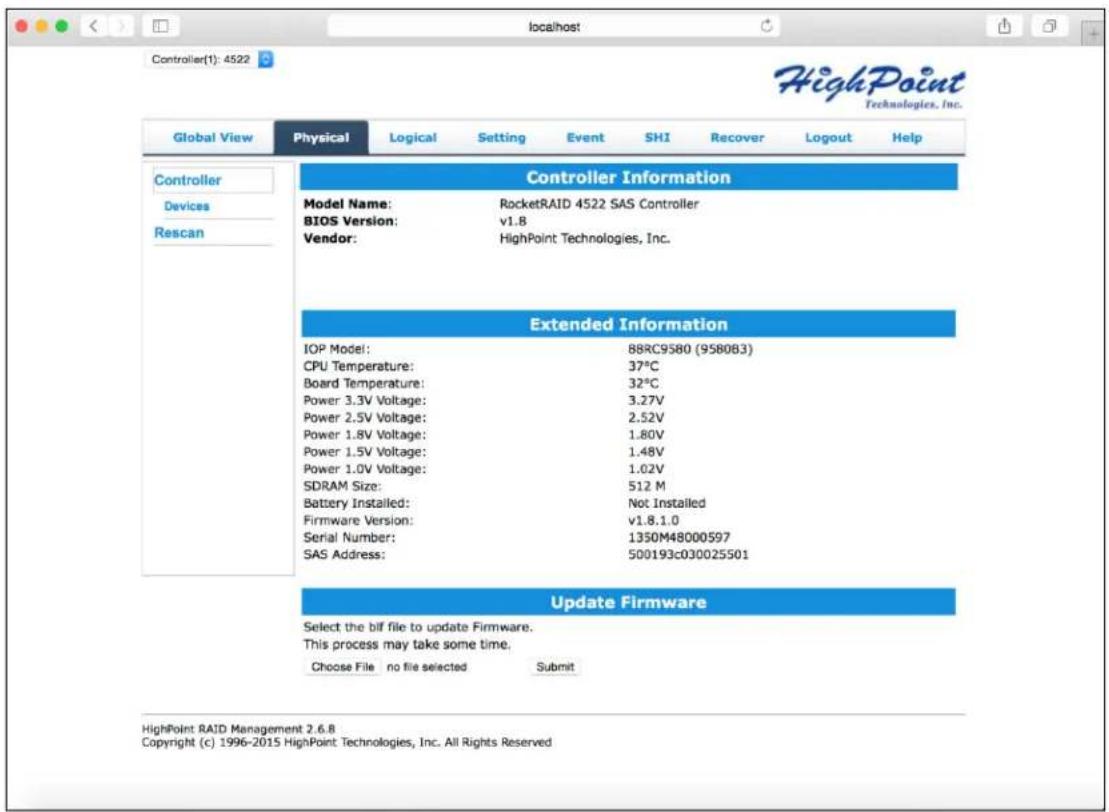

Keeping the firmware up to date ensures that your RAID controller the latest compatibility and performance updates.

1. Locate the latest firmware on our webpage at www.highpoint-tech.com.
2. Extract the contents of the file.
3. Refer to the readme (if included) to make sure you have the correct firmware for your HBA Note: Your HBA name and properties can be found in the WebGUI > Physical Tab.
4. Locate the proper firmware file
5. Login to WebGUI, then click the Physical tab.

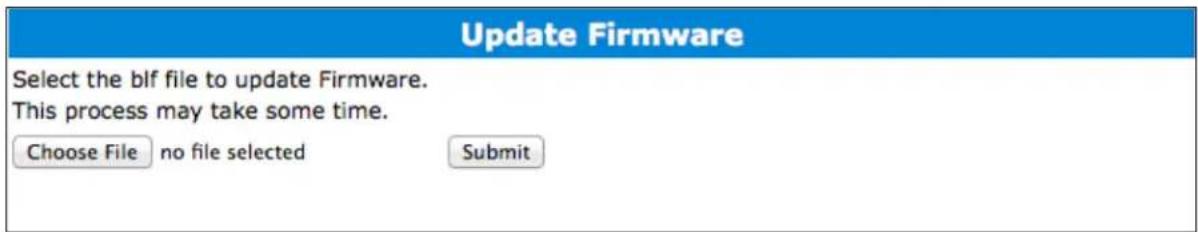

6. Under Update Firmware, click Browse and browse to your firmware file.
7. Click Submit.
8. Reboot for changes to take effect.

Updating BIOS/Firmware using a bootable USB

Create a bootable USB using a utility such as Rufus. Caution: Creating a bootable USB will erase all previous data stored on it.

1. Download the latest BIOS/Firmware file found at www.highpoint-tech.com
2. Extract the file contents onto the bootable USB

3. Read the README for instructions on how to flash the BIOS onto your hardware.

4. Reboot your computer into DOS mode by:

- Setting boot priority to the bootable USB

- Removing all bootable drives (OS, CD Drives) from motherboard and leaving only the bootable USB and RocketRAID card plugged in

1. Once in DOS mode, you should see a command line interface

Bootable USB formatted with Rufus Utility, FreeDOS CLI (Command Line Interface)

1. Type in the command with the file you found in the README (ex. run go.bat on command line)

2. Reboot

Troubleshooting - Hardware

If you face any hardware related issues involving the RocketRAID 4522 or disk drives, refer to the following sections for troubleshooting tips. For all other problems, submit a support ticket at www.highpoint-tech.com/websupport.

PC hangs during Boot Up

The most commons symptom for this problem is the lack of resources.

There are two methods to fix this problem:

1. Update your motherboard BIOS

2. Update your RAID Controller BIOS

Update Motherboard BIOS

To update your motherboard BIOS, refer to your motherboard manufacturer's user manual or website.

Update RocketRAID BIOS

To update RocketRAID BIOS refer to either of these sections:

• Using a Bootable USB to update BIOS.
- Updating the BIOS through WebGUI

Note: Press END to bypass the RocketRAID BIOS splash screen so you can boot up windows and access WebGUI.

Troubleshooting - Software

If you face any software related issues involving the HighPoint RAID Management (WebGUI), refer to the following sections for troubleshooting tips. For all other problems, submit a support ticket at www.highpoint-tech.com/websupport.

WebGUI - Connection cannot be established

1. Check the connection of the card with its PCI Express slot. (PCIe 2.0 x8 for RR4522)
2. Check and make sure the cables are not faulty.
3. Check Device Manager (Windows) or System Report (Mac) to verify the device and drivers are installed and detected by the OS

a. For Windows Users:

i. Open Device Manager.
ii. Click on the Storage Controller tab.
iii. Check to see if RocketRAID 4522 SAS Controller is listed.
iv. If RocketRAID 4522 SAS Controller is not listed, check to see if RAID Controller is under Unknown devices.
v. If RAID Controller is under Unknown Devices, re-install RocketRAID drivers.
vi. If RAID Controller is not present, recheck your hardware and cables.

b. For Mac Users:

i. Click the Apple Icon on the menu bar.
ii. Click About this Mac > System Report.
iii. Click PCI.
iv. Check to see the Type: RAID Controller and Driver Installed: Yes.
v. If Driver Installed is No, re-install the drivers.
vi. If RAID Controller is not present, recheck your hardware and cables.

c. For Linux User:

i. Open Terminal.

ii. Type command lsmod | grep 'hptiop' to check is driver is running.

iii. Type command modinfo hptiop to check driver information.

Troubleshooting - RAID

If you face any RAID related issues involving your RAID array, refer to the following sections for troubleshooting tips. For all other problems, submit a support ticket at www.highpoint-tech.com/websupport.

Critical Arrays

When your disk is critical, that means your array as a whole is still accessible, but a disk or two is faulty (depending on your RAID level) is in danger of failing.

Common scenarios for critical array status

• Unplugging disk that is part of an array
• Bad sector detected on a disk part of the array
• Unrecoverable data during rebuilding
  • Defective port or cable interrupts rebuilding process

To recover from this situation,

1. Backup your existing data.

2. Identify which disk is faulty.

3. You can refer to the LED lights on the enclosure.
   • Refer to the WebGUI Logical tab and Event tab.

4. Re-insert the faulty disk or replace with a new disk.

- Array will rebuild automatically if you enable auto-rebuild setting and you simply reseated the faulty disk. Note: Click Rescan if array still does not rebuild automatically.

1. Once a new disk is added, add the new disk into the critical array.

2. Log in to WebGUI.

3. Click Logical Tab.

4. Click Maintenance>Add disk> select the appropriate disk.

5. Rebuild should start automatically.

- If rebuild does not start, click 'Rescan' on the left hand panel.

Note: Rebuilding an array takes on average 2 hours per 1 Terabyte of disk capacity. The process will scan through the entire disk, even if you have very little used disk space.

Rebuild failed

If rebuilding fails to complete due to bad disk sector errors (check in the Event Log), there is an option to continue rebuilding on error in HighPoint WebGUI.

1. Log in to WebGUI.
2. Click Setting tab.
3. Under System Setting, change Enable Continue Rebuilding on Error to Enabled.

This option will enable rebuilding to ignore bad sectors and attempt to make your data accessible. It is important to backup immediately after backup is complete and replace or repair any disk(s) with bad sectors.

Critical array becomes disabled when faulty disk was removed

If this is the case, check to make sure you removed the correct disk. When you remove the wrong disk from a critical array, the array status may become disabled. Data is inaccessible for disabled arrays. Follow these steps to restore the previous state:

1. Shut down your PC.
2. Place all disks, including the removed disks, back to original array configuration.
3. Boot up PC.
4. Once array is back to critical status, identify the correct disk (using the event log) and replace it.

Disabled Arrays

If two or more disks in your array go offline due to an error or physical disconnection your array will become disabled.

To recover a disabled array, using the 'Recover Tab' will yield the best results. To utilize the Recover tab, you will need to insert the exact physical drives that are listed on the recover list. The goal of using recover is to get the RAID status back to critical/normal, allowing you to access and back up your data.

Recover with RAID Maintenance

Note: The recover function will only attempt to recover RAID information stored on your disks. Data integrity of the array will not be fixed, if previously corrupted. All disks in the original (disabled) array must be detected before performing a recover operation.

1. Log in to WebGUI.

2. Click Maintenance for the array that is disabled.

3. Click Recover.

Recover RAID with Recover Tab

Before using the Recover tab to recover your array, check to see if the RAID array is listed in your Recover List. Once you have confirmed the RAID array is listed under the Recover List, proceed to delete the disabled array.

1. Log in to WebGUI.
2. Click Maintenance for the array that is disabled.
3. Click delete, to delete the disabled array.
4. Click Recover Tab.
5. Select the RAID configuration you just deleted.
6. Click Recover Array.

Setting up a Bootable RAID

For Windows Users:

Creating an array and then installing Windows OS onto the RAID configuration is a bootable array. Since you cannot use the conventional method of installing drivers, the drive must be loaded during installation.

Prepare the following items for installation:

• Operating System Install CD
• Driver files for RocketRAID 4522
• USB thumb drive

Set Array as Boot Device

It is recommended to set the RAID array as a boot device prior to installing Windows.

1. Enter RocketRAID BIOS during boot up (CTRL+H).
2. Navigate to settings using arrow keys.
3. Press Enter.
4. Press Enter again.
5. Select the desired RAID array.
6. You will return to the main screen once the flag is set.

Installing Windows on Bootable Array:

1. On first boot-up, press CTRL + H during the HighPoint RocketRAID splash screen to enter the BIOS RAID creation utility.
2. Create the array you want to install your Windows Operating System onto
3. With the array created, download the RR4522 drivers from www.highpoint-tech.com and load them onto a USB. You will need to locate the files when prompted to load drivers during Windows Installation
4. Start Windows Installation.
5. When prompted Where do you want to install Windows? Click Load Driver
6. When prompted, click Browse
7. Browse to your connected USB and driver files you downloaded
8. Click OK, and once loaded, you will see a list of drivers detected.
9. Select the HighPoint driver file
10. Click Next, and you should see the RAID arrays you created
11. Select the RAID array and click Next
12. Follow the Windows installation instructions to complete your installation

For Linux Users:

RocketRAID 4522 drivers are already embedded in Linux and a bootable Linux can be directly installed on the RAID array.

Battery Backup Unit (BBU, sold separately)

When you set your RAID array or HDD to utilize write back cache, you sacrifice reliability for performance. Utilizing Write Through cache allows you to safe guard your data from power related failures, but it will be much slower.

A BBU is primarily used to safe guard arrays utilizing write back cache. When a power failure occurs, the battery will provide enough power to maintain the data in the cache for however long the battery capacity is.

Attaching the BBU

The connection will be made directly on the RAID controller J6 pins.

Checking the Battery Status

1. Log into WebGUI

2. Select the Controller the BBU is connected to

3. Select the Physical Tab

4. Charge status should be listed under Extended Information
5. For CLI, type query controllers

Online Array Roaming

One of the features of all HighPoint RAID controllers is online array roaming. Information about the RAID configuration is stored on the physical drives. If the RR4522 fails or you wish to use another RAID controller, the RAID configuration data can still be read by another HighPoint RocketRAID card.

Port Multiplier (PM) Compatibility

HighPoint RocketRAID 4522 support port multipliers (PM) which enables connectivity of up to 40 hard drives.

Example:

Connected to 1 port on the RocketRAID 4522, the port multiplier split the signal to 4 other targets. Under Physical Device Information (Location), the 1 represents the RR4522 port, E1 represents the port multiplier, and 2...5 represents the additional channels connected to the PM.

Appendix A: Navigating RocketRAID 4522 BIOS Utility (PC only)

HighPoint RocketRAID BIOS utility allows you to create, manage, and maintain your RAID arrays without the need to install HighPoint WebGUI application.

During boot up, you will see a RocketRAID splash screen prompting you to press CTRL + H to enter the BIOS. The following keys will help you navigate through the menus, find information, and make adjustments to your RAID arrays.

RocketRAID 4522 BIOS Setting Utility v1.8
Copyright (c) 2014 HighPoint Technologies, Inc. All rights reserved.
▶ Press CTRL-H to enter setup ◀
Waiting adapter <1:0:0> to be ready...

RocketRAID Splash Screen. Press CTRL + H to enter BIOS

Default Screen upon entering BIOS.

Table 1. Navigating the BIOS

Keyboard Arrow Keys	Navigate the menu bar
F10	Accesses the menu bar
TAB	Switches between windows
Enter	Make a selection
ALT +	Selects Menu Item (Ex. System can be accessed with ALT + S
Spacebar	Make certain selections (eg. creating arrays)
ESC	Exits a selection menu

Snapshot of RocketRAID BIOS menu bar

Table 2. Menu Bar Key

System	Exits the BIOS (ALT + X)
Disk	Displays disk InformationInitialize disksAdd disks to spare poolUnplugs disks
Array	Displays array informationCreate/delete/unplug arraysVerify array integritySet boot flag
Controller	Displays RAID controller informationAdjust controller settings
Window	View BIOS window panels
Help	www.highpoint-tech.com

Appendix A-1: System Tab

Press ALT + X to exit the BIOS.

Appendix A-2: Disk Tab

Access disk tab by navigating to disk and pressing enter, or press ALT + D.

Information	Device Type: SATA or SASModel NumberSerial NumberFirmware RevisionCapacity (in sectors)Read Ahead (on/off)Write Cache (on/off)TCQNCQ (on/off)Spin up mode
Initialize	Initializes selected disks
Toggle Spare	Adds selected disks to spare pool
Unplug	Ejects selected disks
Turn on/off write cache	Toggles disk write cache ability
Rescan	Triggers HBA to rescan
Identify Disk	If applicable, will light up identify LED.

Initializing Disks

First you must navigate to the disk panel. By default, you start on the disk panel.

1. Press ALT + W to access Window tab.
2. Select disk(s).
3. Use keyboard arrow keys to navigate and press enter to select desired disk(s).
4. Press ALT + D to activate disk tab.
5. Select Initialize.

Four disks are selected and about to be initialized.

1. Press Enter.
2. A prompt will warn you that data will be erased.
3. Select Yes.
4. Once initialized, you can proceed to create an array.

Adding Disks to Spare Pool

1. Navigate to the disk panel (Press ALT + W, then press 1).
2. Use keyboard arrow keys to select desired disk.

3. Press enter to confirm each selection.

4. Press ALT + D to open disk tab.

5. Select Toggle Spare.

Unplugging Disks

1. Navigate to the disk panel (Press ALT + W, then press 1).
2. Use the keyboard arrow keys and Enter to select desired disks.
3. Press ALT + D to open disk tab.
4. Select Unplug.

Turn On/Off Disk Write Cache

1. Navigate to the disk panel (Press ALT + W, then press 1).
2. Select desired disks.
3. Press ALT + D to open disk tab.
4. Select Turn on/off write cache.

Rescan

Triggers motherboard to rescan the connection

Appendix A-3: Array Tab

Array Information	Will disk the following information on selected array:• Array name• RAID type• Cache Policy• Block Size• Sector Size• Disk Members
Create/Delete/Unplug	Selected action will be performed on array
Verify	Initiates verifying array integrity
Start/Stop Task	Starts or stops the verifying/rebuilding process
Set boot	Sets boot flag on array

Creating an Array

1. Navigate to the disk panel (ALT + W, then press 1.)
2. Select each disk you wish to include in your array.
3. Press ALT + A to open array panel.
4. Press Create:
5. Press Spacebar to navigate and make selections (TAB also navigates.)

Array Type	Refer to RAID Level Reference Guide for information about different levels.RAID 0, 1, 5, 6, 1/0, 5/0, and JBOD
Cache Policy	Write-back -Any data written to the array will be stored as cache, resulting in better I/O performance at the risk of data failures due to power outages. Data will be stored as cache before it is physically written to the disk; when a power outage occurs, any data in the cache will be lost.Write-through -Data written to an array is directly written onto the disk, meaning lower write performance for higher data availability. Without cache acting as a buffer, write performance will be noticeably slower but data loss due to power outages or other failures is significantly minimized.
Init Method	·Quick Init- This option grants immediate access to the RAID array by skipping the initialization process, but it will delete all data. Note: Skipping initialization is generally not recommended since residual data on disks may interfere with new data in the future. ·Foreground-The array initialization process will be set at high priority. During this time array will be non-accessible, but initialization completion time will be shorter. ·Background-The array initialization process will have a lower priority. During this time array will be accessible, but initialization completion time will be longer. ·Keep Old Data - This option skips the initialization process and all data on each physical disk of the array will be untouched.
Name	Create array name
Capacity	Designate array capacity

1. Press Create (ALT + E)
2. A prompt about sector size will pop up, select a sector size
3. Array will show up in the Array Window

Array RAID0_00 has been created.

Verifying your array

1. Navigate to the array panel (Press ALT + W, then press 2)
2. Select desired array to verify (only if you have more than 1 array. If you only have 1 array, verify will automatically start)

3. Press ALT + A to open array tab

4. Select Verify

5. You can Start/Stop the process by selecting start/stop task

Setting Boot Array

1. Navigate to the array panel (Press ALT + W, then press 2)
2. Select desired array
3. Press ALT + A to open array tab
4. Press Set Boot
5. Window will close, reboot to confirm

Appendix A-4: Controller Tab

Information	Provides certain controller information:Product IDPCI LocationIOP ModelSDRAM SizeFirmware VersionBattery InstalledBattery MB InstalledSerial NumberCPU Temperatures (Celcius)Board Temperature (Celcius)Controller voltage levels
Setting...	Configures certain settings:Enable audible alarmEnable Staggered spin upSpin down idle disk (minutes)Enable automatic rebuildContinue Rebuilding on errorINT13 supportUse single BCV entryStop on error

Controller > Setting Information

Enable Audible Alarm	Enables/Disables the RocketRAID controller alarm
Enable Staggered Spin up	(Default: Disabled) Enabling this setting will force the card to power on each hard disk sequentially (2 seconds between disks). Check with your diskmanufacturer if your drive supports this feature. Number of drives per spin up: Select the number of disks per spin up (eg. 2 drives powered on every 2 seconds.) Delay between spin up (seconds): Time interval between spin ups.
Spin down idle disk (minutes)	Hard drives can be instructed to spin down when there is no disk activity for set period of time.
Enable automatic rebuild	When enabled, any new disk attached to the controller will automatically be used to rebuild a critical RAID array
Continue Rebuilding on error	Disk bad sectors can interrupt the RAID rebuild process. Enabling this option will allow rebuilding to continue, ignoring bad sectors. Rebuild Priority: This setting determines how HBA resources should be directed towards repairing broken RAID arrays.
Provide INT13 support	INT13 is the HBA's boot function
Use single BCV entry	When enabled (and if HBA hosts several logical disks) only the first disk will be reported to the motherboard BIOS. This setting could be useful when bottom from a disk or array attached to your RocketRAID HBA.
Stop on error	(Default: Enabled) If disabled, the host adapter BIOS menu will bypass array or device errors when booting the system

Appendix A-5: Window Tab

The Window is the default screen you see upon entering the BIOS. The Top panel shows all the physical drives detected, and the bottom panel shows all arrays created.

Maximize	Makes Selected Panel (Disk or Array) full screen. You can press TAB to toggle between disks and array panels.
Restore	Restores default panel configuration
1. Disk2. Array	Selects the panel you want to work with
Refresh	Refreshes panels

Appendix B: Navigating the HighPoint WebGUI

The HighPoint WebGUI management utility allows you to do several key things:

• View general system overview (see pg. 64)
- Update firmware and BIOS (see pg. 65)
- Create and remove arrays (see pg. 68)
- Change enclosure settings (see pg. 77)
- Troubleshoot faulty drives (see pg. 80)
• Monitor disk health (see pg. 81)

Tab Name	Function
Global View	View HBA (Host Bus Adapter) and Storage Properties
Physical	View Additional Controller propertiesUpdate BIOS/FirmwareView disk propertiesAdjust selected disk behaviors
Logical	Manage and create RAID arrays
Setting	Adjust WebGUI controls settings
Event	Show WebGUI Event Log
SHI (Storage Health Inspector)	View and schedule S.M.A.R.T monitoring
Recover	Revert to previously created arrays
Logout	Logout of WebGUI
Help	Additional WebGUI documentation Online Web Support

How to Login HighPoint WebGUI

You can reach the HighPoint WebGUI log in page either by:

• Double clicking on the HighPoint RAID Management icon created on your desktop

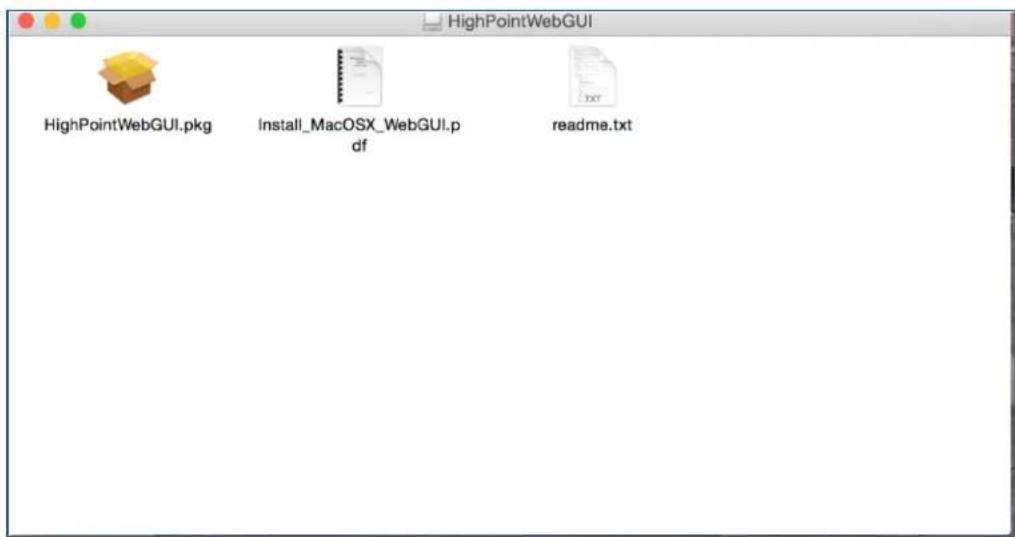

• Opening your preferred web browser and typing http://localhost:7402 in the address bar.

The default username and password to login is

Username: RAID

Password: hpt

Username and Password are Case-Sensitive (Username is not changeable)

Appendix B-1: Global Tab

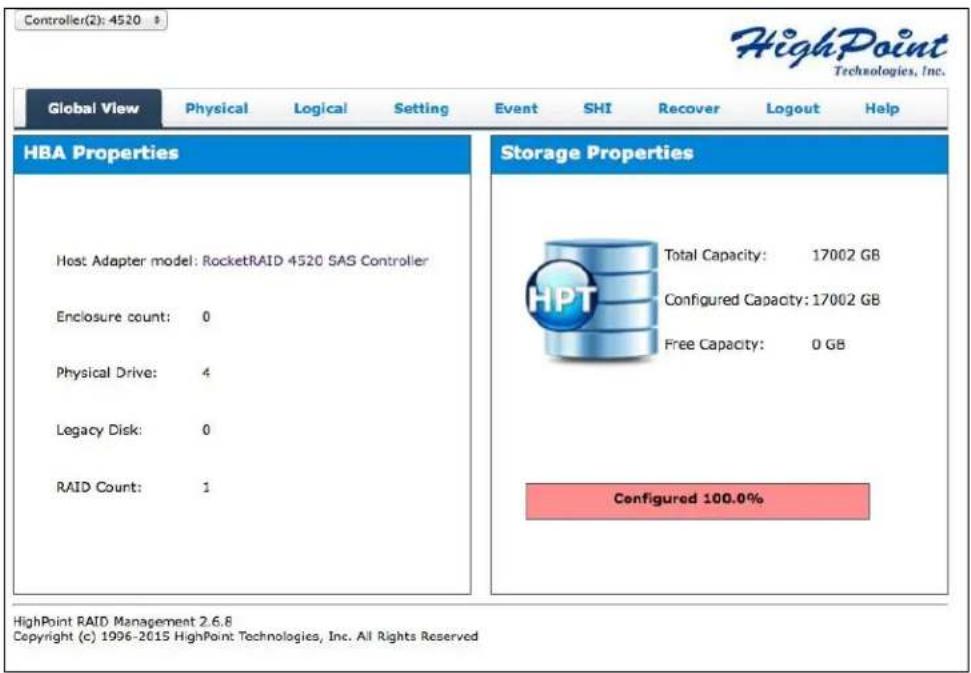

The WebGUI Global view provides an overview of what each HighPoint controller card connected to your computer detects. It is also the first page you see when logging in.

• Host Bus Adapter Properties
• Storage Properties

On the top left of the page is a drop down menu that allows you to select which controller you want to manage (if you have multiple HighPoint controllers connected). HBA Properties

• Host Adapter model: the model name of the controller.
  • Enclosure Count: number of external enclosures detected.
  • Physical drives: number of drives seen by the controller.
• Legacy Disks: number of Legacy disks connected. Legacy disks are physical drives that have previous partitions stored on them.

Storage Properties

- Total capacity: the combined capacity of each physical disk connected to controller.

• Configured capacity: the amount of space used for creating arrays.
  • Free Capacity: total amount of space unused.

Appendix B-2: Physical Tab

The physical tab shows general and extended information about the controller you are using. Information about the firmware, BIOS, and operating temperatures are all located here. This information is useful for identifying what RAID controller model you have and to make sure you have the most updated version available.

The physical tab contains the following information:

• Controller Information
• Extended Information
- Update Firmware
• Physical Devices Information

Controller Information: Lists the controller model name, BIOS version, and vendor.

• Model Name: RocketRAID4522 SAS Controller
• BIOS Version: v1.12 (as of 5/5/2015)
• Vendor: HighPoint Technologies, Inc.

Extended Information: Gives you additional information concerning the HBA (Host Bus Adapter) in the enclosure

• IOP Model: IOP chip model number
• CPU Temperature: Displays computer temperature in Celsius (°C).
- Board Temperature: Displays the board temperature in Celsius (°C).
• SDRAM Size: SDRAM size of the HighPoint controller card
- Battery Installed: Battery Backup Unit information
• Firmware Version: Firmware version of the HBA
• SAS address: the SAS address

Update Firmware: Allows you to update the controller BIOS and firmware through the WebGUI.

Controller Devices Rescan	Physical Devices Information
	Device_1_1	Model	WDC WD40EFRX-68WT0N0-WD- WCC4ENSLV3U6	Capacity	4.00 TB
	Unplug	Revision	80.00A80	Read Ahead	Enabled Change
		Location	1/1	Write Cache	Enabled Change
		Max Free	0.00 GB
		Status	Legacy	NCQ	Enabled Change
		Serial Num	WD-WCC4ENSLV3U6	Identify LED	[ON] [OFF]
	Device_1_2	Model	WDC WD60EFRX-68MYMN1-WD- WX11D74RHV7A	Capacity	6.00 TB
	Device_1_3	Model	WDC WD30EFRX-68EUZN0-WD- WMC4N0DCFMUT	Capacity	3.00 TB
	Device_1_4	Model	WDC WD40EFRX-68WT0N0-WD- WCC4EHYCFZXL	Capacity	4.00 TB

The following properties are part of the Physical Devices Information box under the physical tab.

• Model - Model number of the physical drive
  • Capacity - Total capacity of the physical drive
• Revision - HDD device firmware revision number
• Read Ahead* - (Enable/Disable) Disk read ahead
• Location - Device location (example: 1/2 states controller 1, slot 2)
• Write Cache* - (Enable/Disable) the disk write cache
• Max Free - space on disk that is not configured in an array
• Status - (Normal, disabled, critical) status of the disk
• NCQ* - (Enable/Disable) Native Command Queuing (SATA disks only)
• Serial Number - serial number of the physical disk
• Identify LED* - On/Off - toggle the IDENTIFY (RED) on the front panel
• Unplug - Safely ejects selected disk. Other methods of disk removal will trigger alarm if enabled

* Disk properties that can be adjusted.

Read Ahead

Enabling disk read ahead will speed up read operations by pre-fetching data and loading it into RAM.

Write Cache

Enabling write cache will speed up write operations.

NCQ (Native Command Queuing)

A setting that allows SATA disks to queue up and reorder I/O commands for maximum efficiency.

Identify LED

The Disk tray LED lights on the front panel can be toggled ON or OFF.

Rescan

Clicking rescan will immediately signal the controller to scan for any changes in the connection. Clicking this button will also stop any alarm if currently ringing.

Appendix B-3: Logical Tab

The Logical tab is where you are edit, delete, and maintain your RAID configurations, as well as, adding drives to your spare pool. The logical tab has the following settings:

• Create Array
• Spare Pool
• Logical Device
• Rescan
• Beeper Mute

An array is a collection of physical disks that will be seen as one virtual drive by your Operating System (OS). The RocketRAID4522 controller is capable of creating the following array types:

Array Type:

• JBOD - Just a Bunch of Disks
- RAID0 - Striping
- RAID 1 - Mirroring
• RAID 5 - Rotating Parity bit
• RAID 1/0 - Striping of Mirrored Drives
• RAID 5/0 - Striping of Distributed Parity
• RAID6 - Double Parity Bit

Each RAID level has its pros and cons based on the application you use it for (Note: Refer to RAID level Quick Reference)

Array Name: the name that will be displayed in Logical Device Information (Default: RAID__)

Initialization Method:

• Keep Old Data: Opts to keep all the data on each drive untouched. Best for users that already have HighPoint RAID data on the selected drives.
• Quick Init: Grants immediate access to the array volume. This option will delete previous user data, but will not build parity. Recommended for testing purposes only or when new disks are used. Not recommended for RAID 5, RAID 5/0, and RAID 6.
• Foreground: The array initialization process will be set at high priority. During this time array will be non-accessible, but initialization completion time will be shorter.
• Background: The array initialization process will have a lower priority. During this time array will be accessible, but initialization completion time will be longer.

Note 1: Initialization takes a significant amount of time (approximately 2 hours per 1 TB).

Cache Policy (Default: Write Back)

Write Back – Any data written to the array will be stored as cache, resulting in better I/O performance at the risk of data failures due to power outages. Data will be stored as cache before it is physically written to the disk; when a power outage occurs, any data in the cache will be lost.

Write Through - Data written to an array is directly written onto the disk, meaning lower write performance for higher data availability. Without cache acting as a buffer, write performance will be noticeably slower but data loss due to power outages or other failures is significantly minimized.

Block Size (default: 64K)

[16K, 32K, 64K, 128K, 256K, 512K, 1024K are the supported block sizes]

This option allows you to specify the block size (also known as “stripe size”) for specific array types (RAID 0, 1, 5, 6, 1/0, and 5/0). Adjusting the block size allows you to tailor the array performance towards specific application. Consider the sizes of disk I/O data you are dealing with; as a general rule larger disk I/O may benefit from smaller block sizes, and smaller disk I/O may benefit from larger block sizes. A block size of 64 KB is recommended since it gives balanced performance for most applications.

Capacity (Default: Maximum)

The total amount of space you want the RAID array to take up. When creating RAID levels, disk capacities are limited by the smallest disk.

Example Capacity calculation:

A RAID 5 organizes data in the manner shown below. All parity data will become unusable for the user and not included in the total disk capacity.

Disk 1	Disk 2	Disk 3	Disk 4
Data 1	Data 2	Data 3	Parity
Data 4	Data 5	Parity	Data 6
Data 7	Parity	Data 8	Data 9
Parity	Data 10	Data 11	Data 12

Therefore, RAID 5 capacity will be [SMALLEST DISK CAPACITY] * (number of disks - 1).

Sector Size (Default: 512B)

This option is irrelevant for Windows XP 64 and later. Current OS already support larger volumes, and introduce a partitioning method known as GPT (GUID partition table). This option, also known as VSS (Variable Sector Size) allows you to specify the sector size of the array, for use with older Windows Operating Systems.

DV Mode

This mode is specifically designed for video applications. The default firmware cache policy provides balanced performance for standard applications such as workstations, file servers, and web servers. But for DV mode, a special cache firmware is implemented specifically for large sequential writing (large I/O requests such as video files). Enabling DV mode will maintain the performance and consistency of transferring and processing video files.

There are several factors concerning DV mode to take note:

• DV mode only available for RAID 0, 5, and 6
• Only 1 RAID array you created can enable DV mode
• DV mode only works when array status is normal

DV Mode:

(Enable special cache policy for DV/sequential write applications)

√ Disable

Enable

Margin:

5%

(Increasing the margin % will result in more stable performance, but decrease the maximum write performance.)

Margin

[5% - 25%]

When DV mode is enabled, you have the option to set the margin.

This percentage represents the amount of space the designated cache will hold before flushing the data onto the drive. Increasing the margin % will result in more stable performance, but decrease the maximum write performance.

Alternatively, you can change the margin anytime in Logical > Maintenance for DV enabled array.

DV Mode:

Enable

(Enable special cache policy for DV/sequential write applications)

Margin:

√ 5%

(Increasing the margin % will result in more stable performance, but decrease the maximum write performance.)

10%

15%

20%

25%

Logical Device Information

Logical device tab is the default page upon clicking the Logical tab of the WebGUI. This page contains information about your RAID arrays and individual disks your system detects.

Logical Device Information

Arrays you create and the properties associated with them will appear here.

Maintenance

Once an array has been created, click maintenance for options to manage your array.

Array Information

Clicking on the maintenance button will show you the Array information box. Different array statuses (Normal, critical, disabled) will have different maintenance options.

Normal Status

A Normal Status Array has the following options:

Delete - deletes the selected RAID array

Unplug - powers off the selected RAID array

Verify - verifies the integrity of the RAID array

Change Cache Policy - Toggles between Write through and Write back cache

Change Margin - Adjust margin when DV mode is enabled

Rename - renames the RAID array

OCE/ORLM - Online Capacity Expansion / Online RAID Level Migration

Critical Status

A critical status array has all the normal status options except the following:

• The Array can no longer be renamed
- Add disk replaces the verify disk option

Once array status changes to critical, the faulty disk will be taken offline and you can either:

• Reinsert the same disk
• Insert new disk

Reinserting the same disk should trigger rebuilding status, since data on the disk would be recognized.

If you insert a new disk, clicking add disk will give you the option to select that disk and add it to the array.

Disabled Status

A disabled status array means that your RAID level does not have enough disks to function.

• Your data will be inaccessible.
• Rebuilding will not trigger, since RAID does not have enough parity data to rebuild upon.

Your options in Maintenance are:

Delete - will delete the array Unplug - will take array offline, making it safe to remove Recover - will attempt to recover the array using the list from the recover tab

Physical Device Information

• Location - which controller and port the drive is located in
• Model - model number of the drive connected
  • Capacity - total capacity of the drive
  • Max Free - total capacity that is not configured

Rescan

Clicking rescan will force drivers to report array status. For any disk(s) you hot plug into the device, do not click rescan until all physical drives are detected and appear under Logical Device Information.

Beeper Mute

The controller emits a beeping sound whenever an

• Array falls into critical status
• Array falls into disabled status
• You unplug a disk
• Your disk fails due to bad sectors
  • SMART sensors anticipate drive failure

If device is currently beeping, clicking Beeper Mute will mute the sound immediately. Note: This button does not permanently mute the alarm. To permanently mute the alarm go to Setting>Enable audible alarm>Disabled.

Appendix B-4: Setting Tab

System Settings

Enable auto rebuild (default: Enabled)

When a physical drive fails, the controller will take the drive offline. Once you re-insert or replace the disk, the controller will not automatically rebuild the array unless this option is enabled.

Enable continue rebuilding on error (default: Enabled)

When enabled, the rebuilding process will ignore bad disk sectors and continue rebuilding until completion. When rebuild is finished, the data may be accessible but data inconsistency due to ignored bad sectors may cause problems in the future. If this option is enabled, HighPoint recommends user to check the event log for bad sectors.

Enable audible alarm (default: Enabled)

When a physical disk fails, the controller will emit an audible sound signaling failure. This option mutes the alarm.

Set Spin down Idle Disk (minutes) (default: Disabled)

When set, physical drives will spin down a certain amount of time after disk activity ceases. Only 10, 20, 30, 60, 120, 180, 240 minutes setting are available.

Restrict to localhost access (default: Enabled)

Remote access to the controller will be restricted when enabled, other users in your network will be unable to remotely log in to the WebGUI.

Rebuild Priority (default: Medium)

You can specify the amount of system resources you want to dedicate to rebuilding the array. There are 5 levels of priority [Lowest, Low, Medium, High, Highest]

Port Number (default: 7402)

The default port that the HighPoint WebGUI listens on is 7402. You may change it to any open port.

Password Setting

Changing your WebGUI password

Under Password Setting type your new password and confirm it, then click submit.

Email Setting

You can set the controller to send an email out to recipients of your choosing when certain events (refer to Event Tab) trigger.

Appendix B-5: Recover Tab

Previously created arrays will be stored under this tab. Recovering an array from here will attempt to recover a 'disabled' array and make it 'normal'.

The Recover List will list all your previous and current created arrays. Each entry will list the following properties:

• Array name
• RAID level
• Array Capacity
  • Time created (YYYY/MM/DD, HH/MM/SS, 24 hr clock format)
• Location of physical drives
  • Model of physical drives

Important: When recovering an array it is important to note the location and model of each physical drive because you can only recover using those exact positions and drive model.

How to Backup your Recover List

The recover list is a record of your previously created arrays containing the model and location information of your physical drives. Recovering from the list could help bring a disabled array back to normal status for emergency data retrieval.

To backup your recover list:

1. Log in to WebGUI
2. Click Recover Tab
3. Click Backup to File
   Note: The file will be saved as hptrec.rec

How to Reload your Backup Recover List

In the case that you cleared the recover list or it does not appear for any reason, you can recover it if you saved the list beforehand.

To reload your recover list

1. Log in to WebGUI
2. Click Recover Tab
3. Under Update Recover List click Browse.
4. Locate your previously saved hptrec.rec file and select it Note: loading a back up recover list will completely replace the current recover list.
5. Click Submit

Appendix B-6: Event Tab

In the event tab, you can see log entries associated with the HighPoint device. The event log provides useful information when troubleshooting your set up.

In the event tab, there are four options available:

• Download - Save the log file on your computer
• Clear - Clears all log entries
• Prev - View previous log page
• Next - View next log page

Table 3. Event Log Icon Guide

Icon	Name	Definition
	Information	Includes general administrative tasks:Create/delete arraysConfiguring sparesRebuilding arraysConfiguring event notificationsConfiguring maintenance
	Warning	Alerts issued by the Host Adapter:High temperaturesSector errors
		Communication errorsVerification errors
×	Error	Hardware related problemsHard disk failureBroken errorsMemory failure

The event view is a basic error logging tool built into the HighPoint WebGUI.

Appendix B-7: SHI (Storage Health Inspector)

• S.M.A.R.T Attributes
• HDD Temperature Threshold
• Storage Health Inspector Scheduling

The SHI outputs information collected using SMART (Self-Monitoring Analysis and Reporting Technology) Hard Drive Technology. The data provided on this tab helps you to anticipate any disk failures based on a variety of monitored hard disk properties.

Appendix C:WebGUI Icon Guide

	Critical - missing diskA disk is missing from the array bringing it to ‘critical’ status. The array is still accessible but another disk failure could result in data loss.
	VerifyingThe array is currently running a disk integrity check.
	RebuildingThe array is currently rebuilding meaning you replaced a failed disk or added a new disk to a ‘critical’ state array.
	Critical - rebuild requiredThe array has all disks, but one disk requires rebuilding.
	DisabledThe icon represents a disabled array, meaning more than one disk failed and the array is no longer accessible
	InitializingThe array is initializing. The two types of initialization is Foreground and Background. (See Initialization)
	UninitializedThe array initialization process has been interrupted, and the process is incomplete.
	Not InitializedDisk is not initialized yet, and needs to be initialized before use
	OCE/ORLMArray is performing a OCE/ORLM operation
	OCE/ORLM has stoppedThe array expansion process has been stopped.
	LegacyAn existing file system has been detected on the disk. These disk are classified as legacy drives.
	SpareThe device is a spare drive, it will automatically replace any failed drive part of an array.
	NormalThe array status is normal
[3x53]	InitializingThe array is initializing, either foreground or background initialization
	Initialization StoppedThe initialization has been stopped. Current status is uninitialized.
[YYCC2]	Critical - InconsistencyData in the array is inconsistent and needs to be rebuilt.
[TVCA]	Critical - missing diskA disk has been removed or experienced failure, and user needs to reinsert disk or add a new disk.
[4C0C]	RebuildingThe array is currently rebuilding.
	VerifyingThe array is performing a data consistency check. Array status will show ‘verifying’.
[BC2X]	DisabledThe array does not have enough disks to maintain the RAID level. A disabled array is not accessible.
	OCE/ORLMArray is expanding its capacity or migrating to a different raid level. Status will display ‘Expanding/Migrating’
[X84X]	OCE/ORLM stoppedThe ‘Expansion/Migrating’ process has been stopped. The status will display ‘Need Expanding/Migrating’
	Critical - OCE/ORLMA disk member is lost during the OCE/ORLM process.
	Critical - OCE/ORLM - rebuildThe expanding/migrating array requires a rebuild.

Appendix D: RAID Level Reference Guide ^1

Type	Description	Min. disks	Usable space	Advantage	Disadvantage	Application
JBOD	Just a bunch of disk	1	100%	Each drive can be accessed as a single volume	No fault tolerance - failure of one drive results in complete data loss	Backup
RAID 0	Disk Striping	2	100%	Offers the highest performance	No fault tolerance - failure of one drive in the array results in complete data lose	Temporary file, performance driven application.
RAID 1	Disk Mirroring	2	50%	Provides convenient low-cost data redundancy for smaller systems and servers	Useable storage space is 50% of total available capacity. Can handle 1 disk failure.	Operating system, backup, and transaction database.
RAID 1/0	Disk Mirroring followed by stripe	4	50%	High read performance and medium write performance with data protection for up to 2-drive failures	Useable storage capacity equals total capacity of all drives in the array minus two	Fast database and application servers which need performance and data protection
RAID 5	Disk Striping with Rotating parity	3	67-94%	High read performance, and medium write performance with data protection with a single drive failure	Not recommended for database applications that require frequent/heavy write sessions. Can handle 1 disk failure.	Data archives, and ideal for application that require data protection
RAID 6	Disk Striping with dual rotating parity	4	50-88%	High read performance, and medium write performance with data protection in case of up to two drives failure	Not recommended for applications that require frequent/heavy write sessions.	Data archives and ideal for application that requires data protection

Help

Online Help redirects you to additional documentation concerning the HighPoint WebGUI.

Register Product takes you to HighPoint's web support. On this page you can create a new customer profile where you can register your product or post an online support ticket.

HighPoint List of Recommended Hard Drives

HighPoint maintains a list of tested hard drives suitable for RAID applications. Since not every hard drive in the market can be tested, this list is meant to be a general guideline for selecting hard drives operating in a RAID environment. Regular, desktop grade drives are highly not recommended for RAID use.

http://highpoint-tech.com/PDF/Compatibility_List/RocketRAID_600_2700_3600_and_4500_Series_RAID_HBA_Hard_Drive_Compatibility_List.pdf

Contacting Technical Support

For any help and support, submit a support ticket online at http://www.highpoint-tech.com/websupport/.

You may also call us during our regular business hours: Monday - Friday (Excluding Holidays), 9 AM to 6 PM (PST) Phone: [phone]
