USER MANUAL WKSTNCART StarTech.com

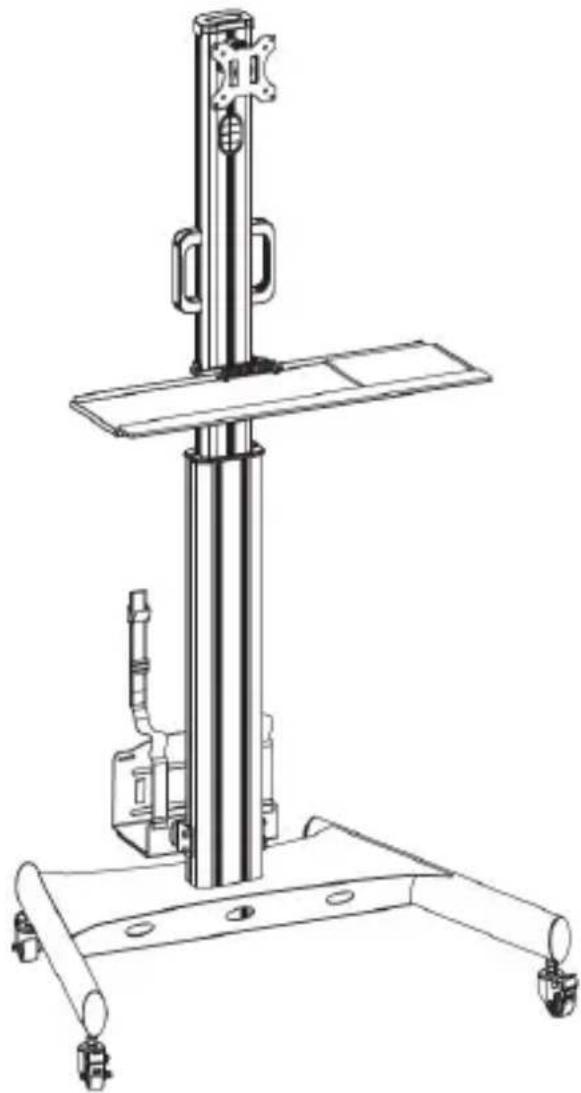

Height Adjustable Mobile Workstation - Single Monitor

Technical line drawing of a vertical mechanical device with base and wheels (no text or symbols)

Actual product may vary from photos

User Manual

SKU#: WKSTNCART

For the latest information and specifications visit

www.startech.com/WKSTNCART

Compliance Statements

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

PHILLIPS® is a registered trademark of Phillips Screw Company in the United States or other countries.

Safety Statements

Safety Measures

- Product installation and/or mounting should be completed by a certified professional as per the local safety and building code guidelines.

Mesures de sécurité

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Warning Statements

• Assemble this product according to the instructions.
• Read the entire manual and ensure the instructions are fully understood before assembling and/or using this product.
• Do not exceed the weight capacity of this product. Overloading this product might result in injury or property damage.

• Weight capacity of the monitor mount: 8 kg (17.6 lb.)

• Weight capacity of the keyboard tray: 2 kg (4.4 lb.)

• Weight capacity of the CPU mount: 5 kg (11 lb.)

- Do not allow children to climb on this product, or use this product without proper supervision.

• This product is intended for indoor use only and should not be used outdoors.

- Do not over-tighten the screws. If any resistance is encountered, stop tightening.

- Assembling this product is a two-person task. Do not attempt to assemble this product and install equipment without assistance.

- Before adding equipment to this product, ensure the product has been properly assembled, and that the product can support the weight of the added equipment.

• Make sure all of the equipment has been properly secured before adjusting this product.

- Do not move the cart over cords, cables, or uneven surfaces.

• Before moving the cart, unlock the Casters (C).

- Tipping Hazard! This product is freestanding and therefore prone to tipping if mishandled or overloaded. Exercise caution when moving, loading, unloading and adjusting the cart. Failure to do so could result in equipment damage and/or personal injury.

Varningsmeddelanden

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

注意

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Mensagens de aviso

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Safety Statements......ii

Warning Statements......iii

Product Diagram....1

Front View....1

Product Dimensions ....2

Front View 2

Keyboard Platform (F) View 3

CPU Holder (D) and CPU Straps (E) View......4

Product Information....5

Package Contents .... 5

Technical Specifications....7

Requirements 9

Installation 9

Attach the Caster (C)....9

Attach the Column (B) to the Base (A)....10

Adjust the Height of the Column (B)....11

Adjust the Height of the Keyboard Platform (F) and Handles 12

Attach and Adjust the Keyboard Platform (F)....13

Attach the VESA Mount (H)....14

Remove the VESA Plate from the VESA Mount (H)....15

Attach the VESA Plate to the Monitor....16

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Mount the Monitor to the Column (B)....18

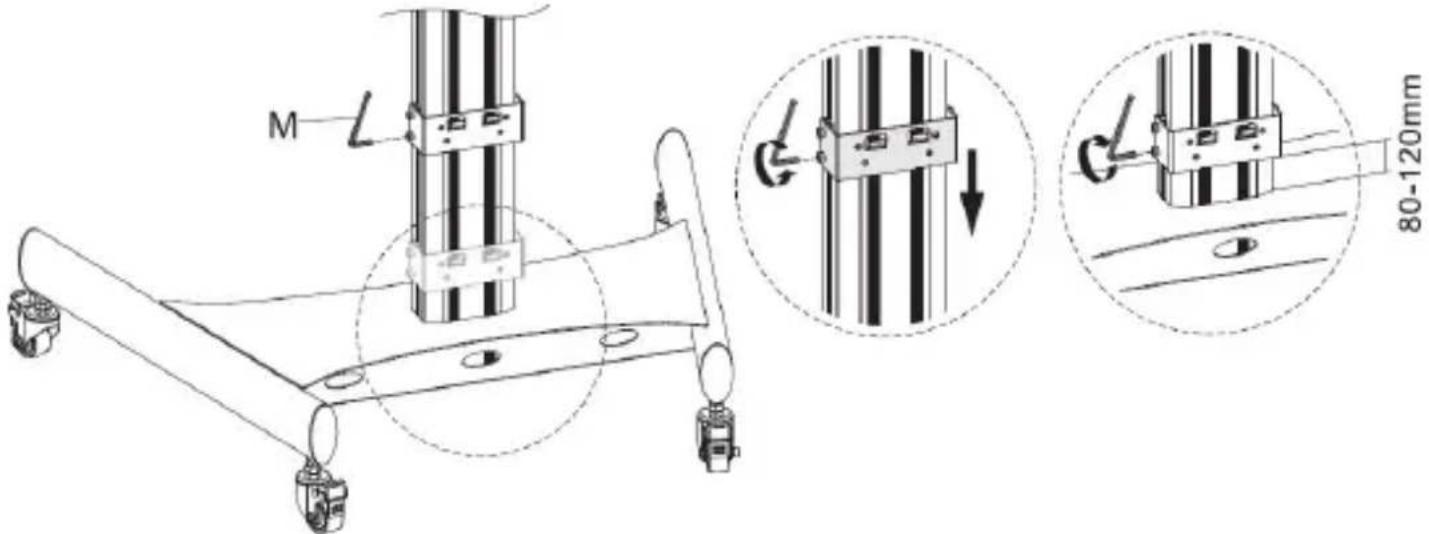

Adjust the Height of the CPU Holder Bracket....19

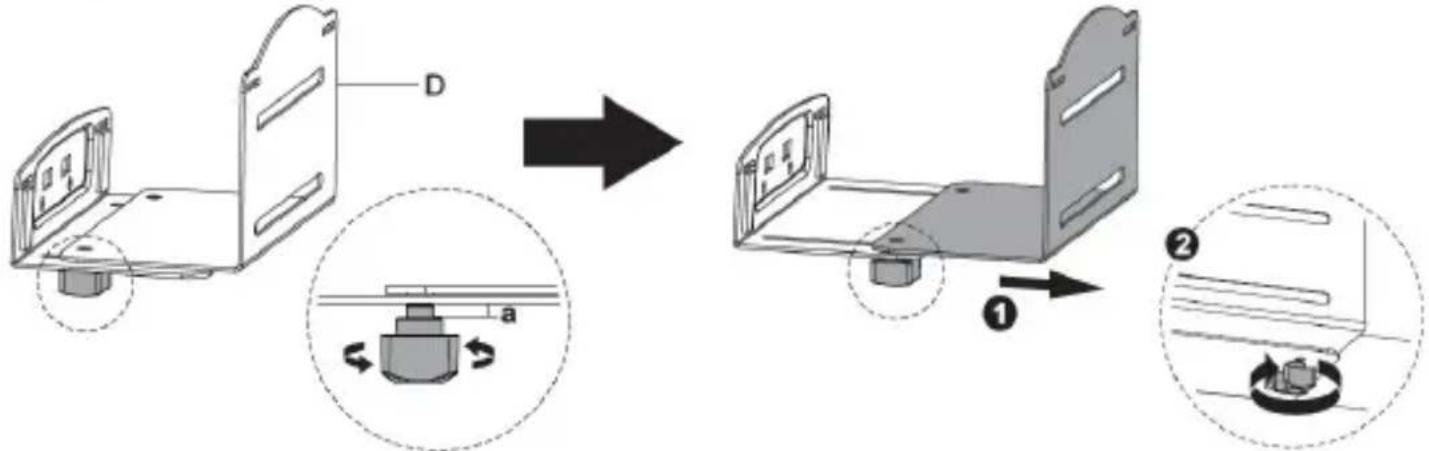

Adjust the Width of the CPU Holder (D)....20

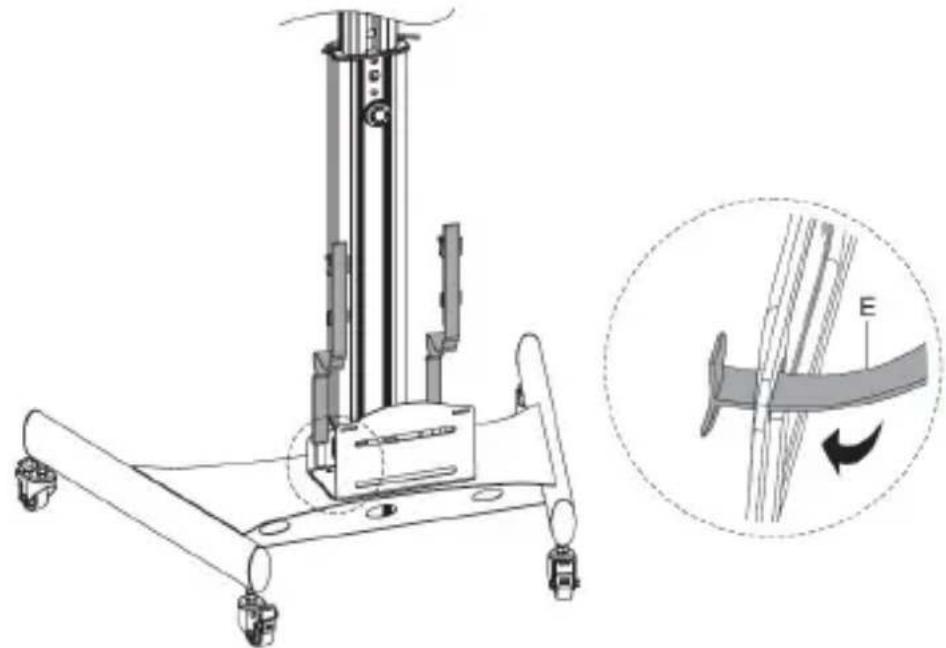

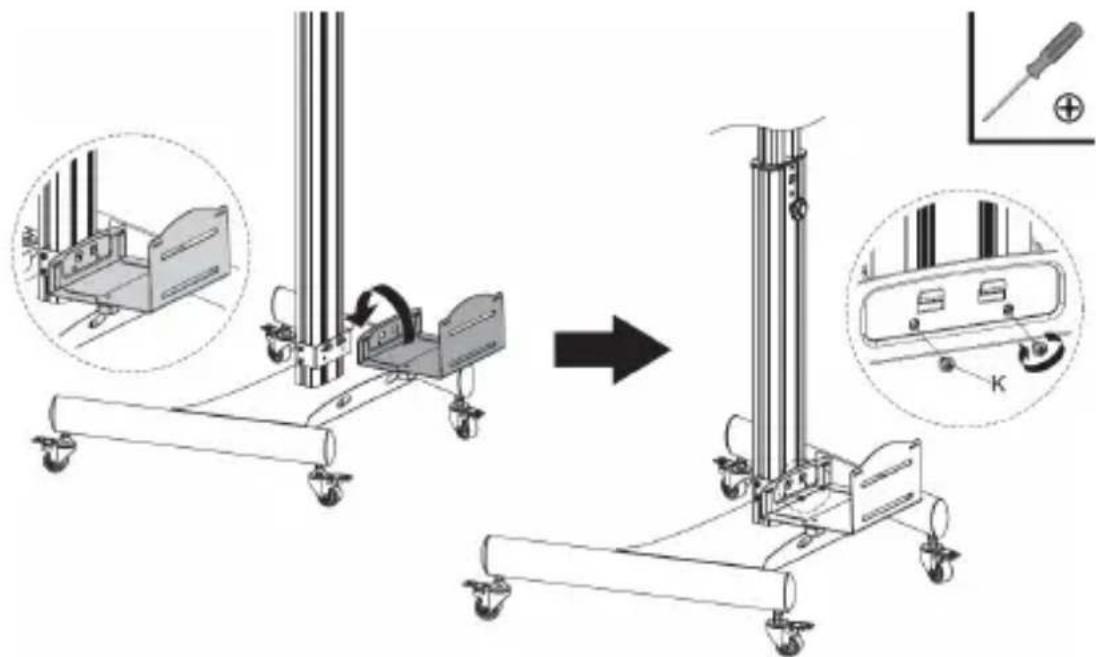

Attach the CPU Holder (D) to the CPU Holder Bracket on the Column (B) 20

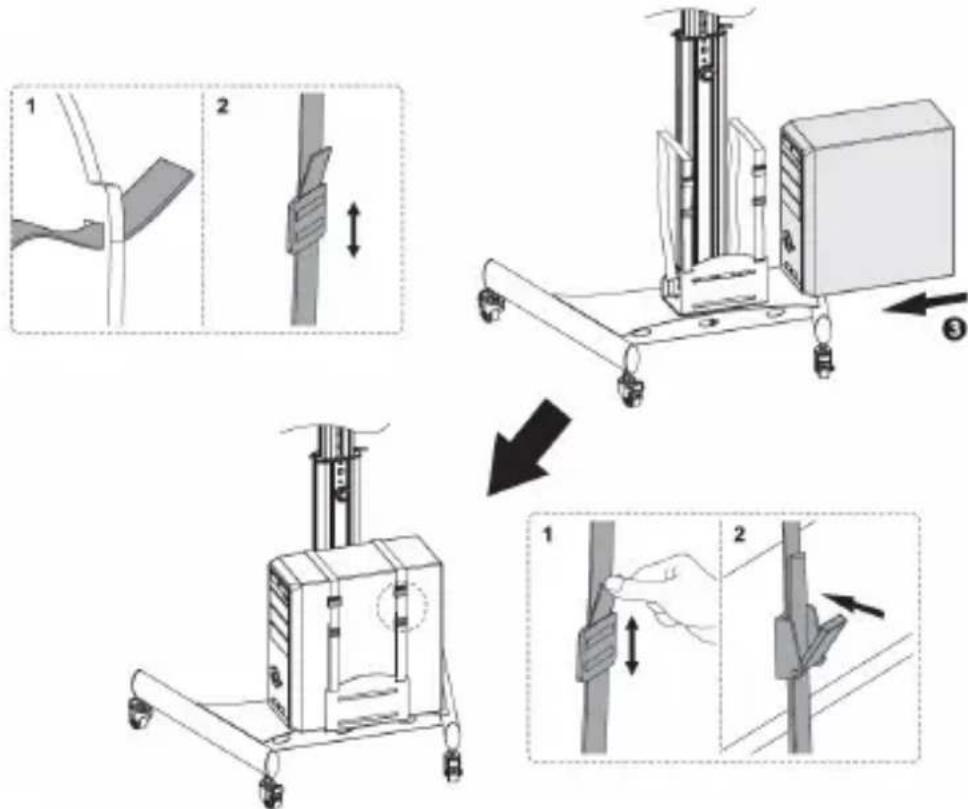

Attach the CPU Straps (E) to the CPU Holder (D)....21

Install/Secure the CPU into the CPU Holder (D)....22

Cable Management....23

Store the 5 mm (M) / 6 mm (N) Hex Keys....23

Operation 23

Move the Mobile Workstation Assembly....23

Warranty Information....25

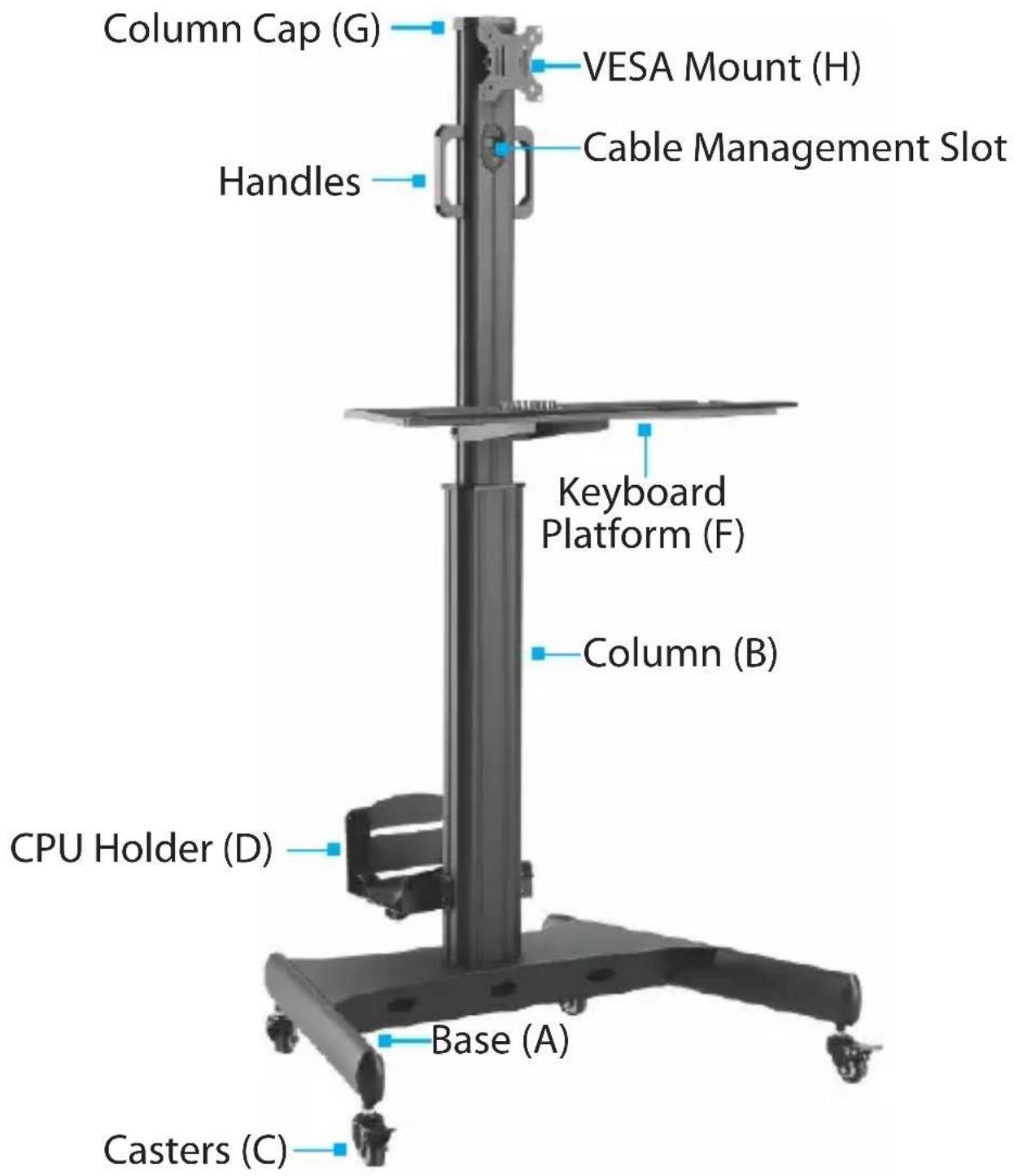

Product Diagram

Front View

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

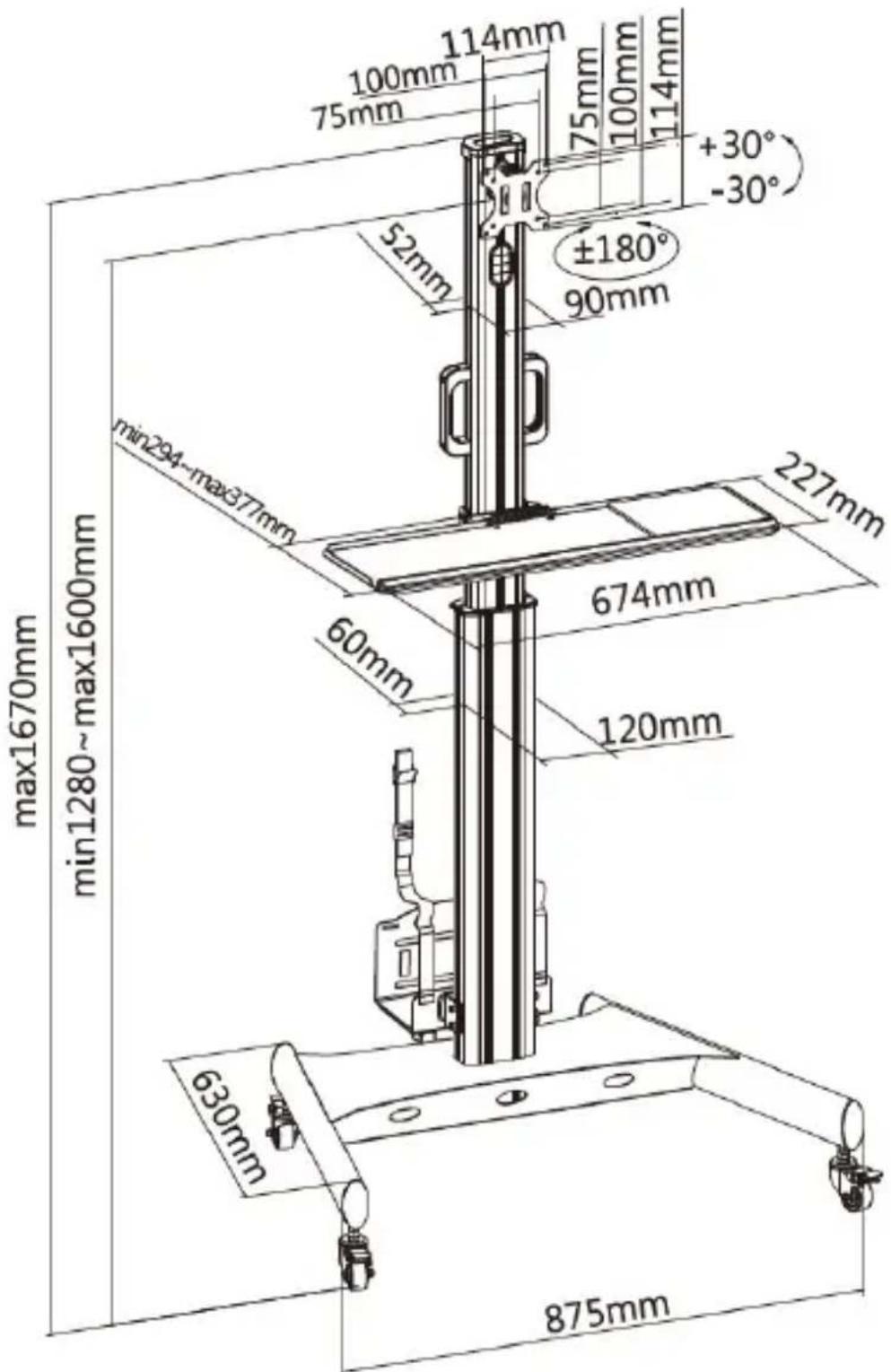

Product Dimensions

Front View

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

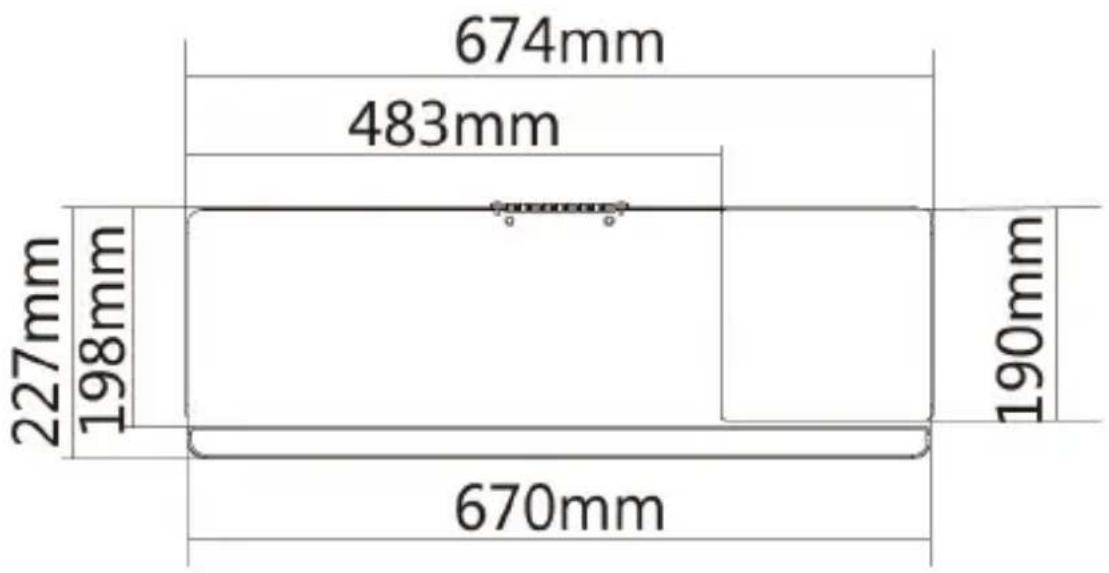

Keyboard Platform (F) View

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

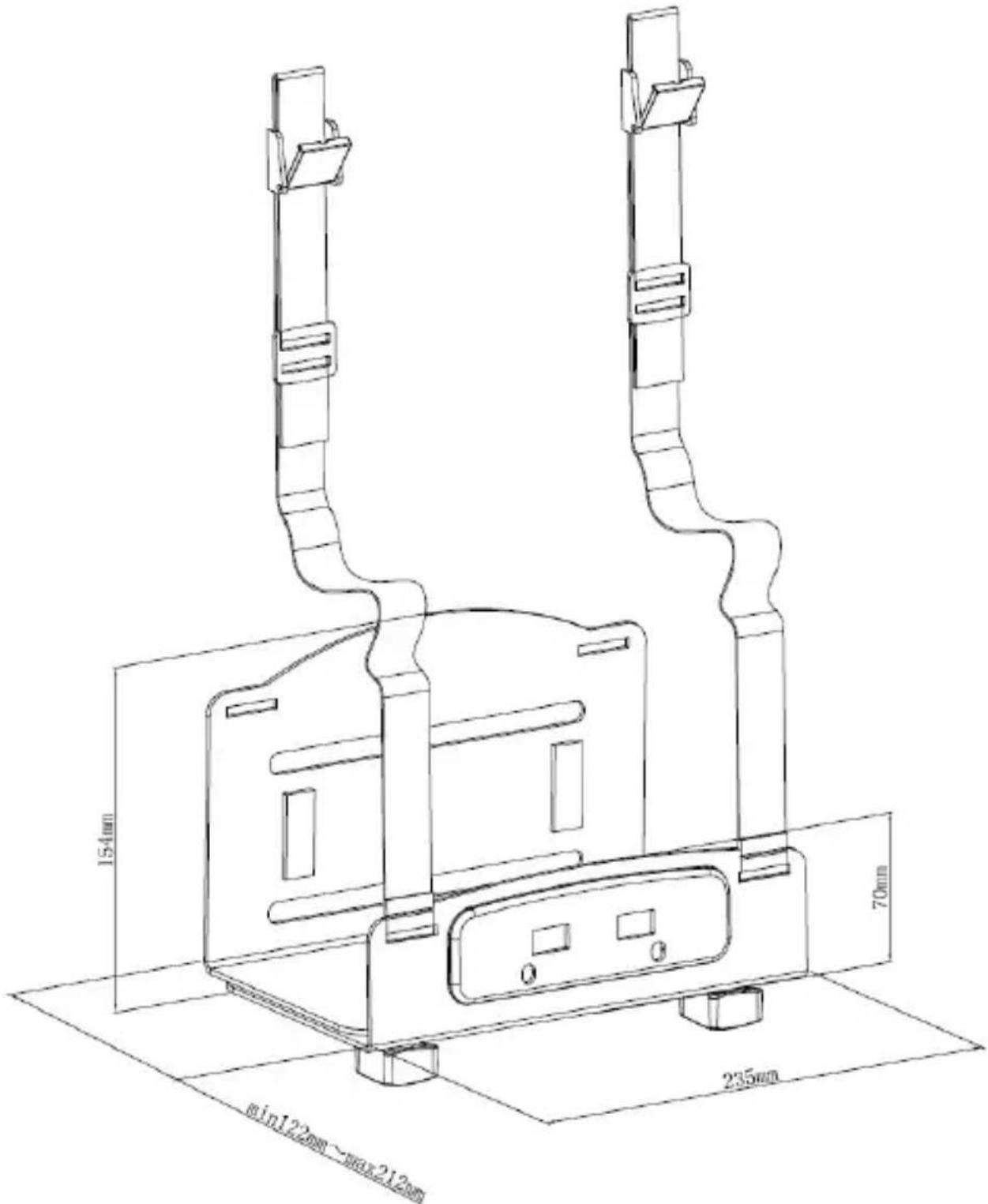

CPU Holder (D) and CPU Straps (E) View

Note: The CPU Straps (E) are not pre-installed.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Product Information

Package Contents

Note: The following images are not to scale.

Base (A) Qty: 1	Column (B) Qty: 1	Caster (C) Qty: 4	CPU Holder (D) Qty: 1
CPU Straps (E) Qty: 2	Keyboard Platform (F) Qty: 1	Column Cap (G) Qty: 1	VESA Mount (H) Qty: 1
M8 x 30 mm Screws (I) Qty: 6	Washers (Large) (J) Qty: 4	M6 x 6 mm Screws (K) Qty: 6	Mouse Pad (L) Qty: 1
5 mm Hex Key(M)Qty: 1	6 mm Hex Key (N)Qty: 1	Wrench (O)Qty: 1	M4 x 12 mmScrews (M-A)Qty: 4
M4 x 16 mmScrews (M-B)Qty: 4	M5 x 12 mmScrews(M-C)Qty: 4	M5 x 16 mmScrews (M-D)Qty: 4	Washers (Small)(M-E)Qty: 4
Spacers (M-F)Qty: 4	M6 Wrench (P)Qty: 1	M6 Nuts (Q)Qty: 2	User ManualQty: 1

Technical Specifications

Type of Measurement Measurement
Screen Size	Up to 32"
Weight Capacity Monitor	-- Up to 17.6 lb. (8 kg)Keyboard Platform -- Up to 4.4 lb. (2 kg)CPU mount: 11 lb. (5 kg)
VESA Compatible	75 x 75 mm100 x 100 mm

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

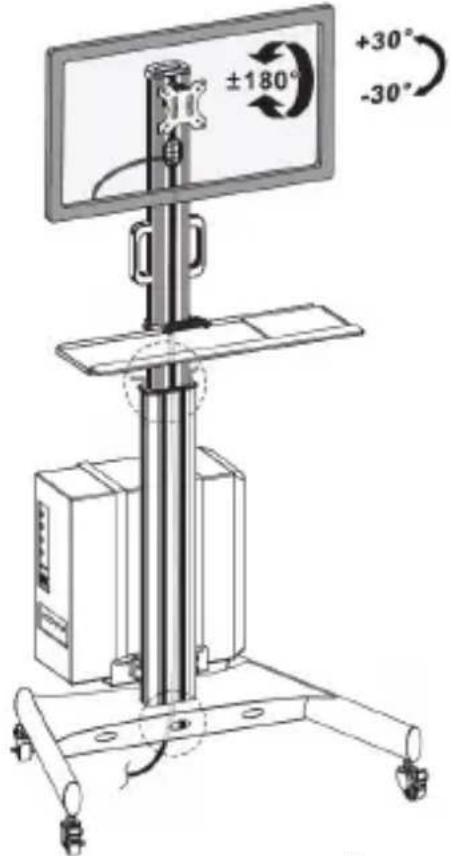

Monitor Tilt Range	+30° to -30°
Monitor Rotation	+180° to -180°
Cable Management	Yes

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Requirements

For the latest requirements, please visit www.startech.com/WKSTNCART

• Phillips Head Screwdriver x 1

Installation

Note: Do not overtighten any of the screws.

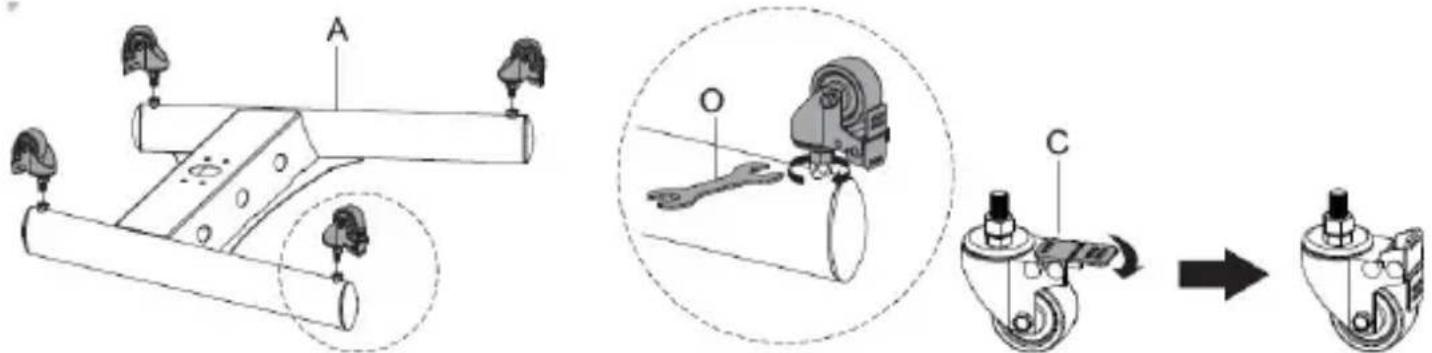

Attach the Caster (C)

Figure 1 Figure 2

1. Flip the Base (A) upside down and place it onto a clean and flat surface. (Figure 1)

Note: Cover hard floors with a soft cloth to prevent scratching.

1. Insert the four Caster (C) into the holes, located in the bottom of the Base (A) and tighten, using the Wrench (O).

2. Flip the Base (A) upright.

3. Lock the Caster (C) by pressing down on the Brake, located on top of each of the four Caster (C). (Figure 2)

4. (For uneven surfaces - adjust the height of the Caster (C)) Flip the Base (A) upside down and use the Wrench (O) to adjust the Nuts located on each Caster (C).

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

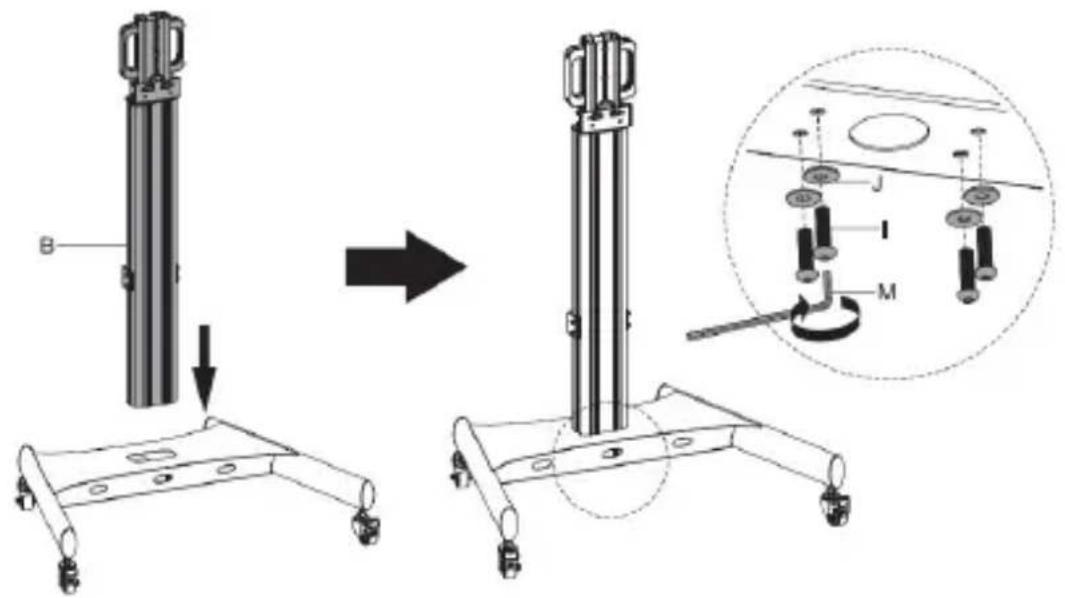

Attach the Column (B) to the Base (A)

Figure 3

1. Insert the Column (B) into the Base (A). (Figure 3)
2. Thread four Washers (Large) (J) onto four M8 x 30 mm Screws (I).
3. Insert the four M8 x 30 mm Screws (I) through the bottom of the Base (A) and into the Column (B) and tighten, using the 5 mm Hex Key (M).

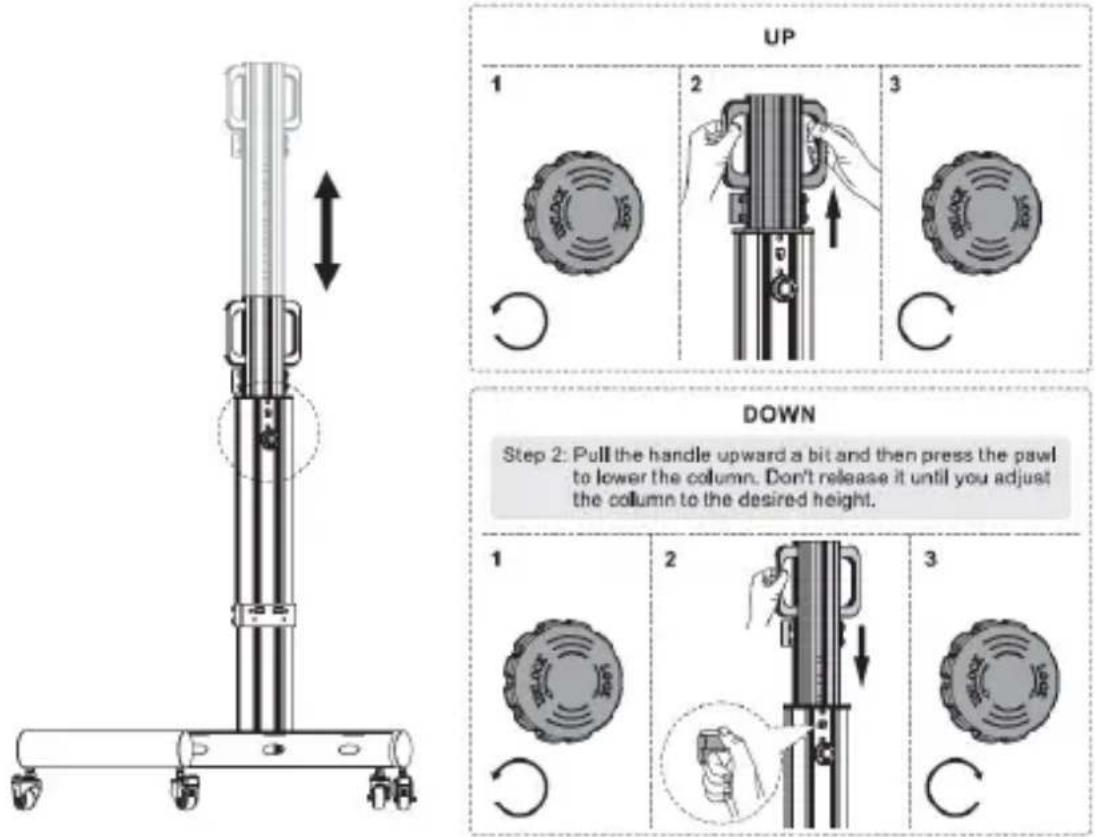

Adjust the Height of the Column (B)

Figure 4

Note: Always remove the Monitor prior to making any adjustments to the height of the Column (B).

Up

1. Loosen the Locking Knob, located on the back of the Column (B), by twisting counterclockwise. (Figure 4)
2. Pull the Column (B) up to the desired height, using the attached Handles.
3. Tighten the Locking Knob, located on the back of the Column (B), by twisting clockwise.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Down

1. Loosen the Locking Knob, located on the back of the Column (B), by twisting counterclockwise.
2. Pull the Column (B) up slightly, using the attached Handles. Support the weight of the Column (B) and press and hold the Locking Knob to lower the Column (B).

Note: Support the weight of the Column (B) during all height adjustments. The Column (B) will free fall if not properly supported once the Locking Knob has been pressed.

1. Release the Locking Knob once the Column (B) has reached the desired height.
2. Tighten the Locking Knob, located on the back of the Column (B), by twisting clockwise.

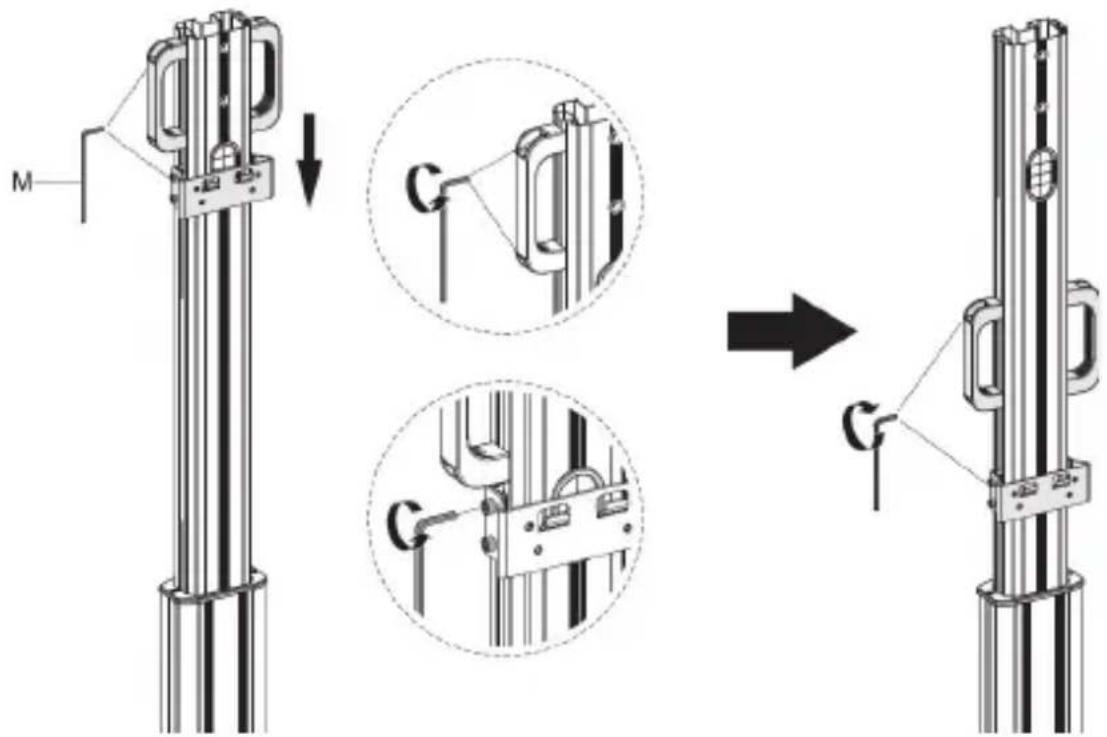

Adjust the Height of the Keyboard Platform (F) and Handles

Figure 5

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

1. Loosen (but do not remove) the Hex Screws in the Handles of the Column (B) and the Keyboard Platform Attachment Plate, using the 5 mm Hex Key (M). (Figure 5)
2. Adjust the Handles and the Keyboard Platform Attachment Plate to the desired heights and tighten the Hex Screws, loosened in step one, using the 5 mm Hex Key (M).

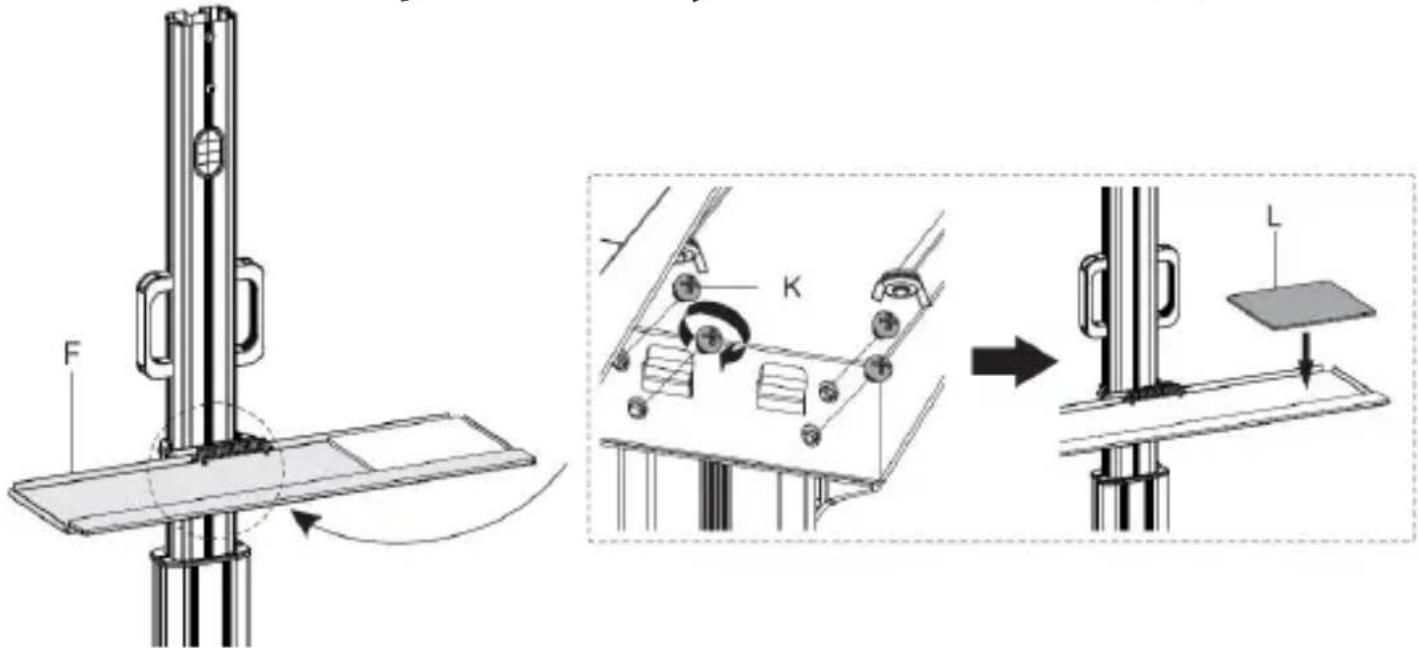

Attach and Adjust the Keyboard Platform (F)

Figure 6

Attach the Keyboard Platform (F)

1. Hang the Keyboard Platform (F) onto the Hooks, located on the Keyboard Platform Attachment Plate on the Column (B). (Figure 6)
2. Insert four M6 x 6 mm Screws (K) through the Keyboard Platform (F) and into the Keyboard Platform Attachment Plate then tighten, using a Phillips Head Screwdriver.
3. Insert the Mouse Pad (L) into the desired side of the Keyboard Platform (F).

Adjust the Keyboard Platform (F)

To slide the Keyboard Platform (F) towards or away from the User:

1. Loosen (but do not remove) the Wing Nuts located under the Keyboard Platform, by hand.
2. Slide the Keyboard Platform (F) to the desired position.
3. Tighten the Wing Nuts located under the Keyboard Platform, by hand.
4. (Optional - for secure Keyboard Platform (F) placement) Remove the Wing Nuts by hand, replace the Wing Nuts with the two M6 Nuts (Q), and tighten, using the
5. (Optional) Replace the Wing Nuts with the two M6 Nuts (Q) and tighten, using the M6 Wrench (P).

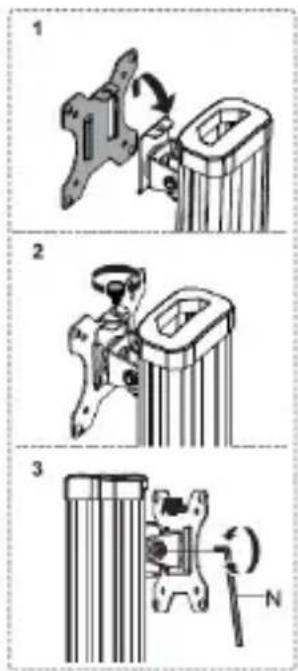

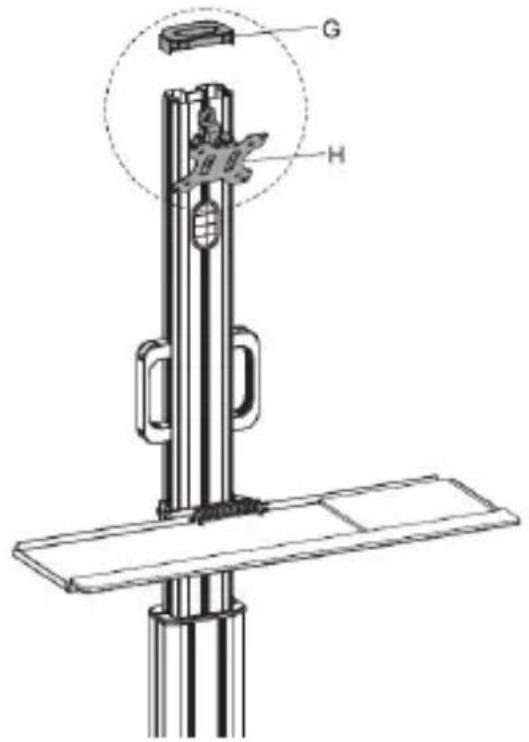

Attach the VESA Mount (H)

Figure 7

1. Loosen (but do not remove) the Hex Screw located on the side of the VESA Mount (H), using the 6 mm Hex Key (N). (Figure 7)
2. Tilt the VESA Mount (H) down to access the top-back Mounting Hole. Insert an M8 x 30 mm Screw (I) through the Mounting Hole located at the top-back of the VESA Mount and into the Column (B) then tighten, using the 5 mm Hex Key (M).
3. Tilt the VESA Mount (H) upwards to access the top-back Mounting Hole. Insert an M8 x 30 mm Screw (I) through the Mounting Hole located at the bottom-back of the VESA Mount and into the Column (B) then tighten, using the 5 mm Hex Key (M).
4. Tighten the Hex Screw located on the side of the VESA Mount (H), using the 6 mm Hex Key (N) and press the Column Cap (G) onto the top of the Column (B).

Remove the VESA Plate from the VESA Mount (H)

Mechanical device diagram showing a rotating lever mounted on a cylindrical base (no text or symbols)

Figure 8

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

1. Remove the Thumbscrew from the top of the VESA Mount (H). Save this Thumbscrew for a future installation step. (Figure 8)
2. Slide the VESA Plate up and off of the VESA Mount (H).

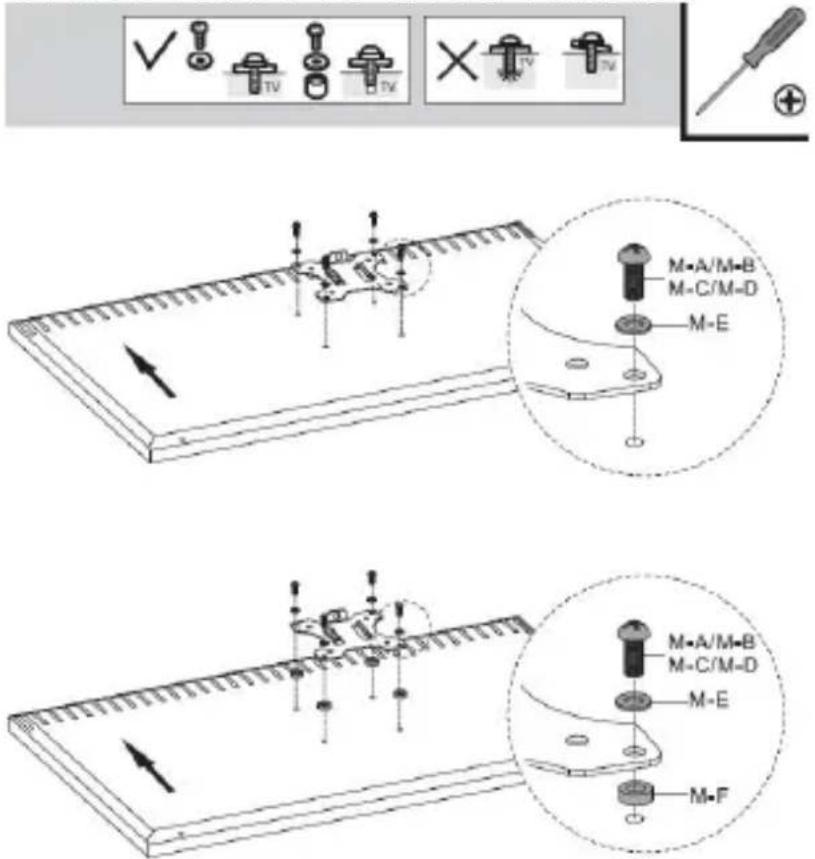

Attach the VESA Plate to the Monitor

Figure 9

1. Place the Monitor on a padded surface, screen side down, so the back of the Monitor is accessible. (Figure 9)

2. (Optional) Identify and remove the pre-installed VESA Hardware from the back of the Monitor.

Note: Not all Monitors will have placeholder VESA Hardware. Only remove the Screws for the VESA Mount. Do not remove any of the screws from the Video Display Device's structural assembly.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

1. (Optional -- for Monitors with recessed VESA Mounting Holes, for Monitors with uneven rear geometry, or to adjust the engagement depth of the provided Screws) Add the necessary number of Spacers (M-F) between the Monitor and the VESA Plate.
2. Align the VESA Plate over the VESA Mounting Holes or (optional) Spacers (M-F) located on the back of the Monitor. The side of the VESA Plate that features the threaded hole should be pointing towards the top of the Monitor.
3. Place four Washers (Small) (M-E) over each VESA Mounting Hole.
4. Thread the appropriate size and length of M-Type Screws (e.g. M4 x 12 mm Screws (M-A)) through the Washers (Small) (M-E), VESA Plate, (Optional) Spacers (M-F), and into the Monitor.
5. Tighten the M-Type Screws, using a Phillips Head Screwdriver, until each Screw sits flush with the surface of the VESA Plate.

Warning! Do not overtighten the M-Type Screws. If any unexpected resistance is encountered while fastening these Screws, immediately stop and attempt to use a different length of M-Type Screw.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

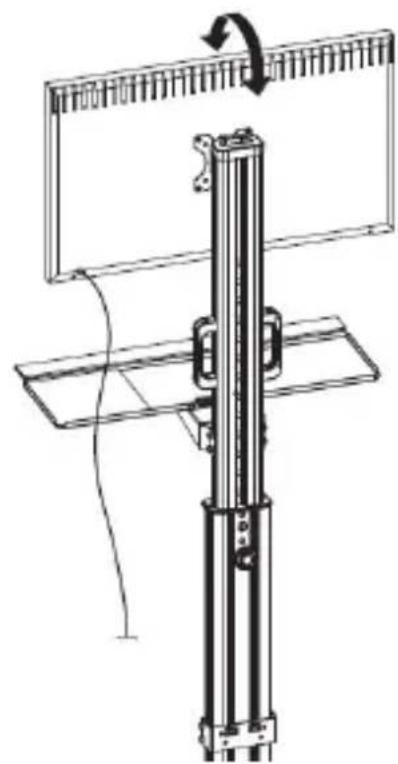

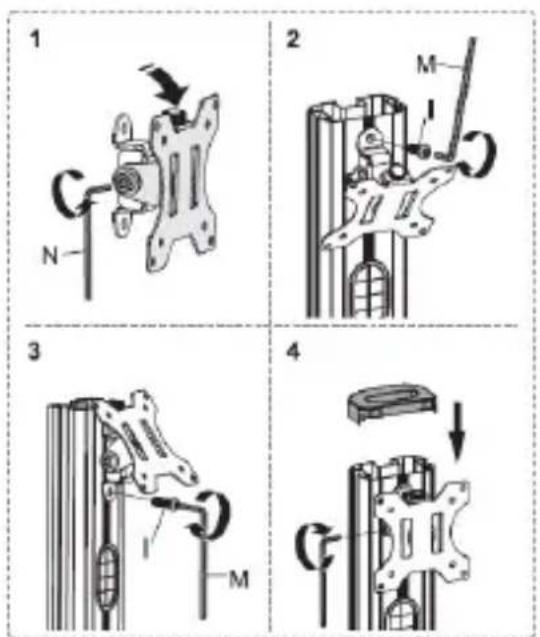

Mount the Monitor to the Column (B)

Technical line drawing of a mechanical device with rotating arm and base plate (no text or symbols)

Figure 10

1. (Complete this step with two people) Lift the Monitor Assembly and slide the VESA Plate down into the tracks on the VESA Mount (H) to align the screw hole located on the top of the VESA Plate with the hole located on the top of the VESA Mount (H). (Figure 10)
2. Insert the Thumbscrew, removed in step one of Remove the VESA Plate from the VESA Mount (H), through the screw hole located on the top of the VESA Plate and into the VESA Mount (H).
3. Insert the Hex Screw, removed in step one of Attach the VESA Mount (H), into the screw hole located on the left side of the VESA Plate and into the VESA Mount (H) then tighten, using the 6 mm Hex Key (N).

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Adjust the Height of the CPU Holder Bracket

Figure 11

1. Loosen (but do not remove) the four Hex Screws located on the sides of the CPU Holder Bracket, using the 5 mm Hex Key (M). (Figure 11)
2. Slide the CPU Holder Bracket to the recommended mounting height of 80 - 120 mm from the floor.
3. Tighten the four Hex Screws located on the sides of the CPU Holder Bracket, using the 5 mm Hex Key (M). Ensure the Hex Screws are fastened enough to support the weight of the CPU.

Adjust the Width of the CPU Holder (D)

Figure 12

1. Twist the Knobs located on the bottom of the CPU Holder (D) in a counterclockwise direction to loosen. (Figure 12)
2. Adjust the CPU Holder (D) to the width of the CPU.
3. Twist the Knobs located on the bottom of the CPU Holder (D) in a clockwise direction to tighten.

Attach the CPU Holder (D) to the CPU Holder Bracket on the Column (B)

Figure 13

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

1. Hang the CPU Holder (D) onto the Hooks, located on the CPU Holder Bracket on the Column (B). (Figure 13)
2. Insert two M6 x 6 mm Screws (K) through the CPU Holder (D) and into the CPU Holder Bracket on the Column (B) then tighten, using a Phillips Head Screwdriver.

Attach the CPU Straps (E) to the CPU Holder (D)

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

Figure 14

Push the t-shaped end of the CPU Straps (E) through the slots on the back of the CPU Holder (D). (Figure 14)

Install/Secure the CPU into the CPU Holder (D)

Figure 15

1. Feed the secondary portions of the CPU Straps (E) through the slots on the front of the CPU Holder (D).

2. Feed the CPU Straps (E) back into themselves through the Folding Plastic Clips located on the primary portion of the CPU Straps (E). As the CPU Straps (E) are being fed into themselves the Folding Plastic Clip will unfold. After completing any necessary adjustments, fold the Folding Plastic Clip to lock the CPU Straps (E).

3. Slide the CPU into the CPU Holder (D)

4. Unfold the Folding Plastic Clips and adjust the tension of the CPU Straps (E). After completing any necessary adjustments, fold the Folding Plastic Clip to lock the CPU Straps (E).

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Cable Management

Pure electrical circuit lines without any symbols

Figure 16

Route the Cables from the CPU down through the Base (A) and out of the Cable Management Slot located in the Column (B).

Store the 5 mm (M) / 6 mm (N) Hex Keys

Slide the Hex Keys into the storage slots located on either side of the middle of the Column (B).

Operation

Move the Mobile Workstation Assembly

1. Unplug all the Cables connecting the Mobile Workstation to any Stationary Object (e.g. the wall, a media device, etc.).
2. Disengage the Brakes on the Casters (C).

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

1. Grip the Monitor and the Handles on the Column (B) and slowly move the Mobile Workstation Assembly, using two people. Ensure caution is exercised around corners or when navigating over bumps and/or uneven ground.

2. Lock the Brakes on the Casters (C).

Warranty Information

This product is backed by a two-year warranty.

For further information on product warranty terms and conditions, please refer to www.startech.com/warranty.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Hard-to-find made easy. At StarTech.com, that isn't a slogan. It's a promise.

StarTech.com is your one-stop source for every connectivity part you need. From the latest technology to legacy products — and all the parts that bridge the old and new — we can help you find the parts that connect your solutions.

We make it easy to locate the parts, and we quickly deliver them wherever they need to go. Just talk to one of our tech advisors or visit our website. You'll be connected to the products you need in no time.

Visit www.startech.com for complete information on all StarTech.com products and to access exclusive resources and time-saving tools.

StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.

Reviews

Share your experiences using StarTech.com products, including product applications and setup, what you love about the products, and areas for improvement.

StarTech.com Ltd.

45 Artisans Crescent

London, Ontario

N5V 5E9

Canada

StarTech.com LLP

4490 South

Hamilton Road

Groveport, Ohio

43125

U.S.A.

StarTech.com Ltd.

Unit B, Pinnacle 15

Gowerton Road

Brackmills,

Northampton

NN4 7BW

United Kingdom

StarTech.com Ltd.

Siriusdreef 17-27

2132 WT

Hoofddorp

The Netherlands

FR: fr.startech.com

DE: de.startech.com

ES: es.startech.com

NL: nl.startech.com

IT: it.startech.com

JP: jp.startech.com
