Product Type	Drone
Brand	Autel
Model	EVO II Pro V2
Dimensions (folded)	200 × 200 × 100 mm
Weight (with battery)	Approx. 1.2 kg
Battery Type	LiPo 11.4V 7100mAh
Max Flight Time	Up to 40 minutes
Max Speed	75 km/h (Sport mode)
Max Ascent Speed	8 m/s
Max Descent Speed	4 m/s
Max Takeoff Altitude	5000 m
Max Transmission Range	9 km
Camera	20 MP 1-inch CMOS, 6K up to 30fps
Gimbal	3-axis mechanical gimbal
Obstacle Avoidance	3D (forward, backward, downward, sides)
GNSS Support	GPS + GLONASS + Galileo
Operating Temperature	-10°C to 40°C
Storage Temperature	-10°C to 60°C
Maintenance	Clean with soft dry cloth; store in cool, dry place
Safety	Follow local regulations; keep distance from people and obstacles
Spare Parts	Available from Autel or authorized dealers
Repairability	Modular design; professional repair recommended

Frequently Asked Questions - EVO II Pro V2 Autel

How do I calibrate the compass on the EVO II Pro V2?

To calibrate the compass, go to the controller settings and select 'Calibrate Compass'. Rotate the drone 360 degrees horizontally and vertically as instructed on the screen. Ensure you are away from metal objects and magnetic interference.

What is the maximum flight time of the EVO II Pro V2?

The maximum flight time is up to 40 minutes under optimal conditions (no wind, steady hover). Actual flight time may vary based on wind, speed, and payload.

Can I use the EVO II Pro V2 in rain?

No, the EVO II Pro V2 is not waterproof. Avoid flying in rain, snow, or high humidity to prevent damage to the electronics and motors.

How to update the firmware on the EVO II Pro V2?

Connect the drone to the Autel Explorer app via Wi-Fi or USB. Go to 'Settings' > 'Firmware Update' and follow the prompts. Ensure both the drone and remote controller are updated. Keep the battery charged during the update.

What spare parts are available for the EVO II Pro V2?

Spare parts include propellers, batteries, charging hub, gimbal camera, landing gear, and remote controller. These can be purchased from Autel's official store or authorized dealers.

How do I clean the camera lens of the EVO II Pro V2?

Use a microfibre cloth and a small amount of lens cleaning solution. Gently wipe the lens in a circular motion. Avoid using abrasive materials to prevent scratches.

What is the maximum range of the remote controller?

The maximum transmission range is 9 km (FCC) and 4 km (CE) in open areas with no obstructions. Actual range may be reduced by obstacles, interference, or local regulations.

Is the EVO II Pro V2 suitable for beginners?

While the EVO II Pro V2 has advanced features, it also includes beginner-friendly modes like Beginner Mode and Return to Home. However, due to its high value and complexity, novices are advised to practice with a smaller drone first.

How to enable obstacle avoidance on the EVO II Pro V2?

Obstacle avoidance is enabled by default. You can adjust its settings in the Autel Explorer app under 'Safety' > 'Obstacle Avoidance'. It uses 3D sensors to detect obstacles in multiple directions.

What should I do if the drone loses GPS signal?

The EVO II Pro V2 will automatically switch to Attitude Mode and rely on the Visual Positioning System if available. Ensure you have a clear view of the sky and avoid flying near tall buildings or dense trees. The drone may also initiate Return to Home if the signal is lost for a set time.

USER MANUAL EVO II Pro V2 Autel

Line drawing of a four-blade drone with four propellers (no text or symbols)

Trademark Information

EVO II™, EVO II Pro™, EVO II Dual™, Autel Explorer™, Starpoint™ and the Autel Robotics® logo are trademarks of Autel Robotics Co., Ltd., registered in China, the United States and other countries. All other products and company names mentioned in this User Manual are registered trademarks of their respective holders.

Copyright Warning

Reproduction or retransmission of any part of this manual in any form or by any means, whether electronic, mechanical, photocopying, recording, or otherwise, is forbidden without the express written permission of Autel Robotics.

Patent Information

This product is obtained according to patent procedures. The patent numbers are as follows: US7979174 IL192490

US9260184 CA2815885

US9979000 US10224526 US10044013 US10115944 US10090496 US10074836

US10341573 US10399699 US10414514

Disclaimer

Please closely follow the steps in these instructions in order to ensure safe and successful operation of your EVO II aircraft.

Children must remain under adult supervision when using the aircraft. Keep the aircraft out of the reach of children when it is not in use.

If the customer fails to follow safety instructions, Autel Robotics is not liable for and provides no warranty coverage for any product damages that occur during use, be they direct or indirect, legal, special, incidental, or economic (including but not limited to loss of profits). Do not use unapproved components or attempt to modify the aircraft in any way inconsistent with the instructions in the official aircraft documentation.

These safety instructions will show you how to get started safely with your EVO II. Only you can ensure that you fly your EVO II securely and never jeopardize the safety of yourself, other people, or their property.

These safety instructions will be updated from time to time. To check whether you have the latest version, visit www.auteldrones.com/support/downloads/.

Data Storage and Usage

When the Flight Log Backup option is disabled, as it is by default, no flight or user data will be uploaded or transmitted via the Autel Explorer™ app. When Flight Log Backup is enabled and the app is paired

with the aircraft, flight log data (including flight telemetry) will be uploaded and maintained on Autel Robotics data servers. All telemetry and flight logs are stored on data servers located within the boundaries of the continental United States, and the data upload occurs automatically only if the Flight Log Backup option is enabled.

The Autel Robotics customer support team doesn't have access to flight log data except when explicitly granted permission by the user via the Autel Explorer ^TM app. When that permission is granted, only flight logs within the selected date range can be accessed.

Information, including still and motion imagery and data from the aircraft's sensors, will be stored on the aircraft's internal drive. If your aircraft ever needs to be sent to us for service, the information on the internal storage unit may be used to diagnose problems with the aircraft. The information will not be retained except as required to perform the service or repair. Do not remove or alter the data on the internal storage device in any way. Doing so will invalidate all warranty coverage.

Autel Robotics' purpose in gathering data is to provide support and service for our customers, and to improve the performance of our products. We take your privacy as seriously as we do our own. We will consent to the disclosure of uploaded data only when required by law to do so.

Safety Instructions

Battery Safety

The EVO II is powered by a lithium-polymer battery. The misuse of Li-Po/Li-Ion batteries can be hazardous. As such, make sure to strictly follow all the battery usage, charging and storage instructions below.

WARNING!

• Only use batteries and charging devices that came with the aircraft or are sold by Autel Robotics for use with the EVO II. Do not tamper with the battery pack or its charger.
• Battery electrolytes are highly corrosive. If any electrolyte comes in contact with your skin or your eyes, immediately flush the affected area with clean running water and seek medical attention.

Battery Usage

Always turn off the aircraft before installing or removing the battery. Additional information:

• Only use batteries and charging devices that came with the aircraft or are sold or authorized by Autel Robotics for use with the EVO II. Using unapproved batteries or charging devices may result in fire, explosion, leakage, or other hazards. Autel Robotics will not be liable for any consequences resulting from the use of third-party batteries or charging devices.
• Do not disassemble, open, crush, bend, deform, puncture, shred, or otherwise intentionally cause damage to the battery. Doing so may result in fire, explosion, leakage, or other hazards.
• If the battery starts to swell, smoke, leak, or show any signs of damage, stop using or charging it immediately and submerge it in a container of saltwater.
• Do not expose the battery to temperatures below -10^ircC (14°F) or above 40^ircC (104°F). Exposing the battery to extreme temperatures will reduce its lifespan and may result in fire, explosion, or other permanent damage.
• Temperatures below 5^ircC (41°F) will cause the battery to discharge faster.
• Do not use the battery in strong electrostatic or electromagnetic environments.
• Do not expose the battery to fire, explosions, or other hazards.
• If the aircraft becomes submerged, remove the battery immediately after you retrieve it. Leave the battery in an open area, away from flammable objects, and maintain a safe distance until it is completely dry. Don't use the battery again. Contact our customer support team for a replacement.

Battery Charging

It should take a maximum of 90 minutes to fully charge the aircraft battery, though charging times will vary according to the remaining power level.

Additional information:

• Do not use a damaged battery charger.
• When the charger is not in use, disconnect it from the aircraft battery and the power source.
• Wait until the battery has cooled down to room temperature before charging it. If you connect the battery to the charger immediately after flight, overheat protection will prevent charging.

Battery Storage

In storage as in flight, it's important not to allow the battery to come in close contact with moisture or heat sources. Store the battery in a dry and well ventilated area at room temperature — ideally 22^irc C to 28^irc C ( 72^irc F to 82^irc F).

Additional information:

• Keep the battery out of reach of children and pets.
• Do not store the battery in direct sunlight or near sharp items, moisture, metal, or reactive chemicals.
• Storing the battery at extreme temperatures will reduce its lifespan. If the battery is left unused for over 6 days, store it at a temperature between -10^irc C (14° F) and 30^irc C (86° F). Otherwise, battery damage or failure may result.
  • Over time, some reduction in battery life is expected.

Battery Disposal

• Completely discharge the battery before disposal.
• Dispose of the battery properly at an approved battery recycling location.

Flying the Aircraft Safely & Securely

Flight Environment

• Comply with all local regulations on flying drones. Only fly within designated drone flying areas, and set compliant distance and height limits using the Autel Explorer™ app.
• Do not fly in hazardous situations or severe weather conditions, such as tornadoes, rain, hail, or snow.
• Do not fly the aircraft near facilities that could produce electromagnetic interference, such as power plants, transmission lines, substations, high winds and broadcasting towers.
• Fly in an open and safe area. Avoid obstacles that can interfere with the GPS signal, such as buildings and trees.
• Exercise caution when flying in environments over 6000 meters (18,000 feet) above sea level, as the aircraft's battery and power system performance may be affected.

Before Flying

Before flying the aircraft, always ensure that:

• The remote control, the battery, and the mobile device used with the Autel Explorer ^TM app are fully charged.
• The propellers are correctly installed and not damaged.
• The aircraft's front and back arms are fully unfolded.
• The aircraft's motor, gimbal, and camera work properly when the aircraft is powered on.
• All warnings and error messages displayed on the app have been addressed.

Only use accessories that came with the aircraft, are sold or authorized by Autel Robotics for use with the aircraft. Using unapproved accessories presents serious risks to safety and will void the product's warranty.

While Flying

- During takeoff and landing, keep the aircraft away from people, vehicles, and other moving objects.

• Keep the aircraft in your visual line of sight at all times.
• Do not fly the aircraft close to water surfaces.
• When the low battery warning appears, do not cancel the automatic go-home process. Otherwise, the aircraft may not have enough battery power to return to the home point.
• If a warning appears on the Autel Explorer™ app, follow the corresponding instructions immediately.
• Do not fly the aircraft if you are dizzy, fatigued, under the influence of alcohol or drugs, or experiencing any other condition that may impair your ability to safely operate the aircraft.

WARNING

If any part of the aircraft or the remote control fails to function correctly or has visible damage, do not fly the aircraft. Contact our support team at www.auteldrones.com/contact-us/.

Storage & Maintenance

Carefully check every part of the aircraft after any crash or collision. Keep the aircraft and its accessories stored out of the reach of children and pets.

• Store the aircraft and its accessories in a cool, dry place.
• Keep the aircraft away from moisture and heat sources.
• The recommended storage temperature for the aircraft is 22^ircC to 28^ircC (72°F to 82°F).

The Autel Robotics support team stands ready to help via chat, phone or email at [e-mail].

Contents

Chapter 1 About This Manual 8

1.1 Legend 8

1.2 Before First Flight 8

1.2.1 Reading the Included Documents 8
1.2.2 Autel Explorer™ App Installation (Optional) 9

Chapter 2 Getting to Know Your Smart Drone 10

2.1 Aircraft 10

2.1.1 Functionality Description 10
2.1.2 Flight LED Indicators 14
2.1.3 Aircraft Battery 15
2.1.4 Gimbal & Camera 17

2.1.5 Built-in Smart Flight System 26

2.1.6 Smart Flight Features 27

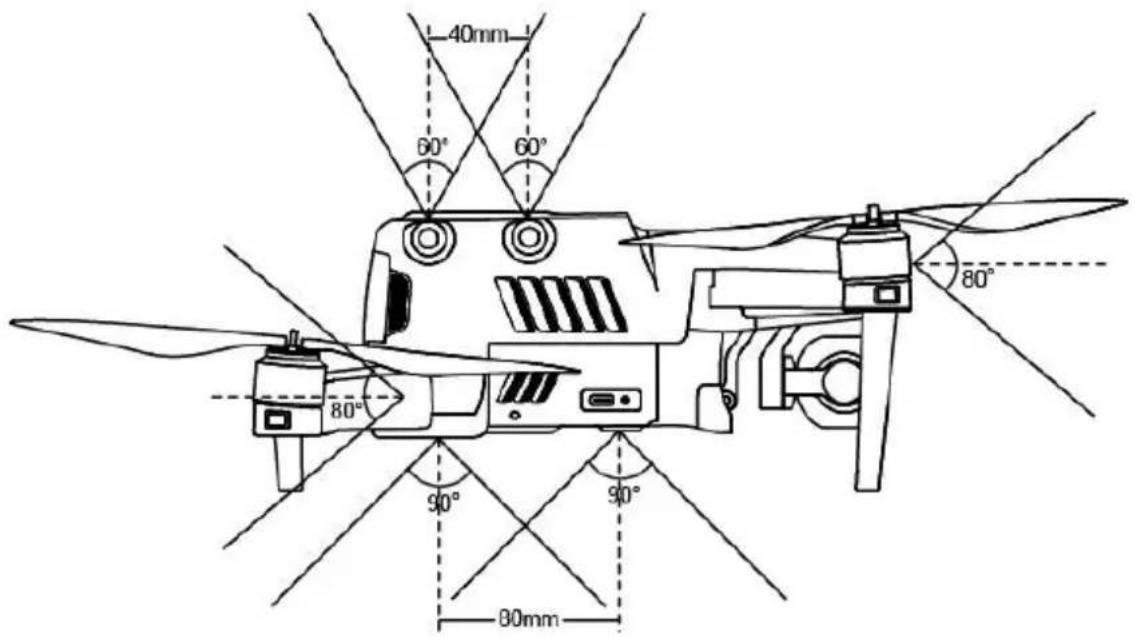

2.1.7 Omnidirectional Binocular Vision Sensing System 30

2.2 Remote Control 34

2.2.1 Functionality Description 34
2.2.2 Live View Panel 37
2.2.3 Indicator Lights 41
2.2.4 Remote Control Buzzer Alerts 42

Chapter 3 Preflight Preparation 43

3.1 Battery Preparation 43
3.1.1 Aircraft Battery Installation 43
3.1.2 Aircraft Battery Removal 43
3.1.3 Charging 44

3.2 Remote Control Preparation 45

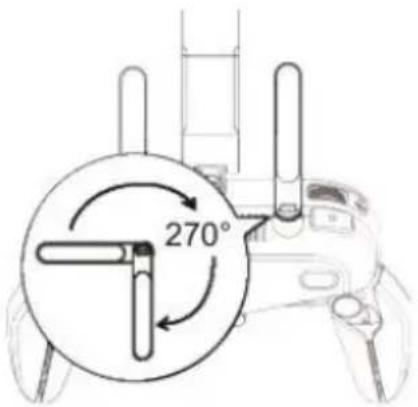

3.2.1 Unfolding the Remote Control 45
3.2.2 Powering Up/Off the Remote Control 46
3.2.3 Remote Control Calibration 47

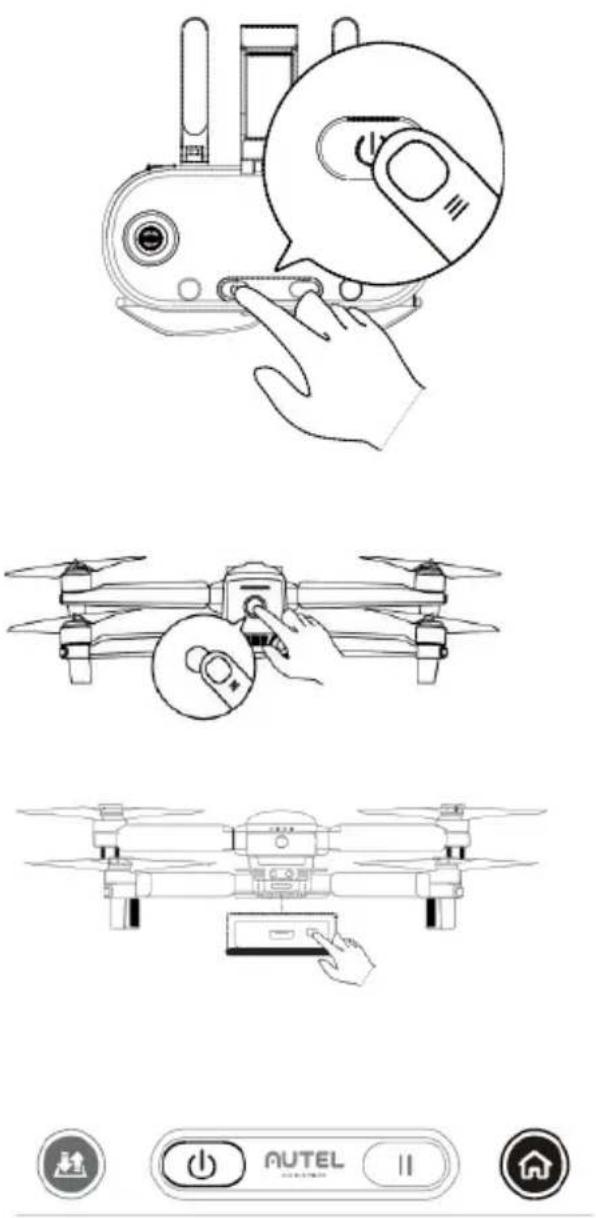

3.2.4 Pairing the Aircraft & Remote Control 47

3.3 Aircraft Preparation 49

3.3.1 Unfolding the Aircraft 49
3.3.2 Propellers Installation 50
3.3.3 Compass Calibration 51

Chapter 4 Flight Operations 53

4.1 Preflight Checklist 53

4.2 Remote Control & Flight Operations 53

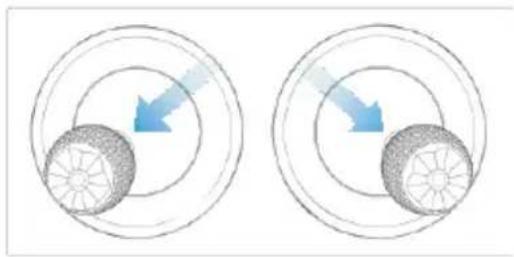

4.2.1 Motor Start & Aircraft Takeoff 54

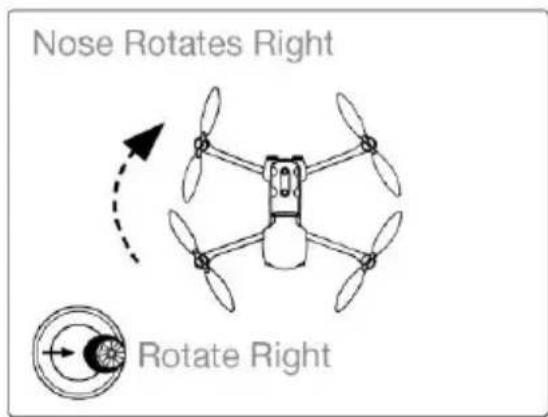

4.2.2 Command Stick Controls (Mode 2) 55
4.2.3 Landing & Motor Shutdown 56

Chapter 5 Maintenance & Service 59

5.1 Firmware Upgrade 59
5.2 Troubleshooting Tips 60
5.3 Storage & Maintenance 61
5.4 Warranty 62

5.5 Customer Service 63
5.5.1 Technical Support 63
5.5.2 Repair Service 63

Chapter 6 Appendix 65

6.1 Regulatory Compliance & Flight Restricted Area 65
6.1.1 Compliance & Advisory 65
6.1.2 Flight Restricted Area Illustration 66
6.2 Specifications 68

Chapter 1

About This Manual

Thank you for purchasing the EVO II series, and welcome to the Autel Robotics family. Use this manual to get a detailed look at the EVO II's features and how best to make use of them when operating the aircraft and remote control. Please read it in its entirety — with the other included documentation — before flying your EVO II for the first time, and keep it at hand for easy consultation while you get to know your aircraft.

1.1 Legend

Pay special attention to the callouts appear throughout this manual.

WARNING: Points out a potentially hazardous situation.

IMPORTANT: Something to be aware of during flight operation.

NOTE: Supplementary information.

TIPS: How to get the most out of your EVO II experience.

REFERENCE: A page number that guides you to the section containing relevant information in this manual.

1.2 Before Your First Flight

1.2.1 Documents for Getting Started

The following documents will help you get started using your EVO II for the first time.

1. Packing List: A list of all the items that should be in the product box. If any items are missing, please contact Autel Robotics customer support or your local retailer.
2. Disclaimer & Safety Instructions: Notes on how to operate the EVO II safely and responsibly

3. Quick Guide: The basics of EVO II operation

4. Battery Quick Guide: The basics of intelligent battery

5. User Manual: A guide to the finer points of EVO II mastery. Download it at https://www.auteldrones.com/support/downloads/.
6. Autel Explorer™ App Manual: If you plan to use our mobile app, download the manual for it at www.auteldrones.com/support/downloads/.

WARNING

Make sure the aircraft and other components on the Packing List are accounted for in the box. Do not use unapproved components or attempt to modify the aircraft in any way inconsistent with the instructions in the official aircraft documentation.

1.2.2 Autel Explorer™ App Installation (Optional)

The Autel Explorer™ app delivers a live stream, enhanced flight and camera controls to your mobile device.

Search for Autel Explorer in the App Store or Google Play, then tap INSTALL.

Chapter 2

Getting to Know Your Smart Drone

Now you can explore, discover and create like never before. The EVO II delivers not only advanced features like obstacle avoidance and intelligent flight modes, but also high-tech muscle that brings home a top speed of 44 mph, up to 35-minute hover time, 40-minute flight time and an operating distance of 10 km (6.2 miles).

In-flight performance, however, is just the start. The EVO II's stabilized 3-axis camera allows you to view the live feed at up to 1080p on your mobile device or 720p on the remote control's built-in OLED screen.

2.1 Aircraft

The EVO II is a foldable quadcopter with a stabilized 3-axis camera gimbal.

2.1.1 Functionality Description

① Propellers

④ Landing Gear

② Motors ⑤ Forward Vision

⑥ Camera Gimbal

③ Front LED Indicators

Rear Side

⑦ Power Button

⑧ Aircraft Battery

⑨ Rear Vision System

⑩ Rear LED Indicators

Le Side

⑪ Left Vision System

⑫ SD Card Port

Right Side

⑬ Right Vision System

⑭ Fan Exhaust

Line drawing of a four-blade drone with propellers and a central body, labeled with number 17 (no text or symbols on the diagram itself)

Top Side

⑰ Top Vision System

Bottom Side

⑱ Ultrasonic Sensor
⑲ Downward Vision Lighting LED
⑳ Downward Vision System

NOTE

There is a protector on the right designed to protect the USB Type-C Port and Remote Control Pairing Button/Pairing Indicator. Remember to put it back in place before flying the aircraft.

2.1.2 Flight LED Indicators

An LED indicator is located on the end of each aircraft arm. The front LEDs will light up solid red to help you identify the direction of the aircraft's nose. The rear LEDs will display the current flight status of the aircraft. The chart below shows the meaning of each status indicator.

Indicator Key:

Slow Flashing: Flashes once every 2s

Fast Flashing: Flashes twice per second

Double Flashing: Flashes twice and then pauses and repeats

Alternate Flashing: Alternates among different colors

Color Key:

R Red

G Green

Y Yellow

Definitions of Flight LED Indicator Status
Normal Status
RGY - Alternate Flashing	System self-test is activated
YG - Alternate Flashing	The aircraft is warming up
G - Slow Flashing	The aircraft is in GPS mode
Warning
Y - Slow Flashing	The aircraft is in ATTI mode
Y - Fast Flashing	No connection between the aircraft and remote control
R - Slow Flashing	Low Battery Warning
R - Fast Flashing	Critically Low Battery Warning
R - Solid Light	Critical problems, IMU error
RY - Alternate Flashing	Abnormal compass, calibration is required / Magnetometer interference
Compass Calibration
Y - Fast Flashing	Be ready to calibrate the compass / The aircraft is calibrating
G - Solid Light	Calibration is successful
R - Solid Light	Calibration is failed
Gesture Commands
R - Fast Flashing	Gesture command has been received

2.1.3 Aircraft Battery

The EVO II's all-new, custom-designed rechargeable Li-Po battery features high energy density and capacity. It should be charged exclusively using the supplied charger.

- Basic Functions

Aircraft Battery

① Removal Button
② Battery Level Indicators
③ Power Button

Turning On the Battery

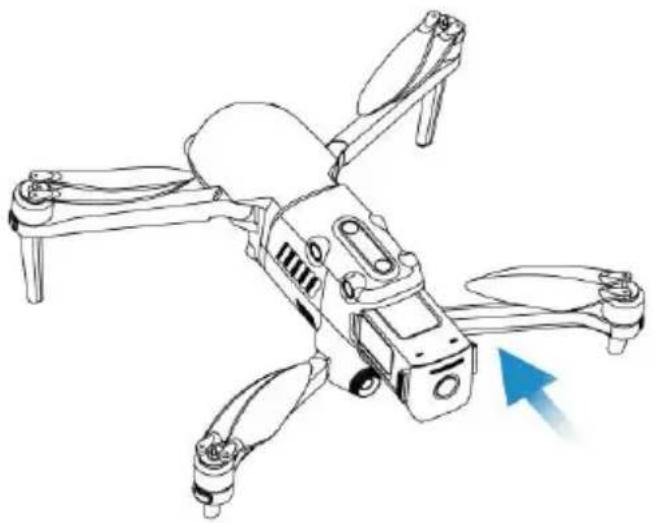

Make sure the battery is off before attaching it to the aircraft. After attaching it, press and hold the Power Button for 3 seconds. The battery level indicators will display the current battery level.

Turning Off the Battery

Press and hold the Power Button for 3 seconds to turn off the battery. If the battery is attached to the aircraft, the LED 1 and LED 4 will flash 5 times to indicate that the battery is turning off. Once all Battery Level Indicators have turned off, remove the aircraft battery from the aircraft.

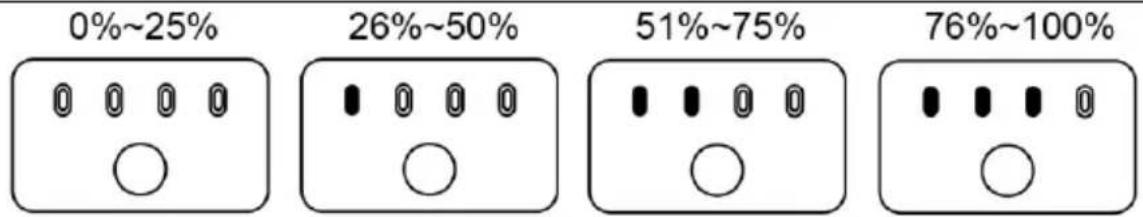

▶ Checking the Battery Level

To check the battery level without powering it on, press the Power Button for 1 second, and then release it quickly. The LEDs will display the current battery level as shown below.

• Additional Functions

The additional functions listed below protect and preserve the battery.

Storage Self-Discharge Protection: If the battery is stored in a high-temperature environment or is idle for 6 days with a high charge level, self-discharge protection will be activated. The battery will discharge automatically to a safe level. This is the default setting, and the discharge process takes 2-3 days. While there's no indication that the battery is performing a self-discharge cycle, you may notice a slight warming of the battery, which is normal. The discharge threshold can be customized using the Autel Explorer™ app.
Sleep Mode Protection: If the battery power level is low, the battery will automatically enter sleep mode to prevent damage. In this mode, the battery will not respond when you push the Power Button. To wake up the battery, connect it to the charger.
Charging Temperature Detection: If the charging temperature reaches below 5°C (41°F) or above 45°C (113°F), the battery will stop charging.
Overcurrent Protection: If the charging current exceeds 8A, the battery will stop charging.
Overcharge Protection: Charging will automatically stop when the battery is fully charged.
Balance Protection: The voltage of each battery cell is balanced to prevent overcharging or over-discharging.
Over-Discharge Protection: When the battery is not in use, it will automatically disconnect the power output function once the self-discharge cycle is completed. This function is disabled during flight.
Short Circuit Protection: The power supply will be cut off if a short circuit is

detected.

Power Saving Mode: After 30 minutes of inactivity, the battery will turn off.
➢ Communication: When in use, the aircraft continuously syncs with the battery to provide real-time information including voltage, capacity, current, and temperature.
Ultra-Low Power Consumption Mode: To conserve power, this mode will be activated if the battery is idle for 6 days with a voltage lower than 11.6 V. The battery will resume normal function after being connected to the charger.

• LED Warning Descriptions

LED 1	LED 2	LED 3	LED 4	Warning Description
				Charging temperature is too high or too low.
				Charging current is too high or has caused a short circuit.
				Overcurrent, overload, or a short circuit has occurred during discharge.
∅ - Flashing Light - Off

2.1.4 Gimbal & Camera

The aircraft contains a high-precision 3-axis gimbal that keeps the camera steady while the aircraft is flying, ensuring image stability and clarity. To operate properly, the gimbal temperature must be between -10^irc C and 50^irc C (14° F and 122° F). You can use the remote control's gimbal pitch dial or the Autel Explorer™ app to adjust the pitch axis to any angle from -30^irc to 90^irc .

Three user-changeable gimbal modules are available for use with the EVO II Series:

• Gimbal of EVO II : provides an 8K video camera

① MCU Installaon Pan

⑤ Pitch Motor

② Vibraon Absorber

⑥ Roll Motor

③ UV Filter

⑦ Yaw Motor

④ Camera

• Gimbal of EVO II Pro: provides a 6K camera with a 1-inch sensor

① MCU Installaon Pan

② Vibraon Absorber

③ Camera

④ UV Filter

⑤ Pitch Motor

⑥ Roll Motor

⑦ Yaw Motor

● Gimbal of EVO II Dual: provides an infrared camera and an 8K video

① MCU Installaon Pan

⑤ Pitch Motor

② Vibraon Absorber

⑥ Roll Motor

③ Infrared Camera

⑦ Yaw Motor

④ 8K Camera

IMPORTANT

- The EVO II camera gimbal is held in place with a gimbal holder to protect the gimbal from the incidental rotation — and to avoid damage when stored.

- Remember to remove the holder before powering on the aircraft. Failure to do so may result in damage to the gimbal motors and circuitry.

- When the aircraft is powered on, the gimbal will automatically rotate to perform self-test and calibration. Ensure that there are no objects near the gimbal that could obstruct its motion.

The gimbal has two working modes:

Stabilized Mode: The roll axis stays horizontal, and the pitch axis stays at the user-specified angle. This mode is designed for capturing stable horizontal photos and videos.

FPV Mode: The roll axis stays aligned with the aircraft's roll orientation, and the pitch axis stays at the user-specified angle. This mode is designed for use with first-person view.

- Removing the Gimbal

1. Place the aircraft on a level surface with the gimbal compartment facing upward.
2. Using a T6 screwdriver, unscrew the two screws securing the gimbal's holder, and remove the gimbal holder. Then use a P000 screwdriver to unscrew the screws securing the FPC connector, and pull the head of the connector cable out of its slot.

Technical line drawing of a helicopter's internal components with an inset showing screwdriver and plus symbol (no text or labels)

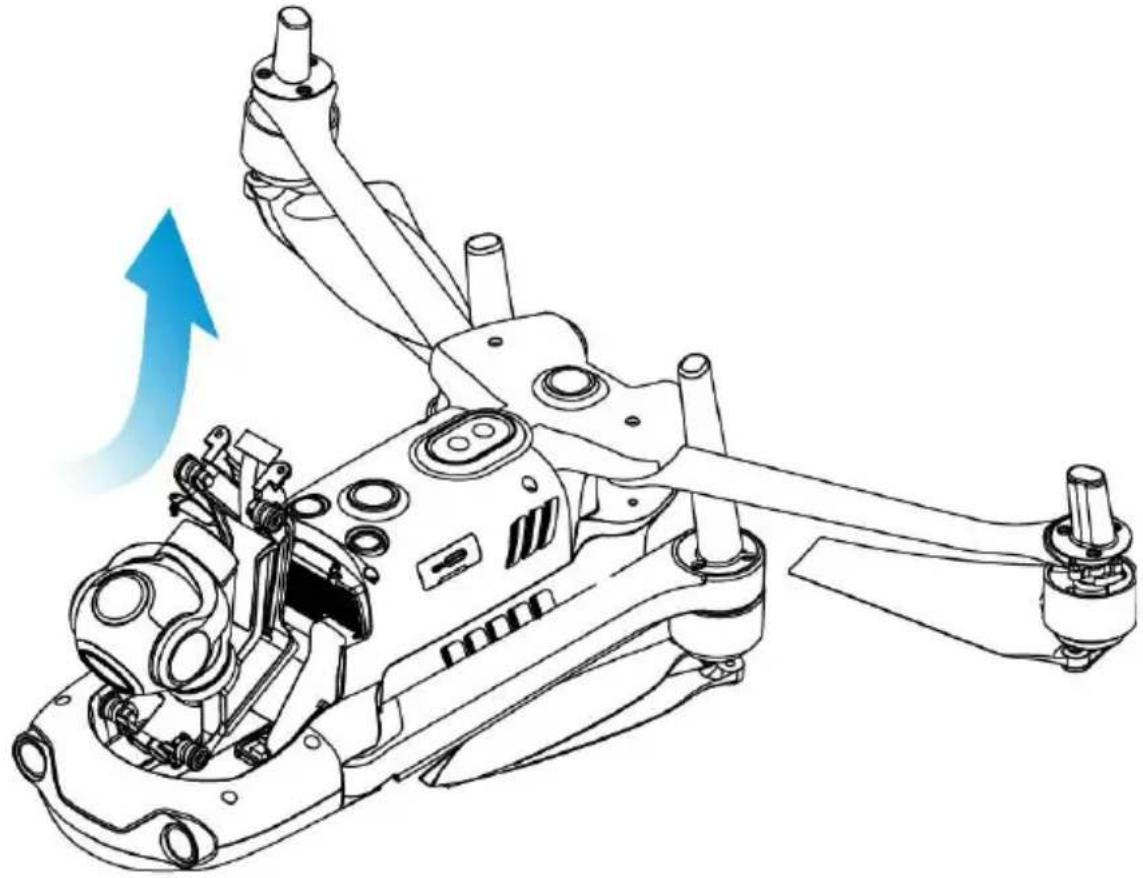

1. Gently grasp the two vibration absorber tails with your thumb and forefinger. Slide the gimbal back and up in a straight line, following the gimbal compartment groove.

Technical line drawing of a drone's internal components with a blue upward arrow indicating motion (no text or symbols present)

- Replacing the Gimbal

1. Gently grasping the two vibration absorber tails with your thumb and forefinger,

pick up the gimbal. Slide the gimbal down and forward in a straight line, following the gimbal compartment groove.

Technical line drawing of a drone's internal components and suspension mechanism (no text or symbols)

Notes: 1) Ensure that the loops at the front of the gimbal align with the two pins in the gimbal compartment at the nose end of the aircraft.

2) Ensure that the gimbal is flush with the gimbal compartment groove.

1. Insert the head of the connector cable into its slot, gently pushing it in as far as it will go.

Place the gimbal cover on top of the gimbal compartment and use a P000 screwdriver to reattach.

Technical line drawing of a mechanical device with internal components and a magnified inset showing a screwdriver inserted into a housing (no text or symbols present)

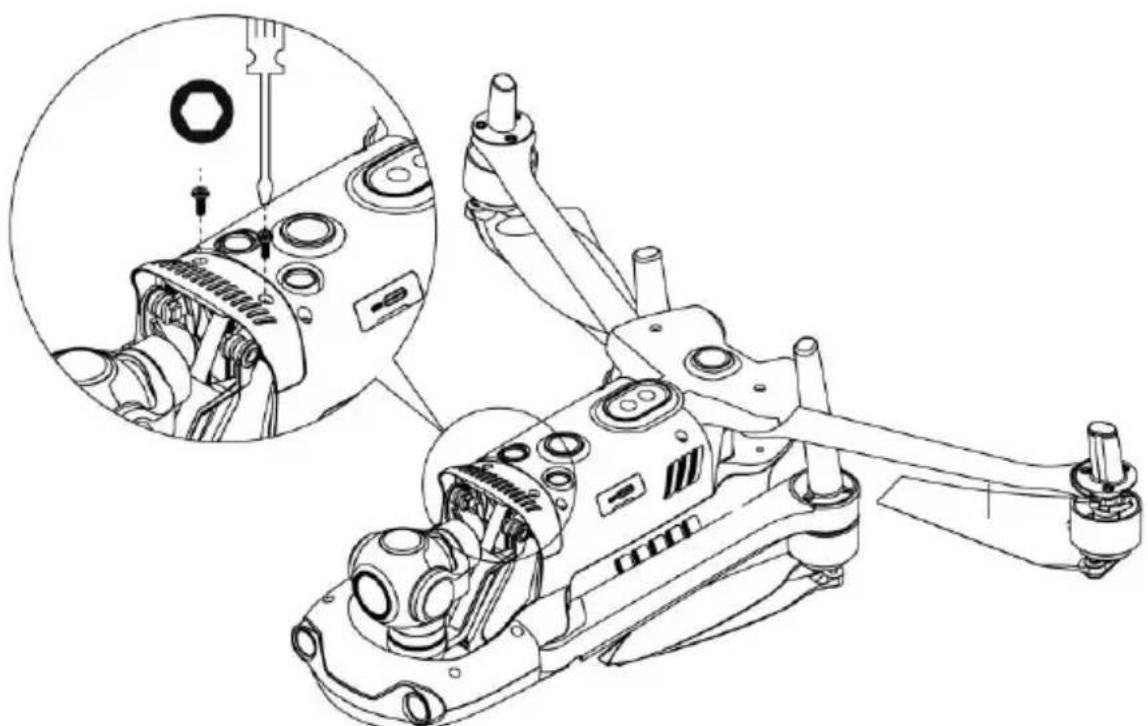

1. Insert a screw into one hole on the gimbal's ventilation cover, and use a T6 screwdriver to screw it in just until it is loosely secured. Repeat with the other screw.

Use the screwdriver to fully tighten both screws.

Technical line drawing of a helicopter's internal components, showing assembly and disassembly (no text or symbols)

1. Power on the aircraft. If the gimbal's connector cable is properly connected, the gimbal will automatically rotate to perform self-inspection.

Note: Pick up the aircraft and turn it over so that the gimbal is facing downward. If the gimbal is properly installed, it will remain securely in its position.

- Camera

Three camera modules are available for use with the EVO II Series:

• EVO II camera: Takes photos with a resolution of up to 48 MP (8000 x 6000), and records 8K video at 25 fps, 6K video at 30 fps, or 4K video at either 30 or 60 fps, with a bit rate of up to 120 Mbps.
• EVO II Pro camera with a 1-inch sensor: Takes photos with a resolution of up to 20 MP (5472 x 3648), and records 5.5K video at 30 fps or 2.7K video at 120 fps, with a bit rate of up to 120 Mbps. The lens aperture is adjustable within the range of f/2.8 to f/11.
• EVO II Dual camera: Includes the 8K camera plus an infrared imaging camera. It can operate in visible, infrared, and dual-image modes. In addition, this camera takes infrared images at a resolution of 640 x 512, and records 720p video at 30 fps in dual-image mode.

All three camera modules support a variety of shooting modes, including:

Single shot
Burst shooting
▶ Auto exposure bracketing (AEB)
Time-lapse
▶ High-dynamic-range (HDR) imaging
NIGHTBEAT (high signal-to-noise ratio)

The cameras save photos in DNG or JPG formats, and record video in MOV or MP4 formats. Images and videos can be stored in the aircraft's onboard memory or on a micro SD card. A high-definition live feed from the camera can be displayed on your remote control's screen, or at up to 1080p 30 fps on the Autel Explorer™ app.

Using a Micro SD Card

Before turning on the aircraft, insert a micro SD card into the port illustrated below.

The EVO II supports SD card capacity up to 256 GB. If you plan to shoot HD video, we recommend using a Class 10 or UHS-3 micro SD card (such as the 32 GB SanDisk Extreme® or the 64 GB A2/V30/U3/Class 10 SanDisk Extreme Pro®).

Line drawing of a quadcopter drone with labeled sensor and camera components (no text or symbols)

WARNING

To prevent file loss, always power off the aircraft before removing the micro SD card.

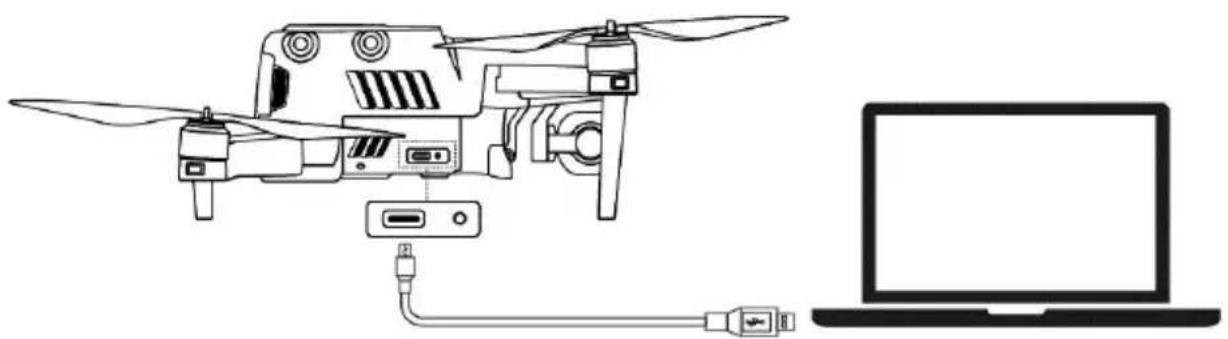

Transferring Files to Your Computer

To transfer photos and videos to your computer, connect it to the aircraft via the USB-C Port as shown below.

Line drawing of a quadcopter drone connected to a laptop via cable (no text or symbols)

2.1.5 Built-in Smart Flight System

The EVO II delivers stable and user-friendly flight control via its built-in Smart Flight System. The system enables a variety of advanced functions, including Go Home, Failsafe, and the Starpoint ^TM Positioning System, as well as operates using the modules described below.

Smart Flight System Modules

Module	Description
IMU	A 3-axis gyroscope and 3-axis accelerometer measures acceleration and angular velocity. Automatic IMU calibration is performed when the aircraft is powered on.
Compass	Measures geomagnetic field and provides heading reference for the aircraft.
GNSS Receiver	Receives GNSS (GPS/GLONASS) signals to determine the latitude, longitude, and altitude.
Barometer	Measures atmospheric pressure to determine the altitude of the aircraft.
Ultrasonic Sensors	Measures the distance between the aircraft and ground.
Binocular Vision Sensing System	Enables forward, backward, left, right, upward, and downward binocular vision.

- Flight Modes

The EVO II can automatically switch between two flight modes depending on GPS availability and flying conditions.

Flight Modes
Flight Mode	Description
GPS Mode	GPS Mode is activated if the aircraft detects proper GNSS signals. GPS works with the Forward and Downward Vision Systems to locate and navigate obstacles, provide stable and smooth flight maneuvers, and enable safety features like Go Home and Failsafe.
ATTI Mode	ATTI Mode is activated when the GPS signal is weak, and lighting conditions are insufficient for the vision systems. Obstacle avoidance features are disabled, and the aircraft controls altitude through its barometer only.

2.1.6 Smart Flight Features

- Go Home

The Go Home function can be enabled only when a good GPS signal is available. To manually activate the Go Home process, press and hold the Go Home Button ( ) for 3 seconds on the remote control. Once the aircraft receives this command,

it will return automatically and land at the current home point.

The EVO II can detect and avoid obstacles on its flight path using its Forward Vision System. The remote control's function will be disabled while the aircraft is in GO HOME, but you can reactivate it by pressing the Pause Button ( Ⅱ ).

WARNING

If the Forward Vision System is not enabled during the Go Home period, the aircraft will not automatically avoid obstacles. Press the Pause Button (Ⅱ) on the remote control to exit the Go Home feature and regain control of the aircraft.

IMPORTANT

• The default Go Home altitude is 30 meters (90 feet). If you activate Go Home when the aircraft is at an altitude lower than that, it will rise to 30 meters (90 feet) before returning home. Learn how to adjust the Go Home altitude in the App Manual.
• If the Go Home function is activated within a 10-meter (30-feet) radius of the home point, the aircraft will automatically descend and land.

- Failsafe

The Failsafe function is designed to help the EVO II automatically return home or land in its current position when necessary. Failsafe will be activated in the two situations described below.

Communication Lost

Failsafe will be activated if communication is lost between your aircraft and remote control for 3 seconds.

If GPS is available when the Failsafe function is activated, the aircraft will automatically use the Go Home function. Otherwise, it will land from its current position. When communication is restored, you can still press the Pause Button ( ) to regain control of the aircraft.

Low Aircraft Battery Level

Failsafe will also be activated in either of the following low battery conditions.

A. The aircraft continually calculates the battery level required for the aircraft to return to the home point. If the battery level reaches the minimum level required for the aircraft to return to the home point, a notice will appear on the Autel Explorer™ app. Failsafe will be activated and the Go Home process will be initiated. Again, you can regain control of the aircraft by pressing the Pause

B. When the aircraft's battery level reaches the 25% threshold, you'll receive a Low Battery Warning and Failsafe will be activated, after which the aircraft will automatically return home. If you retake control of the aircraft, you'll receive a Critically Low Battery Warning when the battery reaches 15%, and the aircraft will automatically land in its current position. If landing in the current position may result in an emergency, you can press the Pause Button ( ) to halt the landing and fly it to the nearest possible safe landing site.

NOTES

• If the aircraft is within 50 horizontal meters (150 feet) from the home point when your aircraft battery level reaches 25% (Low Battery Warning), the aircraft will not perform the Go Home procedure.
• If GPS is unavailable when Failsafe is activated during a Low Battery Warning, the aircraft will not execute the Go Home procedure. Instead, the aircraft will enter ATTI mode and stay in your control. The aircraft will proceed to land automatically only when the battery reaches 15% (Critically Low Battery Warning).

- Landing Features

▶ Landing Protection

When the aircraft arrives above the home point, Landing Protection functionality will detect the ground conditions below. The aircraft will land automatically if the ground is level and flat. If not, it will hover at the current location to wait for the next command.

Accurate Landing

The aircraft will scan and match the terrain features if Accurate Landing function is active, it will land as close as possible to the takeoff point once the current terrain matches the takeoff point terrain.

IMPORTANT

• The aircraft records the takeoff point as the default home point. Accurate Landing is available only when the home point has not been refreshed during the flight.
• Choose an open and well-lit area (such as a lawn) as your takeoff point.
• When Accurate Landing is preparing to land the aircraft, make sure that conditions at your takeoff point haven't changed.

NOTE

Landing Protection and Accurate Landing can be enabled using the app. Instructions for these functions are available in the App Manual.

2.1.7 Omnidirectional Binocular Vision Sensing System

The EVO II's front, rear, left, right, top, and bottom binocular vision sensing systems use image data to calculate the distance between the aircraft and potential obstacles. The system will halt the aircraft's forward progress when an obstacle is detected.

The front, rear, and bottom binocular vision systems also feature the Starpoint™ Positioning System. This system uses ultrasonic sensors to calculate the current height of the aircraft, and uses the binocular cameras to obtain location information via image analysis.

Binocular Vision Sensing Systems
System	Location on Aircraft	Obstacle Sensing Range
Front	Nose of the aircraft	0.5 to 20 m (1.5 ft to 65 ft)
Rear	Tail of the aircraft	0.5 to 16 m (1.5 ft to 52 ft)
Left/Right	Rear portion of the left and right side of the aircraft, respectively	0.5 to 12 m (1.5 ft to 39 ft)
Top	Top of the aircraft	0.5 to 12 m (1.5 ft to 39 ft)
Bottom	Bottom of the aircraft	0.5 to 11 m (1.5 ft to 36 ft)

The following diagrams show each binocular vision sensing system's angle of coverage:

NOTE

Omnidirectional obstacle sensing directions include front, rear, top, bottom, left, right. However, there might exist some blind spots in the four diagonal directions. When manually flying, please pay attention to the surrounding environment and APP tips to ensure safety.

➢ Please do not fly in an environment with insufficient light, complex area with small objects (such as small branches, wires, nets), moving objects, transparent surfaces (e.g. windows) or reflective surfaces (e.g. mirrors).

When following a car or other vehicles, please drive on off-road or closed routes. Never use on public roads.

- Prerequisites

- Ensure that the aircraft is in GPS or visual positioning mode.

- Wait until the flight LED indicators are either slow flashing green or double flashing red before taking off.

- Exercise increased caution while flying if the GPS signal is weak or visual positioning requirements cannot be met — for example: when around surfaces with little visible texture or when flying at an altitude of over 12 meters (36 feet).

- The binocular vision sensing systems and Starpoint™ Positioning System are affected by the brightness and texture of the surfaces over which the aircraft is flying. Avoid flying over surfaces that are:

- Monochromatic

• Highly reflective, such as water
• Especially dark or bright
• Subject to frequent lighting changes
• Made of closely repeating patterns, such as tiles
• Sound-absorbent, such as thick carpeting
• In motion, such as roads with heavy traffic

- Keep the binocular camera lenses and sensors clean.

- To avoid interference with the Starpoint™ Positioning System, do not use 40 kHz ultrasonic devices, such as ultrasonic rangefinders, fault detectors, cleaners or welding machines.

- Functionality Description

Dynamic Tracking

Dynamic tracking uses deep learning algorithms to detect six types of subjects in real time: pedestrian, cyclist, car, truck, boat, or animal. A real-time tracking algorithm is used to automatically track the selected subject while avoiding obstacles during flight. The function can track the subject in three modes. For more information please refer to the APP Manual document.

▶ Viewpoint

Viewpoint allows the user to send the aircraft to a selected destination by touching a point on the screen.

Gesture Commands

The main camera uses deep learning algorithms to recognize and respond to three gesture commands: outstretch your arms to set yourself as a target, raise both arms to capture a photo, and raise one arm to start or stop recording.

Accurate Landing

Accurate landing uses the aircraft's bottom binocular vision system to save a series of images indicating the aircraft's altitude and yaw during takeoff. During the go-home and landing process, the aircraft matches the altitude and yaw to the images taken during takeoff, and calculates how far off the aircraft is from its takeoff location. The aircraft is accurately controlled based on VIO feedback, and lands in its takeoff position.

Safe Landing

The safe landing function uses the aircraft's bottom binocular camera to create a density depth map. Then, it calculates the depth map's flatness and angles to detect whether a surface is flat enough to ensure safe landing.

2.2 Remote Control

The EVO II has an unobstructed transmission range of up to 9 km under optimum conditions. The remote control supports live video downlink, and functions with or without a paired mobile device. The video downlink system and aircraft remote control system operate at 2.4 GHz. The 3.3-inch OLED screen displays a live video feed, battery level, GPS signal, flight speed, and more.

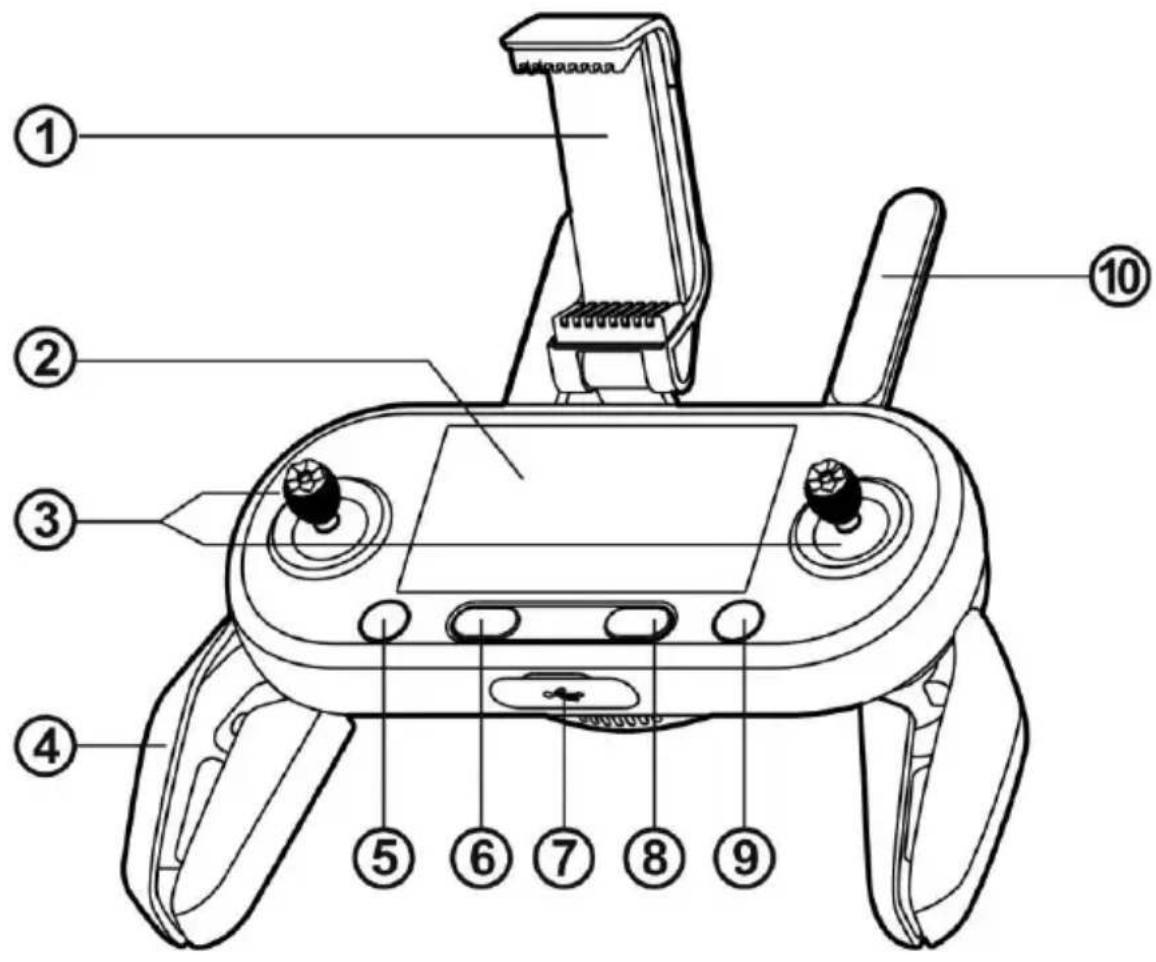

2.2.1 Functionality Description

1 Mobile Device Holder	With a 180° adjustable viewing angle for optimum visibility
2 Flight Information Panel	Displays the flight status, warning messages and live video feed
3 Command Sticks	Control the orientation and movement of the aircraft
4 Hand Grips	Foldable to allow for compact storage
5 Take-off/Landing Button	Commands the aircraft to take off or land
6 Power Button	Press and hold the button for 2 seconds to turn on/off the remote control
7 USB Ports	Used for charging or connecting to a mobile device
8 Pause Button	Tells the aircraft to pause autonomous flight operations and hover in place, or resume autonomous flight operations.
9 Go Home Button	Commands the aircraft to return to the home point
10 Antennas	Communicate with the aircraft at 2.4 GHz / 5.8GHz

11 Screen Navigation Dial	Scrolls around the OLED screen
12 Screen Navigation Button	When the mobile device is disconnected, press this button for 1 second to enter/exit the Image Transmission screen on the remote control
13 Shutter Button	Takes photos. When Burst Mode is turned on, several images will be taken with one press. For details, see the App Manual.
14 Button A	Function can be set using the Autel ExplorerTM app
15 Button B	Function can be set using the Autel ExplorerTM app
16 Record Button	Starts or stops recording video
17 Gimbal Pitch Dial	Controls the pitch angle of the camera gimbal

2.2.2 Live View Panel

• Flight Information Panel

When the video link has been connected, the main interface will appear as below.

1 Flight Altitude	Aircraft altitude relative to the home point
2 Flight Distance	Horizontal distance between the aircraft and home point
3 Flight Speed	Current speed of the aircraft
4 Tilt Angle	The camera's angle tilted by the gimbal (0° to 90°)
5 Flight Status Bar	Displays real-time flight status and current flight mode
6 Vision System	Indicates whether the Vision Obstacle Avoidance System is enabled
7 Remote Control Battery	Displays the current battery level:• Green bars indicate normal battery (approximately 11% - 100%)• Red bars indicate low battery (approximately 10%)
8 Remote Control Signal	Displays the current signal strength
9 Remaining Flight Time	Estimates how much longer the aircraft can stay in the air based on remaining battery level
10 Storage Mode	Indicates whether images and videos will be stored in onboard storage or on a Micro SD Card
11 GPS Signal	Indicates the signal strength of nearby GNSS satellites
12 Aircraft Battery	Displays the current battery level:• Green bars indicate normal battery level• Orange bars indicate low battery level• Red bars indicate critically low batteryNote: You can set the battery level threshold using the Autel ExplorerTM app.
13 Camera Mode	Indicates the current camera mode

• Image Transmission Mode

Press the Screen Navigation Button (DISP) on the remote control when you want to enter the Image Transmission Mode. Then follow these steps:

1. Scroll the Screen Navigation Dial to highlight the different setting options.
2. Press the Screen Navigation Dial to enter the highlighted option.
3. Scroll the Screen Navigation Dial again to set different values.
4. Press the Screen Navigation Dial to confirm this value, or press the Screen Navigation Button (DISP) to go back.
5. Press the Shutter Button to take a photo.
6. Press the Record Button to start or stop recording video.

Image Transmission View

1 Remaining Flight Time	Estimates how much longer the aircraft can stay in the air based on remaining battery level
2 Remote Control Battery	Displays the remaining battery level
3 Altitude	Displays the aircraft altitude relative to the homepoint
4 Distance	Displays the horizontal distance between the aircraft and the home point
5 Flight Speed	Displays the current speed of the aircraft
6 Gimbal Angle	The number indicates the angle of the gimbal in degrees. The blue arrow will move as the gimbal angle changes
7 Settings	Press to access the Settings page
8 EV	The Exposure Value (EV) is a combination of both the ISO and shutter speed, and is used when the camera is set to Auto. Adjust the EV to increase or decrease the exposure
9 Shutter	Fast shutter speeds let you capture action in motion; slow shutter speeds are suitable for low-light scenarios
10 ISO	This setting adjusts the images sensor to the sensitivity to light. A lower ISO is suitable for bright sunlight, and a high ISO is suitable for low-light scenarios but will increase image noise.
11 Exposure Mode	Set your camera to Manual in order to adjust your ISO and shutter speed, or choose Auto and let the camera make adjustments for you• Manual: The EV setting will be disabled• Auto: The ISO and shutter speeds will be disabled• Shutter Priority: Shutter speed and EV can be adjusted.

- Settings

Basic Instructions

1. Scroll the Screen Navigation Dial to highlight different setting options on the top of the screen.
2. Press the Screen Navigation Dial to enter the highlighted option, or press the Screen Navigation Button (DISP) to go back.
3. Scroll the Screen Navigation Dial again to set different values.
4. Press the Screen Navigation Dial to confirm this value, or press the Screen Navigation Button (DISP) to go back.

Camera Settings

Camera Mode	Video, Single, Burst (3/5), Time Lapse(2/5/7/10/20/30/60), AEB (3/5), NIGHTBEAT
Video Resolution	8K (7680x4320), 6K (5760 x 3240), 4K (3840 x 2160),2.7K (2720 x 1528), 1080p (1920 x 1080)
Video Frame Rate	120 fps, 60 fps, 50 fps, 48 fps, 30 fps, 25 fps, 24 fps
Photo Resolution	8000 x 6000, 7680 x 4320, 5472x3648, 4000 x 3000, 3840 x 2160
Photo Format	JPG, RAW, JPG+RAW
HDR	On/Off
Display Mode*	Visible, Infrared, PiP
Pseudo-Color Mode*	White hot, Black hot, Rainbow, RainHC, Ironbow, Lava, Arctic, Glowbow, Graded Fire, Hottest

*Applies to dual-sensor camera only

Flight Control Settings

• Turn Novice Mode on/off.
• Choose the Speed Limit value.

- Adjust the Go-Home Altitude, Altitude Limit, and Distance Limit.

NOTE

When Novice Mode is activated, the aircraft will operate with a fixed maximum Go-Home Altitude of 30 m (90 ft), a Speed Limit of 5 m/s (15 mph), an Altitude Limit of 30 m (90 ft), and a Distance Limit of 100 m (300 ft). These limit settings cannot be changed.

Remote Control Settings

1. Command Stick Mode

Mode 1, Mode 2 and Mode 3 allow you to control the aircraft according to your preferences, as illustrated below.

Indicator Icons		Aircraft Movement
		Ascend	Descend
		Nose rotates left	Nose rotates right
	▼	Move forward	Move backward
	▶	Move left	Move right

2. Remote Control Calibration

For detailed calibration instructions, see Section 3.2.3 (42).

Vision Settings

Access these settings to turn Visual Obstacle Avoidance on/off and select Show Radar Map.

General Settings

1. Language: Select the displayed language.
2. Units: Choose the unit of measurement displayed in Flight Control Settings: Metric (m/s), Metric (km/h) or Imperial.
3. Format SD Card: Use this to ensure that your SD card is in an acceptable format.
4. Reset Camera: Use this to restore all the camera settings to default.

2.2.3 Remote Control Buzzer Alerts

The table below describes the various buzzer alerts and their corresponding meanings.

Remote Control Buzzer Alerts
Aircraft Low Battery Warning (Default 25%)	1 quick beep every second for 5s, with 2 remote control vibrations
Aircraft Critically Low Battery Warning (Default 15%)	5 quick beeps every second for 5s, with 5 remote control vibrations
Remote Control Low Battery Warning (10%)	1 quick beep every second for 5s
Remote Control Critically Low Battery Warning (5%)	5 quick beeps every second for 3s, with two remote control vibrations
Aircraft & Remote Control Communication Lost	2 quick beeps every second for 5s, with 1 remote control vibration
Video Link Disconnected	3 quick beeps in 1s
Compass Interference	3 beeps with 3 remote control vibrations
Standby Notification	3 beeps every 15 minutes of inactivity

Chapter 3

Preflight Preparation

The EVO II features a user-friendly design and comes fully assembled out of the box. In order to ensure safe drone operation, please read the instructions and warnings below before your first flight.

3.1 Battery Preparation

3.1.1 Aircraft Battery Installation

1. Power off the battery before installing it.
2. Insert the battery into the battery compartment as shown on the right. The battery will firmly click into place.

Line drawing of a quadcopter drone with four propellers and a blue arrow indicating flight direction (no text or symbols)

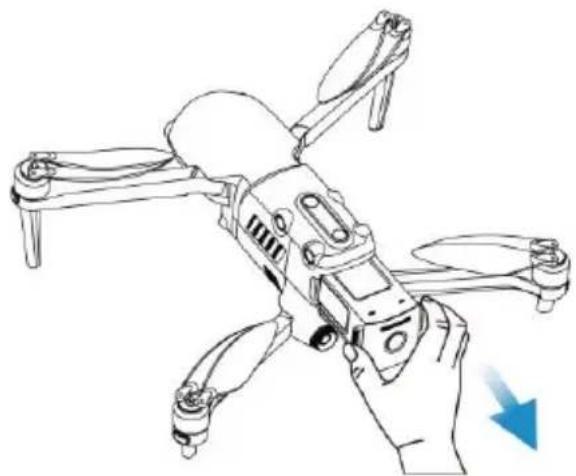

3.1.2 Aircraft Battery Removal

1. Power off the aircraft battery before removal.
2. Press and hold the finger grips on each side of the battery and pull it out slowly.

Line drawing of a hand holding a quadcopter drone with extended wings and a blue arrow indicating rotation (no text or symbols)

3.1.3 Charging

The aircraft battery and remote control can be charged simultaneously using the supplied charger. There are two connectors attached to the charger's adapter block. As shown below, the fixed cable goes with the aircraft battery, and the USB cable is used to charge the remote control.

Line drawing of a mechanical or electrical device with wires and connectors (no text or symbols)

Charging the aircraft and remote control

1. Plug the charging cable in as follows:

Aircraft Battery: Plug the charging connector into the battery's charge port.

Diagram of a device with a vertical panel and connected tubing, showing a blue upward arrow (no text or symbols)

Remote Control: Open the protector on the USB port and plug in the provided charging cable.

Line drawing of a handheld electronic device with ports and cables, no text or symbols present

1. Plug the charger into a power outlet.

➢ Battery Level Indicators: The LEDs on the aircraft battery will illuminate from left to right to indicate the current battery level during the charging cycle, and will turn off when the battery is fully charged.

Battery Level Indicator Statuses (While Charging)

• Solid Green Light - Flashing Green Light

During Charging: The Power Button ( Ⓞ ) on the remote control will be green when it is powered on, and red when it's powered off. You can monitor the charging process on the Flight Information Panel. You'll hear 2 beeps when charging is complete.

1. When charging is complete, disconnect the charger and the aircraft battery/remote control.

NOTE

• Always fully charge the aircraft and remote control battery before flying.
- It takes approximately 90 minutes to fully charge the aircraft battery, and 180 minutes to charge the remote control.

3.2 Remote Control Preparation

3.2.1 Unfolding the Remote Control

The remote control is folded in the package. Carefully unfold the Mobile Device

Technical line drawing of a mechanical device with directional arrows indicating movement or force (no text or symbols)

Holder and Antennas before use to prevent damage and to ensure optimal range of flight.

NOTE

The antennas can be rotated 270 degrees as shown in the diagram.

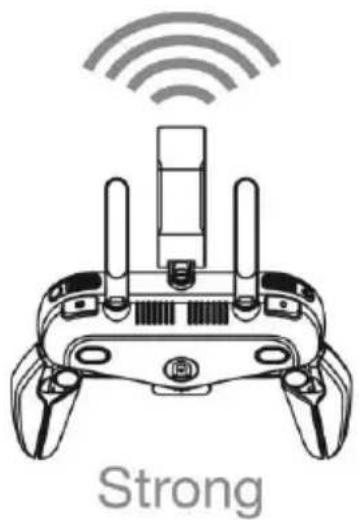

- Positioning the Antennas

Vertically align the antennas in parallel with each other, as shown below.

Diagram of a robotic device with Wi-Fi signal icon above, labeled 'Strong' below (no text or symbols on the diagram itself)

Diagram of a robotic device with sensor and Wi-Fi signal, labeled 'Weak' below (no other text or symbols)

3.2.2 Powering On/Off the Remote Control

- Powering On

Press and hold the Power Button ( ⏻ ) for 2 seconds until you hear a short beep. The Flight Information Panel will light up and cycle through an initial verification test.

IMPORTANT

Always turn on the remote control first before powering on the aircraft.

- Powering Off

Press and hold the Power Button (☐) 2 seconds until you hear a short beep.

IMPORTANT

Always power off the aircraft before turning off the remote control.

3.2.3 Remote Control Calibration

If the Command Sticks are abnormal (for example, if the remote control is dropped on the ground, or the aircraft's flight direction does not match control inputs), it is recommended to calibrate the remote control. You can calibrate the remote control by using the Autel Explorer™ app (for details, see the App Manual) or according to the following steps.

1. Turn off the remote control. Press and
   hold the Power Button ( ) and Take-off/Landing Button ( )
   simultaneously until the screen appears as shown on the right. The four crossed bars represent the left and right Command Sticks. The horizontal bar at the top is the Gimbal Pitch Dial.

1. Release both Command Sticks and the Gimbal Pitch Dial naturally to the central position. The three middle rounds on the remote control calibration screen will be highlighted successively.

2. Push and hold the Command Sticks in each of the eight possible directions until you hear a beep each time. Then, turn the Gimbal Pitch Dial clockwise until you hear a beep, and then counterclockwise until you hear a beep.

1. Calibration is completed when all the bars on the screen are highlighted.

Two blue star-shaped diagrams on black background, one with horizontal bar and circle, the other with six arms (no text or symbols)

3.2.4 Pairing the Aircraft & Remote Control

The remote control and aircraft come paired out of the box. When you need to pair them again — such as after pressing the Remote Control Pairing Button on the aircraft — follow these steps:

1. Turn off the remote control.

2. Remove the gimbal guard first, and then turn on the aircraft.

3. Press and hold the Remote Control Pairing Button on the lower right side of the aircraft for 3 seconds. The Pairing Indicator will flash quickly, indicating the aircraft is ready to pair with the remote control.

4. Simultaneously press and hold the Power Button ( 📊nd Go Home Button ( 🥠 ) simultaneously for 2 seconds until “Autel” appears on the Flight Information Panel. The Pairing Indicator on the aircraft will turn off once pairing is successful.

5. To pair a secondary remote control, simultaneously press the Power Button and Customizable Button B until "Autel" appears on the Information Panel.

3.3 Aircraft Preparation

3.3.1 Unfolding the Aircraft

- Removing & Reinstalling the Gimbal Holder

Always remove the gimbal holder before powering on the aircraft. Slowly pull out the attached gimbal holder, as shown below.

Line drawing of a hand holding a quadcopter drone with a blue downward arrow indicating motion (no text or symbols)

After using the aircraft, reinstall the gimbal holder to protect the gimbal from damage.

• Unfolding the Arms & Propellers

Always unfold the arms and propellers before powering on the aircraft.
▶ Unfold the front arms first, and then the rear arms.

Power off the aircraft before folding it. Fold in the rear arms and propellers first, and then the front arms.

3.3.2 Propeller Installation

WARNING

Power off the aircraft before attaching or detaching propellers.

IMPORTANT

Wear protective gloves when attaching or detaching propellers.

Legend

Lock Direction: Fasten the propeller by rotating it as indicated.

Unlock Direction: Unfasten the propeller by rotating it as indicated.

Black-coded propeller > Pairs with > Black-coded motor

White-coded propeller > Pairs with > white-coded motor

- Attaching the Propellers

1. Verify that the aircraft is powered off.
2. Locate and match the propeller to each motor.
3. Press each propeller down firmly and rotate in the lock direction to securely attach the propeller.

• Detaching the Propellers

1. Power off the aircraft.
2. Press each propeller down firmly and rotate in the unlock direction to detach the propeller.

IMPORTANT

• Before flight, verify that every propeller is securely attached.
• Never fly with broken or damaged propellers.
• Don't touch the propellers or motors while they're spinning.
  • Always remove the propellers before testing the motors.

3.3.3 Compass Calibration

Because the compass is calibrated out of the box, user calibration is typically unnecessary. If compass error messages appear, or the aircraft's flight direction does not match control inputs, or you fly the aircraft at a very long distance from your calibration position; follow the steps below to calibrate it.

WARNING

The compass is very sensitive to electromagnetic interference causing compass error and poor flight. If the compass is still not functioning properly after calibration, move the aircraft to another location and try again.

When calibrating the compass, remember to:

• Set up in an open outdoor area.
• Stay clear of all sources of magnetic interference, such as magnetite or steel reinforcements in concrete. Proximity to large structures may also affect calibration results.
• Stay well clear of underground and overhead power lines.
• Remove all ferromagnetic materials (such as keys or magnetic jewelry).
• Stay away from electronic devices that might interfere with the calibration (such as mobile devices).

- Calibration Procedure

1. Start the calibration process by pressing the Take-off/Landing Button (图标) and Go Home Button (图标) on the remote control simultaneously for 3 seconds. The Rear LED Indicators on the aircraft will flash yellow when the calibration process initiates.

2. Hold the aircraft horizontally and rotate it until the Rear LED Indicators on the aircraft turn solid green.

3. Hold the aircraft vertically with the nose facing downward and rotate it until the Rear LED Indicators on the aircraft turn solid green.

NOTES

• If the calibration is unsuccessful, the Rear LED Indicators on the aircraft will turn solid red. In this case, repeat the above steps.
• You can also calibrate the compass using the Autel Explorer™ app. Find out how in the App Manual.

Chapter 4

Flight Operations

4.1 Preflight Checklist

Follow these steps to carry out a full preflight checkup:

• Fully charge the aircraft battery, remote control, and your mobile device.
• Remove the gimbal holder.
• Verify that the propellers are in proper condition and are correctly attached.
• Position the antennas on the remote control as described in section 3.2.1.
• Pair the aircraft and remote control.
• Verify that the firmware has been updated to the latest version.
• Make sure you are familiar with the flight controls.
• Verify that your flight area is open and unobstructed.
• Check the weather, including air temperature and wind speed.
• Verify that the aircraft's camera lens and sensors are clean.

4.2 Remote Control & Flight Operations

There are three Command Stick Modes available for the aircraft: Mode 1, Mode 2 and Mode 3. Each one controls the aircraft differently. The diagrams below apply to Mode 2, which is the default. For information on how to change the Command Stick Mode, see the App Manual.

- Basic Flight

1. Place the aircraft in an open area.
2. Turn on the remote control.
3. Turn on the aircraft and wait for the Rear LED Indicators to flash green slowly. Stand at least 5 meters (15 feet) clear of the rear of the aircraft.

4. Start the motors and take off using the remote control.

5. Pilot the aircraft carefully.

6. Land the aircraft, and then shut down the motors.

4.2.1 Motor Start & Aircraft Takeoff

NOTE

The aircraft will not take off if the battery level is 15% or lower.

➢ Start the motors by holding both Command Sticks in position for 2 seconds:

Two circular diagrams showing a wheel with blue arrows indicating rotational motion, no text or symbols present.

OR

Two circular diagrams showing a wheel with blue arrows indicating rotational motion, no text or symbols present.

With the motors spinning, choose either of the following takeoff commands:

Icon showing two downward arrows and an upward arrow emerging from a grid, inside a dark circular background (no text or symbols)

Hold the Takeoff/Landing Button for 3s

OR

Diagram showing a spherical object with concentric circles and an upward arrow, no text or symbols present.

Push the Left Command Stick slowly upward (Mode 2)

If you choose to use the Take-off/Landing Button ( ), the aircraft will automatically ascend to a height of roughly 1.5 meters (4.5 feet).

WARNING

The motors will heat up during operation. Please handle with care.

4.2.2 Command Stick Controls (Mode 2)

TIPS

If you are new to flying, move the Command Sticks slowly until you become familiar with operating the aircraft.

- Left Command Stick

Ascend/Descend

Control the ascent and descent of the aircraft by pushing the stick up or down.

Left Side View Left Side View

Rotate Left/Rotate Right

Control the heading of the aircraft by pushing the stick left or right.

• Right Command Stick

Forward/Backward

Control the forward and backward movement of the aircraft by pushing the stick up or down.

Move Left/Move Right

Control the leftward or rightward movement of the aircraft by pushing the stick left or right.

Rear View Rear View

4.2.3 Landing & Motor Shutdown

The EVO II can be landed manually, automatically, or passively. Follow the steps below to land the aircraft by each of these methods.

IMPORTANT

Always land gently on a flat, level, open surface.

- Manual Landing

You can land the aircraft manually whenever and wherever you want using the Command Sticks on the remote control.

▶ Landing the aircraft manually

1. Find the desired position for landing the aircraft.
2. When the aircraft reaches the target position, release the Command Sticks to let it hover.
3. Push the Left Command Stick downwards slowly to land the aircraft.

Shutting down the motors

Choose one of the following methods to shut down the motors after the aircraft reaches the ground:

Diagram showing concentric circles with a downward arrow and a meshed circular structure below (no text or symbols)

Push the Left Command Stick to the bottom and hold for 2s

OR

Diagram showing concentric circles with a blue arrow pointing downward from a textured circular component, no text or symbols present.

Hold both Command Sticks toe-in for 2s

Diagram showing concentric circles with a shaded disc and a blue arrow indicating direction (no text or symbols)

• Automatic Landing

Press the Take-off/Landing Button ( ) on the remote control to land the aircraft automatically from its current hover position.

1. Navigate the aircraft to the target landing position.
2. Release the Command Sticks and let the aircraft hover.
3. Press and hold the Take-off/Landing Button (💡) for 2 seconds until you hear a beep from the remote control.
4. The aircraft will descend, land and shut off its motors automatically. During descent, you can adjust the aircraft position using the Right Command Stick.

TIPS

During the automatic descent process, you can regain control by pressing the Pause Button ( ) on the remote control.

NOTES

- Automatic landing is also available in ATTI mode (12). However, the aircraft may drift in this mode, so you should monitor its altitude.

- When the Low Battery Warning (25%) is displayed, the aircraft's rear LEDs will flash red and the remote control Power Button ( ) 📋 turn solid yellow. At this point, return to a safe landing point as soon as possible.

- Passive Landing

Whenever either of the following conditions is met, Failsafe will be triggered and the aircraft will automatically land from its current position.

The Low Battery Warning is activated in a non-GPS environment.
The Critically Low Battery Warning is activated.

Chapter 5

Maintenance & Service

5.1 Firmware Updates

To optimize the performance of your EVO II, Autel Robotics will provide firmware updates on an ongoing basis. You can download the latest firmware in one package from our official website. When a firmware update is available, you will receive a prompt on the Autel Explorer™ app after connecting it to the aircraft.

IMPORTANT

Before performing a firmware update, make sure:

• The aircraft motors are not spinning.
• The battery levels of both the aircraft and the remote control are not lower than 25%.
• There's adequate space to store the firmware file on your camera's micro SD card.

- Downloading & upgrading the firmware

1. Download the all-in-one firmware upgrade package from Autel Robotics' official website: www.auteldrones.com.
2. Insert the SD card into your computer and extract the downloaded file into the root directory of your SD card. Then remove your SD card from the computer.
3. Turn on the remote control and aircraft.
4. Insert the SD card into the aircraft to start the upgrade process automatically. You can check the real-time update status on the Flight Information Panel.
5. Reboot the remote control and aircraft before use.

IMPORTANT

• The update takes about 15 minutes. During the update process, don't turn off the aircraft or the remote control, start the motors, or remove your SD card from the camera.
• After upgrading, the remote control may be disconnected from the aircraft. If you need to pair them again, see section 3.2.4.

5.2 Troubleshooting Tips

Q1. If the aircraft indicates a failure during self-check (Rear LED Indicators will turn solid red):

- A hardware problem has been detected. Please contact Autel Robotics customer support here: www.auteldrones.com/contact-us/

Q2. If the motors fail to start up, verify the following:

• The remote control and the aircraft are paired.
• The remote control is calibrated correctly.
• The aircraft battery is fully charged.
• The compass is calibrated correctly.
  • GPS is available (if Novice Mode is activated).

Q3. If takeoff fails after starting motors, verify the following:

• The aircraft is not in a no-fly zone.
• The aircraft is on a flat, level surface

Q4. If flight time is unexpectedly short:

- The most common cause of reduced flight time is a low environmental temperature.

Q5. If the aircraft does not respond to the remote control during the pairing process:

- Verify that there are no metal objects, mobile devices or other remote controls nearby.

Q6. If Video Link fails or disconnects frequently:

- Verify that both the aircraft and the remote control are free from sources of magnetic or signal interference.

Q7. If the camera powers off while recording video:

- Keep the micro SD card inside the camera. Restart the camera and wait until the video files are recovered to their fullest possible extent.

Q8. If the video link is lost when the aircraft is out of sight:

- Initiate Go Home to command the aircraft to automatically return to the home point

Q9. What do you need to pay attention to when using the Omnidirectional Binocular Vision Sensing System?

• Before flying, make sure the 12 cameras are clean and without any cover. The omnidirection refers to six directions, including forward, backward, left, right, upward and downward.
• There exists a 30° blind spot in the four diagonal directions of the aircraft. Please pay attention to the surroundings and safety tips from the APP.
• Obstacle detection is realized by detecting the texture of the obstacles' surface. The detection will not work if encounters no texture, sparse texture, moving objects, tiny objects, etc.

Q10. If the precision landing function doesn't work:

• Precision landing function is realized by the downward binocular cameras' detection of the surface texture of the ground when the aircraft takes off.
• If the ground surface has no texture, or the downward cameras are damaged, the function will not work.

Q11. If the omnidirectional Binocular Vision Sensing System is not working:

- Restart the aircraft then check again.

Q12. If the video is inclined during flying:

• Place the aircraft horizontally and keep it still.
• Calibrate the gimbal according to the 'Gimbal Auto Calibrate' function in the APP.
• If it's still not good, then adjust the gimbal by following the instruction from 'Adjust Gimbal' function.

Q13. If the stereo camera lens is dirty:

- Please wipe it gently with glasses cloth. It is recommended to use the glasses cloth that comes with the package.

Q14. When a visual error occurs during the flight:

- Please use the PC tool to calibrate the parameters. The PC tool can be downloaded from the official website.

5.3 Storage & Maintenance

To ensure optimum EVO II performance, please read and follow the maintenance instructions in this section carefully.

• Store the aircraft, the battery and the remote control in an environment that's clean, dry, cool and ventilated.
• Keep the aircraft out of sunlight when not in use.
• Dry your hands before operating the drone.
• Use a soft cloth with alcohol or a mild window cleaner to clean the lens of the camera. Do not use any rough cleansers, detergent or chemicals.
• Ensure that the battery charger does not come in contact with other conductive materials.
• Avoid dropping the aircraft and its accessories, especially on a hard surface. Check all parts carefully after any crash or impact. If you encounter any damage, contact Autel Robotics customer support.
• Exclusively use accessories such as battery chargers authorized by Autel Robotics. Using unapproved accessories will void warranty coverage.

5.4 Warranty

Autel Robotics (the Company) warrants to the original retail purchaser of this product, that should this product or any part thereof during normal consumer usage and conditions, be proven defective in material or workmanship that results in product failure within the valid warranty period from the date of purchase, such defect(s) will be repaired, or replaced (with new or refurbished parts or products) at the Company's option, with Proof of Purchase, without charge for parts or labor directly related to the defect(s). Some states do not allow limitation on how long an implied warranty lasts, so the above limitations may not apply to you.

The Company shall not be liable for any incidental or consequential damages arising from the use, misuse, or mounting of the device. The extent of Autel Robotics' liability under this warranty is limited to the repair and replacement provided above and, in no event, shall its liability exceed the purchase price paid by purchaser for the product. Visit www.auteldrones.com for details of the limited periods warranted for the different parts of this product.

This warranty does not apply to:

• Batteries that have been put through a full charging cycle more than 200 times under normal temperature conditions or more than 100 times in high temperatures;
• Batteries that have been stored for more than 1 month at temperatures of higher than 40^ircC (104°F);
• Products subjected to abnormal use or environmental conditions, accident, mishandling, neglect, unauthorized alteration, misuse, improper installation or repair, or improper storage;
• Products with signs of tampering or altering of the serial number label, waterproof mark, etc.;
• Damage resulting from connection to, or use of any accessory or other product not approved or authorized by the Company;
• Defects in appearance, cosmetic, decorative or structural items such as framing and non-operative parts.
• Products damaged from external causes including but not limited to fire, water, dirt, sand, battery leakage, blown fuse, theft or improper usage of any electrical source.

5.5 Customer Service

This section contains information regarding technical support, repair service, and application for replacements or optional parts.

5.5.1 Technical Support

If you have any questions or concerns regarding our products, please contact Autel Robotics customer support:

• Telephone: [phone] (USA)
- Email: [e-mail]
• In person: local distributors or agents

5.5.2 Repair Service

If you need to return your device for repair, please fill out and submit a repair service form on www.auteldrones.com/warranty/ or contact Autel Robotics customer support at [phone]. You'll need to provide the following information:

• Name

• Email address

• Mailing address

• Telephone number
• Product name
• A complete description of the problem, with photo attachments
• For warranty repairs: proof of purchase
• For non-warranty repairs: Preferred method of payment

Autel Robotics customer support will conduct a preliminary evaluation of the problem and contact you within 2 days.

Chapter 6

Appendix

6.1 Regulatory Compliance & Flight Restricted Area

6.1.1 Compliance & Advisory

FCC Warning Message

Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Radiation Exposure Statement

For EVO II Series / EVO

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

For EVO II Series with model EF7, SAR tests are conducted using standard operating positions accepted by the FCC/ISEDC with the device. When used, please keep the distance with a minimum of 10mm from the body.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.

ISEDC RSS Warning

This device complies with ISEDC licence-exempt RSS standard (s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

ISEDC Radiation Exposure Statement

For EVO II Series / EVO

This equipment complies with ISEDC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

For EVO II Series with model EF7, SAR tests are conducted using standard operating positions accepted by the FCC/ISEDC with the device. When used, please keep the distance with a minimum of 10mm from the body.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

6.1.2 Flight Restricted Area Illustration

The EVO II system automatically recognizes flight restricted areas, in which flights are limited by default. This feature ensures that the aircraft complies with legal flight area requirements. Flight restrictions are enforced only within countries which require manufacturer restrictions by law. Currently, Mainland China is the only country/region that requires manufacturers to impose flight restrictions.

The flight restricted areas are divided into 2 protection categories.

NOTE

The pilot is responsible for ensuring compliance with all relevant flight rules and regulations.

Category I: Major airports & flight areas where drones operate at low altitudes

• Take-off Restricted Zones (No-Fly Zones)

These areas are set within 2.4 km (1.5 mi) (based on country-imposed rules) around the midway point of specified locations.

- Altitude Restricted Zones

In these areas, the aircraft is only allowed to fly within limited altitudes. Depending on the government-imposed rules, from 8 km (5 mi) to 2.4 km (1.5 mi) around the location's midway point, the flight altitude decreases progressively from 120 m (40 ft) to 10.5 m (3.5 ft).

- Warning Zones

Once the aircraft enters a region within 8.1 km of the central point of the airport, a warning message will be displayed on the Autel Explorer™ app.

NOTE

The aircraft will land automatically when entering any Take-off Restricted Zones. If the aircraft enters any Altitude Restricted Zones, its maximum allowable altitude will be reduced accordingly. Pay particular attention to the warning messages displayed on the Autel Explorer™ app.

Category II: Sensitive areas & institutes such as military sites & border lines between nations

• Take-off Restricted Zones (No-Fly Zones)

These areas are set within 1 km (0.5 mi) of the center of the specified locations where takeoff and flight are prohibited.

- Warning Zone

Once the aircraft enters a region within 2 km (1 mi) of the center of the Warning Zone site, the app will display a warning message.

6.2 Specifications

Aircraft Specifications
Takeoff Weight	1127g (EVO II)1174g (EVO II Pro)1157g (EVO II Dual 320)1192g (EVO II Dual 640)
Dimensions	Folded:228*133*110 mm (length× width× height)Unfolded:424*354*110 mm (length× width× height)
Diagonal Distance	397 mm
Max Ascent Speed	Standard mode: 5 m/sLudicrous mode: 8 m/s
Max Descent Speed	Standard mode: 3 m/sLudicrous mode: 4 m/s
Max Speed (near sea level, no wind)	Standard mode: 15 m/sLudicrous mode: 20 m/s
Max Service Ceiling Above Sea Level	7000 m
Max Flight Time (no wind)	40 minutes
Max Hovering Time (no wind)	35 minutes
Max Flight Distance (no wind)	25 km
Max Wind Speed Resistance	Level 8
Max Tilt Angle	Standard mode: 28°Ludicrous mode: 33°
Max Angular Velocity	120° /s
Operating Temperature Range	-10°C to 40°C
Operating Frequency	2.4~2.4835GHz; 5.725~5.850GHz
Transmission Power (EIRP)	2.4~2.4835GHzFCC/ISED : ≤ 27dBmSRRC/CE/MIC/RCM : ≤ 20dBm5.725~5.850GHzFCC/ISED/SRRC/MIC : ≤ 27dBmCE/RCM : ≤ 14dBm
GNSS	GPS/GLONASS/VIO/ATTI
Hovering Accuracy Range	Vertical:± 0.02 m (when vision positioning is active)± 0.2 m (with GPS positioning)Horizontal:± 0.02 m (when vision positioning is active)± 0.5 m (with GPS positioning, no wind)
Internal Storage	8 GB
SD Storage	Standard: 32 GB, max. support 256GB

Sensing System Specifications
Sensing System	Omnidirectional Obstacle Sensing
Forward	Precision Measurement Range: 0.5 - 20 mDetectable Range: 0.5 - 40 mEffective Sensing Speed: < 15m/sFOV: Horizontal: 60°, Vertical: 80°
Backward	Precision Measurement Range: 0.5 - 16 mDetectable Range: 0.5 - 32 mEffective Sensing Speed: < 12m/sFOV: Horizontal: 60°, Vertical: 80°
Upward	Precision Measurement Range: 0.5 - 12 mDetectable Range: 0.5 - 24 mEffective Sensing Speed: < 6m/sFOV: Horizontal: 60°, Vertical: 50°
Downward	Precision Measurement Range: 0.5 - 11 mDetectable Range: 0.5 - 22 mEffective Sensing Speed: < 6m/sFOV: Horizontal: 90°, Vertical: 70°
Sides	Precision Measurement Range: 0.5 - 12 mDetectable Range: 0.5 - 24 mEffective Sensing Speed: < 10m/sFOV: Horizontal: 60°, Vertical:50°
Operating Environment	Forward, Backward, Upward and Sides:Surface with clear pattern and adequate lighting (lux >20)Downward:Surface with clear pattern and adequate lighting (lux >20)Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)

Camera Specifications

Model Name	EVO II	EVO II Pro	EVO II Dual
CAMERA
Sensor	1/2" CMOSEffective Pixels: 48 million	1" CMOSEffective Pixels: 20 million	1/2" CMOS 48 millionFLIR LWIR Sensor
Lens	FOV: about 79°Aperture: f/1.8	FOV: about 82°Aperture: f/2.8–f/11	Infrared Camera: FOV 32°, 14 mm FOV 34°, 6.3 mm(optional)
ISO Range	Video: ISO100~3200 (Auto)Video: ISO100~3200 (Manual)Photo: ISO100~3200 (Auto)	Video: ISO100~3200 (Auto)Video: ISO100~6400 (Manual)Photo:	Visible Light & Picture in Picture (PiP) Mode: ISO100~3200 (Auto) 100-3200 (manual) Infrared: N/A
	Photo:ISO100~3200(Manual)	ISO100~3200(Auto)Photo:ISO100~12800(Manual)
Shutter Speed	Electronic Shutter: 8~1/8000s	Electronic Shutter:8 ~ 1/8000s	Visible Light &Picture in Picture(PiP) Mode: 8 ~1/8000s
Digital Zoom	1 ~ 8x (Max. 4xlossless zoom)	1 ~ 8x (Max. 3xlossless zoom)	1 ~ 8x (Max. 4xlossless zoom ofVisible Light mode)
Still ImageResolution	8000*6000 (4:3)	5472*3648 (3:2)	Visible Light mode:same as EVO IIInfrared mode:640*512
	7680*4320 (16:9)	5472*3076 (16:9)
	4000*3000 (4:3)	3840*2160 (16:9)
	3840*2160 (16:9)
Still ImageFormat	JPEG / DNG /JPEG+DNG	JPEG / DNG /JPEG+DNG	Visible Light mode:same as EVO IIInfrared & Picture inPicture mode: JPEG
StillPhotographyModes	Single shotBurst shooting: 3/5framesAuto ExposureBracketing (AEB):3/5 bracketedframes at 0.7 EVBiasTime Lapse: JPG:2s/5s/7s/10s/20s/30s/60sDNG:5s/7s/10s/20s/30s/60sHyperLight: support(under 4K JPEG format)Long exposure:Max. 8sHDR imaging:support (under 4K JPEG format)	Single shotBurst shooting: 3/5framesAuto ExposureBracketing (AEB):3/5 bracketedframes at 0.7 EVBiasTime Lapse: JPG:2s/5s/7s/10s/20s/30s/60sDNG:5s/7s/10s/20s/30s/60sHyperLight:support (under 4K JPEG format)Long exposure:Max. 8sHDR imaging:support (under 4K JPEG format)	Visible Light mode:same as EVO IIInfrared & Picture inPicture mode: Singleshot, Burst shooting,Time Lapse
VideoResolution	7680*4320 p25/p245760*3240p30/p25/p243840*2160p60/p50/p48/p30/p25/p242720*1528p120/p60/p50/p48/p30/p25/p241920*1080p120/p60/p50/p48/p30/p25/p24	5472*3076p30/p25/p244800*2700p60/p50/p48/p30/p25/p243840*2160p60/p50/p48/p30/p25/p242720*1528p120/p60/p50/p48/p30/p25/p241920*1080p120/p60/p50/p48/p30/p25/p24	Visible light mode:same as EVO IIInfrared mode:640*512 p60 (US)640*512 p9 (Otherregions)Picture in Picturemode: 1920*1080p30, 1280*720 p30
Video format	MOV / MP4	MOV / MP4	MOV / MP4
Codecs	H.264 / H.265	H.264 / H.265	H.264 / H.265
Max Video Bitrate	120Mbps	120Mbps	120Mbps
HDR Video Recording	support 3840*2160, 2720*1528, 1920*1080 HDR video recording	support 3840*2160, 2720*1528, 1920*1080 HDR video recording	Visible Light mode: same as EVO II
PIV Capture	support	support	support
Hyperlapse Recording	support (coming soon)	support (coming soon)	support (coming soon)
AE Mode	Auto / Manual / Shutter Priority	Auto / Manual / Shutter Priority / IRIS Priority	Visible Light mode: same as EVO II
AE Measurement	Center weighted / Spot	Center weighted / Spot	Visible Light mode: same as EVO II
EV Compensation	±3EV 0.3EV/step	±3EV 0.3EV/step	Visible Light mode: same as EVO II
AWB Mode	Auto / Manual (Sunny / Cloudy / Incandescent / Neon / Custom)	Auto / Manual (Sunny / Cloudy / Incandescent / Neon / Custom)	Visible Light mode: same as EVO II
AF Mode	Auto / Manual	Auto / Manual	Visible Light mode: same as EVO II
AF Range	0.5m ~ Infinity	1m ~ Infinity	Visible Light mode: same as EVO II
Assist Focus	support in MF mode	support in MF mode	Visible Light mode: same as EVO II
Touch AE/AF	support	support	Visible Light mode: same as EVO II
AE/AF Lock	support	support	Visible Light mode: same as EVO II
Color Mode	None / Black & White / Nostalgic / Log (10-bit)	None / Black & White / Nostalgic / Log (10-bit)	Visible Light mode: same as EVO II
Image Style	Standard / Neutral / Landscape / Custom	Standard / Neutral / Landscape / Custom	Visible Light mode: same as EVO II
Histogram	support	support	Visible Light mode: same as EVO II
Defog	support	support	Visible Light mode: same as EVO II
ROI	support	support	Visible Light mode: same as EVO II

Gimbal Specifications
Weight	70g (EVO II)107g (EVO II Pro)100g (EVO II Dual 320)135g (EVO II Dual 640)
Mechanical Range	Pitch: -135~45°, Roll: -45~45°, Yaw: ±100°
Controllable Range	Pitch: -90~30°, Roll: /, Yaw: -90~90°
Stabilization	3-axis (tilt, roll, pan)
Max Control Speed (tilt)	200°/s
Angular Vibration Range	±0.003° @ 10m/s±0.008° @ 15m/s±0.013° @ 20m/s

Aircraft Battery Specifications
Capacity	7100 mAh
Voltage	11.55 V
Max Charging Voltage	13.2 V
Battery Type	LiPo 3S
Energy	82 Wh
Net Weight	365 g
Charging Temperature Range	5°C to 40°C
Max Charging Power	82 W

Remote Control Specifications
Operating Frequency	2.4~2.4835Ghz; 5.725~5.850GHz
Max Transmission Distance(unobstructed, free of interference)	FCC: 10kmCE: 5km
Operating Temperature Range	-10°C - 40°C
Transmission Power (EIRP)	2.4~2.4835GHzFCC/ISED: ≤ 27dBmSRRC/CE/MIC/RCM: ≤ 20dBm5.725~5.850GHzFCC/ISED/SRRC/MIC: ≤ 27dBmCE/RCM: ≤ 14dBm
Battery	5000 mAh
Weight	370g
Operating Current/Voltage	1.7A@3.7V
Charing Temperature Range	0 - 40°C
Supported Mobile Device Size	Max length: 84mm; max thickness: 13mm
Operating hours	3 H
OLED NITS	330

Charger Specifications
Input	100-240 V, 50/60 Hz, 1.5A
Output	Main: 13.2 V = 5 AUSB: 5V=3A 9V=2A 12V=1.5A
Voltage	13.2 ± 0.1 V
Rated Power	66 W
