USER MANUAL Incline Treadmill IT10.5 PRO TAURUS

Assembly and Operating Instructions

Line drawing of a treadmill with control panel and display (no text or symbols)

TFIT10.05.04

Art. No. TF-IT10.5PRO

Incline Treadmill IT10.5 PRO

Content

1 GENERAL INFORMATION 7

1.1 Technical Data 7
1.2 Personal Safety 8
1.3 Electrical Safety 9
1.4 Set-Up Place 10

2 ASSEMBLY 11

2.1 General Instructions 11
2.2 Scope of Delivery 12
2.3 Assembly 14

3 OPERATING INSTRUCTIONS 18

3.1 Console Display 18
3.2 Button Functions 20
3.3 Programs 21
3.3.1 Quick-Start Program 21
3.3.2 Pre-Set Profile Programs (P1–P18) 21
3.3.3 Target Programs (H1 - H3) 23
3.3.4 User-Defined Programs (U01 - U03) 23
3.4 Body Fat Test (FAT) 24
3.5 Additional Information 25
3.5.1 Changing Metric/Imperial Units 25
3.5.2 Calibrating the Inclince 25
3.5.3 Software Version Information 25

4 STORAGE AND TRANSPORT 26

4.1 General Instructions 26
4.2 Transportation Wheels 26

5 TROUBLESHOOTING, CARE AND MAINTENANCE 27

5.1 General Instructions 27
5.2 Faults and Fault Diagnosis 27
5.3 Error Codes and Troubleshooting 28
5.4 Care and Maintenance 29
5.4.1 Adjusting the Running Mat 29
5.4.2 Re-tensioning the Running Mat 30
5.4.3 Lubricating the Running Mat 30
5.5 Maintenance and Inspection Calendar 31

6 DISPOSAL

31

7 RECOMMENDED ACCESSORIES 32

8 ORDERING SPARE PARTS 33

8.1 Serial Number and Model Name 33
8.2 Parts List 34

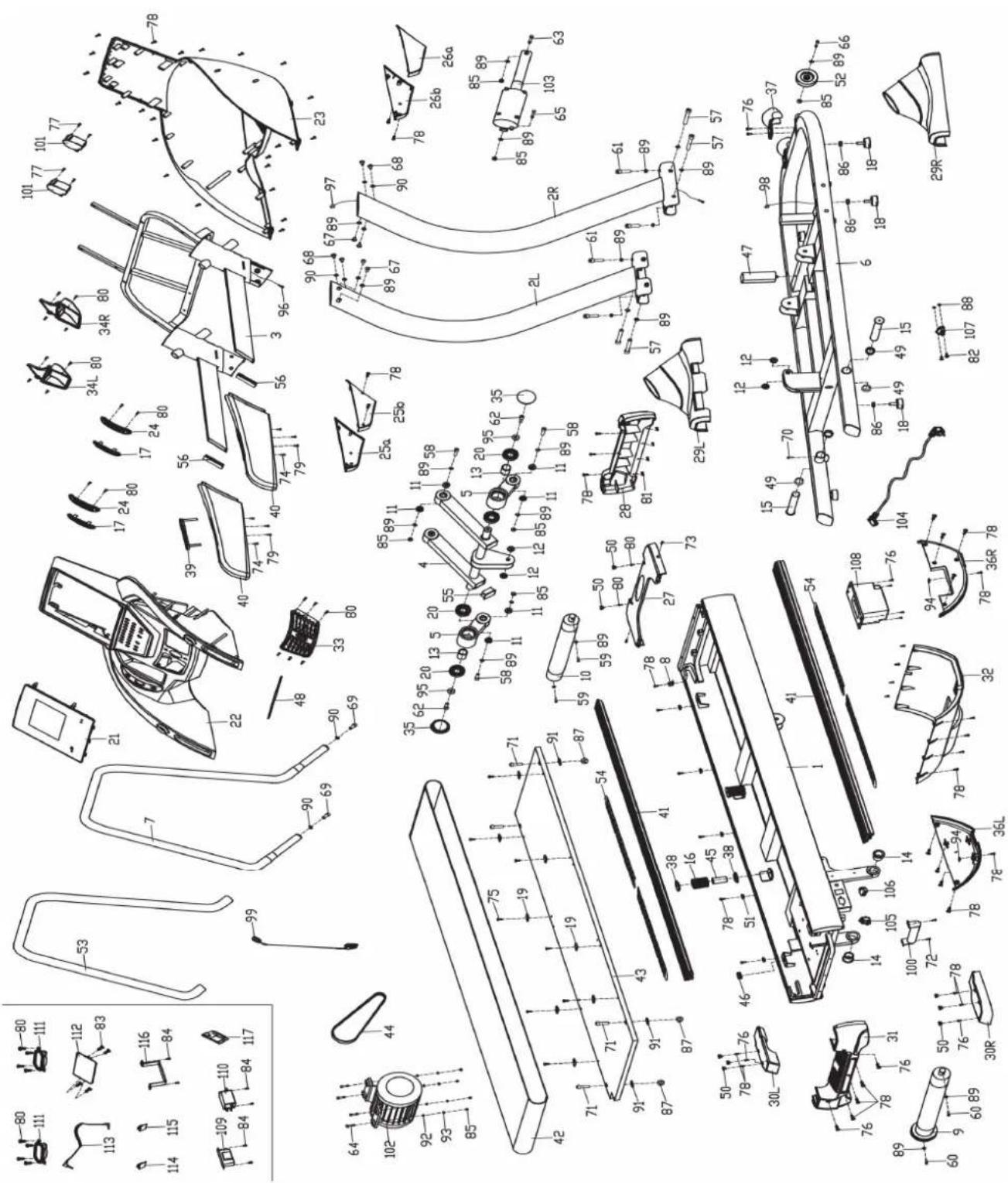

8.3 Exploded Drawing 36

9 WARRANTY

37

10 CONTACT 39

Dear customer,

Thank you for choosing a high-quality equipment of the brand Taurus ^® . Taurus ^® offers sports and fitness equipment for the sophisticated home sport and the equipment of fitness studios and business customers. With Taurus ^® fitness equipment, the focus is on what sport is all about: maximum performance! Therefore, the equipment is developed in close consultation with athletes and sports scientists. Because athletes know best what makes perfect fitness equipment.

Further information can be found at www.sport-tiedje.com.

Intended Use

The equipment may only be used for its intended purpose.

This fitness equipment is suitable for home use, semi-professional use and commercial or professional use. The semi-professional sector includes, for example, institutional facilities such as hospitals, schools, hotels and associations. Professional use refers to commercial use, e.g. in a fitness studio.

Legal Notice

Sport-Tiedje GmbH

Europe's No. 1 for home fitness

International Headquarters

Flensburger Straße 55

24837 Schleswig

Germany

Management:

Christian Grau

Sebastian Campmann

Dr. Bernhard Schenkel

No. HRB 1000 SL

Local Court Flensburg

European VAT Number: DE813211547

Disclaimer

©2008 Taurus® is a registered brand of the company Sport Tiedje GmbH. All rights reserved. Any use of this trademark without the explicit written permission of Sport-Tiedje is prohibited.

Product and manual are subject to change. Technical data can be changed without advance notice.

ABOUT THIS MANUAL

Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance. In case of doubt, responsible persons must supervise the use of the equipment.

Due to ongoing changes and software optimisations, the manual may have to be updated. If you notice any discrepancies during assembly or use, please refer to the manual uploaded to the webshop. The latest manual is always available there.

This equipment has been manufactured according to the latest safety knowledge. As far as possible, potential safety hazards which could cause injury have been eliminated. Make sure to carefully follow

the instructions and that all parts are securely in place. If required, read through the instructions again to correct any mistakes.

Please pay close attention to the safety and maintenance instructions given here. The contract partner cannot be held liable for damage to health, accidents or damage to the equipment when it is not used in accordance with these instructions.

The following safety instructions may appear in this manual:

ATTENTION

This notice indicates potentially hazardous situations which, if not avoided, may result in property damage.

CAUTION

This notice indicates potentially hazardous situations which, if not avoided, may result in slight or minor injuries!

WARNING

This notice indicates potentially hazardous situations which, if not avoided, may result in death or serious injuries!

DANGER

This notice indicates potentially hazardous situations which, if not avoided, will result in death or serious injuries!

i NOTICE

This notice indicates further useful information.

Retain these instructions in a safe place for future reference, maintenance or when ordering replacement parts.

1.1 Technical Data

LCD Display:

• Training time in min.
• Training distance in km
• Speed in km/h
• Incline in %
• Calories burned in kcal
• Heart rate (while using the hand pulse sensors)

Motor type: AC motor (3 HP)

Speed:	1	-	20	km/h
Incline:	-5	-	40%

Programs in total: 25

Quick start programs: 1

Pre-set profile programs: 18

Target programs: 3

User defined programs: 3

Body fat test: 1

Running surface: 55 cm x 150 cm

Running mat thickness: 2.5 mm

Weight and dimensions:

Article weight (gross, incl. packaging) approx.: 250 kg

Article weight (net, without packaging) approx.: 178 kg

Package dimensions (L x B x H) approx.: 215 cm x 116 cm x 62 cm

Set-up dimensions (L x B x H) approx.: 179 cm x 111.5 cm x 202 cm

Maximum user weight: 170 kg

1.2 Personal Safety

DANGER

+ Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. If you are under medical treatment that affects your heart rate, medical advice is absolutely essential.

+ Note that excessive training can seriously endanger your health. Please also note that heart rate monitoring systems can be inaccurate. If you notice any signs of weakness, nausea, dizziness, pain, shortness of breath, or other abnormal symptoms, stop exercising immediately and seek advice from your doctor if necessary.

WARNING

• This equipment may not be used by children under the age of 14.
• Children should not be allowed unsupervised access to the equipment.

+ Persons with disabilities must have a medical license and must be under strict observation when using the equipment.

+ The equipment is strictly for use by one person at a time.

• If your equipment provides a safety key, the clip of the safety key must be attached to your clothing before starting your training. In the event of a fall, the EMERGENCY STOP of the equipment can be initiated.
• Keep your hands, feet and other body parts, hair, clothing, jewellery and other objects well clear of moving parts.
• During use, wear suitable sports clothing rather than loose or baggy clothing. When wearing sports shoes, make sure they have suitable soles, preferably made of rubber or other non-slip materials. Shoes with heels, leather soles, studs or spikes are unsuitable. Never exercise barefoot.

CAUTION

+ If your equipment needs to be connected to the power supply with a mains cable, make sure that the cable is not a potential tripping hazard.

+ Make sure that nobody is within the range of motion of the equipment during training so as not to endanger you or other persons.

ATTENTION

+ Do not insert any objects of any kind into the openings of the device.

1.3 Electrical Safety

DANGER

+ In order to reduce the risk of an electric shock, always unplug the equipment from the mains socket immediately after your workout, before assembly or dismantling, and before maintenance or cleaning. Do not pull on the cable.

WARNING

+ Do not leave the equipment unattended while the mains cable is plugged into the mains socket. During your absence, the mains cable must be removed from the mains socket to prevent improper use by third parties or children.

+ If the mains cable or plug is damaged or defective, contact your contract partner. Until repair, the equipment must not be used.

ATTENTION

+ The equipment requires a mains connection of 220-230 V with 50 Hz mains voltage.

+ The equipment may only be connected directly to an earthed socket using the supplied mains cable. Extension cables must conform to VDE guidelines. Always completely unwind the mains cable.

+ The socket must be protected by a fuse with a minimum fuse rating of "16 A, slow blow".

+ Do not make any changes to the mains cable or the mains plug.

+ Keep the mains cable away from water, heat, oil and sharp edges. Do not route the mains cable underneath the equipment or under a carpet or rug, and do not place any objects on top of it.

+ If your purchased item is equipped with a TFT console, software updates must be carried out regularly. Follow the instructions on the console to perform the update(s).

+ The software systems on gym equipment with TFT consoles are set up only for the pre-installed apps. Do not install any additional apps.

NOTICE

+ The pre-installed apps on TFT consoles are produced and provided by external manufacturers. Sport-Tiedje does not take any responsibility for the availability, functionality or contents of these apps.

1.4 Set-Up Place

WARNING

+ Do not place the equipment in main corridors or escape routes.

CAUTION

• The training room should be well ventilated during training and not be exposed to any draughts.

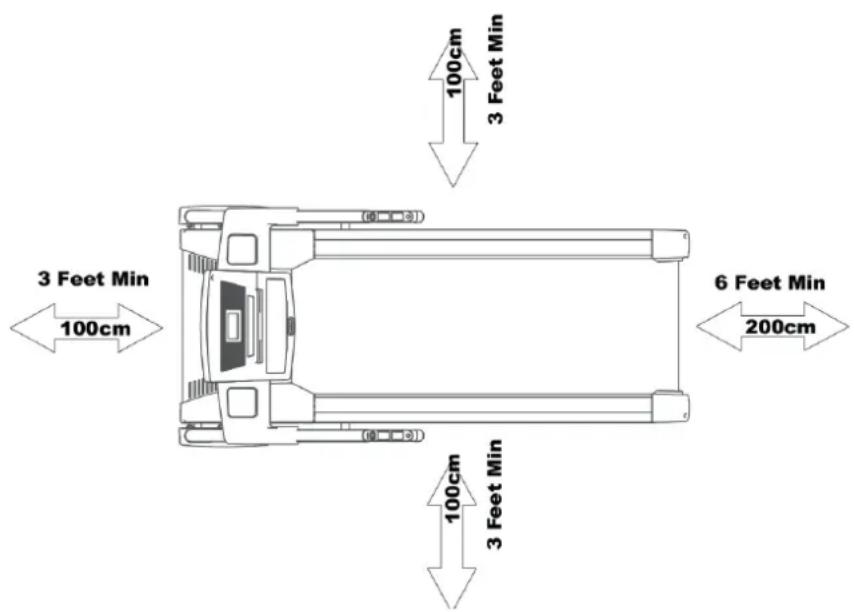

• Choose the place in which to set up the equipment such that there is enough free space/clearance to the front, the rear and to the sides of the equipment.
• The set-up and mounting surface of the equipment should be flat, loadable and solid.

ATTENTION

• The device may only be used in one building, in sufficiently tempered and dry rooms (ambient temperatures between 10°C and 35°C). The equipment should not be used outdoors or in rooms with high humidity (over 70%) like swimming pools.
• A floor protective mat/equipment underlay can help to protect high-quality floor coverings (parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight unevenness.

2.1 General Instructions

DANGER

+ Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly.

WARNING

• The treadmill is equipped with high-pressure shock absorbers that can cause the treadmill to suddenly open if handled incorrectly. To avoid possible personal injuries, never pull on the areas of the treadmill shown in the illustration. Never try to lift or move the treadmill at the marked areas.
• Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries.

CAUTION

• Do not open the packaging when it is lying on its side.
• Ensure to have sufficient room for movement in each direction during assembly.

+ The assembly of the equipment must be carried out by at least two adults. If in doubt, seek the help of a third technically skilled person.

ATTENTION

+ To prevent damage to the equipment and the floor, assemble the equipment on a mat or packaging board.

i NOTICE

+ In order to make the assembly as simple as possible, some screws and nuts to be used can already be pre-assembled.

+ Ideally, assemble the equipment at its later set-up place.

2.2 Scope of Delivery

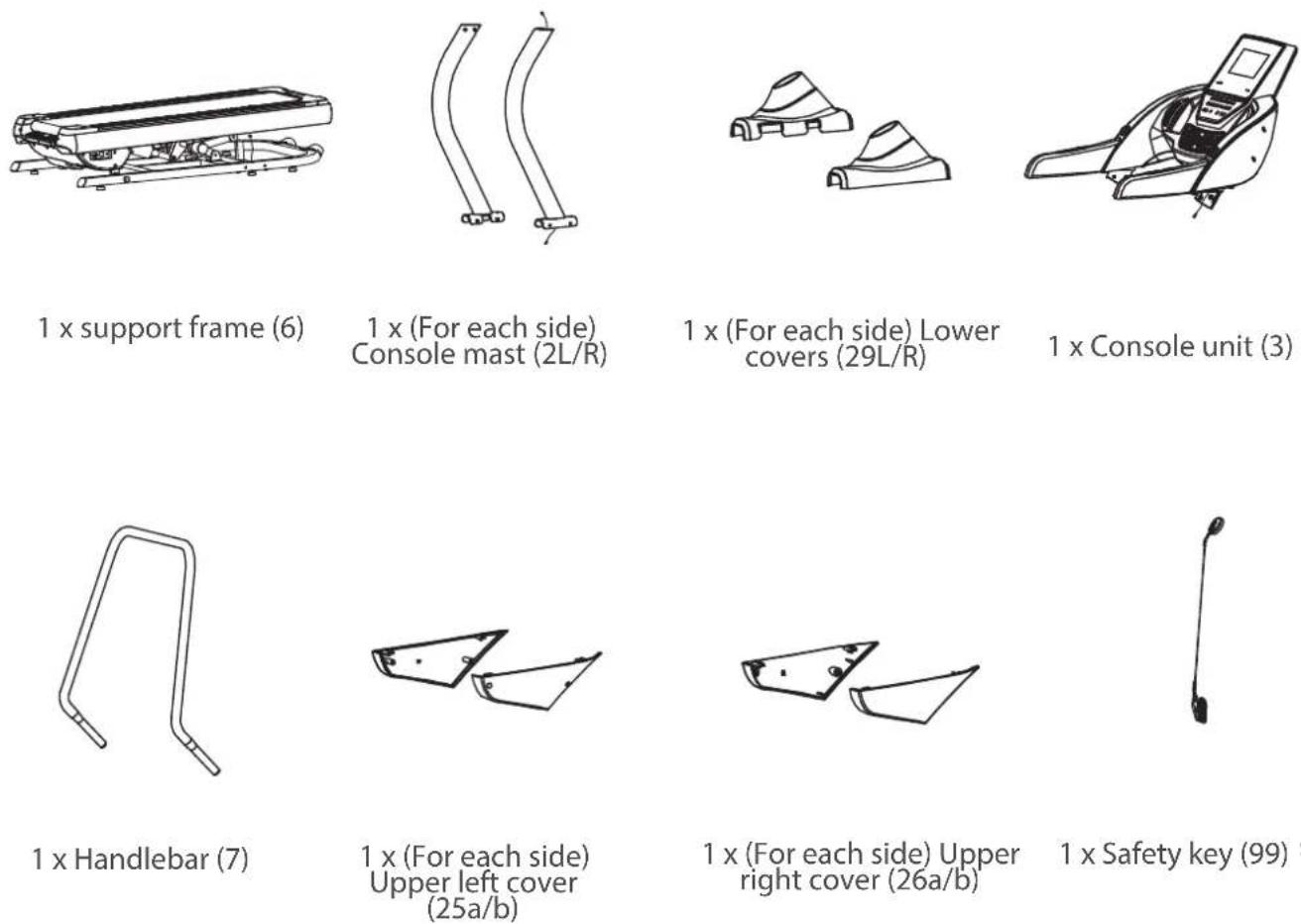

The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly.

CAUTION

If parts of the scope of delivery are missing or damaged, the assembly must not be carried out.

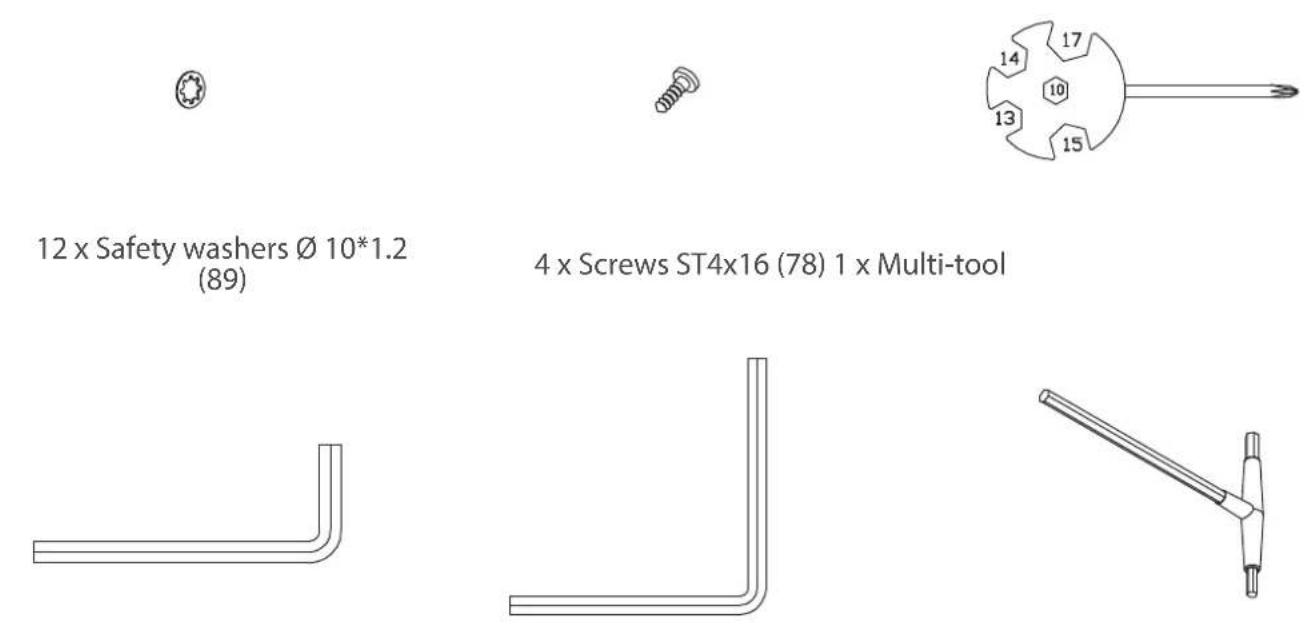

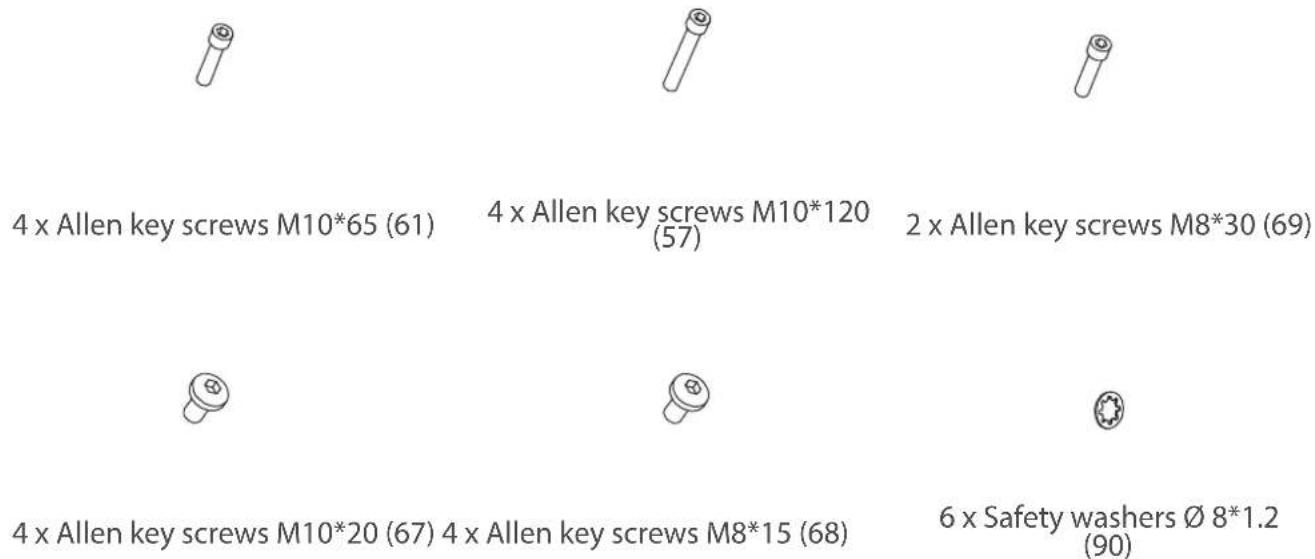

1 x Allen key 1 x Allen key 1 x T-tool

2.3 Assembly

Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given.

i NOTICE

First loosely screw all parts together and check that they fit properly. Then tighten the screws using the tool only when you are instructed to do so.

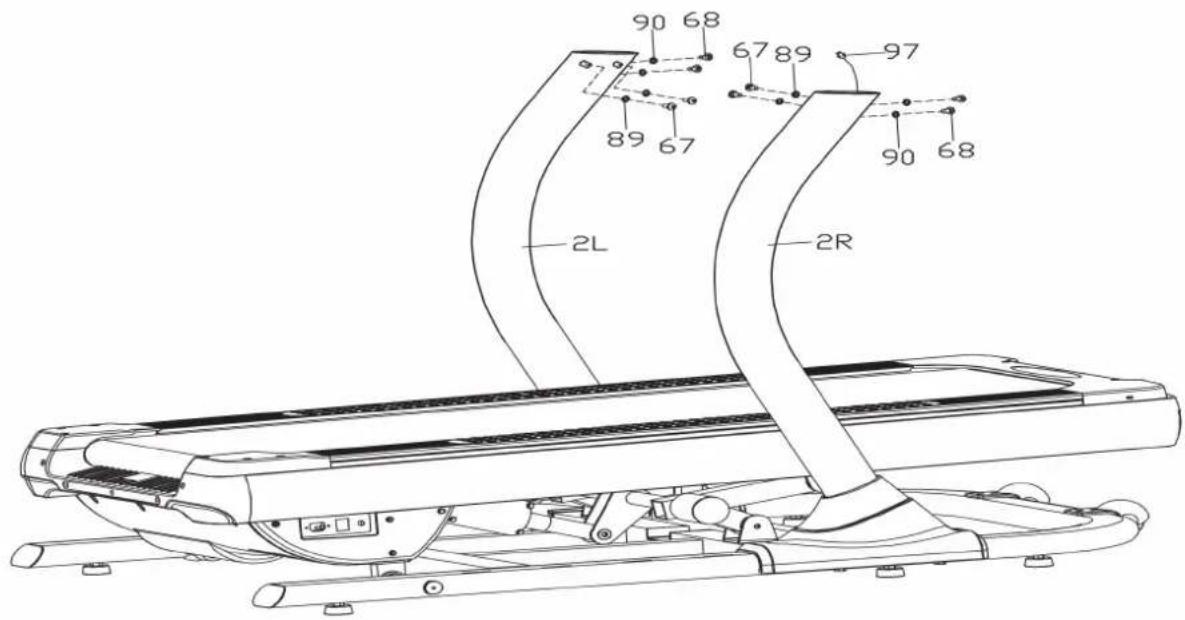

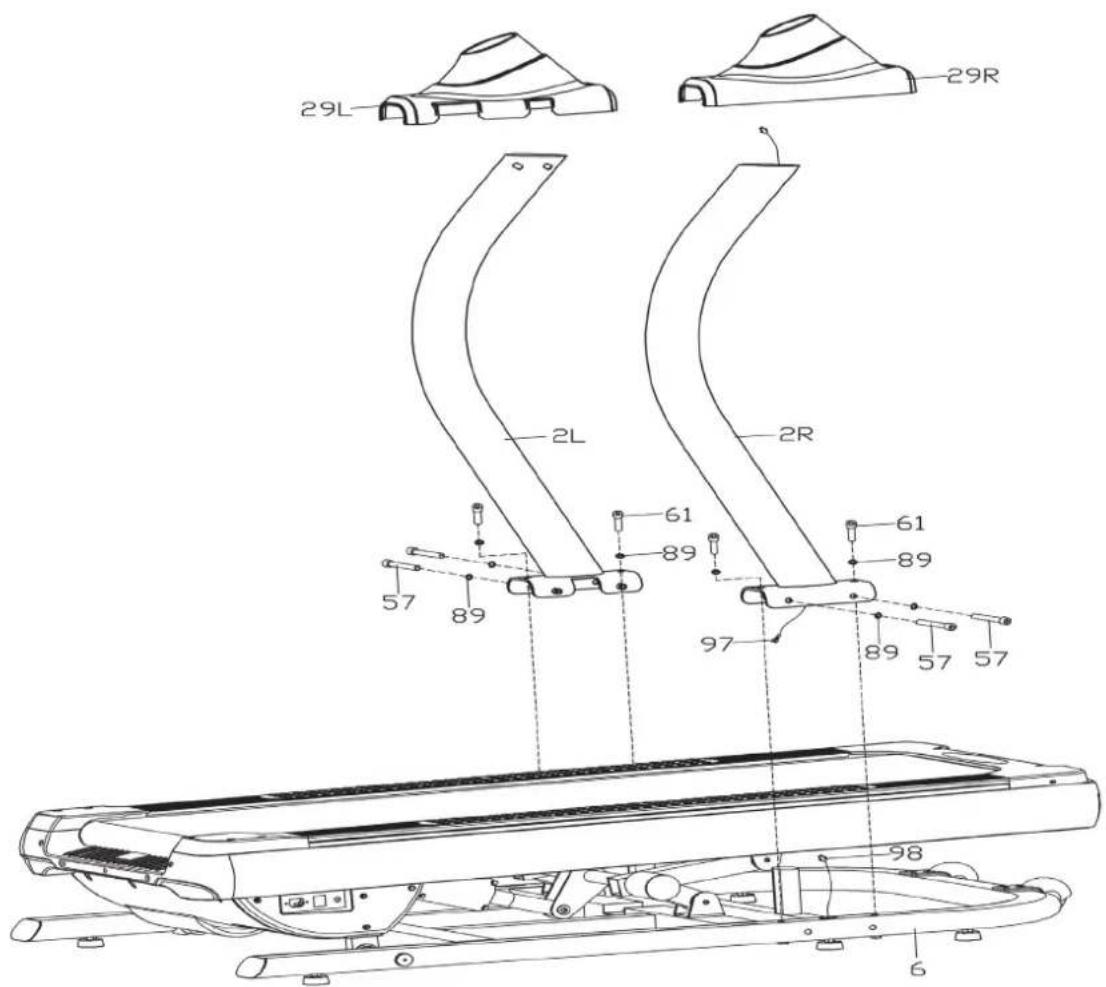

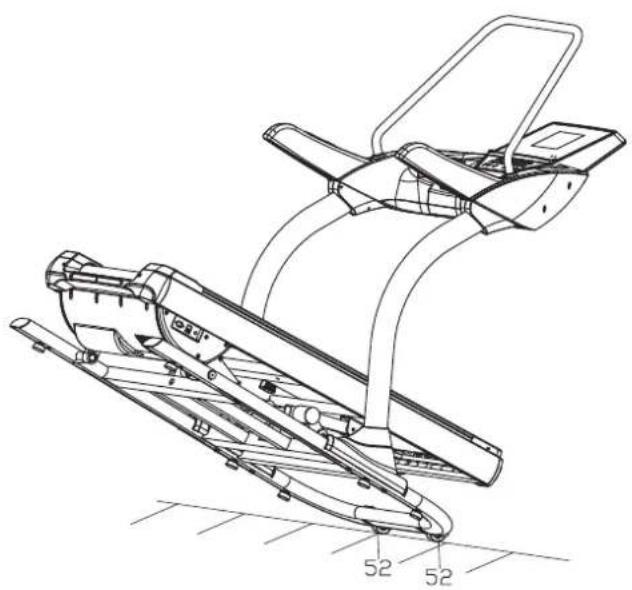

Step 1: Mounting the console masts

1. Connect the lower extension cable (98) with the upper extension cable (97).

ATTENTION

In the following step please pay attention that you don't clamp the cables between the frames.

1. Fasten the left and right console masts (2L/R) onto the support frame (6) with a total of eight safety washers (89), four screws (61) and four screws (57).

2. Slide the lower covers (29L/R) over the console masts (2L/R)

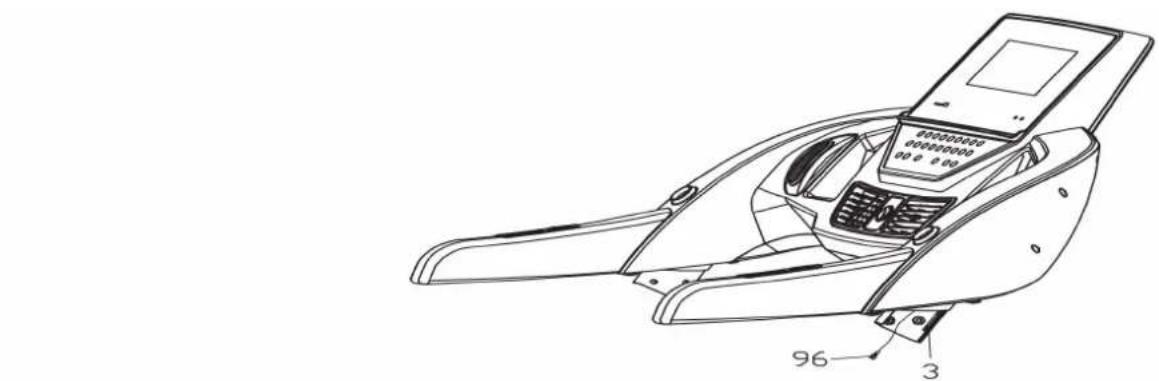

Step 2: Mounting the console unit

1. Connect the console cable (96) with the upper extension cable (97).

ATTENTION

In the following step please pay attention that you don't clamp the cables between the frames.

1. Fasten the console unit (3) onto the left and right console masts (2L/R) with a total of four safety washers (89), four screws (67), four safety washers (90) and four screws (68).
2. Tighten all screws from step 1 and step 2.

Technical line drawing of a mobile phone receiver with labeled parts (no text or symbols beyond basic labels)

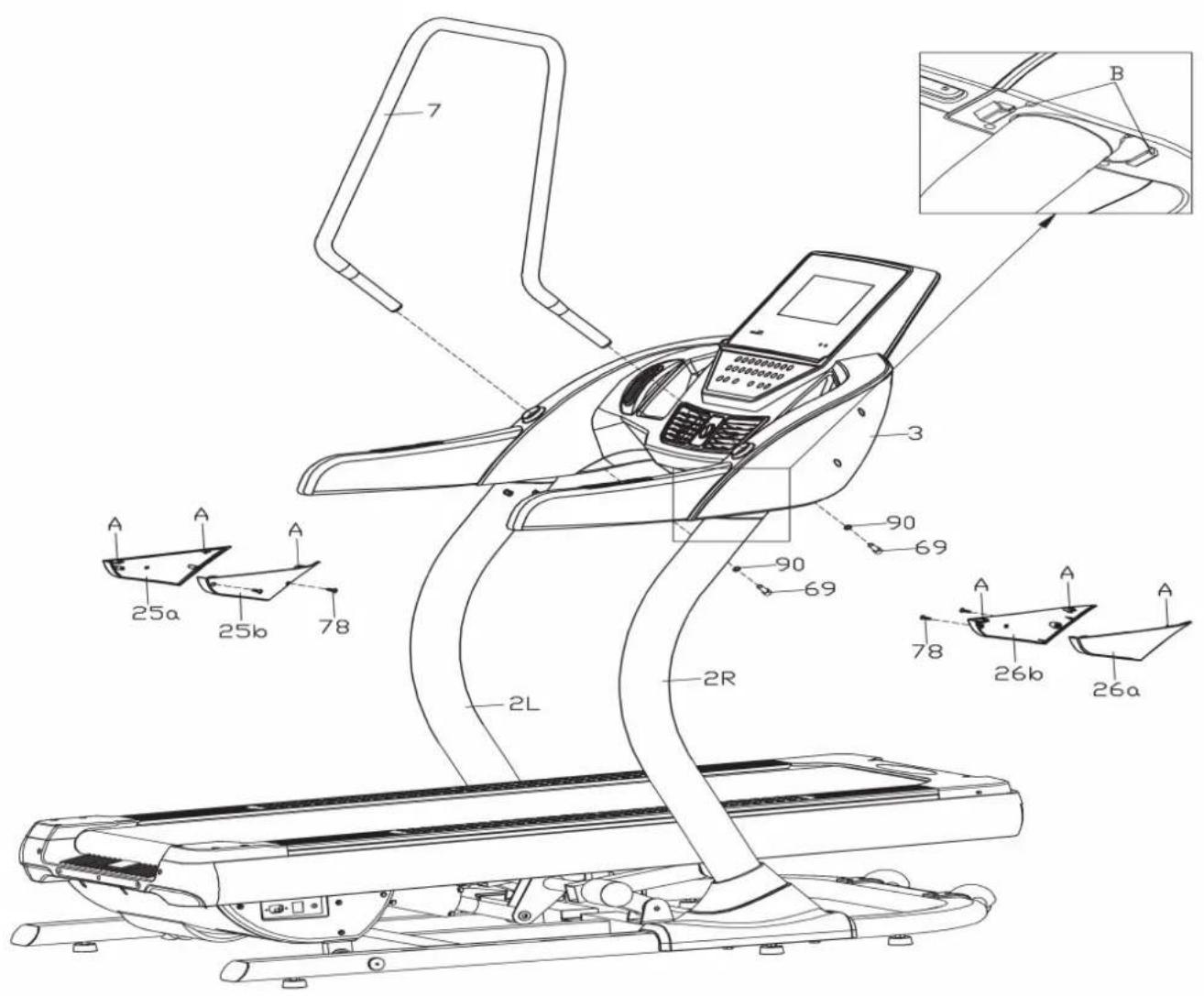

Step 3: Mounting the handlebar

1. Place the ends of the handlebar (7) into the openings on the console unit (3).
2. Fasten the handlebar (7) onto the console unit (3) with a total of two safety washers (90) and two screws (69).
3. Fasten the upper right covers (26a/b) placing the points A onto point B under the console unit (3) with two screws (78).
4. Use the same procedure for upper left covers (25a/b).
5. Tighten all screws.

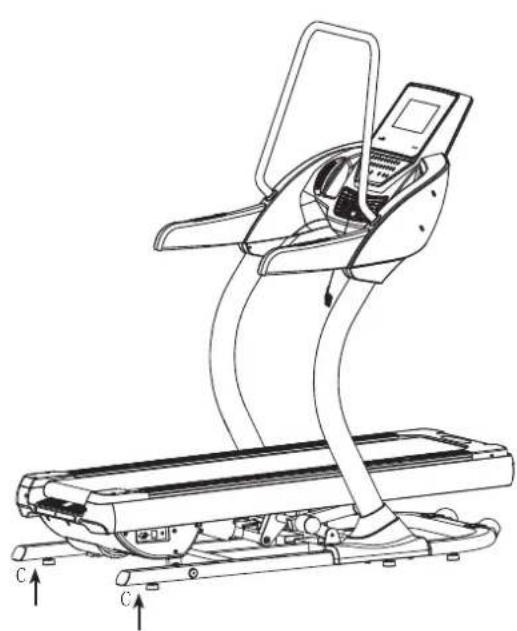

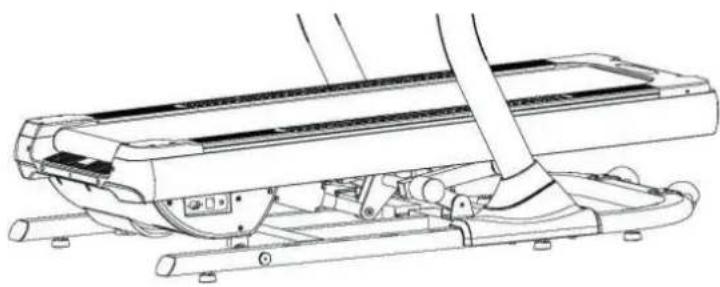

Step 4: Alignment of the feet

If the floor is uneven, you can stabilize the treadmill by turning the two setting screws under the main frame.

1. Lift the treadmill on the desired side and rotate the setting screws under the main frame.
2. Rotate the screws clockwise in order to remove them and to raise the running surface.
3. Rotate them counterclockwise in order to lower the running surface.

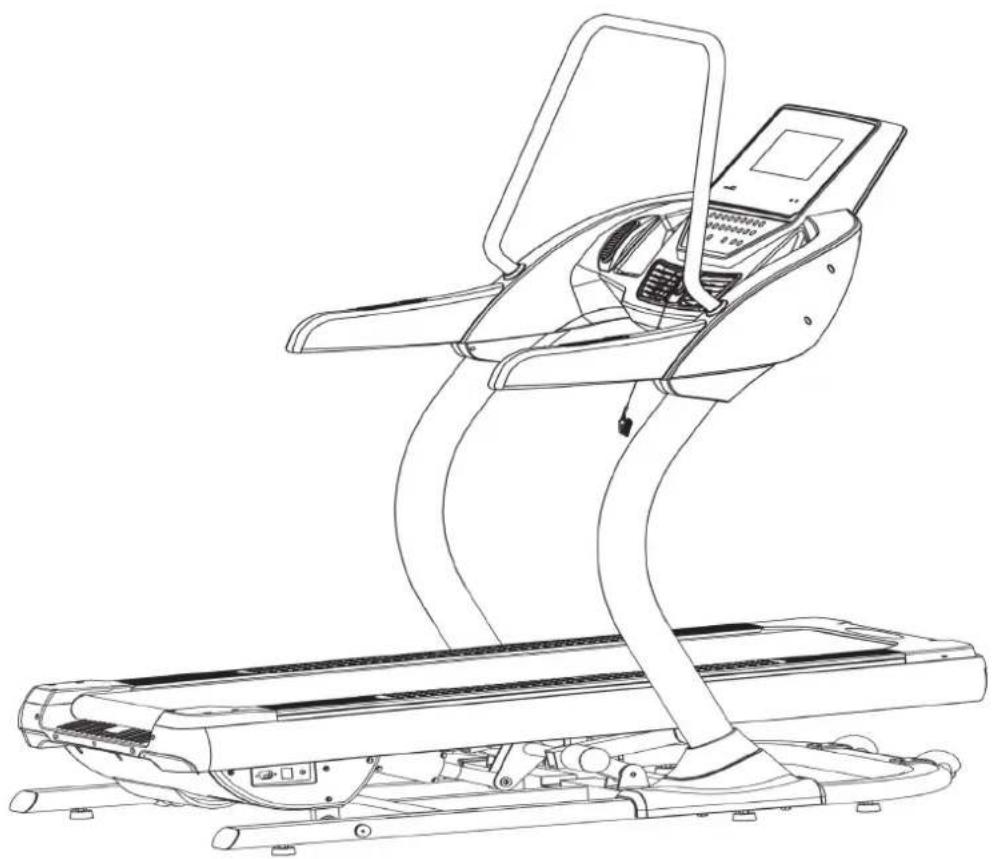

Line drawing of a treadmill with visible legs, wheels, and control panel (no text or symbols)

Step 5: Connecting the equipment to the mains supply

ATTENTION

The equipment must not be connected to a multiple socket, otherwise it cannot be guaranteed that the equipment will be supplied with sufficient power. Technical errors can result.

Plug the power plug into a wall outlet that complies with the instructions in the chapter on electrical safety.

i NOTICE

Familiarise yourself with all the functions and setting options of the device before starting training. Have the proper use of this product explained to you by a specialist.

SAFETY KEY

WARNING

• For your safety, the device is equipped with an EMERGENCY STOP function. The equipment can only be operated if the safety key is correctly attached to the contact point of the cockpit. If the safety key is no longer on the contact point, the equipment automatically stops. Therefore, the Safety Key cord with the clip must be attached to your clothing before every training session. If you want to quickly stop the treadmill, if you can no longer control the speed, or if another emergency occurs, remove the safety key from the cockpit using the cord.
• To enable the safety key to detach from the contact point of the cockpit in the event of a fall, the safety key clip must be firmly attached to your clothing!
• Make sure that the safety key is not accessible to children.

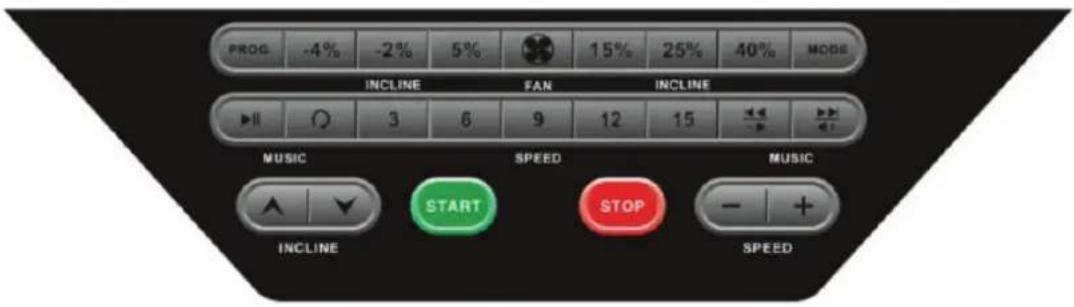

3.1 Console Display

SPEED	+ Display of the current speed in km/h+ Display range: 1.0 – 20.0km/h+ Setting range: 1.0 – 20.0km/h1 NOTICEThe maximum setting range of the speed is also dependant on the incline setting:+ -5 – 14% → 1 – 20km/h+ 15 – 24% → 1 – 12km/h+ 25 – 40% → 1 – 8km/h
INCL.	+ Display of the current incline in %+ Display range: -5 – 40%+ Setting range: -5% – 40%
PROG. + Display of the currently selected prgoram
CAL.	+ Display of calories burned in kcal+ Display range: 0.0 - 999kcal+ Setting range: 20 - 990kcal
DIST.	+ Display of the training distance in km+ Display range: 0.00 - 99.9km+ Setting range: 1.0 - 99.0km
TIME	+ Display of the training time in min.+ Display range: 0:00 - 99:59min.+ Setting range: 5:00 - 99:00min.
PULSE	⚠ WARNINGThis treadmill is not a medical equipment. The heart rate measurement of the treadmill can be unprecise. Various factors can affect the accuracy of the heart rate measurement. The heart rate measurement serves only as a training aid.+ Display of your heart rate+ Display range: 50 – 200bpm

3.2 Button Functions

START		Starts the Quick-Start program or starts a chosen program1 NOTICEWhen starting the Quick-Start program, the treadmill starts with a speed of 1km/h.
STOP Suspends		a program
PROG.		Changes between the pre-set programs (P1-P18), the body fat test (FAT) and the user defined programs (U1-U3)
MODE		Changes between the target programs for time (H-1), distance (H-2) and calories (H-3)
Hot-key buttons		+ Setting the incline to -4%, -2%, 5%, 15%, 25% or 40%+ Setting the speed to 3, 6, 9, 12 or 15km/h
☒☒		+A quick push of the button during training decreases or increases the incline by 1%+ Holding the button down during training will continually decrease or increase the incline
- +		+ Decrease or increase the setting value+A quick push of the button during training decreases or increases the speed by 0.1km/h+ Holding the button down during training will continually decrease or increase the speed.
MUSIC	▶ II	Play or pause the music
	Ω	Repeat song
	◀◀ →	+A quick press to change back the song+ Holding the button reduces the volume
	▶◀ +	+A quick press to skip the current song+ Holding the button increases the volume
FAN Turning the fan on or off

3.3 Programs

There are a total of 25 programs available to choose from:

• Quick start programs: 1
• Pre-set profile programs: 18
• Target programs: 3
• User defined programs: 3

3.3.1 Quick-Start Program

To directly start your training, press the START button.

The time, distance and calorie values will start counting upwards.

NOTICE

During training you can adjust the speed and incline with their respective buttons.

3.3.2 Pre-Set Profile Programs (P1–P18)

There are a total of 18 pre-set profile programs available to choose from. Every program is broken up into 16 segments. The length of the segments are dependant on the training time set..

1. Set the desired training time.

2. To start the program, press the START button.

3. In order to choose from one of the profile programs, press the PROG button.

NOTICE

During training you can adjust the speed and incline with their respective buttons.

1. To suspend the program, press the STOP button.

		1 2	3 4 5	6 7 8	9 10 1	1 12	13 14	15 16
P1	km/h 1	2 2 3	3 2 2 3	3 2 2	3 3 2	2 1
	% 24 25	26 28	29 25	26 28	29 25	26 28	29 25	26 0
P2	km/h 1	2 3 3	3 4 4 5	5 4 4	3 3 3	2 1
	% 24 28	25 25	28 25	28 25	28 28	25 28	25 28	27 24 0
P3	km/h 1	2 3 4	5 3 4 5	3 4 5	4 3 2	2 1
	% 20 22	24 26	28 30	26 28	24 26	28 28	26 28	24 22 0
P4	km/h 1	3 3 4	4 5 5 6	6 5 5	4 4 3	3 1
	% 20 22	24 24	26 26	28 28	30 30	28 26	24 22 0
P5	km/h 1	2 3 4	5 6 2 3	4 5 6	5 4 3	2 1
	% 20 22	24 26	28 20	22 24	26 28	20 22	24 22 0
P6	km/h 1	2 3 4	6 6 4 5	6 6 6	4 5 5	3 1
	% 33 30	28 26	24 28	30 28	26 24	30 28	28 28	24 22	0
P7	km/h 1	1 2 2	3 3 3 4	4 3 3	3 2 2	1 1
	% 30 32	32 34	34 36	36 32	32 30	30 32	32 32	30 28	0
P8	km/h 1	4 5 6	2 4 5 6	3 4 5	6 5 4	2 1
	% 20 24	26 28	22 24	26 28	22 24	26 28	26 28	22 20	0
P9	km/h 1	6 6 2	6 6 2 6	6 2 6	6 2 6	6 1
	% 23 25	26 23	25 26	23 25	26 23	25 26	26 23	25 26	0
P10	km/h 2	5 5 5	10 10	5 5 5	3 3 2 5	5 3 2
	% 0 0 1	1 1 1	2 2 2 2	3 3 3	2 2 0
P11	km/h 2	4 9 9	4 4 8 8	10 10	12 4	4 8 4	2
	% 0 1 2	3 4 5	4 5 4 2	1 2 3	2 1 0
P12	km/h 2	4 6 12	12 12	3 3 3	3 12	12 12	6 4 2
	% 0 2 4	6 4 2	10 11	2 2 2	2 3 0
P13	km/h 2	7 7 9	9 4 4 1	2 12 4	4 8 8	4 4 2
	% 0 1 1	2 2 3	3 4 4 3	3 2 2	1 1 0
P14	km/h 2	2 6 6	6 8 9	10 11	1 2 9 5	5 5 3	2
	% 0 1 2	4 2 1	2 4 2 1	2 4 2	1 2 0
P15	km/h 2	5 6 7	8 9 10	11 10	9 8 6	7 5 4	2
	% 0 1 2	4 6 6	6 4 4 4	2 2 2	1 1 0
P16	km/h 2	12 4 1	2 4 12	4 12	4 12 4	12 4	12 4	2
	% 0 8 1	10 13 4	8 10 1	3 4 8	10 13	4 8 10	0
P17	km/h 2	8 10 1	2 4 8	10 12	4 8 10	12 4	8 10 2
	% 0 8 1	2 13 4	8 12 1	3 4 8	12 13	4 8 10	0
P18	km/h 2	4 6 8	10 12	12 2 4	6 8 12	12 10	6 2
	% 0 4 6	8 10 1	2 13 1	2 13	12 13	10 8 6	4 0

3.3.3 Target Programs (H1 - H3)

The target program can be set by the training time (H1), training distance (H2) or calories burned (H3).

1. In order to choose from one of the profile programs, press the MODE button.
2. Set the desired training value.
3. To start the program, press the START button.

The target value counts down and the other values count upwards.

i NOTICE

During training you can adjust the speed and incline with their respective buttons.

1. To suspend the program, press the STOP button.

As soon as the target value is reached, the display shows END and signal will play every two seconds until the treadmill is no longer moving.

After the program the console switches to manual mode.

3.3.4 User-Defined Programs (U01 - U03)

There are a total of three user-defined programs (U01 - U03) each with 16 segments available that can be set.

i NOTICE

Should a user defined program already exist, the program can be started after setting a training time.

1. In order to choose from one of the user defined programs, press the PROG button.
2. Set the desired training time and confirm with the setting with the MODE button.

Now you can begin with the setting of the individual segments.

1. Set the speed with the +/- buttons and the incline with the ☒ buttons.
2. Confirm the settings with the MODE button.
3. Continue with this procedure with the reamining segments.

The settings will be directly saved to this user defined program.

1. To start the program, press the START button.

i NOTICE

During training you can adjust the speed and incline with their respective buttons.

1. To suspend the program, press the STOP button.

i NOTICE

The settings are saved and are still available even after being disconnected from the mains supply.

3.4 Body Fat Test (FAT)

i NOTICE

This treadmill is not a medical equipment. The measurement serves only as a comparison tool.

1. In order to choose the body fat test, press the PROG button.
2. Set your gender (F1), age (F2), height (F3) and weight (F4) and confirm with the settings with the MODE button.

The setting ranges from the following table are possible:

F1 Gender 01 (male) / 02 (female)
F2 Age 10 – 99
F3 Height 100 – 200
F4 Weight 20 – 150

The display will now show F5.

1. Hold onto the hand pulse sensors for 5 - 6 seconds.

The display shows FAT and your value.

F5	FAT	≤ 19	Underweight
		20 – 25	Normal weight
		26 – 29	Slightly overweight
		≥ 30	Overweight

3.5 Additional Information

3.5.1 Changing Metric/Imperial Units

In order to change the unit of measurement used, remove the safety key then press and hold the PROG-button and MODE button simultaneously for three seconds.

A signal will be played.

A speed value will be displayed (1 = kilometers, 0.6 = miles)

3.5.2 Calibrating the Inclince

In case of an error with the incline, a calibration can help remedy the problem.

ATTENTION

During the calibration, do not proceed with any other activities on the treadmill. Otherwise the calibration will be incorrect.

Remove the safety key then press and hold the ☒ button for 3 seconds.

The treadmill automatically raises to the highest position and sinks back to the lowest position.

3.5.3 Software Version Information

While in standby mode, press the +/- button for speed for one second.

The software informationen will be displayed.

4.1 General Instructions

WARNING

+ The storage location should be chosen so that improper use by third parties or children can be prevented.

+ If your equipment does not have transportation wheels, the equipment must be disassembled before transportation.

ATTENTION

+ Make sure that the equipment is protected from moisture, dust and dirt in the selected storage location. The storage location should be dry and well ventilated and have a constant ambient temperature between 5°C and 45°C.

4.2 Transportation Wheels

DANGER

Due to the high weight, transportation via the transportation wheels must only be carried out with at least three persons for safety reasons.

ATTENTION

If you want to transport your equipment over particularly sensitive and soft floor coverings, such as parquet, planks or laminate, lay out the transport route with cardboard or similar to avoid possible floor damage.

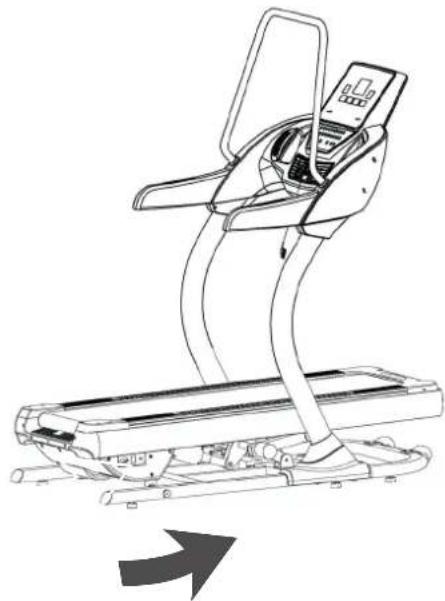

1. Stand behind the equipment and lift it until the weight is transferred to the transportation wheels. After that, you easily can move the equipment to a new position. For long transport distances the equipment should be disassembled and safely packed.

2. Select the new location by following the instructions in the section 1.4 of this manual.

Line drawing of a treadmill with labeled C indicators (no text or symbols on the device itself)

Technical line drawing of a mechanical device with labeled parts (no text or symbols beyond basic labels)

5.1 General Instructions

WARNING

+ Do not make any improper changes to the equipment.

CAUTION

+ Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner. The equipment must not be used until it has been repaired. If necessary, use only original spare parts.

ATTENTION

In addition to the instructions and recommendations for maintenance and care given here, additional service and/or repair work may be necessary; this must only be carried out by authorised service technicians.

5.2 Faults and Fault Diagnosis

The equipment undergoes regular quality controls during production. Nevertheless, faults or malfunctions may occur. Frequently, individual parts are responsible for these disturbances, an exchange is usually sufficient. Please refer to the following overview for the most common errors and how to correct them. If the equipment still does not function properly, contact your contract partner.

Fault Cause Solution
Console does not react	Safety key missing	Check if the safety key is inserted and place it in
Running belt tilted Running	belt not aligned	Align running belt in accordance with the instructions
Running belt slips through/stops	Belt tension/lubrication not ok	Check belt tension/lubrication in accordance with the instructions
Scraping noises	Running belt scrapes, because it is not aligned	Align running belt in accordance with the instructions
Display does not show anything	Check plug connections (cables)	Mains switch on “on”, make sure that the safety key is inserted

5.3 Error Codes and Troubleshooting

The electronics of the crosstrainer are continually running tests. In case of deviations, an error code is shown on the display and normal operation is stopped for your safety.

+ E01 Communication error bewteen the digital meter and inverter

Cable between the digital meter and inverter is not connected properly and/or the inverter is defective.

1. Check the cable connection between the digital meter and inverter. If necessary, an exchange of the digital meter and/or inverter is required. Please contact Sport-Tiedje for technical support.

+ E04 Error while correcting the incline motor

Cable bewteen the incline motor and inverter is not connected properly, the incline motor and/or inverter is defective.

1. Re-start the treadmill.
2. Check the cable connection between the incline motor and inverter. If necessary, an exchange of the incline motor and/or inverter is required. Please contact Sport-Tiedje for technical support.

+ E05 Overcurrent protection

Motor overloaded or the IPM sensor has short circuited.

1. Lubricate under the running band, to reduced the resistance on the running band. an exchange of the inverter is required. Please contact Sport-Tiedje for technical support.

+ E06 Overheating protection

Temporary short circuit on the sensor, defective control chip (358/324) or an error with the ventilation.

1. An exchange of the inverter is required. Please contact Sport-Tiedje for technical support.

+ E07 Undervoltage protection

Voltage is less than 185 V.

1. Make sure that the treadmill is connected to a mains supply of 220-230 V with 50 Hz.
2. If the voltage is within the normal range, an exchange of the inverter is required. Please contact Sport-Tiedje for technical support.

+ E09 Overload protection

An error in the parameter settings or overload.

1. Reduce the load on the treadmill.
2. If necessary, an exchange of the inverter is required. Please contact Sport-Tiedje for technical support.

+ ---- Safety Key

Safety key isn't properly connected or the switch is defective.

1. Check if the safety key is properly attached.
2. Check the cable connection to the safety key unit. If necessary, an exchange of the switch is required. Please contact Sport-Tiedje for technical support.

Please contact Sport-Tiedje for technical support.

5.4 Care and Maintenance

The most important maintenance measure is the care of the running mat. This includes adjustment, re tensioning and lubrication of the running mat. Damage resulting from insufficient or neglected care is not covered by the warranty. You should therefore carry out maintenance checks at regular intervals. Be very careful when adjusting and tightening the running mat, as a strong over voltage or under voltage can cause damage to the equipment. The running mat is adjusted at the factory according to the regulations before delivery. However, it may happen that the running mat slips during transport.

By scanning the QR code with the camera function or QR code scanner app of your smartphone/tablet, a video on general maintenance of a treadmill opens on YouTube. The video serves to illustrate the maintenance points described in this manual.

Please note that the video may not be available in your language or with appropriate subtitles.

If you cannot scan QR codes, you can access all Sport-Tiedje videos on YouTube by first opening YouTube and entering "Sport-Tiedje" in the search field.

5.4.1 Adjusting the Running Mat

During training, the running mat should run as centrally and straight as possible. The alignment of the running mat can change depending on the stress and load. Another reason can be the positioning of the equipment on an uneven surface.

CAUTION

During the following maintenance nobody must be on the treadmill!

1. Let the treadmill run at a speed of 5 km/h.

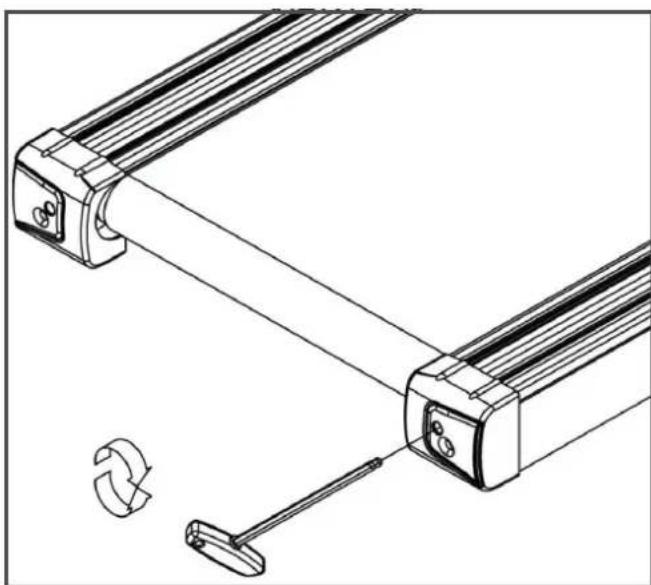

2. If the running mat deviates to the left, turn the left adjusting screw at the rear end of the device max. one 14 turn clockwise and the right adjusting screw max. one 14 turn anticlockwise.

3. If the running mat deviates to the right, turn the right adjusting screw at the rear end of the device max. 14 turn clockwise and the left adjusting screw max. 14 turn anticlockwise.

4. Then observe the mat for about 30 seconds, as the change is not immediately visible.

5. Repeat this procedure until the running mat is straight again. If the running mat cannot be adjusted, please contact your contract partner.

Technical line drawing of a mechanical assembly with two parallel rods and a tool, no text or symbols present

5.4.2 Re-tensioning the Running Mat

If the running mat slips over the rollers during operation (if this is the case, there is a noticeable jerk during running), the running mat must be re tightened.

In most cases, the slipping is caused by stretching of the mat through use. This is perfectly normal.

NOTICE

Re-tensioning is carried out using the same adjusting screws that are used for adjustment.

1. Let the treadmill run at a speed of 5km/h.
2. Turn the left and right adjusting screws directly one after the other, max. one 14 turn clockwise.
3. Then check whether the running mat continues to slip. If this is the case, you must perform the described procedure again.

5.4.3 Lubricating the Running Mat

If the running mat is not sufficiently lubricated, friction increases significantly and this leads to heavy wear of the endless belt, running plate, motor and circuit board. If you feel an increased friction of the running mat, this is an indication that you should lubricate the mat. However, lubrication should be carried out at least every 3 months or every 50 operating hours. Whichever case comes first.

NOTICE

If your treadmill is equipped with a folding mechanism, you can also lubricate it when it is folded.

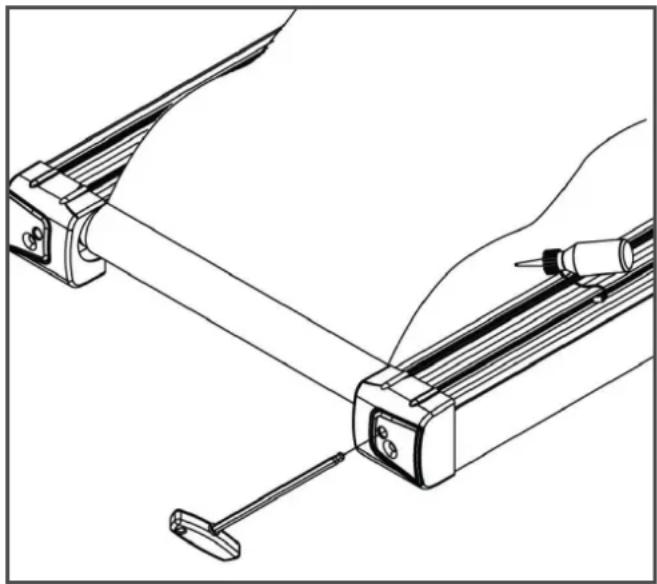

1. Raise the running mat slightly.
2. Apply some lubricating oil or silicone spray to the entire deck and distribute evenly.
3. Continue turning the belt by hand so that the entire surface between the endless belt and the running plate is lubricated.
4. Wipe off the excess lubricating oil or silicone spray.

i NOTICE

This maintenance must also be carried out after prolonged non-use of the equipment.

Technical line drawing of a mechanical assembly with no visible text or symbols

5.5 Maintenance and Inspection Calendar

To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session.

The following routine tasks must be performed at the specified intervals:

Part Weekly Monthly Quarterly Half-yearly
Display console C I
Tension of the running mat I
Lubrication of the running mat I
Plastic covers C I
Screws and cable connections I
Legend: C = clean; I = inspect

6 DISPOSAL

At the end of its operational life, this equipment cannot be disposed of in normal household waste. Instead, it must be disposed of via an electricals recycling centre. Further information can be obtained from your local authority's recycling service.

The materials can be recycled as per their symbols. Through the reuse, recycling of materials or other forms of recovery of old equipment, you make an important contribution to the protection of the environment.

7 RECOMMENDED ACCESSORIES

To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. This could be a floor mat, for example, which makes your fitness equipment stand more securely and also protects the floor from falling sweat, but it could also be additional handrails on some treadmills or silicone spray to keep moving parts in good shape.

If you have purchased a fitness machine with pulse training and want to train your heart rate, we strongly recommend that you use a compatible chest strap, as this ensures optimum transmission of the heart rate. You may want to buy additional grips or weights for multi gyms.

Our range of accessories offers the highest quality and makes training even

better. If you would like to find out more about compatible accessories, please go to the detail page of the product in our webshop (the easiest way is to enter the article number in the search field above) and go to the recommended accessories on this page. Of course, you can also contact our customer service: by telephone, e-mail, in one of our branches or via our social media channels. We will be happy to advise you!

Two blue and black textured belts labeled 'cardiostrong' (no additional text or symbols visible)

towels

8.1 Serial Number and Model Name

In order to provide you with the best possible service, please have the model name, article number, serial number, exploded drawing and parts list ready. The corresponding contact options can be found in chapter 10 of this operating manual.

i NOTICE

The serial number of your equipment is unique. It's located on a white sticker. The exact position of this sticker is shown in the following illustration.

Line drawing of a treadmill with control panel and side-mounted legs, showing motion direction (no text or symbols)

Enter the serial number in the appropriate field.

Serial number:

Brand / Category:

Taurus / treadmill

Model Name:

Incline Treadmill

Article Number:

TF-IT10.5PRO

8.2 Parts List

No.	Name	Qty.	No.	Name	Qty.
1	Main frame 1		32	Motor cover	1
2L/R	L/R upright tube 1 p.r.		33	Fan bracket	1
3	Computer frame 1		34L/R	Fan bracket	1 p.r.
4	Incline frame 1		35	Seal cover 2
5L/R	Incline connection board 2		36L/R	Motor cover	1 p.r.
6	Support bracket 1		37	Transport wheels cover	2
7	Front handlebar 1		38	Cushion support bracket	8
8	Motor cover mounting 2		39	Shortcut key	2
9	Front roller 1		40	PU grip	2
10	Rear roller 1		41	Edgings	2
11	Spacer 1	3	42	Running belt	1
12	Spacer 2	4	43	Running board	1
13	Spacer 3	2	44	Belt	1
14	Spacer 4	2	45	Cushion	4
15	Spindle	2	46	Rubber cushion	4
16	Spring	4	47	Limited cushion 2
17	Sound net	2	48	Anti-skid cushion	1
18	Foot pad	6	49	Spacer 5	4
19	Edging press board	3	50	Seal end cap	8
20	Bearing	4	51	Plastic edging mounting	10
21	Computer board bottom cover	1	52	Roller	2
22	Computer upper cover	1	53	Foam grip 1
23	Computer bottom cover	1	54	Non-slip mat	4
24	Loudspeaker cover	2	55	Square end cap 1	2
25a/b	Left upright cover	1p.r.	56	Square end cap 2	2
26a/b	Right upright cover	1p.r.	57	Hex socket screw M10*120	4
27	Front cover	1	58	Hex socket screw M10*80	4
28	Front cover 2	1	59	Hex socket screw M10*75	2
29L/R	Support tube cover	1p.r.	60	Hex socket screw M10*60	2
30L/R	Rear end cap	1p.r.	61	Hex socket screw M10*65	4
31	Connection end cap	1	62	Hex socket screw M10*20	2

63 Hex bolt M10*65 1		94 Spring nut	2
64 Hex bolt M10*30 4		95 Big washer	2
65 Hex bolt M10*47 1		96 upper extension wire
66 Hex bolt M10*45 2		97 controller wire
67 Hex socket screw M10*20 4		98 lower extension wire
68 Hex socket screw M8*15 4		99 Safety key
69 Hex socket screw M8*30 2		100 Brake resistor	1
70 Hex socket screw M6*20 2		101 Fan	2
71 Hex nut M6*35 4		102 AC motor	1
72 Cross pan head screw M5*8 2		103 Incline motor	1
73 Cross pan head screw M5*15 2		104 Power wire	1
74 Cross pan head screw M5*20 4		105 Switch	1
75 Cross pan head screw M5*25 8		106 Circuit breaker	1
76 Cross pan head screw M4*8 12		107 Power socket	1
77 Cross tapping screw ST4×35 4		108 Transducer	1
78 Cross tapping screw ST4×16 83		109 Inductor (optional)	1
79 Cross tapping screw ST4×45 4		110 Filter(optional)	1
80 Cross tapping screw ST4×12 28		111 loudspeaker(optional)	2
81 Cross tapping screw ST4×12 4		112 Amplifier board(optional) 1
82 Screws M3*15 2		113 Connecting wire of MP3	1
83 Cross tapping screw ST2.9*9.5 4		114 Audio jack(optional)	1
84 Screws M4*8 6		115 Audio socket (optional)	1
85 Nylon nut M10 12		116 Inductor bracket (optional)	1
86 Hex nut M10 6		117 USB/SD card(optional)	1
87 Hex nut M6 4
88 Hex nut M3 2
89 Lock washer Φ10*1.2	28
90 Lock washer Φ8*1.2	6
91 Flat washer	4
92 Standard flat washer Φ10*2.0	4
93 Spring washer	4

8.3 Exploded Diagram

Training equipment from Taurus ^® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline.

Error Descriptions

Your fitness equipment is developed for long-term, high-quality training. However, should a problem arise, please first read the operating instructions. For further assistance, please contact your contract partner or call our service hotline. To ensure your problem is solved as quickly as possible, please describe the defect as exactly as possible.

In addition to the statutory warranty, we provide a warranty for every fitness equipment purchased from us according to the following provisions.

Your statutory rights are not affected.

Warrantee

The warrantee is the first/original buyer and/or any person who received a newly purchased product as a gift from the original buyer.

Warranty period

The warranty periods, shown on our web shop, begin on delivery of the fitness equipment. The respective warranty periods for your equipment can be found on its product website.

Repair Costs

According to our choice, there will either be a repair, a replacement of individual damaged parts or a complete replacement. Spare parts, that have to be mounted while assembling the equipment, have to be replaced by the warrantee personally and are not a part of repair. After the expiration of the warranty period for repair costs, a pure parts warranty applies, which does not include the repair, installation and delivery costs.

The terms of use are defined as follows:

• Home use: solely for private use in private households up to 3 hours per day
• Semi-professional use: up to 6 hours per day (e. g. rehabilitation centres, hotels, clubs, company gyms)
• Professional use: more than 6 hours per day (e. g. commercial gyms)

Warranty Service

Within the warranty period, equipment which develops faults as a result of material or manufacturing defects, will be repaired or replaced at our discretion. Ownership of equipment or parts of equipment which have been replaced is transferred to us. The warranty period is not extended nor does a new warranty period begin following repair or replacement under the warranty.

Warranty Conditions

For the warranty to be valid, the following steps must be taken:

Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance. If the fault is covered by our warranty, you will receive a new or repaired equipment in return.

Warranty claims are invalid in case of damage resulting from:

• misuse or improper handling
• environmental influences (moisture, heat, electrical surge, dust, etc.)
• failure to follow the current safety measures for the equipment
• failure to follow the operating instructions
• use of force (e. g. hitting, kicking, falling)
• interventions which were not carried out by one of our authorized service centres
• unauthorised repair attempts

Proof of Purchase and Serial Number

Please make sure that you are able to provide the appropriate receipt when claiming on your warranty. So that we can clearly identify the model of your equipment, and for the purposes of our quality control, you will need to give the serial number of your equipment, when contacting the service team. Where possible please have your serial number and your customer number ready when you call our service hotline. It will help us to deal with your request swiftly.

If you cannot find the serial number on your fitness equipment, our service team is at your disposal to offer further information.

Service outside of the Warranty Period

We are also happy to issue an individual cost estimate if there is a problem with your fitness equipment after the warranty has expired, or in cases which do not fall under the terms of the warranty, e. g. normal wear and tear. Please contact our customer service team to find a quick and cost-effective solution to your problem. In such a case you will be responsible for the delivery costs.

Communication

Many problems can be solved just by speaking to us as your specialist supplier. We know how important it is to you as a user of the fitness equipment to have problems solved quickly and simply, so you can enjoy working out with minimal interruption. For that reason, we also want to resolve your queries quickly and in a straightforward manner. Thus, please always keep your customer number and the serial number of the faulty equipment handy.

DE DK FR

TECHNICAL SUPPORT TECHNICAL SUPPORT & SERVICE TECHNICAL SUPPORT & SERVICE
	80 90 16 50+49 4621 [e-mail] - Fr 08:00 - 18:00Sa 09:00 - 18:00	[phone]+49 4621 [e-mail] - Fr 08:00 - 18:00Sa 09:00 - 18:00
SERVICE	PL	BE
0800 20 20277(Freecall)[e-mail] - Fr 08:00 - 21:00Sa 09:00 - 21:00So 10:00 - 18:00	TECHNICAL SUPPORT & SERVICE TECHNICAL SUPPORT & SERVICE22 307 43 21+49 4621 42 [e-mail] - Fr 08:00 - 18:00Sa 09:00 - 18:00	02 732 46 77+49 4621 42 [e-mail] - Fr 08:00 - 18:00Sa 09:00 - 18:00

UK	NL	INT
TECHNICAL SUPPORT+44 141 876 [e-mail][phone]Mo - Fr 9am - 5pm	TECHNICAL SUPPORT & SERVICE+31 172 [e-mail] - Do 09:00 - 17:00Vr 09:00 - 21:00Za 10:00 - 17:00	TECHNICAL SUPPORT & SERVICE+49 4621 4210-944service-int@sport-tiedjeMo - Fr 8am - 6pmSat 9am - 6pm
	AT	CH
	TECHNICAL SUPPORT & SERVICE0800 20 20277(Freecall)[phone] [e-mail] - Fr 08:00 - 18:00Sa 09:00 - 18:00	TECHNICAL SUPPORT & SERVICE0800 202 027+49 4621 42 [e-mail] - Fr 08:00 - 18:00Sa 09:00 - 18:00

Please find a detailed overview including address and opening hours for all stores of the Sport-Tiedje Group in Germany and abroad on the following website:

www.sport-tiedje.com/en/stores

WE LIVE FITNESS

WEBSHOP AND SOCIAL MEDIA

Sport-Tiedje is Europe's largest specialist store for home fitness equipment with currently 80 stores and one of the world's most renowned online mail order companies for fitness equipment. Private customers order via the 25 web shops in the respective national language or have their desired equipment assembled on site. In addition, the company supplies fitness studios, hotels, sports clubs, companies and physio practices with professional equipment for endurance and strength training.

Sport-Tiedje offers a wide range of fitness equipment from renowned manufacturers, high-quality in-house developments and comprehensive services, such as a build-up service and sports scientific advice before and after the purchase. The company employs numerous sports scientists, fitness trainers and competitive athletes.

Visit us also on our social media platforms or our blog!

Notes

Notes

TAURUS®
