Product Type	Monocular
Brand	Vortex
Model	Solo 25mm
Magnification	8x
Objective Lens Diameter	25 mm
Eyecup	Foldable rubber eyecup, adjustable for eyeglasses
Focus System	Dual focus wheels (top for reticle, bottom for image)
Waterproof	Yes, O-ring sealed
Fogproof	Yes, nitrogen purged
Reticle	R/T ranging reticle in milliradians (mrad)
Warranty	VIP Lifetime Unconditional Warranty
Accessories Included	Lanyard, utility clip, soft storage case, lens cloth
Attachment Options	MOLLE webbing, pocket edge, tripod mount (not included)
Cleaning Method	Pressurized air, soft brush, lens cloth; avoid facial tissues
Safety Warning	Do not look at the sun or intense light sources
Intended Use	Tactical, outdoor, field observation
Objective Lens Coating	Not specified (likely multi-coated)
Prism Type	Not specified (likely roof prism)

Frequently Asked Questions - Solo 25mm Vortex

How do I attach the lanyard to the monocular?

Detach the clip from the lanyard. Push the loop end through the attachment point on the monocular. Pull the clip through the loop and cinch tight. Re-attach the clip to the lanyard.

How do I adjust the focus?

Use your thumb and forefinger on the focus wheel. The top wheel adjusts the reticle focus, while the bottom wheel adjusts the image focus.

Can I use the monocular with eyeglasses?

Yes, the rubber eyecup folds down for comfortable viewing with eyeglasses. When fully extended, it blocks stray light.

What is the VIP warranty and how does it work?

The VIP Warranty is an unconditional lifetime warranty. If your monocular becomes damaged or defective, Vortex will repair or replace it at no charge. It does not cover theft, loss, or deliberate damage. Call 800-426-0048 for service.

How do I clean the lenses?

First, remove dust or grit with pressurized air or a soft brush. Then, fog the lenses with your breath and wipe with the non-abrasive lens cloth included. Avoid facial tissue, heavy cotton, or flannel.

How do I use the ranging reticle?

The reticle uses milliradian (mrad) measurements. Place the reticle on a target of known size, read the mrad spanning, and use a formula to calculate distance. For example, a 6-foot target spanning 4 mrads equals 500 yards.

Is the monocular waterproof and fogproof?

Yes, it is fully waterproof due to O-ring seals and internally fogproof because of nitrogen purging.

What accessories come with the monocular?

It includes a lanyard, utility clip, soft storage case, and a non-abrasive lens cloth.

How do I use the utility clip?

The utility clip allows quick attachment to MOLLE webbing, a pocket edge, or other equipment for easy carrying.

Can I use a tripod with the monocular?

Yes, the monocular can be mounted on a tripod for maximum stability. (Tripod not included.)

USER MANUAL Solo 25mm Vortex

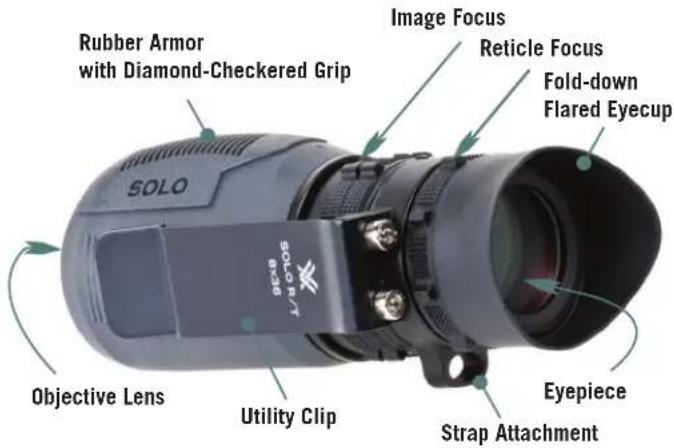

The 36mm Solo® Tactical R/T monocular delivers bright images, is compact, and easy to handle. Built to withstand use in just about any field condition, o-ring seals and nitrogen purging make the Solo a fully waterproof, internally fogproof monocular.

Caution:

Monoculars are not intended for looking at the sun, or any other intense light source. Such viewing could damage the retina and cornea of your eyes—even to the point of causing blindness.

BASIC OPERATION

Attaching the Lanyard

Attach lanyard in a few simple steps:

1. Detach clip from the lanyard.
2. Push the loop end through the attachment point on the monocular.
3. Pull the clip through the loop and cinch tight.
4. Re-attach the clip to lanyard.

Close-up of a black cylindrical device with attached straps and a cable, showing a green arrow indicating rotation (no text or symbols visible)

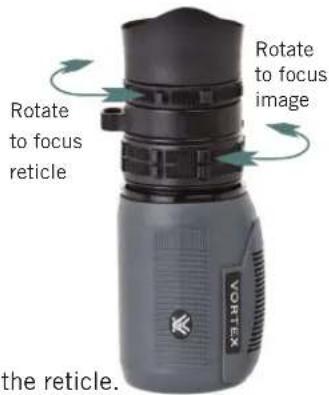

Adjusting the Focus

Designed for quick single-handed operation, simply place the thumb and forefinger on the focus wheel and turn to move lens forward or backward.

• Top focus wheel adjusts the reticle.
• Bottom focus wheel adjusts the image.

Adjusting the Eyecup

The heavy duty flared rubber eyecup on the Solo Tactical R/T monocular folds up and down for optimal viewing with or without eyeglasses.

Two black industrial optical cameras with lens and mounting brackets (no visible text or symbols)

Adjustable flared eyecup

• Flared eyecup blocks stray light when fully extended.
• Eyecup folds down for viewing with eyeglasses.

ACCESSORIES

The Utility Clip

The versatile utility clip allows quick attachment of the Solo Tactical R/T monocular to MOLLE webbing, a pocket edge or other equipment.

Utility Clip

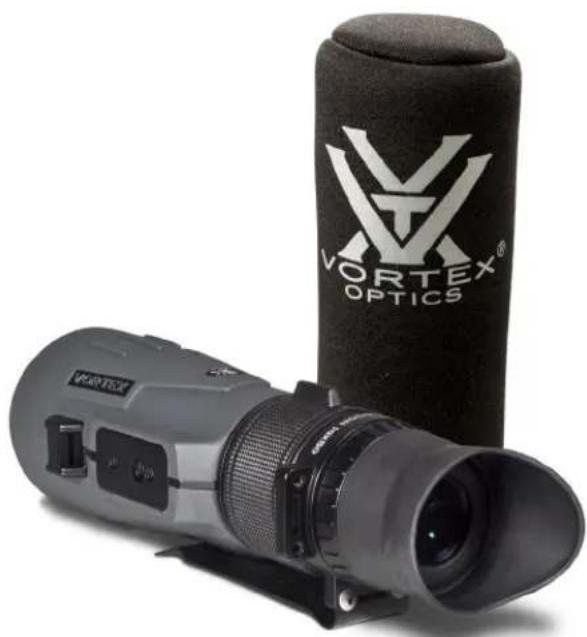

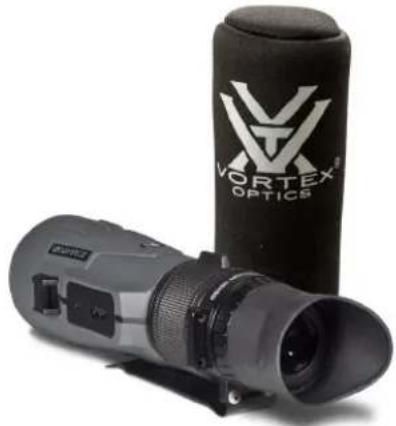

The Storage Case

The soft case slips off for an easy carry in the field and provides protection for the monocular when not in use.

Close-up of a black SOLO/R/T 8x36 water jet device (no visible text or symbols on body)

Two Vortex Optics lenses shown from different angles, one with a black cover and the other with a white logo (no visible text or symbols on the lenses themselves)

CARING FOR THE LENSES

Maintain the optical brilliance of the Solo Tactical monocular by keeping the lens surfaces free of dirt, dust, and oils.

Protect Lenses While Out in the Field

Store the Solo R/T in its custom carry case.

Keep Lenses Clean

Along with normal use comes the need to clean the monocular lenses. Follow these guidelines for cleaning:

1. Remove any dust or grit from lenses before wiping. Use a can of pressurized air or soft camel hair brush (acrylic optical brushes also work well).
2. Clear lens of smudges, fingerprints, or eyelash oil. Fog the lenses with your own breath and wipe with the non-abrasive lens cloth included with the Solo monocular.

Other cleaning options:

Cleaning fluid and optical paper can also be used. However, you should never use facial tissue, heavy cotton, or flannel clothing on lenses—these materials can scratch the lens surfaces.

USING THE R/T RANGING RETICLE

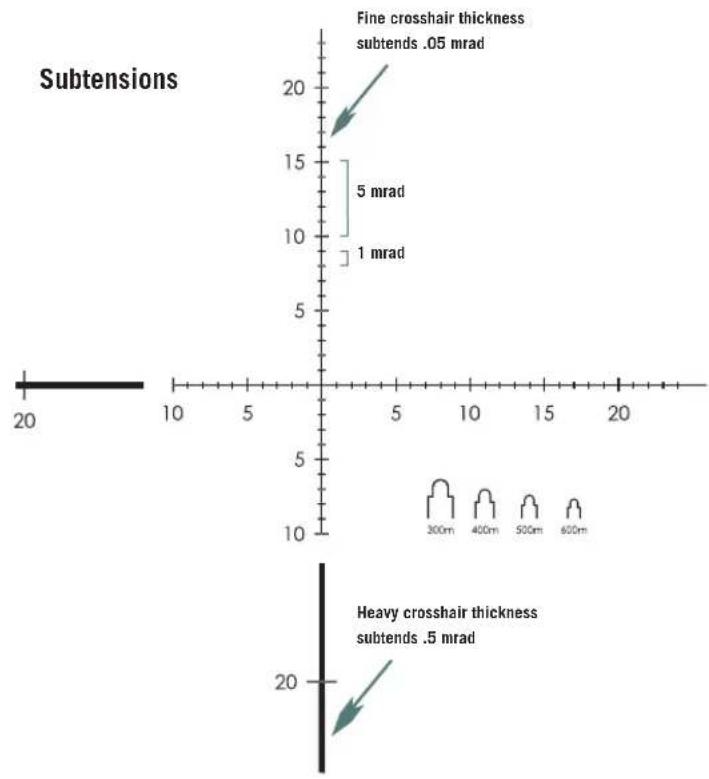

The R/T ranging reticle is based on a form of angular measurement called the milliradian (mrad for short). These angular measurements allow a user to calculate ranges when comparing the reticle to objects of known dimension. The key to effective ranging using this reticle is knowing common objects in your vicinity and their measurements.

The R/T reticle uses a system that is based on a silhouette for quick ranging.
All silhouette 79cm / 31" dimensions are accurate at the listed ranges.

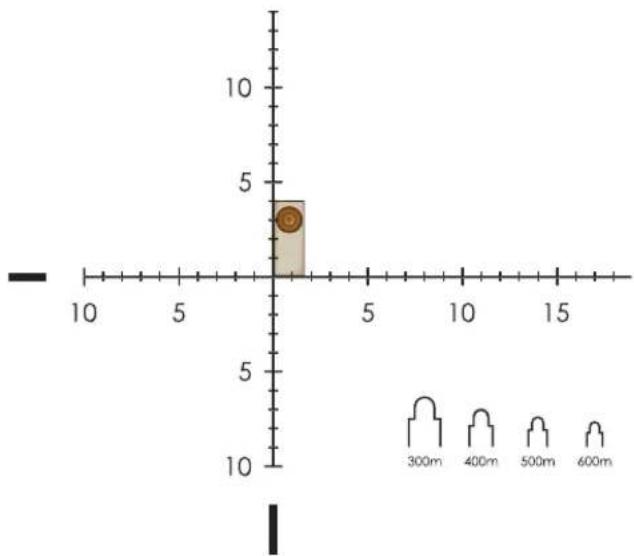

Ranging with mrads

Mrad measurements are very effective for ranging using simple formulas. Knowing the size of the target or a nearby object is essential to using these formulas.

Using either the vertical or horizontal mrad scale, place the reticle on the target of known dimension and read the number of mrads spanned. Obtain maximum accuracy in ranging by calculating exact mrad measurements—try to estimate mrad measurement in 1/10s if possible.

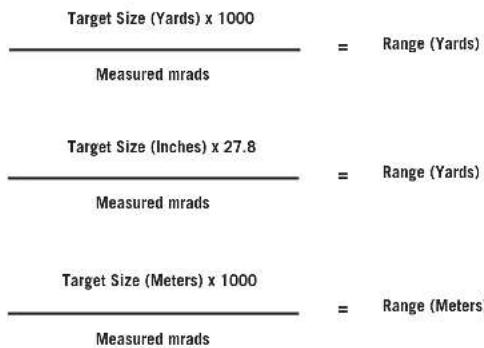

Accurate measuring will depend on a very steady hold. Be sure to solidly brace the arms when measuring or use a tripod mount for maximum accuracy. Once you have an accurate mrad reading, use one of the formulas to calculate the distance.

Ranging a 6-foot target (2 yards) at 4 mrads yields 500 yards.

Two Vortex Optics lenses shown from different angles, one with a black cylindrical case and the other with a metallic lens (no visible text or symbols on the lenses themselves)

THE VIP WARRANTY

We build optics based on our commitment to your absolute satisfaction. That's why Vortex products are unconditionally guaranteed and we make this Very Important Promise to you—a Very Important Person.

Rest assured that in the event your Solo monocular becomes damaged or defective, Vortex Optics will repair or replace the monocular at no charge to you. Call Vortex Optics at 800-426-0048 for prompt, professional, and friendly service.

UNLIMITED UNCONDITIONAL Lifetime Warranty

Vortex Optics

2120 West Greenview Drive

Middleton, WI 53562

[e-mail]

Visit www.vortexoptics.com for more information. Canadian customers may visit www.vortexcanada.net for customer service information.

Note: The VIP warranty does not cover theft, loss, or deliberate damage to the product.
