Product Type	Refrigerator
Brand	Scancool
Model	TK 86 BE
Dimensions (H x W x D)	850 x 500 x 550 mm
Weight	25 kg
Power Supply	220-240 V ~ 50 Hz
Energy Consumption	0.65 kWh/24h
Total Net Capacity	100 L
Refrigerant	R600a
Noise Level	40 dB
Defrost Type	Manual
Interior Light	LED
Adjustable Thermostat	Yes
Reversible Door	Yes
Adjustable Feet	Yes
Material	Painted Steel
Maintenance	Clean with a soft cloth and mild detergent
Safety	This appliance must be grounded
Spare Parts	Contact after-sales service
Warranty	2 years
Usage	Indoor use only

Frequently Asked Questions - TK 86 BE Scancool

How do I set the temperature on my Scancool TK 86 BE refrigerator?

Turn the thermostat dial inside the fridge compartment to adjust the temperature. Usually, a higher number means colder. Refer to your manual for specific settings.

Why is my refrigerator not cooling enough?

Check if the temperature dial is set correctly. Ensure the door seals properly and the condenser coils (at the back) are clean. Also allow enough space around the fridge for ventilation.

How often should I defrost the refrigerator?

Defrost when the ice layer reaches about 3-5 mm thickness. Manual defrost models require turning off the appliance, removing food, and letting ice melt.

How do I clean the Scancool TK 86 BE?

Unplug the fridge and wipe interior and exterior with a soft cloth dipped in mild detergent and warm water. Rinse and dry thoroughly. Do not use abrasive cleaners.

What is the noise level of this refrigerator?

The noise level is approximately 40 dB, similar to a quiet conversation. Some sounds from the compressor and refrigerant circulation are normal.

Can I reverse the door opening direction?

Yes, the door is reversible. Remove the hinges and reposition them according to the instructions in the user manual. You may need a screwdriver.

What should I do if water is leaking from the refrigerator?

Check if the drain hole at the back of the fridge is blocked. Clean it with a pipe cleaner or cotton swab. Also ensure the fridge is level.

How do I change the interior light bulb?

The TK 86 BE uses an LED light. If it fails, contact a qualified technician to replace it. Do not attempt to replace it yourself without proper knowledge.

What should I do during a power outage?

Keep the door closed to maintain cold temperature. Food can stay safe for about 4 hours in a fridge. If outage is longer, move perishables to a cooler with ice.

Where can I find spare parts for my Scancool refrigerator?

Contact the Scancool after-sales service or an authorized service center. Provide the model number TK 86 BE for accurate parts.

USER MANUAL TK 86 BE Scancool

Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

To avoid contamination and depravity of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the of the appliance.
  • Cleaning regularly surfaces that can come in contact with food and is accessible for drainage systems.
• Clean water tanks if they have not been used for 48 h. or more; Flush the water system connected to a water supply if water has not been drawn for 5 days or more.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
  • This refrigerating appliance is not intended to be used as a built-in appliance.

- Note: When operating in an environment other than the specified climate type (i.e., beyond the rated ambient temperature range), the appliance may not be able to maintain the desirable compartment temperatures.

English

Cylinder Refrigerator is our special design for the drink manufacturers and distributors. The product is a new unique design with strong advertisement image promotion.

Imported compressors with CFC free refrigerant are used. Fullyfoamed cabinet and cover door with ABS for beautiful look and efficient coolkeeping.

The features of the products are high efficient, fast cooling, low noise, very convenient. It can be widely used for the refrigeration of drink and low freezing of food by stores, family, specialists. And it is a very good brand image promotion for food and drink brands. It is a very unique commercial refrigeration product.

Commercial refrigeration display cooler.

OPERATION PROCESS:

- Temperature Control Indicator "0" - "7" shows the operation from weak cooling to strong cooling.

- If the Thermostat Knob is turned from left to right, while the Temperature Control Indicator is changed from "0" to "7", the temperature inside the cabinet will go down. In normal condition, the temperature inside the refrigerating cabinet will be 0°C - 10°C, but maybe under 0°C after running long time.

- In normal condition, please keep the Temperature Control Indicator at the position on "4" or "5".

- If the Thermostat Knob is turned at the position "7", (Turn maximally from left to right), the freezer will be at fast freezing condition, and the compressor will keep continuous running.

- The Thermostat Knob can not be turned from "7" to "0". Otherwise the thermostat will be damaged.

1. Please turn the power on and check whether the unit is running. About 30 minutes later, the temperature inside the cabinet will go down apparently. After confirming the freezer has been completely cooled down (It takes 2-3 hours to get the first time to freezing temperature), please put into the food.

2. It is not allowed to put into too much food at the same time.

3. Please let the hot food cool down to normal temperature before putting into the freezer. It may affect the freshness keeping and increase energy consumption.

4. Please keep certain space between food and food. Otherwise it will affect the cooling circulation.

5. Do not put ice cream into the cabinet, otherwise the ice cream may be turned soft or melt.

6. Do not keep the door opened for a long time in operation condition.

7. When the power is cut, please do not open the door frequently to avoid cold storage. If the power is off for a long time, dry ice or cold-storage block can be put inside.

8. Please call maintenance engineer when the power cord is damaged. Special tools are required.

9. Do not touch the compressor by hand to avoid damage of burning.

10. While the unit is not used for a long time, please: Take out all the food and unplug the power cord; Open the door, clean the inside cabinet and wipe off the water.

11. Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
12. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
13. Children should be supervised to ensure that they do not play with the appliance.
14. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
15. Do not damage the refrigerant circuit.

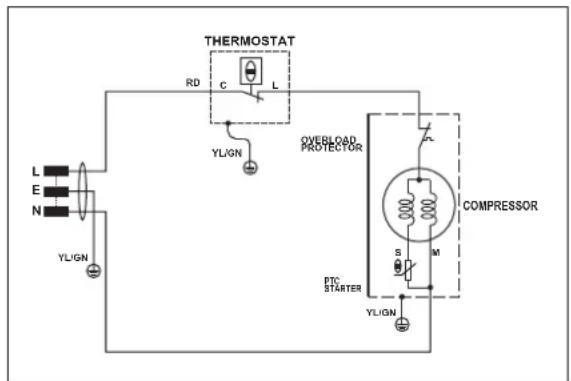

ELECTRICAL DIAGRAM (Static)

DANSK;

SVENSK;

NORSK;

Access to professional repair, such as internet webpages, addresses, contact details.

Model no: TK 42 BE

Aftersales service station list:

Address	Scandomestic A/S
Contact Number	7242 5571
Website	Scandomestic.dk
QR code	758181
Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorised representative;	Scandomestic A/S
The minimum period during which spare parts, necessary for the repair of the appliance, are available;	8 years
Instruction on how to find the model information in the product database, as defined in Regulation (EU) 2019/2024 by means of a weblink that links to the model information as stored in the product database or a link to the product database and information on how to find the model identifier on the product.)	www.scandomestic.dk

Note: The address or contact phone number of the service site is subject to change without prior notice. Please confirm whether the service station is a directly affiliated one of our company when requiring services.

DE

Access to professional repair, such as internet webpages, addresses, contact details.

Model no: TK 66 BE

Aftersales service station list:

Address	Scandomestic A/S
Contact Number	7242 5571
Website	Scandomestic.dk
QR code	404265
Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorised representative;	Scandomestic A/S
The minimum period during which spare parts, necessary for the repair of the appliance, are available;	8 years
Instruction on how to find the model information in the product database, as defined in Regulation (EU) 2019/2024 by means of a weblink that links to the model information as stored in the product database or a link to the product database and information on how to find the model identifier on the product.)	www.scandomestic.dk

Note: The address or contact phone number of the service site is subject to change without prior notice. Please confirm whether the service station is a directly affiliated one of our company when requiring services.

DE

Access to professional repair, such as internet webpages, addresses, contact details.

Model no: TK 86 BE

Aftersales service station list:

Address	Scandomestic A/S
Contact Number	7242 5571
Website	Scandomestic.dk
QR code	423151
Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorised representative;	Scandomestic A/S
The minimum period during which spare parts, necessary for the repair of the appliance, are available;	8 years
Instruction on how to find the model information in the product database, as defined in Regulation (EU) 2019/2024 by means of a weblink that links to the model information as stored in the product database or a link to the product database and information on how to find the model identifier on the product.)	www.scandomestic.dk

Note: The address or contact phone number of the service site is subject to change without prior notice. Please confirm whether the service station is a directly affiliated one of our company when requiring services.

DE

EU DECLARATION OF CONFORMITY

Ref. Ares In accordance with EN ISO 17050-1:2004

Model number (unique identification of the product):	TK 42 BE
Name and address of the manufacturer or his authorised representative:	Scandomestic A/SLinåvej 208600 SilkeborgDenmark
This declaration of conformity is issued under the sole responsibility of the manufacturer (or installer):	Scandomestic A/SLinåvej 208600 SilkeborgDenmark
Object of the declaration (identification of product allowing traceability. It may include a colour image of sufficient clarity to enable the identification of the product, where appropriate.)Product: Can CoolerBrand: ScancoolColour: BlackModel name: TK 42 BE
The object of the declaration described in point 4 is in conformity with the relevant Union harmonisation legislation:	EN 61000-3-2
References to the relevant harmonised standards used, or references to the specifications in relation to which conformity is declared:	2011/65/EU. 2015/863, 1907/2006, 2014/30/EU, EN55014-1:2017, EN55014-2:2015, EN IEC 61000-3-2:2019, EN61000-3-3:2013+A1:2019, EN60335-2-89:2010+A1:2016+A2:2017, EN60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019, EN62233:2008, MD 2006/42/EC, EM16902:2016, (EU) 2017/1369, (EU) No 2019/2018, (EU) No 2019/2024,
Where applicable: the notified body ... (name, number)... performed ... (description of intervention)... and issued the certificate:	RoHS
Additional information:

EU DECLARATION OF CONFORMITY

Ref. Ares In accordance with EN ISO 17050-1:2004

Model number (unique identification of the product):	TK 66 BE
Name and address of the manufacturer or his authorised representative:	Scandomestic A/SLinåvej 208600 SilkeborgDenmark
This declaration of conformity is issued under the sole responsibility of the manufacturer (or installer):	Scandomestic A/SLinåvej 208600 SilkeborgDenmark
Object of the declaration (identification of product allowing traceability. It may include a colour image of sufficient clarity to enable the identification of the product, where appropriate.)Product: Can CoolerBrand: ScancoolColour: BlackModel name: TK 66 BE
The object of the declaration described in point 4 is in conformity with the relevant Union harmonisation legislation:	EN 61000-3-2
References to the relevant harmonised standards used, or references to the specifications in relation to which conformity is declared:	2011/65/EU, 2015/863, 1907/2006, 2014/30/EU, EN55014-1:2017, EN55014-2:2015, EN IEC 61000-3-2:2019, EN61000-3-3:2013+A1:2019, MD 2006/42/EC, EN60335-2-89:2010+A1:2016+A2:2017, EN60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019, EN62233:2008, EN16902:2016, (EU) 2017/1369, (EU) No 2019/2018, (EU) No 2019/2024
Where applicable: the notified body ... (name, number)... performed ... (description of intervention)... and issued the certificate:	RoHS
Additional information:

EU DECLARATION OF CONFORMITY

Ref. Ares In accordance with EN ISO 17050-1:2004

Model number (unique identification of the product):	TK 86 BE
Name and address of the manufacturer or his authorised representative:	Scandomestic A/SLinåvej 208600 SilkeborgDenmark
This declaration of conformity is issued under the sole responsibility of the manufacturer (or installer):	Scandomestic A/SLinåvej 208600 SilkeborgDenmark
Object of the declaration (identification of product allowing traceability. It may include a colour image of sufficient clarity to enable the identification of the product, where appropriate.)Product: Can CoolerBrand: ScancoolColour: BlackModel name: TK 86 BE
The object of the declaration described in point 4 is in conformity with the relevant Union harmonisation legislation:	EN 61000-3-2
References to the relevant harmonised standards used, or references to the specifications in relation to which conformity is declared:	2011/65/EU, 2015/863, 1907/2006, EN55014-1:2017, EN55014-2:2015, EN IEC 61000-3-2:2019, EN61000-3-3:2013+A1:2019, 2014/30/EU, EN60335-2-89:2010+A1:2016+A2:2017, EN60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019, EN62233:2008, MD 2006/42/EC, EM16902:2016, (EU) 2017/1369, (EU) No 2019/2018, (EU) No 2019/2024
Where applicable: the notified body ... (name, number)... performed ... (description of intervention)... and issued the certificate:	RoHS
Additional information:
