USER MANUAL LDW6TTW Logik

DSG Retail Limited is responsible for after sales service.

If you have a query about the product please contact our product support line 08701 565 550 (Currys).

Domestic Use

Table of Contents

Know your Logik Dishwasher 2

Safety Information 3-6

Disposal of Dishwasher 6

Disposal of Packing Material 7

Product Overview 8-9

Control Panel Overview 9-10

Before Operating 12-16

To open the Door 12

To close the Door 12

Items not suitable for use in the

Dishwasher 12-13

Adding the Detergent or Detergent Tablet

Tablet 13

Adding Rinse Aid 14

Adding Salt 15

Loading the Dishwasher 17-19

Before Loading the Dishwasher 17

Dishwasher Basket 18

Cutlery Basket 19

Loading the Cutlery Basket 20

Starting a Wash Cycle 21-22

Changing a Programme 21

At the End of the Programme 22

Switching Off the Unit 22

Unloading the Dishwasher 22

Cleaning After Use 23-

External Care 23

Internal Care 23-24

Frost Precaution 25

Moving the Dishwasher 25

Maintenance

After Prolonged Periods

of Non-Operation 25

Troubleshooting Guide 26-28

Specifications 29

Know your Logik Dishwasher

Before using your Logik appliance

• Read these instructions carefully and retain for future reference.
• Remove all packaging labels. Please dispose of them properly.

Before calling for service

• Refer to Troubleshooting Tips section. This will help you to solve some general problems by yourself.

Note

This product has been wet tested to ensure correct operation. As a result, some water may remain inside the unit. This is normal and safe. Remove any water droplets from the exterior if necessary.

Safety Information

General Safety

• Switch off and unplug before fitting or removing tools/attachments, after use, and before cleaning.
• Keep your fingers away from moving parts and fitted attachments. Never use a damaged machine.
• Keep cord out of reach of children.
• Keep the power unit, cord, or plug away from water. Never exceed the maximum capacities.
• When using an attachment, read the accompanying safety instructions. Take care when lifting this appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Only use the appliance for its intended domestic use. The company responsible for this product, DSG Retail Limited, will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions.

Safety Information

Earthing Instructions

WARNING: THIS APPLIANCE MUST BE EARTHED.

• This appliance is equipped with a cord having an equipment-earthing conductor and an earthing plug.
• The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with local standards and requirements.

Warning!

• Improper connection of the equipment-earthing conductor could result in a risk of electric shock. • The wires in the cord are coloured as follows:

Green and Yellow = Earth

Blue = Neutral

Brown = Live

• Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly earthed or the plug does not fit correctly. • Never modify the plug provided with the appliance.

Proper Use

• Do not sit or stand on the door or dish rack.
• Do not move your dishwasher by holding the door or its edges. Hold the dishwasher around its sides or base when moving it.
• Do not touch the heating element during or immediately after use.
• Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully when there is a programme running as there is a risk of hot water spraying out of the appliance.
• Do not place any heavy objects on the open door. The appliance could tip.
• When loading items to be washed:

1) Locate sharp items so that they will not damage the door seal;

Safety Information

2) Warning: Knives and other utensils with sharp points must be loaded in the basket with the points downwards or placed horizontally.

• Do not allow plastic items to come into contact with heating element.
• Check that the detergent receptacle is empty after completion of the wash cycle.
• Do not wash plastic items unless they are marked dishwasher safe or equivalent.
• Use only detergent and rinse aids designed for an automatic dishwasher.
• Other means for disconnection from the supply must be incorporated in the fixed wiring with at least 3mm contact separation in all poles.
• Keep children away from detergents and rinse aids. • These may cause chemical burns in the mouth, throat and eyes or asphyxiation.
• Keep children away from the dishwasher when the door is open.
• The door should not be left in the open position since this could present a tripping hazard.
• For energy saving, always remember to switch the dishwasher off when you have finished using it. The dishwasher should not be left unattended when in use.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent in order to avoid a hazard.
• Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.

Safety Information

• During installation, the power supply cord must not be excessively or dangerously bent or flattened. Do not tamper with controls.
• The appliance is to be connected to the water mains using new hose sets.
• The maximum number of place settings to be washed is 6.
• The maximum permissible inlet water pressure is 1Mpa, and the minimum permissible inlet water pressure is 0.04Mpa.

Disposal of the Dishwasher

When disposing your old dishwasher, first make it unusable. Disconnect, cut off the cable and the plug from the cable. Make the door lock inoperative, so that children cannot accidentally shut themselves in. Make appropriate arrangements for the disposal of the dishwasher.

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from an inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.

Please ensure that it presents no danger to children while being stored for disposal.

Disposal of packing material

Please dispose of the plastic wrappings and bags safely and keep out of the reach of babies and young children.

Product Overview

Front View

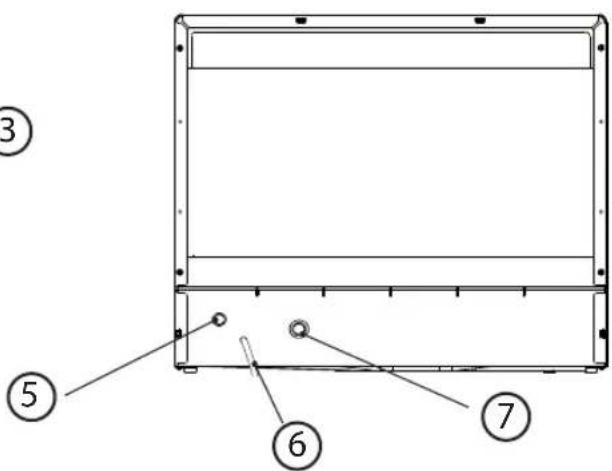

Rear View

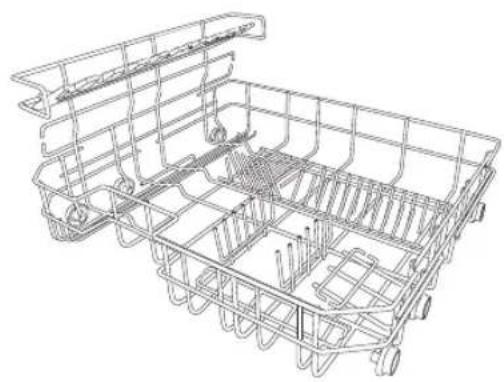

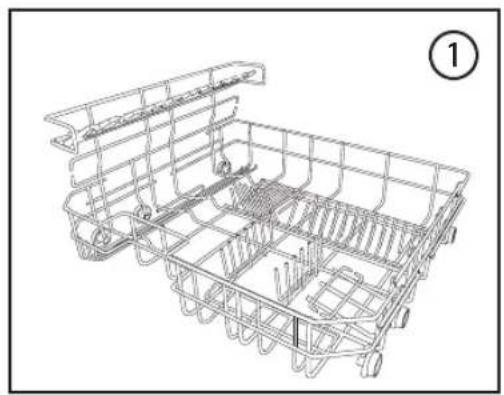

Dishwasher Basket

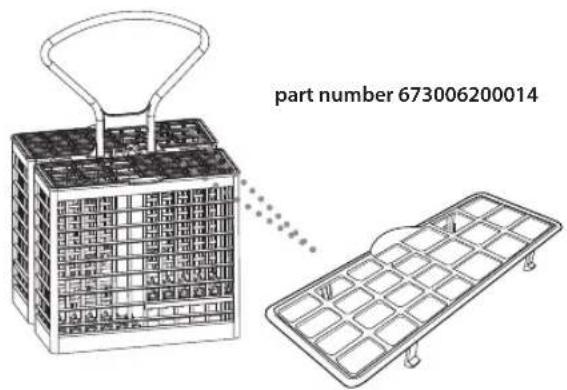

Cutlery Basket

1. Door Handle
2. Dishwasher Model Number
3. Control Panel
4. Power Button and Indicator Light
5. Drain Outlet (Connect to drain hose)
6. Mains Cable (Connect to electrical mains outlet)
7. Water Inlet (Connect to water supply hose)

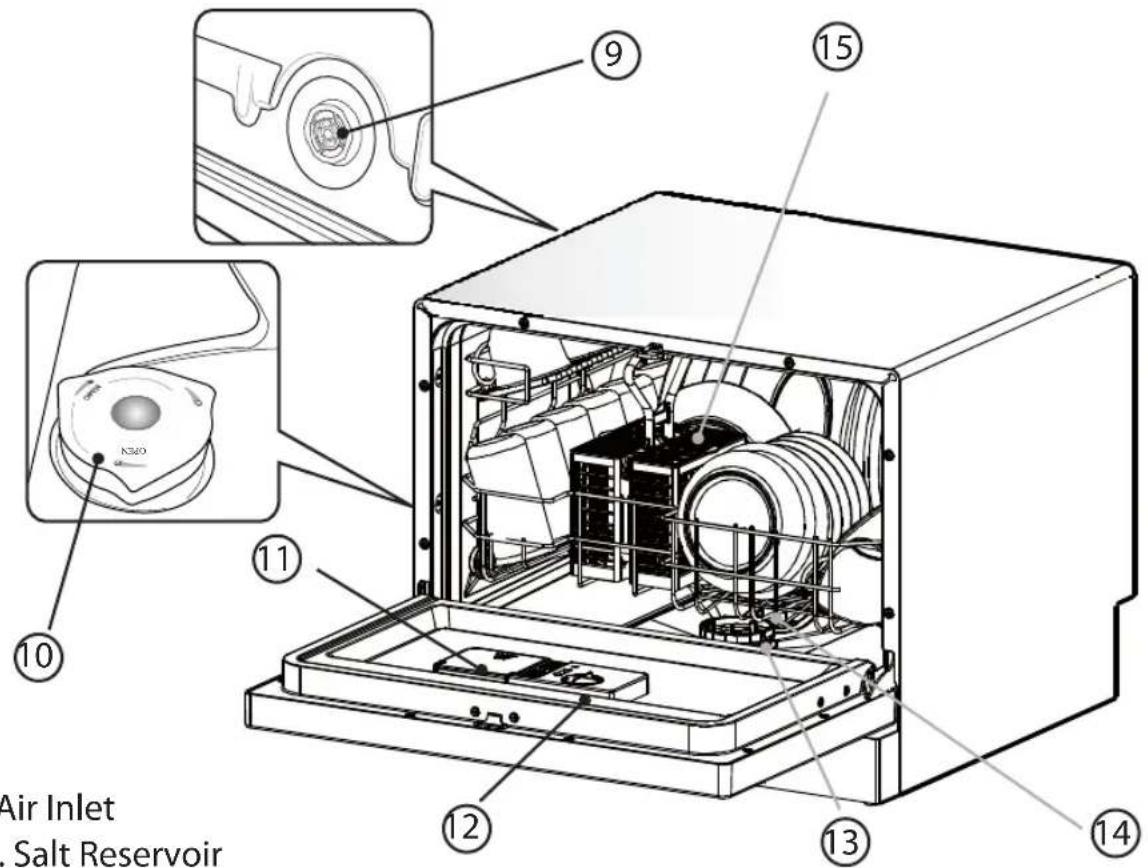

Internal View

1. Air Inlet
2. Salt Reservoir
3. Detergent Dispenser (Dual Compartment)
4. Rinse Aid Dispenser
5. Filtering System

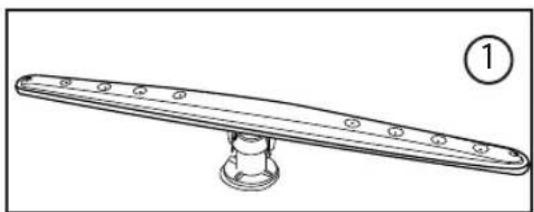

6. Spray Arm (Under the Dishwasher Basket)
7. Cutlery Basket

Accessories

water supply hose X 1part number 673005400045	Drain Hose X 1 part number 673005400041Drain Hose Mounting Clamp X 1 part number 672005400002	detergent measuring spoon x 11 full spoon = 20g (approx.) part number 673002200079	Instruction Manual X 1 part number 675005900815
measuring cup X 1 60ml (approx)part number 673006200004	funnel X 1 : number 002200001	U-shape hose holder X 1part number 673006200003	Installation Guide X 1 part number 675005900823

Control Panel Overview

①

On/Off button

- To turn the dishwasher on and off.

②

Power Indicator

- The LED light will illuminate when the dishwasher is on.

③

Salt Refill Warning light

- Illuminates when the salt reservoir needs refilling.

Rinse Aid Refill Warning light

- Illuminates when the rinse aid dispenser needs refilling.

④

Programme Indicators

- The LED light will illuminate when the washing programme is selected.

- It will flash when the selected washing programme is running.

5

Programme button

- To select your required washing programme.

- Each press of this button switches from one washing programme to another.

⑥

Start/Pause button

- To confirm and start the selected washing programme.

- To reset the washing programme.

Wash Cycle Table

Programme	Cycle Selection Information	Process	Detergent Amount (Pre-wash / Main wash)	Running Time (min.)	Energy Consumption (Kwh)	Water Consumption (l)	Rinse Aid
Intensive	Pots, utensils and cutlery. Highly soiled.	Pre-wash (50°C)Wash (70°C)Rinse (x2)Rinse (70°C)Drying	Pre-wash (3g)Main Wash (15g)	145 0.94	1
Normal	Pots, utensils and cutlery. Normally soiled.	Pre-washWash (60°C)RinseRinse (70°C)Drying	Pre-wash (3g)Main Wash (15g)	125 0.70	8.4
*Economy	A shorter wash for lightly soiled items.	Pre-washWash (55°C)RinseRinse (70°C)Drying	Pre-wash (3g)170 0.68	170 0.68	170 0.68
Glass	Glasses, crystal and fine china. Lightly soiled.	Pre-washWash (45°C)RinseRinse (60°C)Drying	Main Wash (15g)	75 0.48	6.8
Rapid	Glasses and cups. Lightly soiled.	Wash (40°C)RinseRinse (45°C)Drying	Main Wash (15g)	30 0.3	6
3-in-1	Utensils and cutlery. Normally soiled.	Pre-washWash (60°C)RinseRinse (70°C)Drying	Use 3 in 1 detergent tablet only.	140 0.7	8.4

*To comply with Standards of Performance, i.e. EN50242, please ensure all the cutlery must be loaded according to the instruction in this manual.

Before Operating

To open the Door

- If the door is opened during operation all functions are automatically interrupted.

To close the Door

• After loading the dishes, push the baskets fully into the dishwasher. Lift the door upwards and push until it clicks into position. Do not slam the dishwasher door.

Items not suitable for use in the Dishwasher

The following items are not suitable for dishwasher.

When purchasing new crockery and cutlery, please make sure they are dishwasher-proof. Some items are not suitable for dishwashers.

• Wooden cutlery and crockery or items with wooden parts may discolour and fade. The glue used in these items is not dishwasher-proof either, and the wooden handles may come loose after being washed in a dishwasher.
• Craft items, antiques, valuable vases and decorative glassware are also not suitable for dishwashers.
• Plastic items (e.g. tupperware) which are not heat resistant may melt or lose shape due to the high temperatures in the dishwasher. Copper, brass, tin and aluminium items may discolour or become matt.
• Clouding may occur on glasses and delicate glassware after frequent washing. Do not wash delicate glassware, or glassware containing lead crystal in a dishwasher. Please wash delicate glassware by hand instead.
• Silver and aluminium parts have a tendency to discolour during washing. Residues like egg white, egg yolk and mustard often cause discolouring and staining on silver. Therefore, please clean the residues from silver immediately after use.

Adding the Detergent or Detergent Tablet

Only use detergents specifically designed for use in dishwashers.

To be more environmentally friendly, please use no more than the correct amount of detergent.

WARNING!

Keep out of the reach of children - Irritating to eyes.

- Avoid contact with eyes. In case of contact with eyes, rinse immediately with plenty of water and seek medical advice.

- If swallowed, seek medical advice immediately.

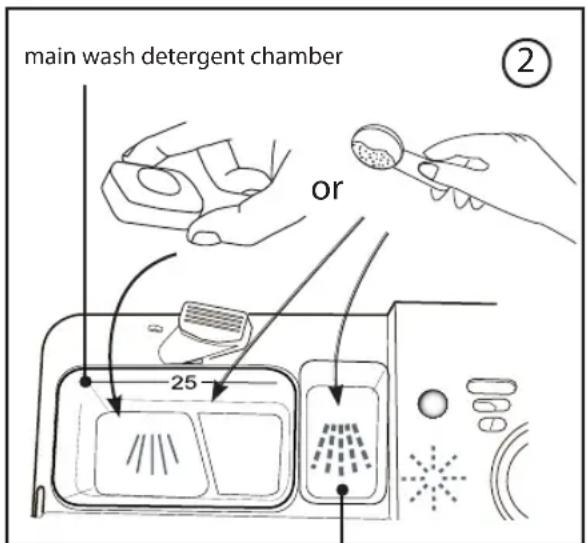

Please follow the steps below to fill the detergent dispenser.

1. Push the button on the lid of the detergent dispenser in the direction of the arrow until the flap springs open. (Fig 1)
2. Fill the detergent dispenser with detergent powder or insert the detergent tablet. The marking indicates the dosing level. (Fig 2)

TIP: You can choose to add a detergent tablet alone or to add detergent powder to both main wash detergent chamber and the pre-washer detergent chamber for your selected wash cycle.

1. All programmes with pre-wash need an additional detergent dosage (please refer to the wash cycle table) that must be placed in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase. (Fig 2)

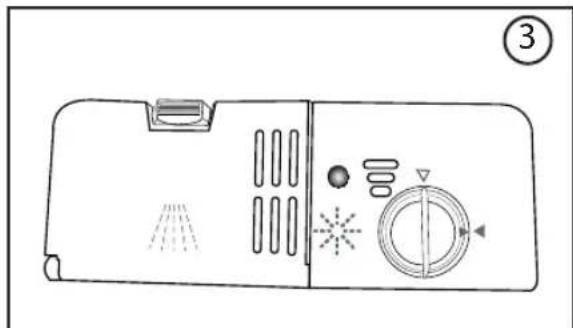

2. Close the lid firmly so that it clicks into place.

pre-wash detergent chamber

Adding of Rinse Aid

Rinse aid helps to ensure water does not cling and leave marks on crockery during the drying phase and helps crockery dry faster after it has been washed. Only pour rinse aid that is for domestic dishwashers into the reservoir. This model is designed to use liquid rinse aids only.

Please follow the steps below to pour the rinse aid into the storage reservoir, and the amount will dispense automatically.

1. Turn the cap and open as indicated in Fig 1.
2. When the cap open marking is aligned (Fig 2a), you may lift the cap up (Fig 2b).
3. Pour the rinse aid until the level indicator turns completely black in colour and close the cap. (Fig 3)
4. Be careful not to overfill the reservoir. Wipe up any spills. The approximate volume of the rinse aid reservoir is 110ml.

NOTE: If the water hardness in your area is soft, you may not need rinse aid as it may cause white film to develop on your dishes.

Rinse aid indicator light on the display window will illuminate when the reservoir is running out of rinse aid and required re-filling.

Rinse aid indicator light

Alternatively, you can judge the amount of rinse aid by checking the rinse aid indicator right next to the reservoir's cap. When the indicator is black, it means it is full. When it is clear, it means it is almost empty.

Adjusting Rinse Aid Reservoir

The rinse aid reservoir has six settings. Both the recommended setting and the factory setting is "4." (Fig 2b on page 14)

If the dishes are not drying properly or are spotted, adjust the dial to the next higher number until your dishes are spot-free.

Adding of Salt

If the water in your area is hard, deposits will form on your dishes and utensils. As such, this appliance contains a salt reservoir for you to reduce the hardness of the water.

Please follow the steps below to pour the salt into the salt reservoir and it must be set to correspond to the water hardness level in your area.

1. Remove the lower basket and un-screw the reservoir cap. (Fig 1)
2. Fill the reservoir with approximately 500ml of water (first use only).
3. Place the funnel provided over the salt reservoir. (Fig 2)
4. Place approximately 1.2kg of salt depending on the brand used.
5. Clean any excess salt from around the reservoir opening and then screw the cap on again firmly.
6. Run the "eco" wash programme immediately (without any crockery in the dishwasher) to remove any traces of salt from the compartment.

The salt indicator light on the display window will illuminate when the reservoir is running out of salt and required re-filling.

The salt indicator light will cease to illuminate within a few days depending on how quickly the salt dissolves.

Salt indicator on the display window

Loading the Dishwasher

Before loading the Dishwasher

In general, please observe the following notes prior loading your cutlery and crockery in the basket.

• Remove lipstick stains and coarse food residues from crockery and dishes. Rinse if necessary. (Fig 1)
• Dishes and cutlery must not lay inside one another, or cover each other.
• Load your cutlery and crockery so that water can access all surfaces. (Fig 2)
• Ensure all items are securely positioned.
• Hollow items such as cups, glasses, pans, etc. must be placed upside down in the basket.
• Wide based items should be placed at an angle so that water can run off them freely. • The spray arms must not be blocked

by items which are too tall or hang through the baskets. If in doubt, test for free movement by manually rotating the spray arms.

Ensure that small items cannot fall through the holders in the baskets.

CAUTION: Do not wash items soiled with ash, sand, wax, lubricating grease or paint in the dishwasher. Ash does not dissolve and can distribute in the dishwasher. Wax, sand, lubricating grease and paint can cause damage to the dishwasher.

For safety reasons, do not operate the dishwasher without the dishwasher basket in place.

Dishwasher basket

Please use the dishwasher basket for small and lightweight items such as cups, saucers, glasses, dessert bowls, etc. Shallow pans or casserole dishes can also be placed in the basket. (Fig 1)

Long items such as soup ladles, mixing spoons and long knives (Fig 2) should be placed lying down across the front of the basket.

Hinged Cup Rack

To make room for taller items in the upper basket, raise the cup rack upwards. (Fig 3) You can lean the tall glasses against it. You can also remove it when it is not required for use.

TIP: To prevent water dripping from the upper basket onto the dishes in the lower basket, we recommend that you empty the lower basket first and then the upper basket.

Hinged Spikes

The spikes are used for holding plates and platters. They can be lowered to make more room for large items. Please refer to Fig 4 for the steps to lower the spikes.

Loading the basket for 6 place settings

For placement method of the upper basket, please refer to the table below and Fig 1.

Cutlery Basket

Loading the Cutlery Basket

To make unloading much easier, cutlery should be grouped in zones and placed in the cutlery basket. Please refer to the table below and Fig 1 for placement method.

Number Item

1 Forks

2 Soup spoons

3 Dessert spoons

4 Teaspoons

5 Knives

6 Serving spoons

7 Gravy ladle

8 Serving fork

WARNING!

Do not let any items extend through the bottom of baskets. (Fig 2)

To avoid the risk of injury, please load your knives and forks with handles upwards. Do not hold them by their sharp edges. (Fig 3)

The cutlery basket comes with covers, and they are designed for you to load the cutlery into appropriate slots. If you use the basket without the cover, it may reduce the washing result of your cutlery.

Please ensure the cover is securely locked to the basket before operation.

*To comply with Standards of Performance, i.e. EN50242, please ensure all the cutlery must be loaded according to the instruction in this manual.

Starting a Wash Cycle

Please follow the steps below to start a wash cycle.

1. Ensure the unit is connected to the mains power and the water supply is fully opened (water pressure between 0.04MPa and 1.00MPa).
2. Open the door. Pull out the dishwasher basket, load the dishes and push the baskets back.
3. Pour in the detergent or place the detergent tablet in the detergent compartment. Ensure the lid is firmly closed afterward.
4. Close the dishwasher door. A click sound should be heard when the door is closed correctly. Do not slam the door.
5. Press ON/OFF button.
6. Select the wash cycle programme based on the loading and soil requirements. Please refer to the "Wash Cycle Table" (page 11).
7. The power indicator light and the selected programme indicator light will illuminate.
8. Press the Start/Pause button and the washing cycle will begin shortly.

NOTE: If you open the dishwasher's door during the washing cycle and then close it, the dishwasher will continue the current washing programme after 10 seconds. However, if the door is not closed correctly after 1 minute, the dishwasher will make an audible sound at 1 minute intervals.

Changing a Programme

To change the programme if the washing cycle has already started, please follow the steps below.

1. Open the door slightly to check if the unit has dispensed the detergent or detergent tablet. This will depend on how long the washing cycle was running for.
2. If the detergent dispenser lid is opened, we suggest you to allow the wash cycle to complete.
3. If the detergent dispenser lid is still closed, press On/Off button to cancel the programme. You may then close the dishwasher door and press On/Off button again. Then, press the required new programme button and confirm the selection by pressing Start/Pause button. The unit will start the new washing cycle shortly.

At the End of a Programme

At the end of a programme, the unit will sound.

Switching off the Unit

For energy saving, please remember to switch the dishwasher off using the "off" button. The dishwasher will continue to use electricity until it is switched off with the "off" button.

If the dishwasher is not going to be used for a long period of time, e.g. whilst on holiday, please disconnect the unit from the mains supply.

Unloading the Dishwasher

Allowing dishes to cool down before unloading is important because dishes tend to break and chip more easily when they are hot. Therefore, if you open the dishwasher door fully after switching off this will allow the dishes to cool down much faster.

Cleaning After Use

External Care

The Door and the Door Seal

• Clean the door seals regularly with a soft damp cloth to remove food deposits.
• When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door. These surfaces are outside the wash cabinet and are not accessed by water from the spray arms. Any deposits should be wiped off these surfaces before the door is closed.

The Control Panel

- If cleaning is required, the control panel should be wiped with a soft damp cloth ONLY.

⚠️ ATTENTION: To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.

Never use abrasive cleaners or scouring pads on the outer surfaces because they may scratch the finish. Some paper towels may also scratch or leave marks on the surface.

Internal Care

Filtering System

The filtering system in the base of the wash cabinet retains coarse soil from the suds solution. Collection of coarse soil may cause the filters to clog.

Check the condition of the filters regularly and clean them if necessary under running water.

Please follow the steps below to clean the filters in the wash cabinet.

• Ensure the dishwasher is switched off.
• Unscrew the coarse and fine filter. (Fig 1)

• Gently lift the coarse and fine filter out. (Fig 2) • Gently lift the main filter with care. - Rinse all the filters under running water, including the filter cylinder (Fig 3), and then refit all filters in the following order. • Gently refit the main filter back with care. (Fig 4) • Gently rescrew the coarse and fine filter in clockwise direction. (Fig 1 on Page 23)

NOTE: Do not over tighten the filters.

- Put the filters back to the filter cylinder in sequence securely. Otherwise coarse soil could get into the system and cause a blockage.

WARNING!

NEVER use the dishwasher without filters in place. Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

Spray Arms

Particles of food can get stuck in the spray arm jets and bearings. The spray arms should therefore be checked and cleaned regularly. (Fig 1)

- Use a pointed object, for instance a cocktail stick, to loosen food particles in the spray arms' jets.

NOTE: Do not attempt to remove the spray arms.

Frost Precaution

Avoid placing the dishwasher in a location where temperature is below 0°C. If your appliance is left in an unheated place over the winter, please do the following:

1. Disconnect from the mains.
2. Empty the dishwasher.
3. Close the dishwasher's door.
4. Disconnect the unit from the water inlet and drain. Use a suitable receptacle to catch the water.

Should you encounter difficulties to do the above steps, please ask a service technician for assistance.

Moving the Dishwasher

If you have to move the unit, for instance due to moving house, please do the following:

1. Disconnect the dishwasher from the mains.
2. Disconnect the unit from the water inlet and drain.
3. Remove the unit from the current location with the hoses discharged.
4. Pull the unit out together with the hoses.

NOTE: Avoid over tilting the unit during transportation.

Maintenance After Prolonged Period of Non-Operation

If you are not going to use the unit for any prolonged period of time, you are advised to:

1. Disconnect the dishwasher from the mains.
2. Disconnect the unit from the water inlet and drain. Use a suitable receptacle to catch the water.
3. Slightly open the door to prevent unpleasant smells building up in the compartment.
4. Ensure the washing compartment of the unit is clean.

Troubleshooting Guide

Repairs should only be carried out by a qualified technician in strict accordance with current local and national safety regulations. Unauthorised or incorrect repairs could cause personal injury or damage to the unit.

Fault Code

Codes Possible Causes Remedy
3 in 1 program light is blinking	Water tap is not turned on. Turn on the water tap.
	Low water pressure (<0.04MPa)	Turn on the water tap and ensure full opening position.
	Flow meter is broken.	Disconnect from the mains.Disconnect the water inlet.Call a qualified technician.
	The wire terminals which connect the flow metre are loose.
Rinse light is blinking	The float switch is broken or PCB is faulty.
	The wire terminal connected to the float switch is loose or broken.

Technical Problems

Technical problems
Problem Possible Causes	Remedy
The dishwasher does not start.	The door is not properly closed.	Close the door firmly.
	The unit is not connected to the mains.	Insert the plug to the mains.
	The unit is not switched on.	Press the “on” button and select a programme.
The drain pump is not working properly.	The anti-flooding system has operated.	Disconnect from the mains.Disconnect the water inlet.Call a qualified technician.
General problems
Problem Possible Causes	Remedy
Detergent residue is left in the dispenser at the end of the programme.	The detergent dispenser was still damp when detergent was added.	Make sure the dispenser is dry before adding detergent.
The detergent dispenser lid cannot be closed properly.	Clogged detergent residue is blocking the catch.	Clean the catch.
Knocking noise in the wash cabinet.	A spray arms is knocking against an item in a basket.	Interrupt the programme, and rearrange the items which are obstructing the spray arm. See the section “loading the diswasher”.
Smearing appears on glassware and cutlery.	The rinse aid dosage is set too high.	Adjust the dial of the rinse aid dispenser to a lower setting.
General problems (continue)
Problem Possible Causes	Remedy
Dishes, cutlery and glasses are not dry.	The amount of rinse aid may be insufficient, or the rinse aid reservoir is almost empty.	Replenish the reservoir, adjust the rinse aid dispenser dial to a higher setting or change the brand of rinse aid.
	Crockery was taken out of the dishwasher too soon.	Leave the crockery in the dishwasher until you hear the audible sound.
White residue is visible on cutlery and crockery, clouding occurs on glassware; film can be wiped off.	Not enough rinse aid was used.	Replenish the reservoir, adjust the rinse aid dispenser dial to a higher setting or change the brand of rinse aid.
	There is not enough salt in the salt reservoir.	Fill the salt reservoir.
	The salt reservoir cap has not been screwed on correctly.	Ensure that it screws back on correctly.
	Unsuitable detergent has been used.	Change your detergent. Use a dishwasher standard powder detergent or tablet.
Glassware is dull and discoloured; film cannot be wiped off.	The glassware is not dishwasher proof. The surfaces are affected.	Wash the non-dishwasher proof glassware by hand instead.
Tea or lipstick stains have not been completely removed.	The wash temperature of the selected programme was too low.	Select a programme with a higher wash temperature.
	The bleaching effect of the detergent used is too low.	Change your detergent.
	Forgot to pre-rinse or remove the stains with napkin prior washing.	Pre-rinse or remove the stains with napkin prior washing.

Specification

Dimension: 550 (W) x 500 (D) x 438 (H)

(in mm)

Capacity: 6 Place Settings

Water Pressure Required: 0.04 - 1.00MPa

Power Consumption: 1280W

Rated Voltage: 230V/50Hz

Because we continually strive to improve our products, we may change specifications and designs without prior notice.

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.

At the end of its working life, the product must not be disposed of as urban waste.

It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.

Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from an inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day.

Visit www.partmaster.co.uk

or call

0870 6001 338

(UK customers only)

Calls charged at National Rate.

NOTE: If you require a replacement for a replacement for any of the items listed below, please quote their corresponding part numbers:
Replacement Part Part Number
Water Supply Hose 673005400045
Detergent Measuring Spoon (approx. 20g) 673002200079
Measuring cup (approx. 60ml) 673006200004
U-shape Hose holder 673006200003
Salt Funnel 673002200001
Drain Hose 673005400041
Drain Hose Mounting Clamp 672005400002
Cutlery Basket with Covers 673006200014
Instruction Manual 675005900815
Installation Guide 675005900823

DSG Retail Limited is responsible for after sales service. If you have a query about the product please contact our product support line 08701 565 550 (Currys).
