TSP-505 - Public Address System DENVER - Free user manual and instructions

Product Type	Portable Public Address System
Model	TSP-505
Brand	Denver
Dimensions (W x H x D)	Approx. 30 x 40 x 20 cm (11.8 x 15.7 x 7.9 inches)
Weight	Approx. 5 kg (11 lbs)
Power Supply	AC 220-240V 50/60Hz; Rechargeable battery (lead-acid, 12V/7Ah)
Output Power	50W RMS
Audio Sources	Bluetooth, USB, SD card, FM radio, AUX input, microphone
Microphone	Wired dynamic microphone included
Equalizer	Built-in 3-band EQ
Remote Control	Included wireless remote
Battery Life	Approx. 4-6 hours at moderate volume
Charging Time	Approx. 6-8 hours
Speaker Type	Full-range with 2-way design (tweeter + woofer)
Impedance	4 ohms
Frequency Range	60 Hz - 18 kHz
Housing Material	ABS plastic with wear-resistant coating
Accessories Included	Power cable, microphone, remote control, audio cable
Cleaning Instructions	Wipe with a soft, dry cloth; do not use liquids or solvents
Safety Features	Overload protection, overcharge protection, built-in fuse
Spare Parts / Repairability	Contact Denver support for spare parts; limited user-serviceable parts, rely on qualified technician
General Information	Suitable for classrooms, small events, outdoor gatherings; operating temperature 0-40°C

Frequently Asked Questions - TSP-505 DENVER

How do I pair my phone via Bluetooth?

Turn on the TSP-505 and press the Bluetooth button until the indicator flashes. Enable Bluetooth on your phone, select 'Denver TSP-505' from the list. If prompted, enter PIN 0000. The indicator will turn solid when connected.

The device won't turn on. What should I check?

First, ensure the power cable is firmly connected to AC mains and the device. If using battery, check the power switch and try charging for at least 6 hours. If still no power, the internal fuse may be blown. Contact support for replacement.

How long does the battery last on a full charge?

With typical use at moderate volume, the battery lasts between 4 to 6 hours. Higher volume levels or use of Bluetooth and microphone may reduce battery life.

Can I use the system while it's charging?

Yes, the TSP-505 can be operated while connected to AC power. The device will run on mains and charge the battery simultaneously.

How do I adjust the echo or reverb on the microphone?

Locate the Echo knob on the control panel. Turn it clockwise to increase echo effect and counterclockwise to decrease. For best speech intelligibility, keep echo low.

Why is there no sound from the speakers when I play music via USB?

Ensure the USB drive is formatted as FAT32 and contains MP3 files. Insert the drive, then select USB mode. Check that the volume is turned up and not muted. If the system does not recognize the USB, try another drive.

What is the maximum range of the wireless remote?

The remote has an effective range of up to 8 meters (26 feet) in open space. Avoid obstacles between the remote and the unit for best results.

Can I connect two microphones at the same time?

Yes, the TSP-505 has two microphone jacks (wired). You can connect up to two wired microphones, each with its own volume control.

How should I clean the device?

Disconnect the power and use a soft, dry cloth to wipe the cabinet. Do not use any liquids, solvents, or abrasive cleaners. Keep the grille dust-free with a soft brush.

What should I do if the sound distorts at high volume?

Reduce the master volume. Distortion may occur if the input source is too loud or the battery is low. If problem persists, check that no audio source is clipping. The system has built-in protection, but sustained distortion can damage speakers.

USER MANUAL TSP-505 DENVER

Black electronic device with blue LED light emitting sound waves, accompanied by a black remote control and a small microphone (no visible text or symbols)

TSP-504

Trolley speaker with built-in lead-acid battery

www.facebook.com/denverelectronics

Bluetooth Trolley Speaker – Please read this manual before use

Display Description:

"LINE" when operating in AUX IN mode;

"Time" when operating in USB& Micro SD mode.

"bb" when operating in BT mode.

Flashing when the power is low, charging is needed.

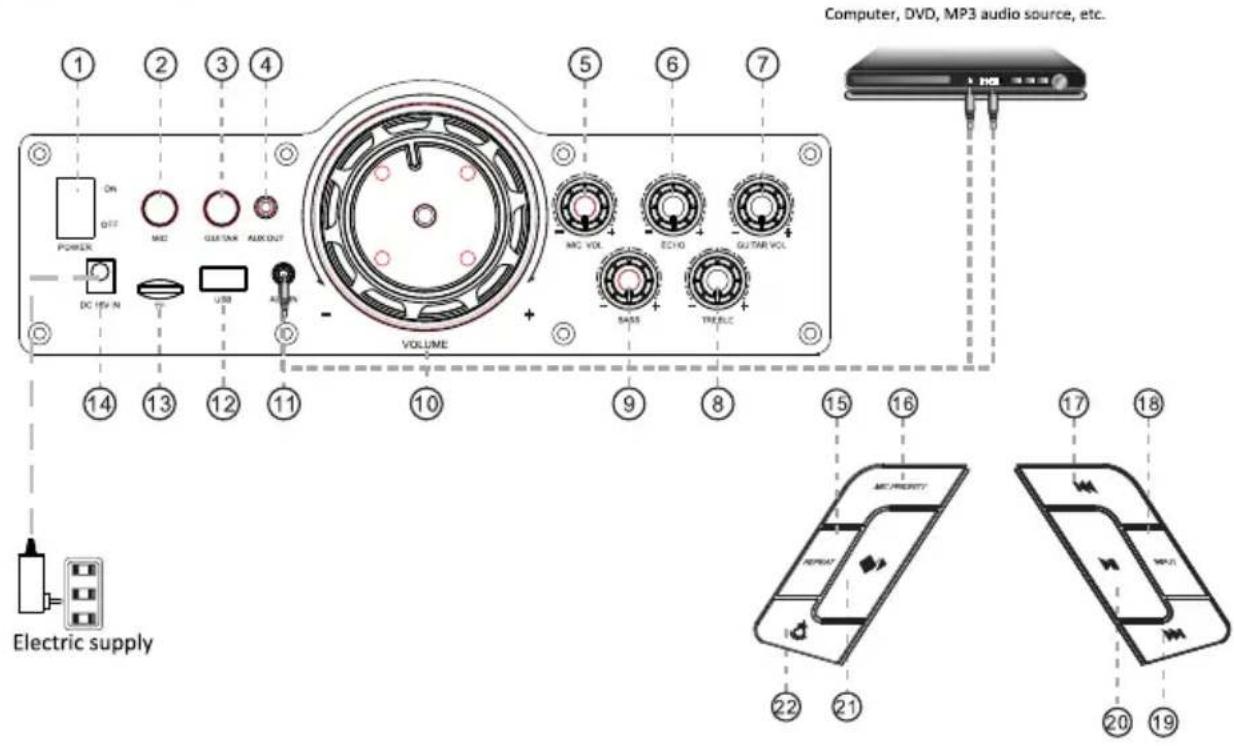

Panel Function

1. Power Switch
2. MIC Slot
3. Guitar Socket
4. Audio Output
5. MIC Volume
6. Echo
7. Guitar Volume
8. Treble
9. Bass
10. Volume

11. Audio Input

12. USB Slot

13. TF Slot
14. DC 15V IN
15. Repeat
16. MIC Priority
17. Previous
18. Input selection
19. Next
20. Play/Pause
21. Record/Play the record
22. LED Light Control

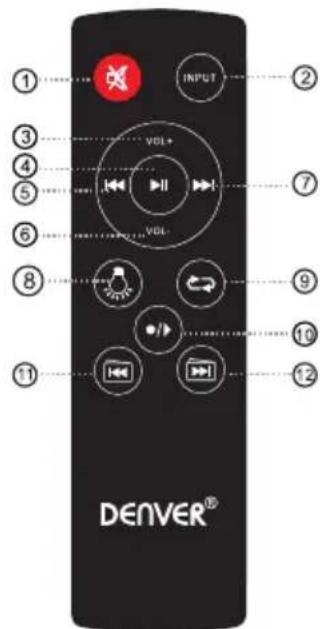

Remote Control Functions

1. Mute
2. Input selection
3. Increase the volume
4. Play/Pause
5. Previous
6. Decrease volume
7. Next
8. LED light control
9. Repeat
10. Record/Play the recording
11. Previous folder
12. Next folder

Wireless microphone

Ⓐ Microphone off
⑧ Microphone on

***This picture is for reference purposes only!

1. Open the battery compartment, insert batteries and ensure that the polarities are correct.
2. Switch ON the power switch of the microphone. If the power indicator light does not light up, check if the battery has been inserted correctly.
3. Adjust the microphone volume knob on the speaker.

When singing, if you need to suspend the wireless microphones, please switch to mute state (center) on the microphone, and if you want to stop using the microphone, switch to the off state.

General Function Description

1. Volume: Turning to adjust master volume.
2. Treble: Turning to adjust treble.
3. Echo: Turning to adjust echo.
4. Mic. Vol: Turning to adjust mic volume.
5. INPUT: Change to other mode when operating sequence: LINE-BT-USB/TF (MICRO SD). Priority to play in USB or TF (Micro SD) card mode when insert the USB or Micro SD.

MP3 Function Description

1. USB: Playing when insert A USB stick with MP3 music.
2. TF (Micro SD): Playing when insert TF (Micro SD) card with MP3 music.
3. AUX: Playing when plug in the audio cable and connected with music device.
4. Play/Pause Button: In USB or TF (Micro SD) mode, press to play or pause, in Line in mode, press to mute.
5. PREV & NEXT Button: While playing music in USB or Micro SD mode, short press to skip to next or previous track. Long press to fast forward or rewind.

Recording function

In record mode, press “●/▶/INPUT” to stop recording.

Long press “●/▶” to play the recordings in the external memory, press PREV and NEXT to choose the recordings to play.

Bluetooth Function Description

1. Pairing: Press INPUT button to Bluetooth mode, speaker will be under automatic pairing mode, LED display shows "b", pair the Bluetooth compatible device by selecting "TSP-504" from the listed devices, speaker will prompt "tick" tone. To ensure continuous stability of the music signal, try to keep the BT and the mobile phone facing one another.

2. Music Playing: Press ●/▶, ◀◀ & ▶◀ Button to play music.

3. The BT of the unit can be used up to 10 meters if there are no barriers.

Battery Volume and Charging Indication

When charging, connect a matched power adapter to AC100V - AC240V. Charging time is approximately 4 to 8 hours. Once fully charged unplug the power supply as leaving a full battery on charge may cause damage to the battery.

Battery Charge Indicator: LED panel has battery status indicator. In the middle of the shape of the battery have four horizontal lines, each horizontal line represents 25% of electricity remaining. When

no horizontal line in the shape of the battery or the shape flashes, please power off and promptly charge to avoid damage to the battery. When charging, the battery indicator on LED display panel flashes. The indicator stops blinking after full charged. Then please continue to charge the battery for 1-2 hours to extend the battery life.

Warning: If the battery is under voltage, please fully charge it within 48 hours. If the speaker has to be left unused for a long time, please let the battery fully charged, otherwise it will cause damage to the battery!

In the process of playing, keep unit away from high temperature environments, high magnetic fields and high frequencies. If the system is fails to work, turn off the power source or pull out the USB disc/TF card, then reinsert it and it will resume play.

Remarks: Please charge the speaker when the unit is off or lower the volume to avoid sound distortion.

Warning

1. Do not use product in high temperature or wet environments. It will be damaged if getting wet.
2. Please do not open the speaker, as there is risk for electric shock or other accidents.
3. If it needs to be fixed, please contact the store where it is bought.
4. If any liquid comes into the speaker, please turn the power off right away. It has to be checked by certified staff.
5. When the device is not used, please turn the power off and pull out power plug.
6. Do not put anything on top of the speaker.
7. If the battery is incorrectly replaced an explosion could happen, so please replace it with the same type or equivalent type of battery.

Specification

Power Output	50W
Speaker Size	15"+5"
R. Frequency	80Hz-20KHz
S/N Ratio	≥75 dB
Power Input	AC100-240V
Dimension	430x418x730mm

ALL RIGHTS RESERVED, COPYRIGHT DENVER ELECTRONICS A/S

DENVER®

www.denver-electronics.com

Electric and electronic equipment and included batteries contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment and batteries) is not handled correctly.

Electric and electronic equipment and batteries is marked with the crossed out trash can symbol, seen below. This symbol signifies that electric and electronic equipment and batteries should not be disposed of with other household waste, but should be disposed of separately.

As the end user it is important that you submit your used batteries to the appropriate and designated facility. In this manner you make sure that the batteries are recycled in accordance with legislature and will not harm the environment.

All cities have established collection points, where electric and electronic equipment and batteries can either be submitted free of charge at recycling stations and other collection sites, or be collected from the households. Additional information is available at the technical department of your city.

Imported by:

DENVER ELECTRONICS A/S

Omega 5A, Soeften

DK-8382 Hinnerup

Denmark

www.facebook.com/denverelectronics

Hereby, Inter Sales A/S declares that the radio equipment type TSP-504 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.denver-electronics.com/denver-tsp-504/

1. Operating Frequency Range: 2402-2480MHz

2.Max Output Power: 4dBm
