| Type of product | Mobile Phone |
| Brand | Sony Ericsson |
| Model | C702 |
| Dimensions | 106 x 48 x 15.5 mm |
| Weight | 105 g with battery |
| Battery type | Li-Po 930 mAh (BST-33) |
| Standby time | Up to 350 hours |
| Talk time | Up to 9 hours |
| Display | 2.2-inch TFT, 256K colors, 240x320 pixels |
| Camera | 3.15 MP with autofocus and LED flash |
| Internal memory | 160 MB |
| Memory card slot | microSD up to 8 GB |
| Connectivity | GSM quad-band, 3G (UMTS 2100), Bluetooth 2.0, USB 2.0 |
| GPS | Built-in GPS with geotagging |
| Water resistance | IP54 rated (dust and splash resistant) |
| Operating system | Proprietary (SE proprietary) |
| Maintenance | Clean with dry cloth; avoid contact with liquids |
| Safety | Do not disassemble; use only approved chargers and batteries |
| Repairability | Battery cover removable; battery user-replaceable. SIM and memory card accessible. |
Frequently Asked Questions - C702 SONY ERICSSON
User questions about C702 SONY ERICSSON
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Mobile Phone in PDF format for free! Find your manual C702 - SONY ERICSSON and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. C702 by SONY ERICSSON.
USER MANUAL C702 SONY ERICSSON
Congratulations on your purchase of the Sony Ericsson C702. Enjoy 3.2 megapixel digital photography wherever you go. For additional phone content, go to www.sonyericsson.com/fun.
Register now to get a suite of tools, free online storage, special offers, news and competitions at www.sonyericsson.com/myphone.
For product support, go to www.sonyericsson.com/support.
Accessories – More for your phone
Bluetooth™ Headset HBH-PV703
Go wireless with a powerful headset.
Support and enhance the use of your phone with a tripod, belt clip and compact carrying case.
Light design with ear-hook for a stable fit.
This is the Internet version of the User's guide. © Print only for private use.
Content
Getting started 6
Assembly 6
Turning on the phone 7
Help 8
Charging the battery 8
Phone overview 9
Menu overview 11
Navigation 13
Phone language 15
Entering text 15
Imaging 16
Camera and video recorder 16
Using the camera 17
Getting more from the camera ..... 18
Camera icons and settings ...... 18
Transferring pictures 19
Camera printing 20
Pictures 20
PhotoDJ™ and VideoDJ™ 21
Calling 22
Making and receiving calls 22
Contacts 24
Call list 27
Speed dial 27
Voicemail 27
Voice control 28
More than one call 29
Restricted dialling 31
Call time and cost 32
Showing or hiding your phone number 32
Messaging.... 32
Text messages 33
Picture messages 33
Message options 34
Voice messages 35
Email 35
My friends 37
Area and cell information 38
Media player and music ... 39
Transferring content to and from a computer 39

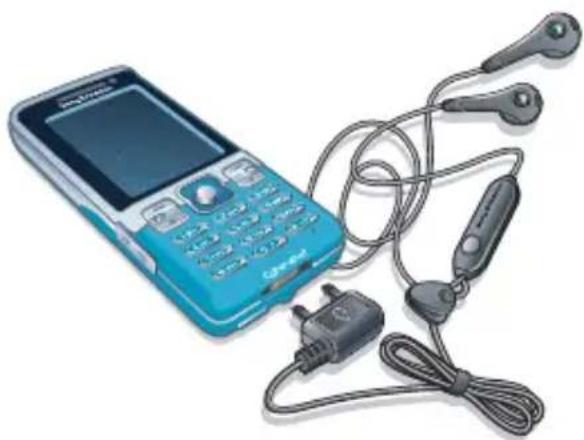

Stereo portable handsfree 40
Music player 40
PlayNow™ 41
TrackID™ 41
Online music and video clips ..... 42
Entertainment 42
Video player 42
Radio 42
Ringtones and melodies 43
MusicDJ™ 43
Sound recorder 44
Games 44
Applications 44
Internet...... 45
Internet security and certificates .. 46
Web feeds 47
GPS 48
Using the GPS 48
Google Maps™ for mobile 49
Driving directions 49
More GPS features 49
Tracker 50
Connectivity...... 52
Settings 52
Phone name 52
Bluetooth wireless technology ..... 52
Using the USB cable 54
Synchronizing 55
Update service 57
More features.... 59
Flight mode 59
File manager 59
Alarms 60
Calendar 61
Notes 62
Tasks 62
Profiles 63
Time and date 63
Theme 63
Main menu layout 64
Locks 64
Troubleshooting...... 66
Common questions 66
Error messages 68
Important information...... 69
Guidelines for Safe and Efficient Use 71
End User Licence Agreement ..... 75
Limited Warranty 75
FCC Statement 78
Declaration of Conformity for C702 79
Index 80
2 Content
This is the Internet version of the User's guide. © Print only for private use.
Sony Ericsson C702
UMTS HSDPA 2100 GSM EDGE 850/900/1800/1900
This User guide is published by Sony Ericsson Mobile Communications AB or its local affiliated company, without any warranty. Improvements and changes to this User guide necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Ericsson Mobile Communications AB at any time and without notice. Such changes will, however, be incorporated into new editions of this User guide.
All rights reserved.
©Sony Ericsson Mobile Communications AB, 2008
Publication number: 1207-7310.3
Please note:
Some of the services in this User guide are not supported by all networks. This also applies to the GSM International Emergency Number 112.
Please contact your network operator or service provider if you are in doubt whether you can use a particular service or not.
Please read the Important information chapter before you use your mobile phone.
Your mobile phone has the capability to download, store and forward additional content, e.g. ringtones. The use of such content may be restricted or prohibited by rights of third parties, including but not limited to restriction under applicable copyright laws. You, and not Sony Ericsson, are entirely responsible for additional content that you download to or forward from your mobile phone. Prior to your use of any additional content, please verify that your intended use is properly licensed or is otherwise authorized. Sony Ericsson does not guarantee the accuracy, integrity or quality of any additional content or any other third party content. Under no circumstances will Sony Ericsson be liable in any way for your improper use of additional content or other third party content.
Smart-Fit Rendering is a trademark or a registered trademark of ACCESS Co., Ltd.
Bluetooth is a trademark or a registered trademark of Bluetooth SIG Inc. and any use of such mark by Sony Ericsson is under license.
The Liquid Identity logo, PlayNow, MusicDJ, PhotoDJ, TrackID and VideoDJ are trademarks or registered trademarks of Sony Ericsson Mobile Communications AB.
TrackID™ is powered by Gracenote Mobile MusicID™. Gracenote and Gracenote Mobile MusicID are trademarks or registered trademarks of Gracenote, Inc.
Cyber-shot is a trademark or registered trademark of Sony Corporation.
Lotus Notes is a trademark or a registered trademark of International Business Machines Corporation.
Sony, Memory Stick Micro™ and M2™ are trademarks or registered trademarks of Sony Corporation.
Google ^TM and Google Maps ^TM are trademarks or registered trademarks of Google, Inc.
Wayfinder and Wayfinder Navigator are trademarks or registered trademarks of Wayfinder Systems AB. SyncML is a trademark or registered trademark of Open Mobile Alliance LTD.
Ericsson is a trademark or registered trademark of Telefonaktiebolaget LM Ericsson.
Adobe Photoshop Album Starter Edition is a trademark or registered trademark of Adobe Systems Incorporated in the United States and/or other countries.
Microsoft, ActiveSync, Windows, Outlook, and Vista are registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
T9 ^™ Text Input is a trademark or a registered trademark of Tegic Communications. T9 ^™ Text Input is licensed under one or more of the following: U.S. Pat. Nos. 5,818,437, 5,953,541, 5,187,480,
5,945,928, and 6,011,554; Canadian Pat. No. 1,331,057, United Kingdom Pat. No. 2238414B; Hong Kong Standard Pat. No. HK0940329; Republic of Singapore Pat. No. 51383; Euro.Pat. No. 0 842 463(96927260.8) DE/DK, FI, FR, IT, NL, PT, ES, SE, GB; and additional patents are pending worldwide. Java and all Java based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. End-user license agreement for Sun™ Java™ J2ME™.
Restrictions: Software is confidential copyrighted information of Sun and title to all copies is retained by Sun and/or its licensors. Customer shall not modify, decompile, disassemble, decrypt, extract, or otherwise reverse engineer Software. Software may not be leased, assigned, or sublicensed, in whole or in part.
Export Regulations: This product, including any software or technical data contained in or accompanying the product, may be subject to U.S. export control laws, including the U.S. Export Administration Act and its associated regulations and the U.S. sanctions programs administered by the U.S. Treasury Department's Office of Foreign Assets Control, and may be additionally subject to export or import regulations in other countries. The user and any possessor of the product agrees to comply strictly with all such regulations and acknowledges that it is their responsibility to obtain any required licenses to export, re-export, or import this product. Without limitation this product, including any software contained therein, may not be downloaded, or otherwise exported or re-exported (i) into, or to a national or resident of, or an entity in, Cuba, Iraq, Iran, North Korea, Sudan, Syria (as such listing may be revised from time to time) or any country to which the U.S. has embargoed goods; or (ii) to any person or entity on the U.S. Treasury Department's list of Specially Designated Nationals or (iii) any person or entity on any other export prohibition list that may be maintained from time
to time by the United States Government, including but not limited to the U.S. Commerce Department's Denied Persons List or Entity List, or the U.S. State Department's Nonproliferation Sanctions List.
Restricted Rights: Use, duplication or disclosure by the United States government is subject to the restrictions as set forth in the Rights in Technical Data and Computer Software Clauses in DFARS 252.227-7013(c) (1) (ii) and FAR 52.227-19(c) (2) as applicable.
This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.
Content owners use Windows Media digital rights management technology (WMDRM) to protect their intellectual property, including copyrights. This device uses WMDRM software to access WMDRM-protected content. If the WMDRM software fails to protect the content, content owners may ask Microsoft to revoke the software's ability to use WMDRM to play or copy protected content.
Revocation does not affect unprotected content. When you download licenses for protected content, you agree that Microsoft may include a revocation list with the licenses. Content owners may require you to upgrade WMDRM to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade.
With respect to a Licensee offering MPEG-4 Video Decoders and/or Encoders the following notice shall be given: This product is licensed under the MPEG-4 visual patent portfolio license for the personal and non-commercial use of a consumer for (i) encoding video in compliance with the MPEG-4 visual standard (“MPEG-4 video”) and/or (ii) decoding MPEG-4 video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed by MPEG LA to provide MPEG-4 video. No license is granted or shall be implied for any other use. Additional information
including that relating to promotional, internal and commercial uses and licensing may be obtained from MPEG LA, LLC. See http://www.mpegla.com. Notice Required for the License Granted under Articles 2.1 and 2.6. As a condition to the licenses granted pursuant to Articles 2.1 and 2.6 hereof, Licensee agrees to provide to any party that receives from Licensee an AVC Royalty Product the following notice: This product is licensed under the AVC patent portfolio license for the personal and non-commercial use of a consumer to (i) encode video in compliance with the AVC standard (“AVC video”) and/or (ii) decode AVC video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video was obtained from a video provider licensed to provide AVC video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, L.L.C. See http://www.mpegla.com.
MPEG Layer-3 audio decoding technology licensed from Fraunhofer IIS and Thomson.
Other product and company names mentioned herein may be the trademarks of their respective owners.
Any rights not expressly granted herein are reserved. All illustrations are for illustration only and may not accurately depict the actual phone.
Instruction symbols
These symbols may appear in the User guide.
Note
Tip
Warning
A service or function is network-or subscription-dependent. Contact your network operator for details.
Use a selection or navigation key to scroll and select. See Navigation on page 13.
Getting started
Assembly
Before you start using your phone, you need to insert a SIM (Subscriber Identity Module) card and the battery.
To insert the SIM card
1 Unlock the battery cover by screwing the cover lock as shown in the picture.
2 Remove the battery cover.
3 Slide the SIM card into its holder with the gold-coloured contacts facing down.

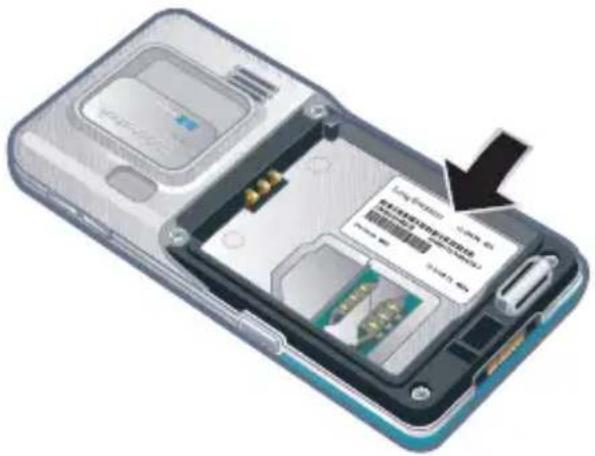

To insert the battery
1 Insert the battery with the label side up and the connectors facing each other.
2 Insert the battery cover into place.
3 Lock the battery cover by screwing the cover lock as shown in the picture.
6 Getting started
This is the Internet version of the User's guide. © Print only for private use.
Turning on the phone

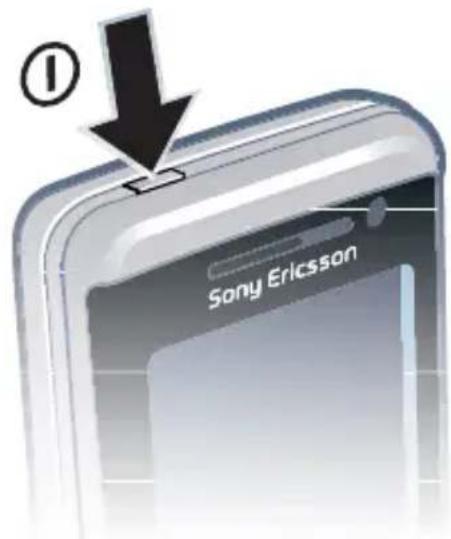

To turn on the phone
1 Press and hold down Ⓙ
2 Enter your SIM card PIN (Personal Identification Number), if requested, and select OK.
3 Select a language.
4 Select Yes to use the setup wizard while settings are downloaded.
If you want to correct a mistake when you enter your PIN, press .c
SIM card
The SIM card, which you get from your network operator, contains information about your subscription. Always turn
off your phone and detach the charger before you insert or remove the SIM card.
You can save contacts on the SIM card before you remove it from your phone. See To copy names and numbers to the SIM card on page 25.
PIN
You may need a PIN to activate the services in your phone. Your PIN is supplied by your network operator. Each PIN digit appears as *, unless it starts with emergency number digits, for example, 112 or 911. You can see and call an emergency number without entering a PIN.
If you enter the wrong PIN three times in a row, the SIM card is locked. See SIM card lock on page 64.
Startup screen
The startup screen appears when you turn on your phone. See Using pictures on page 21.
Standby
After you have turned on your phone and entered your PIN, the name of the network operator appears. This view is called standby.
Help
In addition to this User guide, Getting started guides and more information are available at www.sonyericsson.com/support.
Help in your phone
Help and information are available in your phone. See Navigation on page 13.
To view tips and tricks
1 From standby select Menu > Settings > the General tab > Setup wizard.
2 Select Tips and tricks.
To view information about functions
- Scroll to a function and select Info, if available. In some cases, Info appears under Options.
To view the phone demonstration
- From standby select Menu > Entertainment > Demo tour.
To view status information
• From standby press the volume key up.

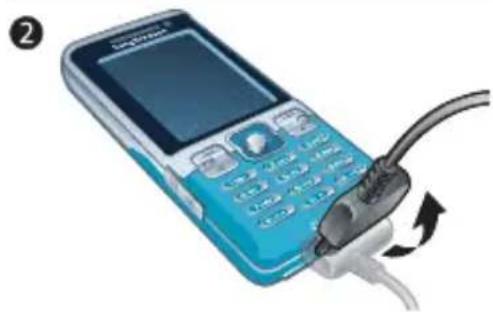

Charging the battery
The phone battery is partly charged when you buy it.
To charge the battery
2 Remove the charger by tilting the plug upwards.
You can use your phone while it is charging. You can charge the battery at any time and for more or less than 2.5 hours. You can interrupt the charging without damaging the battery.
Phone overview
1 On/off key
2 Screen
3 Selection keys
4 Memory card slot
5 Call key
6 Activity menu key
7 Keylock key
8 Ear speaker
9 Video call camera
10 End key
11 C key (Clear)

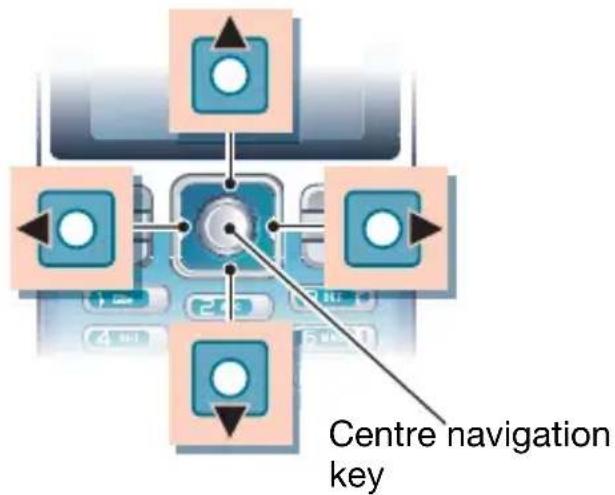

12 Navigation key
13 Silent key
9Getti
14 Volume, digital zoom keys
15 Main camera
16 Camera key
17 Cover lock
18 Connector for charger, handsfree and USB cable
19 Strap holder
10 Getting started
This is the Internet version of the User's guide. © Print only for private use.
Menu overview
PlayNow™* Internet* Entertainment
Online services*
TrackID™
Games
VideoDJ™
PhotoDJ™
MusicDJ™
Remote control
Record sound
Demo tour
Cyber-shot™ Messaging Media
Write new
Inbox
Drafts
Outbox
Sent messages
Saved messages
My friends*
Call voicemail
Templates
Manage messages
Settings
Music
Video
Games
TV*
Web feeds
Settings
Location services Contacts Radio
Google Maps*
Navigation*
Tracker
My favourites
Status info
Log
Settings
Calls** Organizer
All Answered Dialled Missed
File manager**
Alarms
Applications
Video call
Calendar
Tasks
Notes
Synchronization
Timer
Stopwatch
Light
Calculator
Code memo
Settings**
General
Profiles
Time & date
Language
Update service
Voice control
New events
Shortcuts
Flight mode
Security
Setup wizard
Accessibility*
Phone status
Master reset
Sounds & alerts
Ring volume
Ringtone
Silent mode
Increasing ring
Vibrating alert
Message alert
Key sound
Display
Wallpaper
Main menu layout
Theme
Startup screen
Screen saver
Clock size
Brightness
Edit line names*
Calls
Speed dial
Smart search
Divert calls
Switch to line 2*
Manage calls
Time & cost*
Show/hide my no.
Handsfree
Connectivity
Bluetooth
USB
Phone name
Network sharing
Synchronization
Device management
Mobile networks
Data communication*
Internet settings
Streaming settings
Message settings*
SIP settings
Accessories
* Some menus are operator-, network- and subscription-dependent.
** You can use the navigation key to scroll between tabs in submenus. For more information, see Navigation on page 13.
12 Getting started
This is the Internet version of the User's guide. © Print only for private use.
Navigation
The main menus are shown as icons. Some submenus include tabs.
To navigate the phone menus
1 From standby select Menu.
2 Use the navigation key to move through the menus.
To select actions on the screen
- Press the left or right selection key, or the centre navigation key.
To view options for an item
- Select Options to, for example, edit.
To scroll between the tabs
- Scroll to a tab by pressing the navigation key left or right.
To return to standby
- Press
To end a function
- Press
To navigate your media
1 From standby select Menu > Media.
2 Scroll to a menu item and press the navigation key right.
3 To go back, press the navigation key left.
To delete items
- Press to delete items such as numbers, letters, pictures and sounds.
To send items
1 Scroll to an item such as a contact, a picture or a sound.
2 Select Options > Send.
3 Select a transfer method.
! Make sure the receiving device supports the transfer method you select.
Shortcuts
You can use keypad shortcuts to go directly to a menu. Menu numbering starts from the top left icon and moves across and then down row by row.
To go directly to a main menu
• From standby select Menu and press
1 - ,9 or 0 + #-分
! The Main menu layout must be set to Grid. See To change the main menu layout on page 64.
To use navigation key shortcuts
- From standby press 🔒, or to go directly to a function.
To edit a navigation key shortcut
1 From standby select Menu > Settings > the General tab > Shortcuts.
2 Scroll to an option and select Edit.
3 Scroll to a menu option and select Shortc.
Activity menu
The activity menu gives you quick access to certain functions.
To open the activity menu
- Press
Activity menu tabs
- New events – missed calls and new messages.
- Running apps – applications that are running in the background.
- My shortcuts – add your favourite functions to access them quickly.
- Internet – quick access to the Internet.
Memory card
You may have to purchase a memory card separately.
Your phone supports Memory Stick Micro™ (M2™) memory card adding more storage space to your phone. It can also be used as a portable memory card with other compatible devices.
You can use the file manager to move files between the memory card and the phone memory. See To move a file in the file manager on page 60.
To insert a memory card
- Open the cover and insert the memory card with the gold-coloured contacts facing up.
14 Getting started
This is the Internet version of the User's guide. © Print only for private use.
To remove a memory card
To view memory card options
1 From standby select Menu > Organizer > File manager > the On memory card tab.
2 Select Options.
Phone language
You can select a language to use in your phone.
To change the phone language
1 From standby select Menu > Settings > the General tab > Language > Phone language.
2 Select an option.
Entering text
You can use multitap text input or T9 ^TM Text Input to enter text. The T9 Text Input method uses a built-in dictionary.
To change text input method
- When you enter text, press and hold down ⓧ.
To shift between capitals and lower-case letters
- When you enter text, press
To enter numbers
- When you enter text, press and hold down 0+ 9- .
To enter full stops and commas
- When you enter text, press ①
To enter a symbol
1 When you enter text, select Options > Add symbol.
2 Scroll to a symbol and select Insert.
To enter text using T9™ Text Input
1 From standby select, for example,
Menu > Messaging > Write new > Text
message.
2 If is not displayed, press and hold down to change to T9 Text Input.
3 Press each key only once, even if the letter you want is not the first letter on the key. For example, to write the word "Jane", press 2, 6, 3, Write the whole word before looking at the suggestions.
4 Use or to view suggestions.
5 Press to accept a suggestion.
To enter text using multitap
1 From standby select, for example,
Menu > Messaging > Write new > Text
message.
2 If is displayed, press and hold down to change to multitap text input.
3 Press -2 repeatedly until the desired letter appears.
4 When a word is written, press to add a space.
To add words to the built-in dictionary
1 When you enter text using T9 Text Input, select Options > Spell word.
2 Write the word using multitap input and select Insert.
Imaging
Camera and video recorder
You can take pictures and record video clips to view, save or send. You find your saved pictures and video clips in Media > Photo > Cam. album and File manager.
Viewfinder and camera keys
1 Zoom in or out
2 Take pictures/Record video
Using the camera
Your Cyber-shot™ phone has 3.2 MP with auto-focus, face detection and photo light. You can use photo light when taking pictures and recording videos.
To activate the camera
- From standby press
To take a picture
Do not record with a strong light source in the background. Use a support or the self-timer to avoid a blurred picture.
1 Activate the camera and press to scroll to
2 Press halfway down to use auto focus or face detection.
3 When the dot and focus frame are green, press fully down to take a picture. The picture is automatically saved on the memory card, if a memory card is inserted. If not, the picture is saved in the phone memory.
Face detection
You can use face detection to bring an off-centre face into focus. The camera automatically detects up to three faces, indicated by white frames. A green frame shows which face has been selected when auto-focus is used. As a rule, focus is set to the face closest to the camera.
To set face detection
- From standby select Menu > Cyber-shot™ > Focus > Face detection.
To record a video clip
1 Activate the camera and press to scroll to .
2 Press fully down to start recording.
To stop recording
1 Press
2 The video clip is automatically saved on the memory card, if a memory card is inserted. If not, the video clip is saved in the phone memory.
To use zoom
- Press the volume keys up or down.
When taking a picture, zoom is available in VGA mode only.
To adjust brightness
- Press ◀ or ▶.
Getting more from the camera
You can improve an under-exposed picture with Photo fix.
To improve a picture with Photo fix
1 Activate the camera and press or to scroll to
2 Make sure Review is set to On. Select > Settings > Review > On.
3 Take a picture.
4 During review, select Options > Photo fix.
To view pictures and video clips
1 Activate the camera and press or to scroll to
2 Scroll to the item.
3 To view a video clip, press the centre navigation key.
Camera icons and settings
Icons on the screen show what the current setting is. More camera settings are available in Settings.
Icon Description
| Shoot mode | |
| Scenes – predefined settings for common picture situations, including landscape, portrait and sport | |
| White balance – to adjust colour tones to the lighting conditions | |
| Metering mode | |
| Focus | |
| Light | |
| Picture size | |
| Video length – for picture messages, the length is limited | |
| Microphone | |
| Night mode | |
| Video: recording | |
| Zoom | |
| Auto focus | |
| Focus frame | |
| 300+ | Camera: remaining pictures |
To change settings
- Activate the camera and select
To view information about settings
- Scroll to a setting and select
Camera shortcuts
| Key Shortcut | |
 | Camera: Shoot modeVideo: Video length |
 | Camera: ScenesVideo: Night mode |
 | Self-timer |
 | Light |
 | Camera key guide |
Transferring pictures
Transfer to and from your computer You can use Bluetooth™ wireless technology and the USB cable to transfer pictures and video clips between your computer and phone. See Bluetooth wireless technology on page 52 and Transferring content to and from a computer on page 39 for more information.
You can view, enhance and organize your pictures and video clips on your computer by installing the Adobe™ Photoshop™ Album Starter Edition. It is included on the CD that comes with your phone and is available for download at www.sonyericsson.com/support.
Picture and video blog
A blog is a personal Web page. If your subscription supports this service, you can send pictures or video clips to a blog.
! Web services may require a separate license agreement between you and the service provider. Additional regulations and charges may apply. Contact your service provider.
To send camera pictures to a blog
1 From standby select Menu > Media > Photo > Cam. album.
2 Scroll to a month and a picture.
Select View.
3 Select Options > Send > To blog.
4 Enter a title and text and select OK.
5 Select Publish.
To send video clips to a blog
1 From standby select Menu > Media > Video.
2 Scroll to a video clip.
3 Select Options > Send > To blog.
4 Enter a title and text and select OK.
5 Select Publish.
To go to a blog address from contacts
1 From standby select Menu > Contacts.
2 Scroll to a contact and select a Web address.
3 Select Go to.
Camera printing
You can print camera pictures using the USB cable connected to a compatible printer.
You can also print using a Bluetooth compatible printer.
To print camera pictures using the USB cable
1 From standby select Menu > Media > Photo > Cam. album.
2 Scroll to a month and a picture.
3 Select Options > Print.
4 Select an option.
5 Connect the USB cable to the phone.
6 Connect the USB cable to the printer.
7 Wait for feedback in the phone and select OK.
8 Enter printer settings, if required, and select Print.
You should disconnect and re-connect the USB cable if there is a printer error.
Pictures
You can view and tag your pictures in Media.
To view pictures in a slide show
1 From standby select Menu > Media > Photo > Cam. album.
2 Scroll to a month and a picture.
Select View.
3 Select Options > Slide show.
4 Select a mood.
Viewing pictures on a map
Location data is included when you take pictures with the camera. This allows you to view the approximate location of where a picture was taken.
To view pictures on a map
1 From standby select Menu > Media > Photo > Cam. album.
2 Scroll to a month and a picture.
Select View.
3 Select Options > View on map.
To turn off location data for pictures
- From standby select Menu > Cyber-shot™ > Add position > Off.
Photo tags
You can tag pictures to categorize them. They are saved in Photo tags.
To tag pictures
1 From standby select Menu > Media > Photo > Cam. album.
2 Scroll to a month and a picture.
Select View.
3 Press and scroll to a tag.
4 Press the centre navigation key.
5 For each picture you want to tag, use Ⓞ or Ⓤ to scroll to the picture and press the centre navigation key.
To create a new photo tag
1 From standby select Menu > Media > Photo > Cam. album.
2 Scroll to a month and a picture.
Select View.
3 Press 🔒 and select Options > New tag.
4 Enter a name and select OK.
5 Select an icon.
6 Press the centre navigation key to tag the picture.
Using pictures
You can add a picture to a contact, use it during phone startup, as a wallpaper in standby or as a screen saver.
To use pictures
1 From standby select Menu > Media > Photo > Cam. album.
2 Scroll to a month and a picture.
Select View.
3 Select Options > Use as.
4 Select an option.
PhotoDJ™ and VideoDJ™
You can edit pictures and video clips.
To edit and save a picture
1 From standby select Menu > Media > Photo > Cam. album.
2 Scroll to a month and a picture.
Select View.
3 Select Options > Edit in PhotoDJ™.
4 Edit the picture.
5 Select Options > Save picture.
To edit and save a video clip
1 From standby select Menu > Organizer > File manager > Videos.
2 Scroll to a video clip and select Options > Edit in VideoDJ™.
3 Edit the video clip.
4 Select Options > Save.
To trim a video clip
1 From standby select Menu > Organizer > File manager > Videos.
2 Scroll to a video clip and select Options > Edit in VideoDJ™ > Edit > Trim.
3 Select Set to set the starting point and select Start.
4 Select Set to set the ending point and select End.
5 Select Trim > Options > Save.
Calling
Making and receiving calls
You need to turn on your phone and be within range of a network.
To make a call
1 From standby enter a phone number (with international country code and area code, if applicable).
2 Press
See Video call on page 24.
You can call numbers from your contacts and call list. See Contacts on page 24, and Call list on page 27. You can also use your voice to make calls. See Voice control on page 28.
To end a call
- Press
To make international calls
1 From standby press and hold down 0+ until a “+” sign appears.
2 Enter the country code, area code (without the first zero) and phone number.
3 Press
22 Calling
This is the Internet version of the User's guide. © Print only for private use.
To re-dial a number
- When Retry? appears select Yes.
Do not hold your phone to your ear when waiting. When the call connects, your phone gives a loud signal.
To answer a call
- Press
To reject a call
- Press
To change the ear speaker volume during a call
- Press the volume key up or down.
To mute the microphone during a call
1 Press and hold down ⓒ
2 Press and hold down again to resume.
To turn the loudspeaker on during a call
- Select SpkrOn.
Do not hold your phone to your ear when using the loudspeaker. This could damage your hearing.
To view missed calls from standby
- Press to open the call list.
Networks
Your phone switches automatically between GSM and 3G (UMTS) networks depending on availability. Some network operators allow you to switch networks manually.
To switch networks manually
1 From standby select Menu > Settings > the Connectivity tab > Mobile networks > GSM/3G networks.
2 Select an option.
Emergency calls
Your phone supports international emergency numbers, for example, 112 and 911. These numbers can normally be used to make emergency calls in any country, with or without the SIM card inserted, if a 3G (UMTS) or GSM network is within range.
In some countries, other emergency numbers may also be promoted. Your network operator may therefore have saved additional local emergency numbers on the SIM card.
To make an emergency call
- From standby enter 112 (the international emergency number) and press
To view your local emergency numbers
1 From standby select Menu > Contacts.
2 Scroll to New contact and select Options > Special numbers > Emergency nos.
Video call
See a person on the screen during calls. Both parties need a subscription that supports the 3G (UMTS) service, and you need to be within range of a 3G (UMTS) network. 3G (UMTS) service is available when appears.
To make a video call
1 From standby enter a phone number (with international country code and area code if applicable).
2 Select Options > Make video call.
To use the zoom with an outgoing video call
- Press
To view video call options
• During the call, select Options.
Contacts
You can save names, phone numbers and personal information in Contacts. Information can be saved in the phone memory or on the SIM card.
Default contacts
You can choose which contact information is shown as default. If Phone contacts is selected as default, your contacts show all the information saved in Contacts. If you select SIM contacts as default, your contacts show names and numbers saved on the SIM card.
To select default contacts
1 From standby select Menu > Contacts.
2 Scroll to New contact and select Options > Advanced > Default contacts.
3 Select an option.
Phone contacts
Phone contacts can contain names, phone numbers and personal information. They are saved in the phone memory.
To add a phone contact
1 From standby select Menu > Contacts.
2 Scroll to New contact and select Add.
3 Enter the name and select OK.
4 Scroll to New number: and select Add.
5 Enter the number and select OK.
6 Select a number option.
7 Scroll between tabs and select the fields to add information.
8 Select Save.
24 Calling
This is the Internet version of the User's guide. © Print only for private use.
Calling contacts
To call a phone contact
1 From standby select Menu > Contacts.
2 Scroll to a contact and press
To go directly to the contacts list
• From standby press and hold down
2 - .9
To call with Smart search
1 From standby press + 9 to enter a contact name or a phone number. All entries which match the sequence of digits or letters are shown in a list.
2 Scroll to a contact or a phone number and press
To turn Smart search on or off
1 From standby select Menu > Settings > the Calls tab > Smart search.
2 Select an option.
Editing contacts
To add information to a phone contact
1 From standby select Menu > Contacts.
2 Scroll to a contact and select Options > Edit contact.
3 Scroll between the tabs and select Add or Edit.
4 Select an option and an item to add or edit.
5 Select Save.
If your subscription supports Calling Line Identification (CLI) service, you can assign personal ringtones and pictures to contacts.
To copy names and numbers to phone contacts
1 From standby select Menu > Contacts.
2 Scroll to New contact and select Options > Advanced > Copy from SIM.
3 Select an option.
To copy names and numbers to the SIM card
1 From standby select Menu > Contacts.
2 Scroll to New contact and select Options > Advanced > Copy to SIM.
3 Select an option.
When you copy all contacts from your phone to the SIM card, all existing SIM card information is replaced.
To automatically save names and phone numbers on the SIM card
1 From standby select Menu > Contacts.
2 Scroll to New contact and select Options > Advanced > Auto save on SIM.
3 Select an option.
To save contacts on a memory card
1 From standby select Menu > Contacts.
2 Scroll to New contact and select Options > Advanced > Back up to m. card.
SIM contacts
SIM contacts can contain names and numbers only. They are saved on the SIM card.
To add a SIM contact
1 From standby select Menu > Contacts.
2 Scroll to New contact and select Add.
3 Enter the name and select OK.
4 Enter the number and select OK.
5 Select a number option and add more information, if available.
6 Select Save.
To call a SIM contact
1 From standby select Menu > Contacts.
2 Scroll to a contact and press
Deleting contacts
To delete all contacts
1 From standby select Menu > Contacts.
2 Scroll to New contact and select Options > Advanced > Delete all contacts.
3 Select an option.
Memory status
The number of contacts you can save in your phone or on the SIM card depends on available memory.
To view memory status
1 From standby select Menu > Contacts.
2 Scroll to New contact and select Options > Advanced > Memory status.
Synchronizing contacts
The Sony Ericsson PC Suite is designed to work with the following programs:
- Windows Contact (Vista Contacts Manager)
• Windows Calendar (Vista Calendar)
• Microsoft® Outlook® 2007
• Microsoft Outlook 2003
• Microsoft Outlook 2002
• Microsoft Outlook 2000 - Lotus Notes™ 7
- Lotus Notes 6.5
- Lotus Notes 6
- Lotus Notes 5
- Windows Address Book (Outlook Express)
- Sony Ericsson PC Suite proprietary contact & calendar manager For more information see Synchronizing on page 55.
Groups
You can create a group of phone numbers and email addresses from Phone contacts to send messages to. See Messaging on page 32. You can also use groups (with phone numbers) when you create accepted callers lists. See Accept calls on page 31.
To create a group of numbers and email addresses
1 From standby select Menu > Contacts.
2 Scroll to New contact and select Options > Groups.
3 Scroll to New group and select Add.
4 Enter a name for the group and select Continue.
5 Scroll to New and select Add.
6 For each contact phone number or email address you want to mark, scroll to it and select Mark.
7 Select Continue > Done.
Call list
You can view information about recent calls.
To call a number from the call list
1 From standby press and scroll to a tab.
2 Scroll to a name or a number and press ↗.
To add a call list number to contacts
1 From standby press and scroll to a tab.
2 Scroll to the number and select Save.
3 Select New contact to create a new contact or select an existing contact to add the number to.
Speed dial
Speed dialling lets you select nine contacts that you can dial quickly. The contacts can be saved in positions 1-9.
To add contacts to speed dial numbers
1 From standby select Menu > Contacts.
2 Scroll to New contact and select Options > Speed dial.
3 Scroll to a position number and select Add.
4 Select a contact.
To speed dial
- From standby enter the position number and press
Voicemail
If your subscription includes an answering service, callers can leave a voicemail message when you cannot answer a call.
To enter your voicemail number
1 From standby select Menu > Messaging > Settings > Voicemail number.
2 Enter the number and select OK.
To call your voicemail service
- From standby press and hold down 1.
Voice control
By creating voice commands you can:
- Voice dial – call someone by saying their name.
- Answer and reject calls when you use a handsfree.
To record a voice command using voice dialling
1 From standby select Menu > Settings > the General tab > Voice control > Voice dialling > Activate.
2 Select Yes > New voice command and select a contact. If the contact has more than one number, select the number to add the voice command to.
3 Record a voice command such as "John mobile".
4 Follow the instructions that appear. Wait for the tone and say the command to record. The voice command is played back to you.
5 If the recording sounds OK, select Yes. If not, select No and repeat steps 3 and 4.
! Voice commands are saved in the phone memory only. They cannot be used in another phone.
Voice dialling
You can hear your recorded contact name when you receive a call from that contact.
To voice dial
1 From standby press and hold down a volume key.
2 Wait for the tone and say a recorded name, for example "John mobile". The name is played back to you and the call is connected.
Voice answering
When you use a handsfree, you can answer or reject incoming calls with your voice.
To activate voice answering and record voice answer commands
1 From standby select Menu > Settings > the General tab > Voice control > Voice answer > Activate.
2 Follow the instructions that appear and select Cont. Wait for the tone and say "Answer", or another word.
3 Select Yes to accept or No for a new recording.
4 Follow the instructions that appear and select Cont. Wait for the tone and say "Busy", or another word.
5 Select Yes to accept or No for a new recording.
6 Follow the instructions that appear and select Cont.
7 Select where your voice answering is to be activated.
To answer a call using voice commands
- Say "Answer".
To reject a call using voice commands
- Say "Busy".
Diverting calls
You can divert calls, for example, to an answering service.
When Restrict calls is used, some divert call options are not available. See Restricted dialling on page 31.
To divert calls
1 From standby select Menu > Settings > the Calls tab > Divert calls.
2 Select a call type and a divert option.
3 Select Activate.
4 Enter the number to divert calls to and select OK.
More than one call
You can handle more than one call at a time. For example, you can put an ongoing call on hold, while you make or answer a second call. You can also switch between the two calls. You cannot answer a third call without ending one of the first two calls.
Call waiting
When call waiting is used, you hear continuous beep if you receive a second call.
To activate call waiting
- From standby select Menu > Settings > the Calls tab > Manage calls > Call waiting > Activate.
To make a second call
1 During the call, select Options > Hold call. This puts the ongoing call on hold.
2 Select Options > Add call.
3 Enter the number to call and press
To answer a second call
- During the call, press . This puts the ongoing call on hold.
To reject a second call
- During the call, press and continue with the ongoing call.
To end an ongoing call and answer a second call
- During the call, select Replace active call.
Handling two voice calls
You can have calls ongoing and on hold at the same time.
To switch between two calls
- During the call, press
- During the call, select Options > Join calls.
To join two calls
To connect two calls
During the call, select Options > Transfer call. You are disconnected from both calls.
To end an ongoing call and return to the call on hold
- First press and then .
Conference calls
With a conference call, you can have a joint conversation with up to five people.
To add a new participant
1 During the call, select Options > Hold call. This puts the joined calls on hold.
2 Select Options > Add call.
3 Enter the number to call and press
4 Select Options > Join calls to add the new participant.
5 Repeat this task to add more participants.
To release a participant
1 Select Options > Release party.
2 Select the participant to release.
To have a private conversation
1 During the call, select Options > Talk to and select the participant to talk to.
2 To resume the conference call, select Options > Join calls.
My numbers
You can view, add and edit your own phone numbers.
To check your phone numbers
1 From standby select Menu > Contacts.
2 Scroll to New contact and select Options > Special numbers > My numbers.
3 Select an option.
Accept calls
You can choose to receive calls from certain phone numbers only.
To add numbers to the accepted callers list
1 From standby select Menu > Settings > the Calls tab > Manage calls > Accept calls > Only from list.
2 Scroll to New and select Add.
3 Select a contact or Groups.
See Groups on page 27.
To accept all calls
- From standby select Menu > Settings > the Calls tab > Manage calls > Accept calls > All callers.
Restricted dialling
You can restrict outgoing and incoming calls. A password from your service provider is required.
If you divert incoming calls, you cannot use some restrict calls options.
Restrict calls options
Standard options are:
- All outgoing – all outgoing calls
- Outgoing intl – all outgoing international calls
- Outgoing intl roam. – all outgoing international calls except to your home country
- All incoming – all incoming calls
- Inc. when roaming – all incoming calls when you are abroad
To restrict calls
1 From standby select Menu > Settings
the Calls tab > Manage calls Restrict calls.
2 Select an option.
3 Select Activate.
4 Enter your password and select OK.
Call time and cost
During a call, the duration of the call is shown. You can check the duration of your last call, outgoing calls and the total time of your calls.
To check the call time
- From standby select Menu > Settings > the Calls tab > Time & cost > Call timers.
Showing or hiding your phone number
You can decide to show or hide your phone number when you make a call.
To hide your phone number
1 From standby select Menu > Settings > the Calls tab > Show/hide my no.
2 Select Hide number.
Messaging
Receiving and saving messages You are notified when you receive a message. Messages are automatically saved in the phone memory. When the phone memory is full, you can delete messages or save them on a memory card or on the SIM card.
To save a message on a memory card
- From standby select Menu > Messaging
Settings > General > Save to Memory card.
To save a message on the SIM card
1 From standby select Menu > Messaging and select a folder.
2 Scroll to a message and select Options > Save message.
To view a message from the inbox
1 From standby select Menu > Messaging > Inbox.
2 Scroll to the message and select View.
Text messages
Text messages can contain simple pictures, sound effects, animations, and melodies.
Before you use messaging
You must have a service centre number. The number is supplied by your service provider and is usually saved on the SIM card. If the number to your service centre is not saved on your SIM card, you must enter the number yourself.
To enter a service centre number
1 From standby select Menu > Messaging > Settings > Text message and scroll to Service centre. The number is shown if it is saved on the SIM card.
2 If there is no number shown, select Edit.
3 Scroll to New ServiceCentre and select Add.
4 Enter the number, including the international “+” sign and country code.
5 Select Save.
To write and send a text message
1 From standby select Menu > Messaging > Write new > Text message.
2 Write the message and select Continue > Contacts look-up.
3 Select a recipient and select Send.
! If you send a text message to a group, you will be charged for each member. See Groups on page 27.
To copy and paste text in a text message
1 When you write the message, select Options > Copy & paste.
2 Select Copy all or Mark & copy. Scroll to and mark text in the message.
3 Select Options > Copy & paste > Paste.
To add an item to a text message
1 When you write the message, select Options > Add item.
2 Select an option and then an item.
To call a number in a text message
- When you view the message, scroll to the phone number and press
To turn long messages on
1 From standby select Menu > Messaging > Settings > Text message.
2 Select Max. msg length > Max. available.
Picture messages
Picture messages can contain text, pictures, slides, sound recordings, video clips, signatures and attachments. You can send picture messages to a mobile phone or an email address.
Before you use picture messaging You must set an MMS profile and the address of your message server. If no MMS profile or message server exists, you can receive all the settings automatically from your network operator or at www.sonyericsson.com/support.
To select an MMS profile
1 From standby select Menu > Messaging > Settings > Picture message > MMS profile.
2 Select a profile.
To set the message server address
1 From standby select Menu > Messaging > Settings > Picture message.
2 Scroll to MMS profile and select Edit.
3 Select Options > Edit.
4 Scroll to Message server and select Edit.
5 Enter the address and select OK > Save.
To create and send a picture message
1 From standby select Menu > Messaging > Write new > Picture msg.
2 Enter text. To add items to the message, press ⚙ scroll and select an item.
3 Select Continue > Contacts look-up.
4 Select a recipient and select Send.
Receiving picture messages
You can select how to download your picture messages. Standard options when you download picture messages are:
• Always – automatic download.
- Ask in roaming – ask to download when not in home network.
- Not in roaming – do not download when not in home network.
- Always ask – ask to download.
- Off – new messages appear in the Inbox.
To set automatic download
1 From standby select Menu > Messaging > Settings > Picture message > Auto download.
2 Select an option.
Message options
You can set standard options for all messages or choose specific settings each time you send a message.
To set text message options
1 From standby select Menu > Messaging > Settings > Text message.
2 Scroll to an option and select Edit.
34 Messaging
This is the Internet version of the User's guide. © Print only for private use.
To set picture message options
1 From standby select Menu > Messaging > Settings > Picture message.
2 Scroll to an option and select Edit.
To set message options for a specific message
1 When the message is ready and a recipient is selected, select Options > Advanced.
2 Scroll to an option and select Edit.
Voice messages
You can send and receive a sound recording as a voice message.
The sender and recipient must have a subscription supporting picture messaging.
To record and send a voice message
1 From standby select Menu > Messaging > Write new > Voice message.
2 Record the message and select Stop > Send > Contacts look-up.
3 Select a recipient and select Send.
You can use standard email functions and your computer email address in your phone.
Before you use email
You can use the setup wizard to check if settings are available for your email account or you can enter them manually. You can also receive settings at www.sonyericsson.com/support.
To create an email account
1 From standby select Menu > Messaging > Email > Accounts.
2 Scroll to New account and select Add.
If you enter settings manually, you can contact your email provider for more information.
To write and send an email message
1 From standby select Menu > Messaging > Email > Write new.
2 Select Add > Enter email address.
Enter the email address and select OK.
3 To add more recipients, scroll to To: and select Edit.
4 Scroll to an option and select Add > Enter email address. Enter the email address and select OK. When you are ready, select Done.
5 Select Edit and enter a subject. Select OK.
6 Select Edit and enter the text.
Select OK.
7 Select Add and choose a file to attach (if you want to include a file).
8 Select Cont. > Send.
To receive and read an email message
1 From standby select Menu > Messaging > Email > Inbox > Options > Check new email.
2 Scroll to the message and select View.
To save an email message
1 From standby select Menu > Messaging > Email > Inbox.
2 Scroll to the message and select View > Options > Save message.
To reply to an email message
1 From standby select Menu > Messaging > Email > Inbox.
2 Scroll to the message and select Options > Reply.
3 Write the reply and select OK.
4 Select Cont. > Send.
To view an attachment in an email message
- When you view the message, select Options > Attachments > Use > View.
To save an attachment in an email message
- When you view the message, select Options > Attachments > Use > Save.
Synchronizing email
Email can be synchronized with a Microsoft Exchange Server (Microsoft Outlook). For more information see Synchronizing on page 55.
Active email account
If you have several email accounts, you can change which one is active.
To change the active email account
1 From standby select Menu > Messaging > Email > Accounts.
2 Select an account.
Push email
You can receive notification in your phone from your email server that you have new email messages.
To turn on push email notification
- From standby select Menu > Messaging > Email > Settings > Push email.
My friends
You can connect and log in to the My friends server to communicate online with chat messages.
Before you use My friends
If no settings exist in your phone, you need to enter server settings. Your service provider can provide standard settings information such as:
- Username
- Password
- Server address
- Internet profile
To enter My friends server settings
1 From standby select Menu > Messaging > My friends > Configure.
2 Scroll to a setting and select Add.
To log in to the My friends server
- From standby select Menu > Messaging > My friends > Log in.
To log out of the My friends server
- Select Options > Log out.
To add a chat contact
1 From standby select Menu > Messaging > My friends > the Contacts tab.
2 Select Options > Add contact.
To send a chat message
1 From standby select Menu > Messaging > My friends > the Contacts tab.
2 Scroll to a contact and select Chat.
3 Write the message and select Send.
Status
You can show your status, for example, Happy or Busy, to your contacts only. You can also show your status to all users on the My friends server.
To show my status
1 From standby select Menu > Messaging
My friends > Options > Settings Show my status.
2 Select an option.
To update your own status
1 From standby select Menu > Messaging > My friends > the My status tab.
2 Edit the information.
3 Select Options > Save.
Chat group
A chat group can be started by your service provider, by an individual My friends user or by yourself. You can save chat groups by saving a chat invitation or by searching for a specific chat group.
To create a chat group
1 From standby select Menu > Messaging > My friends > the Chat groups tab.
2 Select Options > Add chat group > New chat group.
3 Select who to invite from your contacts list and select Cont.
4 Enter a short invitation text and select Cont. > Send.
To add a chat group
1 From standby select Menu > Messaging > My friends > the Chat groups tab > Options > Add chat group.
2 Select an option.
! Conversation history is saved between log out and when you log in again to let you return to chat messages from previous conversations.
To save a conversation
1 From standby select Menu > Messaging > My friends > the Conversations tab.
2 Enter a conversation.
3 Select Options > Advanced > Save conversation.
Area and cell information
Area and cell information are text messages about, for example, local traffic reports that are sent to subscribers within a certain network area.
To turn area information on
1 From standby select Menu > Messaging > Settings > Area info.
2 Scroll to Reception and select Edit > On.
Media player and music
You can listen to music, audio books and podcasts. Use Sony Ericsson Media Manager to transfer content to your phone.
! Sony Ericsson Media Manager software is included on the CD that comes with your phone and available for download at www.sonyericsson.com/support.
Transferring content to and from a computer
Required operating systems
You need one of these operating systems to use the software included on the CD:
- Microsoft Windows Vista™ 32 bit and 64 bit versions of: Ultimate, Enterprise, Business, Home Premium, Home Basic
- Microsoft Windows XP (Pro or Home), Service Pack 2 or higher
To install Media Manager
1 Turn on your computer and insert the CD. The CD starts automatically and the installation window opens.
2 Select a language and click OK.
3 Click Install Sony Ericsson Media Manager and follow the instructions.
To transfer content using Media Manager
1 Connect the phone to a computer with a USB cable supported by your phone.
2 Computer: Start/Programs/Sony Ericsson/Media Manager.
3 Phone: Select Media transfer.
Do not remove the USB cable from your phone or computer during transfer, as this may corrupt the memory card or the phone memory.
4 Computer: Wait until the phone appears in Media Manager.
5 Move files between your phone and the computer in Media Manager.
For details on transferring music, refer to Media Manager Help. Click ☑ in the top right corner of the Media Manager window.
Stereo portable handsfree
- Connect the portable handsfree. Music stops when you receive a call and resumes when the call has ended.
Music player
To play music
1 From standby select Menu > Media > Music.
2 Scroll to a title and select Play.
To stop playing music
- Press the centre navigation key.
To fast forward and rewind
- Press and hold down or .
To move between tracks
- Press ◄ or ◎ .
To change the volume
- Press the volume keys up or down.
Browsing files
Music is saved and categorized.
• Artists – list music by artist.
• Albums – list music by album.
- Tracks – list all music tracks.
- Playlists – create your own lists of tracks.
• Audio books – list audio books you have transferred from your computer.
- Podcasts – list all podcasts.
Playlists
You can create playlists to organize music files. Files can be added to more than one playlist.
Deleting a playlist, or a file from a playlist, does not delete the file from the memory, just that reference to the file.
To create a playlist
1 From standby select Menu > Media and scroll to Music > Playlists.
2 Scroll to New playlist and select Add.
3 Enter a name and select OK.
4 For each track you want to add, scroll to the track and select Mark.
5 Select Add to add the tracks to the playlist.
40 Media player and music
This is the Internet version of the User's guide. © Print only for private use.
To add files to a playlist
1 From standby select Menu > Media and scroll to Music > Playlists.
2 Select a playlist.
3 Scroll to Add music and select Add.
4 For each track you want to add, scroll to the track and select Mark.
5 Select Add to add the tracks to the playlist.
To remove tracks from a playlist
1 From standby select Menu > Media and scroll to Music > Playlists.
2 Select a playlist.
3 Scroll to the track and press .c
To view information about a track
- Scroll to a track and select Options > Information.
Audio books
You can listen to audio books that you have transferred to your phone from a computer using Media Manager.
! It may take a few minutes before a transferred audio book appears in the list of available audio books.
To play audio books
1 From standby select Menu > Media > Music > Audio books.
2 Select an audio book.
3 Scroll to a chapter and select Play.
! Audio books in other formats than M4B or audio books that do not have ID3v2 chapter tags can be found in the Tracks folder.
PlayNow™
You can connect to PlayNow™ to download ringtones, games, music, themes and wallpapers. You can preview or listen to content before you purchase and download it to your phone.
This service is not available in all countries.
Before you use PlayNow™
You must have the required Internet connection settings in your phone. See Settings on page 52.
To use PlayNow™
1 From standby select Menu > PlayNow™.
2 Scroll the PlayNow™ Web site and follow the instructions to preview and purchase content.
TrackID™
TrackID™ is a music recognition service. You can search for song titles, artists and album names.
! For cost information contact your service provider.
To search for song information
- When you hear a song through a loudspeaker, from standby select Menu > Entertainment > TrackID™ > Start.
- When the radio is playing select Options > TrackID™.
Online music and video clips
You can view video clips and listen to music by streaming them to your phone from the Internet. If settings are not already in your phone, see Settings on page 52. For more information, contact your network operator or go to www.sonyericsson.com/support.
To select a data account for streaming
1 From standby select Menu > Settings > the Connectivity tab > Streaming settings > Connect using:.
2 Select the data account to use.
3 Select Save.
To stream music and video clips
1 From standby select Menu > Internet.
2 Select Options > Go to > Bookmarks.
3 Select a link to stream from.
42 Entertainment
This is the Internet version of the User's guide. © Print only for private use.
Entertainment
Video player
To play videos
1 From standby select Menu > Media > Video.
2 Scroll to a title and select Play.
To stop playing videos
- Press the centre navigation key.
Radio
Do not use your phone as a radio in places where this is prohibited.
To listen to the radio
1 Connect the handsfree to the phone.
2 From standby select Menu > Radio.
To change the volume
- When the radio is playing, press the volume keys up or down.
To automatically search for channels
- When the radio is playing, select Search.
To manually search for channels
- When the radio is playing, press or 🔒.
42 Entertainment
Saving channels
You can save up to 20 preset channels.
To save channels
1 When you have found a radio channel select Options > Save.
2 Scroll to a position and select Insert.
To select saved channels
1 From standby select Menu > Radio > Options > Channels.
2 Select a radio channel.
To switch between saved channels
- When the radio is playing, press or ⚙.
Ringtones and melodies
To set a ringtone
1 From standby select Menu > Settings > the Sounds & alerts tab > Ringtone.
2 Find and select a ringtone.
To set the ringtone volume
1 From standby select Menu > Settings > the Sounds & alerts tab > Ring volume.
2 Press or to change the volume.
3 Select Save.
To turn the ringtone off
- From standby press and hold down
—#).
All sounds, except the alarm, are silenced with this key.
To set the vibrating alert
1 From standby select Menu > Settings > the Sounds & alerts tab > Vibrating alert.
2 Select an option.
MusicDJ™
You can compose and edit your own melodies to use as ringtones. A melody consists of four types of tracks – Drums, Basses, Chords and Accents. A track contains a number of music blocks. The blocks consist of pre-arranged sounds with different characteristics. The blocks are grouped into Intro, Verse, Chorus and Break. You compose a melody by adding music blocks to the tracks.
To compose a melody
1 From standby select Menu > Entertainment > MusicDJ™.
2 Select to Insert, Copy or Paste blocks.
3 Use 🔒, 🔒, 🔒 or to scroll between the blocks.
4 Select Options > Save melody.
Sound recorder
You can record a voice memo or a sound. Recorded sounds can also be set as ringtones.
To record a sound
• From standby select Menu
Entertainment > Record sound
Record.
To listen to a recording
1 From standby select Menu > Organizer > File manager.
2 Scroll to Music and select Open.
3 Scroll to a recording and select Play.
Games
Your phone contains preloaded games. You can also download games. Help texts are available for most games.
To start a game
1 From standby select Menu > Media > Games.
2 Select a game.
To end a game
- Press
Applications
You can download and run Java ^TM applications. You can also view information or set different permissions.
Before you use Java™ applications If settings are not already entered in your phone, see Settings on page 52.
To select a Java application
1 From standby select Menu > Organizer > Applications.
2 Select an application.
To view information about a Java application
1 From standby select Menu > Organizer > Applications.
2 Scroll to an application and select Options > Information.
To set permissions for a Java application
1 From standby select Menu > Organizer > Applications.
2 Scroll to an application and select Options > Permissions.
3 Set permissions.
44 Entertainment
This is the Internet version of the User's guide. © Print only for private use.
Java application screen size
Some Java applications are designed for a specific screen size. For more information, contact the application vendor.
To set the screen size for a Java application
1 From standby select Menu > Organizer > Applications.
2 Scroll to an application and select Options > Screen size.
3 Select an option.
Internet profiles for Java applications Some Java applications need to connect to the Internet to receive information. Most Java applications use the same Internet settings as your Web browser.
Internet
To start browsing
1 From standby select Menu > Internet.
2 Select Options > Go to.
3 Select an option.
! If your connection to the Internet does not work, see Settings on page 52 or contact your operator.
To exit the browser
- While browsing the Internet, select Options > Exit browser.
Bookmarks
You can create and edit bookmarks as quick links to your favourite Web pages.
To create a bookmark
1 While browsing the Internet, select Options > Tools > Add bookmark.
2 Enter a title and an address. Select Save.
To select a bookmark
1 From standby select Menu > Internet.
2 Select Options > Go to > Bookmarks.
3 Scroll to a bookmark and select Go to.
History pages
You can view Web pages you have browsed.
To view history pages
- From standby select Menu > Internet > Options > Go to > History.
To use pan and zoom on a Web page
1 While browsing the Internet, press
2 Use the navigation key to move the frame.
3 Press Zoom.
4 To switch back to pan, press #一月
! To use pan and zoom, you need to turn off Smart-fit.
To turn off Smart-fit
- While browsing the Internet, select Options > Advanced > Smart-Fit > Off.
To make a call while browsing
- While browsing the Internet press
To save a picture from a Web page
1 While browsing the Internet, select Options > Tools > Save picture.
2 Select a picture.
To find text on a Web page
1 While browsing the Internet, select Options > Tools > Find on page.
2 Enter text and press Find.
To send a link
1 While browsing the Internet, select Options > Tools > Send link.
2 Select a transfer method.
! Make sure the receiving device supports the transfer method you select.
Internet security and certificates
Your phone supports secure browsing. Certain Internet services, such as banking, require certificates in your phone. Your phone may already contain certificates when you buy it or you can download new certificates.
To view certificates in the phone
- From standby select Menu > Settings > the General tab > Security > Certificates.
Web feeds
You can subscribe to and download frequently updated content, such as news, podcasts or photos, using Web feeds.
To add new feeds for a Web page
1 When you browse a page on the Internet that has Web feeds, indicated by the 📞 icon, select Options > Web feeds.
2 For each feed you want to add, scroll to the feed and select Mark.
3 Select Options > Continue.
To download content via feeds
1 From standby select Menu > Media > Web feeds.
2 Scroll to a feed and select View or ▶.
3 Select a heading to expand.
4 Select an icon depending on content, to open a Web page, to download an audio podcast, to download a video podcast or to download a photo.
You can also subscribe to and download content to a computer via feeds using Sony Ericsson Media Manager. You can then transfer the content to your phone. See Transferring content to and from a computer on page 39.
Updating Web feeds
You can manually update your feeds, or schedule updates. When there are updates, 📄 appears on the screen.
To schedule Web feed updates
1 From standby select Menu > Media > Web feeds.
2 Scroll to a feed and select Options > Schedule update.
3 Select an option.
Frequent updates may be costly.
To update Web feeds manually
1 From standby select Menu > Media > Web feeds.
2 Scroll to a feed and select Options > Update.
3 Select an option.
Web feeds in standby
You can show news updates on the standby screen.
To show Web feeds in standby
1 From standby select Menu > Media > Web feeds.
2 Scroll to a feed and select Options > Settings > Standby ticker > Show in standby.
To access Web feeds from standby
1 From standby select Ticker.
2 To read more about a feed, press or to scroll to a headline and select Go to.
Podcasts
Podcasts are files, for example, radio programs or video content, that you can download and play. You subscribe to and download podcasts using Web feeds.
To access audio podcasts
- From standby select Menu > Media > Music > Podcasts.
To access video podcasts
- From standby select Menu > Media > Video > Podcasts.
Photo feeds
You can subscribe to Photo feeds and download photos. To start using Photo feeds, see Web feeds on page 47.
To access photo feeds
- From standby select Menu > Media > Photo > Photo feeds.
GPS
Your phone is equipped with a GPS receiver that uses satellite signals to calculate your location.
! Some GPS features use the Internet.
Using the GPS
Make sure you have a clear view of the sky when using features that require the GPS receiver to find your location. If your location is not found after a few minutes, move to another location. To facilitate the search, stand still and do not cover the GPS antenna.
Assisted GPS
With Assisted GPS (A-GPS) it takes less time to calculate a location.
Contact your network operator for more information.
Google Maps™ for mobile
Google Maps ^™ lets you view maps and satellite imagery, find locations and calculate routes.
To use Google Maps
- From standby select Menu > Location services > Google Maps.
To view help about Google Maps
- When you use Google Maps, select Options > Help
Driving directions
Wayfinder Navigator™ guides you to your destination using voice instructions. A free three-month trial version of Wayfinder Navigator is included in the phone.
Sony Ericsson does not warrant the accuracy of any directional services including but not limited to turn-by-turn navigational services.
To start Wayfinder Navigator
- From standby select Menu > Location services > Navigation.
More GPS features
Save locations
All saved locations are found in My favourites.
To save your current location
1 From standby select Menu > Location services > My favourites > Add new place.
2 Select Edit and enter the title.
Select OK.
3 Scroll to Description: and select Add. Enter the description and select OK.
4 Scroll to Position: and select Add > Current position.
To view a saved location
1 From standby select Menu > Location services > My favourites.
2 Scroll to a location and select Go to.
When you use Google Maps you can press to access your favourites.
Status information
When your location is found you can view available satellites and get information about your current speed and altitude.
To view GPS status
1 From standby select Menu > Location services > Status info.
2 Scroll between the tabs.
Location requests
External services may ask for your location.
To change permission for external services
1 From standby select Menu > Location services > Settings > Privacy.
2 Select an option.
Turn off the GPS
The GPS receiver is automatically turned off when it is no longer used. You can also manually turn off the GPS receiver. This saves battery power when using features that do not require the GPS receiver to find your location.
To turn the GPS on or off manually
1 From standby select Menu > Location services > Settings.
2 Select an option.
Tracker
Tracker is a GPS-based sports application which allows you to keep track of your speed, distance, route and energy consumption during training.
! Information provided by use of the Tracker application is approximate.
Sony Ericsson makes no warranty of any kind with respect to the accuracy of the Tracker application. Any serious health and fitness concerns should be referred to a health care professional.
You can base the training on how long time you want to train or on what distance you want to cover. You can also base it on a previous training route which has GPS data.
To start a training session
1 From standby select Menu > Location services > Tracker > Start training.
2 Select a training type.
3 Scroll to an item, select Edit and enter the data.
4 Select Done to save.
5 Select Start to start training.
To compare results during training
1 From standby select Menu > Location services > Tracker > Start training.
2 Select Route based.
3 Scroll to Route:, select Edit and select a route.
4 Scroll to Live compare and select Edit.
5 Scroll to the result you want to compare with and select Compare.
6 Select Done and then Start.
To switch between training views
- During a training session, press 📍 or ⓣ to view information on training duration, progress and live comparison with a previous session.
To end a training session manually
- During a training session, select Pause > End.
Results
The training result is shown after a session is ended. You can view past results anytime, and compare them if they have GPS data.
To view a training result
- From standby select Menu > Location services > Tracker > Results. If you have used laps, press or to view result per lap.
To compare results
1 From standby select Menu > Location services > Tracker > Results.
2 Scroll to a result and select Options > Compare.
3 Select a result to compare with.
Energy consumption
To calculate and view the energy consumption for a session you must first set your personal profile. You can see the energy consumption in the result view.
To set the personal profile
1 From standby select Menu > Location services > Tracker > Settings > Personal profile.
2 Select an item, enter data and press OK.
3 When finished, select Options > Save profile.
To turn on energy consumption
- From standby select Menu > Location services > Tracker > Settings > Energy consumption > On.
Connectivity
Settings
Before you synchronize with an Internet service, use the Internet, PlayNow™, My friends, Java, picture messaging, email and picture blog you need to have settings in your phone.
If settings are not already entered, you can download settings using the setup wizard or by going to www.sonyericsson.com/support.
To download settings using the Setup wizard
1 From standby select Menu > Settings
the General tab > Setup wizard
Settings download.
2 Follow the instructions that appear.
Contact your network operator or service provider for more information.
To download settings using a computer
1 Go to
www.sonyericsson.com/support.
2 Follow the instructions on the screen.
Phone name
You can enter a name for your phone that is shown to other devices when using, for example, Bluetooth wireless technology.
To enter a phone name
1 From standby select Menu > Settings > the Connectivity tab > Phone name.
2 Enter the phone name and select OK.
Bluetooth wireless technology
The Bluetooth function makes wireless connection to other Bluetooth devices possible. For example, you can:
- Connect to handsfree devices.
- Connect to several devices at the same time.
- Connect to computers and access the Internet.
- Exchange items and play multiplayer games.
We recommend a range within 10 metres (33 feet), with no solid objects in between, for Bluetooth communication.
52 Connectivity
This is the Internet version of the User's guide. © Print only for private use.
Before you use Bluetooth wireless technology
You must turn on the Bluetooth function to communicate with other devices. You may also have to pair your phone with other Bluetooth devices.
To turn the Bluetooth function on
- From standby select Menu > Settings > the Connectivity tab > Bluetooth > Turn on.
Make sure that the device you want to pair your phone with has the Bluetooth function activated and Bluetooth visibility set to on.
To receive an item
1 From standby select Menu > Settings > the Connectivity tab > Bluetooth > Turn on.
2 When you receive an item, follow the instructions that appear.
To pair the phone with a device
1 From standby select Menu > Settings > the Connectivity tab > Bluetooth > My devices.
2 Scroll to New device and select Add to search for available devices.
3 Select a device.
4 Enter a passcode, if required.
To allow connection to the phone
1 From standby select Menu > Settings > the Connectivity tab > Bluetooth > My devices.
2 Select a device from the list.
3 Select Options > Allow connection.
4 Select Always ask or Always allow.
This is only possible with devices that require access to a secure service.
To pair the phone with a Bluetooth handsfree for the first time
1 From standby select Menu > Settings > the Connectivity tab > Bluetooth > Handsfree.
2 Scroll to a device and select Yes.
3 Enter a passcode, if required.
To pair the phone with more than one Bluetooth handsfree
1 From standby select Menu > Settings > the Connectivity tab > Bluetooth > Handsfree > My handsfree > New handsfree.
2 Select a device from the list.
3 Enter a passcode, if required.
Power saving
You can save battery power with the Power save function. You can only connect with one Bluetooth device at a time when using Power save. You must turn this function off if you want to connect with more than one Bluetooth device at the same time.
To turn Powersave on
- From standby select Menu > Settings > the Connectivity tab > Bluetooth > Powersave > On.
Transferring sound to and from a Bluetooth handsfree
You can transfer the sound to and from a Bluetooth handsfree using a phone key or the handsfree key.
To transfer sound
1 From standby select Menu > Settings > the Connectivity tab > Bluetooth > Handsfree > Incoming call. 2 Select an option. In phone transfers sound to the phone. In handsfree transfers sound to the handsfree.
To transfer sound during a call
1 During a call, select Sound.
2 Select from the list.
Using the USB cable
You can connect your phone to a computer with the USB cable to transfer files, synchronize and use your phone as a modem. For more information go to the Getting started section at www.sonyericsson.com/support.
See Required operating systems on page 39.
! Only use a USB cable supported by your phone. Do not remove the USB cable from your phone or computer during file transfer as this may corrupt the phone memory or the memory card.
54 Connectivity
This is the Internet version of the User's guide. © Print only for private use.
To disconnect the USB cable safely
1 Right-click the removable disk icon in Windows Explorer.
2 Select Eject.
3 Disconnect the USB cable when the following message is shown in the phone: Mass storage session ended. It is now safe to remove the USB cable.
Drag and drop content
You can drag and drop content between your phone or memory card and a computer in Microsoft Windows Explorer.
To drag and drop content
1 Connect your phone to a computer using the USB cable.
2 Phone: Select Media transfer. The phone will remain activated during file transfer.
3 Computer: Wait until an external device icon appears in My Computer and then double click to open. Phone memory and memory card will appear as external drives.
4 Drag and drop selected files between the phone and the computer.
Synchronizing
You can synchronize in two different ways:
- You can use the USB cable or Bluetooth wireless technology to synchronize phone contacts, appointments, bookmarks, tasks and notes with a computer program such as Microsoft Outlook.
- You can synchronize with an Internet service using SyncML™ or a Microsoft Exchange Server using Microsoft Exchange ActiveSync™. For more information go to the Getting started section at www.sonyericsson.com/support.
Use only one of the synchronization methods at a time with your phone.
Synchronizing using a computer Before synchronizing you need to install the Sony Ericsson PC Suite.
! Sony Ericsson PC Suite software is included on the CD with your phone and available for download at www.sonyericsson.com/support.
See Required operating systems on page 39.
To install the Sony Ericsson PC Suite
1 Turn on your computer and insert the CD. The CD starts automatically and the installation window opens.
2 Select a language and click OK.
3 Click Install Sony Ericsson PC suite and follow the instructions on the screen.
To synchronize using the PC Suite
1 Computer: Start PC Suite from Start/Programs/Sony Ericsson/PC Suite.
2 Follow the instructions in the PC Suite for how to connect.
3 Phone: Select Phone mode.
4 Computer: When you are notified that the Sony Ericsson PC Suite has found your phone, you can start synchronizing.
For usage details, see the Sony Ericsson PC Suite Help section once the software has been installed on your computer.
Synchronizing using an Internet service
You can synchronize online using SyncML or Microsoft Exchange ActiveSync. If Internet settings are not in your phone, see Settings on page 52.
SyncML
You can synchronize remote data and personal information using SyncML.
Before you synchronize using SyncML You must enter settings for SyncML synchronization and register a synchronization account online with a service provider. Required settings:
- Server address – server URL
- Database name – database to synchronize with
To enter settings for SyncML
1 From standby select Menu > Organizer > Synchronization.
2 Scroll to New account and select Add > SyncML.
3 Enter a name for the new account and select Cont.
4 Select Server address. Enter the required information and select OK.
5 Enter Username and Password, if required.
6 Scroll to the Applications tab and mark applications to synchronize.
7 Scroll to the App. settings tab and select an application.
8 Select Database name and enter the required information.
9 Scroll to the Advanced tab to enter additional settings for synchronizing and select Save.
To synchronize using SyncML
1 From standby select Menu > Organizer > Synchronization.
2 Scroll to an account and select Start.
Microsoft Exchange ActiveSync
You can access and synchronize corporate exchange information such as email, contacts and calendar entries using Microsoft Exchange Server with Microsoft Exchange ActiveSync.
For more information on synchronization settings, contact your IT administrator.
Before you synchronize using Microsoft Exchange ActiveSync
You must enter settings for Microsoft Exchange ActiveSync to access a Microsoft Exchange Server. Required settings:
- Server address – server URL
- Domain – server domain
- Username – account username
- Password – account password
! Before you start to synchronize with Exchange ActiveSync you must enter the correct time zone in your phone.
To enter settings for Microsoft Exchange ActiveSync
1 From standby select Menu > Organizer > Synchronization.
2 Scroll to New account and select Add > Exchange ActiveSync.
3 Enter a name for the new account and select Cont.
4 Enter the required settings.
5 Scroll between the tabs to enter additional settings.
6 Select Save.
To synchronize using Microsoft Exchange ActiveSync
1 From standby select Menu > Organizer > Synchronization.
2 Scroll to an account and select Start.
Update service
You can update your phone with the latest software. You do not lose personal or phone information.
There are two ways to update your phone:
• Over the air using your phone
- Using the provided USB cable and an Internet-connected computer
! Update service requires data access such as GPRS, 3G or HSDPA.
Before you use the Update service If settings are not in your phone see Settings on page 52.
To change Internet settings
- From standby select Menu > Settings
the General tab > Update service
Settings > Internet settings.
To view the current software in the phone
1 From standby select Menu > Settings > the General tab > Update service.
2 Select Software version.
To use Update service using the phone
1 From standby select Menu > Settings > the General tab > Update service.
2 Select Search for update and follow the instructions that appear.
To use Update service using a USB cable
1 Go to www.sonyericsson.com/support or click the Sony Ericsson Update service in the PC Suite software if installed on your computer. See To install the Sony Ericsson PC Suite on page 56.
2 Select a region and country.
3 Follow the instructions on the screen.
To set a reminder to use Update service
1 From standby select Menu > Settings > the General tab > Update service > Settings > Reminder.
2 Select an option.
More features
Flight mode
In Flight mode the network and radio transceivers are turned off to prevent disturbance to sensitive equipment.
When the flight mode menu is activated you are asked to select a mode the next time you turn on your phone:
- Normal mode – full functionality
- Flight mode – limited functionality
You can use the Bluetooth function in Flight mode.
To activate the flight mode menu
• From standby select Menu > Settings
the General tab > Flight mode
Show at startup.
To select flight mode
1 When the flight mode menu is activated, turn off your phone.
2 Turn on your phone and select Flight mode.
File manager
You can use the file manager to handle files saved in the phone memory or on a memory card.
Handling files
You can move and copy files between your phone, a computer and a memory card. See Transferring content to and from a computer on page 39. Files are saved on the memory card first and then in the phone memory. Unrecognized files are saved in the Other folder.
You are not allowed to exchange some copyright-protected material. A protected file has a icon.
You can create subfolders to move or copy files to. You can select more than one or all the files in a folder at the same time for all folders except Games and Applications.
If the memory is full, delete some content to create space.
File manager tabs
The file manager is divided into three tabs, and icons indicate where the files are saved.
To view information about files
1 From standby select Menu > Organizer > File manager.
2 Find a file and select Options > Information.
To move a file in the file manager
1 From standby select Menu > Organizer > File manager.
2 Find a file and select Options > Manage file > Move.
3 Select Memory card or Phone.
4 Open a folder.
5 Select Paste.
To select more than one file in a folder
1 From standby select Menu > Organizer > File manager.
2 Scroll to a folder and select Open.
3 Select Options > Mark > Mark several.
4 For each file you want to mark, scroll to the file and select Mark.
Alarms
You can set a sound or the radio as an alarm signal. The alarm sounds even if the phone is turned off. When the alarm sounds you can silence it or turn it off.
To set the alarm
1 From standby select Menu > Organizer > Alarms.
2 Scroll to an alarm and select Edit.
3 Scroll to Time: and select Edit.
4 Enter a time and select OK > Save.
To set the recurrent alarm
1 From standby select Menu > Organizer > Alarms.
2 Scroll to an alarm and select Edit.
3 Scroll to Recurrent: and select Edit.
4 Scroll to a day and select Mark.
5 To select another day, scroll to the day and select Mark.
6 Select Done > Save.
To set the alarm signal
1 From standby select Menu > Organizer > Alarms.
2 Scroll to an alarm and select Edit.
3 Scroll to the tab.
4 Scroll to Alarm signal: and select Edit.
5 Find and select an alarm signal. Select Save.
To silence the alarm
- When the alarm sounds, press any key.
• To repeat the alarm, select Snooze.
To turn off the alarm
- When the alarm sounds, press any key and select Turn off.
To cancel the alarm
1 From standby select Menu > Organizer > Alarms.
2 Scroll to an alarm and select Turn off.
The alarm in silent mode
You can set the alarm not to sound when the phone is in silent mode.
To set an alarm to sound or not in silent mode
1 From standby select Menu > Organizer > Alarms.
2 Scroll to an alarm and select Edit.
3 Scroll to the tab.
4 Scroll to Silent mode: and select Edit.
5 Select an option.
Calendar
The calendar can be synchronized with a computer calendar, with a calendar on the Web or with a Microsoft Exchange Server (Microsoft Outlook).
For more information see Synchronizing on page 55.
Default view
You can choose whether month, week or day view will appear first when you open the calendar.
To set default view
1 From standby select Menu > Organizer > Calendar.
2 Select Options > Advanced > Default view.
3 Select an option.
Appointments
You can add new appointments or reuse existing appointments.
To add an appointment
1 From standby select Menu > Organizer > Calendar.
2 Select a date.
3 Scroll to New appointment and select Add.
4 Enter the information and confirm each entry.
5 Select Save.
To view an appointment
1 From standby select Menu > Organizer > Calendar.
2 Select a date.
3 Scroll to an appointment and select View.
To edit an appointment
1 From standby select Menu > Organizer > Calendar.
2 Select a date.
3 Scroll to an appointment and select View.
4 Select Options > Edit.
5 Edit the appointment and confirm each entry.
6 Select Save.
To view a calendar week
1 From standby select Menu > Organizer > Calendar.
2 Select a date.
3 Select Options > Change view to > Week.
To set when reminders should sound
1 From standby select Menu > Organizer > Calendar.
2 Select a date.
3 Select Options > Advanced > Reminders.
4 Select an option.
A reminders option set in calendar affects a reminders option set in tasks.
Notes
You can make notes and save them. You can also show a note in standby.
To add a note
1 From standby select Menu > Organizer > Notes.
2 Scroll to New note and select Add.
3 Write a note and select Save.
To show a note in standby
1 From standby select Menu > Organizer > Notes.
2 Scroll to a note and select Options > Show in standby.
To hide a note from standby
1 From standby select Menu > Organizer > Notes.
2 Scroll to a note and select Options > Hide in standby.
Tasks
You can add new tasks or reuse existing tasks.
To add a task
1 From standby select Menu > Organizer > Tasks.
2 Select New task and select Add.
3 Select an option.
4 Enter details and confirm each entry.
62 More features
This is the Internet version of the User's guide. © Print only for private use.
To view a task
1 From standby select Menu > Organizer > Tasks.
2 Scroll to a task and select View.
To set when reminders should sound
1 From standby select Menu > Organizer > Tasks.
2 Scroll to a task and select Options > Reminders.
3 Select an option.
A reminders option set in tasks affects a reminders option set in calendar.
Profiles
You can change settings such as the ring volume and vibrating alert to suit different locations. You can reset all profiles to the phone's original settings.
To select a profile
1 From standby select Menu > Settings > the General tab > Profiles.
2 Select a profile.
To view and edit a profile
1 From standby select Menu > Settings > the General tab > Profiles.
2 Scroll to a profile and select Options > View and edit.
You cannot rename the Normal profile.
Time and date
To set the time
1 From standby select Menu > Settings > the General tab > Time & date > Time.
2 Enter the time and select Save.
To set the date
1 From standby select Menu > Settings > the General tab > Time & date > Date.
2 Enter the date and select Save.
To set the time zone
1 From standby select Menu > Settings > the General tab > Time & date > My time zone.
2 Select the time zone you are in.
! If you select a city, My time zone also updates the time when daylight saving time changes.
Theme
You can change the appearance of the screen through items such as colours and wallpaper. You can also create new themes and download them. For more information, go to www.sonyericsson.com/support.
To set a theme
1 From standby select Menu > Settings > the Display tab > Theme.
2 Scroll to a theme and select Set.
Main menu layout
You can change the layout of the icons in the main menu.
To change the main menu layout
1 From standby select Menu > Options > Main menu layout.
2 Select an option.
Locks
SIM card lock
This lock only protects your subscription. Your phone will work with a new SIM (Subscriber Identity Module) card. If the lock is on, you have to enter a PIN (Personal Identity Number).
If you enter your PIN incorrectly three times in a row, the SIM card is blocked and you need to enter your PUK (Personal Unblocking Key). Your PIN and PUK are supplied by your network operator.
To unblock the SIM card
1 When PIN blocked appears, enter your PUK and select OK.
2 Enter a new four-to-eight-digit PIN and select OK.
3 Re-enter the new PIN and select OK.
To edit the PIN
1 From standby select Menu > Settings > the General tab > Security > Locks > SIM protection > Change PIN.
2 Enter your PIN and select OK.
3 Enter a new four-to-eight-digit PIN and select OK.
4 Re-enter the new PIN and select OK.
If Codes do not match appears, you entered the new PIN incorrectly. If Wrong PIN appears, followed by Old PIN:, you entered your old PIN incorrectly.
To use the SIM card lock
1 From standby select Menu > Settings > the General tab > Security > Locks > SIM protection > Protection.
2 Select an option.
3 Enter your PIN and select OK.
Phone lock
You can stop unauthorized use of your phone. Change the phone lock code (0000) to any four-to-eight-digit personal code.
It is important that you remember your new code. If you forget it, you have to take your phone to your local Sony Ericsson retailer.
To use the phone lock
1 From standby select Menu > Settings > the General tab > Security > Locks > Phone protection > Protection.
2 Select an option.
3 Enter the phone lock code and select OK.
To unlock the phone
- Enter your code and select OK.
To change the phone lock code
1 From standby select Menu > Settings > the General tab > Security > Locks > Phone protection > Change code.
2 Enter the old code and select OK.
3 Enter the new code and select OK.
4 Repeat the code and select OK.
Keypad lock
You can set this lock to avoid accidental dialling. Incoming calls can be answered without unlocking the keypad.
! Calls to the international emergency number 112 can still be made.
To use the automatic keylock
1 From standby select Menu > Settings
the General tab > Security Automatic keylock.
2 Select an option.
To lock the keypad manually
- From standby press and select Lock.
To unlock the keypad manually
- From standby press and select Unlock.
IMEI number
Keep a copy of your IMEI (International Mobile Equipment Identity) number in case your phone is stolen.
To view your IMEI number
- From standby press 6, #—#.
Troubleshooting
Some problems will require you to call your network operator.
For more support go to www.sonyericsson.com/support.
Common questions
I have problems with memory capacity or the phone is working slowly
Restart your phone every day to free memory or do a Master reset.
Master reset
If you select Reset settings, the changes that you have made to settings will be deleted.
If you select Reset all, in addition to your changes to settings, all contacts, messages, personal data, and content that you have downloaded, received or edited will also be deleted.
To reset the phone
1 From standby select Menu > Settings > the General tab > Master reset.
2 Select an option.
3 Follow the instructions that appear.
I cannot charge the phone or battery capacity is low
The charger is not properly connected or the battery connection is poor.
Remove the battery and clean the connectors.
The battery is worn out and needs to be replaced. See Charging the battery on page 8.
No battery icon appears when I start charging the phone
It may take a few minutes before the battery icon appears on the screen.
Some menu options appear in grey A service is not activated. Contact your network operator.
I cannot use SMS/text messages on my phone
Settings are missing or incorrect. Contact your network operator to find out the correct SMS service centre setting. See Text messages on page 33.
I cannot use picture messages on my phone
Your subscription does not include data capability. Settings are missing or incorrect. Please contact your network operator.
See Help in your phone on page 8 or go to www.sonyericsson.com/support to order settings and follow the instructions on the screen. See Settings on page 52.
I cannot use the Internet
Your subscription does not include data capability. Internet settings are missing or incorrect. Please contact your network operator.
See Help in your phone on page 8 or go to www.sonyericsson.com/support to order Internet settings, and follow the instructions on the screen. See Settings on page 52.
The phone does not ring or rings too softly
Make sure that Silent mode has not been set to On. See To turn the ringtone off on page 43.
Check the ringtone volume. See To set the ringtone volume on page 43.
Check the profile. See To select a profile on page 63.
Check the divert call options. See To divert calls on page 29.
The phone cannot be detected by other devices using Bluetooth wireless technology
You have not turned the Bluetooth function on. Make sure that the visibility is set to show phone. See To turn the Bluetooth function on on page 53.
I cannot synchronize or transfer data between my phone and my computer, when using the USB cable.
The cable or software that came with your phone has not been properly installed. Go to www.sonyericsson.com/support to read Getting started guides which contain detailed installation instructions and troubleshooting guides.
I have forgotten my code memo passcode
If you forget your passcode, you must reset the code memo. This means that all entries in the code memo are deleted. The next time you enter the code memo, you must proceed as if you are opening it for the first time.
To reset code memo
1 From standby select Menu > Organizer > Code memo.
2 Enter any passcode to access the code memo. The checkword and codes that are then shown are incorrect.
3 Select Options > Reset.
4 Reset code memo? appears.
5 Select Yes.
Where can I find the regulatory information such as my IMEI number if I cannot turn on my phone?
Insert SIM
There is no SIM card in your phone or you may have inserted it incorrectly.
See To insert the SIM card on page 6.
The SIM card connectors need cleaning. If the card is damaged, contact your network operator.
Insert correct SIM card
Your phone is set to work only with certain SIM cards. Check if you are using the correct operator SIM card.
Wrong PIN/Wrong PIN2
You have entered your PIN or PIN2 incorrectly.
Enter the correct PIN or PIN2 and select Yes. See To insert the SIM card on page 6.
PIN blocked/PIN2 blocked
You have entered your PIN or PIN2 code incorrectly three times in a row.
To unblock, see SIM card lock on page 64.
Codes do not match
Codes that you have entered do not match. When you want to change a security code, for example your PIN, you have to confirm the new code. See SIM card lock on page 64.
No netw. coverage
Your phone is in flight mode. See Flight mode on page 59.
Your phone is not receiving any network signal, or the received signal is too weak. Contact your network operator and make sure that the network has coverage where you are.
The SIM card is not working properly. Insert your SIM card in another phone. If this works, it is probably your phone that is causing the problem. Please contact the nearest Sony Ericsson service location.
Emerg. calls only
You are within range of a network, but you are not allowed to use it. However, in an emergency, some network operators allow you to call the international emergency number 112. See Emergency calls on page 23.
PUK blocked. Contact operator.
You entered your personal unblocking key code (PUK) incorrectly 10 times in a row.
Important information
Sony Ericsson Consumer Web site
On www.sonyericsson.com/support is a support section where help and tips are only a few clicks away. Here you will find the latest computer software updates and tips on how to use your product more efficiently.
Service and support
From now on you will have access to a portfolio of exclusive service advantages such as:
- Global and local Web sites providing support.
• A global network of Call Centers. - An extensive network of Sony Ericsson service partners.
- A warranty period. Learn more about the warranty conditions in this User guide.
On www.sonyericsson.com, under the support section in the language of your choice, you will find the latest support tools and information, such as software updates, Knowledge base, phone setup and additional help when you require it.
For operator-specific services and features, please contact your network operator for more information. You can also contact our Call Centers. Use the phone number for the nearest Call Center in the list below. If your country/region is not represented in the list, please contact your local dealer. (The phone numbers below were correct at the time of going to print.
On www.sonyericsson.com you can always find the latest updates.)
In the unlikely event that your product needs service please contact the dealer from whom it was purchased, or one of our service partners. Save your original proof of purchase, you will need it if you need to claim warranty.
You will be charged for a call to one of our Call Centers according to national rates, including local taxes, unless the phone number is a toll-free number.
Support
Argentina 800-333-7427 questions.AR@support.sonyericsson.com
Australia 1-300650-600 questions.AU@support.sonyericsson.com
Belgique/België 02-7451611 questions.BE@support.sonyericsson.com
Brasil 4001-04444 questions.BR@support.sonyericsson.com
Canada 1-866-766-9374 questions.CA@support.sonyericsson.com
Central Africa +27 112589023 questions.CF@support.sonyericsson.com
Chile 123-0020-0656 questions.CL@support.sonyericsson.com
Colombia 18009122135 questions.CO@support.sonyericsson.com
| Česká republika | 844550 055 | questions.CZ@support.sonyericsson.com |
| Danmark | 33 31 28 28 | questions.DK@support.sonyericsson.com |
| Deutschland | 0180 534 2020 | questions.DE@support.sonyericsson.com |
| Ελλάδα | 801-11-810-810 | questions.GR@support.sonyericsson.com |
| 210-89 91 919 |
España 902 180 576 questions.ES@support.sonyericsson.com
France 0 825 383 383 questions.FR@support.sonyericsson.com
Hong Kong/香港 8203 8863 questions.HK@support.sonyericsson.com
Hrvatska 062 000 000 questions.HR@support.sonyericsson.com
India/मारत 39011111 questions.IN@support.sonyericsson.com
questions.ID@support.sonyericsson.com
Ireland 1850 545 888 questions.IE@support.sonyericsson.com
Italia 06 48895206 questions.IT@support.sonyericsson.com
Lietuva 8 70055030 questions.LT@support.sonyericsson.com
Magyarország +36 1 880 4747 questions.HU@support.sonyericsson.com
Malaysia 1-800-889900 questions.MY@support.sonyericsson.com
México 01 800 000 4722 questions.MX@support.sonyericsson.com
Nederland 0900 899 8318 questions.NL@support.sonyericsson.com
New Zealand 0800-100150 questions.NZ@support.sonyericsson.com
Norge 815 00 840 questions.NO@support.sonyericsson.com
Österreich 0810 200245 questions.AT@support.sonyericsson.com
Pakistan 111 22 55 73 questions.PK@support.sonyericsson.com
(92-21) 111 22 55 73
70 Important information
This is the Internet version of the User's guide. © Print only for private use.
Philippines/Pilipinas 02-6351860 questions.PH@support.sonyericsson.com
Polska 0 (prefiks) 22 6916200 questions.PL@support.sonyericsson.com
Portugal 808 204 466 questions.PT@support.sonyericsson.com
România (+4021) 401 0401 questions.RO@support.sonyericsson.com
Россия 8 (495) 787 0986 questions.RU@support.sonyericsson.com
Schweiz/Suisse/Svizzera 0848 824 040 questions.CH@support.sonyericsson.com
| Singapore | 67440733 | questions.SG@support.sonyericsson.com |
| Slovensko | 02-5443 6443 | questions.SK@support.sonyericsson.com |
| South Africa | 0861 6322222 | questions.ZA@support.sonyericsson.com |
| Suomi | 09-299 2000 | questions.FI@support.sonyericsson.com |
questions.SE@support.sonyericsson.com
| Türkiye | 0212 473 77 71 | questions.TR@support.sonyericsson.com |
| Україна | (+0380) 44 590 1515 | questions.UA@support.sonyericsson.com |
| United Kingdom | 08705 23 7237 | questions.GB@support.sonyericsson.com |
| United States | 1-866-7669347 | questions.US@support.sonyericsson.com |
Venezuela 0-800-100-2250 questions.VE@support.sonyericsson.com
Guidelines for Safe and Efficient Use
Please follow these guidelines. Failure to do so might entail a potential health risk or product malfunction. If in doubt as to its proper function, have the product checked by a certified service partner before charging or using it.
Recommendations for care and safe use of our products
- Handle with care and keep in a clean and dust-free place.
- Warning! May explode if disposed of in fire.
-
Do not expose your product to liquid or moisture or humidity.
-
Do not expose to extreme temperatures. Do not expose the battery to temperatures above +60°C (+140°F).
- Do not expose to flames or lit tobacco products.
- Do not drop, throw or try to bend your product.
- Do not paint or attempt to disassemble or modify your product. Only Sony Ericsson authorised personnel should perform service.
- Consult with authorized medical staff and the instructions of the medical device manufacturer before using your product near pacemakers or other medical devices or equipment.
- Discontinue use of electronic devices or disable the radio transmitting functionality of the device where required or requested to do so.
- Do not use where a potentially explosive atmosphere exists.
- Do not place your product or install wireless equipment in the area above an air bag in your car.
- Caution: Cracked or broken displays may create sharp edges or splinters that could be harmful upon contact.
- Do not use your Bluetooth Headset in positions where it is uncomfortable or will be subject to pressure.
CHILDREN
Warning! Keep out of the reach of children. Do not allow children to play with mobile phones or accessories.
They could hurt themselves or others.
Products may contain small parts that could become detached and create a choking hazard.
Power supply (Charger)
Connect the charger to power sources as marked on the product. Do not use outdoors or in damp areas. Do not alter or subject the cord to damage or stress. Unplug the unit before cleaning it. Never alter the plug. If it does not fit into the outlet, have a proper outlet installed by an electrician. When power supply is connected there is a small drain of power. To avoid this small energy waste, disconnect the power supply when the product is fully charged. Use of charging devices that are not Sony Ericsson branded may impose increased safety risks.
Battery
New or idle batteries can have short-term reduced capacity. Fully charge the battery before initial use. Use for intended purpose only. Charge the battery in temperatures between +5°C (+41°F) and +45°C (+113°F). Do not put the battery into your mouth. Do not let the battery contacts touch another metal object. Turn off the product before removing the battery. Performance depends on temperatures, signal strength, usage patterns, features selected and voice or data transmissions. Only Sony Ericsson service partners should remove or replace built-in batteries. Use of batteries that are not Sony Ericsson branded may pose increased safety risks.
Personal medical devices
Mobile phones may affect implanted medical equipment. Reduce risk of interference by keeping a minimum distance of 15 cm (6 inches) between the phone and the device. Use the phone at your right ear. Do not carry the phone in your breast pocket. Turn off the phone if you suspect interference. For all medical devices, consult a physician and the manufacturer.
Driving
Some vehicle manufacturers forbid the use of phones in their vehicles unless a handsfree kit with an external antenna supports the installation. Check with your vehicle manufacturer's representative to be sure that your mobile phone or Bluetooth handsfree will not affect the electronic systems in your vehicle. Full attention should be given to driving at all times and local laws and regulations restricting the use of wireless devices while driving must be observed.
72 Important information
This is the Internet version of the User's guide. © Print only for private use.
GPS/Location based functions
Some products provide GPS/Location based functions. Location determining functionality is provided “As is” and “With all faults”. Sony Ericsson does not make any representation or warranty as to the accuracy of such location information.
Use of location-based information by the device may not be uninterrupted or error free and may additionally be dependent on network service availability. Please note that functionality may be reduced or prevented in certain environments such as building interiors or areas adjacent to buildings.
Caution: Do not use GPS functionality in a manner which causes distraction from driving.
Emergency calls
Calls cannot be guaranteed under all conditions. Never rely solely upon mobile phones for essential communications. Calls may not be possible in all areas, on all networks, or when certain network services and/or phone features are used.
Antenna
Use of antenna devices not marketed by Sony Ericsson could damage your phone, reduce performance, and produce SAR levels above the established limits. Do not cover the antenna with your hand as this affects call quality, power levels and can shorten talk and standby times.
Radio frequency (RF) exposure and Specific Absorption Rate (SAR)
When your phone or Bluetooth handsfree is turned on, it emits low levels of radio frequency energy. International safety guidelines have been developed through periodic and thorough evaluation of scientific studies. These guidelines establish permitted levels of radio wave exposure. The guidelines include a safety margin designed to assure the safety of all persons and to account for any variations in measurements.
Specific Absorption Rate (SAR) is used to measure radio frequency energy absorbed by the body when using a mobile phone. The SAR value is determined at the highest certified power level in laboratory conditions, but because the phone is designed to use the minimum power necessary to access the chosen network, the actual SAR level can be well below this value. There is no proof of difference in safety based on difference in SAR value.
Products with radio transmitters sold in the US must be certified by the Federal Communications Commission (FCC). When required, tests are performed when the phone is placed at the ear and when worn on the body. For body-worn operation, the phone has been tested when positioned a minimum of 15 mm from the body without any metal parts in the vicinity of the phone or when properly used with an appropriate Sony Ericsson accessory and worn on the body.
For more information about SAR and radio frequency exposure go to: www.sonyericsson.com/health.
Malware
Malware (short for malicious software) is software that can harm your mobile phone or other computers. Malware or harmful applications can include viruses, worms, spyware, and other unwanted programs. While your device does employ security measures to resist such efforts, Sony Ericsson does not warrant or represent that your device will be impervious to introduction of malware. You can however reduce the risk of malware attacks by using care when downloading content or accepting applications, refraining from opening or responding to messages from unknown sources, using trustworthy services to access the Internet, and only downloading content to your mobile phone from known, reliable sources.
Accessories
Use only Sony Ericsson branded original accessories and certified service partners. Sony Ericsson does not test third-party accessories. Accessories may influence RF Exposure, radio performance, sound loudness, electric safety and other areas. Third-party accessories and parts may pose a risk to your health or safety or decrease performance.
Accessible Solutions/Special Needs
In the US, compatible Sony Ericsson phones may offer compatibility with TTY terminals (with use of necessary accessory). For more information call the Sony Ericsson Special Needs Center on 877 878 1996 (TTY) or 877 207 2056 (voice), or go to www.sonyericsson-snc.com.
Disposal of old electrical and electronic equipment
Electronic equipment and batteries should not be included as household waste but should be left at an appropriate collection point for recycling. This helps prevent potential negative consequences for the environment and human health. Check local regulations by contacting your local city office, your household waste disposal service, the shop where you purchased the product or calling a Sony Ericsson Call Center.
Disposing of the battery
Check local regulations or call a Sony Ericsson Call Center for information. Never use municipal waste.
Memory card
If your product comes complete with a removable memory card, it is generally compatible with the mobile phone purchased but may not be compatible with other devices or the capabilities of their memory cards. Check other devices for compatibility before purchase or use. If your product is equipped with a memory card reader, check memory card compatibility before purchase or use.
Memory cards are generally formatted prior to shipping. To reformat the memory card, use a compatible device. Do not use the standard operating system format when formatting the memory card on a PC. For details, refer to the operating instructions of the device or contact customer support.
WARNING:
If your device requires an adapter for insertion into the mobile phone or another device, do not insert the card directly without the required adapter.
Precautions on Memory Card Use
- Do not expose the memory card to moisture.
- Do not touch terminal connections with your hand or any metal object.
- Do not strike, bend, or drop the memory card.
- Do not attempt to disassemble or modify the memory card.
- Do not use or store the memory card in humid or corrosive locations or in excessive heat such as a closed car in summer, in direct sunlight or near a heater, etc.
- Do not press or bend the end of the memory card adapter with excessive force.
- Do not let dust or foreign objects get into the insert port of any memory card adapter.
74 Important information
This is the Internet version of the User's guide. © Print only for private use.
- Check you have inserted the memory card correctly.
- Insert the memory card as far as it will go into any memory card adapter needed. The memory card may not operate properly unless fully inserted.
- We recommend that you make a backup copy of important data. We are not responsible for any loss or damage to content you store on the memory card.
- Recorded data may be damaged or lost when you remove the memory card or memory card adapter, or turn off the power while formatting, reading or writing data, or when you use the memory card in locations subject to static electricity or high electrical field emissions.
Protection of personal information
Erase personal data before disposing of the product. To delete data, perform a master reset. Deleting data from the phone memory does not ensure that it cannot be recovered. Sony Ericsson does not warrant against recovery of information and does not assume responsibility for disclosure of any information even after a master reset.
LOUDNESS WARNING:
Avoid volume levels that may be harmful to your hearing.
End User Licence Agreement
Software delivered with this device and its media is owned by Sony Ericsson Mobile Communications AB, and/or its affiliated companies and its suppliers and licensors.
Sony Ericsson grants you a non-exclusive limited license to use the Software solely in conjunction with the Device on which it is installed or delivered. Ownership of the Software is not sold, transferred or otherwise conveyed.
Do not use any means to discover the source code or any component of the Software, reproduce and distribute the Software, or modify the Software.
You are entitled to transfer rights and obligations to the Software to a third party, solely together with the Device with which you received the Software, provided the third party agrees in writing to be bound by the terms of this License.
This license exists throughout the useful life of this Device. It can be terminated by transferring your rights to the Device to a third party in writing.
Failure to comply with any of these terms and conditions will terminate the license immediately.
Sony Ericsson and its third party suppliers and licensors retain all rights, title and interest in and to the Software. Sony Ericsson, and, to the extent that the Software contains material or code of a third party, such third party, shall be entitled third party beneficiaries of these terms.
This license is governed by the laws of Sweden. When applicable, the foregoing applies to statutory consumer rights.
In the event Software accompanying or provided in conjunction with your device is provided with additional terms and conditions, such provisions shall also govern your possession and usage of the Software.
Limited Warranty
Sony Ericsson Mobile Communications AB, SE-221 88 Lund, Sweden, (Sony Ericsson) or its local affiliated company, provides this Limited Warranty for your mobile phone, original accessory delivered with your mobile phone, and/or your mobile computing product (hereinafter referred to as "Product").
Should your Product need warranty service, please return it to the dealer from whom it was purchased, or contact your local Sony Ericsson Call Center (national rates may apply) or visit www.sonyericsson.com for further information.
Our warranty
Subject to the conditions of this Limited Warranty, Sony Ericsson warrants this Product to be free from defects in design, material and workmanship at the time of its original purchase by a consumer. This Limited Warranty will last for a period of two (2) years as from the original date of purchase of the Product for your mobile phone, and for a period of one (1) year following the original purchase date of the Product for all original accessories (such as the battery, charger or handsfree kit) which may be delivered with your mobile phone.
What we will do
If, during the warranty period, this Product fails to operate under normal use and service, due to defects in design, materials or workmanship, Sony Ericsson authorized distributors or service partners, in the country/region* where you purchased the Product, will, at their option, either repair or replace the Product in accordance with the terms and conditions stipulated herein.
Sony Ericsson and its service partners reserve the right to charge a handling fee if a returned Product is found not to be under warranty according to the conditions below.
Please note that some of your personal settings, downloads and other information may be lost when your Sony Ericsson Product is repaired or replaced. At present Sony Ericsson may be prevented by applicable law, other regulations or technical restrictions from making a backup copy of certain downloads. Sony Ericsson does not take any responsibility for any lost information of any kind and will not reimburse you for any such loss. You should always make backup copies of all the information stored on your Sony Ericsson Product such as downloads, calendar and contacts before handing in your Sony Ericsson Product for repair or replacement.
Conditions
1 This Limited Warranty is valid only if the original proof of purchase for this Product issued by a Sony Ericsson authorized dealer specifying the date of purchase and serial number**, is presented with the Product to be repaired or replaced. Sony Ericsson reserves the right to refuse warranty service if this information has been removed or changed after the original purchase of the Product from the dealer.
2 If Sony Ericsson repairs or replaces the Product, the repair for the defect concerned, or the replaced Product shall be warranted for the remaining time of the original warranty period or for ninety (90) days from the date of repair, whichever is longer. Repair or replacement may involve the use of functionally equivalent reconditioned units. Replaced parts or components will become the property of Sony Ericsson.
3 This warranty does not cover any failure of the Product due to normal tear and wear, or due to misuse, including but not limited to use in other than the normal and customary manner, in accordance with the Sony Ericsson instructions for use and maintenance of the Product. Nor does this warranty cover any failure of the Product due to accident, software or hardware modification or adjustment, acts of God or damage resulting from liquid.
A rechargeable battery can be charged and discharged more than a hundred times. However, it will eventually wear out – this is not a defect and corresponds to normal wear and tear. When the talk time or standby time is noticeably shorter, it is time to replace your battery. Sony Ericsson recommends that you use only batteries and chargers approved by Sony Ericsson.
Minor variations in display brightness and color may occur between the phones. There may be small, bright or dark dots on the display. These are called defective pixels and occur when individual dots have malfunctioned and cannot be adjusted. Two defective pixels are deemed acceptable.
Minor variations in camera image appearance may occur between phones. This is not uncommon and is not regarded as a defective camera module.
4 Since the cellular system on which the Product is to operate is provided by a carrier independent from Sony Ericsson, Sony Ericsson will not be responsible for the operation, availability, coverage, services or range of that system.
5 This warranty does not cover Product failures caused by installations, modifications, or repair or opening of the Product performed by a non-Sony Ericsson authorised person.
6 The warranty does not cover Product failures which have been caused by use of accessories or other peripheral devices which are not Sony Ericsson branded original accessories intended for use with the Product.
Sony Ericsson disclaims any and all warranties, whether express or implied, for failures caused to the Product or peripheral devices as a result of viruses, trojans horses, spyware, or other malicious software. Sony Ericsson strongly recommends that you install appropriate virus protection software on your Product and any peripheral devices connected to it, as available, and update it regularly, to better protect your device. It is understood, however, that such software will never fully protect your Product or its peripheral devices and Sony Ericsson disclaims all warranties, whether express or implied, in case of failure by such antivirus software to fulfill its intended purpose.
7 Tampering with any of the seals on the Product will void the warranty.
8 THERE ARE NO EXPRESS WARRANTIES, WHETHER WRITTEN OR ORAL, OTHER THAN THIS PRINTED LIMITED WARRANTY. ALL IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY. IN NO EVENT SHALL SONY ERICSSON OR ITS
LICENSORS BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE WHATSOEVER, INCLUDING BUT NOT LIMITED TO LOST PROFITS OR COMMERCIAL LOSS; TO THE FULL EXTENT THOSE DAMAGES CAN BE DISCLAIMED BY LAW.
Some countries/states do not allow the exclusion or limitation of incidental or consequential damages, or limitation of the duration of implied warranties, so the preceding limitations or exclusions may not apply to you.
The warranty provided does not affect the consumer's statutory rights under applicable legislation in force, nor the consumer's rights against the dealer arising from their sales / purchase contract.
\* GEOGRAPHICAL SCOPE OF THE WARRANTY
If you have purchased your Product in a country member of the European Economic Area (EEA) or in Switzerland or the Republic of Turkey, and such Product was intended for sale in the EEA or in Switzerland or in Turkey, you can have your Product serviced in any EEA country or in Switzerland or in Turkey, under the warranty conditions prevailing in the country in which you require servicing of the Product, provided that an identical Product is sold in such country by an authorised Sony Ericsson distributor. To find out if your Product is sold in the country you are in, please call the local Sony Ericsson Call Center. Please observe that certain services may not be possible elsewhere than in the country of original purchase due, for example, to the fact that your Product may have an interior or exterior which is different from equivalent models sold in other countries. In addition, please note that it may sometimes not be possible to repair SIM-locked Products.
** In some countries/regions additional information (such as a valid warranty card) may be requested.
FCC Statement
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
Any change or modification not expressly approved by Sony Ericsson may void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Industry Canada Statement
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
This Class B digital apparatus complies with Canadian ICES-003.
Declaration of Conformity for C702
We, Sony Ericsson Mobile Communications AB of Nya Vattentornet
SE-221 88 Lund, Sweden
declare under our sole responsibility that our product
Sony Ericsson type AAD-3052081-BV
and in combination with our accessories, to which this declaration relates is in conformity with the appropriate standards EN 301 511:V9.0.2,
EN 301 908-1:V2.2.1, EN 301 908-2:V2.2.1,
EN 300 328:V1.7.1, EN 300 440-1:V1.7.1,
EN300 440-2:V1.1.2, EN 301 489-3:V1.4.1,
EN 301 489-7:V1.3.1, EN301 489-17:V1.2.1,
EN 301 489-24:V1.3.1, EN 60 950-1:2006
following the provisions of, Radio Equipment and Telecommunication Terminal Equipment directive 1999/5/EC.
Lund, December 2007
CE0682
Shoji Nemoto,
Head of Product Business Group GSM/UMTS
We fulfil the requirements of the R&TTE Directive (1999/5/EC).
Index
A
activity menu 14
adding
notes 62
alarms 60
answering service 27
applications 44
appointments 61
assembly 6
audio book 41
B
battery
charging 8
inserting 6
use and care 72
blog
video 20
Bluetooth
visibility 53
Bluetooth wireless technology 52
bookmarks
creating 45
selecting 45
C
calendar 61–62
call divert 29
call list 27
call numbers in message 33
call time ....32
caller-specific ringtones ......25
calls
accepting 31
answering and rejecting ......23
emergency 23
handling two calls 30
international 22
making and receiving .....22
putting on hold 29
recording 44
video 24
camera
settings 18
code memo 67
conference calls ....30
contacts
adding phone contacts .....24
default contacts 24
groups 27
synchronizing ....55
D
date 63
declaration of conformity .....79
downloading music ....41
80 Index
This is the Internet version of the User's guide. © Print only for private use.
E
email 35
emergency numbers 23
entering text 15
F
face detection 17
file manager 59
flight mode 59
G
games 44
Google Maps 49
GPS 48
groups 27
H
handsfree 28,40
Bluetooth technology 53
help 8
hiding number 32
history
Web pages 46
|
IMEI number 65
Internet
bookmarks 45
security and certificates 46
settings 52
J
Java 44
K
keypad lock 65
automatic 65
manual 65
keys 9
L
language 15
location services 48
lock
keypad 65
phone 65
M
master reset 66
Media Manager 39
media transfer 39,55
memory card 14
memory status 26
menu overview 11
menus 13
messages
area and cell information 38
email 35
picture 33
text 33
voice 35
microphone 23
MMS See picture messages
music player 40
MusicDJ™ 43
My friends 37
my numbers 31
N
navigating menus 13
notes 62
adding 62
showing in standby 62
P
pan and zoom
Web pages 46
PC Suite
synchronizing 55
phone mode 56
phone name 52
photo feeds 48
photo fix 18
photo tags 21
PhotoDJ™ 21
photos
improving 18
photo fix 18
picture messages 33
pictures 20
editing 21
improving 18
photo fix 18
PIN code
changing 64
unblocking 7
playlists 40
PlayNow™ 41
podcasts 48
profiles 63
PUK 64, 69
push email 36
R
ringtones 43
RSS feeds See Web feeds
RSS ticker 47
S
safety guidelines 71
search
on Web pages 46
selection keys 13
settings
Internet 52
Java 45
shortcuts 13
SIM card 64
copying to/from 25
locking 64
unblocking 64
SMS See text messages
SOS See emergency numbers
sound recorder 44
speed dialling 27
standby 7
notes 62
startup screen 7
submenus 13
synchronizing 55
T
T9 Text Input 15
tasks 62-63
text messages 33
theme 63
time 63
time zone 63
Tracker 50
training 50
transfer method
Bluetooth technology 52
USB 54
transferring
camera pictures 19
files 54
music 39
sound 54
turning on/off
Bluetooth function 53
keypad lock 65
phone lock 65
SIM lock protection 64
U
update
Web feeds 47
Update service 57
V
video
blog 20
editing 21
video player 42
video recorder 16
VideoDJ™ 21
visibility 53
voice answering 28
voice commands 28
voice control 28
voice messages 35
voicemail 27
volume
ear speaker 23
ringtone 43
W
warranty 75
Web
search 46
Web feeds 47
showing in standby 47
update 47
Web pages
history 46
pan and zoom 46
Z
zoom 18
- Accessories – More for your phone
- Camera Phone Kit IPK-100
- Stereo Portable Handsfree HPM-65
- Content
- Getting started 6
- Imaging 16
- Calling 22
- Messaging.... 32
- Media player and music ... 39
- Entertainment 42
- Internet...... 45
- GPS 48
- Connectivity...... 52
- More features.... 59
- Troubleshooting...... 66
- Important information...... 69
- Index 80
- Content
- Sony Ericsson C702
- Instruction symbols
- Getting started
- Assembly
- Getting started
- Turning on the phone
- SIM card
- PIN
- Startup screen
- Standby
- Help
- Help in your phone
- To view tips and tricks
- To view information about functions
- To view the phone demonstration
- To view status information
- Charging the battery
- Phone overview
- Getting started
- Menu overview
- Getting started
- Navigation
- To select actions on the screen
- To view options for an item
- To scroll between the tabs
- To return to standby
- To end a function
- To navigate your media
- To delete items
- To send items
- Shortcuts
- Activity menu tabs
- Memory card
- Getting started
- To remove a memory card
- To view memory card options
- Phone language
- To change the phone language
- Entering text
- To change text input method
- To shift between capitals and lower-case letters
- To enter numbers
- To enter full stops and commas
- To enter a symbol
- To enter text using T9™ Text Input
- To enter text using multitap
- To add words to the built-in dictionary
- Imaging
- Camera and video recorder
- Using the camera
- To activate the camera
- To take a picture
- Face detection
- To set face detection
- To record a video clip
- To stop recording
- To use zoom
- To adjust brightness
- Getting more from the camera
- To improve a picture with Photo fix
- To view pictures and video clips
- Camera icons and settings
- To change settings
- To view information about settings
- Camera shortcuts
- Transferring pictures
- Picture and video blog
- To send camera pictures to a blog
- To send video clips to a blog
- To go to a blog address from contacts
- Camera printing
- To print camera pictures using the USB cable
- Pictures
- To view pictures in a slide show
- Viewing pictures on a map
- To view pictures on a map
- To turn off location data for pictures
- Photo tags
- To tag pictures
- To create a new photo tag
- Using pictures
- To use pictures
- PhotoDJ™ and VideoDJ™
- To edit and save a picture
- To edit and save a video clip
- To trim a video clip
- Calling
- Making and receiving calls
- To make a call
- To end a call
- To make international calls
- Calling
- To re-dial a number
- To answer a call
- To reject a call
- To mute the microphone during a call
- To turn the loudspeaker on during a call
- To view missed calls from standby
- Networks
- To switch networks manually
- Emergency calls
- To make an emergency call
- To view your local emergency numbers
- Video call
- To make a video call
- To use the zoom with an outgoing video call
- To view video call options
- Contacts
- Default contacts
- To select default contacts
- Phone contacts
- To add a phone contact
- Calling
- Calling contacts
- To call a phone contact
- To go directly to the contacts list
- To call with Smart search
- To turn Smart search on or off
- Editing contacts
- To add information to a phone contact
- To copy names and numbers to phone contacts
- To copy names and numbers to the SIM card
- To automatically save names and phone numbers on the SIM card
- To save contacts on a memory card
- SIM contacts
- To add a SIM contact
- To call a SIM contact
- Deleting contacts
- To delete all contacts
- Memory status
- To view memory status
- Synchronizing contacts
- Groups
- To create a group of numbers and email addresses
- Call list
- To call a number from the call list
- To add a call list number to contacts
- Speed dial
- To add contacts to speed dial numbers
- To speed dial
- Voicemail
- To enter your voicemail number
- To call your voicemail service
- Voice control
- To record a voice command using voice dialling
- Voice dialling
- To voice dial
- Voice answering
- To activate voice answering and record voice answer commands
- To answer a call using voice commands
- To reject a call using voice commands
- Diverting calls
- To divert calls
- More than one call
- Call waiting
- To activate call waiting
- To make a second call
- To answer a second call
- To reject a second call
- To end an ongoing call and answer a second call
- Handling two voice calls
- To switch between two calls
- To join two calls
- To connect two calls
- To end an ongoing call and return to the call on hold
- Conference calls
- To add a new participant
- To release a participant
- To have a private conversation
- My numbers
- To check your phone numbers
- Accept calls
- To add numbers to the accepted callers list
- To accept all calls
- Restricted dialling
- Restrict calls options
- To restrict calls
- Call time and cost
- To check the call time
- Showing or hiding your phone number
- To hide your phone number
- Messaging
- To save a message on a memory card
- To save a message on the SIM card
- To view a message from the inbox
- Text messages
- Before you use messaging
- To enter a service centre number
- To write and send a text message
- To copy and paste text in a text message
- To add an item to a text message
- To call a number in a text message
- To turn long messages on
- Picture messages
- To select an MMS profile
- To set the message server address
- To create and send a picture message
- Receiving picture messages
- To set automatic download
- Message options
- To set text message options
- Messaging
- To set picture message options
- To set message options for a specific message
- Voice messages
- To record and send a voice message
- Before you use email
- To create an email account
- To write and send an email message
- To receive and read an email message
- To save an email message
- To reply to an email message
- To view an attachment in an email message
- To save an attachment in an email message
- Synchronizing email
- Active email account
- To change the active email account
- Push email
- To turn on push email notification
- My friends
- Before you use My friends
- To enter My friends server settings
- To log in to the My friends server
- To log out of the My friends server
- To add a chat contact
- To send a chat message
- Status
- To show my status
- To update your own status
- Chat group
- To create a chat group
- To add a chat group
- To save a conversation
- Area and cell information
- To turn area information on
- Media player and music
- Transferring content to and from a computer
- Required operating systems
- To install Media Manager
- To transfer content using Media Manager
- Stereo portable handsfree
- To use the handsfree
- Music player
- To play music
- To stop playing music
- To fast forward and rewind
- To move between tracks
- To change the volume
- Browsing files
- Playlists
- To create a playlist
- To add files to a playlist
- To remove tracks from a playlist
- To view information about a track
- Audio books
- To play audio books
- PlayNow™
- Before you use PlayNow™
- To use PlayNow™
- TrackID™
- To search for song information
- Online music and video clips
- To select a data account for streaming
- To stream music and video clips
- Entertainment
- Entertainment
- Video player
- To play videos
- To stop playing videos
- Radio
- To listen to the radio
- To automatically search for channels
- To manually search for channels
- Saving channels
- To save channels
- To select saved channels
- To switch between saved channels
- Ringtones and melodies
- To set a ringtone
- To set the ringtone volume
- To turn the ringtone off
- —#).
- To set the vibrating alert
- MusicDJ™
- To compose a melody
- Sound recorder
- To record a sound
- To listen to a recording
- Games
- To start a game
- To end a game
- Applications
- To select a Java application
- To view information about a Java application
- To set permissions for a Java application
- Entertainment
- Java application screen size
- To set the screen size for a Java application
- Internet
- To start browsing
- To exit the browser
- Bookmarks
- To create a bookmark
- To select a bookmark
- History pages
- To view history pages
- To use pan and zoom on a Web page
- To turn off Smart-fit
- To make a call while browsing
- To save a picture from a Web page
- To find text on a Web page
- To send a link
- Internet security and certificates
- To view certificates in the phone
- Web feeds
- To add new feeds for a Web page
- To download content via feeds
- Updating Web feeds
- To schedule Web feed updates
- To update Web feeds manually
- Web feeds in standby
- To show Web feeds in standby
- To access Web feeds from standby
- Podcasts
- To access audio podcasts
- To access video podcasts
- Photo feeds
- To access photo feeds
- GPS
- Using the GPS
- Assisted GPS
- Google Maps™ for mobile
- To use Google Maps
- To view help about Google Maps
- Driving directions
- To start Wayfinder Navigator
- More GPS features
- Save locations
- To save your current location
- To view a saved location
- Status information
- To view GPS status
- Location requests
- To change permission for external services
- Turn off the GPS
- To turn the GPS on or off manually
- Tracker
- To start a training session
- To compare results during training
- To switch between training views
- To end a training session manually
- Results
- To view a training result
- To compare results
- Energy consumption
- To set the personal profile
- To turn on energy consumption
- Connectivity
- Settings
- To download settings using the Setup wizard
- To download settings using a computer
- Phone name
- To enter a phone name
- Bluetooth wireless technology
- Connectivity
- Before you use Bluetooth wireless technology
- To turn the Bluetooth function on
- To receive an item
- To pair the phone with a device
- To allow connection to the phone
- To pair the phone with a Bluetooth handsfree for the first time
- To pair the phone with more than one Bluetooth handsfree
- Power saving
- To turn Powersave on
- Transferring sound to and from a Bluetooth handsfree
- To transfer sound
- To transfer sound during a call
- Using the USB cable
- Before you use the USB cable
- Connectivity
- To disconnect the USB cable safely
- Drag and drop content
- To drag and drop content
- Synchronizing
- To install the Sony Ericsson PC Suite
- To synchronize using the PC Suite
- Synchronizing using an Internet service
- SyncML
- To enter settings for SyncML
- To synchronize using SyncML
- Microsoft Exchange ActiveSync
- Before you synchronize using Microsoft Exchange ActiveSync
- To enter settings for Microsoft Exchange ActiveSync
- To synchronize using Microsoft Exchange ActiveSync
- Update service
- To change Internet settings
- To view the current software in the phone
- To use Update service using the phone
- To use Update service using a USB cable
- To set a reminder to use Update service
- More features
- Flight mode
- To activate the flight mode menu
- To select flight mode
- File manager
- Handling files
- File manager tabs
- To view information about files
- To move a file in the file manager
- To select more than one file in a folder
- Alarms
- To set the alarm
- To set the recurrent alarm
- To set the alarm signal
- To silence the alarm
- To turn off the alarm
- To cancel the alarm
- The alarm in silent mode
- To set an alarm to sound or not in silent mode
- Calendar
- Default view
- To set default view
- Appointments
- To add an appointment
- To view an appointment
- To edit an appointment
- To view a calendar week
- To set when reminders should sound
- Notes
- To add a note
- To show a note in standby
- To hide a note from standby
- Tasks
- To add a task
- More features
- To view a task
- Profiles
- To select a profile
- To view and edit a profile
- Time and date
- To set the time
- To set the date
- To set the time zone
- Theme
- To set a theme
- Main menu layout
- To change the main menu layout
- Locks
- SIM card lock
- To unblock the SIM card
- To edit the PIN
- To use the SIM card lock
- Phone lock
- To use the phone lock
- To unlock the phone
- To change the phone lock code
- Keypad lock
- To use the automatic keylock
- To lock the keypad manually
- To unlock the keypad manually
- IMEI number
- To view your IMEI number
- Troubleshooting
- Common questions
- Master reset
- To reset the phone
- I cannot use the Internet
- The phone does not ring or rings too softly
- The phone cannot be detected by other devices using Bluetooth wireless technology
- I cannot synchronize or transfer data between my phone and my computer, when using the USB cable.
- I have forgotten my code memo passcode
- To reset code memo
- Error messages
- Insert correct SIM card
- Wrong PIN/Wrong PIN2
- PIN blocked/PIN2 blocked
- Codes do not match
- No netw. coverage
- Emerg. calls only
- PUK blocked. Contact operator.
- Important information
- Sony Ericsson Consumer Web site
- Service and support
- Support
- Important information
- Guidelines for Safe and Efficient Use
- Recommendations for care and safe use of our products
- CHILDREN
- Power supply (Charger)
- Battery
- Personal medical devices
- Driving
- Important information
- GPS/Location based functions
- Antenna
- Radio frequency (RF) exposure and Specific Absorption Rate (SAR)
- Malware
- Accessories
- Accessible Solutions/Special Needs
- Disposal of old electrical and electronic equipment
- Disposing of the battery
- WARNING:
- Precautions on Memory Card Use
- Important information
- Protection of personal information
- LOUDNESS WARNING:
- End User Licence Agreement
- Limited Warranty
- Our warranty
- What we will do
- Conditions
- \* GEOGRAPHICAL SCOPE OF THE WARRANTY
- FCC Statement
- Industry Canada Statement
- Declaration of Conformity for C702
- Index
- A
- B
- C
- D
- E
- F
- G
- H
- |
- J
- K
- L
- M
- N
- P
- R
- S
- T
- transferring
- U
- V
- W
- Z
Brand : SONY ERICSSON
Model : C702
Category : Mobile Phone
