USER MANUAL 48405 MORPHY RICHARDS

3 in 1 Twisting Mixer

i Please read and keep these instructions for future use

Line drawing of a handheld electric hand mixer with a coiled wire, no text or symbols present

48405

For competitions, product hints and tips and more join us at

f www.facebook.com/morphyrichardsuk

www.morphyrichards.co.uk/blog

www.twitter.com/loveyourmorphy

www.morphyrichards.com

* Register online for your 2 year guarantee. See back of this instruction book for details. (UK and Ireland customers only)

Product overview

Features

(1) Socket
(2) Twistable Head
(3) Low/Off/High Switch
(4) Main Unit
(5) Ratings Sticker
(6) Charging Socket
(7) Heel Rest
(8) Twisting Control Button
(9) Whisk Attachment
(10) Drink Mixer Attachment

(11) Beater Attachment
(12) Battery Screw (under Ratings Sticker)

Introduction

Thank you for your recent purchase of this Morphy Richards 3 in 1 Twisting Mixer.

Please read the instructions thoroughly before use.

Remember to visit www.morphyrichards.co.uk to register your product's two year guarantee.

Before first use

Before first use, you will need to charge the 3 in 1 Twisting Mixer for about 15 hours. Subsequent charges as needed should be for 12 hours or overnight.

To charge, plug the small end of the charger into the Charging Socket (6) on the bottom of the 3 in 1 Twisting Mixer and plug the other end into a mains outlet.

Clean all parts. (See Care and Cleaning section.) Do not immerse the Main Unit (4) in water.

Using your 3 in 1 Twisting Mixer (continued)

Pure diagram of a device with three circular ports and a vertical connector, no text or symbols present

Ensure the Low/Off/High Switch (3) is set to the off position. Hold the Main Unit (4) so you are unable to accidentally switch it on.

Insert the desired attachment (9),(10),(11), into the Socket (1). (See page 4 for more information on the different attachments.)

The 3 in 1 Twisting Mixer has 3 mixing positions. To switch from a straight-handle mixer to an angled mixer, press the Twisting Control Button (8) and rotate the Twistable Head (2). (See page 4 for more information on the Twistable Head.)

Diagram showing a conical structure with a red downward arrow indicating a specific point, enclosed in a rectangular frame (no text or symbols)

Insert the head of the attachment into the food or liquid. Do not turn on before inserting as excessive splashing will occur.
Continued on page 4.

Using your 3 in 1 Twisting Mixer (continued)

Press the Low/Off/High Switch (3) to either the High or Low Position. When finished switch to off before removing from the food.

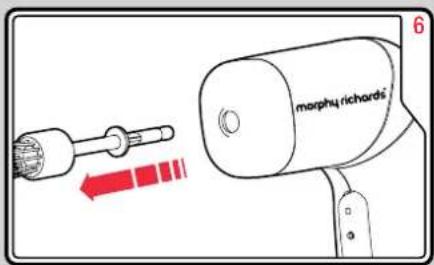

After use, pull the attachment to remove from the Socket (1) for cleaning.

- The 3 in 1 Twisting Mixer has two speeds: Low to blend and stir; and High to whisk, whip, beat and mix. Both speeds will stay on continuously until the Low/Off/High Switch (3) is depressed lightly to return the to the centered off position.

Attachments

The 3 in 1 Twisting Mixer comes with three attachments each designed for a specific task.

Whisk (9)

The Whisk Attachment is used to beat air into mixtures such as egg whites, yolks or cream.

Drink Mixer (10)

The Drink Mixer Attachment is designed to mix both hot and cold drinks. Recommended for use in plastic or metal beverage containers only.

Beater (11)

The Beater Attachment design allows for thorough mixing results for many types of batters. The beater is dishwasher safe.

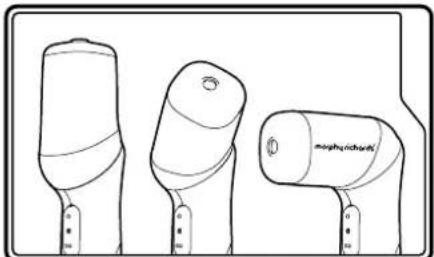

Twistable Head High / Low Spe

Line drawing of three different handheld devices (no text or symbols)

- The 3 in 1 Twisting Mixer's Twistable Head (2) can be moved into 3 positions for ease of use. Press and hold the Twisting Control Button (8) and rotate the Twistable Head. The Twistable Head will lock into the 3 positions depicted above.

Heel Rest (7)

- The 3 in 1 Twisting Mixer's Heel Rest (7) allows you to rest it upright on the work surface. The 3 in 1 Twisting Mixer will only balance correctly with a attachment fitted.

Care and cleaning

1. Unplug the 3 in 1 Twisting Mixer before cleaning.
2. Wash the Whisk (9), Drink Mixer (10), and Beater (11), attachments in hot soapy water. Dry throughly before use.
3. Wipe the entire Main Unit with a damp cloth or sponge.

NEVER IMMERSE MAIN UNIT IN WATER.

All Attachments are dishwasher safe.

Charging

• Only use the charger provided with the product. Replacement chargers are available from the Morphy Richards Spares department.
• To charge, plug the small end of the charger into the Charging Socket (6) on the bottom of the 3 in 1 Twisting Mixer and plug the other end into a mains outlet.
• When fully charged after 12-15 hours, remove the charger from the 3 in 1 Twisting Mixer.
• The 3 in 1 Twisting Mixer will operate continuously for up to 20 minutes, depending on the kind of food being mixed.
• Charging time will take 12-15 hours.
• Charging the 3 in 1 Twisting Mixer after use will ensure it is fully charged for next use.

IMPORTANT: 3 in 1 Twisting Mixer will not operate while plugged into the mains.

Battery removal

• This product uses rechargeable, nickel metal hydride (NiMH) batteries. The batteries are NOT user replaceable.
• When the product reaches the end of its useful life it must not be disposed of in the normal household waste. The product must be disposed of at an authorised recycling plant.

NOTE: Batteries and products containing batteries must never be disposed of in fires.

NiMH

The cordless mixer should only be disassembled by a competent engineer and the battery removed and disposed of at an authorised recycling plant. Your local authority will have a centre which accepts such waste for recycling.

To Remove the battery:

1. Remove the Ratings Sticker (5) from the base of the Main Unit.

Top-down schematic of a robot head with two red circular features on the front face (no text or symbols)

1. Unscrew the 2 Battery Screws (12) visible in the diagram.
2. Pull the battery from the Main Unit (4) and remove the connecting wires for safe disposal.

Contact us

Helpline

If you are having a problem with your appliance, please call our Helpline, as we are more likely to be able to help than the store you purchased the item from.

Please have the product name, model number and serial number to hand when you call to help us deal with your enquiry quicker.

UK Helpline: 0844 871 0960

IRE Helpline: 1800 409 119

Spares: 0844 873 0726

Talk To Us

If you have any questions or comments, or want some great tips or recipe ideas to help you get the most out of your products, join us online:

Blog: www.moprhyrichards.co.uk/blog

Facebook: www.facebook.com/morphyrichardsuk

Twitter: www.twitter.com/loveyourmorphy

Website: www.morphyrichards.com

Health and Safety

The use of any electrical appliance requires the following common sense safety rules.

Primarily there is danger of injury or death and secondly the danger of damage to the appliance. These are indicated in the text by the following two conventions:

WARNING: Danger to the person!

IMPORTANT: Damage to the appliance!

In addition, we offer the following safety advice.

Location

• This appliance is intended to be used in household and similar applications such as: farm houses;
  by clients in hotels, motels and other residential type environments;
  bed and breakfast type environments.
  It is not suitable for use in staff kitchen areas in shops, offices and other working environments.
  • Always locate your appliance away from the edge of the worktop.
• Do not place the bowl used with the appliance on a highly polished wooden surface as damage may occur to the surface.
• Do not place the appliance on or near a hot surface, such as a hot plate or radiant rings or near a naked flame. Charging cable
• Do not let the charger cable hang over the edge of the worktop where a child could reach it.
• Do not let the charger cable run across an open space e.g. between a low socket and a table.
• Do not let the charger cable run across a cooker or other hot area which might damage the charger cable.
• The mains charger cable should reach from the socket to the base unit without straining the connections.
• The charger cable cannot be replaced. Contact Morphy Richards for advice. Personal safety
• Avoid touching moving parts. Keep hands, hair and clothing, and utensils away from the hand mixer attachment blades during operation, to prevent personal injury and/or damage to the appliance.
• WARNING: To protect against the risk of electric shock, NEVER immerse the appliance body in water or in any other liquid and always ensure the electrical connections are kept dry.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

Children

• Children do not understand the dangers associated with operating electrical appliances. Never allow children to use this appliance.
• Children should be supervised to ensure that they do not play with the appliance.
• Teach children to be aware of dangers in the kitchen, warn them of the dangers of reaching up to areas where they cannot see properly or should not be reaching.

Other safety considerations

To protect against risk of electrical shock, do not put 3 in 1 Twisting Mixer in water or other liquid. This may cause personal injury and/or damage to the product.

• Unit will not operate while charging.
• Avoid contact with moving parts. Keep hands, hair, clothing, as well as spatulas and other utensils away from beaters during operation to reduce the risk of injury to persons and/or damage to the 3 in 1 Twisting Mixer.
• Do not charge 3 in 1 Twisting Mixer with a damaged cord or AC charger, after the appliance malfunctions, or if it is dropped or damaged in any manner.
• The use of attachments not recommended or sold by Morphy Richards may cause fire, electrical shock or injury.
• Do not use outdoors or for commercial purposes.
• Remove attachment from 3 in 1 Twisting Mixer before cleaning it.
• Do not place 3 in 1 Twisting Mixer on or near a hot burner or in a heated oven.
• Do not use 3 in 1 Twisting Mixer for other than intended use.
• Do not leave 3 in 1 Twisting Mixer unattended while it is operating.
• Turn off 3 in 1 Twisting Mixer before adding or removing attachments.

Product specific safety

• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
• The use of attachments or tools not recommended or sold by Morphy Richards may cause fire, electric shock or injury.
• Do not use the appliance for anything other than it's intended purpose.

Electrical requirements

• Only use the charging adaptor supplied with the unit.
• Do not attempt to remove the battery from the unit.

Notes

FP48405 MUK Rev 1 2/12

Registering your 2 year guarantee

Your standard one year guarantee is extended for an additional 12 months when you register the product within 28 days of purchase with Morphy Richards. If you do not register the product with Morphy Richards within 28 days, your product is guaranteed for 1 year. To validate your 2 year guarantee register with us online at

www.morphyrichards.co.uk

Or call our customer registration line

UK 0844 871 0962

IRE 1800 409 119

N.B. Each qualifying product needs to be registered with Morphy Richards individually.

Please note that the 2 year guarantee is only available in the UK and Ireland. Please refer to the one year guarantee for more information.

Your 1 year guarantee

It is important to retain the retailer's receipt as proof of purchase. Staple your receipt to this back cover for future reference.

Please quote the following information if the product develops a fault. These numbers can be found on the base of the product.

Model no.

Serial no.

All Morphy Richards products are individually tested before leaving the factory. In the unlikely event of any appliance proving to be faulty within 28 days of purchase, it should be returned to the place of purchase for it to be replaced. If the fault develops after 28 days and within 12 months of original purchase, you should contact the Helpline number quoting Model number and Serial number on the product, or write to Morphy Richards at the address shown.

You may be asked to return a copy of proof of purchase.

Subject to the exclusions set out below (see Exclusions), the faulty appliance will then be repaired or replaced as appropriate and dispatched usually within 7 working days of receipt.

If, for any reason, this item is replaced or repaired during the 1 year guarantee period, the guarantee on the new item will be calculated from original purchase date. Therefore it is vital to retain your original till receipt or invoice to indicate the date of initial purchase.

To qualify for the 1 year guarantee, the appliance must have been used according to the instructions supplied. For example, crumb trays should have been emptied regularly.

Exclusions

Morphy Richards shall not be liable to replace or repair the goods under the terms of the guarantee where:

1 The fault has been caused or is attributable to accidental use, misuse, negligent use or used contrary to the manufacturer's recommendations or where the fault has been caused by power surges or damage caused in transit.
2 The appliance has been used on a voltage supply other than that stamped on the products.
3 Repairs have been attempted by persons other than our service staff (or authorised dealer).
4 The appliance has been used for hire purposes or non domestic use.
5 The appliance is second hand.
6 Morphy Richards reserves the right not to carry out any type of servicing under the guarantee at its discretion
7 Plastic filters for all Morphy Richards kettles and coffee makers are not covered by the guarantee.
8 Batteries and damage from leakage are not covered by the guarantee.
- This guarantee does not confer any rights other than those expressly set out above and does not cover any claims for consequential loss or damage. This guarantee is offered as an additional benefit and does not affect your statutory rights as a consumer. Morphy Richards products are intended for household use only. See usage limitations within the location safety instructions.

Disclaimer

Morphy Richards has a policy of continuous improvement in product quality and design. The company, therefore reserves the right to change the specification of it's models at any time.

For electrical products sold within the European Community. At the end of the electrical products useful life, it should not be disposed of with household waste.

Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice in your country

NiMH

IF YOU ARE HAVING A PROBLEM WITH ONE OF OUR PRODUCTS, CALL OUR HELPLINE:

UK: 0844 871 0960 EIRE: 1800 409 119 SPARES: 0844 873 0726
