Product Type	Scooter
Brand	Hyosung
Model	Sense SD50
Engine Displacement	49.5 cc
Engine Type	4-stroke, single cylinder
Cooling System	Air-cooled
Fuel Type	Unleaded gasoline (95 RON)
Fuel Tank Capacity	5.5 L
Transmission	CVT automatic
Starting System	Electric and kick start
Front Brake	Disc brake
Rear Brake	Drum brake
Tire Size (Front)	120/70-12
Tire Size (Rear)	130/70-12
Weight (Dry)	95 kg
Dimensions (L x W x H)	1850 x 680 x 1100 mm
Wheelbase	1250 mm
Seat Height	760 mm
Maximum Speed	Approx. 45 km/h (restricted)
Battery	12V, 7Ah (maintenance-free)
Spark Plug Type	NGK CR7HSA (or equivalent)
Engine Oil Capacity	0.9 L
Recommended Oil	SAE 10W-40 (API SG or higher)
Maintenance Interval	Every 3,000 km or annually

Frequently Asked Questions - Sense SD50 HYOSUNG

What type of fuel should I use for the Hyosung Sense SD50?

The Hyosung Sense SD50 requires unleaded gasoline with an octane rating of 95 RON or higher. Do not use ethanol blends above E10.

How often should I change the engine oil?

Engine oil should be changed every 3,000 km or once a year, whichever comes first. Use SAE 10W-40 oil that meets API SG or higher standards.

What is the top speed of the Hyosung Sense SD50?

The scooter is factory-limited to approximately 45 km/h (28 mph) to comply with 50cc licensing regulations.

Do I need a motorcycle license to ride this scooter?

In most countries, a 50cc scooter can be ridden with a moped license or a full car license, depending on local laws. Check your local regulations.

What type of spark plug does the Sense SD50 use?

The recommended spark plug is NGK CR7HSA or an equivalent. Replace it every 6,000 km or as needed.

How do I start the scooter if the battery is dead?

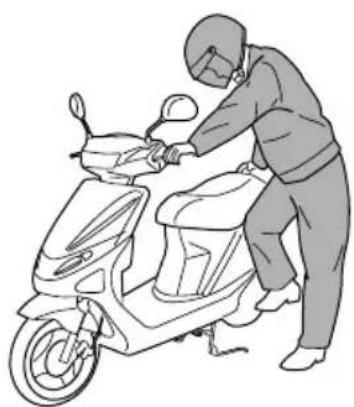

The scooter has a kick starter on the left side. Kick firmly while applying a little throttle to start the engine.

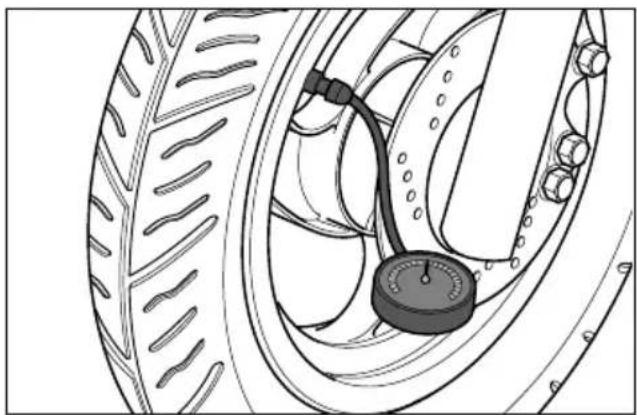

What is the correct tire pressure for the Hyosung Sense SD50?

Recommended tire pressure is 2.0 bar (29 psi) for both front and rear tires. Check when tires are cold.

How do I clean the air filter?

Remove the air filter cover, take out the foam element, and clean it with non-flammable solvent. Let it dry, then re-oil lightly before reinstalling.

What is the fuel tank capacity of the Sense SD50?

The fuel tank holds 5.5 liters of gasoline. Reserve capacity is approximately 1.5 liters.

How can I improve the fuel efficiency of my scooter?

Maintain proper tire pressure, avoid abrupt acceleration, keep the scooter serviced regularly, and ensure the air filter is clean.

USER MANUAL Sense SD50 HYOSUNG

Side profile of a white and black electric scooter with visible wheels and side panels (no text or symbols)

1st Ed.

Part No. 99011HF16B1

JUN.1997

Printed in KOREA

For U.S.A

IMPORTANT

BREAK-IN INFORMATION FOR YOUR MOTORCYCLE

The first 1000km(600miles) are the most important in the life of your motorcycle.

Proper break-in operation during this time will help ensure maximum life and performance from your new motorcycle.

Hyosung parts are manufactured of high quality materials, and manufactured parts are finished to close tolerances. Proper break-in operation allows the machined surfaces to polish each other and mate smoothly.

Motorcycle reliability and performance depend on special care and restraint exercised during the break-in period. It is especially important that you avoid operating the engine in a manner which could expose the engine parts to excessive heat.

Please refer to the BREAK-IN section for specific break-in recommendations.

WARNING/CAUTION/NOTE

Please read this manual and follow its instructions carefully. To emphasize special information the words WARNING, CAUTION and NOTE carry special meanings and should be carefully reviewed.

▲WARNING

The personal safety of the rider may be involved.

Disregarding this information could result in to the rider.

injury

▲CAUTION

These instructions point out special vice procedures or precautions that must be followed to avoid damaging machine.

ser-

the

NOTE: This provides special information to make maintenance easier or important instructions clearer.

FOREWORD

THANK YOU for choosing Hyosung. We have Hyosung have designed, tested and produced this motorcycle using the most modern technology available to provide you with many happy, enjoyable, safe riding. Motorcycling is one of the most exhilarating sports and insure your riding enjoyment, you should become throughly familiar with the information presented in the Owner's Manual before riding the motorcycle.

The proper care and maintenance that your motorcycle requires is outlined in this manual. By following these instructions explicitly you will insure a long trouble-free operating life for your motorcycle. Your Hyosung dealer has experienced technicians that are trained to provide your machine with the best possible service with the right tools and equipment.

atAll information, illustrations photographs and specifications contained in this manual are based on the latest product information available at the time of publication. Due to improvements or other changes, there may be some discrepancies in this manual. Hyosung reserves the right to make changes at any time.

Please note that this manual applies to all specifications for all respective destinations and explains all equipments. Therefore, your model may have different standard features than shown in this manual.

HYOSUNG MOTORS & MACHINERY INC.

COPYRIGHT HYOSUNG MOTORS & MACHINERY INC.

TABLE OF CONTENTS

1. CONSUMER INFORMATION 4......
   ACCESSORY INSTALLATION AND
   PRECAUTION TIPS
   SAFE RIDING RECOMMENDATION
   FOR MOTORCYCLE RIDERS

2. NAMES OF EACH PART 6......

3. CONTROLS 7

INSTRUMENT PANEL

IGNITION SWITCH

1. HOW TO USE 9......

HOW TO OPEN SEAT

HOW TO USE HELMET HOLDER

HOW TO USE PERSONAL TRUNK

1. GASOLINE AND ENGINE OIL 10

2. THE PROPER OPERATIONS 11......

3. INSPECTION BEFORE RIDING 16...
   BRAKES
   TIRES
   GASOLINE AND ENGINE OIL
   LAMPS
   REAR-VIEW MIRRORS

4. PERIODIC MAINTENANCE 19......

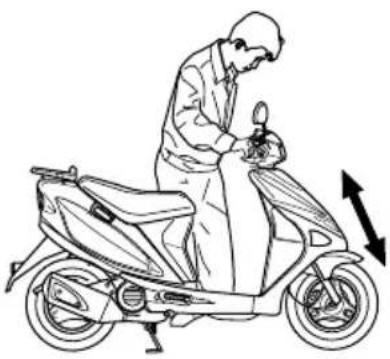

FRONT FORK

BRAKES

TIRES

AIR CLEANER

BATTERY

TRANSMISSION

ENGINE OIL AND GASOLINE

1. MAINTENANCE TIPS 23......

BRAKE LEVER

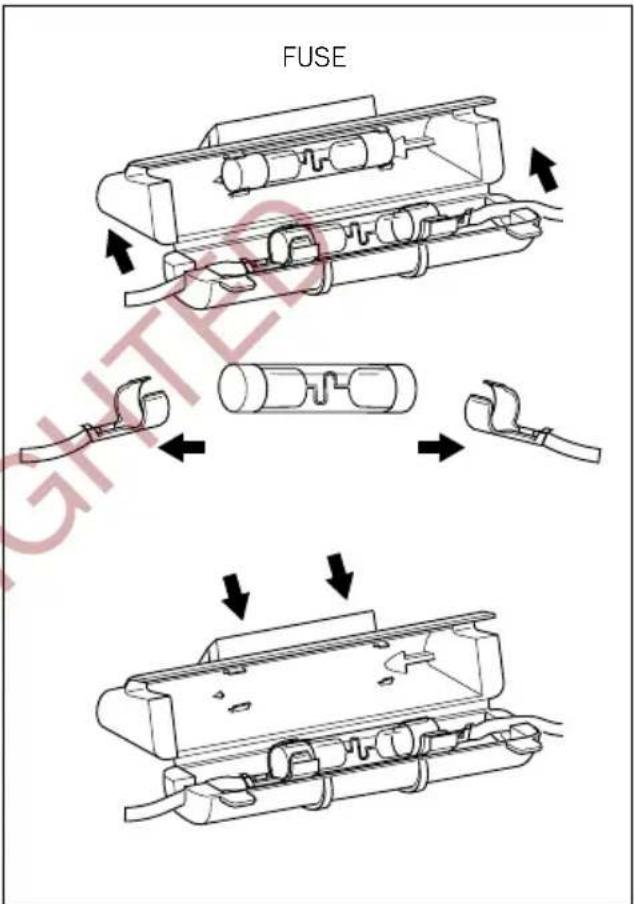

FUSES

BATTERY

AIR CLEANER

RUBBER CAP

1. SPECIFICATIONS 25

1. CONSUMER INFORMATION

ACCESSORY INSTALLATION AND PRECAUTION SAFETY TIPS

There are a great variety of accessories available to Hyosung owners. Hyosung can not have direct control over the quality or suitability of accessories you may wish to purchase. The addition of unsuitable accessories can lead to unsafe operating conditions. It is not possible for Hyosung to test each accessory the market or combinations of all the available accessories, however, your dealer can assist you selecting quality accessories and installing them correctly.

Use extreme caution when selecting and installing the accessories for your Hyosung. We have developed some general guidelines which will aid you when deciding whether, and how to equip your motorcycle.

(1) Anytime that additional weight or aerodynamic affecting accessories are installed, they should be mounted as low as possible, as close to the motorcycle and as near the center of gravity as is feasible. The mounting brackets and other attachment hardware should be carefully checked to ensure that it provides for a rigid, nonmovable mount. Weak mounts can allow the shifting of the weight and create a dangerous, unstable condition.
(2) Inspect for proper ground clearance and bank angle. An improperly mounted load could critically reduce these two safety factors. Also determine that the “accessories” does not interfere with the operation of the suspension steering or other control operations.
(3) Accessories fitted to the handlebars or the front fork area can create serious stability problems. This extra weight will cause the motorcycle to be less responsive to your steering control. The weight may also cause oscillations in the front end and lead to instability problems. Accessories added to the handlebars or front fork should be as light as possible and kept to a minimum.
(4) The motorcycle may be affected by a lifting condition or by an instability in cross winds or when being passed or passing large vehicles. Improperly mounted or poorly designed accessories can result in an unsafe riding condition

therefore caution should be used when selecting and installing all accessories.

(5) Certain accessories displace the rider from his or her normal riding position. This limits the freedom of movement of the rider and may limit his or her control ability.
(6) Additional electrical accessories may overload the existing electrical system. Severe overloads may damage the wiring harness or create a dangerous situation due to the loss of electrical power during the operation of the motorcycle.

in

When carrying a load on the motorcycle, mount it as low as possible and as close as possible to the machine. An improperly mounted load can create a high center of gravity which is very dangerous and makes the motorcycle difficult to handle. The size of the “load” can also affect the aerodynamics and handling of the motorcycle. Balance the load between the left and right side of the motorcycle and fasten it securely.

MODIFICATION

Modification of the motorcycle, or removal of original equipment may render the vehicle unsafe or illegal.

Motorcycle riding is great fun and an exciting sport. Motorcycle riding also requires that some extra precautions be taken to ensure the safety of the rider and passenger. These precautions are:

WEAR A HELMET

Motorcycle safety equipment starts with a quality safety helmet. One of the most serious injuries that can happen is a head injury. ALWAYS wear a properly approved helmet. You should also wear suitable eye protection.

RIDING APPAREL

Loose fancy clothing can be uncomfortable and unsafe when riding your motorcycle. Choose good quality motorcycle riding apparel when riding your motorcycle.

INSPECTION BEFORE RIDING

Review throughly the instructions in the "INSPECTION BEFORE RIDING" section of this manual. Do not for-

get to perform an entire safety inspection to ensure the safety of the rider and its passenger.

FAMILIARIZE YOURSELF WITH THE MOTORCYCLE

Your riding skill and your mechanical knowledge form the foundation for safe riding practices. We suggest that you practice riding your motorcycle in a non-traffic situation until you are thoroughly familiar with your machine and its controls. Remember practice makes perfect.

KNOW YOUR LIMITS

Ride within the boundaries of your own skill at times. Knowing these limits and staying within them will help you to avoid accidents.

BE EXTRA SAFETY CONSCIOUS ON BAD WEATHER DAYS

Riding on bad weather days, especially wet ones, requires extra caution. Braking distances double on a rainy day. Stay off of the painted surface marks, manhole covers and greasy appearing areas as they can be especially slippery. Use extreme caution at railway crossings and on metal gratings and bridges. Whenever in doubt about road condition, slow down!

SERIAL NUMBER LOCATION

The frame and/or engine serial numbers are used to register the motorcycle. They are also to assist your dealer when ordering parts or referring special service information.

The frame number ① is stamped on the right side of the under center in the frame.

The engine serial number ② is stamped on the right side of the crankcase assembly.

Please write down the numbers in the box provided below for your future reference.

Frame number:

Engine number:

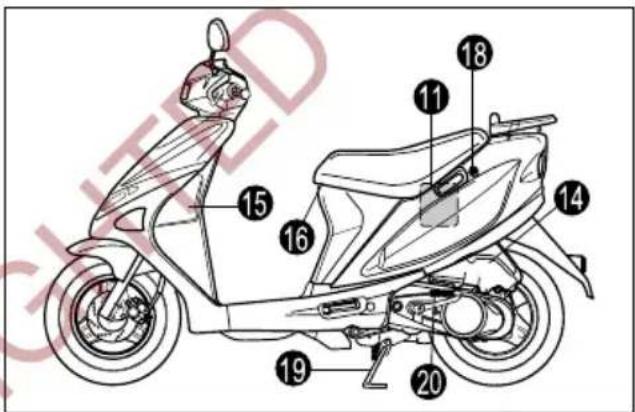

2. NAMES OF EACH PARTS

① Rear brake lever
② Dimmer switch
③ Turn signal switch
④ Horn switch
⑤ Ignition switch
⑥ Starter button
⑦ Light switch
⑧ Front brake lever
⑨ Throttle grip
⑩ Rear carrier
⑪ Fuel tank
⑫ Personal space
⑬ Muffler
⑭ Air cleaner
⑮ Battery & Fuse
⑯ Helmet holder
⑰ Oil tank
⑱ Seat lock
⑲ Center stand
⑳ Kick start lever

- “--” means the invisible parts

3.CONTROLS

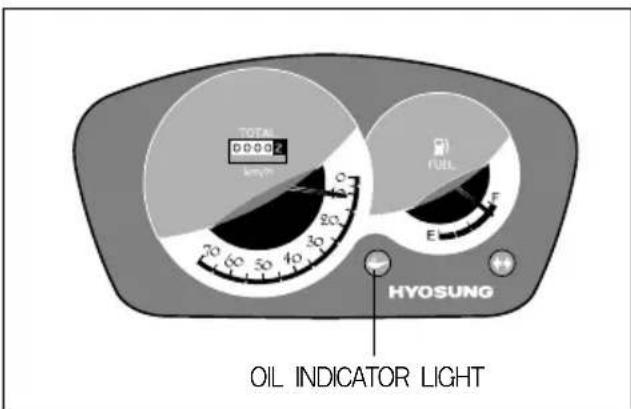

INSTRUMENT PANEL

① SPEEDOMETER

The speedometer indicates the road speed in kilometers per hour.

② ODOMETER

The odometer registers the total distance that the motorcycle has been ridden.

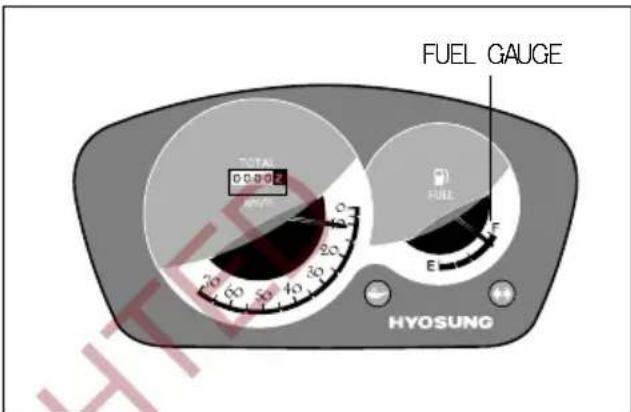

③ FUEL GAUGE

It indicates the remaining fuel amount in the fuel tank. E indicates the fuel tank is empty or nearly so. (the remaining fuel is 0.8 l at E. the capacity is 4.8 l) Fill the fuel tank before E.

▲CAUTION

The fuel gauge indicates the remain amount whenever the ignition switch "ON" or "OFF". For checking the rem amount of fuel, put the motorcycles on center-stand and set the ignition switch "ON".

④ TURN SIGNAL INDICATOR LIGHT

When turn signals are being operated. the indicator will flash intermittently.

⑤ OIL INDICATOR LIGHT

When the engine oil level in the tank becomes too low requiring "HYPOL OIL" refilling the indicator will light. When the oil level check light turns on, the remaining amount of oil has become approximately 300ml.

▲CAUTION

The lack of Engine oil could cause serious damages on the Engine.

SWITCH

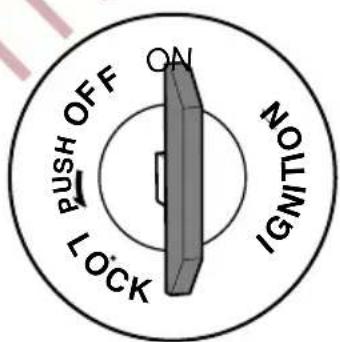

① IGNITION SWITCH

The ignition switch has three positions:

"ON" POSITION

The ignition circuit is completed and the engine can now be started. The key cannot be removed from the ignition switch in this position.

"OFF" POSITION

All electrical circuits are cut off.

"LOCK" POSITION

To lock the steering, turn the handlebar all the way to the left. Push down and turn key to the "LOCK" position and remove the key. All electrical circuits are disconnected.

For preventing steal, Lock the steering.

⑦ Turn right the handle
Turn the key from OFF to Lock.
© Pull out the key while from Lock to OFF.

▲CAUTION

• Check if the steering is locked.
• When it is not locked, Turn the handle right a little.

② TURN SIGNAL SWITCH

It is for left/right turning or changing lanes.

“→position - for right turn signal
"←" position - for left turn signal
“”Push the switch to cancel the operation.

▲CAUTION

Turn off the lamp right after completing the turn or lane change.

If you keep the lamp on, it could cause other drivers to be confused.

③ HORN SWITCH

Press the switch to operate the horn.

④ DIMMER SWITCH

“≡”position - for headlight high beam.
“ ” position - for headlight low beam.

▲CAUTION

Set the dimmer switch "when other vehicle is running in front or against.

⑤ LIGHT SWITCH

position

All light go off.

position

The headlight, meter lamp and taillight come on.

⑥ STARTER BUTTON

Push in the electric starter button to rotate the stater motor.

NOTE: If the front or rear brake lever is squeezed, the starter motor will not rotate.

▲CAUTION

When the starter motor doesn't rotate within 5 seconds after pushing the button, try again after 10 seconds for preventing the dan on battery.

4. HOW TO USE

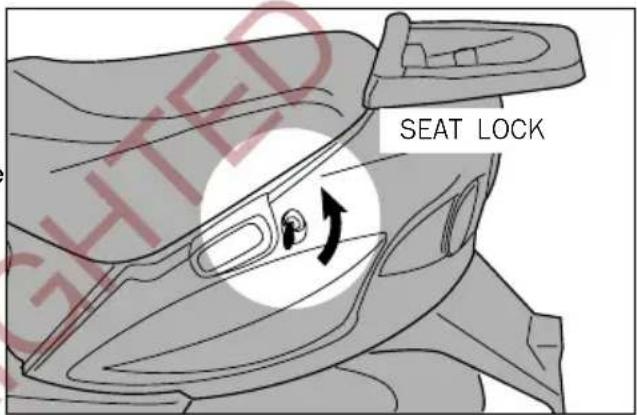

HOW TO OPEN THE SEAT

You can use the helmet holder/Trunk after opening the seat.

To unlock the seat, insert the ignition key into the lock and turn it counterclockwise.

not lock the seat, push down firmly until the seat latch snaps into the locked position.

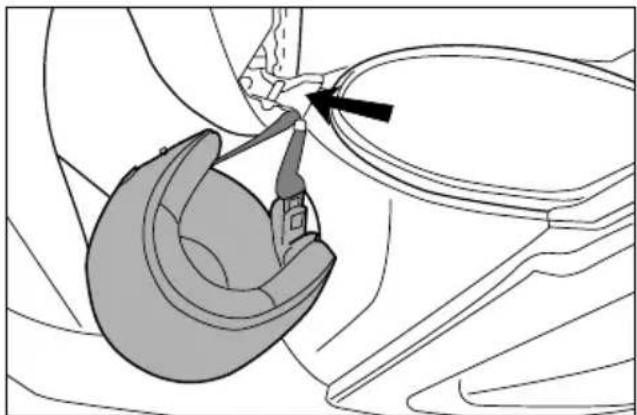

① HELMET HOLDER

To search the helmet holder, open the seat.

Mechanical assembly diagram showing a gear and lever mechanism (no text or labels)

Lock the seat, after hang helmets tail on a helmet holder.

THE PERSONAL TRUNK

• Keep the maintenance manual in the personal trunk.
• Put the helmet as shown in the picture.
• The trunk laod capacity is 10kg(22 lbs)

Technical line drawing of a mechanical component with no visible text or symbols

▲CAUTION

• The trunk could be heated. Don't keep anything that doesn't endure heat.
• Don't keep the fragile.
• Check if it is locked.
• The unlocking of trunk could cause ous accident.
• Take care not to spill the gasoline or oil in the trunk.
• Don't allow water to get inside the trunk or it could damage.
• Don't wash the trunk with water. Use the vacuum cleaner.
• Don't keep the valuables in the trunk when leaving unattended.

5. GASOLINE AND ENGINE OIL

HOW TO PROVIDE THE GASOLINE

1. Put the key into the seat lock and turn left and open the seat.
2. Turn the fuel tank cap left.
3. Fill the fuel tank and turn the cap right tightly.

▲WARNING

• When refueling, always shut the engine off and turn the ignition. Key to the "OFF" position. Never refuel near an open flame.
• Do not overfill the fuel tank. Do not fill the fuel tank above the bottom of the filler tube as shown in the illustration.

▲CAUTION

Take care not to spill gasoline during refueling.

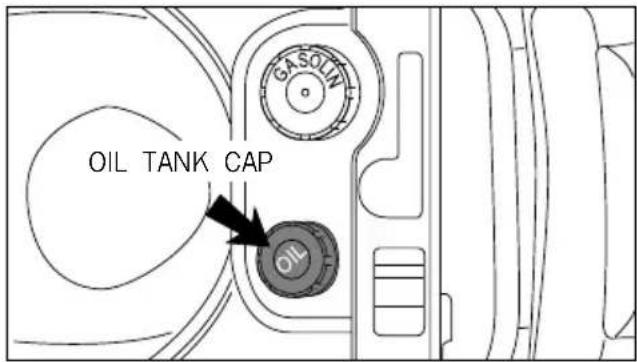

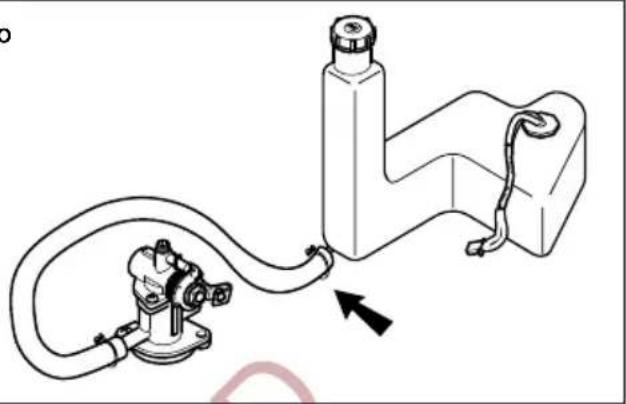

HOW TO SUPPLY THE ENGINE OIL

1. Open the seat.
2. Turn the oil tank cap left.
3. Fill the oil tank and tighten it. (Use the recommended oil)

▲CAUTION

A burnt engine is usually a result of engine starting with no oil in the oil tank. Check the oil level before starting and avoid costly damage.

▲CAUTION

• Don't mix the unrecommended oil. It damage the engine.
• When refilling the oil tank, Don't allow the dust to get inside.
• Mop the oil spilt.
• Don't put the patch on the cap. I disturb the oil to be provided and damage the engine.

6. THE PROPER OPERATIONS

HOW TO START THE ENGINE

Before riding

• Check how much the engine oil and gasoline is left.
• Put the motorcycle on the centerstand.

① Set the ignition switch "ON"

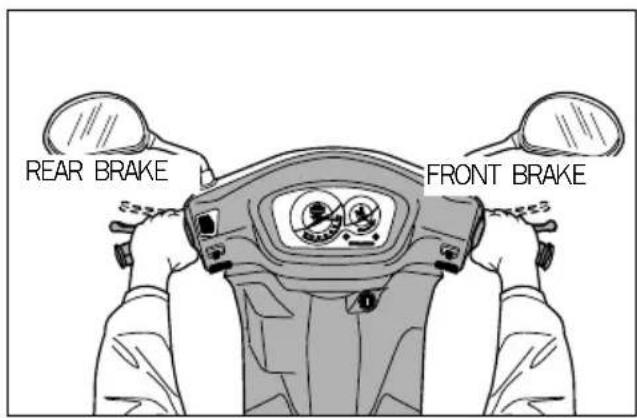

② Squeeze the rear brake lever. could

③ Push the start button without turning the throttle grip.

Illustration of a person using a tool on a scooter's seat, no text or symbols present

▲CAUTION

• Depress the start button right after started.
• When the start motor doesn't rotate within 5 seconds after pushing the start button, try again after 10 seconds for venting the damage on battery.

- When it doesn't start after several trial, turn the throttle grip to 18 14 position.

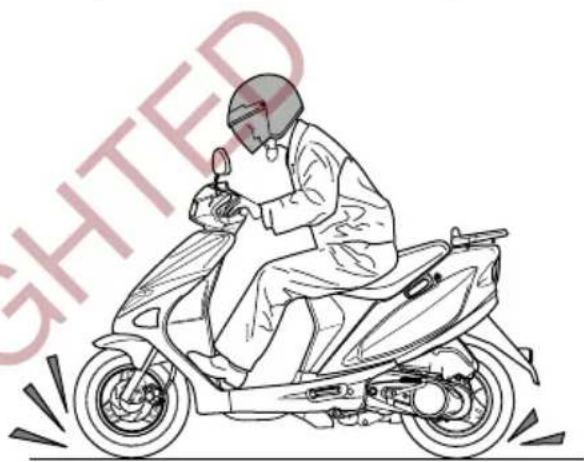

▲CAUTION

When started, return the throttle grip.

- It is not started easily in the cases as follows. 1) It was long ago to start the engine. 2) There was no gasoline left. In this case(1.2), push the start button longer without turning the throttle grip.

④ When the engine is cold, idle it for a while.

▲CAUTION

• Don't idle it indoor where there is little or no ventilation available.
• The exhaust gas including carbon monoxide is extremely poisonous.

Start using the kick starter lever

pre- You can start using the kick starter lever when there is some problem in battery.

① Put the motorcycle on the center stand.
② Set the ignition switch "ON"
③ Press forcefully the kick starter lever.

Line drawing of a person adjusting an electric scooter (no text or symbols)

▲CAUTION

When started, return the kick starter lever.

HOW TO START OFF

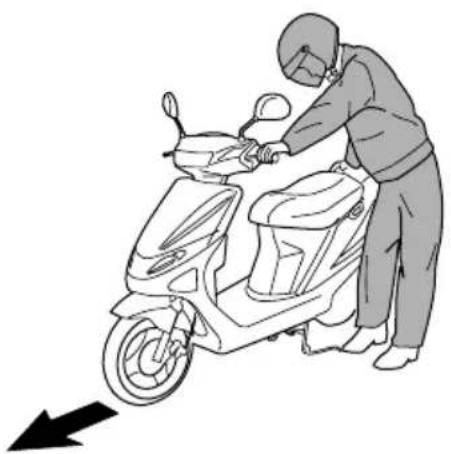

① Return the center stand.

For returning the center stand, push the

motorcycle forward gripping the rear brake

lever with left hand and the rear carrier wi right hand.

Line drawing of a person adjusting an electric scooter (no text or symbols)

▲CAUTION

When returning the center stand, Don't the seat.

② Ride on

Gripping the lever with both hands, be seated on from leftside of motorcycle.

Put the left foot on the earth and fasten rear brake lever.

Line drawing of a person riding a scooter, wearing a helmet and pants (no text or symbols)

▲CAUTION

Don't let the engine run excessively before riding.

③ Check the safety

Turn on the left turn signal lamp and check the safety.

Grap up the rear brakd lever.

Line drawing of a person riding a scooter on a paved road (no text or symbols)

▲CAUTION

Be careful of the vehicles in back.

④ Start off

Depress the rear brake lever and turn the throttle grip slowly, the motorcycle will start the moving forward.

▲CAUTION

When turned the throttle grip exces sively, it will make quick start which is dangerous.

You can adjust the speeds with the throttle grip.

Turning - - - - Get faster Returning - - - - Get slower

Apply the front and rear brakes at the same-time.

- Grip the brake lever right after returning the throttle grip. - Make the speed lower by operating the brake slowly.

▲CAUTION

- Using either front or rear brake is dangerous and can cause skidding and loss of control

© The quick brake can cause skidding.

Line drawing of a person riding a scooter with motion lines indicating speed (no text or symbols)

◎ Pay much more attention to driving when rains or snows.

- When the brake doesn't work normally, keep low speeds and apply the brake lightly until smoothly operated.

Line drawing of a person riding a scooter under rain, no text or symbols present

HOW TO STOP AND PARK

① Turn on the turn signal lamp and return the throttle grip.
② When completely stopped, turn off the turn signal lamp. Set the key "OFF" position.

③ Put the motorcycle on the center stand.

Line drawing of a person kneeling beside a scooter, no text or symbols present

▲CAUTION

Don't park the motorcycle on the slippery tilted surface.

④ Lock the steering for security.
⑤ Pull the ignition key out of the lock and keep it yourself.

BREAKING-IN

During manufacture only the best possible materials are used and all machined parts are finished to a very high standard but it is still necessary to allow the moving parts to "BREAK-IN" before subjecting the engine to maximum stresses. The future performance and reliability of the engine depends on the care and restraint exercised during its early life. The general rules are as follow:

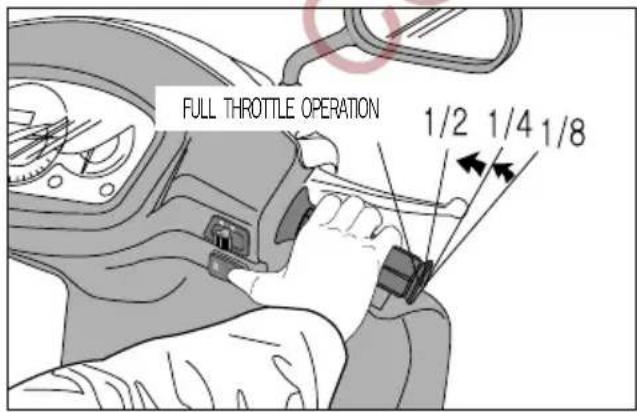

- Keep to these breaking-in speed limit:

Up to 1000km(600miles):Less than 4/5 throttle

• Upon reaching an odometer reading of 1000km(600miles) you can subject the motorcycle to full throttle operation.
• Do not maintain constant engine speed for an extended time period during any portion of the break-in.

Try to vary the throttle position.

or

7. INSPECTION BEFORE RIDING

Running inspection once in a day and periodic maintenance(5,000km or 10,000km) is necessary for the full performance and preventing accidents.

▲CAUTION

• Even though the motorcycle is not run for a long time, the periodic maintenance necessary.
• The engine and muffler is too hot rig after engine stopped. please be caerful not to be burned.
• Don't inspect the engine indoor where there is little or no ventilation available. The exhaust gas is extremely poisonous.

② BRAKE FLUID

• Keep the motorcycle upright and place the handlebar straight.

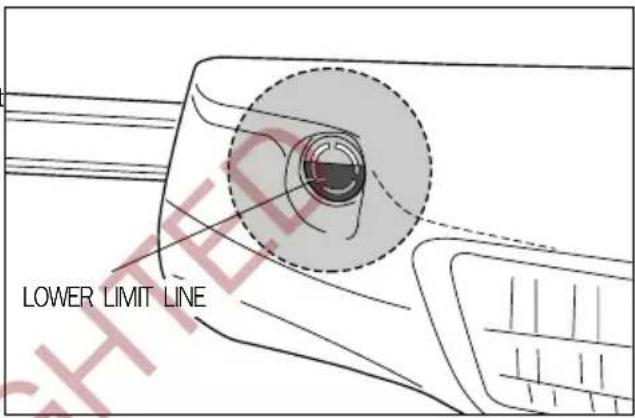

• Check brake fluid level by observing the lower limit line on the brake fluid reservoir.
• When the level is below the lower limit line, replenish with brake fluid.

BRAKES

① THE BRAKE LEVER

• Turn the front/rear brake adjuster clockwise/or counterclockwise to obtain the specified play.
  • After adjusting the play, check there is dragging and enough clearance between the brake lever and grip when the lever tightly squeezed.

TIRES

① THE TIRE PRESSURE

no

If you see the problem with the tire, adjust the ispressure with the pressure gauge.

▲CAUTION

If there are some problem with the pressure or cracks and cuts, it decrease the riding stability and lead flat tire.

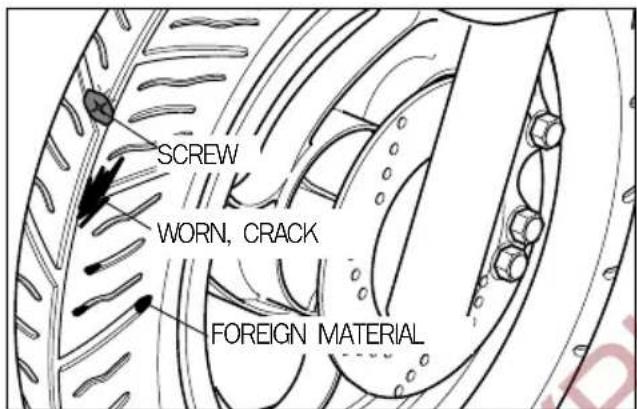

② CRACKS AND CUTS

Check if

1) there are visible cracks and cuts.
2) there are pebbles stuck.

③ THE DEPT OF TIRE TREAD

Change the tire if the remaining depth tire tread becomes 1.6mm(0.06inch) or less.

THE GASOLINE AND ENGINE OIL

tire

will① THE GASOLINE to

• Check if the remaining gasoline is enough for running to the destination.
• Replenish the gasoline before reaching "E" mark with the ignition switch in the "ON" position.

② FUEL RECOMMENDATION

• Use unleaded gasoline with an octane rating of 91 or higher (Research method). Unleaded gasoline can extend spark plug life and exhaust components life.
• If pinking or knocking is experienced, substitute higher octane grade gasoline or another brand, because there are differences between brands.

③ ENGINE OIL

- Replenish the Engine oil when the Engine oil indicator light is on with the ignition switch in the "ON" position.

Use Hyosung "HYPOL OIL" If They are not available, a good quality TWO-STROKE engine oil (nondiluent type) should be used.

THE LAMPS

• Check if the head lamp, tail lamp and turn signal lamp work well with the engine started.
• Check if the lamp are dusty or damaged.

THE REAR - VIEW MIRROR

Check if the mirror shows the rear and/or side views.

Person wearing a scooter's seat with two side mirrors and a dashboard, no visible text or symbols

REFLECTOR AND THE NUMBER PLATE

• Check if the reflector is dusty or damaged.
• Check if the number is clear and dusty or damaged.

8. PERIODIC MAINTENANCE

The belows show the schedule of periodic maintenance by mileages. More frequent maintenance must be performed on motorcycles that are used under severe conditions.

© LUBRICATION

	First 1,000km	Every 5,000km	Every 10,000km
Throttle cable Motor	oil ← -
Throttle grip	-	-	Grease
Brake hose, cable	Inspect		InspectIns
Bearing of Steering stem	Grease every 2years or every 20.000km
Brake lever	Grease	←	-

© ENGINE

	First1,000km	Every5,000km	Every10,000km
Engine bolt/nut Tighten ←			-
Air cleaner		Clean every 3,000kmClean
Spark plug	Clean		CleanClean
Carburetor	Inspect	←	-
Engine hose	Inspect	←	-
	Replace every 2years

© CHASSIS

	First 1,000km	Every 5,000km	Every 10,000km
Drive belt	-	-	Inspect
Brake	Inspect	←	-
Tire	Inspect	←	-
Bolt / Nut	Inspect	←	-
Steering	Inspect	←	-

FRONT FORK

• Check if there is any noise by bend of front fork while moving the handle upward and downward.
• Inspect whether the steering stem is well assembled while moving front fork up/downwards and/or foreward/backward.

Line drawing of a person riding an electric scooter with motion arrows indicating speed (no text or symbols)

BRAKES

- Turn the front/rear brake adjuster clockwise or counterclockwise to obtain the specified play.

• Check the front/rear brake while running in low speeds.
• Check if there is leakage or damage on the brake fluid reservoir and the connected parts are loose.
• Check if the vibration damages the brake hose while moving the handle left/right or running.

BRAKE FLUID

• Keep the motorcycle upright and place the handle straight.
• Check the brake fluid lever by observing the lower limit line
• When the level is below the lower limit line, check if there is leakage.

BRAKE PADS

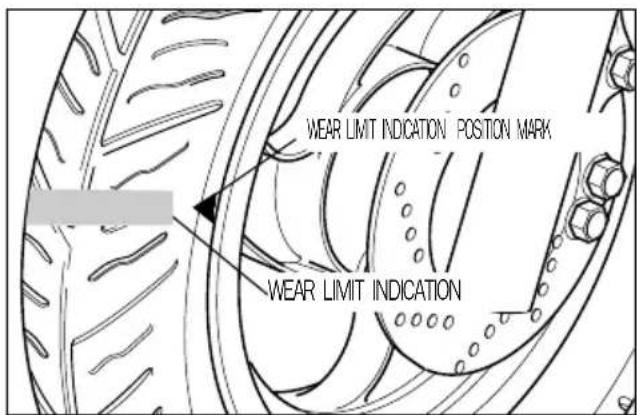

- Wearing condition of brake pads can be checked by observing the wear limit line on the pads. When the wear exceeds the limit line, replace the pads.

• How to replenish with brake fluid
1. Clean the brake fluid reservoir around not to allow dusts to get inside of it.
2. Loosen the screw and open the cap.

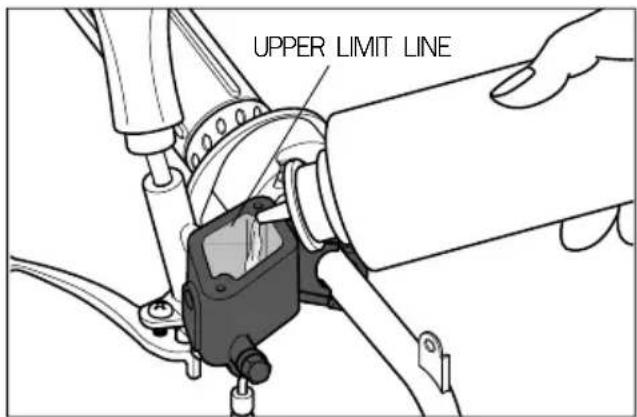

3. Replenish with brake fluid to the limit line. the recommended brake fluid:DOT4
4. Fasten the cap.

▲CAUTION

• Don't replenish with brake f over the limit line. It will leak out of the brake fluid reservoir.
• Be careful not to allow dusts water to go inside when replenishing.
• Don't use the unrecommended brake fluid.
• Brake fluid can damage severely the plastics or rubbers. When it is spilt on the parts, mop them up.

TIRES

Check the tire pressure when it is cold.

Tire Pressure Front Rear
Solo riding		2.00 kg/cm ^2 1.25 kg
Dual riding	-	-

g/cm

Technical line drawing of a tire assembly with a central sensor or dial (no text or symbols)

AIR CLEANER

1. Remove the left side cover.
2. Take out air cleaner by disassembling 5 screws.
3. Put out the filter.

Mechanical assembly diagram showing a clamping mechanism with no visible text or symbols

SCREW

Technical line drawing of a mechanical assembly with no visible text or symbols

FILTER

▲CAUTION

• When the assembly of air cleaner filter is not completely done, dusts can go inside and damage severely engine.
• Be careful not to allow water to into the filter while washing.

BATTERY

• This motorcycle is equipped with sealed MF battery.
• Charging the battery does not need.

▲CAUTION

• Don't take off the sealed cap.
  Take off the battery when the motorcycle is not used for a long time to prevent electric discharge or leakage. When the battery is attached on the motorcycle, take off the (-) terminal.

TRANSMISSION OIL

Check if the transmission oil leaks.

ENGINE OIL AND GASOLINE

- Check if there is leakage around the oil pump and oil tank.

go

Diagram of a mechanical device with hoses and a valve, showing no text or symbols

- Check if there is leakage from gasoline tank, hose and carburetor.

Technical diagram of a mechanical device with attached pipe and valve (no text or labels)

9. MAINTENANCE TIPS

BRAKE LEVER

Check if it is within the required range when you squeeze the brake lever until feel the resistance.

▲CAUTION

• When it is beyond the required range replace the brake shoe.
• Fix ☐ part of nut to pin or the serious accident can be caused by the brake failure.

FUSES

Check the fuse with the ignition switch "ON"

1. Remove the battery cover.
2. Take out the fuse holder.
3. Open the fuse holder and take out the fuse.

▲CAUTION

• Always be sure to replace the blown fuse with the correct amperage fuse.
- If the replaced fuse is blown in a short time, it means there are other problems. Check the other parts.
- Don't pour water on the fuse box when washing.

BATTERY TERMINAL

Clean the battery terminal when it is dusty or rusted.

1. Deassemble the cover of battery box.
2. Set the ignition switch "OFF" position.
3. Clean the terminal. If there is white dust clean it with warm water.
4. Assemble the battery wires and grease the terminal lightly.

Line drawing of a battery with a hand holding a clip (no text or symbols)

▲CAUTION

• Keep the battery away from fires.
• When disassemble the battery wires, take off ⊖ terminal first with the ignition switch “OFF” position. When assemble, ⊕ terminal first.

AIR CLEANER

1. Take off the air cleaner filter.
2. Wash it with cleaning solvent and dry.
3. Immerse it in motor oil squeeze the oil to make it slightly wet with oil.
4. Assemble the air cleaner filter.

▲CAUTION

• Don't use the cleaning solvent whose flash point is low when cleaning the filter.
• Assemble the filter completely or damage severely the engine.
• Be careful not to allow water to go inside the air cleaner filter.

RUBBER CAP OF CABLES

Mope them up with a patch when washing.

off

10. SPECIFICATIONS

DIMENSIONS AND DRY MASS

Overall length 1,780mm(70.1in)

Overall width 660mm(26.0in)

Overall height 1,065mm(41.9in)

Wheelbase 1,221mm(48.1in)

Ground clearance 112mm(4.4in)

Dry mass 84kg(185lbs)

ENGINE

Type Two-stroke, forced air cooled

Intake system .... Reed valve

Number of cylinder 1

Bore 41.0mm(1.614in)

Stroke 37.4mm(1.472in)

Piston displacement 49cm³(3.0cu.in)

Corrected Compression ratio 7.4:1

Carburetor SIDEDRAFT V.V.

Air cleaner Polyurethane foam element

Starter system ...... Electric and kick

Lubrication system …… HYOSUNG “CCI”

TRANSMISSION

Clutch Dry shoe, automatic, centrifugal type

Reduction ratio 2.815\~0.866(Variable)

Drive system V-belt drive

CHASSIS

Front suspension Telescopic, coil spring, oil dampened

Rear suspension …… Swingarm type, coil spring, oil damped

Caster 25°

Trail 70mm(2.75in)

Steering angle 45° (right & left)

Turning radius 1.9m(6.2ft)

Front tire size 100/80-10 53J

Rear tire size 100/80-10 53J

Front brake .... Disc

Rear brake.... Internal expanding

ELECTRICAL

Ignition type …… HYOSUNG “CDI”

Ignition timing 23° B.T.D.C.at 4000 r/min

Spark plug GOLDEN : BP6HS

Battery 12V 3Ah/10HR

Generator Magneto

Fuse 10A

Headlight 12V 18/18W×2

Turn signal light 12V 10W

Tail/Brake light 12V 5/10W

Speedometer light 12V 1.7W×2

Oil level indicator light 12V 1.7W

Turn signal indicator light 12V 1.7W

Trunk light 12V 2W

CAPACITIES

Fuel tank 4.8L(1.3/1.1 US/Imp gal)

Engine oil tank 1.2L(1.2/1.0 US/lmp qt)

Final gear oil 80ml(2.7/2.8 US/lmp oz)

Prepared by

HYOSUNG MOTORS & MACHINERY INC.

Overseas Service

1st Ed. JUN. 1997

Printed in KOREA

WARNING

Noise Control System(muffler assembly)

TAMPERING WITH NOISE CONTROL SYSTEM PROHIBITED

Owners are warned that the law may prohibit :

(a) The removal or rendering inoperative by any person other than for the purpose of maintenance, repair or replacement, of any device or element of design incorporated into any new vehicle for the purpose of noise control prior to its any sale or delivery to the ultimate purchaser or while it is in use; and
(b) The use of the vehicle after such device or element of design has been removed or rendered inoperative by any person.

MAINTENANCE:

The exhaust system of this motorcycle requires no periodic maintenance. The engine should be adjusted to the manufacture's specifications and the spark plug should be kept in good condition. Running the engine with incorrectly operating spark plug or misadjusted carburetor may cause permanent damage to the catalyst and to the noise control system.

CONSUMER INFORMATION

HYOSUNG MOTORS & MACHINERY INC.

77, SUNGSAN-DONG, CHANGWON-SHI,

KYUNGNAM, SOUTH KOREA

REPORTING OF SAFETY DEFECTS

If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Hyosung Motors & Machinery Inc.

If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign.

However, NHTSA cannot become involved in any individual problems between you, your dealer, or Hyosung Motors & Machinery Inc.

To contact NHTSA, you may either call the Auto Safety Hotline toll-free at 1-800-424-9393 (366-0123 in Washington, D.C. area) or write to:

NHTSA

U.S. DEPARTMENT of TRANSPORTATION

400 7th Street SW, (NSA-11)

Washington, D.C. 20590.

You can also obtain other information about motor vehicle safety from the Hotline.
